Product type	Immersion circulator for sous vide cooking
Brand	Taurus
Model	Roner Clip+
Usage	Low-temperature cooking, sous vide, pasteurization (85°C)
Temperature range	30°C to 85°C (estimated)
Container capacity	6 to 15 liters
Minimum water level	Marked MIN on the device
Maximum water level	Marked MAX on the device
Display	Digital screen with temperature and time indicators
Timer	Yes, adjustable in hours and minutes
Low water level alarm	Message EE1 with 3 beeps
Safety device	Overheat protection (automatic shutdown)
Body material	Stainless steel
Clamp material	Plastic
Cleaning stainless steel body and turbine guard	Dishwasher (gentle mode) or warm soapy water
Cleaning the electrical unit	Damp cloth, do not immerse
Replacement parts available	Stainless steel body, turbine guard, turbine
Warranty	In accordance with applicable legislation
Technical service	http://taurus-home.com/

Frequently Asked Questions - Roner Clip+ TAURUS

How to set temperature and time on the Roner Clip+?

After plugging in the device, press the on/off symbol. Use the adjustment button to select the desired temperature. To set the time, press the °C/° symbol to switch to hours and then minutes adjustment, and adjust with the adjustment button. Confirm by pressing the on/off symbol again.

What does the EE1 message on the screen mean?

The EE1 message accompanied by 3 beeps indicates a low water level. This may happen if the water is below the minimum level, if the device was taken out of the water during operation, if the water has evaporated, or if the device is running without water. Add water to the appropriate level.

The device makes a humming noise, is that normal?

Yes, a humming noise is normal when the motor and cooling fan are running. If the noise is excessive, check that the stainless steel body is properly clipped (push up and turn right until click). A water swirling noise can be reduced by adjusting the water level.

How to clean the Roner Clip+?

Unplug the device and let it cool. Disassemble the stainless steel body by turning counterclockwise. Remove the turbine guard using a screwdriver. Clean these parts with warm soapy water or in the dishwasher (gentle mode). Clean the electrical unit with a damp cloth; never immerse it.

Can I use the device without water?

No, never operate the device without water. This would damage the device and could cause overheating. Always respect the minimum and maximum water levels.

Why does the displayed temperature not match my thermometer?

Sous vide cooking devices are calibrated according to scientific standards that may differ from common thermometers. A slight difference is normal and does not affect the cooking quality.

What to do if the device does not turn on?

First check that the power outlet works. If the device still does not turn on, it may have disconnected due to overheating. Unplug it, wait about 15 minutes, then plug it back in. If the problem persists, contact authorized technical support.

How to properly assemble the stainless steel body?

Hold the device and align the unlock symbol with the arrow. Turn the stainless steel body clockwise until the lock symbols are aligned horizontally. You should hear a click.

How to disassemble the device for cleaning?

Unplug the device. Hold the main body and turn the stainless steel body counterclockwise to unlock. Then remove the turbine guard using a screwdriver.

What container capacity is recommended for the Roner Clip+?

The device is designed to be used with a container or pot of 6 to 15 liters. Ensure the water reaches at least the minimum level and does not exceed the maximum level.

USER MANUAL Roner Clip+ TAURUS

Line drawing of a handheld electronic device with handle and ports (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Español

Vacuum and low temperature cooker

Roner Clip +

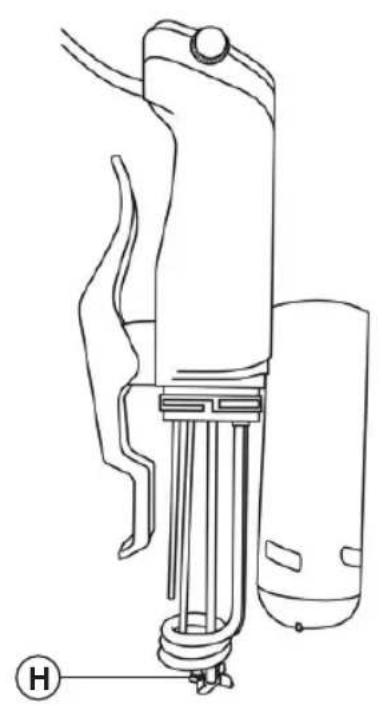

DESCRIPTION

A Scroll whell
B Control Interface
C Working illuminator
D Clamp
E MAX and MIN water level
F Stainless Steel Skirt
G Water Pump Cap
H Blade

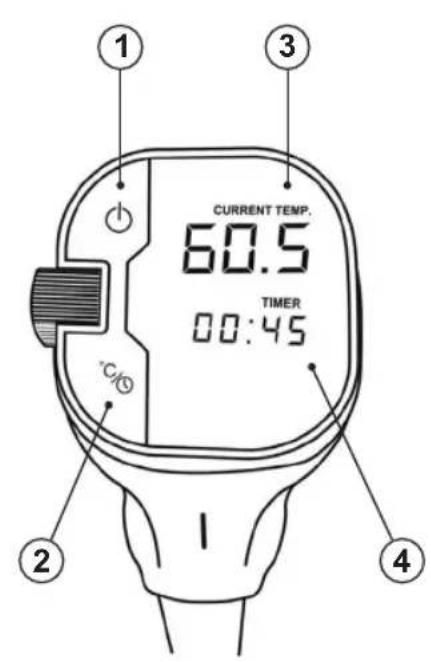

CONTROL DISPLAY

1 ON/OFF icon
2 Time and temperature selection icon
3 Temperature indicator
4 Time display

USE AND CARE:

• Fully extend the appliance's power cable before each use.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if the accessories attached to it are defective. Replace them immediately.
• Do not switch the appliance on without water.
• Do not use the appliance if the on/off switch does not work.
• Do not use the appliance if it is tipped up and do not turn it over.
• Do not turn the appliance over while it is in use or connected to the mains.
• Respect the MAX and MIN levels.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

• Do not store or transport the appliance if it is still hot.

• Burn Hazard: the cooking container, the stainless steel portion of circulator and food pouches all get hot when used. Use oven mitts or tongs when handling. Allow system to cool before emptying the water bath.

• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.
• Only use water with the appliance.
• Do not use deionized water (DI water).

APPLICATIONS:

• Cooking of products previously vacuum-packed (meat, fish, poultry, vegetables, terrines, pates, jams, preserves, aromatic oils...).
• Pateurization (85°C of elaborations cooked with traditional techniques).

ADVANTAGES:

• Low-temperature cooking prevents liquid loss and dehydration and drying of food while respecting its natural structure.
• Vacuum cooking enhances the aromas and flavors of food and condiments used.
• Respecting cooking chain, the life of the food is considerably extended.
• Allows preparing dishes in advance.
• Cooking in water ensures more accurate results tan in a convection oven.

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all the product's packaging has been removed.

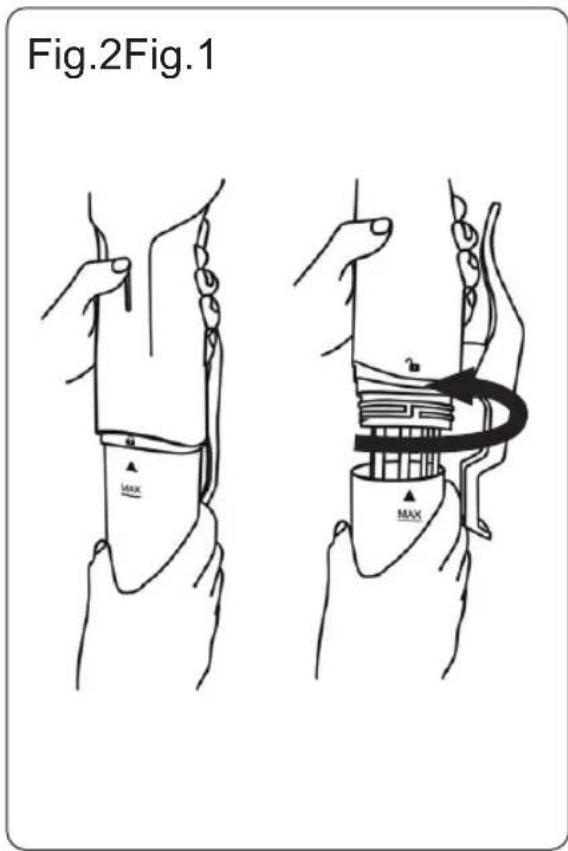

INSTALL THE SKIRT:

- Hold the unit and align the unlocking symbol and the arrow, rotate the skirt in clockwise direction until you can see the arrow and locking symbol are in the same horizontal position (Fig. 1).

USE:

• Extend the cable completely before plugging it in.
• Firmly lock the appliance by clamping it on the side of your container.
• This appliance requires a 6-15 L container or pot.
• Connect the appliance to the mains.

- The icon and working lamp will flash in red and it will enter in stand-by mode. You will hear a sound of beep.

- Press the icon to enter the setting mode. You will hear a sound of beep.

- Select the desired cooking temperature using the scroll wheel.

- Select the cooking time pressing the icon ^ C/ ^ and using the scroll whell. First, select the hours and then the minutes pressing again the icon.

- Press the icon to confirm the setting and the unit will work. You will hear a sound of beep. The working illuminator have to light in blue.

- The temperature indicator will change as the water warms up.

- The timer will countdown when it meets the setting temperature.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

- "END" will appear on the screen indicating that the time has ended. You should hear 3 "beep" sounds.

- Press and hold the ⏻ icon for 3 seconds to stop.

- Unplug the appliance from the mains.

- Clean the appliance.

SAFETY THERMAL PROTECTOR:

- The appliance has a safety device, which protects the appliance from overheating.

- When the appliance switches itself on and off repeatedly, for reasons other than the thermostat control, check to ensure that there are no obstacles that impede correct air entry or expulsion.

- If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

SPECIAL MESSAGES:

- When the EE1 message appears on the screen, accompanied by 3 "beep", it may mean that:

- The water level is below the minimum level.

- The appliance was taken out of the water while it was working.

- The water has evaporated.

- The appliance is being used without water.

CLEANING

- Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

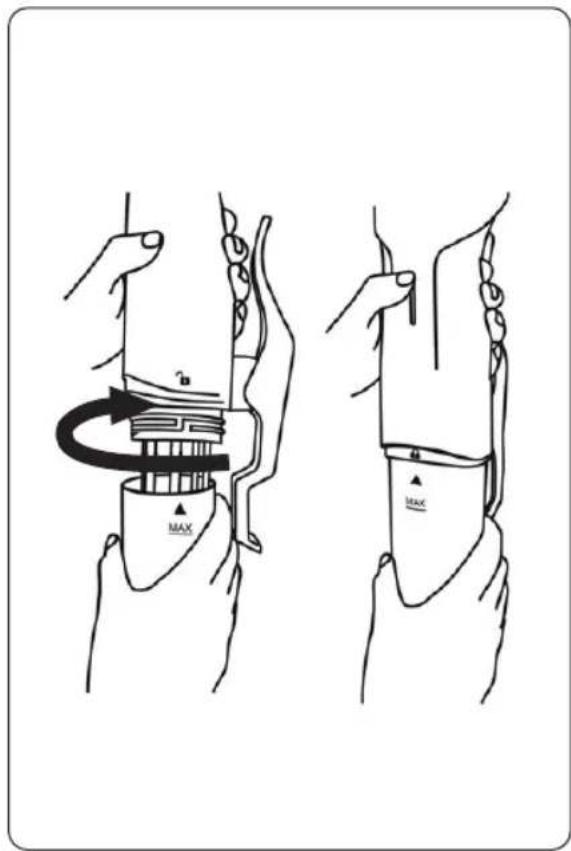

- Disassemble the appliance, hold the unit and rotate the skirt in anticlockwise (Fig. 2).

- Remove the turbine protector with a screwdriver.

- Clean the electrical equipment and the mains connection with a damp cloth and dry. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.

- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

- Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.

- It is advisable to clean the appliance regularly and remove any food remains.

- If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

- The following pieces may be washed in a dishwasher (using a soft cleaning program):

- Stainless Steel Skirt

- Water Pump Cap

- Then dry all parts before its assembly and storage.

TROUBLE SHOOTING FAQ

Noise Under the normal operation the system will hum due to the motor, impeller and cooling fan in operation.
Grinding noise The stainless steel skirt is loose. Push the stainless skirt up into the guide groove and turn to the right until you hear a click. With the skirt secure, the noise will go away. There also might be the chance the stirring shaft was inadvertently bent. In this case, unscrew the bottom pump disk and gently push the impeller until it is centered.
Slurping noise Your pump has formed a water vortex like when you are emptying out a bathroom sink or tub. Add more water or gently disturb water with a spoon. There is no sure way to eliminate a vortex from forming due to the pump rotation but usually will go away on its own.
Gurgling + whoosh noise The pump is sucking air-add more water. You should also see small bubbles in your tank.
Food damage The pump's water jet is cracking eggs or damaging fish fillets: Turn the pump outlet to face the container wall; this will greatly temper the flow of the pump output. It is also good practice to bag eggs to prevent them from being “blown” around in certain containers.
System will not turn out Check power plug and breakers
Low water level alarm (EE1) Add more water, the water level can be dropped during operation by the pump due to water turbulences
Low water level alarm turns on after a few seconds of operation (EE1)	Add more water – The pump generates “waves” – sometimes these waves will cause the water level at the sensors to fluctuate up and down. The waves sometimes drop the water level right under the sensor and will cause a low water alarm. This is normal and you just need to add more water.
Temperature read does not match thermometer	Sous Vide circulators are calibrated to a scientific platinum primary standard which is far more accurate than store thermometers.
Lights in house are slightly flickering when system is on	This is normal as the circulator is modulating power.

Français

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Benin 359 Av. Steinmetz, 1930, Cotonou 0299-21313798
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Burkina Faso Avenue Bassawarga, 01 BP915, Ouagadougou 226 25301038
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire 242066776656
Cyprus	20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos	35722711300
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Democratic Republic of the Congo	AV. Pont Canale N° 3440, Kinshasa	00243-991223232
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]		902 118 050
Ethiopia Lideta Sub City Kebele 10 H.NO 124, Addis Ababa		[phone]
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Gabon	BP 574, Port-Gentil Centre-ville	24101552689 / 24101560698
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar 11 Horse Barrack Lane, 54000, Gibraltar 00350 200 75397 / 00350 200
		41023
Greece Sapfous 7-9, 10553, Athens [phone]
Guinea BP 206, GN, Conakry (224) 622204545
Hong Kong Unit H,13/F., World Tech Centre, Hong kong (852) 2448 0116 / 9197 3519
Hungary Késmárk utca 11-13, 1158, Budapest [phone]
India C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi		([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Jordan 28 Basman St Down town, Amman [phone]
Kuwait	P.O. BOX 3379 hawally, 32034, Hawally	[phone]
Lebanon Damascus Highway; Sciale Building, Jamhour	9615922963
Luxembourg	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Mali	BP E2900, Dravela Bolibana	223227216 / 223227259
Marruecos	Big distribution society 4 Rue 13 Lot. Smara Oulfa, Casablanca	([phone]
Mauritania	134 Avenue Gamal Abdener Ilot D, Nouakchott	2225254469 / 2225251258
Mexico Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México		([phone]
Montenegro	Rastovac bb, 81400, Niksic	[phone]
Netherlands	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos	23408023360099
Paraguay	Denis Roa 155 c/ Guido Spano, Asunción	21665100
Peru	Calle los Negocios 428, Surquillo, Lima	[phone]
Portugal Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa		[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]
Slovakia Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
United Arab Emirates	P.O.BOX 8543, Dubai	14506246200
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam Lot 7 Ind. Zone for, Ha Noi		84437658111 / 84437658110

_

| _

一

1

_

| _

一

1

taurus

PROFESSIONAL

Avda. Barcelona, s/n

25790 Oliana

Spain

www.taurusprofessional.com

Product weight (approximate)

RONER CLIP+:

N.W.: 1'1Kg

G.W.:1'35Kg

Rev: 26/06/2020
