DU 6111 W - Basket SIBIR - Free user manual and instructions

Brand	SIBIR
Model	DU 6111 W
Product type	Kitchen hood
Power supply	230 V ~ 50 Hz (check rating plate)
Maximum lighting power	40 W (incandescent E14) or 20 W (halogen G4)
Bulb type	Incandescent oval E14 max 40 W or halogen G4 max 20 W
Number of suction speeds	3 (speed control)
Grease filter type	Washable metal (or paper/sponge depending on model)
Activated carbon filter	Optional for recirculation version, replace every 4 months maximum
Minimum installation distance	60 cm for electric cooktop, 75 cm for gas or mixed
Use versions	Extracting (external exhaust) or filtering (internal recirculation)
Recommended maintenance	Monthly cleaning of interior and exterior, washable grease filter once a month
Safety instructions	Disconnect before maintenance; do not use without grid; avoid open flames
Spare parts available	Activated carbon filter, halogen bulbs G4 20 W, incandescent bulbs E14 40 W
Repairability	User replaceable lamps and filters

Frequently Asked Questions - DU 6111 W SIBIR

What is the minimum distance between the hood and the cooktop?

The minimum distance is 60 cm for electric cooktops and 75 cm for gas or mixed cooktops. If the gas cooktop manufacturer specifies a larger distance, respect that.

How to clean the metal grease filter?

The metal grease filter should be cleaned once a month. You can wash it by hand with a mild detergent or in the dishwasher at low temperature and short cycle. Dishwasher washing may cause discoloration without affecting performance.

When should the activated carbon filter be changed?

The activated carbon filter must be replaced after 4 months maximum, as it cannot be cleaned or regenerated. Saturation depends on frequency of use and regular cleaning of the grease filter.

How to replace a halogen bulb?

First, disconnect the hood. Make sure the bulb is cold. Access the lamp housing, remove the cover with a small flat screwdriver. Replace with a halogen bulb G4 20 W maximum, without touching it with your hands. Close the lamp cover by snapping it back.

What to do if the lighting does not work after replacement?

First, check that the bulbs are correctly inserted in their housing. If the problem persists, contact customer service before proceeding with further handling.

Can I use the hood without the grid?

No, never use the hood without the grid being correctly installed. This presents a risk of injury and malfunction.

How to install the hood in recirculation mode?

For a recirculation installation, you must install an activated carbon filter. Check that the extracting/filtering mode selector inside the hood is in position F (filtering). Fumes will be recirculated through the front grid.

What cleaning products to use for the hood?

Use a damp cloth with a neutral liquid detergent. Do not use abrasive products or alcohol, as they can damage the surface.

How to disconnect the hood for maintenance?

Before any cleaning or maintenance, disconnect the hood from the electrical circuit by removing the plug or switching off the main switch of the house. Wait for the lamps to cool down.

What to do in case of a flame under the hood?

It is strictly forbidden to flambé food under the hood. If a flame occurs, extinguish it immediately and avoid using the hood. The use of open flames can damage filters and cause a fire.

USER MANUAL DU 6111 W SIBIR

Diagram of two gray rectangular panels placed on a flat surface, with an arrow indicating rotation or movement (no text or symbols)

R2

P4 P4

Aktivkohlefilter

Charcoal filter

U1 S1 U1 T1

U2 T2 U2 T2 S2 *

Y1

Z X1

Technical diagram of a circular mechanical or electrical component with internal grid structure and labeled Y1 (no readable text or symbols)

X2

V *

X3

Y2

W O O

V4 O *

Line drawing of a hand holding a small object above it (no text or symbols)

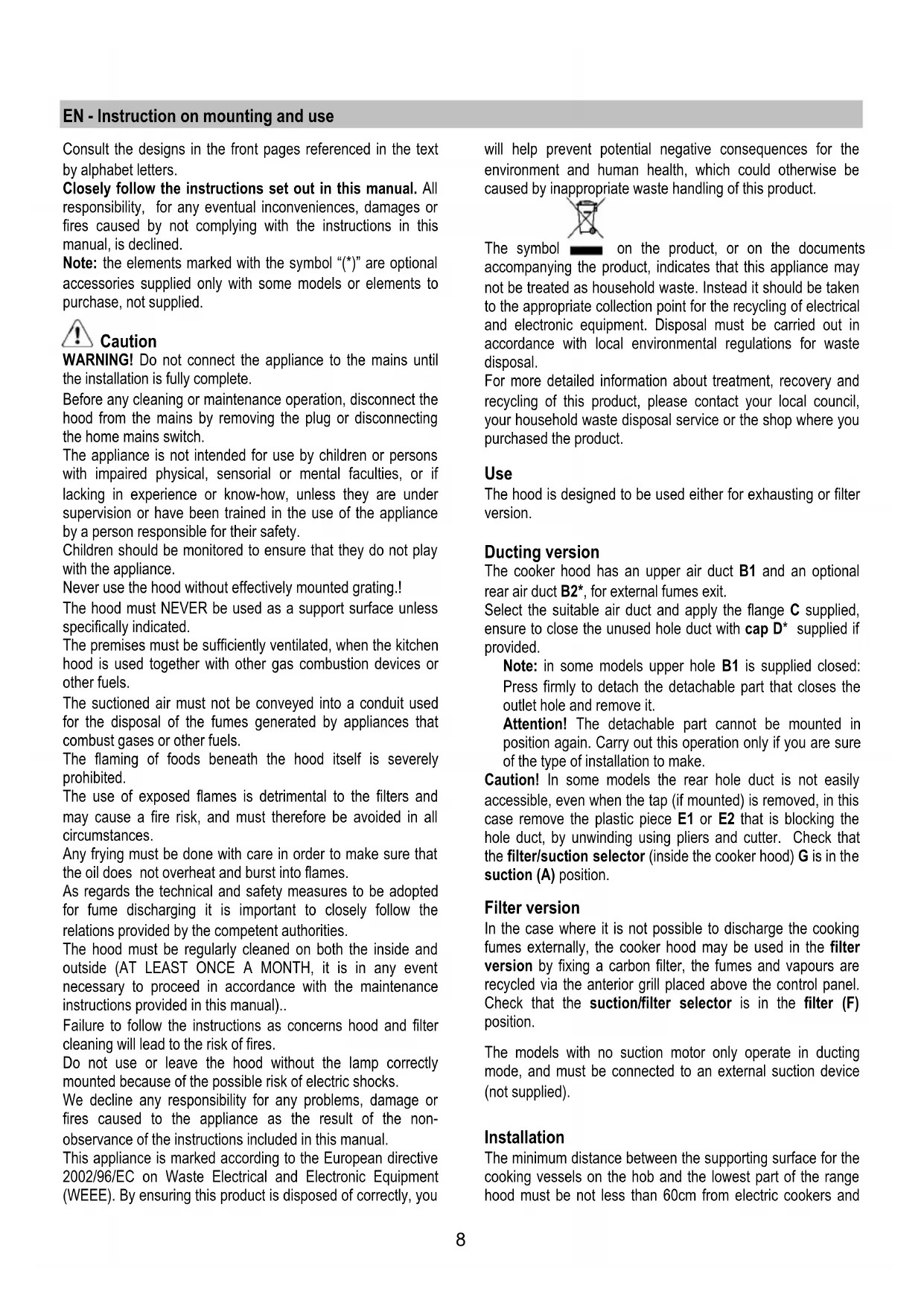

EN - Instruction on mounting and use

Consult the designs in the front pages referenced in the text by alphabet letters.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

Caution

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the home mains switch.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or know-how, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

Children should be monitored to ensure that they do not play with the appliance.

Never use the hood without effectively mounted grating.!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The suctioned air must not be conveyed into a conduit used for the disposal of the fumes generated by appliances that combust gases or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and burst into flames.

As regards the technical and safety measures to be adopted for fume discharging it is important to closely follow the relations provided by the competent authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH, it is in any event necessary to proceed in accordance with the maintenance instructions provided in this manual)..

Failure to follow the instructions as concerns hood and filter cleaning will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted because of the possible risk of electric shocks.

We decline any responsibility for any problems, damage or fires caused to the appliance as the result of the non-observance of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Use

The hood is designed to be used either for exhausting or filter version.

Ducting version

The cooker hood has an upper air duct B1 and an optional rear air duct B2*, for external fumes exit.

Select the suitable air duct and apply the flange C supplied, ensure to close the unused hole duct with cap D* supplied if provided.

Note: in some models upper hole B1 is supplied closed: Press firmly to detach the detachable part that closes the outlet hole and remove it.

Attention! The detachable part cannot be mounted in position again. Carry out this operation only if you are sure of the type of installation to make.

Caution! In some models the rear hole duct is not easily accessible, even when the tap (if mounted) is removed, in this case remove the plastic piece E1 or E2 that is blocking the hole duct, by unwinding using pliers and cutter. Check that the filter/suction selector (inside the cooker hood) G is in the suction (A) position.

Filter version

In the case where it is not possible to discharge the cooking fumes externally, the cooker hood may be used in the filter version by fixing a carbon filter, the fumes and vapours are recycled via the anterior grill placed above the control panel. Check that the suction/filter selector is in the filter (F) position.

The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied).

Installation

The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood must be not less than 60cm from electric cookers and

75cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area apply a bi-polar switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning: Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Mounting

The cooker hood may be installed on the wall or on the base of a cabinet; if supplied, use the hole gauge H to drill the correct distance, otherwise lean the cooker hood on the wall or on the base of the cabinet and mark the holes with a pencil.

Wall mounting - Insert the wall screw anchors J in the drilled holes and the two K screws in the upper drill holes, remove the grill and hook the cooker hood to the 2 screws, finally from the inside, insert the third screw L and lock them all in.

Cabinet fixing - Affix the cooker hood with the 4 M screws from inside the cabinet.

Operation

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

Always open the vapour catcher N*.

If your product is provided with an electrically or mechanically activated valve, the keys and/or the buttons and/or the handles available are for controlling the lights and for opening and closing the valve.

Maintenance

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING:

Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend oserving these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Grease filter

Traps cooking grease particles.

If situated inside the support grill, it may be one of the following types:

Paper filter must be replaced once a month or if colouring appears on upper side, in such cases the colouring is evident through the grill openings.

Sponge filter should be washed with hot soapy water once a month and replaced every 5 to 6 washes.

Metallic filter must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

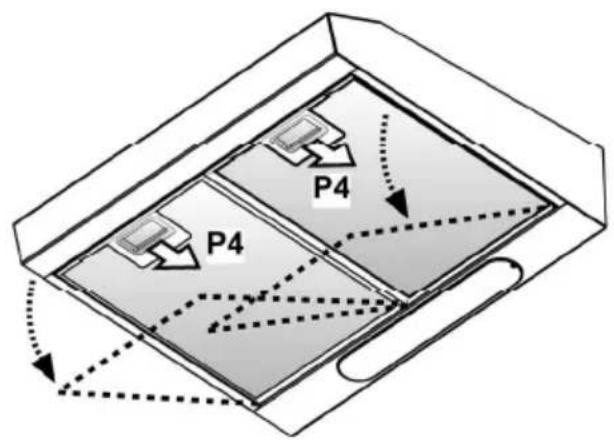

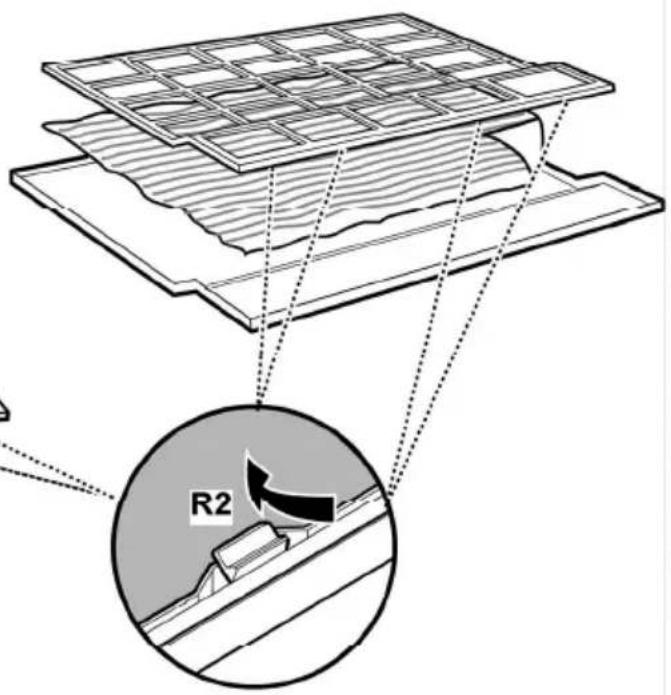

In order to remove the grease filter open the grill via the P hooks and free the R1 or R2 stoppers.

The self-supporting metal filter does not include a support grill, in order to remove the filter – pull the release springs P4 backwards and slide the filter downwards.

Charcoal filter (filter version only)

It absorbs unpleasant odours caused by cooking.

The saturation of the activated charcoal occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The carbon filter may NOT be washed or regenerated.

It may be one of the following types:

Rectangular S1 or S2 or S3:

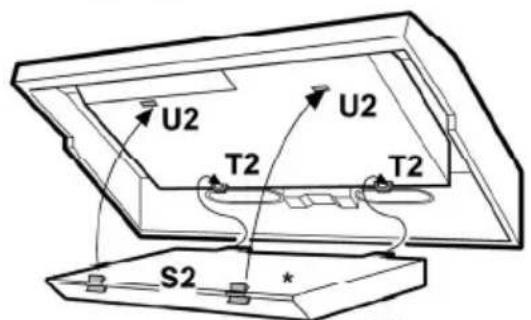

Mounting (S1 or S2) : insert the rear side T and hook further to the front (U).

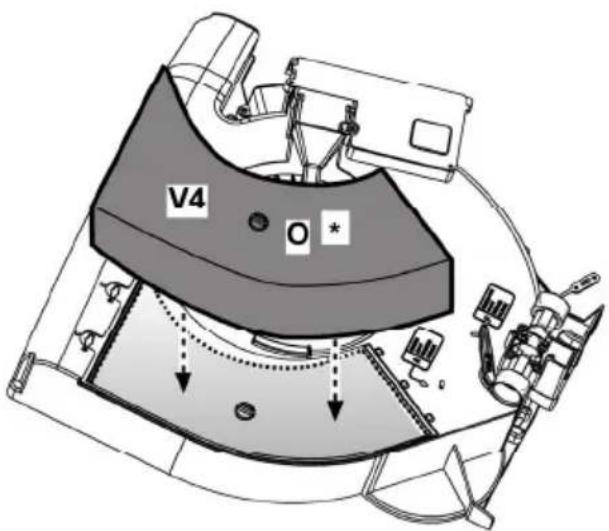

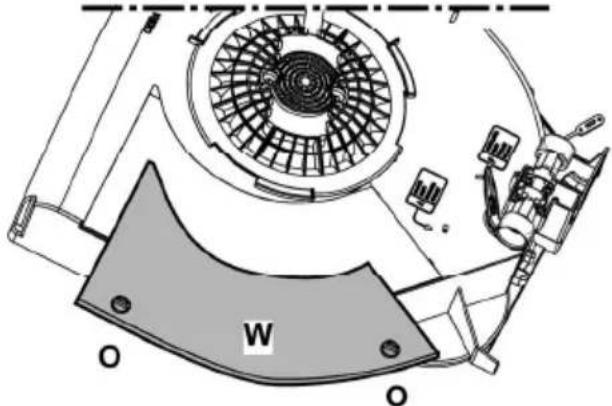

Mounting (S3): Remove the cover W by rotating the O knobs to 90°, then close the cover. Proceed in the inverse for dismounting.

Circular (V1-V2-V3-various models):

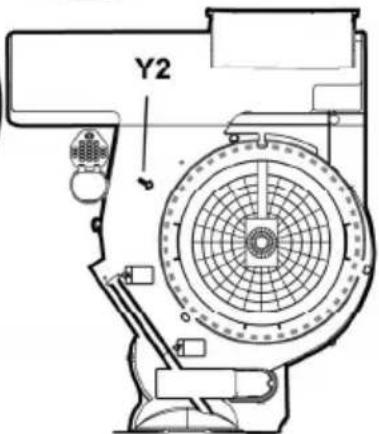

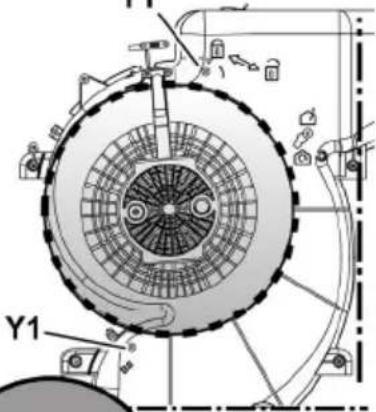

Bayonet mount position the filter in the middle of the motor protection grill covering ensuring that the reference to X1 or X2 or X3 on the carbon filter match the Y1 or Y2 references on the conveyor, then turn clockwise; in case of dismounting turn anticlockwise, if provided with a Z tape remember to gently lift first.

Replacing lamps

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replacing lightbulbs 40W - Unscrew the damaged light bulb and replace with an incandescent oval light bulb with a maximum of 40W E14. Remove the grill in order to reach the light bulb area.

Replacing the halogen bulbs - Access the light compartment – extract the lamp cover by levering it off with a small screwdriver or similar tool.

Replace the damaged light bulb. Only use halogen bulbs of 20W max (G4), making sure you do not touch them with your hands. Close the lamp cover (it will snap shut).

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.
