USER MANUAL XMCS700 YAMAHA

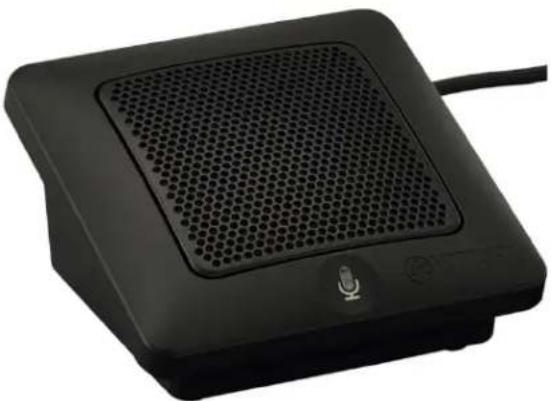

CS-700 Extension Microphone XM-CS-700

Black portable electronic device with a perforated grille and microphone (no visible text or symbols)

Operations Guide

Mode d'emploi

Betriebsanleitung

Please refer to the user's manual that provides detailed information on how to use the product.

You can download the latest firmware and user's manual from the following website:

https://uc.yamaha.com/resources/support

https://uc.yamaha.com/resources/support

https://uc.yamaha.com/resources/support

https://uc.yamaha.com/resources/support

https://uc.yamaha.com/resources/support

Connecting the XM-CS-700, Controls and Indicators 5

Specifications....6

Date Code 6

English

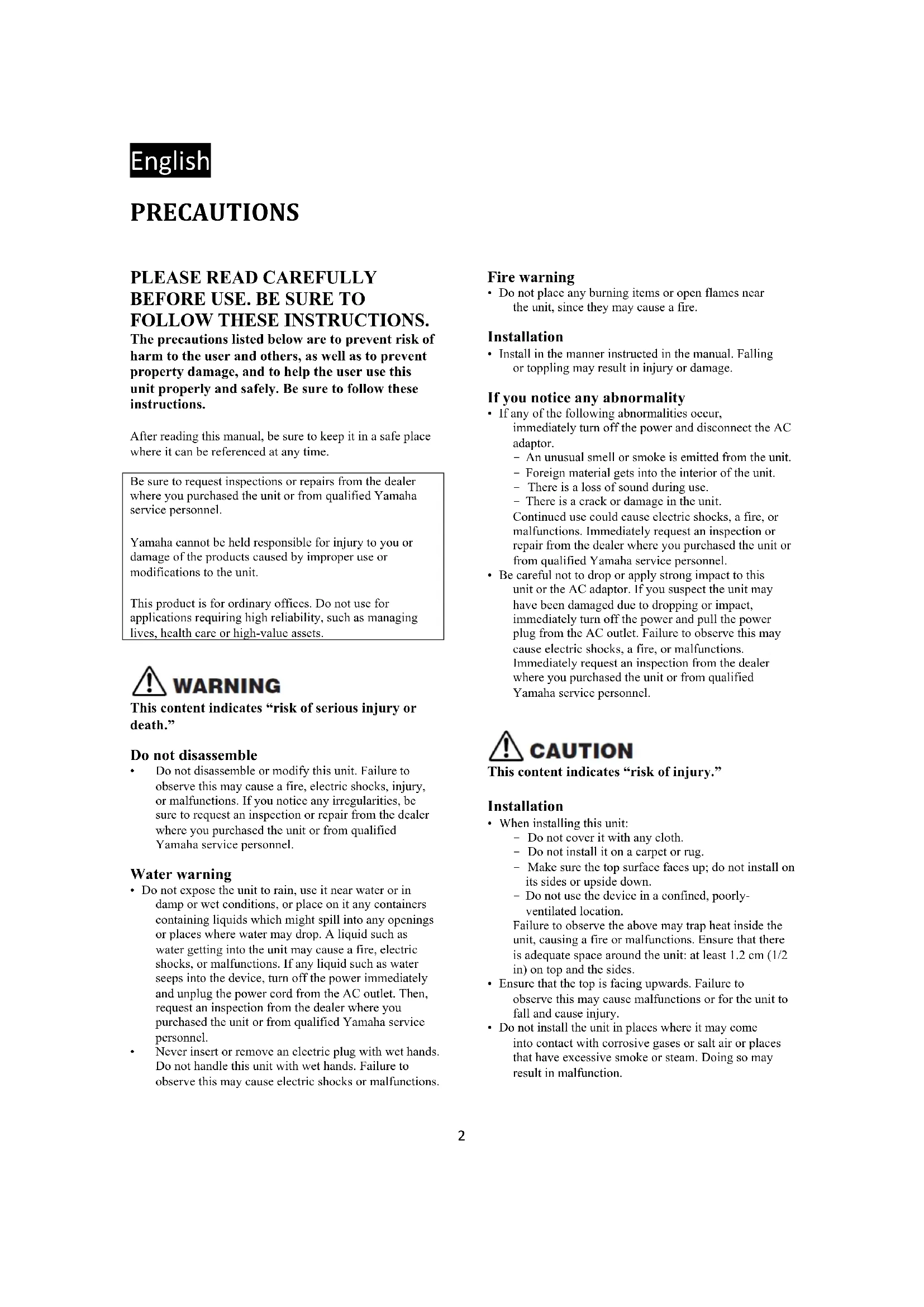

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE USE. BE SURE TO FOLLOW THESE INSTRUCTIONS.

The precautions listed below are to prevent risk of harm to the user and others, as well as to prevent property damage, and to help the user use this unit properly and safely. Be sure to follow these instructions.

After reading this manual, be sure to keep it in a safe place where it can be referenced at any time.

Be sure to request inspections or repairs from the dealer where you purchased the unit or from qualified Yamaha service personnel.

Yamaha cannot be held responsible for injury to you or damage of the products caused by improper use or modifications to the unit.

This product is for ordinary offices. Do not use for applications requiring high reliability, such as managing lives, health care or high-value assets.

WARNING

This content indicates “risk of serious injury or death.”

Do not disassemble

- Do not disassemble or modify this unit. Failure to observe this may cause a fire, electric shocks, injury, or malfunctions. If you notice any irregularities, be sure to request an inspection or repair from the dealer where you purchased the unit or from qualified Yamaha service personnel.

Water warning

• Do not expose the unit to rain, use it near water or in damp or wet conditions, or place on it any containers containing liquids which might spill into any openings or places where water may drop. A liquid such as water getting into the unit may cause a fire, electric shocks, or malfunctions. If any liquid such as water seeps into the device, turn off the power immediately and unplug the power cord from the AC outlet. Then, request an inspection from the dealer where you purchased the unit or from qualified Yamaha service personnel.
• Never insert or remove an electric plug with wet hands. Do not handle this unit with wet hands. Failure to observe this may cause electric shocks or malfunctions.

Fire warning

- Do not place any burning items or open flames near the unit, since they may cause a fire.

Installation

• Install in the manner instructed in the manual. Falling or toppling may result in injury or damage.

If you notice any abnormality

- If any of the following abnormalities occur, immediately turn off the power and disconnect the AC adaptor.

• An unusual smell or smoke is emitted from the unit.
• Foreign material gets into the interior of the unit.
• There is a loss of sound during use.
• There is a crack or damage in the unit.

Continued use could cause electric shocks, a fire, or malfunctions. Immediately request an inspection or repair from the dealer where you purchased the unit or from qualified Yamaha service personnel.

- Be careful not to drop or apply strong impact to this unit or the AC adaptor. If you suspect the unit may have been damaged due to dropping or impact, immediately turn off the power and pull the power plug from the AC outlet. Failure to observe this may cause electric shocks, a fire, or malfunctions. Immediately request an inspection from the dealer where you purchased the unit or from qualified Yamaha service personnel.

CAUTION

This content indicates "risk of injury."

Installation

- When installing this unit:

• Do not cover it with any cloth.
• Do not install it on a carpet or rug.
• Make sure the top surface faces up; do not install on its sides or upside down.
• Do not use the device in a confined, poorly-ventilated location.

Failure to observe the above may trap heat inside the unit, causing a fire or malfunctions. Ensure that there is adequate space around the unit: at least 1.2 cm (1/2 in) on top and the sides.

• Ensure that the top is facing upwards. Failure to observe this may cause malfunctions or for the unit to fall and cause injury.
• Do not install the unit in places where it may come into contact with corrosive gases or salt air or places that have excessive smoke or steam. Doing so may result in malfunction.

English

- Before moving this unit, be sure to disconnect all connection cables. Failure to observe this may damage the cables or cause you or someone else to trip and fall.

Maintenance

- Remove the power plug from the AC outlet before cleaning the unit. Failure to observe this may cause electric shocks.

Handling caution

• Do not insert foreign materials such as metal or paper into the ventilation holes of this unit. Failure to observe this may cause a fire, electric shocks, or malfunctions. If foreign material gets into the unit, immediately pull the power plug from the AC outlet and request an inspection from the dealer where you purchased the unit or from qualified Yamaha service personnel.
• Keep small parts out of the reach of infants. Your children may accidentally swallow them.

• Do not do the following:

• Stand on or sit on the equipment.

• Put heavy items on top of the equipment.
• Place the equipment in a stack.

• Apply unreasonable force to buttons, switches, input/output terminals, etc.

• Avoid pulling the connected cables to prevent injuries or damage to the unit by causing it to fall.

• Do not operate the unit if the sound is distorting. Prolonged use in this condition could cause overheating and result in fire.

NOTICE

Indicates points that you must observe in order to prevent product failure, damage or malfunction and data loss, as well as to protect the environment.

Installation

- Do not use this unit in the vicinity of other electronic equipment. Failure to observe this may cause this unit or the other equipment to produce noise.

- Do not use this unit in a location that is exposed to direct sunlight, that becomes extremely hot, such as near a heater, or extremely cold, or that is subject to excessive dust or vibration. Failure to observe this may cause the unit's panel to become deformed, the internal components to malfunction, or for operation to become unstable.

Handling

• Do not place vinyl, plastic, or rubber products on this unit. Failure to observe this may cause discoloration or deformation in the panel of this unit.
• If the ambient temperature changes drastically (such as during unit transportation or under rapid heating or cooling) and there is a chance condensation may have formed in the unit, leave the unit for several hours without turning on the power until it is completely dry before use. Using the unit while there is condensation can cause malfunctions.

Maintenance

• If the temperature or humidity changes drastically, water droplets (condensation) may form on the unit surface. If water droplets form, immediately wipe them off with a soft cloth.
• When cleaning the unit, use a dry, soft cloth. Using chemicals such as benzine or thinner, cleaning agents, or chemical scrubbing cloths can cause discoloration or deformation.

INFORMATION

Indicates information of note regarding this product.

Do not connect the product to any item of equipment other than the Yamaha CS-700. Failure to observe this could result in fire, electric shock, or damage to the product.

About content in this manual

- The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.

Information for users on collection and disposal of old equipment:

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

For business users in the European Union:

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union:

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

English

Introduction

Thank you for purchasing the XM-CS-700 extension microphone. The XM-CS-700 is specifically designed as an extension microphone for the Audio/Video Conference products from Yamaha. It currently supports the CS-700 series of Video Sound Collaboration Systems for Huddle Rooms.

Content

1	Extension Microphone
1	User manual (this manual)

Connecting the XM-CS-700, Controls and Indicators

This manual includes only fundamental information on the connection and use of the extension microphone. For detailed information read the manuals of the product to which you connect the XM-CS-700.

You can download documentation at uc.yamaha.com.

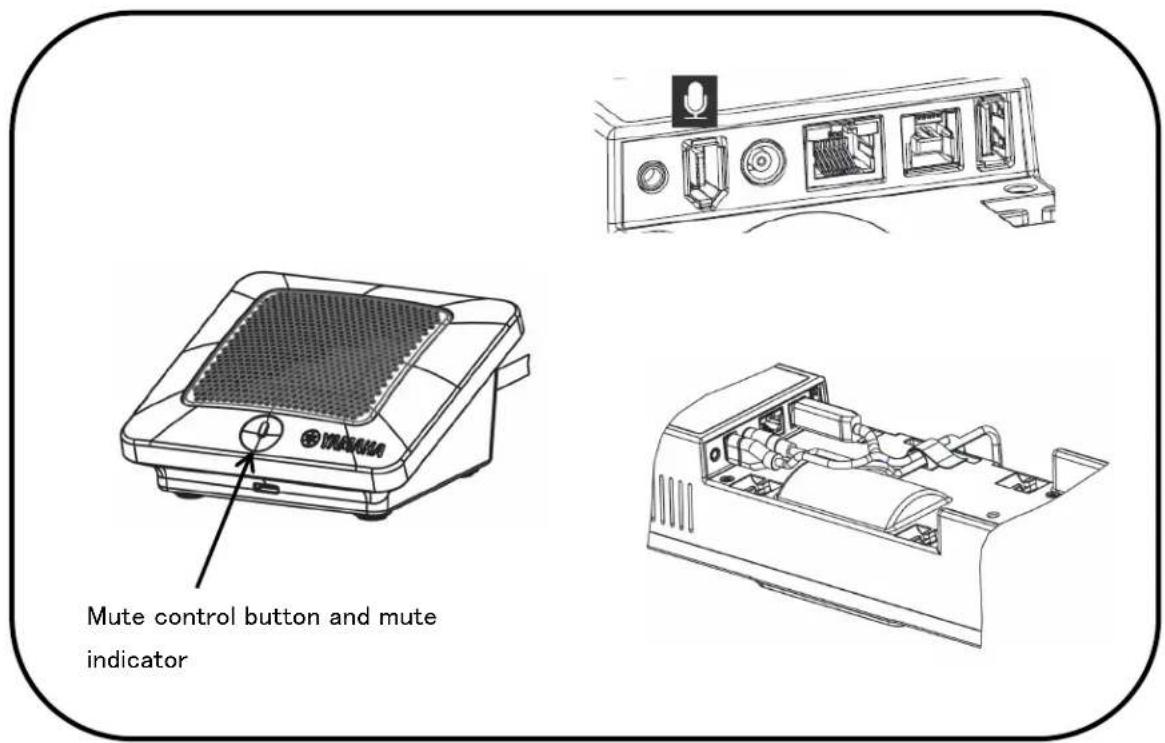

Mute control button and mute indicator

Specifications

Audio
Microphone Coverage	120 degrees audio pickup, best results within 6 feet / 1.80m
Microphone Frequency Response	160 – 16,000 Hz
Compliance
Safety	IEC60065, IEC60950, IEC62368
EMC	CISPR13/CISPR22/CISPR32/ FCC/J55013/ ETSI EN 300 328 / ETSI EN 302 291-2 / ETSI EN 300 330-2 EN55024/ CISPR24 or 35 and ETSI EN 301 489-1
Environmental	RoHS, Reach, WEEE
Warranty
Global except for EU	1 Year return to factory
European Union	2 Year return to factory
Size, Weight, Power, Operating Temperature
Height	1.7in/44.26mm
Length	3.0in/76.43mm
Width	3.1in/79.63mm
Weight	226 g
Input Voltage	5V
Input Current	8mA
Power consumption (max)	40 mW
Cable Length	25ft/7.5m
Operating Temperature	32 to 104 °F (0 to 40 °C)
Storage Temperature	-22 to 131 °F (-30 to 55 °C)
Operating / Storage Relative Humidity	20% - 85% (non-condensing)
Maximum operating altitude	2,000m

Date code

The date code on the XM-CS-700 label indicates when the product was manufactured. The first digit indicates the year.

First digit	Calendar year
7	2017
8	2018
9	2019
0	2020
1	2021

The second and third digits indicate the calendar week in that year – from 01 at the beginning of the year to 52 (or 53).
