USER MANUAL KM0650S Krüger&Matz

Technical diagram of a headband with numbered parts for identification and assembly reference.

• SPL (Sound pressure level): 110 ± 3 dB

- Bluetooth: 4.0+EDR

- NFC

Technical diagram of a wearable headset with numbered parts for identification and assembly reference.

Read the instruction manual carefully before first use and keep it for future reference.

1. Minimize the volume on your audio device before connecting the headphones in order to avoid hearing damage from sudden exposure to excessive volume. Keep the volume at a reasonable level throughout entire time of using the earphones. To prevent damage to your hearing, do not raise the volume too high.

2. Do not use the headphones in places where the inability to hear ambient sound presents a serious risk (such as at railroad crossings, train stations, construction sites or on roads where vehicles and bicycles are traveling). Never use the headphones while driving a car, riding a motorcycle or bicycle or operating any other vehicle, as it may cause potential risk to your safety.

3. Do not subject the headphones to strong impact.

4. Please minimize the volume on your audio device before connecting the headphones in order to avoid hearing damage from sudden exposure to excessive volume.

5. Protect this product from moisture, humidity, water and any other liquid. Avoid using/storing it in extreme temperatures. Do not expose it to direct sunlight and sources of heat.

6. Never use this device if it is damaged.

7. Use only authorized accessories.

8. Do not attempt to repair this device yourself. In case of damage, contact with an authorized service point for check-up/repair.

9. Clean this device with soft, slightly damp cloth. Do not use any abrasives or chemical agents to clean this product.

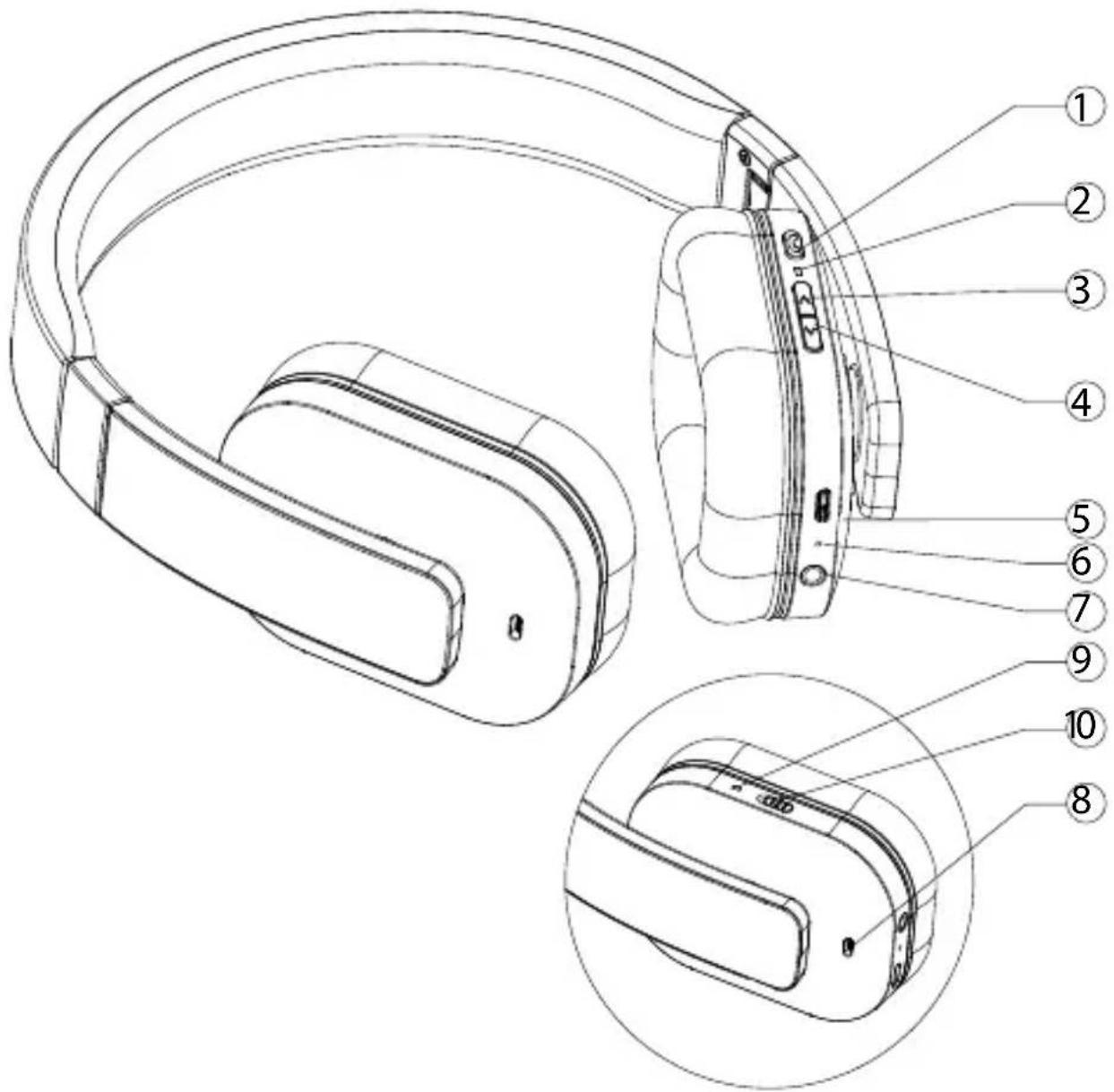

1. PRODUCT DESCRIPTION

Technical diagram of a wearable headset with numbered parts for identification and assembly reference.

1. Multifunctional button MF (Turn on/Pairing mode/Play/Pause/Turn off/answer call/end call)
2. LED indicator
3. Volume up/Next/Reject call/Switch call (headphones/phone)
4. Volume down/Previous
5. micro USB port
6. Mic
7. 3.5 mm audio Jack
8. ANC Mic
9. ANC LED indicator
10. ANC turn on/off

2. PAIRING (WITH ONE DEVICE)

1. Make sure the headphones are powered off.
2. To enter into the pairing mode, press and hold the multifunctional button for 5 seconds until red LED & blue LED flash alternately.
3. Activate your phone (or device) Bluetooth function and search for external devices. You'll see a list of available devices; find and connect with the headphones.
4. Enter "0000" PIN if necessary.

3. PAIRING (WITH TWO DEVICES)

This headphones support 2 devices multi-connection. It can pair with two mobile phones simultaneously, and take the call from any of them.

1. After completing pairing with the first phone, turn off the headphones.
2. Then re-do the paring procedure with another phone.
3. Once the pairing is finished, restart the headphones. The headphones will automatically connect to the phone (or device) that was connected before disconnecting.
4. Short press the and keys simultaneously, it will enable the multipoint connect function. From the list of found devices on another mobile phone, select the headphone to connect it. Now, the headphones are connected with two devices simultaneously.

4. OPERATION

• Power on: press and hold multifunction button for 2 seconds. Blue LED flashes 2 times. Headphones turn on.
• Power off: press and hold multifunction button for 3 seconds. Red LED flashes 2 times, then the headphones turn off.
  • Volume adjust: press, Volume up' or, Volume down' button to change volume level.

• Play/Pause: press multifunction button to pause music playback. Press it again to resume playback.

• Previous: press and hold for 2 seconds, Volume down' button to go to previous track.

• Next: press and hold for 2 seconds, Volume up' to go to next track.
• Answer call: press multifunction button to answer the incoming call.
  • End call: short press multifunction button.
• Reject call: press and hold the ,Volume up' button to reject a call.
• Transfer call: during a phone call, press and hold ,Volume up' button, call switches to mobile phone. Press and hold ,Volume up' button again, call switches back to headphones.
• Last number redial: in standby status, press headphone multifunction button twice to redial the last number. In case of multipoint connection with two phones, the redial will be performed from the phone which was connected first.
• Battery Capacity status: when headphone is connected to iOS devices, iOS devices shows the headphone battery power status in the upper right corner.

Operation LED Status
Power on	Blue LED flashes 2 times
Power off	Red LED flashes 2 times
Pairing	Red LED & Blue LED flashes alternately
Standby	Blue LED flashes 3 times every 5 seconds
Incoming call	Blue LED blinks
Low battery	Red LED flashes 2 times every 2 seconds
Charging	Red LED keep lighting during chargingBlue LED keep lighting charging finished

Active noise reduction function (ANC)

When there is too much noise in surroundings, switch the ANC key to "ON" (the ANC LED will be on).

Note: phone call function cannot be used in this mode.

Sound quality with apt-X® code

Featuring the apt-X code, the headsets can connect wirelessly to

any apt-X® enabled devices, vastly improves the quality of Bluetooth streaming, delivering CD-quality sound.

Charging

Connect the headphones to AC charger or a computer USB port. Red LED keeps lighting during charging. Once the charging is completed, the blue LED is on.

Note:

• use only original accessories to charge the headphone.
• charge the headphone if it has not been used for more than 12 months.

5. SPECIFICATION

• Frequency Response: 20 Hz- 20 KHz
- Impedance: 32
• SPL (Sound pressure level): 110 ± 3 dB
- Bluetooth: 4.0+EDR
- NFC function
• SN ratio: > 85 dB
- Bluetooth profiles: A2DP 1.2/AVRCP1.4/HSP1.2/HFP1.6/CVC6.0
• Supports SBC, AAC
- apt-X® audio technology
• ANC (active noise canceling) function
• Over -15 dB noise reduction
- Wireless range: up to 10 m
• 3.5 mm stereo Jack
• Supports connection with 2 devices
• Headphone battery power status (iOS only)
- Foldable compact design
- Playback/Talk time: up to 14 h
- Stand-by time: up to 540 h
- Weight: 255 g
• Dimension: 200x185x72 mm

Z

Specifications are subject to change without prior notice.

"The Lechpol company declares that product KM0650 is consistent with the essential requirements and other relevant provisions of directive 1999/5/EC. The proper declaration for download from www.lechpol.eu"

English Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL Zbigniew Leszek, Miętne, 1 Garwolińska Street, 08-400 Garwolin.

CONSIGNES DE SÉCURITÉ

Technical diagram of a wearable headset with numbered parts for identification and assembly reference.

Technical diagram of a wearable headset with numbered parts for identification and assembly reference.

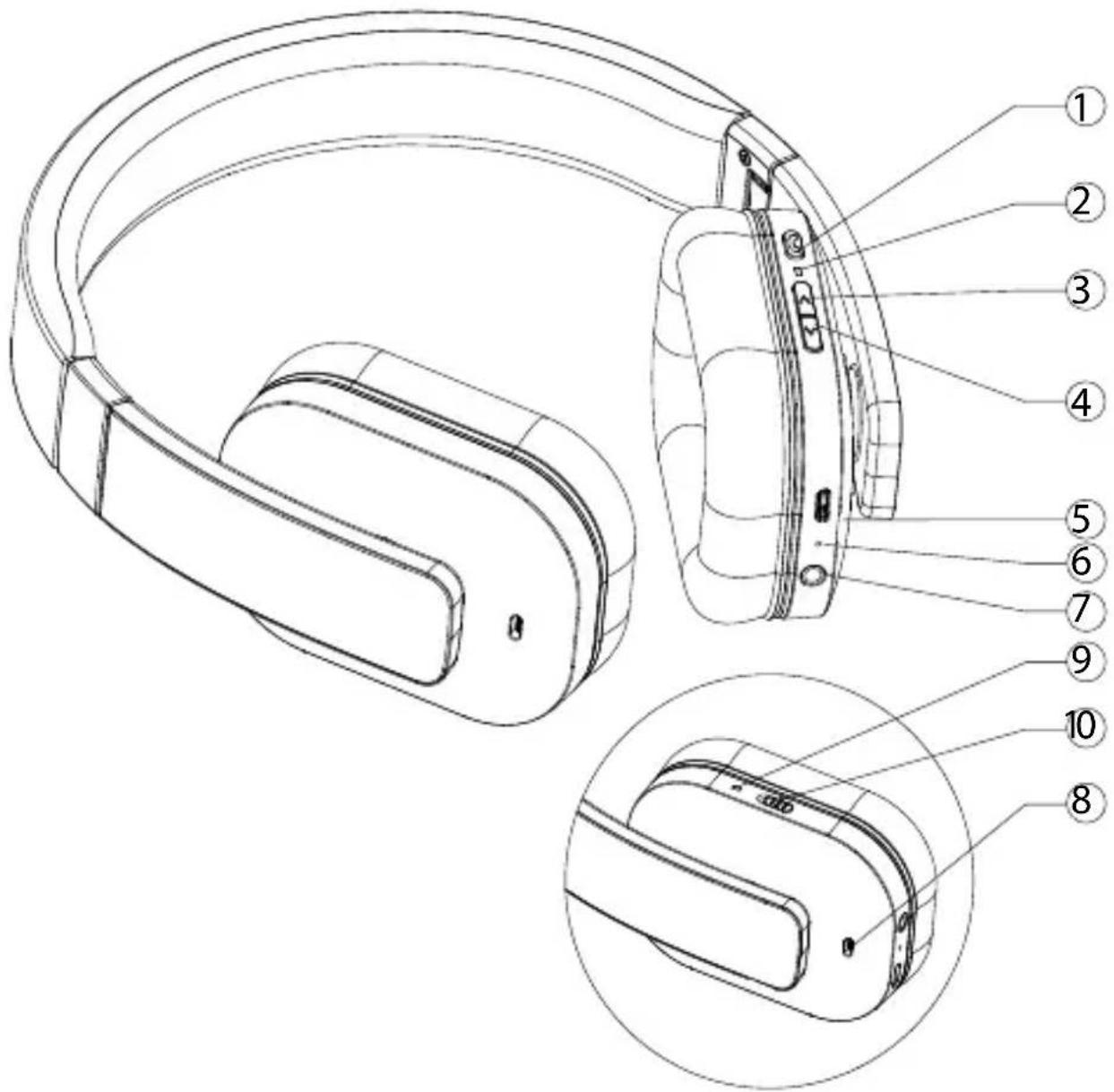

1. PRODUCTBESCHRIJVING

Technical diagram of a wearable headset with numbered parts for identification and assembly reference.

1z

Technical diagram of a wearable headset with numbered parts for identification and assembly reference.

Technical diagram of a wearable headset with numbered parts for identification and assembly reference.

1. Buton multifunctional: Pornire / Asociere Bluetooth / Redare / Pauza / Oprire / Raspunde la apel / Sfarsit apel
2. Indicator LED
3. Marire volum / Urmatorul / Respingere apel / Transfer apel (intre casti si telefon)
4. Reducere volum / Anteriorul
5. Port microUSB
6. Microfon
7. Jack audio 3.5 mm
8. Microfon ANC
9. Indicator LED ANC
10. Pornire / oprire ANC

2. ASOCIERE (CU UN DISPOZITIV)

1. Verificati castile ca sa fie oprite.
2. Pentru a intra in modul asociere, apasati si tineti apasat butonul multifunctional pentru 5 secunde pana cand LED-urile rosu si albastru palpaie alternativ.
3. Activati functia Bluetooth la telefon (sau la dispozitivul cu care doriti sa faceti asocierea) si cautati dispozitivele Bluetooth. Din lista de dispozitive gasite, alegeti castile.
4. Introduceti codul PIN "0000" daca este necesar.

3. ASOCIERE (CU DOUA DISPOZITIVE)

Functia ANC (Active Noise Cancelling)

Technical diagram of a wearable headset with numbered parts for identification and assembly reference.
