USER MANUAL TAB 7 3G S Trevi

TO SET YOUR LANGUAGE DEVICE

- Swicth on the appliance - Go to the page with all applications - Select the “IMPOSTAZIONI” icon - Scroll through the list and select the icon - “Lingua e immissione” - Select “LINGUA” and find your language from those available.

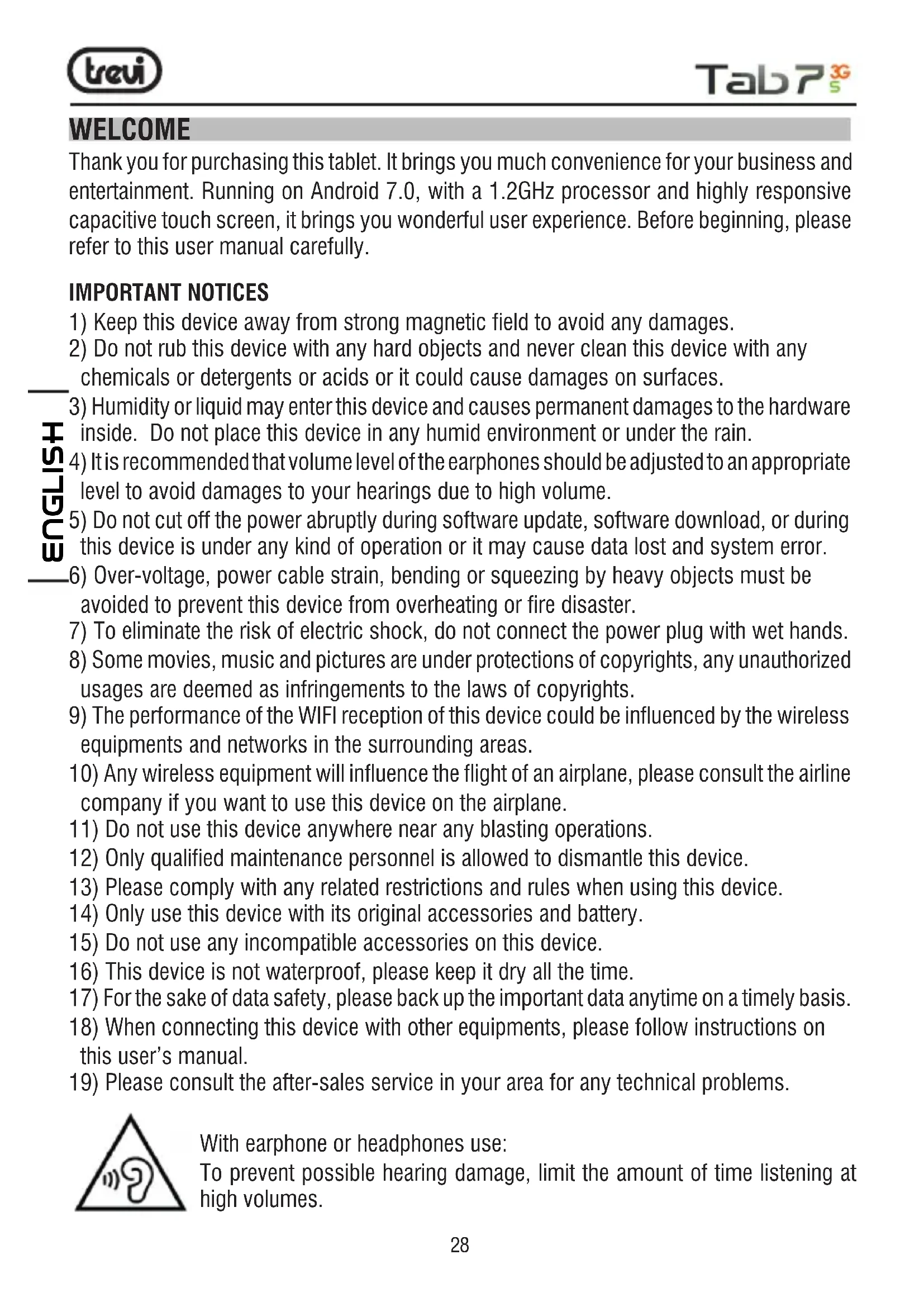

1) Keep this device away from strong magnetic field to avoid any damages.

2) Do not rub this device with any hard objects and never clean this device with any

chemicals or detergents or acids or it could cause damages on surfaces.

3) Humidity or liquid may enter this device and causes permanent damages to the hardware

inside. Do not place this device in any humid environment or under the rain.

4) It is recommended that volume level of the earphones should be adjusted to an appropriate

level to avoid damages to your hearings due to high volume.

5) Do not cut off the power abruptly during software update, software download, or during

this device is under any kind of operation or it may cause data lost and system error.

6) Over-voltage, power cable strain, bending or squeezing by heavy objects must be

avoided to prevent this device from overheating or fire disaster.

7) To eliminate the risk of electric shock, do not connect the power plug with wet hands.

8) Some movies, music and pictures are under protections of copyrights, any unauthorized

usages are deemed as infringements to the laws of copyrights.

9) The performance of the WIFI reception of this device could be influenced by the wireless

equipments and networks in the surrounding areas.

10) Any wireless equipment will influence the flight of an airplane, please consult the airline

company if you want to use this device on the airplane.

11) Do not use this device anywhere near any blasting operations.

12) Only qualified maintenance personnel is allowed to dismantle this device.

13) Please comply with any related restrictions and rules when using this device.

14) Only use this device with its original accessories and battery.

15) Do not use any incompatible accessories on this device.

16) This device is not waterproof, please keep it dry all the time.

17) For the sake of data safety, please back up the important data anytime on a timely basis.

18) When connecting this device with other equipments, please follow instructions on

19) Please consult the after-sales service in your area for any technical problems.

With earphone or headphones use: To prevent possible hearing damage, limit the amount of time listening at high volumes. ENGLISH29

GETTING READY TO USE THE DEVICE

What’s inside box In the package are

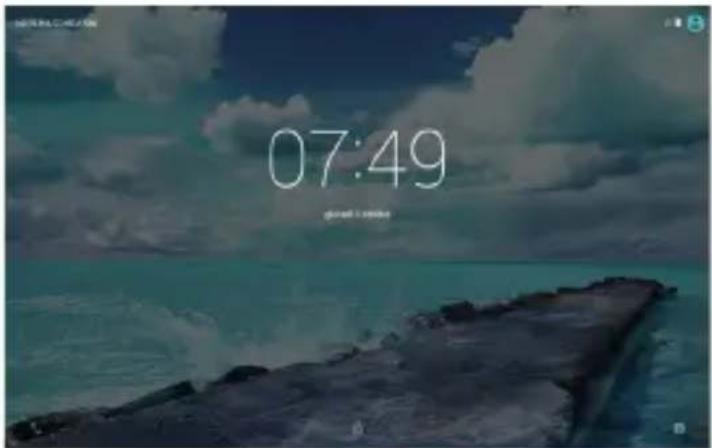

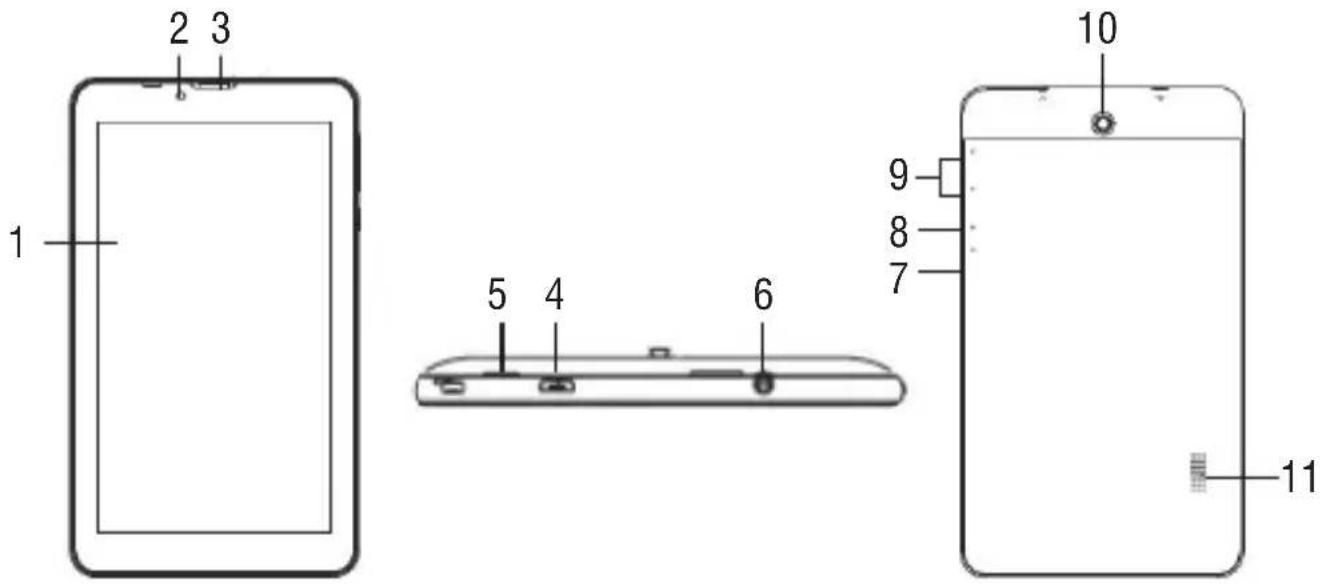

• User manual PRODUCT APPEARANCE QUICK GUIDE Power on/ Power off insert the SIM into slot 1 (Slot 2 is disabled). Long press button (8) for 4 seconds to power on the device. It will take about a minute and half to boot the system. Unlock the screen by sliding to the right.

4. Micro USB/USB host socket: to connect

your device to PC or connect external device. Connect the adapter 5V

5. SIM-memory compartment door opening.

6. 3.5mm headphone jack.

lock / unlock Display: To turn on turn off the unit and lock / unlock the display.

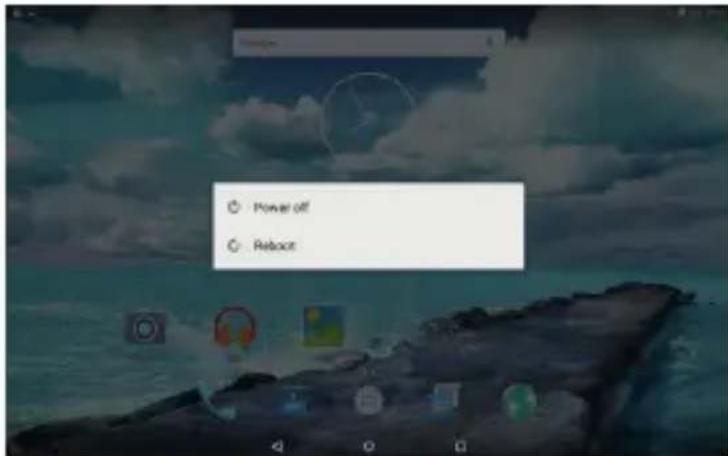

ENGLISH30 To power off the device: long press button (8) for 3 seconds, the screen will show the power off options: Cancel or OK. Tap “OK” to power off the unit or tap “Cancel” to exit to previous operation. Note When the device is low battery, it will alert continuously and will shut down automatically when battery has completely run out. The device cannot be powered on if the battery is empty, please recharge the battery at least one minute before restart the device. Standby and Lock screen Press button (8) shortly to turn the device to standby mode. Under standby mode, the screen is blackout and volume is muted. Press button (8) shortly again to reactivate the device. The device will then turn to Lock screen while the primary operation of the device will continue. Unlock the screen by sliding to the right to resume to status before power saving. Note The primary operation of the device under standby mode will pause and the primary operation of the device under Lock screen mode will continue, only the screen is locked. The desktop status bar and shortcut menu and the definition of the icons ENGLISH31 Icon Function Back – Tap it to go to the previous screen Home page - Tap it to return to the desktop Tap it to check the latest files that you browsed The USB icon appears only when the device is connected to a USB device successfully. The micro SD card icon appears only when a micro SD is inserted into the device. The current system time The WIFI signal indicator appears only when the device is connected to a WIFI network. The 3G signal indicator appears only when the device is connected to 3G signal. The battery icon shows the remaining battery level or to indicate battery recharging status. Applications – Tap it go to Application menu Orientation Sensor Setting The device contains a sensor that will automatically change the orientation of screen by ENGLISH32 90 degree as you rotate the tablet. The sensor works the best when the tablet is rotated perpendicular to the ground. The Orientation sensor can be activated or deactivated in the Setting menu: Accessibility - Auto-rotate screen. Moves the switch if you want to activate or deactivate this function.

BATTERY MANAGEMENT AND RECHARGING

a. Recharge the battery about 6 hours to make sure the battery is fully charged at the first time. b. Plug in the power charger provided in the accessory pack to the 5V (Micro USB) located on the up side of the device and connect the power charger to a proper power socket. Once the power is connected, the battery recharging icon will appear on the status bar which indicating that the device is under recharging. When the battery is fully recharged, you can disconnect the power charger from the device. Note In order to keep the battery in the best condition, please pay attention to the below:

• Don’t recharge the device under high temperature.

• Don’t release the power of the battery, you can charge the battery when there is still power in the battery. It is not necessary to wait the battery to completely run out before recharging.

• To maintain the battery with a long life span, keep recharging the battery once every two weeks in the case if you don’t use the device for a long time. TO INSTALL AN APPLICATION FROM PLAY STORE:

• Select the “SETTINGS” and then the command “ACCESSIBILITY.”

• Locate the command “GOOGLE APPLICATION” and turn OFF its switch on right (turn from green to gray).

• In the application’s page, you will see the “PLAY STORE” icon.

• Select the Play Store icon and search the application desired after you create an account on Google’s GMAIL.

WIFI NETWORK SETTINGS

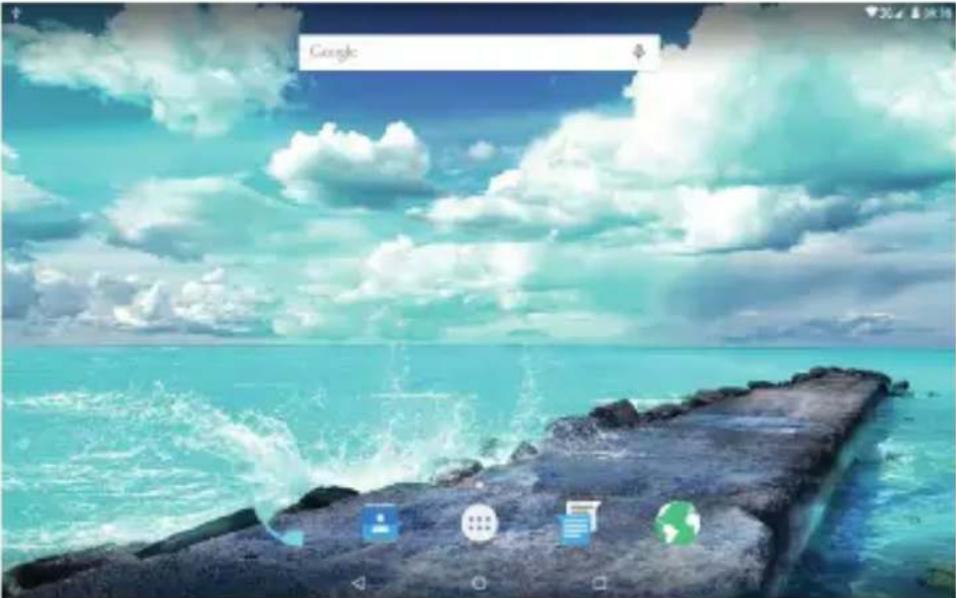

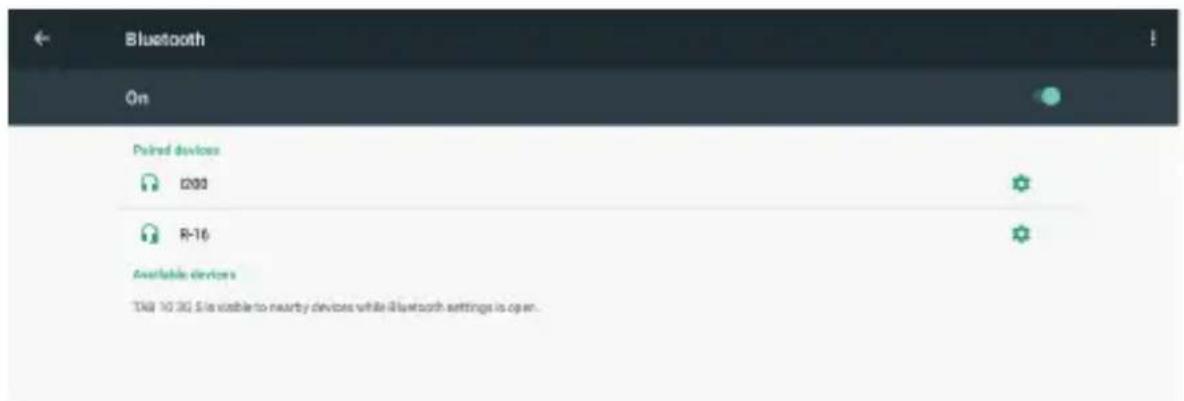

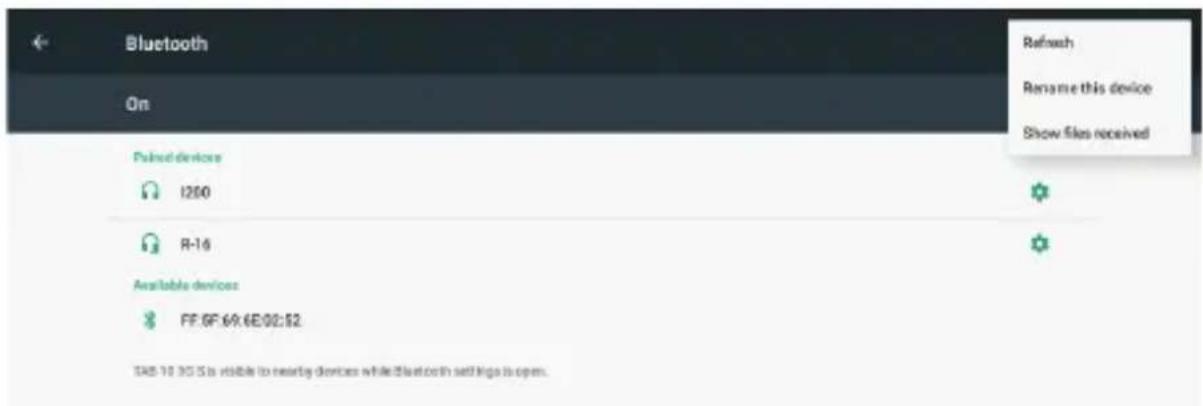

From desktop, Tap to enter setting menu and slide WI-FI function to ON and tap the desired WI-FI network and enter the wireless network setting page. ENGLISH33 Enter the password and tap “Connect” or tap “Cancel” to exit to previous screen. BLUETOOTH SETTING From desktop, Tap to enter setting menu and slide Bluetooth function to ON. It will be search the available Bluetooth device automatically, then choose and touch available Bluetooth device to pair, after pair successfully, it will appear: It will be appear below after tap , you can select and setting it as below: Phone From desktop, tap , it will appear below; dial phone number then tap to make a call. ENGLISH34 After tap , it will be appear the contact list as below: Tap to search contacts, Tap to add contacts Note - Please power off the device first before insert the SIM card, then power on the device it again. From desktop, tap , to edit new message as below: To install an APK file This device supports third part Application Program .APK files. From desktop, Tap to enter application menu and tap “File manager” to enter a list of file and tap on the desire APK file to install the APK directly. To uninstall an APK file From desktop, Tap to enter setting menu and tap “Apps” to enter a list of installed ENGLISH35 application. Tap the desired APK file and tap “Uninstall” to confirm. FM Radio From desktop, tap it will be appear below, tap or to select desired channel. Note You need to insert earphone as antenna when using FM Radio. Camera This device has a built-in 0.3 MPIXEL front camera and a built-in 2.0 MPIXEL rear camera for photo and video. ENGLISH

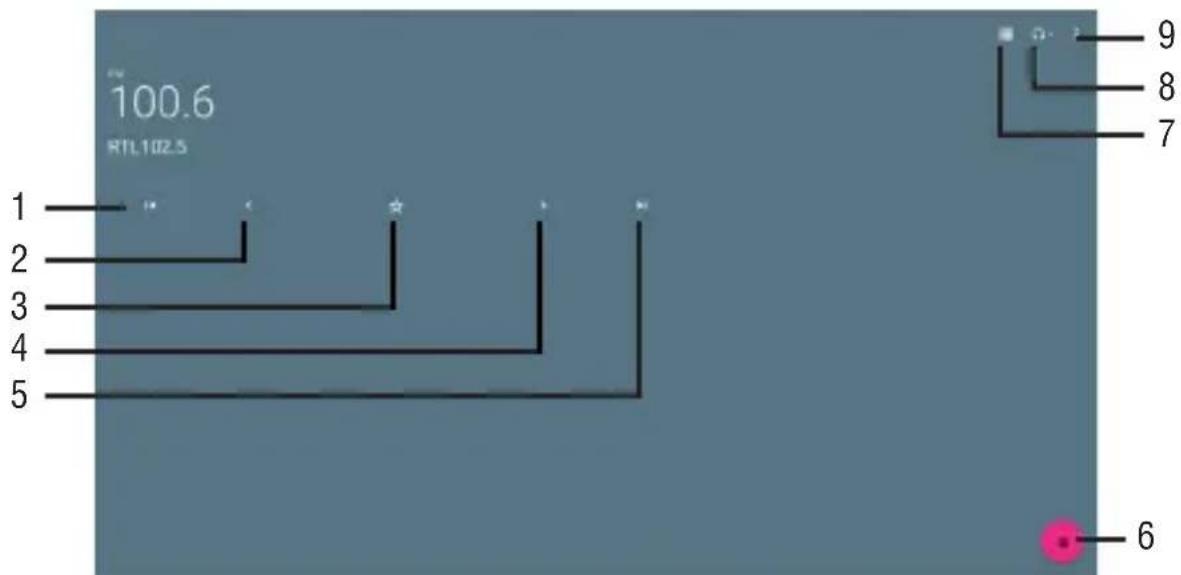

1. To return to the previous station.

2. To manually back.

3. Store the station as a favorite.

4. To manually move forward.

5. To go to the next radio station.

6. To turn off the radio.

7. List stored radio channels.

8. Select Headphones/ speaker.

9. Start recording/ Recordings saved.

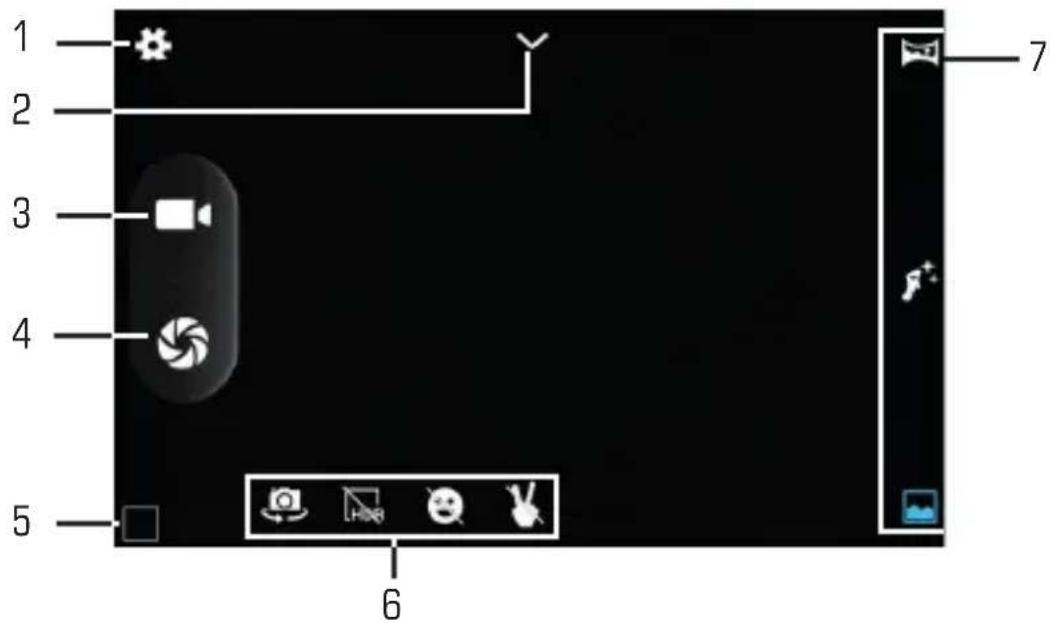

From desktop, Tap to enter application menu and tap to enter camera mode.

1. General settings.

2. Parameter settings: scene mode, white balance, color effect and exposure.

3. Command to the camera function.

4. Shutter button, camera function.

7. Speed Dial for “acquisition mode”.

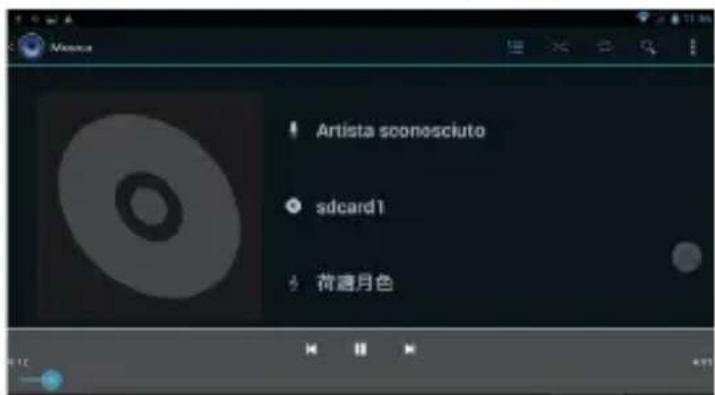

Use the device a multi media player Audio playback: From desktop, tap to enter Application menu. Tap to enter audio playback mode. Only music files stored in the device will be shown in the file list. You can classify the music file list by: ARTISTS, ALBUMS, SONGS, PLAYLISTS and NOW PLAYING by selecting the appropriate option. Tap a song to start playback. On playback interface, you can tap on the function bar to adjust the playback time, backward/previous, forward/next, play, pause, shuffle, repeat setting, etc. ENGLISH

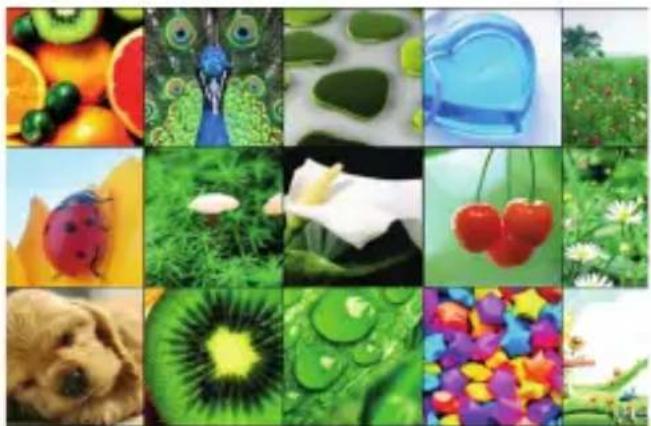

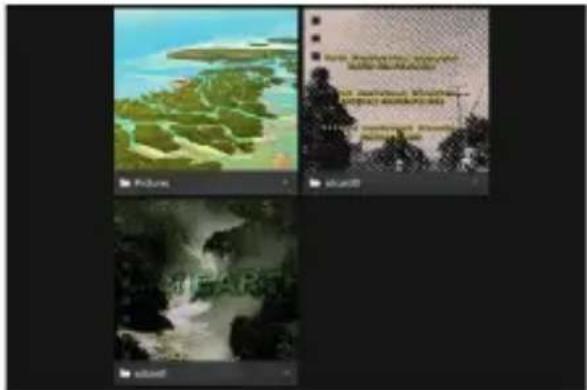

Video playback: From desktop, tap to enter Application menu. Tap to enter video/pictures mode. Only videos files, photo files stored in the device and videos/photos taken from the built-in camera will be shown in the file list. Tap on “MOVIES” to enter a list of preview videos. Tap any video file to enter the playback screen and tap on the play icon to start playback. You can adjust the playback time by sliding the time bar, or adjust the volume by tapping or . Tap for previous, play, next. Tap to go to the previous screen. Tap to enter the sub-menu for subtitles, audio and screen ratio settings for the videos or movies. Photo browsing: From desktop, tap to enter Application menu. Tap to enter video/ photo mode. Only videos files, photo files stored in the device and videos/photos taken from the built-in camera will be shown in the file list. Tap on “GALLERY” to enter a thumbnail of photos.

• Press on the thumbnail of a photo to access a full-sized version.

• Get a closer look at a photo by double tapping the screen. Two taps will magnify the image. Another two taps will return to the original view.

• A tap on the screen, a thumbnail of photos will appear and you can tap on any photo to ENGLISH38 move from one photo to another.

• Enlarge an image by touching the image with two fingers and spreading them toward the edges of the screen. Pinch the image back to original size by bringing your index finger and thumb together.

• See an image in widescreen perspective by turning the device on its side. The device automatically rotates a photo as you move the device and spreads the edges to comply with the view screen’s orientation (this function is only valid after Auto-rotate screen is activated from Setting - Display - Auto-rotate screen). Set OSD Language You can set the display language of the device from the list of available language provided in the device. Go to desktop - Setting - Language & Input Tap on “Language” to enter a list of OSD language options and tap on the desired language and it will be set instantly. Set Keyboard You can select a keyboard input method from Setting. Go to desktop - Setting - Language & Input Select from the list of Keyboard & Input methods. Any keyboard input method APKS installed in the device can be also find from this list of Keyboard & Input methods. Set Date and Time You can set system date and time from Setting. Go to desktop - Setting - Date & time You can setup Automatic date & time, Automatic time zone, Set date, Set time, Select time zone, Use 24-hour format, and Select date format. About the Device You can get a quick view on the device status such as firmware version, model no., Android OS version, Software updates, etc... from: Setting - About tablet Troubleshooting Can not turn on the device?

• You may not be able to turn on the device when the battery is below the critical level. ENGLISH39 Recharge the battery for a few minutes and try to turn it on again.

• Check if the power charger is connected properly and firmly. The battery working time is too short?

• The duration of the lithium battery varies with environmental temperature changes and the service conditions. If the environment temperature is too low or too high, the duration of the battery will be affected. It is recommended to use this device at normal temperature.

• Battery consumption varies depending on if the brightness and on time of the screen, the volume level of the loudspeaker as well as the operation status of the central processor (CPU). To save battery, please refer to Power saving mode section of this menu. No sound from earphone?

• Check if the volume setting is adjusted to 0.

• Check whether the audio file is damaged and try to play other audio files to confirm. In the case if the audio file is damaged, it may cause severe noise or staccato. Can not copy files?

• Check if the device is connected to the computer properly.

• Check if the USB cable is working.

• Check whether the memory capacity available is enough for storage of the copying files. The device doesn’t turn on

• Please try to reset the device by following procedure: Long press the Reset button until the player power off, then you can turn on the player again. Information Note on the Removal and Disposal of Batteries

Warning: Only high-qualified personnel should perform this operation!

Battery Removal The appliance should not be plugged to the mains socket when performing this operation!

1. Remove the rear part of the appliance;

2. Select the battery;

3. Disconnect and remove the battery.

Used batteries should not be disposed of with household waste or thrown into fire or water. Used batteries should be recycled or disposed of in separate waste collection centres. ENGLISH40
