USER MANUAL RASS18H2A HITACHI

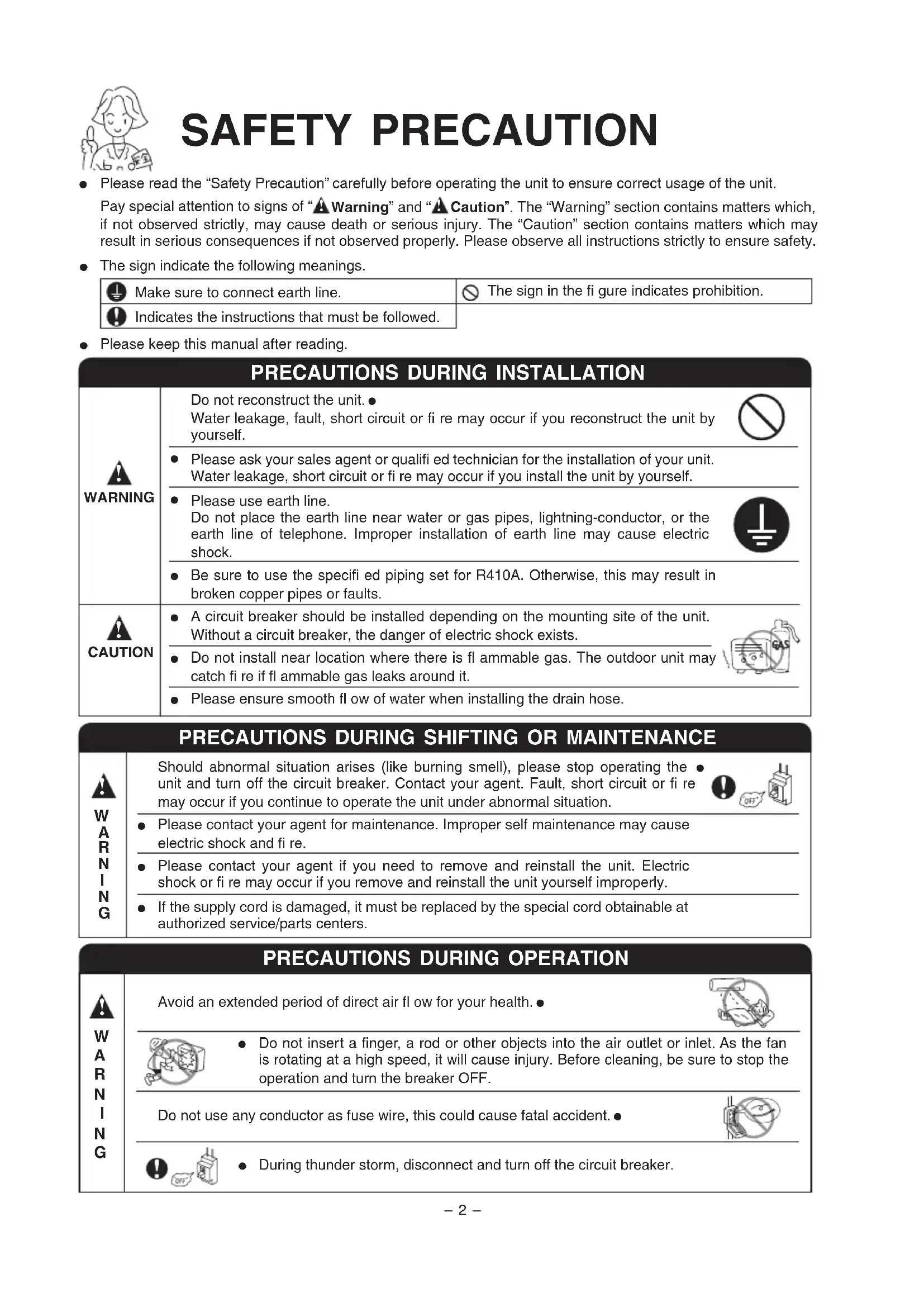

SAFETY PRECAUTION Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit. ● Pay special attention to signs of “ ● Warning” and “ Caution”. The “Warning” section contains matters which, if not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may result in serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.The sign indicate the following meanings. Make sure to connect earth line. The sign in the fi gure indicates prohibition. Indicates the instructions that must be followed.Please keep this manual after reading.

Do not reconstruct the unit. ●Water leakage, fault, short circuit or fi re may occur if you reconstruct the unit by yourself.Please ask your sales agent or qualifi ed technician for the installation of your unit. Water leakage, short circuit or fi re may occur if you install the unit by yourself.Please use earth line. Do not place the earth line near water or gas pipes, lightning-conductor, or the earth line of telephone. Improper installation of earth line may cause electric shock.Be sure to use the specifi ed piping set for R410A. Otherwise, this may result in broken copper pipes or faults.A circuit breaker should be installed depending on the mounting site of the unit. Without a circuit breaker, the danger of electric shock exists.Do not install near location where there is fl ammable gas. The outdoor unit may catch fi re if fl ammable gas leaks around it.Please ensure smooth fl ow of water when installing the drain hose. WARNING CAUTION

Avoid an extended period of direct air fl ow for your health. ●

Do not insert a fi nger, a rod or other objects into the air outlet or inlet. As the fan ● is rotating at a high speed, it will cause injury. Before cleaning, be sure to stop the operation and turn the breaker OFF.During thunder storm, disconnect and turn off the circuit breaker. Do not use any conductor as fuse wire, this could cause fatal accident. ●

PRECAUTIONS DURING SHIFTING OR MAINTENANCE

Should abnormal situation arises (like burning smell), please stop operating the ●unit and turn off the circuit breaker. Contact your agent. Fault, short circuit or fi re may occur if you continue to operate the unit under abnormal situation.Please contact your agent for maintenance. Improper self maintenance may cause electric shock and fi re.Please contact your agent if you need to remove and reinstall the unit. Electric shock or fi re may occur if you remove and reinstall the unit yourself improperly.If the supply cord is damaged, it must be replaced by the special cord obtainable at authorized service/parts centers.

Do not attempt to operate the unit with wet hands, this could cause fatal ● accident. When operating the unit with burning equipments, regularly ventilate the

room to avoid oxygen insuffi ciency. Do not direct the cool air coming out from the air-conditioner panel to face ● household heating apparatus as this may affect the working of apparatus such as the electric kettle, oven etc. Do not use any aerosol or hair sprays near the indoor unit. This chemical

can adhere on heat exchanger fi n and blocked the evaporation water fl ow to drain pan. The water will drop on tangential fan and cause water splashing out from indoor unit. Please ensure that outdoor mounting frame is always stable, fi rm and ● without defect. If not, the outdoor unit may collapse and cause danger. Do not splash or direct water to the body of the unit when cleaning it as this ● may cause short circuit. When operating the unit with the door and windows opened, (the room humidity is always above ● 80%) and with the air defl ector facing down or moving automatically for a long period of time, water will condense on the air defl ector and drips down occasionally. This will wet your furniture. Therefore, do not operate under such condition for a long time. If the amount of heat in the room is above the cooling or heating capability of the unit (for example: ● more people entering the room, using heating equipments and etc.), the preset room temperature cannot be achieved. This appliance is not intended for use by young children or infi rm persons unless they have been

adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.

Do not climb on the outdoor unit or put objects on it. ● Please switch off the unit and turn off the circuit breaker during cleaning, the ● high-speed fan inside the unit may cause danger. Turn off the circuit breaker if the unit is not to be operated for a long period.

The product shall be operated under the manufacturer specifi cation and ● not for any other intended use. Do not put water container (like vase) on the indoor unit to avoid water ● dripping into the unit. Dripping water will damage the insulator inside the unit and causes short-circuit. Do not place plants directly under the air fl ow as it is bad for the plants. ● Instruction Manual 1642.indb 3 2/11/2010 2:33:37 PM– 2 – INDOOR UNIT

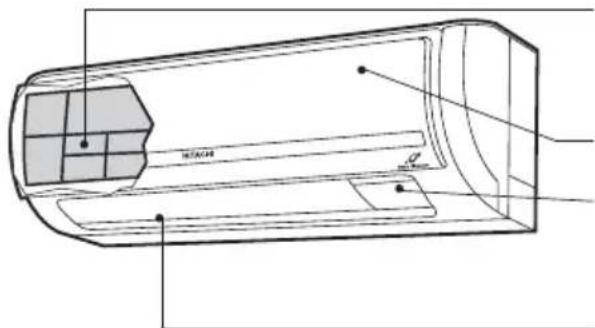

NAMES AND FUNCTIONS OF EACH PART

Light indicator showing the operating condition. (Refer page 3) HORIZONTAL DEFLECTOR

VERTICAL DEFLECTOR (AIR OUTLET) (Refer Instruction manual) REMOTE CONTROLLER Send out operation signal to the indoor unit. So as to operate the whole unit. (Refer Instruction manual) WIDTH (mm)

MODEL NAME AND DIMENSIONS

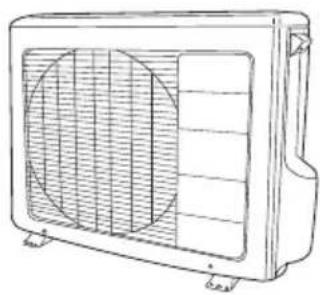

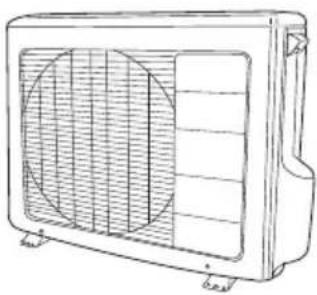

OUTDOOR UNIT DRAIN PIPE Condensed water drain to outside. CONNECTING CORD AIR INLET (BACK, LEFT SIDE) AIR OUTLET ● Air cleansing filters are not washable and can be use in 1 year time. Type number for this air cleansing filter is <SPX-CFH15>. Please use this number for ordering when you want to renew it. ● Air cleansing filter should be cleaned every month or sooner if noticeable loading occurs. When used overtime, it may loose its deodorizing function. For maximum performance, it is recommended to replace it every 1 year depending on application requirements. NOTE– 3 – ENGLISH

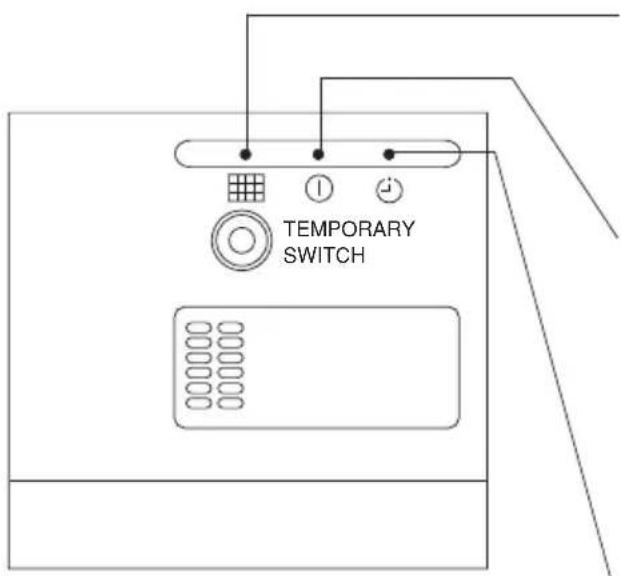

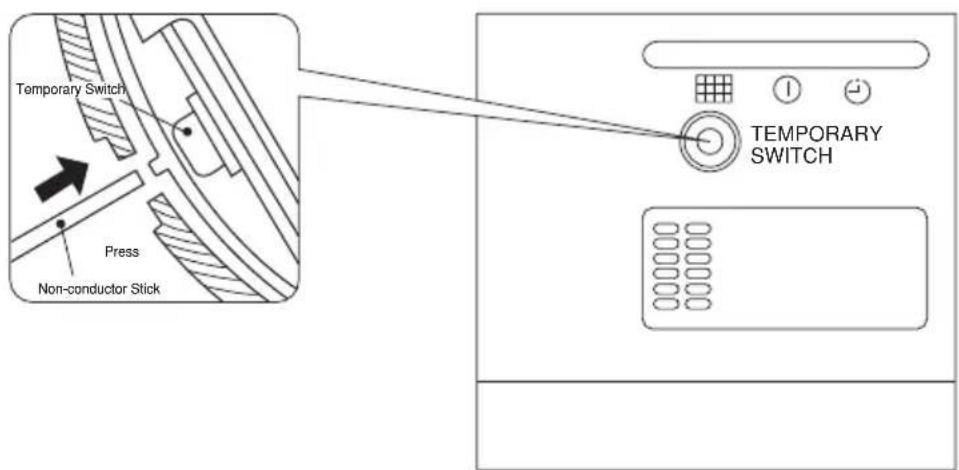

OPERATION INDICATOR FILTER LAMP When the device is operated for a total of about 200 hours, the FILTER lamp lights to indicate that it is time to clean the filter. The lamp goes out when the “ (AUTO SWING)” button is pressed while the device is on “STANDBY MODE”. OPERATION LAMP This lamp lights during operation. The OPERATION LAMP flashes in the following cases during heating. (1) During preheating For about 2–3 minutes after starting up. (2) During defrosting Defrosting will be performed about once every one hour when frost forms on the heat exchanger of the outdoor unit, for 5–10 minutes each time. TIMER LAMP This lamp lights when the timer is working. TEMPORARY SWITCH TEMPORARYSWITCH PressTemporary SwitchNon-conductor Stick TEMPORARY SWITCH Use this switch to start and stop when the remote controller does not work. [Use non-conductor stick (example: toothpick)] ● By pressing the temporary switch, the operation is done in previously set operation mode. ● When the operation is done using the temporary switch after the power source is turned off and turn on again, the operation is done in automatic mode.– 4 – NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT REMOTE CONTROLLER This controls the operation of the indoor unit. The range of control is about 7 meters. If indoor lighting is● controlled electronically, the range of control may be shorter. This unit can be fi xed on a wall using the fi xture provided. Before fi xing it, mak e sure the indoor unit can be

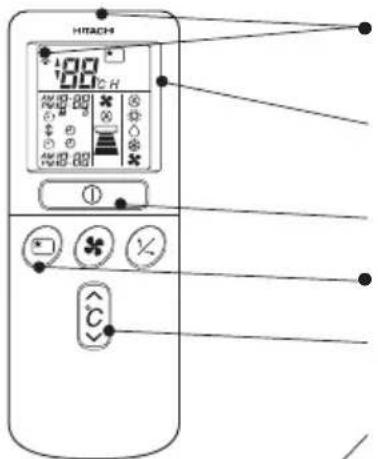

controlled from the remote controller. Handle the remote controller with care. Dropping it or getting it wet may compromise its signal tr ansmission

capability. After new batteries are inserted into the remote controller, the unit will initially require approximately 10

seconds to respond to commands and operate. Signal emitting window/transmission sign

Point this window toward the indoor unit when controlling it. The transmission sign blinks when a signal is sent. Display ● This indicates the room temperature selected, current time, timer status, function and intensity of circulation selected. START/STOP button ● Press this button to start operation. Press it again to stop operation. SLEEP button

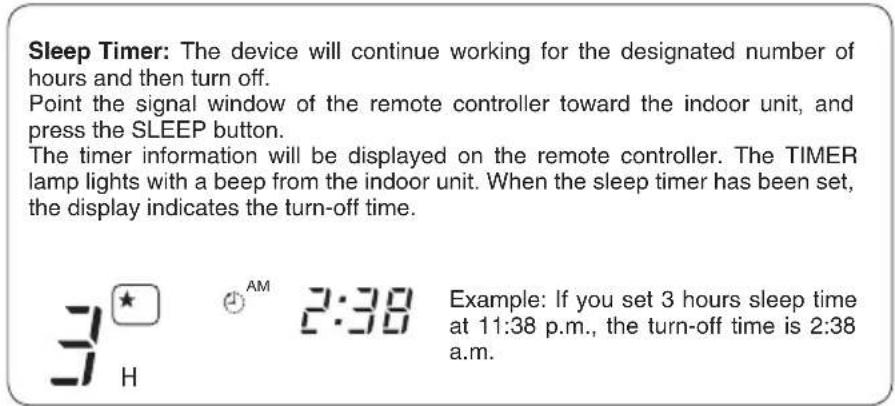

Use this button to set the sleep timer. TEMPERATURE buttons ● Use these buttons to raise or lower the temperature setting. (Keep pressed, and the value will change more quickly.) TIME button ● Use this button to set and check the time and date. RESET buttons ● FUNCTION selector ● Use this button to select the operating mode. Every time you press it, the mode will change from (AUTO) to (HEAT) to (DEHUMIDIFY) to (COOL) and to (FAN) cyclically. FAN SPEED selector ● This determines the fan speed. Every time you press this button, the intensity of circulation will change from (AUTO) to (HI) to (MED) to (LOW) to (SILENT) (This button allows selecting the optimal or preferred fan speed for each operation mode). AUTO SWING button

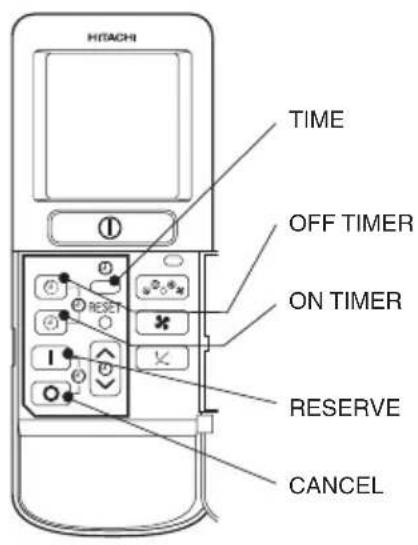

Use this button to set the timer. OFF-TIMER button ● Select the turn OFF time. ON-TIMER button ● Select the turn ON time. RESERVE button ● Time setting reservation. CANCEL button ● Cancel time reservation. Precautions for Use Do not put the remote controller in the following places.● Under direct sunlight.● In the vicinity of a heater.● Handle the remote controller carefully. Do not drop it on the fl oor, and● protect it from water. Once the outdoor unit stops, it will not restart for about 3 min utes (unless

you turn the power switch off and on or unplug the power cord and plug it in again). This is to protect the device and does not indicate a failure. If you press the FUNCTION selector button during operation, the de vice● may stop for about 3 minutes for protection. AUTO HEAT DEHUMIDIFY COOL FAN

TIME TIMER SETTIMER SELECTOR ON TIMER OFF TIMERAUTO SWING Instruction Manual 1642.indb 4 2/11/2010 2:33:37 PM– 5 – ENGLISH AUTOMATIC OPERATION The device will automatically determine the mode of operation, HEAT, COOL or DEHUMIDIFY depending on the current room temperature. The selected mode of operation will change when the room temperature varies. However the mode of operation will not change when indoor unit connected to multi type outdoor unit. VARIOUS FUNCTIONS ■ Auto Restart Control If there is a power failure, operation will be automatically restarted when the power is resumed with previous ● operation mode and airfl ow direction. (As the operation is not stopped by remote controller.) If you intend not to continue the operation when the power is resumed, switch off the power supply.

When you switch on the circuit breaker, the operation will be automatically restarted with previous operation mode and airfl ow direction. Note: 1. If you do not require Auto Restart Control, please consult your sales agent or OFF by remote control.

2. Auto Restart Control is not available when Timer or Sleep Timer mode is set.

As the settings are stored in memory in the remote controller, you ■ only have to press the (START/STOP) button next time. Press the FUNCTION selector so that the display indicates the (AUTO) mode of operation. When AUTO has been selected, the device will automatically

determine the mode of operation, HEAT, COOL or DEHUMIDIFY depending on the current room temperature. However the mode of operation will not change when indoor unit connected to multi type outdoor unit. If the mode automatically selected by the unit is not ● satisfactory, manually change the mode setting (heat, dehumidify, cool or fan). Press the (START/STOP) button. Operation starts with a beep. Press the button again to stop operation. You can raise or lower the temperature setting as necessary by maximum of 3°C. Press the temperature button and the temperature setting will change by 1°C each time. The preset temperature and the actual room temperature may

vary somewhat depending on conditions. The display does not indicate the preset temperature in the ● AUTO mode. If you change the setting, the indoor unit will produce a beep. START STOP Press the (FAN SPEED) button, AUTO, LOW and SILENT is available.

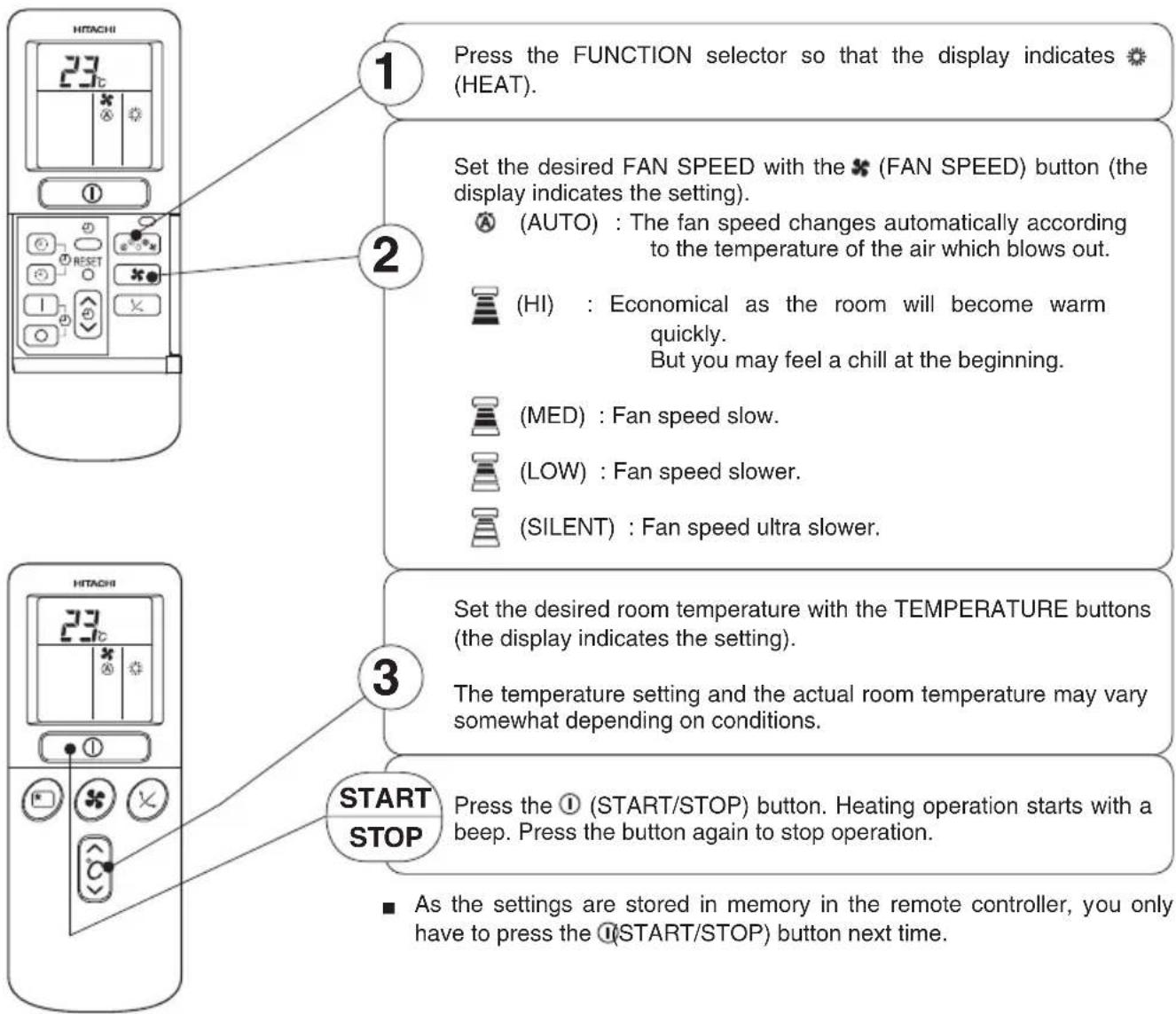

Instruction Manual 1642.indb 5 2/11/2010 2:33:38 PM– 6 – HEATING OPERATION Use the device for heating when the outdoor temperature is under 21°C.● When it is too warm (over 21°C), the heating function may not work in order to protect the device. In order to keep reliability of the device, please use this device above -15°C of the outdoor temperature.

Press the FUNCTION selector so that the display indicates (HEAT). Set the desired FAN SPEED with the (FAN SPEED) button (the display indicates the setting). (AUTO) : The fan speed changes automatically according to the temperature of the air which blows out. (HI) : Economical as the room will become warm quickly. But you may feel a chill at the beginning. (MED) : Fan speed slow. (LOW) : Fan speed slower. (SILENT) : Fan speed ultra slower. Set the desired room temperature with the TEMPERATURE buttons (the display indicates the setting). The temperature setting and the actual room temperature may vary somewhat depending on conditions. Press the (START/STOP) button. Heating operation starts with a beep. Press the button again to stop operation. As the settings are stored in memory in the remote controller, y ou only

have to press the (START/STOP) button next time. START STOP ■ Defrosting Defrosting will be performed about once an hour when frost forms on the heat exchange of the outdoor unit, for 5~10 minutes each time. During defrosting operation, the operation lamp blinks in cycle of 3 seconds on and 0.5 second off. The maximum time for defrosting is 20 minutes. However, if it is connected to multi type outdoor unit, the maximum time for defrosting is 15 minutes. (If the piping length used is longer than usual, frost will likely to form.)

Instruction Manual 1642.indb 6 2/11/2010 2:33:39 PM– 7 – ENGLISH DEHUMIDIFYING OPERATION ■ Dehumidifying Function When the room temperature is higher than the temperature setting: The device will dehumidify the room, ● reducing the room temperature to the preset level. When the room temperature is lower than the temperature setting: Dehumidifying will be performed at the temperature setting slightly lower than the current room temperature, regardless of the temperature setting. The function will stop (the indoor unit will stop emitting air) as soon as the room temperature becomes lower than the setting temperature. The preset room temperature may not be reached depending on the number of people present in the room

or other room conditions. Set the desired room temperature with the TEMPERATURE button (the display indicates the setting). The range of 20-26˚C is recommended as the room temperature for dehumidifying. Press the (START/STOP) button. Dehumidifying operation starts with a beep. Press the button again to stop operation. As the settings are stored in memory in the remote controller, you only

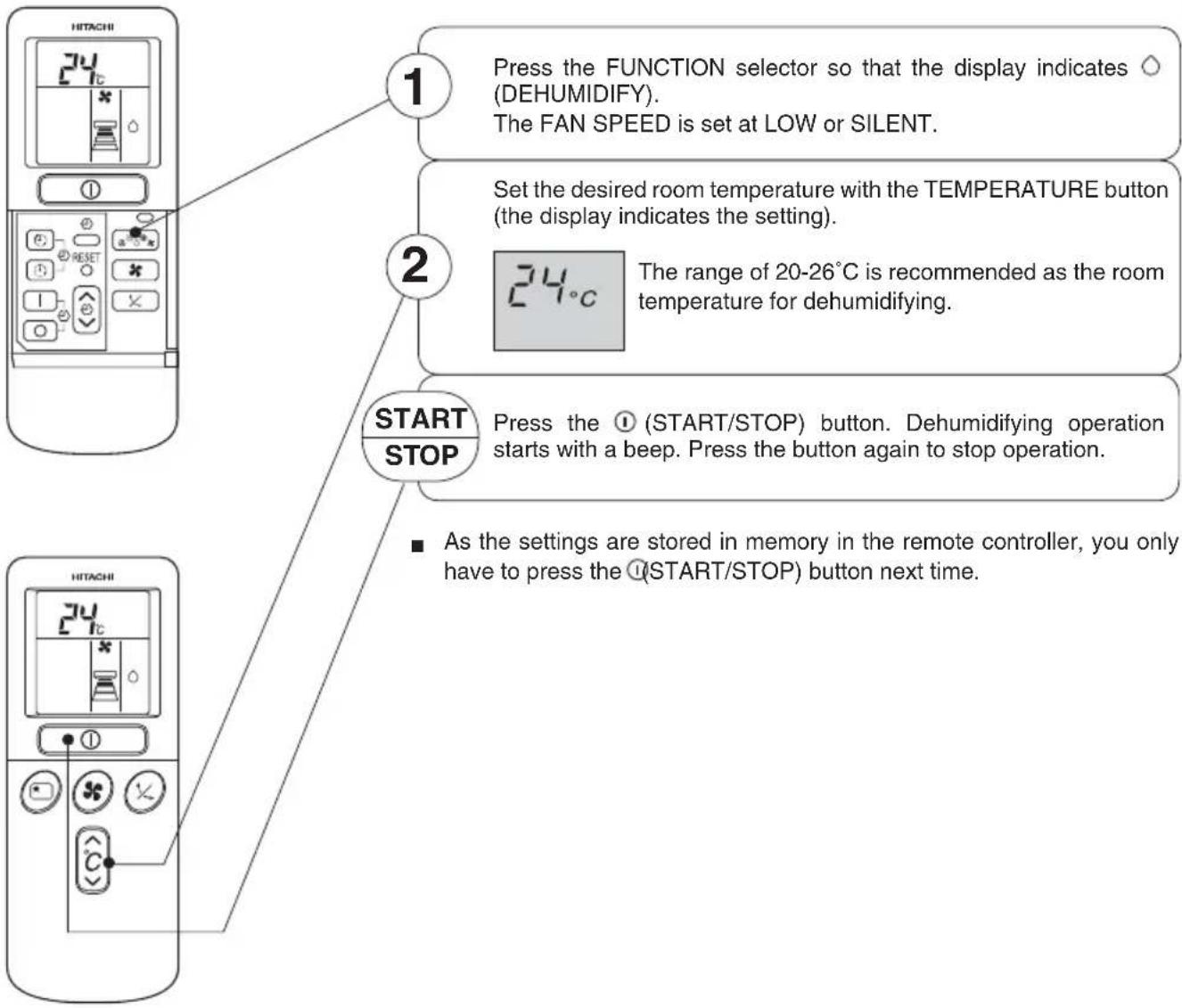

have to press the (START/STOP) button next time. START STOP Press the FUNCTION selector so that the display indicates (DEHUMIDIFY). The FAN SPEED is set at LOW or SILENT. Use the device for dehumidifying when the room temperature is over 16°C. When it is under 15°C, the dehumidifying function will not work.

Instruction Manual 1642.indb 7 2/11/2010 2:33:39 PM– 8 – COOLING OPERATION Use the device for cooling when the outdoor temperature is -10~ 43°C. If in doors humidity is very high (80%), some dew may form on the air outlet grille of the indoor unit. Press the FUNCTION selector so that the display indicates (COOL). Set the desired FAN SPEED with the (FAN SPEED) button (the display indicates the setting). (AUTO) : The FAN SPEED is HI at fi rst and varies to MED or LOW automatically when the preset temperature has been reached. (HI) : Economical as the room will become cool quickly. (MED) : Fan speed slow. (LOW) : Fan speed slower. (SILENT) : Fan speed ultra slower. Set the desired room temperature with the TEMPERATURE button (the display indicates the setting). The temperature setting and the actual room temperature may vary some how depending on conditions. Press the (START/STOP) button. Cooling operation starts with a beep. Press the button again to stop operation. The cooling function does not start if the temperature setting is higher than the current room temperature (even though the (OPERATION) lamp lights). The cooling function will start as soon as you set the temperature below the current room temperature. As the settings are stored in memory in the remote controller, you only have to press the (START/STOP) button next time. START STOP

When the AUTO fan speed mode is set in the cooling/heating operation: For the heating operation When the difference of room temperature and setting temperature is large,

fan starts to run at HI speed. After room temperature reaches the preset temperature, the heating ● operation, which changes the fan speed and room temperature to obtain optimum conditions for natural healthful heating will be performed. When the difference of room temperature and setting temperature is large, ● fan starts to run at HI speed. After room temperature reaches the preset temperature, the cooling ● operation, which changes the fan speed and room temperature to obtain optimum conditions for natural healthful cooling will be performed. For the cooling operation FAN OPERATION You can use the device simply as an air circulator. Use this function to dry the interior of the indoor unit at the end of summer. Press the FUNCTION selector so that the display indicates (FAN). Press the (FAN SPEED) button. (HI) : The strongest air blow. (MED) : Fan speed slow. (LOW) : Fan speed slower. (SILENT) : Fan speed ultra slower. Press the (START/STOP) button. Fan operation starts with a beep. Press the button again to stop operation. START STOP

ON/OFF-TimerOFF-TimerYou can set the device to turn offat the preset time.After you change the batteries; How to Cancel Reservation Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL) button.The (RESERVED) sign goes out with a beep and the (TIMER) lamp turns off on the indoor unit. 1 Set the (TIME) button. 1 Press the (OFF-TIMER) button. The (OFF) mark blinks on the display. NOTE You can set only one of the OFF-timer, ON-timer and ON/OFF-timer.ON-Timer Time The device will turn on at the ●designated times. TIME

2 Set the turn-off time with the TIMER control button.Press the (RESERVE) button. 3 Press the (ON- TIMER) button so that the (OFF) mark lights and the (ON) mark blinks. 1 Press the (ON-TIMER) button the (ON) mark blinks on the display.The device will turn on (off) and off ●(on) at the designated times.The switching occurs fi rst at the ●preset time that comes earlier.The arrow mark appearing on the ●display indicates the sequence of switching operations. 1 Press the (ON-OFF) button so that the (OFF) mark blinks.Start STOP Start Stop StopStart Instruction Manual 1642.indb 10 2/11/2010 2:33:40 PM– 11 – ENGLISH The time indication will disappear ●automatically in 10 second.To check the current time setting, ●press the (TIME) button twice.The setting of the current time is w complete. The timer may be used in three ways: off-timer, on-timer, and on/off (off/on)-timer. Set the current time at fi rst ● because it serves as a reference. As the time settings are stored in memory in the remote controller, you only have to press the ● (RESERVE) button in order to use the same settings next time. 2 Press the (TIME) b utton. 3 Set the current time with the TIMER control button. Example: The current time is 1:30 p.m. 2 Set the turn-off time with the TIMER control button. The setting of turn-off time is now complete.Example: The device will turn off at 11:00p.m.Example: The device will turn on at 7:00 a.m. The setting of the turn-on time is now complete. 4 Set the turn-on time with the TIMER control button. 5 Point the signal window of the remote controller toward the indoor unit, and press the (RESERVE) button. The (ON) mark starts lighting instead of fl ashing and the (RESERVED) sign lights. A beep occurs and the (TIMER) lamp lights on the indoor unit. 3 Point the signal window of the remote controller toward the indoor unit, and press the (RESERVE) button. The (ON) mark starts lighting instead of fl ashing and the (RESERVED) sign lights. A beep occurs and the (TIMER) lamp lights on the indoor unit. 2 Set the turn-on time with the TIMER control button. Example: The device will turn off at 10:30 p.m. and it will be turned on at 7:00 a.m.The settings of the turn-on/off times are now complete. 4 Press the (TIME) button again. The time indication starts lighting instead of fl ashing.

3 Point the signal window of the remote controller toward the indoor unit, and press the (RESERVE) button. The (OFF) mark starts lighting instead of fl ashing and the sign (RESERVED) lights. A beep occurs and the (TIMER) lamp lights on the indoor unit. Instruction Manual 1642.indb 11 2/11/2010 2:33:41 PM– 12 –

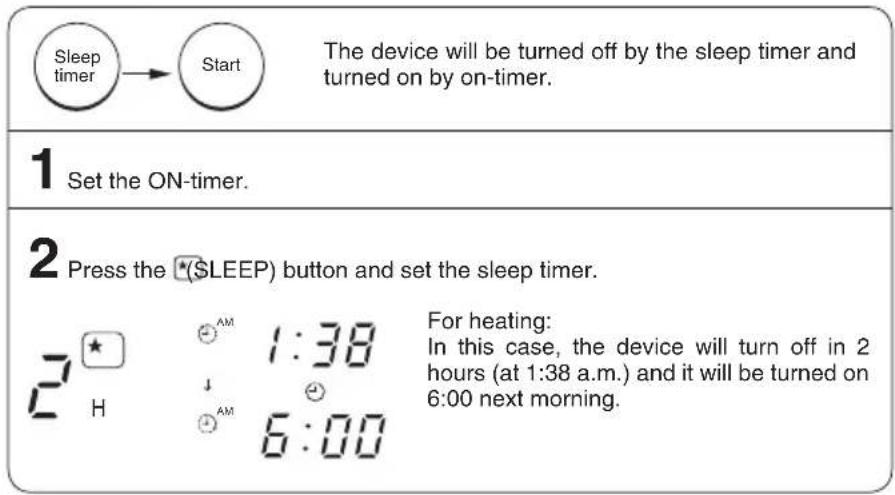

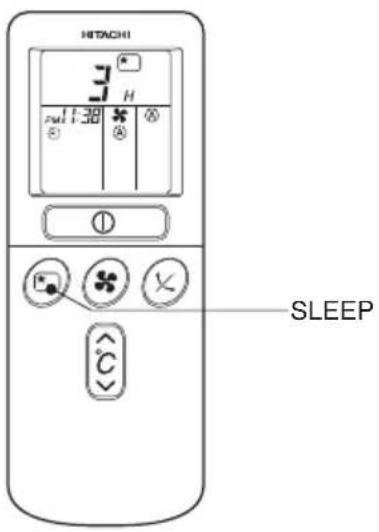

HOW TO SET THE SLEEP TIMER

1 Set the ON-timer. Set the current time at fi rst if it is not set before (see the pages for setting the current time). Press the (SLEEP) button, and the display changes as shown below. Mode Sleep timer 1 hour 2 hours 3 hours 7 hours Sleep timer off44 44 Sleep Timer: The device will continue working for the designated number of hours and then turn off.Point the signal window of the remote controller toward the indoor unit, and press the SLEEP button.The timer information will be displayed on the remote controller. The TIMER lamp lights with a beep from the indoor unit. When the sleep timer has been set, the display indicates the turn-off time.Example: If you set 3 hours sleep time at 11:38 p.m., the turn-off time is 2:38 a.m. 2 Press the (SLEEP) button and set the sleep timer. The device will be turned off by the sleep timer and turned on by on-timer. How to Cancel Reservation Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL) button. The (RESERVED) sign goes out with a beep and the (TIMER) lamp turns off on the indoor unit. For heating:In this case, the device will turn off in 2 hours (at 1:38 a.m.) and it will be turned on 6:00 next morning.

Remove the cover as shown in the fi gure and take out the old batteries. Install the new batteries.The direction of the batteries should match the marks in the case.Do not use new and old batteries, or different kinds of batteries 1. together.Take out the batteries when you do not use the remote controller for 2. 2 or 3 months. CAUTION CIRCUIT BREAKER When you do not use the room air conditioner, set the circuit breaker to “OFF”. TEMPORARY SWITCH If the remote controller does not work due to battery failure, press this switch to start and stop operation. This temporary operation will be at the setting made most recently. (The unit will immediately go into automatic ● operation once power is switched on.) Push and pull to the direction of arrow

Warning Freezing temperature is bad for health and a waste of electric power. It is possible to reduce heat entering the room through windows. At night, please use the “OFF or ON timer operation mode”, together with your wake up time in the morning. This will enable you to enjoy a comfortable room temperature. Please use the timer effectively. Dusty air fi lter will reduce the air volume and the cooling effi ciency. To prevent from wasting electric energy, please clean the fi lter every 2 weeks. Please pay attention to the room temperature and air fl ow direction when operating the unit for baby, children and old folks who have diffi culty in movement.

Caution Do not close the room for a long period of time. Occasionally open the door and windows to allow the entrance of fresh air.

Caution If the amount of heat in the room is above the cooling capability of the air conditioner (for example: more people entering the room, using heating equipments and etc.), the preset room temperature cannot be achieved. When the indoor unit is not to be used for a long period of time, please switch off the power from the mains. If the power from mains remains “ON”, the indoor unit still consumes about 8W in the operation control circuit even if it is in “OFF” mode.

Warning To protect the whole unit during lightning, please stop operating the unit and remove the plug from the socket. Interference From Electrical Products

Caution To avoid noise interference, please place the indoor unit and its remote controller at least 1m away from electrical products. Inverter-type fluorescent lamp. To prevent interference, place at least 1m away. OFF Instruction Manual 1642.indb 15 2/11/2010 2:33:43 PM– 16 –

ATTACHING THE AIR CLEANSING FILTERS

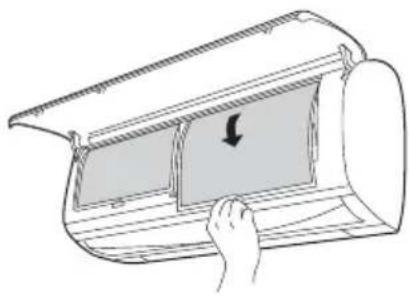

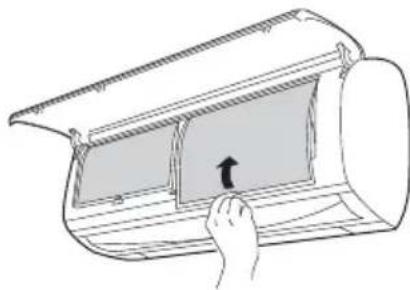

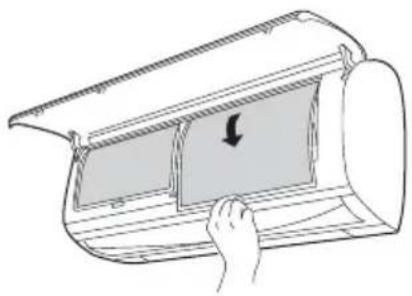

Open the front panel. Pull up the front panel by holding it at both sides with ● both hands. Remove the fi lter. Push upward to release the claws and pull out the

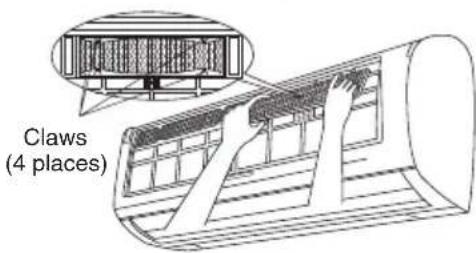

fi lter. Attaching the air cleansing fi lters to the fi lter. Attach the air cleansing fi lters to the frame by gently

compress its both sides and release after insertion into fi lter frame. Attach the fi lters. Attach the fi lters by ensuring that the surface written ● “FRONT” is facing front. After attaching the fi lters, push the front panel at three

arrow portion as shown in fi gure and close it. Cleaning and maintenance must be carried out only by qualifi ed service personal. Before cleaning, stop operation and switch off the power supply. CAUTION CAUTION Do not bend the air cleansing fi lter as it may cause damage to the structure. NOTE In case of removing the air cleansing fi lters, please follow the above procedures. ● The cooling capacity is slightly weakened and the cooling speed becomes slower when the air cleansing ● fi lters are used. So, set the fan speed to "HIGH" when using it in this condition. Do not operate the air conditioner without fi lter. Dust may enter the air conditioner and fault may occur.

Instruction Manual 1642.indb 16 2/11/2010 2:33:43 PM– 17 – ENGLISH MAINTENANCE Cleaning and maintenance must be carried out only by qualifi ed service personal. Before cleaning, stop operation and switch off the power supply.

Clean the air fi lter, as it removes dust inside the room. In case the air fi lter is full of dust, the air fl ow will decrease and the cooling capacity will be reduced. Further, noise may occur. Be sure to clean the fi lter following the procedure below. CAUTION Open the front panel and remove the fi lterGently lift and remove the air cleansing fi lter●from the air fi lter frame.Vacuum dust from the air fi lter and air cleansing fi lter using vacuum cleaner. If there is too much dust, air fi lter only rinse under running tap water and gently brush it with soft bristle brush. Allow fi lters to dry in shade.Re-insert the air cleansing fi lter to the fi lter●frame. Set the fi lter with “FRONT” mark facingfront, and slot them into the original state.After attaching the fi lters, push the front panel●at three arrow portions as shown in fi gure andclose it. CAUTION Do not wash with hot water at more than 40°C. The fi lter may shrink.● When washing it, shake off moisture completely and dry it in the shade; do not expose it directly to the sun. ● The fi lter may shrink. Do not use detergent on the air cleansing fi lter as some detergent may deteriorate the fi lter electrostatic● performance.PROCEDURE

Remove the front panel and wash with clean● water. Wash it with a soft sponge. After using neutral detergent, wash thoroughly with clean water. When front panel is not removed, wipe it with

a soft dry cloth. Wipe the remote controller thoroughly with a soft dry cloth. Wipe the water thoroughly.

If water remains at indicators or signal receiver of indoor unit, it causes trouble. Method of removing the front panel. Be sure to hold the front panel with both hands to detach and attach it.

CAUTION Do not splash or direct water to the body of the unit when cleaning it as● this may cause short circuit. Never use hot water (above 40°C), benzine, gasoline , acid, thinner or a

brush, because they will damage the plastic surface and the coating. Removing the Front Panel When the front panel is fully opened with● both hands, push the right arm to the inside to release it, and while closing the front panel slightly, put it out forward. Attaching the Front Panel Move the projections of the left and right arms● into the Flanges in the unit and securely insert them into the holes. Arm Flange Hole Projection Instruction Manual 1642.indb 18 2/11/2010 2:33:44 PM– 19 – ENGLISH

REGULAR INSPECTION PLEASE CHECK THE FOLLOWING POINTS BY QUALIFIED SERVICE PERSONAL EITHER EVERY HALF YEARLY OR YEARLY. CONTACT YOUR SALES AGENT OR SERVICE SHOP. Is the earth line disconnected or broken? Is the mounting frame seriously affected by rust and is the outdoor unit tilted or unstable? Is the plug of power line fi rmly plugged into the socket? (Please ensure no loose contact between them). Cleaning and maintenance must be carried out only by qualifi ed service personal. Before cleaning, stop operation and switch off the power supply.

Running the unit setting the operation mode to ● (FAN) and the fan speed to HI for about half a day on a fi ne day, and dry the whole of the unit. Switch off the power plug.

WHEN ASKING FOR SERVICE, CHECK THE FOLLOWING POINTS. When it does not operate Is the fuse all right?● Is the voltage extremely high or low?● Is the circuit breaker “ON”?● Is the setting of operation mode different from other indoor● units? Is the air fi lter blocked with dust?

Does sunlight fall directly on the outdoor unit?● Is the air fl ow of the outdoor unit obstructed?● Are the doors or windows opened, or is there any source of heat ● in the room? Is the set temperature suitable?● Are the air inlets or air outlets of indoor and outdoor units● blocked? Is the fan speed “LOW” or “SILENT”?●

CONDITION CHECK THE FOLLOWING POINTS

Notes In quiet operation or stopping the operation, the following phenomena may● occassionally occur, but they are not abnormal for the operation. (1) Slight fl owing noise of refrigerant in the refrigerating cycle. (2) Slight rubbing noise from the fan casing which is cooled and then gradually warmed as operation stops. The odor will possibly be emitted from the room air conditioner because the

various odor, emitted by smoke, foodstuffs, cosmetics and so on, sticks to it. So the air fi lter and the evaporator regularly must be cleaned to reduce the odor. Please contact your sales agent immediately if the air conditioner still fails to operate normally after the above

inspections. Inform your agent of the model of your unit, production number, date of installation. Please also inform him regarding the fault. Power supply shall be connected at the rated voltage, otherwise the unit will be brok en or could not reach the

specifi ed capacity. When it does not cool well When it does not hot well If the remote controller is not transmitting a signal. Do the batteries need replacement?● Is the polarity of the inserted batteries correct?● Remote controller display is dim or blank.) NOTE: If the supply cord is damaged, it must be replaced by the special cord obtainable at authorized ser vice

parts centers. On switching on the equipment, particularly when the room light is dimmed, a slight brightness fl uctuation ● may occur. This is of no consequence. The conditions of the local Power Supply Companies are to be observed. Instruction Manual 1642.indb 20 2/11/2010 2:33:45 PM– 4 – MEMO

Minimum Maximum Minimum Maximum Indoor Dry bulb °C 21 32 20 27 Wet bulb °C 15 23 12 19 Outdoor Dry bulb °C 21 43 2 21 Wet bulb °C 15 26 1 15 Note ● Avoid to use the room air conditioner for cooling operation when the outside temperature is below 21°C (70°F). The recommended maximum and minimum operating temperatures of the hot and cold sides should be as below: Cooling Heating– 5 – DEUTSCH
