CAUTION: We recommend the installation be performed by a qualified electrician who can check the stench of the supportive ceiling members and make proper electrical connections.

All wiring must be in accordance with national and local electrical codes and the ceiling fan must be grounded as a precaution against possible electrical shock.

An all-pole disconector with isolating distance of 3mm must be incorporated in the fixed wiring in accordance with the national wiring rules.

The product is in accordance with safety standards into force. Repairs should be exclusively performed by qualified technicians using original spare parts. Any breach of this instruction may be particularly dangerous for the users.

WARNING: Please be sure pivot pin and split pin are in place and both setscrews on downrod are tightened securely before operation.

To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

IMPORTANT SAFETY PRECAUTIONS:

1) Check if the electrical specifications of the appliance are compatible with your installation.
2) Unauthorized use or technical modification to the appliance can lead to danger to life and health.
3) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
4) This appliance is for indoor use only except moist or wet room.
5) Means for disconnection must be incorporated in the fixed wiring in accordance with wiring rules into force.
6) Before wiring the paddle fan, turn off the electric power supply at the main fuse box or main circuit breaker and leave it off until the installation is complete.
7) The outlet box and support structure must be securely mounted an capable of reliably supporting a minimum of 34,5 kgs. Use only metallic outlet boxes.
8) Do not install paddle fan less tan 2,3 between floor and lowest edge of fan blades. Check hanging location in order to assure adequate clearance with adjacent walls, furnitures, etc..
9) All wiring must be in accordance with the National Electrical Code and local electrical codes. Electrical installation should be performed by a qualified licensed electrician.

10) Do not opérate reversing switch while fan blades are in motion. Fan must be turned off and blades stopped before reversing blade direction.
11) Avoid placing objects in the path of the blades.
12) Always disconnect the appliance before cleaning or doing maintenance. Do not use water or detergents when cleaning the fan or fan blades. In order to not damage the product, it is advisable to use adapted equipment to the fragile surfaces and products slowing the wear on the appliance. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.
13) After making electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box.
14) The supplier disclaims all liability for personal injury or property damage arising from incorrect use or installation of the fan. In doubt, call upon an electrician.

15) Children should be supervised to ensure that they do not play with the appliance.

16) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

ENVIRONMENTAL PROTECTION:

WARNING!

Electrical products must not be thrown out with domestic waste. They must be taken to a commune collecting point for environmentally friendly disposal in accordance with local regulations. Contact your local authorities or stocklist for advice on recycling. The packaging material is recyclable. Dispos of the packaging in an environmentally friendly manner and make it available for the recyclable material collection-service.

ASSEMBLING AND INSTALLATION:

1) Verify all parts against part list and diagram.
2) Remove motor from packing. To avoid damage to finish assemble motor on soft padded surface or use the original packaging in motor box.
3) It is essential that the outlet box or structural member from which the far is to be suspended will safely support the fan. In view of the torque and weight factors involved some outlet boxes will require additional strengthening by securing more firmly to Wood beams of steel supports.
4) Attach the mounting bracket to the outlet box with the screws provided. Attached canopy into hanging bracket with fan unit and ball joint hang below the canopy and secured with 4 setscrews.
5) Making sure the ball is properly seated with molded Groove engaged with the tab on canopy be certain that hanging ball is fully locked into position.
6) Attach blades to the blade brackets using screws, nuts and washers. The three screws per blade are protruded from bottom of the blade bracket, through the blade bracket into the blade. Then place the washer and nut on top of the screw, holding the nut, thread the screw to tighten the blade and the blade bracket. Repeat instruction for fixing all blades to blade brackets.
7) Secure the blades to the fan motor with screws and washers.
8) Make the power wire connections with wires black to black, white to white and green to green or bare wire(ground).Make sure that fan is properly grounded. Carefully push all wiring inside wiring box after splices are made. The blue wire is provided for the connection of optional light kit. Do not connect this wire if light is not installed.

OPERATING INSTRUCTIONS:

1) Turn on power and check operation of fan. The pull chain controls the fan as follows: One pull-high speed; two pulls-medium speed; three pulls-low speed; four pulls "OFF".
2) If regulator speed controls being applied, the regulator controls the fan as follows: Turn control knob to position "1" (slow speed), then increase as required ins steps to position "5" (full speed).
3) The slide switch controls "FOWARD" and "REVERSE". Be sure turn off the power source before reversing the fan.

Air Flow Direction Downward. Speed Medium to Full Speed. In warmer weather, your ceiling fan will let you reduce your use of air conditioning, keeping the air moving to help you cool.

Air Flow Direction Upward. Speed Low to Medium.

In cooler weather upward airflow reduces drafts while moving hotter air off the ceiling. The exact speed will depend on the size of the room, number of fan, ceiling height, etc.. It should be fast enough to break up the air stratification, but slow so as not to create a breeze.

ELECTRICAL CONNECTIONS:

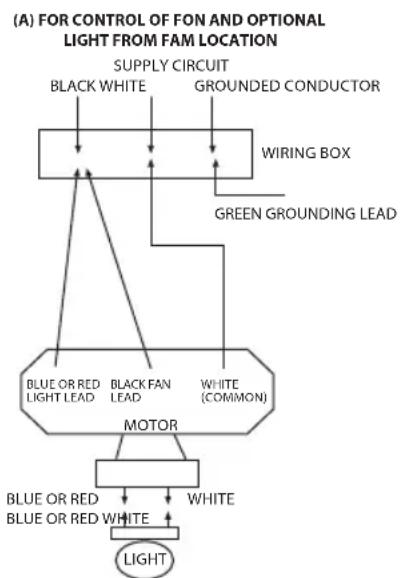

Connect black to live, white to neutral, and green grounding lead to the grounded conductor of the supply circuit. If you are installing a light kit, connect blue or red to live of the supply circuit. Use wire connectors provided with your fan.

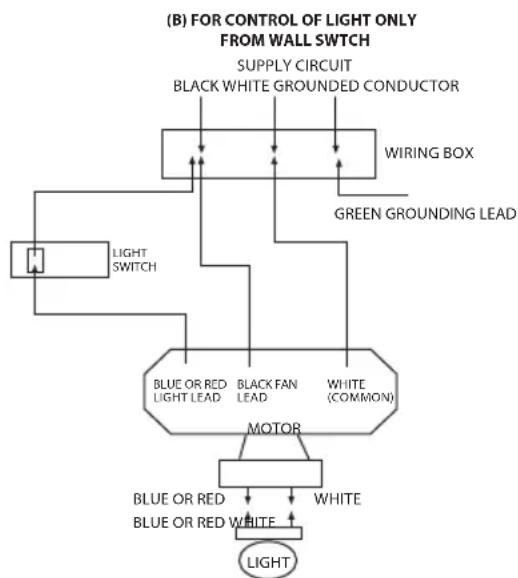

NO LOOSE STRANDS or LOOSE CONNECTIONS SHOULD BE PRESENT. After splices are made, the wires must be spread apart so that Green and White are on one side of the outlet box and the black (and blue or red if light kit is installed) are on the other side. Turn splices upward and carefully push hall wiring into outlet box. For optional wall controls, see Fig.8B, 8C, 8D. (Note: Regulator control fan speed only, cannot use in light kit.)

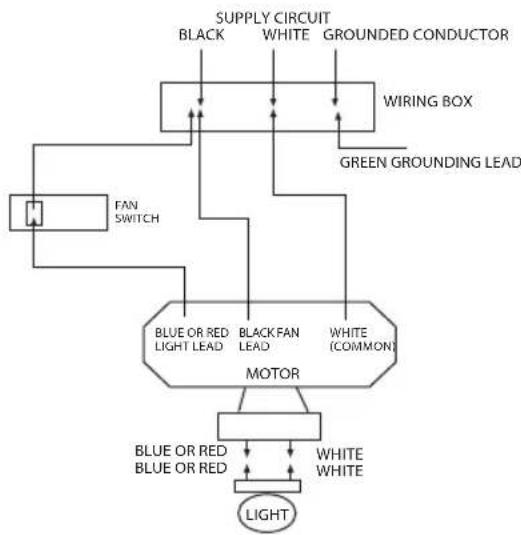

(C) FOR CONTROL OF FAN FROM WALL

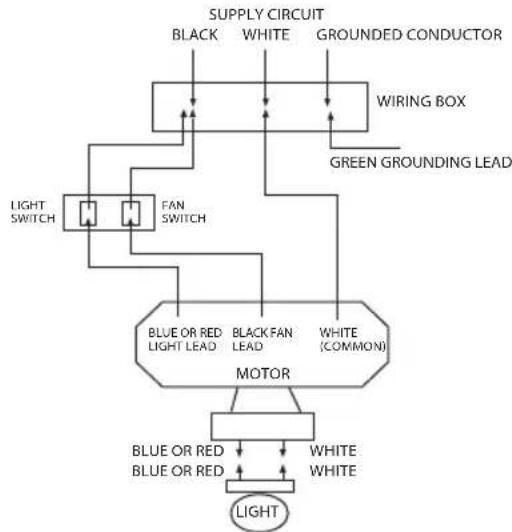

(D) FOR CONTROL OF FAN AND LIGHT FROM WALL

REPAIRGUIDE:

TROUBLE PROBLEM	CAUSE SUGGEST REMEDY
Fan will not start. • Fuse or circuit breaker blown. • Loose power lone connections to the fan. • Speed controller not in correct position.	Check main and branch circuit fuses or circuit breakers. Check line wire connections to fan. Check speed controller's position.
Fan sounds noisy. • Top canopy touching ceiling. • Loose fan blades screws. • Ceiling fan not secured against ceiling. • Incorrect speed controller.	Lower canopy from ceiling to ensure minimum 3mm clearance. Re-tighten all screws on fan blades but never o ver-tighten. Re-tighten all screws in the hanging bracket or plate. Change the controller to the one supplied.
Mechanical noise. • Allow at least for 8 hours setting-in period.
Fan wobbles. • Fan blades are not horizontal to ceiling. • Blade screws are loose.	Measure from ceiling to tips of blades, the rotate fan so all blades are checked for equal height from ceiling(notAdjustments may be made by slight pressure up or down on blade holders). Make sure all screws are securely fastened.

OTHERS:

1) Have your product repaired by a qualified person.
2) This electric product is in accordance with the relevant safety requirements. Repairs should Only be carried out by qualified persons using original spare parts; otherwise this may result in considerable danger to the user.
3) Please contact the store which you bought the product for after sale services if question.

If you have any further questions about the device, please contact us at: [e-mail]

And on our website www.infiniton.es

You can also contact our official technical service (SAT) - MEGAEXIT, S.L

tel: [phone]

REPAIRS: [e-mail]

www.megaexit.com
