Product type	Radio-controlled alarm clock with indoor temperature display
Brand	TFA
Model	Siesta 60.2532.01
Dimensions (W x D x H)	138 x 70 x 70 mm
Weight	168 g (device only)
Power supply	2 x 1.5 V AA batteries (not included, alkaline recommended)
Time reception	DCF-77 signal (77.5 kHz), range approx. 1500 km, automatic update
Alarm function	Alarm with snooze (5 minutes) and adjustable nap timer (5 to 360 minutes)
Temperature display	Measuring range: -10°C to +50°C (14°F to 122°F), selectable °C/°F
Backlight	Backlight activated by button (10 seconds) and automatically during alarm
Manual time setting	Possible if no DCF signal received, with 12/24 h format selection
Maintenance	Store in a dry place; replace batteries as soon as low battery symbol appears
Safety	Keep out of reach of children; do not open, short-circuit, or throw batteries into fire; use gloves if leaking
Disposal	Device and batteries must not be disposed of with household waste; follow local recycling regulations

Frequently Asked Questions - Siesta 60.2532.01 TFA

How to set the time manually if the radio signal is not received?

Slide the switch to SET. The time flashes on the display. Use the HR button to set hours (12 or 24 h format) and the MIN button for minutes. Slide the switch back to AL ON or AL OFF to exit the mode. Note that if the DCF signal is subsequently received, the manual time will be replaced by the radio time.

How to set and activate the alarm?

Slide the switch to AL SET. The alarm time (default 7:00) appears. Press HR for hours, MIN for minutes. Slide the switch to AL ON to activate the alarm; the alarm symbol appears on the display.

How to use the Snooze function?

When the alarm sounds, press the SNOOZE/LIGHT button. The alarm stops for 5 minutes, and the alarm and snooze symbols flash. To cancel snooze before the end, press any other button. Snooze is then deactivated, but the alarm remains active for the next cycle.

How to use the nap timer (NAP)?

In normal mode, the upper display shows '00'. Press the 5, 15, or 30 buttons to add minutes (up to 360 min). The timer starts immediately. To cancel, press CLEAR. When the time expires, the alarm sounds and '00' is displayed.

How to switch the temperature display between °C and °F?

In normal mode (switch on AL ON or AL OFF), press the HR button to toggle between °C (Celsius) and °F (Fahrenheit). The unit changes immediately on the display.

What to do if my radio-controlled clock does not display the time or the DCF symbol flashes continuously?

Check that the switch is not on SET. Press and hold the HR button for 3 seconds to restart reception. Make sure the device is at least 1.5 m away from computer monitors or televisions. Keep it away from reinforced concrete walls. Reception is better at night.

How to turn on the backlight?

Briefly press the SNOOZE/LIGHT button. The backlight turns on for 10 seconds. It also turns on automatically when the alarm sounds.

When and how to replace the batteries?

Replace the batteries as soon as the low battery symbol appears on the display. Open the battery compartment on the back of the device, insert two new 1.5 V AA batteries observing polarity (+/-). Close the compartment. Preferably use alkaline batteries.

What does the display 'LL.L' or 'HH.H' on the temperature screen mean?

This display indicates that the measured temperature is outside the measuring range of the device (-10°C to +50°C / 14°F to 122°F). If the temperature is normal and the problem persists, check the batteries or contact customer service.

How to dispose of the device and batteries in an environmentally friendly way?

Never throw the device or batteries into household waste. Dispose of the used device at an approved collection center for electrical waste (WEEE). Batteries should be returned to a retailer or taken to a recycling center. Batteries contain polluting substances (Cd, Hg, Pb). Follow local regulations.

USER MANUAL Siesta 60.2532.01 TFA

Radio-controlled alarm clock

Thank you for choosing this Instrument from TFA.

1. Before you use this product

2. Please make sure you read the instruction manual carefully.

3. Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
4. We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
5. Please pay particular attention to the safety notices!
6. Please keep this instruction manual safe for future reference.

2. Delivery contents

• Radio-controlled alarm clock - Instruction manual

• Field of operation and all the benefits of your new instrument at a glance

• Highest precision radio-controlled clock
• Count down timer (Map timer)

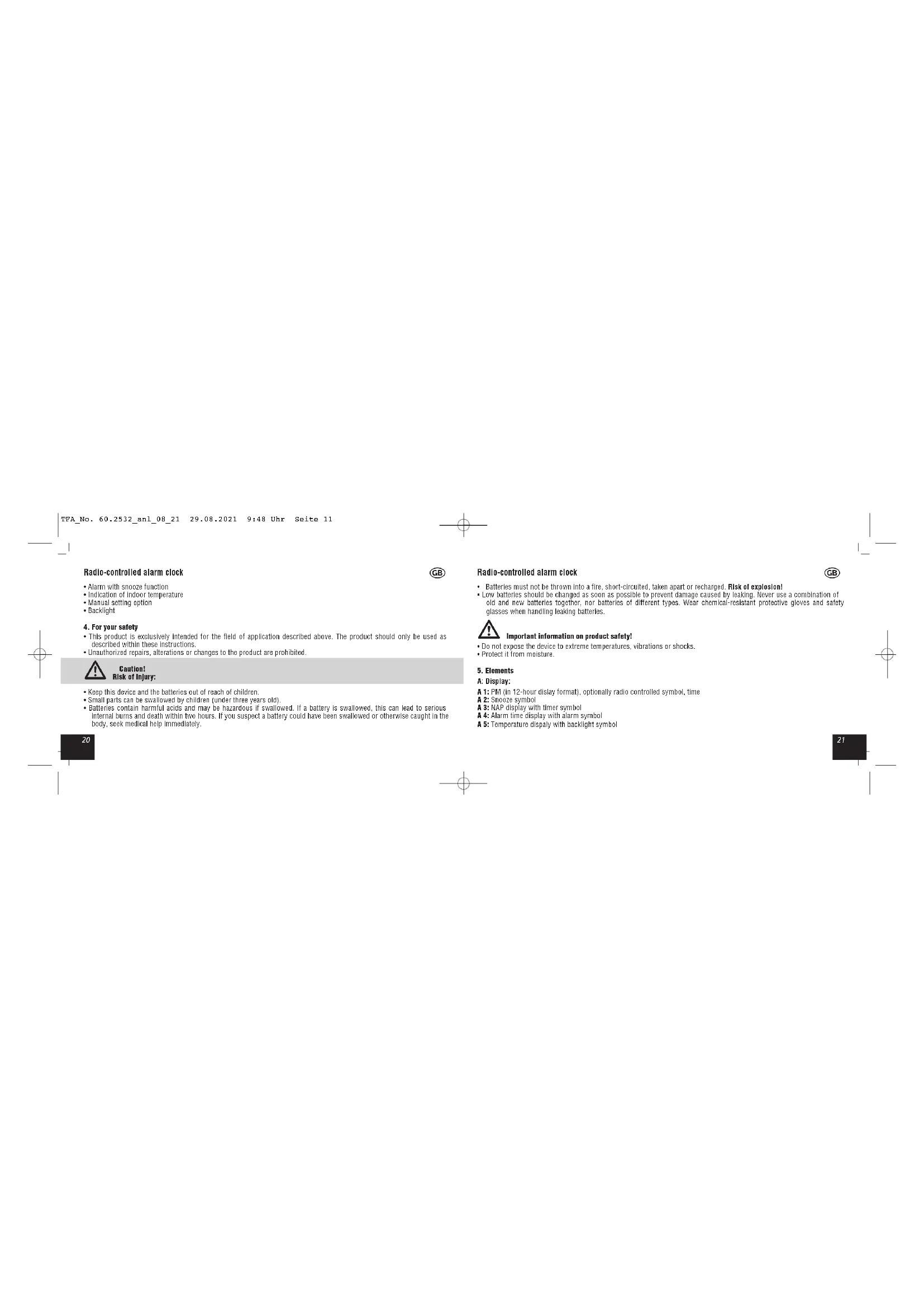

Radio-controlled alarm clock

Alarm with snooze function
Indication of indoor temperature
- Manual setting option

4. For your safety

This product is exclusively intended for the field of application described above. The product should only be used as described within these instructions.
- Unauthorized repairs, alterations or changes to the product are prohibited.

Caution!

Risk of Injury:

• Keep this device and the batteries out of reach of children.
• Small parts can be swallowed by children (under three years old)
  Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.

Radio-controlled alarm clock

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types. Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks.
• Protect it from moisture.

5. Elements

A:Display:

A1:PM (in 12-hour dislay format),optionally radio controlled symbol, time
A 2: Snooze symbol
A3:NAP display with timer symbol
A 4: Alarm time display with alarm symbol
A 5: Temperature dispaly with backlight symbol

Radio-controlled alarm clock

B: Buttons:

B1:Switch setting time and alarmtime. ALARM ON/OFF

B2:CLEAR button

B3:HR button

B4:5 and 15 and 30 button

B5:MIN button

6：SNDOZE/LIGHT button

C: Housing:

C1: Battery compartment

6. Getting started

Open the battery compartment and insert two new batteries 1.5 V AA polarity as ilustrated.
Close the battery compartment again.
The device will alert you with a beep and all segments will be displayed for a short moment.
- The Indoor temperature (default ^ C ) appears on the display. It may take 3-8 minutes until the correct temperature is displayed.

Radio-controlled alarm clock

5.1 Reception of the radio controlled time

• Attention: The radio reception only works in normal mode (switch to position AL ON / OFF)
  The clock will now scan the DCF frequency signal and the DCF symbol will be flashing on the display. When the time code is
  received successdty after 7 minuies, the radio-controlled time and the DCF symbol are displayed stealy on the display. The DCE repetition always takes place daily at 1:00, 2:00, 3:00, 4:00 and 5:00 o'clock in the morning. If the repetition is
  not successfully received until 5:00 o'clock, the next receive operation is again at 1:00 o'clock in the morning.
  You can start the initialization manually.
• Press and hold HR button for three seconds.
  The DCF reception symbol will be flashing.
• To end the DCF reception attempt, press the HR button short. The DCF reception symbol disappears.
  There are three different reception symbols:

flashing - reception is active
stays - reception is very good
no symbol - no reception/reception is shut down/sat time manually
- If the clock can not detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The clock will then work as a normal quartz clock. (see: Manual setting of the clock).

m = 311 ;

m = 311 ;

Radio-controlled alarm clock

Note for radio-controlled time

The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainlingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and converts it to show the precise time. Changeover from summer time or winter time is automatic. In Daylight Saving Time DST is shown on the display. The quality of the reception depends mainly on the geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt.

Therefore, please note the following steps:

The recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 meters.
- Inside thermo-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the reception.
During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

Radio-controlled alarm clock

7. Operation

• Press and hold the HR or MIN button in the setting mode for fast running.
  The device will automatically quit the satting mode if no button is pressed for a long period of time

7.1 Manual settings of the clock

The time will be flashing on the large display.
- With this setting, you also select if the time will be displayed in the 12 or 24 hour system. First, the hours will appear in
24- hour system then the hours will appear in 12-hour system (PM appears from 12 to 24 o'clock on the display).
- Press the MIN button to adjust the minutes.
- Slide the switch to the position AL ON or AL OFF, to exit the setting mode.
- On the display appears the adjusted time.
- By a successful reception of the PBF signal, the manually act time will be everywhere

7.2 Setting of the alarm time

• Slide the switch to the position AL SET.

Radio-controlled alarm clock

The alarm time (default 7:00) will be flashing on the middle display.
- Press the HR button to adjust the hours.
- Press the MIN button to adjust the minutes.
- Slide the switch on the position AL ON, to activate the alarm function.
The alarm symbol appears on the display.

7.3 Alarm functions

• When the adjusted alarm time is reached, the alarm will ring.
  The alarm symbol will be flashing.
  The backlight turns on for a short time.
  The increasing alarm will automatically turn off a few minutes.
• Press any button to turn off the alarm sound or press the SNOOZE/LIGHT button and the snooz function will be activated.
  The alarm symbol and the snooz symbol disappear on the display.
  The alarm spund will be interrupted for five minutes.
• Press any button to turn off the snoozze function.
  The snooze symbol will disappear.

Radio-controlled alarm clock

The alarm symbol stays on the display and the alarm time will be reactivated at the same time.
- Slide the switch to the position AL OFF, to turn off the alarm function.
The alarm symbol will disappear.

7.4 Setting of the NAP function

• On the upper display (default 00) appears the adjusted time for the NAP function.
  Select with the 5, 15 or 30 button the time how long you want to sleep. With each further button operation the time will be
  adddunl 360 minutes.
• With the setting of the minutes the NAP function will be activated.
• With the CLEAR button you can delete the set time or stop the timer.
• All alarm sounds when the set time has elapsed.
  The symbols will be flashin
  00 appears on the display.
  The backlight turns on for ten seconds
• Press any button to stop the alarm sound.
  The NAP function is deactivated.

Radio-controlled alarm clock

7.5 Backlight
- Press the SNOOZE/LIGHT button.
The backlight turns on for ten seconds.

7.6 Setting of the temperature unit
- On the lower display appears the indoor temperature (default: °C).
- Press the HR button to toggle between Celsius (°C) or Fahrenheit (°F) as temperature unit.

1. Care and maintenance

Clean the device with a soft damp cloth. Do not use solvents or scouring agents.
- Remove the batteries if you do not use the device for a long period of time.

• Keep the device in a dry place.

8.1 Battery replacement

• Change the batteries when the battery symbol appears on the display.
  Open the battery compartment and insert two new batteries 1.5 V AA polarity as ilustrated
• Close the battery compartment again.

Radio-controlled alarm clock

1. Troubleshooting

No display Ensure that the batteries polarity are correct

No DCF reception Switch on the position AL ON/OFF

Press and hold the HR button for three seconds and start the reception manually
Wait for attempted reception during the
Choose another place for your product
Set the clock manually
Check if there is any source of interference

Indication: LL.L / HH.H Temperature is outside measuring range

Incorrect indication Change the batteries

If your device falls to work despite these measures contact the supplier from whom you purchased it.

Radio-controlled alarm clock

10. Waste disposal

This product and its packaging have been manufactured using high-grade materials and components which can be recycled and reused. This reduces waste and protects the environment.

Dispos of the packaging in an environmmentally friendly manner using the collection systems that have been set up

Disposal of the electrical device

Remove non-permanently installed batteries and rechargeable batteries from the device and dispose of them separately. This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal. Observe the current regulations in place

Disposal of the batteries

Ravar dispose of empty batteries and rechargeable batteries with ordinary household waste. They contain pollutants which, if improperly disposed of, can harm the environment and human health. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the contained heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead.

Radio-controlled alarm clock

11. Specifications

Power consumption: Batteries 2 x 1.5 V AA (not included) - Use alkaline batteries

Temperature measuring range: -10^ ... 50^ (14°F... 122°F) °C/F-reversible

Housing dimension: 138 × 70 × 70 ~mm

Weight: 168 g (instrument only)

No part of this manual may be reproduced without written consent at ITA Dostman. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in car hemage by simply clicking on the link below.

EU declaration of conformity

Hereby, TFA Dusstmann declares that the radio equipment type 50 2532 is in compliance with Directive 2014/53EU. The full text of the EU declaration of conformity is available at the following internet address: www.tfa-dusstmann.de/service/downloads/

www.tfa-dostmann.de

F-Mall: intetrtda-dostmann.de

TFA Dostmann GmbH & Co KG, ZUM Dfbersberg 12, 97877 Wertheim, Germany 08721
