Product Type	Chop saw (cut-off saw)
Model	GCO 220 Professional
Brand	Bosch
Nominal Power	2 200 W
No-load Speed	3 800 rpm
Dimensions (L x W x H)	256 x 520 x 400 mm
Weight	15.0 kg
Protection Class	II (double insulation)
Max Disc Diameter	355 mm
Max Disc Thickness	3 mm
Arbor Diameter	25.4 mm
Max Cutting Depth	129 mm (at 0°/0°)
Miter Angle Range	0° to 45°
Min Clamping Length	80 mm
Supply Voltage	230 V (220 V compatible)
Mounting	Stationary (workbench mounting) or flexible
Protective Guard	Pendulum guard
Included Accessories	Mounted cut-off disc, hex key for socket head screws (8 mm)
Maintenance	Clean ventilation slots regularly; have repairs done by an authorized Bosch service center
Intended Use	Straight and miter cuts in metals, without water

Frequently Asked Questions - GCO 220 Professional BOSCH

Which cut-off discs can I use on the GCO 220?

Use only reinforced bonded discs conforming to EN 12413, with a maximum diameter of 355 mm, a maximum thickness of 3 mm, and an arbor of 25.4 mm. Do not use diamond discs.

How to change the cut-off disc?

Unplug the tool. Rotate the protective guard backward. Use the supplied wrench to loosen the hex bolt while engaging the spindle lock. Remove the washer and flange, then the disc. Mount the new disc in reverse order, tightening the bolt to 18-20 Nm.

How to adjust the miter angle?

Loosen the two clamping screws of the angle stop with the 8 mm wrench. Set the desired angle from 0° to 45° and retighten the screws. The 0° and 45° positions are preset.

How to transport the saw safely?

Use the designated transport handle. Before transport, lower the tool arm and engage the transport lock by pushing it fully inward.

What is the maximum cutting depth?

The maximum cutting depth is 129 mm for a cut at 0° miter and 0° bevel.

How to clean the tool and maintain its performance?

Unplug the tool before any cleaning. Clean the ventilation slots regularly with compressed air. Ensure the pendulum protective guard can move freely and remains clean.

What to do in case of excessive vibrations?

Stop the tool immediately and unplug it. Check the condition of the cut-off disc. If the disc is damaged, replace it. If vibrations persist, have the tool repaired by an authorized Bosch service center.

Can I use the saw to cut wood or plastic?

No, the tool is designed only for cutting metals without water. Using other materials can be dangerous and damage the saw.

How to avoid sparks and projections?

Ensure the spark deflector is properly mounted. Wear personal protective equipment (goggles, gloves, mask). Keep flammable materials away from the work area.

Where to find spare parts and after-sales service?

Contact an authorized Bosch after-sales service center. You can view exploded diagrams on the website www.bosch-pt.com. Always provide the tool's 10-digit reference number.

USER MANUAL GCO 220 Professional BOSCH

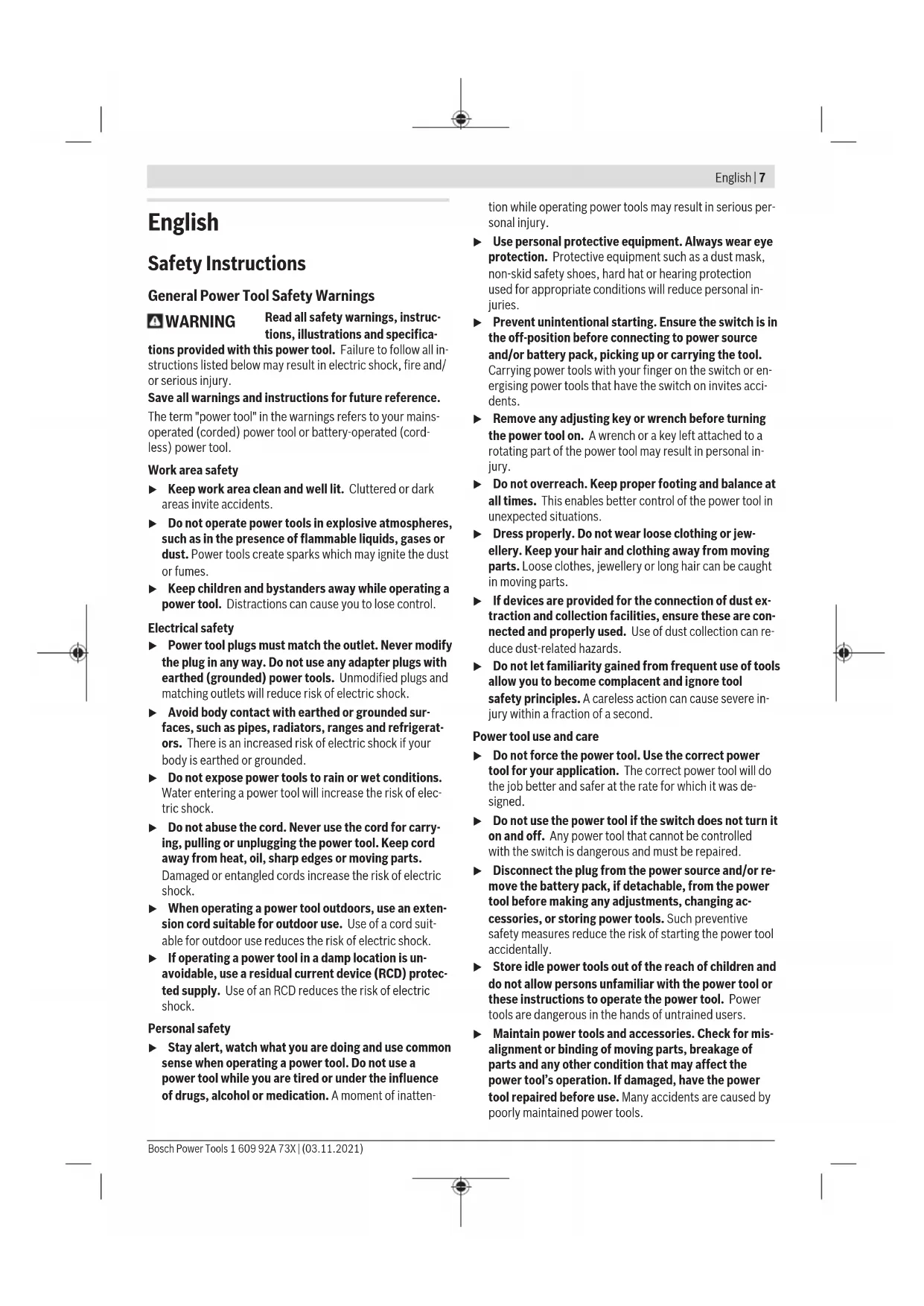

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifications.

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

tion while operating power tools may result in serious personal injury.

Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to a power source and/or battery pack, picking up, or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories, and tool bits, etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Cut-off machine safety warnings

Position yourself and bystanders away from the plane of the rotating wheel. The guard helps to protect the operator from broken wheel fragments and accidental contact with wheel. Use only bonded reinforced cut-off wheels for your power tool. Just because an accessory can be attached to your power tool, it does not assure safe operation. The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. Wheels must be used only for recommended applications. For example: do not grind with the side of a cutoff wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter. Always use undamaged wheel flanges that are of correct diameter for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled. The arbour size of wheels and flanges must properly fit the spindle of the power tool. Wheels and flanges with arbour holes that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control. Do not use damaged wheels. Before each use, inspect the wheels for chips and cracks. If the power tool or wheel is dropped, inspect for damage or install an undamaged wheel. After inspecting and installing the wheel, position yourself and bystanders away from the plane of the rotating wheel and run the power tool at maximum no load speed for one minute. Damaged wheels will normally break apart during this test time.

Wear personal protective equipment. Depending on the application, use a face shield, safety goggles, or safety glasses. As appropriate, wear a dust mask, hearing protectors, gloves, and a shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtering particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss. Keep bystanders a safe distance away from the work area. Anyone entering the work area must wear personal protective equipment. Fragments of the workpiece or of a broken wheel may fly away and cause injury beyond the immediate area of operation. Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning wheel. Regularly clean the power tool's air vents. The motor's fan can draw dust inside the housing, and excessive accumulation of powdered metal may cause electrical hazards. Do not operate the power tool near flammable materials. Do not operate the power tool while it is placed on a combustible surface such as wood. Sparks could ignite these materials. Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and related warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel. Pinching or snagging causes rapid stalling of the rotating wheel, which in turn causes the uncontrolled cutting unit to be forced upwards toward the operator.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material, causing the wheel to climb out or kick out. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

• Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. The operator can control upward kickback forces if proper precautions are taken. Do not position your body in line with the rotating wheel. If kickback occurs, it will propel the cutting unit upwards toward the operator. Do not attach a saw chain, woodcarving blade, segmented diamond wheel with a peripheral gap greater than 10 mm, or toothed saw blade. Such blades create frequent kickback and loss of control. Do not "jam" the wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and sus

ceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.

When the wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the cutting unit motionless until the wheel comes to a complete stop. Never attempt to remove the wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding. Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece. Support any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.

Additional safety information

Store the power tool safely when it is not in use. The storage location must be dry and lockable. This prevents the power tool from storage damage, and from being operated by untrained persons. Always firmly clamp the workpiece into place. Do not carry out work on workpieces that are too small to be clamped. Otherwise, the distance between your hand and the rotating cutting disc will be too small. Check the cable regularly and have a damaged cable repaired only by an authorised customer service agent for Bosch power tools. Replace damaged extension cables. This will ensure that the safety of the power tool is maintained. Never stand on the power tool. Serious injuries may occur if the power tool tips over or if you inadvertently come into contact with the saw blade. Always use the protective guard. The protective guard protects users from any parts that break off from the cutting disc and prevents unintentional contact with the cutting disc. Do not brake the cutting disc to a stop by applying side pressure after switching the power tool off. The cutting disc can be damaged, break or cause kickback. Never leave the tool unattended before it has come to a complete stop. Cutting tools that are still running can cause injuries.

Products sold in GB only:

Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Symbols

The following symbols may be important for the operation of your power tool. Please take note of these symbols and their meaning. Correctly interpreting the symbols will help you to operate the power tool more effectively and safely.

Symbols and their meaning

Keep hands away from the cutting area while the power tool is running. Contact with the cutting blade can lead to injuries.

Wear safety goggles.

Wear hearing protection. Exposure to noise can cause hearing loss.

Wear a dust mask.

Wear protective gloves. Cutting discs have sharp edges and become very hot during operation.

Product Description and Specifications

Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended use

The power tool is a stationary machine that uses cutting discs to cut metal materials with and against the grain, in straight lines and at metre angles up to 45° without the use of water. Using diamond-tipped cutting discs is not permitted.

Product features

The numbering of the product features refers to the diagram of the power tool on the graphics page.

(1) Lock-on button for on/off switch (2) On/off switch (3) Handle

(4) Retracting blade guard (5) Spindle lock (6) Cutting disc (7) Angle guide (8) Locking spindle (9) Quick release (10) Spindle handle (11) Mounting holes (12) Hex key (8 mm) (13) Base plate (14) Locking screw for angle guide (15) Transport safety lock (16) Tool arm (17) Transport handle (18) Protective guard (19) Spark guard plate (20) Tool spindle (21) Clamping flange (22) Washer (23) Hexagon screw

Technical data

Cut-off grinder GCO 220
Article number	3601 M37 3..
Rated power input W 2200
No-load speed min	3800
Dimensions mm 256 x 520 x 400
Weight according to EPTA-Procedure 01:2014	kg 15,0
Protection class	☐/II

Permissible workpiece dimensions (maximum/minimum): (see "Permissible workpiece dimensions", page 12)

Dimensions of suitable cutting discs

Max. cutting disc diameter mm 355

Max. cutting disc thickness mm 3

Hole diameter mm 25.4

The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models.

Assembly

• Avoid starting the power tool unintentionally. The mains plug must not be connected to the power supply during assembly or when carrying out any kind of work on the power tool.

Items included

Carefully remove all parts included in the delivery from their packaging.

Remove all packing material from the power tool and the accessories provided.

Check to ensure that all the parts listed below have been supplied before using the power tool for the first time:

• Cut-off grinder with cutting disc fitted
• Hex key (12)

Note: Check the power tool for possible damage.

Before continuing to use the power tool, carefully check that all protective devices or slightly damaged parts are working perfectly and according to specifications. Check that the moving parts are working perfectly and without jamming; check whether any parts are damaged. All parts must be fitted correctly and all the conditions necessary to ensure smooth operation must be met.

If the protective devices or any parts become damaged, you must have them properly repaired or replaced by an authorised service centre.

Stationary or flexible mounting

To ensure safe handling, the power tool must be mounted on a flat, stable work surface (e.g. work bench) before use.

Mounting on a work surface (see figure A)

• Use suitable screw fasteners to secure the power tool to the work surface. Use the holes (11) to do this.

Flexible installation (not recommended)

In exceptional circumstances, if it is not possible to securely mount the power tool on a work surface, you can improvise by placing the feet of the base plate (13) on an appropriate base (e.g. workbench, flat ground, etc.), without screwing down the power tool.

Changing the Cutting Disc (see figures B1 - B2)

Pull the plug out of the socket before carrying out any work on the power tool. Do not activate the spindle lock (5) while the tool spindle (20) is moving. The power tool may become damaged if you do this. Do not touch the cutting disc after use until it has cooled. The cutting disc becomes very hot during use.

Only use cutting discs that match the specifications given in this operating manual and that have been tested and marked in accordance with EN 12413.

Use any intermediate layers provided with the cutting disc. Place unused cutting discs in an enclosed container or their original packaging. Store the cutting discs lying flat.

Removing the cutting disc

• Bring the power tool into the work position.
• Swivel the retracting blade guard (4) backwards as far as possible.
• Turn the hexagon screw (23) using the hex key (12) provided while pressing the spindle lock (5) until it engages. Hold the spindle lock down and unscrew the hexagon screw (23).
• Remove the washer (22) and the clamping flange (21).
• Remove the cutting disc (6).

Fitting the cutting disc

If required, clean all the parts you want to fit before installing them.

• Place the new cutting disc on the tool spindle (20) such that the sticker points away from the tool arm.
• Fit the clamping flange (21), the washer (22) and the hexagon screw (23). Press the spindle lock (5) until it engages and retighten the hexagon screw (23) by turning it clockwise. (Tightening torque approx. 18–20 Nm)
• Slowly guide the retracting blade guard (4) all the way down until the cutting disc is completely covered.
• Make sure that the retracting blade guard (4) is working properly.

After fitting the cutting disc, check that the cutting disc is fitted correctly and can turn freely before switching on the power tool.

• Make sure that the cutting disc does not brush against the retracting blade guard (4), the fixed protective guard (18) or any other parts.
• Put the power tool into operation for approx. 30 seconds. If there is substantial vibration, switch the power tool off immediately, remove the cutting disc and then refit it.

Operation

Pull the plug out of the socket before carrying out any work on the power tool.

Transport Safety Lock (see figure C)

The transport safety lock (15) makes it easier to handle the power tool when transporting it to various working locations.

Unlocking the power tool (work position)

• Press the tool arm down slightly by the handle (3) to release the transport safety lock (15).
• Pull the transport safety lock (15) all the way out.
• Slowly guide the tool arm upwards.

Note: Make sure that the transport safety lock is not pushed in when working, otherwise the tool arm will not be able to be swivelled to the required depth.

Locking the power tool (transport position)

• Guide the tool arm downwards until you can press the transport safety lock (15) all the way in.

Further information about transporting (see "Transport", page 12).

Setting the Mitre Angle (see figure D)

The mitre angle can be set between 0° and 45°. Important settings are marked with corresponding markings on the angle guide (7). The 0° and 45° positions are secured by the respective end stop.

• Loosen the locking screws (14) on the angle guide using the hex key (12) (8 mm) provided.
• Set the required angle and retighten both locking screws (14).

Moving the Angle Guide (see figures D-E)

If you want to cut workpieces more than 140 mm wide, you can move the angle guide (7) backwards.

• Completely unscrew the locking screws (14) using the hex key provided (12) (8 mm).
• Move the angle guide (7) backwards by one or two holes to the required distance.
• Set the required angle and retighten both locking screws (14).

Clamping the workpiece (see figure E)

To ensure maximum safety while working, the workpiece must always be firmly clamped.

Do not saw workpieces that are too small to clamp firmly.

The free end of long workpieces must have something placed underneath it or be supported.

• Place the workpiece against the angle guide (7).
• Slide the locking spindle (8) against the workpiece and clamp the workpiece in place using the spindle handle (10).

Releasing the workpiece

• Release the spindle handle (10).
• Open the quick release (9) and pull the locking spindle (8) away from the workpiece.

Start-up

Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the rating plate of the charger. Chargers marked 230 V can also be operated at 220 V. ▶ Products that are only sold in AUS and NZ: Use a residual current device (RCD) with a nominal residual current of 30 mA or less. - Check the cutting disc before using it. The cutting disc must be fitted properly and be able to rotate freely. Carry out a test run for at least 30 seconds with no load. Do not use cutting discs that are damaged, run untrue or vibrate during use. Damaged cutting discs can shatter and cause injuries.

The dust from materials such as lead paint, minerals and metal can be harmful to human health. Touching or breathing in this dust can trigger allergic reactions and/or cause respiratory illnesses in the user or in people in the near vicinity.

Certain kinds of metal dust are hazardous, especially in combination with alloys such as zinc, aluminium or chrome. Materials containing asbestos may only be machined by specialists.

• Provide good ventilation at the workplace.
• It is advisable to wear a P2 filter class breathing mask.

The regulations on the materials being machined that apply in the country of use must be observed.

12 | English

The cutting disc can become blocked by dust, chips or fragments of the workpiece in the recess of the base plate (13).

• Switch the power tool off and pull the mains plug out of the socket.
• Wait until the cutting disc has come to a complete stop.
• Tilt the power tool backwards so that small pieces of the workpiece can fall out of the opening designed for this purpose.

If necessary, use a suitable tool to remove all the pieces of the workpiece.

• Avoid dust accumulation at the workplace. Dust can easily ignite.

Position of the operator (see figure F)

Do not stand in front of the power tool in line with the cutting disc. Always stand to the side of the cutting disc. If the cutting disc breaks, your body is more protected from possible splinters in this position.

Switching On and Off (see figure G)

• To start, press the on/off switch (2) and keep it pressed.
• Press the lock-on button (1) to lock the on/off switch (2) in this position.
• To switch off, release the on/off switch (2). If the on/off switch is locked, press it all the way in until the switch lock is released and then release the on/off switch.

Practical advice

General advice on using cutting discs

Do not touch the cutting disc after use until it has cooled. The cutting disc becomes very hot during use. Make sure that the spark guard plate (19) is fitted properly. Flying sparks are created when sanding metals.

Protect the cutting disc against impact, shock and grease. Do not subject the cutting disc to lateral pressure.

Do not load the power tool so heavily that it comes to a stop. Excessive feed significantly reduces the performance of the power tool and the service life of the cutting disc.

Only use cutting discs that are suitable for the material being machined.

Permissible workpiece dimensions

Maximum workpiece dimensions:

Workpiece shape Mitre angle
0° 45°
	Dia. 129 Dia. 128
	119 x 119 110 x 110
	100 x 196 107 x 115

Workpiece shape Mitre angle

0°45°

130 × 130115 × 115

Minimum workpiece dimensions

(=) all workpieces which can still be clamped in place with the locking spindle (8)):Length 80 mm

Maximum cutting depth (0° / 0°) : 129mm

Cutting metal

• Set the required mitre angle as necessary.
• Firmly clamp the workpiece as appropriate for its dimensions.
• Switch on the power tool.
• Slowly guide the tool arm downwards using the handle (3).
• Cut the workpiece, applying uniform feed.
• Switch off the power tool and wait until the cutting disc has come to a complete stop.
• Slowly guide the tool arm upwards.

Transport

• Always carry the power tool by the transport handle (17). Only use the transport devices to transport the power tool and never the protective devices.

Maintenance and Service

Maintenance and Cleaning

Pull the plug out of the socket before carrying out any work on the power tool. To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.

In order to avoid safety hazards, if the power supply cord needs to be replaced, this must be done by Bosch or by an after-sales service centre that is authorised to repair Bosch power tools.

Clean the air vents on your power tool regularly. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. In extreme conditions, always use a dust extractor if possible. Blow out ventilation slots frequently and install a residual current device (RCD) upstream. When machining metals, conductive dust can settle inside the power tool, which can affect its protective insulation. Have maintenance and repair work performed exclusively by a qualified specialist. This will ensure that the safety of the power tool is maintained.

The retracting blade guard must always be able to move freely and retract automatically. It is therefore important to keep the area around the retracting blade guard clean at all times.

Accessories

Article number

Cutting discs for all metal materials

Cutting disc 355 x 25.4 mm 2608600208

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Malaysia

Robert Bosch Sdn. Bhd. (220975-V) PT/SMY

No. 8A, Jalan 13/6

46200 Petaling Jaya

Selangor

Tel.: [phone]

Toll-Free: 1800 880188

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.my

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Disposal

The power tool, accessories and packaging should be recycled in an environmentally friendly manner.

Do not dispose of power tools along with household waste.

Robert Bosch Morocco SARL

53, Rue Lieutenant Mahmoud Mohamed

20300 Casablanca

Tel.: [phone]

E-Mail: [e-mail]

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

Disposal

www.bosch-pt.com/serviceaddresses

Disposal

www.bosch-pt.com/serviceaddresses

Disposal

nennnnnnnnnnn (annnnne A)

• 1000000000000000000000000000000000000000000000000000000000000000000

nannnnnnnnnnnnnnn (buiuun)

unwnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

(13) wunnnn nn nnnnnn (m) naanannnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

nuaananaan (aunau B1-B2)

Wanwnnnnnaaannnnnnae nannu (5) nwnunnuovnnnnaaun 1n (20). y

iannnnn

EN 12413

-7777777777777777777777777777777777777777 - 201 (21) 22) -uuuunuunnnnna (4) aannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn -aaannnuuauannuuauuuuauuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuUU

nnaaannnnnnaaannnnnnaanennnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaanannnnnnaan

• 4 (4), nssuovnuuovnuuovnuu (18) nuu u
• 30 30 7777777777777777777777777777777777777

nui

W

nunwunwunwunwun (wnwnnuu C)

（15）nnaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaan

nTnannnnnnaeovilw (chunivniu)

nVNTTNTNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNTNNNT →

www.bosch-pt.com/serviceaddresses

#

wovolwqunwnu wauwne

ywnnnnnyu

Bahasa Indonesia

Keselamatan personnel

Palma Tower 10th Floor

Jalan RA Kartini II-S Kaveling 6

Pondok Pinang, Kebayoran Lama

www.bosch-pt.com/serviceaddresses

Caramembuang

Additional warning symbols

Store the machine safely when not in use. Store the machine in a dry place and it can be locked. This prevents the machine from being damaged during storage and prevents untrained persons from operating it. Do not cut workpieces that are too small to be clamped. Do not cut workpieces that cannot be clamped. Otherwise, the distance between your hand and the rotating cutting disc is too small. Check the power cord regularly and have a damaged power cord repaired only by an authorized Bosch power tool service center. Replace a damaged extension cord. This ensures that the safety of the machine is maintained. Serious injury can occur if the power tool is tilted or if you accidentally touch the blade. Ensure that the blade guard works properly and can move freely. Always use the protective cover. The blade guard protects the user from fragments of the cutting disc or accidental contact with the cutting disc. Do not brake the cutting disc to a stop by applying pressure to the side of the blade after switching off. The cutting disc can be damaged, break, or lead to kickback. Never leave the machine before it has come to a complete stop. Cutting tools that are still running can cause injury.

Symbols

The following symbols may convey the meaning of how to use your cordless power tool. Please note the symbols and their meanings. Understanding the symbols will help you use the machine better and more safely.

-Angle grinder with mounted cutting disc

• Hex key (12)

Note: Check the power tool for any damage.

Before using the machine, carefully check that all protective devices or slightly damaged parts function properly and in accordance with the regulations. All slightly damaged parts must be carefully checked to ensure perfect operation of the tool. All parts must be correctly installed and all conditions must be met correctly and sufficiently to ensure perfect operation.

Damaged protective devices and parts must be replaced immediately through an authorized warranty and maintenance center.

Fixed or flexible mounting

To ensure safe control, the machine must be mounted on a flat and stable surface (e.g., workbench) before use.

Mounting on a work surface (see Figure A)

-Secure the power tool with suitable mounting screws onto the work surface. The holes for this purpose are provided (11).

Unlocking the Machine (Operating Position)

• Press the tool down slightly at the handle position (3) to release the transport lock (15). -Pull the transport lock (15) completely outwards. -Lift the machine head slowly.

Caution: When working, be aware that the safety transport device must not be pressed in, otherwise the saw head may not be able to be swiveled to the desired depth.

Machine Safety Lock (Transport Position)

-Pull the saw head down until the safety lock for transport (15) is fully engaged.

Other transport instructions (see, Transport Page 60).

Adjusting the miter angle (see Figure D)

The miter angle can be adjusted within a range from 0° to 45°.

Important adjustment values are marked with corresponding symbols on the angle stop (7). The 0° and 45° positions can be ensured through the corresponding end stop.

• Loosen the locking screws (14) of the angle stop using the supplied hex key (12) (8 mm). -Set the desired angle and tighten both locking screws (14).

Moving the angle stop (see Figure D-E)

You can move the angle stop (7) backwards if you want to cut workpieces wider than 140 mm.

Loosen the locking screws (14) using the supplied hex key (12) (8 mm). -Move the angle stop (7) to the desired distance by one or two holes. -Set the desired angle and tighten both locking screws (14).

Securing the workpiece (see Figure E)

To ensure maximum work safety, the workpiece must always be clamped securely.

Otherwise, the distance from your hand to the rotating saw blade is too small.

Long workpieces must be supported or padded at the free end.

Place the workpiece (7) on the base plate. Place the clamping lever (8) on the workpiece and secure the workpiece by tightening the clamping lever (10).

Removing the Workpiece

Loosen the clamping lever (10). Fold down the quick-release lever (9) and remove the clamping lever (8) from the workpiece.

Starting Operation

Observe the correct voltage! The voltage of the power source must match the specifications on the nameplate of the battery charger. Charging devices rated 230 V can also be operated at 220 V. Check the cutting disc before use. The cutting disc must be installed correctly and move freely. Run the machine without load for at least 30 seconds. Do not use damaged, eccentric, or loose cutting discs. A damaged cutting disc may shatter and cause injury.

Dust from materials such as lead-containing paint, minerals (e.g., stone) or metals can be hazardous to human health. Touching or inhaling this dust can cause allergic reactions and/or respiratory infections in the user or bystanders.

Certain types of dust are considered hazardous, especially those related to alloys such as zinc, aluminum, or chromium. Only professionals should machine materials containing asbestos.

Ensure good ventilation of the work area. It is recommended to wear a respirator with a P2 filter.

Comply with the national regulations of your country regarding the type of material being machined.

The cutting disc may become clogged with dust, debris, or product fragments at the opening of the base plate (13).

Switch off the machine and unplug the power cord from the outlet. Wait until the cutting disc has completely stopped rotating. Tilt the machine backward so that any debris from the workpiece can fall out through the opening designed for this purpose.

If necessary, use a suitable tool to remove all debris from the workpiece.

Avoid accumulation of debris at the work area. Debris can easily catch fire.

Operator's stance (see Figure F)

Do not stand directly in front of the cutting disc, but always stand to the side of it. This measure provides better protection for your body and prevents the risk of debris flying out if the cutting disc breaks.

Press (see Figure G)

• To turn on the tool, press the On/Off switch (2) and hold it.
• To lock the On/Off switch (2), press the lock button (1).
• To turn off the tool, release the On/Off switch (2). When the switch is locked, press it fully until the switch lock is released, then release the switch.

Operating Instructions

General Safety Instructions for Cutting

Do not touch the cutting disc immediately after operation, until it has cooled down. The cutting disc becomes very hot during operation. Ensure that the spark guard (19) is correctly installed. When cutting metal, sparks will fly out.

Protect the cutting disc from impacts, drops, and shocks. Do not subject the cutting disc to lateral pressure.

Do not overload the power tool beyond its intended capacity.

Overloading significantly reduces the machine's performance and shortens the cutting disc's lifespan.

Only use cutting discs suitable for the material being cut.

Permissible Workpiece Dimensions

Maximum workpiece:

Hinh的产品 Gia Cộng	Góc vát ngang
	0° 45°
	129 0 128 0
	119 x 119 110 x 110
	100 x 196 107 x 115
	130 x 130 115 x 115

Minimum workpiece

(= smallest workpiece that can be securely clamped with the clamping screw (8)): Length 80 mm

Cutting angle (0° / 0°): 129 mm

Metal cutting

• If you need to set the desired cutting angle, clamp the workpiece firmly according to its size. Then start the machine.
• Plug in (3) and slowly pull the machine down. Cut the workpiece with a steady, even feed. Turn off the machine and wait until the cutting disc has completely stopped rotating. Then lift the machine slowly.

60 | Vietnamese

Transport

Carry the power tool by the designated carrying handle (17). When transporting the power tool, only use the transport devices provided and never use the protective devices for carrying or lifting.

www.bosch-pt.com/serviceaddresses

Disposal

(1)

.15) 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

gblj g aaggl j 4580 12 (7)gljll sall l c aolla .12 gljll sall l 45g0gall 14 gall g gall - 12 14

aSuluLg aUjSJI oJbI -

Jgll jil) gD-E( (gljll sall jai elk)7(cjc lcll c -asll jc glalag jiu u140. po - 1111111111111111111111111111111111111111111111111111111111111111111

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

bdoaalilgolll j

yJ 111111111111111111111111111111111111111111111111111111111111111111

aaiy y 1000000000000000000000000000000000000000000000000000000000000000000000

yIg aill Jaei jy

yo. uofo uuaaio uig uo b

auiyjssll ool jlc abgaoi s

aJgll gll aagll alge y

lails uj k bol. o jao g lag lals

aLglllglgagallglblllgj

J

gul

yoll

ai jdallolalglgjolj

2608600208

a385,4b011 0

pIddwXlUjhuWgLaoJIaO

aalol aolai laiw (lc)aoa do sa jso

gwwjI jJgblgboa aLxu, auiog giiJI

g jglglbaoaallllloglaalglauanill

www.bosch-pt.com:29gJl

cluwo 1saw2I JuaW Bosch jj

jiao jogao yjIwaiwi 1yJ 1s

.qljla2log

aagllg gulllg jaiu

Robert Bosch Morocco SARL

[phone]:

[e-mail]

www.bosch-pt.com/serviceaddresses

The product is designed for use in accordance with the instructions. Please read the manual carefully before use. Keep it for future reference.

The device should be installed by a qualified technician. Ensure proper ventilation and avoid exposure to moisture. Do not disassemble the unit.

Safety warnings and precautions (continued)

Check the power supply voltage before connecting.

Do not operate the equipment with wet hands.

Avoid placing the unit near heat sources.

Use only the recommended accessories and cables.

If the device malfunctions, disconnect it from the power source and contact support.

Keep the unit away from children.

Dispose of the product according to local regulations.

For technical assistance, call the helpline.

3601M37 3..
2'200	W	العربية الحرفية
3'800	-1min	الجعault رزام
256x520x400	mm	الجعault
15,0	kg	الجعault ملايرم
		EPTA-Procedure 01:2014
II/□		الجعault

355

mm

Therefore, the area of triangle OBC equals the area of triangle COD plus the area of triangle BOC.

.

72|s

（B2g）

jglg jgls agg pajil j uu 4 jui jil jil laii dawg s kjj .

gio pIq (5) goo oiiS Jg 201jgoo jg 120

jI jJ J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J

sS oIaiw lgl aao jdl aas jI I b0g SJS JJIgws jJ gaoa ciaaa 51ds 9oaw wlojEN 12413 sJsiw glg siu .ow ow (S) WpaoljaoXlaiaLd jua sla2j1 .sOlaaiJigwgoJwJ abaa 1j0o ooiol jy sldo a slaa .dai ydi ay daiy

a aaa 100000000000000000000000000000000000000

auiy auiiui (4) guiu biau （12）jui jil oaiui u（23）ui (5) jgoo o SiiS JgJIoJao g dlaJy JIwJ .jg Jg a Joo JU Jua Ju Jua Jg Jg Jgooo SuiS Jg - .sis J23

1j（21）0sjjjglg（22）ujjuog-

（6）wduo- wduoJUgoog

jai I J qil, labe b qai jI gj Og j

（20 1j1 jg （59）j jdu d- 1j j1 (59)j u g uuauu aS uu uu （22）jjw（21）ojjg jla 23 g jg jg jg ju ju ju ju (5) 1j g u clu 1s qjac qyj23

(18-20 Nm 1sg Jgogjgl) .sS poo ds jolj golj uJ (4) gJy bao oLg - Caw d Jols jgsw ow y dawa . sS C

juiab1 (4)Jg jIy bIaLoo yI g aI sJSLac jI -

__SUPPIMER__

3	mm
	mm25,4

4.15

2608600208

855× 25.4

mm

www.bosch-pt.com

.

www.bosch-pt.com/serviceaddresses
