KüchenChef 14.1512.01 - Thermometer TFA - Free user manual and instructions

Product type	Oven / digital cooking thermometer
Brand	TFA
Model	KüchenChef 14.1512.01
Power supply	2 AAA batteries, 1.5 V
Measuring range	-20 °C to 300 °C (-4 °F to 572 °F)
Resolution	0.1 °C
Probe cable length	Approx. 1.2 m
Weight (unit only)	80 g
Main functions	Simultaneous measurement of core temperature and oven temperature; adjustable alarm for core temperature and oven limits; clock; backlight; digital display
Alarm	Audible alarm when target temperature is reached or oven limits exceeded; manual or automatic stop after 3 minutes
Backlight	Temporary activation via LIGHT button; also lights up during alarm
Display	LCD showing time, core temperature and oven temperature
Mounting	Magnet on the back and fold-out stand for surface placement
Safety	Do not use in microwave; probe and cable heat-resistant up to 300 °C; do not immerse probe in hot water; caution against burns when handling
Care and cleaning	Clean with a soft, damp cloth; no solvents or abrasives; protect from moisture; remove batteries if not used for extended period
Spare parts	Replacement probe available (ref. 30.3528)
General information	Complies with EU standards (WEEE); do not dispose of with household waste

Frequently Asked Questions - KüchenChef 14.1512.01 TFA

How to set the time on the KüchenChef thermometer?

In normal mode, press and hold the ON/OFF button for 3 seconds. The time display blinks. Use the + or - buttons to set the hours, then confirm with ON/OFF. Then set the minutes in the same way and confirm.

How to set the core temperature alarm?

Press the ALARM button to enter alarm mode. The core temperature blinks. Press ON/OFF to activate the alarm, then set the desired temperature with + or -. Confirm with ALARM. You can then set the upper and lower limits for the oven temperature in the same way.

How to switch between Celsius and Fahrenheit?

Press and hold the ALARM button to switch between °C and °F. The unit changes on the display.

The screen shows nothing, what to do?

Make sure the device is turned on by pressing ON/OFF. Check the battery polarity and replace them if necessary. If the problem persists, check the probe connection.

How to clean the probe and the device?

Use a soft, damp cloth to clean the device and probe. Do not use solvents or abrasive products. Do not immerse the probe or cable in hot water. Wipe the plug before connecting.

Can I use this thermometer in a microwave oven?

No, never use the device in a microwave oven. It is designed for use in conventional ovens or barbecues.

What is the measuring temperature range?

The probe measures from -20 °C to 300 °C (-4 °F to 572 °F). The oven temperature is also measured in the same range.

How to replace the batteries?

Open the battery compartment on the back of the device. Insert two new AAA 1.5 V batteries, respecting polarity (+/-). Close the compartment. The low battery symbol appears when they need to be changed.

How to use the probe for cooking?

Insert the probe at least 2.5 cm into the thickest part of the meat, avoiding bones. For poultry, place it between the carcass and the thigh. Leave the probe in the meat throughout cooking. The cable withstands oven heat (up to 300 °C).

What does the alarm beep mean?

The audible alarm sounds when the core temperature reaches the set value, or if the oven temperature exceeds the defined upper or lower limits. The backlight also turns on. Press any button to stop the sound; the alarm symbol blinks as long as the condition persists.

USER MANUAL KüchenChef 14.1512.01 TFA

m = 311

m = 311 ;

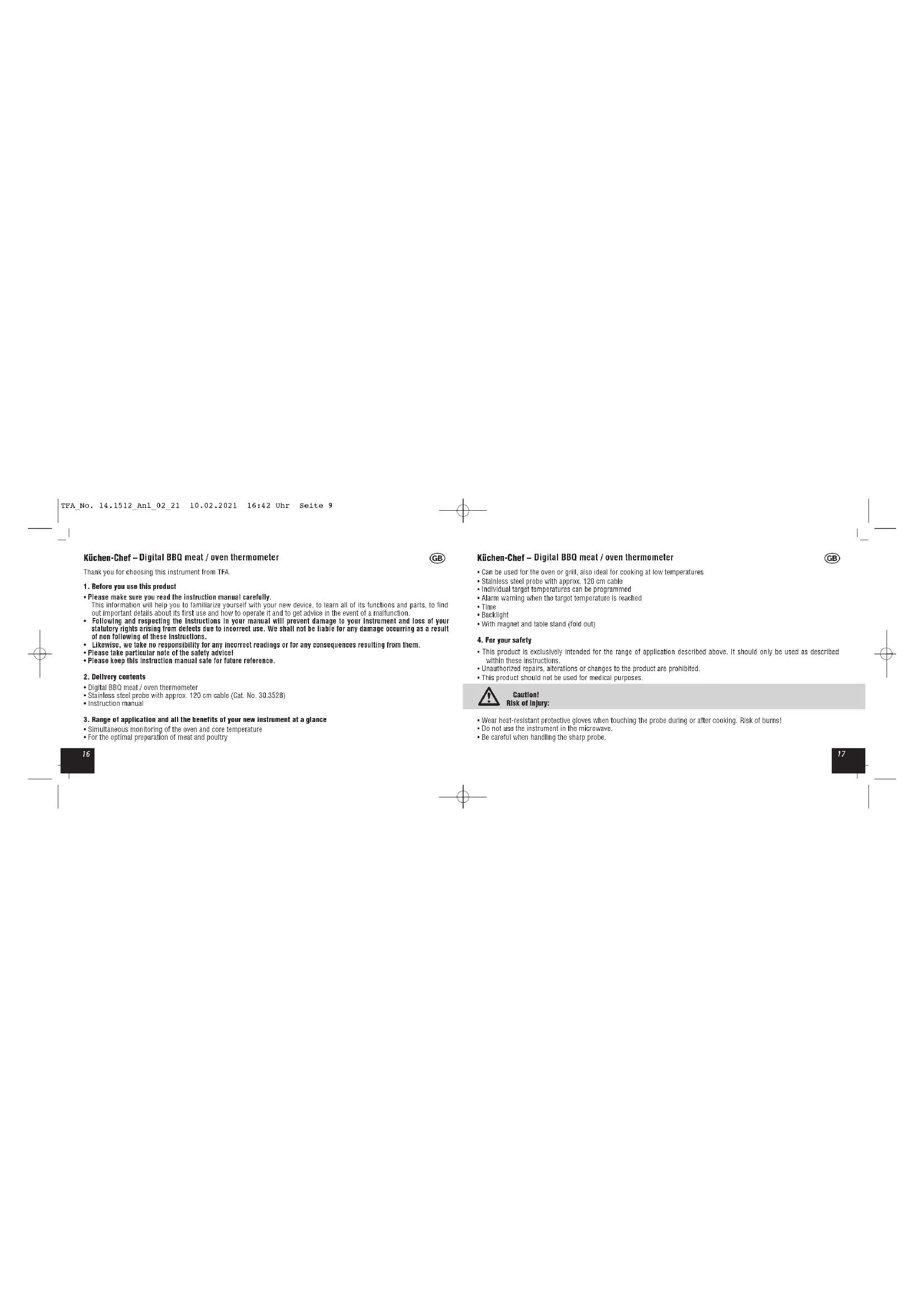

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully.

This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use, and how it can be used to make a difference in the world of your function.

• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use. We shall not be liable for any damage occurring as a result of non following of these instructions.
  Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
  Please keep this instruction manual safe for future reference.

2. Delivery contents

Digital BBQ meat / oven thermometer
Stainless steel probe with approx. 120 cm cable (Cat. No. 30.3528)

3. Range of application and all the benefits of your new instrument at a glance

• Simultaneous monitoring of the oven and core temperature
  For the optimal preparation of meat and poultry

• Can be used for the oven or grill, also ideal for cooking at low temperatures

Stainless steel probe with approx. 120 cm cable
Individual target temperatures can be programmed
- Alarm warning when the target temperature is reached

TIME

BacXing
With magnet and table stand (fold out)

4. For your safety

This product is exclusively intended for the range of application described above. It should only be used as described
within these instructions.
- Unauthorized repairs, alterations or changes to the product are prohibited.
This product should not be used for medical purposes.

Caution!

Risk of injury:

• Wear heat-resistant protective gloves when touching the probe during or after cooking. Risk of burns!
• Do not use the instrument in the microwave
• Be careful when handling the sharp probe.

• Keep this instrument and the batteries out of reach of children.
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.
• Waar chemical-resistant protective gloves and safety glasses when handling leaking batteries.

• Do not expose the display unit to extreme temperatures, vibrations or shocks. Only the probe and the cable are up to 300^ heat-resistant. Never hold the probe directly over a fire.
• Do not Immense the display unit, the probe handle and the cable in water. Water can penetrate and cause malfunction. Not suitable for dishwasher.
• Be careful with sharp-edged frames and hinges. Do not pull or bend the cable

5. Elements

A:Display (Fig.1):
A 1: Time A 2: Temperature unit

A 3: Current core temperature A 4: Target temperature
A5: Symbol upper temperature limit A6: Alarm symbol

Oven temperature display

A7:Current oven temperature A 8:Upper temperature limit
A 9: Upper temperature limit symbol A 10: Alarm symbol
A 11: Lower temperature limit A 12: Lower temperature limit symbol

B: Buttons (Fig. 1):

B1:ON/OFF button
B3:LIGHT button
B5:-button

B 2: ALARM button
B4:+button

C: Housing (Fig. 2)

C1: Temperature probe jack
C3: Stand (fold out)

D:Probe (Fig.3):

D1:Probe

C2: Battery compartment
C4:Magnet

D 2: Handle

03:Oven temperature sensor 04:Cable

05:Probe connector

6. Getting started

• Plug the probe cable connector into the jack.
• Open the battery compartment and insert two new AAA 1.5 V batteries. Make sure the polarity is correct. All segments will be displayed briefly.
• Close the battery compartment again.
  The hour digits flash.
• Press the + or - button to set the hours.
• Confirm the setting with the ON/OFF button.
  Set the minutes in the same way.
• Confirm the setting with the ON/DEE button.
  The upper display shows the time, the middle and lower display show the current temperature.
  The device is ready for use.

7. Operation

• Press ON/OFF button to switch the instrument on or off.
• Press and hold the ALARM button to change between ^ C (Celsius) or ^ F (Fahrenheit) as temperature unit.

• Press the LIGHT button. The backlight is activated briefly.
• Press and hold the + or - button in setting mode for fast mode
• Press and hold the ON/OFF button in normal mode for three seconds, to enter the time setting mode.

7.1 Measuring procedure

For measuring the core temperature of meat: Plunge the probe at least 2.5cm into the middle of the thickest part of the meal; for poultry, between the torso and the thigh - it should not touch bones or cartilage and it should not protrude from the meat. Put the meat into the oven and set the relevant oven temperature. The probe should remain in the meat throughout the cooking process.
The oven temperature is measured simultaneously.
- Simply run the cable to the outside. The cable adapts to the oven seal. Be careful with sharp-edged frames and hinges. - Place the thermometer securely near the oven (cable length approx. 120cm ). You can either attach the device onto a metal surface with its magnet or use the fold-out stand to place it onto a flat surface or to hang it.

7.2 Temperature alarm

• Press the ALARM button to enter the alarm mode.
• appears on the core temperature display and the symbol and the alarm symbol flash.
  To activate the alarm press the ON/OFF button. The alarm symbol appears.
• 70^ C (default) or the last adjusted value flashes on the display.
• Press the + or - button to set the desired core temperature.

• Confirm the setting with the ALARM button.
• appears on the oven temperature display and the symbol and the alarm symbol flash.
  To activate the upper oven temperature alarm press the ON/OFF button. The alarm symbol appears.
• 70^ C (default) or the last adjusted value flashes on the display.
• You can use the + or - button to set the upper temperature limit.
• Confirm the setting with the ALARM button.
• appears on the oven temperature display and the symbol and the alarm symbol flash.
  To activate the lower oven temperature alarm press the ON/OFF button. The alarm symbol appears.

• D'PC (default) or the last adjusted value appear on the display. You can use the + or - button to set the lower temperature limit.

• Confirm the setting with the ALARM button.

7.3 In case of alarm

The device will alert you with a beep:

As soon as the carl temperature is reached
If the set upper temperature limit in the cooking chamber is exceeded
- If the sat lover temperature limit in the cooking chamber has fallen below

The backlight turns on.

GB

• Press any button to stop the alarm sound.

• The alarm symbol will continue flashing until the measured core temperature has fallen below the set temperature limit or until the measured oven temperature is within the alarm limits.
  The alarm sound automatically turns off after 3 minutes if not stopped manually.
  To turn off the alarm functions, press the ON/OFF button in the respective alarm mode. The alarm symbol appears.

8. Care and maintenance

Clean the instrument and the probe with a soft damp cloth. Do not use solvents or scouring agents. Protect it from moisture.
- Should water or steam enter the device's jack, it could affect the contact with the probe. Dry the probe connector with a cloth before connecting it to your instrument.
- Turn off the instrument after use.
- Remove the batteries if the device will not be used for an extended period of time.
- Keep the device in a dry place.

8.1 Battery replacement

• Change the batteries when the battery symbol appears on the display.
• Open the battery compartment and insert two new AAA 1.5 V batteries, polarity as illustrated.
• Close the battery compartment again.

22

13/14

2

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

· = 0

当 m = 32 且 m 1 时方程有两个实数根;

No display Press the ON/OFF button to switch on the instrument
Ensure the batteries' polarity are correct
Charge the batteries

Incorrect indication Change the batteries

Check the contact between probe connector and jack, dry it if necessary

Display"-C" Plug in the sensor cable

Check the contact between plug and socket

Temperature is outside measuring range

Temperature display is too high Check the position of the probe in the meat

If your device fails to work despite these measures, contact the retailer where you purchased the product.

10. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty ballarries and recharqueable ballerias in ordinary household waste.

As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.
The symbols for the contained heavy metals are

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

11. Specifications

Measuring range -20°C...300°C (-4...+572°F)

Resolution

Core temperature 0.1°C

Oven temperature

Cable length 1.2 m

Power consumption 2 x AAA 1,5 V batteries (not includes)

Use alkaline batteries

Weight 60 g (device only)

h

The t t t

www.itdostmann.be

TFA Costmann GmbH & Co.KG, Zum Ottersberg 12, D-07877 Wertheim, Germany 02/21

Temperature a coor 0.1^ Temperature of the 195

Temperaturation du fou? 1^

Alimentation Piles 2 x 1.5 V AAA (non incluses)

Utilisaz das pilas alcalines.

Dimenslonsdu botler 60x2096x9961mm
