Ducky 30.2031.07 - Thermometer TFA - Free user manual and instructions

Brand	TFA
Model	30.2031.07
Product type	Digital bath thermometer
Dimensions (L x W x H)	79 x 108 x 74 mm
Weight	75 g (device only)
Power supply	2 LR44 batteries (included)
Measuring range	0 °C to 50 °C (32 °F to 122 °F)
Resolution	0.1 °C / 0.1 °F
Display	Large digital screen
Power on	Contact with water or press of a key
Automatic shut-off	After 30 minutes
Temperature alarm	Adjustable high threshold from 37 °C to 40 °C, fixed low threshold at 30 °C
LED indicator	Flashing red for high temperature, green for low temperature
Temperature unit	°C / °F selectable
Buoyancy	Yes, floats on water
Child safety	Lockable battery compartment
Cleaning	Soft, damp cloth, without solvents or abrasives
Battery replacement	Open the compartment with a sharp object (coin) and turn the lid
Package contents	Thermometer, instruction manual, 2 LR44 batteries
Repairability	Not user-repairable, contact seller if problem persists

Frequently Asked Questions - Ducky 30.2031.07 TFA

How to turn on the Ducky 30.2031.07 thermometer?

To turn on the thermometer, place it in water or press any key. The temperature appears on the screen.

What is the temperature measuring range?

The measuring range is from 0 °C to 50 °C (32 °F to 122 °F).

How to set the temperature alarm?

Press the ON/SET key for two seconds. The default value 39 °C flashes. Use the + key to choose between 37 °C, 38 °C, 39 °C or 40 °C, then confirm with ON/SET. The low threshold is factory set at 30 °C and cannot be changed.

How to change the unit from °C to °F?

Press the °C/°F key to switch between Celsius and Fahrenheit.

What does the red LED indicator mean?

The flashing red LED indicates that the water temperature is too high (above the set threshold). It flashes until the temperature returns to the comfort zone.

What does the green LED indicator mean?

The flashing green LED indicates that the water temperature is too low (below 30 °C). It stops flashing when the temperature rises.

How to replace the batteries?

Press firmly on the unlock button with a pointed object. Turn the lid to the left (OPEN arrow) using a coin. Insert two LR44 batteries with the + polarity facing up. Close by turning to the right (CLOSE arrow) until the button clicks.

What to do if the display is dim or missing?

Check the battery polarity (the + must be facing up). If the display remains dim, replace the batteries. If the problem persists, contact the seller.

Is the thermometer waterproof?

Yes, it is designed to be used in water when fully assembled. It also floats on water.

How to clean the device?

Use a soft, damp cloth. Do not use solvents or abrasive products.

USER MANUAL Ducky 30.2031.07 TFA

White rubber duck toy with black eyes and metallic beak (no text or symbols visible)

Instruction manuals

Kat. Nr. 30.2031

www.tfa-dostmann.de/en/service/downloads/instruction-manuals

CE UK CA

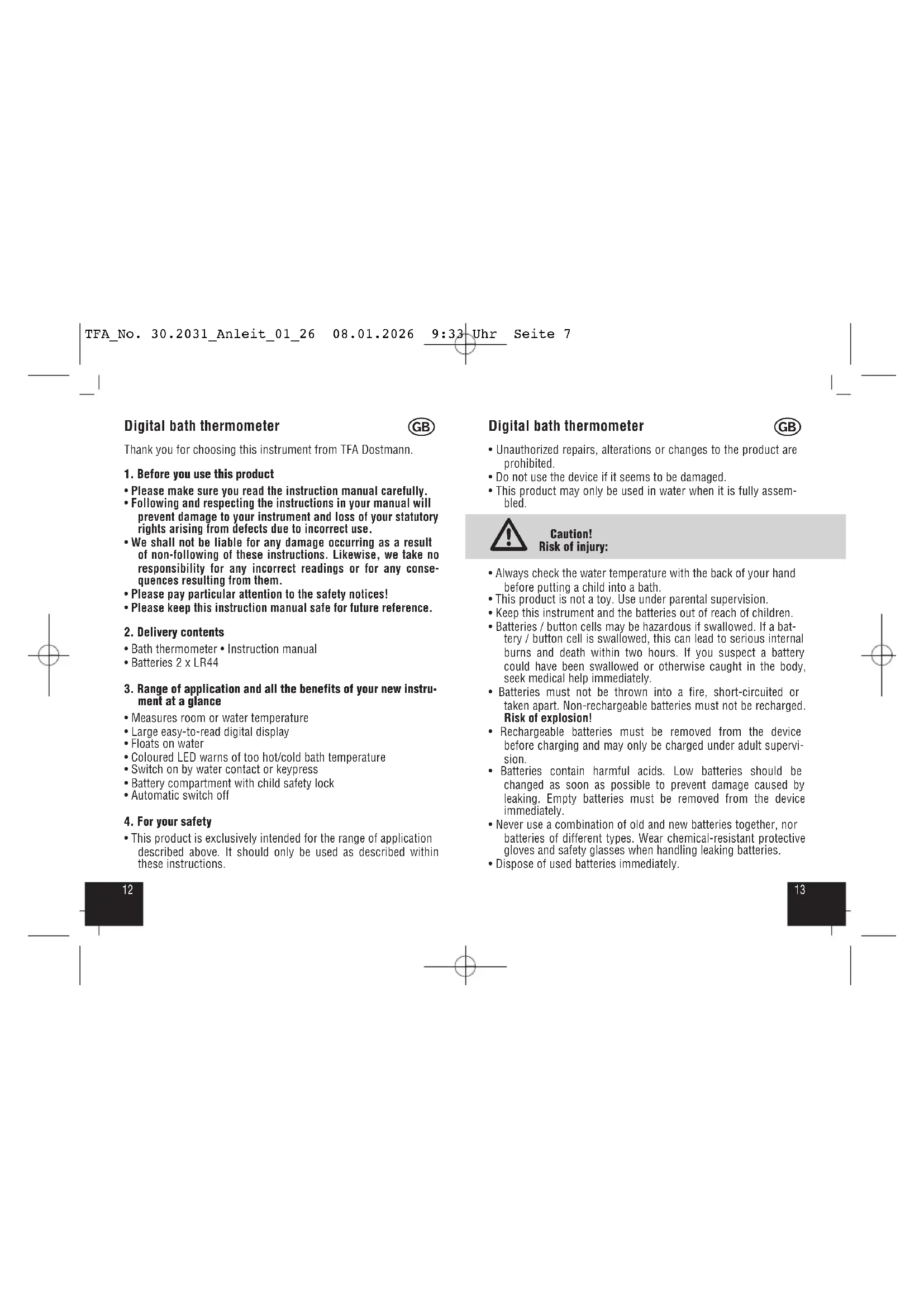

Thank you for choosing this instrument from TFA Dostmann.

1. Before you use this product

• Please make sure you read the instruction manual carefully.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
• Please pay particular attention to the safety notices!
• Please keep this instruction manual safe for future reference.

2. Delivery contents

• Bath thermometer • Instruction manual
• Batteries 2 x LR44

3. Range of application and all the benefits of your new instrument at a glance

• Measures room or water temperature
• Large easy-to-read digital display
- Floats on water
- Coloured LED warns of too hot/cold bath temperature
- Switch on by water contact or keypress
- Battery compartment with child safety lock
• Automatic switch off

4. For your safety

- This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.

Digital bath thermometer

• Unauthorized repairs, alterations or changes to the product are prohibited.
• Do not use the device if it seems to be damaged.
• This product may only be used in water when it is fully assembled.

Caution! Risk of injury:

• Always check the water temperature with the back of your hand before putting a child into a bath.
• This product is not a toy. Use under parental supervision.
- Keep this instrument and the batteries out of reach of children.
- Batteries / button cells may be hazardous if swallowed. If a battery / button cell is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
- Batteries must not be thrown into a fire, short-circuited or taken apart. Non-rechargeable batteries must not be recharged. Risk of explosion!
- Rechargeable batteries must be removed from the device before charging and may only be charged under adult supervision.
- Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking. Empty batteries must be removed from the device immediately.
- Never use a combination of old and new batteries together, nor batteries of different types. Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.
- Dispose of used batteries immediately.

Digital bath thermometer

• Keep new and used batteries out of the reach of children.
• Avoid contact with skin, eyes and mucous membranes when handling leaking batteries. In case of contact, immediately rinse the affected areas with water and consult a doctor.

Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks.
• Make sure the polarities are correct.

5. Elements

A: Display

A 1: Temperature display °C/°F
A 2: Temperature alarm HOT/COOL

B: Buttons

B 1: ON/SET button B 2: + button
B 3: °C/°F button

C: Housing

C 1: LED signal light C 2: Battery compartment
C 3: Temperature probe C 4: Release button

6. Getting started

• Place the duck in the water or press any button.
  • The temperature appears on the display.
• The device will turn off automatically after approx. 30 minutes.

Digital bath thermometer

7. Temperature alarm

• Press and hold the ON/SET button for 2 seconds. 39 °C (default) appears on the display and HOT flashes. You can choose the upper temperature limit (37 °C, 38 °C, 39 °C or 40 °C) with the + button.
• Confirm the setting with the ON/SET button.
• The lower temperature limit is factory set to 30^ .
• If the water temperature rises above the set upper temperature limit, HOT appears on the display and the LED signal light flashes red.
• If the water temperature drops below 30^ , COOL appears on the display and the LED signal light flashes green.
• The LED signal light continues to flash until the measured temperature is within the alarm limits again.

8. Temperature unit setting

- Press the °C/°F button and you can change between Celsius (°C) or Fahrenheit (°F) as temperature unit.

9. Care and maintenance

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if the device will not be used for an extended period of time.

9.1 Battery replacement

• Change the batteries when the display becomes weak.
• To open and close the battery compartment, the release button must be pressed down firmly with a pointed object.
• Open the battery compartment by turning the lid to the left (in the arrow direction OPEN) using a coin and insert two new LR44 batteries (+pole above).

Digital bath thermometer

• Close the battery compartment by turning the lid to the right (in the arrow direction CLOSE).
• The lid is correctly closed when the release button is locked in place.
• Note: The instrument must be switched off before changing the batteries.
• Attention: Close the battery compartment carefully, so that no water can get in. Pay attention to the sealing ring.

10. Troubleshooting

Problem Solution

No display → Ensure that the battery

polarities are correct

(+pole above)

→ Change the batteries

Incorrect indication → Change the batteries

If your device fails to work despite these measures contact the supplier from whom you purchased it.

11. Waste disposal

This product and its packaging have been manufactured using high-grade materials and components which can be recycled and reused. This reduces waste and protects the environment.

Dispose of the packaging in an environmentally friendly manner using the collection systems that have been set up.

Disposal of the electrical device

Remove non-permanently installed batteries and rechargeable batteries from the device and dispose of them separately.

Digital bath thermometer

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). This product must not be disposed of in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal. The return service is free of charge. Observe the current regulations in place!

Disposal of the batteries

Batteries and rechargeable batteries must never be disposed of with household waste. They contain pollutants such as heavy metals, which can be harmful to the environment and human health if disposed of improperly, and valuable raw materials such as iron, zinc, manganese or nickel that can be recovered from waste. As a consumer, you are legally obliged to hand in used batteries and rechargeable batteries for environmentally friendly disposal at retailers or appropriate collection points in accordance with national or local regulations. The return service is free of charge. You can obtain addresses of suitable collection points from your city council or local authority.

The names for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead.

Reduce the generation of waste from batteries by using batteries with a longer lifespan or suitable rechargeable batteries. Avoid littering the environment and do not leave batteries or battery-containing electrical and electronic devices lying around carelessly. The separate collection and recycling of batteries and rechargeable batteries make an important contribution to relieving the impact on the environment and avoiding health risks.

Digital bath thermometer

WARNING! Damage to the environment and health through incorrect disposal of the batteries!

12. Specifications

Measuring range

Temperature 0°C...50°C (32°F...122°F)

Resolution 0,1 °C (0,1 °F)

Batteries 2 x LR44 Button cell batteries

(included)

Brand name CNB

Manufacturer CHENER BATTERY WORKS (CHINA)

LIMITED, Rm.1405, Foreign Trade

Group Bldg., No. 239, Zhongxing Rd.,

Luohu, Shenzhen, China

Housing dimension 79 x 108 x 74 mm

Weight 75 g (device only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

www.tfa-dostmann.de 01/26

Piles Piles bouton 2x LR44 (incluses)

Marque CNB

Fabricant CHENER BATTERY WORKS (CHINA)

LIMITED, Rm.1405, Foreign Trade

Group Bldg., No. 239, Zhongxing Rd.,

Luohu, Shenzhen, Chine

Batterie Batterie a bottone 2x LR44 (fornite)

Marchio CNB

LIMITED, Rm.1405, Foreign Trade

Group Bldg., No. 239, Zhongxing Rd.,

Luohu, Shenzhen, Cina

Dimensioni esterne 79 x 108 x 74 mm

LIMITED, Rm.1405, Foreign Trade

Group Bldg., No. 239, Zhongxing Rd.,

Luohu, Shenzhen, China

Afmetingen behuizing 79 x 108 x 74 mm

LIMITED, Rm.1405, Foreign Trade

Group Bldg., No. 239, Zhongxing Rd.,

Luohu, Shenzhen, China
