Product type	Binoculars
Brand	Zeiss
Model	Conquest HD 15x56
Magnification	15x
Objective diameter	56 mm
Exit pupil diameter	3.7 mm
Twilight factor	29.0
Field of view	80 m/1000 m
Subjective viewing angle	69°
Minimum focusing distance	3.5 m
Diopter adjustment range	±4 dpt
Eye relief	18 mm
Interpupillary distance	56–74 mm
Prism system	Abbe-König
Lens coating	LotuTec® / T*
Nitrogen filling	Yes
Waterproofness	400 mbar
Operating temperature	-20 to +63 °C
Length	210 mm
Width (at 65 mm interpupillary distance)	145 mm
Weight	1,265 g
Included accessories	Binoculars, eyepiece and objective lens covers, carrying strap, case, cleaning cloth, quick guide, 1/4" tripod adapter
Care and cleaning	Blow off large particles, then wipe with an optical cloth. The LotuTec® coating makes cleaning easier.
Spare parts and repairability	Contact ZEISS customer service for spare parts and warranty.

Frequently Asked Questions - Conquest HD 15x56 ZEISS

How to adjust the diopter compensation on Zeiss Conquest HD 15x56 binoculars?

Close your right eye and adjust sharpness with the focus wheel for the left tube. Then close your left eye and adjust the diopter compensation wheel (under the right eyepiece) to get a sharp image. Lock the wheel by pressing it in after adjustment.

How to clean the binocular lenses?

First blow off large particles (e.g., sand) with a blower or soft brush. Fog the lenses by gently blowing on them, then wipe with an optical cleaning cloth. The LotuTec® coating repels water and dirt, making cleaning easier.

Can I use the binoculars with glasses?

Yes. Turn the eyecups clockwise to the lowest position to adapt for glasses. If observing without glasses, unscrew the eyecups to raise them.

How to mount the binoculars on a tripod?

Use the included 1/4" tripod adapter for the 15x56 model. Screw the adapter into the interface at the central hinge, then mount the binoculars on a standard camera tripod.

What is the minimum focusing distance?

The minimum focusing distance is 3.5 meters (11.5 feet). For closer objects, the image will not be sharp.

Are the binoculars waterproof?

Yes, they are waterproof up to 400 mbar (equivalent to about 4 meters water depth) and nitrogen-filled to prevent internal fogging.

How to adjust the interpupillary distance?

Spread or bring the two barrels closer around the central hinge until you see a single circular image when viewing with both eyes. The adjustment range is 56 to 74 mm.

How to attach the carrying strap?

Thread the strap through the attachment points on each barrel, then adjust the length by tightening or loosening. The eyepiece cover can also be attached there.

What should I do if the eyecups unscrew completely?

This is normal for cleaning or replacement. Screw them back completely clockwise until you hear a click, then adjust to the desired position.

How to store the binoculars in humid conditions?

Store them in a dry, well-ventilated place to prevent mold formation. Use the provided case and remove the covers to allow air circulation.

USER MANUAL Conquest HD 15x56 ZEISS

Illustration of two birds perched on a branch, enclosed in circular frames with directional arrows (no text or symbols)

Simple line drawing of a bird perched on a branch, enclosed in a circular frame (no text or symbols)

Fig. 3

Fig. 4

Illustration of two human eyes and eyeglasses with no text or symbols

Fig. 6 Fig. 5

Technical line drawing of a mechanical device with attached components and a close-up view of binoculars (no text or symbols)

Two circular diagrams labeled 13 and 15 showing abstract geometric patterns, no text or symbols present.

Fig. 12

Hinweis:

www.zeiss.com/cop/safety

LIEFERUMFANG

www.zeiss.com/nature/binoculars/accessories

www.zeiss.com/nature/service

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

Telefon [phone]

E-Mail [e-mail]

TECHNISCHE DATEN

1. Eyepiece cap
2. Eyecups
3. Diopter compensation (lockable)
4. Carrying strap eyelets
5. Focusing wheel
6. Interface for tripod adapter 1/4"
7. Protective lens cap

Illustration of two birds perched on a branch, enclosed in circular frames with directional arrows (no text or symbols)

Simple line drawing of a bird perched on a branch, enclosed in a circular frame (no text or symbols)

Fig. 3

Fig. 4

Illustration of two human eyes and a pair of eyeglasses, labeled A and B (no text or symbols on the figures themselves)

Fig. 6 Fig. 5

Line drawing of a mechanical device with multiple ports and wires (no text or symbols)

Diagram of binoculars with labeled parts, showing light path and lens components (no text or symbols)

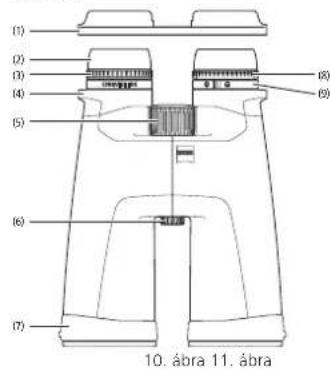

1. Eyepiece cap

2. Eyecups

3. Diopter compensation (lockable)

4. Carrying strap eyelets

5. Focusing wheel

6. Interface for tripod adapter 1/4"

7. Protective lens cap

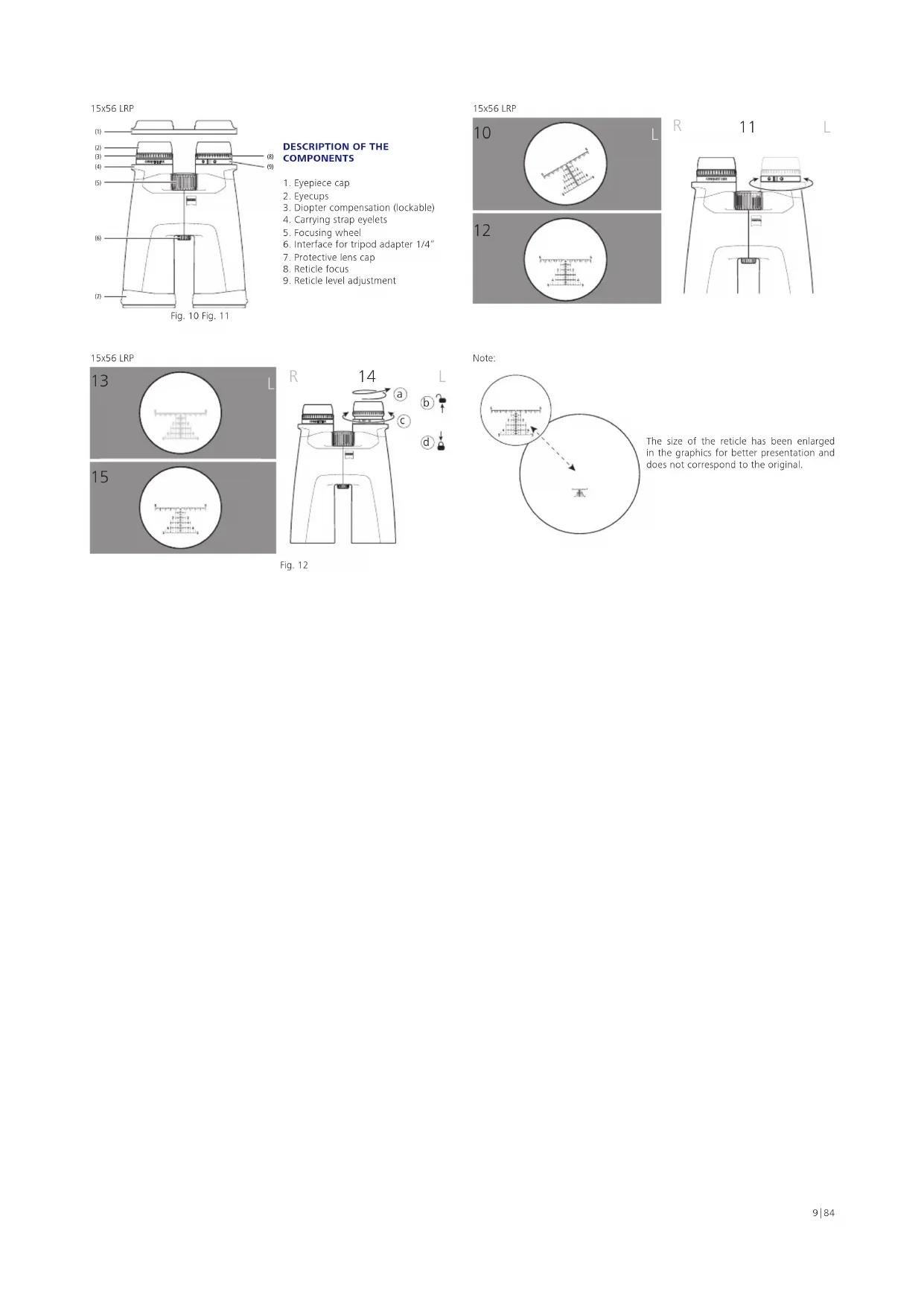

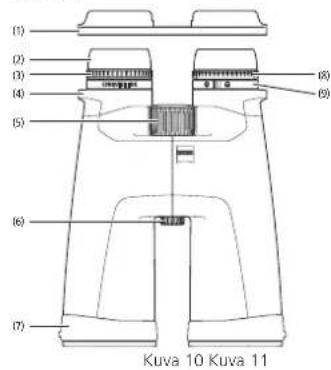

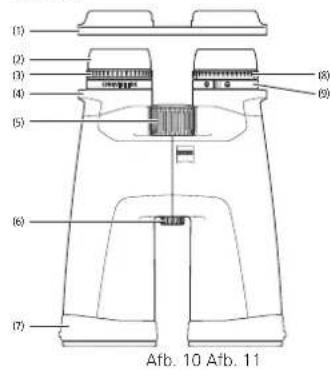

8. Reticle focus

9. Reticle level adjustment

15×56 LRP

R

15×56 LRP

Fig. 12

Note:

The size of the reticle has been enlarged in the graphics for better presentation and does not correspond to the original.

INSTRUCTIONS FOR USE

Congratulations on purchasing your new ZEISS CONQUEST HDX® binoculars. Enjoy the memorable experience of realistic image reproduction, characterized by brilliance and high color fidelity.

ZEISS products are famous for outstanding optical performance, precision engineering and a long service life. Please observe the following instructions for use in order to obtain the best from your product and to ensure that they remain your constant companion for many years to come.

Please note the safety instructions, they can be found under:

www.zeiss.com/cop/safety

SCOPE OF SUPPLY

Product Order number Scope of Supply

8 x 32 52 32 14 Binoculars
10 x 32 52 32 15	Eyepiece capProtective lens capCarrying strapCarrying caseLens cleaning clothQuick GuideSafety instructionsTripod adapter 1⁄4" (only for 15 x 56 and LRP 15x56)
8 x 42 52 42 14
10 x 42 52 42 15
8 x 56 52 56 34
10 x 56 52 56 35
15 x 56 52 56 36
15 x 56 LRP 52 56 36 -9901-000

Adjusting the eye spacing (pupillary distance)

Bend the two barrels toward each other around the central axis, until the distance of the two eyepieces corresponds to the distance between your eyes. This will provide the optimum image for your eyes. The optimum eye spacing is achieved when one circular image is seen when viewing through the binoculars with both eyes (Fig. 2).

Focusing

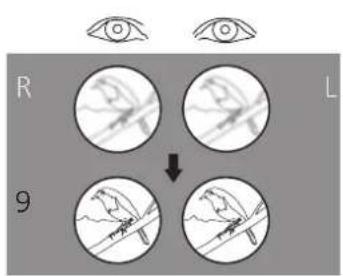

The binoculars have a focusing wheel and a diopter adjustment wheel. To adjust, close your right eye and focus the image in the left barrel using the center focusing wheel (Fig. 3).

Then close your left eye and, if necessary, adjust the focus in the right barrel using the diopter adjustment wheel (Fig. 4). Details on this can be found in the next section. The diopter adjustment wheel features a scale with the signs "+" and "-" and has an index point as a reference point. Note your personal setting, then you can quickly set your own diopter setting on any binoculars.

For additional focusing at different distances, use only the focusing wheel (Fig. 5).

Note: Always use the same object to focus both images!

Diopter locking mechanism

The binoculars have a diopter locking mechanism to prevent unwanted adjustment of the diopter compensation (Fig. 4).

To adjust the diopters, first unscrew the eyecups (a). Then you can pull the diopter adjustment ring upwards to unlock it (b). Change the diopters as described above by turning the diopter adjustment ring (c). After the focus is correctly adjusted, press the diopter adjustment ring back down to lock it (d).

Aligning the eyecups, Viewing with and without glasses

If you do not wear glasses when viewing, use the binoculars with the eyecups extended. To do this, turn the eyecups counter-clockwise and upwards to the top click stop position (Fig. 6 – Illustration A).

The eyecups can be locked in four positions – at the bottom and top and in two intermediate positions. These adjustment options allow the distance of the eye from the exit pupil to be varied according to the specific requirements of each user.

When viewing with glasses, turn the eyecups down (clockwise) until it locks in the lowest click stop position (Fig. 6 – Illustration B).

Note: If the eyecups are turned further counter-clockwise when in the extended position, they can loosen. This is by design. For more information, see "Cleaning and replacing the eyecups".

Cleaning and replacing the eyecups

To replace the eyecups or for cleaning, they can be completely screwed off of the binoculars. Turn the eyecups out as shown in Fig. 6 to the top click-stop position and turn the thread in the same direction until the eyecups are completely screwed out.

After cleaning or replacing the eyecups, turn them completely clockwise on the eyepiece (also refer to the section "Aligning the eyecups, Viewing with and without glasses"). By slightly tugging clockwise, the thread of the eyecups engages in the lowest setting. Finally, you can again set your desired distance between the eye and eyepiece using the click stops.

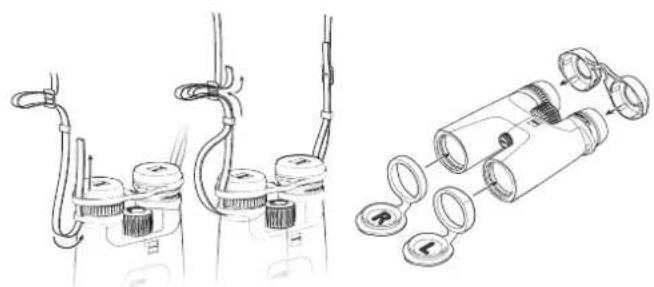

Attaching the carrying strap and protective cap

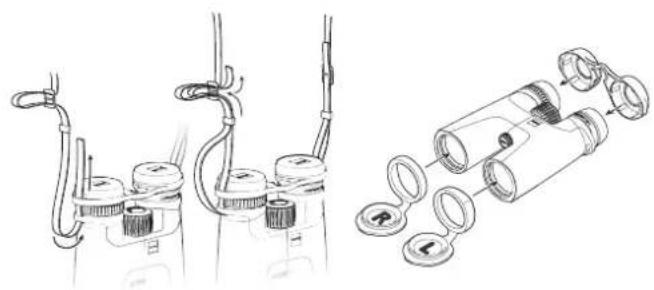

The carrying strap, eyepiece cap and protective lens cap are included in the packaging. As shown in Fig. 7, the eyepiece cap and carrying strap are attached to the binoculars by means of the carrying strap eyelet.

The strap length can be set to the desired length by shortening or lengthening the strap. On the other side of the eyepiece cap follow the same sequence. The eyepiece cap can also be put on only one side, if preferred.

The lens caps are marked "L" for left and "R" for right and are attached to the left and right tubes respectively (Fig. 8).

Use of eyepiece and lens cap

The eyepiece cap can be attached to the eyecups (Fig. 8). You can maintain the desired high-eyepoint design. Remove the cover before using the binoculars.

The lens caps can remain permanently on the binoculars after they have been attached and only need to be opened before use.

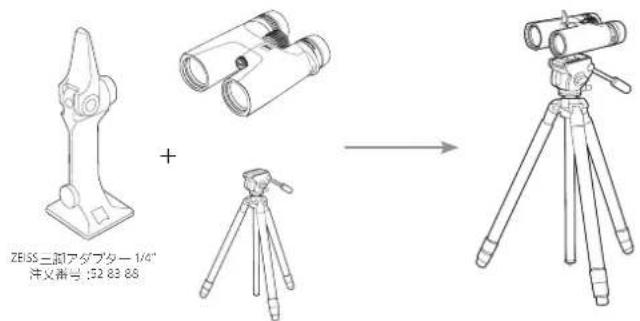

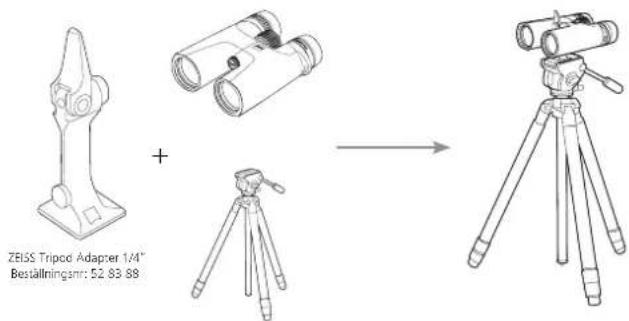

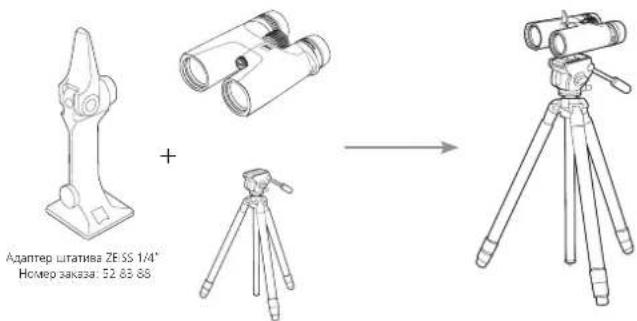

Attachment of tripod adapters ^1

Binoculars from the ZEISS CONQUEST HDX series can be mounted on any commercial camera tripod using the ZEISS tripod adapter 1/4" or the ZEISS Binofix universal tripod adapter (Fig. 9).

The order numbers for ZEISS tripods and tripod adapters and other accessories can be found in the "Accessories for ZEISS CONQUEST HDX" chapter.

Special adjustments for ZEISS Conquest HDX LRP 15x56 binoculars – with MRAD reticle

The ZEISS Conquest HDX LRP 15x56 model is specifically designed for competition sport shooting. It incorporates a reticle that can be adjusted for both 'leveling' and 'focusing' needs (Fig. 10).

Note: The reticle is located in the left channel. When using, the reticle appears on the overall image.

Angle/Leveling adjustment of the reticle - from the viewing position

1) As with all binoculars you must first set the interpupillary distance (IPD) to your preferred and comfortable width (see section adjusting the eye spacing).
2) Once the IPD is set for your eyes, look through the binocular to check whether the reticle in the left barrel is leveled or not. If leveled, no further adjustment is needed. If not leveled, rotate the angle adjustment ring – the ring without rubber surface, located on the left side barrel, until the reticle is perfectly leveled (Fig. 11).
3) For assistance and confirmation of 'level' setting, you can use a trustworthy reference point such as a building.

Note: The angle adjustment ring is purposely stiff to rotate in order to prevent unintentional adjustment.

Focusing of the reticle

Once the reticle is leveled you will need to focus the reticle to obtain a clear and crisp view of the reticle (Fig. 12).

1) To focus the reticle, the eyecups must be adjusted outward to allow for unlocking of the reticle diopter adjustment (a).

2) Ensure the reticle diopter adjustment is in the unlocked position, by pulling out on the adjustment, away from the body of the binocular, until it unlocks (b).

3) While looking through the binoculars, close your right eye and rotate the reticle diopter adjustment left or right until the reticle is focused (c). After the reticle is focused, press the diopter adjustment ring back down to lock it (d).

Suggestions: For this adjustment, look through the binocular at a neutral background, e.g. a white or gray wall at a long distance. (Never look directly at the sun or any light source.)

Note: This final step of the reticle focus adjustment process should be accomplished in a short period of time, as your eye will want to 'auto-focus' the reticle for you after approx. 2 seconds. You may want to repeat this process a few times to confirm the setting is adjusted properly so that the reticle is 'in focus' immediately when you look at it. If the reticle is not 'in focus' the moment you look at it, this can cause unnecessary eye fatigue during extended observation sessions.

Care and maintenance

The binoculars feature the ZEISS LotuTec® coating. The effective protective coating for the lens surfaces noticeably reduces contamination of the lenses through a special smooth surface and the strong beading effect connected with it. All types of contamination adhere less and can be quickly and easily removed, smear-free. The LotuTec® coating is also durable and abrasion resistant.

Please do not wipe coarse particles from the lenses (e. g. sand), rather blow them away or use a fine brush to remove them. Over time, fingerprints can corrode the lens surface. Breathing on the lens and polishing with a clean optical cleaning cloth is the easiest method of cleaning the lens surface. Dry storage and keeping the outer lens surfaces well ventilated, especially in the tropics, helps to prevent a possible mold film forming on the optics. Your ZEISS CONQUEST HDX binoculars require no further special care.

Contamination on the rubber coating and the housing can usually be removed using warm water, a cotton cloth and light rubbing.

ACCESSORIES FOR ZEISS CONQUEST HDX ^1

www.zeiss.com/nature/binoculars/accessories

*Accessories are not included in the scope of supply.

CUSTOMER SERVICE, REPLACEMENT PARTS AND WARRANTY

For service or replacement part questions or obtaining the warranty terms, please see our website:

www.zeiss.com/nature/service

For further questions, please feel free to contact:

ZEISS Customer Service

Carl Zeiss Sports Optics GmbH

Gloelstr. 3-5, 35576 Wetzlar, Germany

Phone [phone]

E-mail [e-mail]

ZEISS Customer Service USA

Carl Zeiss SBE, LLC

Consumer Products

1050 Worldwide Blvd.

Hebron, KY 41048-8632, USA

Phone [phone]

E-mail [e-mail]

TECHNICAL DATA
