Soundmaster UR230WE - Radio

UR230WE - Radio Soundmaster - Free user manual and instructions

Find the device manual for free UR230WE Soundmaster in PDF.

English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
📄

Document temporarily unavailable

The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.

Pick your language and provide your email: we'll send you a specifically translated version.
Product typeClock radio
BrandSoundmaster
ModelUR230WE
Frequency bandFM
Number of radio presets10
Built-in natural sounds6
Alarm2 independent alarms with snooze
Sleep functionYes, adjustable from 15 to 120 minutes
DisplayDigital with date, time and indicators
Ambient lightingMulticolor, adjustable
Reading lightYes, with variable intensity
AntennaTelescopic FM antenna
Main power supplyAC adapter (included)
Backup powerLithium CR2032 battery (not included)
USB portYes, for charging only
Included accessoriesAC adapter, user manual
MaintenanceClean with a dry cloth, no detergents
SafetyDo not open; risk of electric shock; keep batteries away from children
RepairabilityRepair by an authorized center only

Frequently Asked Questions - UR230WE Soundmaster

How to set the clock?
Make sure the device is in standby. Press and hold the SET button to enter setup mode. Use the DOWN and UP buttons to change the year, month, date, 12/24h format, hour and minutes. Press SET to confirm each step.
How to set an alarm?
In standby, press ALARM 1 or ALARM 2, then press and hold the same button. Use the DOWN and UP buttons to set the hour, minutes, frequency (e.g., 1-5 for Monday-Friday), sound source (buzzer, radio or natural sound) and wake-up light intensity. Confirm with the alarm button.
How to use the sleep function?
With the radio on, press SLEEP repeatedly to choose a duration (15, 30, 60, 90 or 120 minutes). The device will turn off automatically at the end of the countdown. To cancel, press ON/OFF.
How to change the audio source (FM / natural sounds)?
Press ON/OFF to turn on the radio. Press and hold the SOURCE button to switch between FM and natural sounds. In FM mode, use DOWN and UP to tune frequencies.
What to do if the screen does not light up?
Check that the AC adapter is properly plugged in and the wall outlet is working. If the device is running on backup battery, the screen stays black to save energy. Plug in the adapter to turn the screen back on.
How to store FM stations?
Tune to the desired station, then press and hold the MEM/M+ button until 'P01' flashes. Use DOWN and UP to choose a slot (P01 to P10), then press SET to confirm. To recall a station, briefly press MEM/M+ and select.
How to use the ambient lighting?
Press the MOOD LIGHT button to turn on the ambient lighting. Colors cycle automatically. To freeze a color, press and hold the MOOD LIGHT CHANGE button. Repeat to resume cycling.
How to replace the backup battery?
Unscrew the battery compartment cover using a screwdriver. Insert a CR2032 lithium battery respecting polarity (+/-). Do not unplug the AC adapter during replacement to avoid losing settings.
What to do in case of poor FM reception?
Fully extend the telescopic antenna. Move the device away from computers and microwave ovens. Try reorienting the antenna or moving the radio to improve reception.
How to clean the device?
Use a soft, dry cloth. Never use detergents or abrasive cloths. Avoid allowing liquid to enter the device.

User questions about UR230WE Soundmaster

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Radio in PDF format for free! Find your manual UR230WE - Soundmaster and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. UR230WE by Soundmaster.

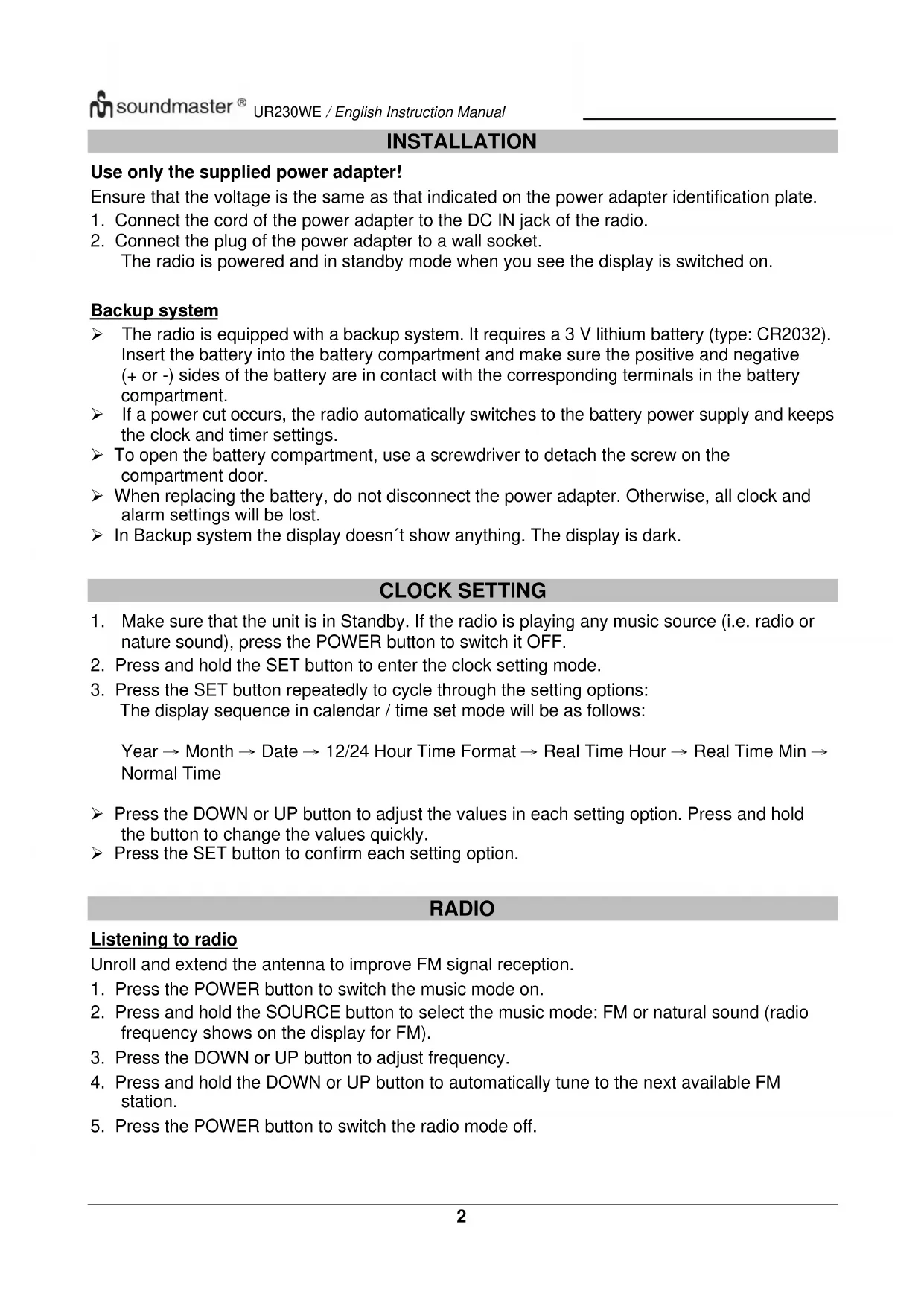

USER MANUAL UR230WE Soundmaster

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Soundmaster

Model : UR230WE

Category : Radio
