USER MANUAL IR3500 Soundmaster

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment. Please contact your local authorities for details about collection points.

Risk of electric shock Do not open! Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling – no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind. Only return fully discharged batteries *) marked Cd = cadmium, Hg = mercury, Pb = lead

Only use mercury and cadmium-free batteries. Used batteries are hazardous waste and NOT to be disposed of with the household waste!!! Keep batteries away from children. Children might swallow batteries. Contact a physician immediately if a battery was swallowed. Check your batteries regularly to avoid battery leakage. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. CAUTION: Danger of explosion if battery is incorrectly replaced Replace only with the same or equivalent type

To prevent possible hearing damage, do not listen at high volume levels for long periods

Use the device in dry indoor environments only. Protect the device from humidity. This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries. No objects filled with liquids, such as vases, shall be placed on the apparatus. The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable. Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate. Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way. A damaged mains cable or plug must immediately be replaced by an authorized service center. In case of lightning, immediately disconnect the device from the mains supply. Children should be supervised by parents when using the device. Clean the device with a dry cloth only. Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS! Do not expose the device to direct sunlight or other heat sources. Install the device at a location with sufficient ventilation in order to prevent heat accumulation. Do not cover the ventilation openings! Install the device at a safe and vibration-free location. Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed. Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center. No naked flame sources, such as lighted candles, should be placed on the unit. When you are necessary to ship the unit store it in its original package. Save the package for this purpose. In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply. If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.IR3500 / English Instruction Manual

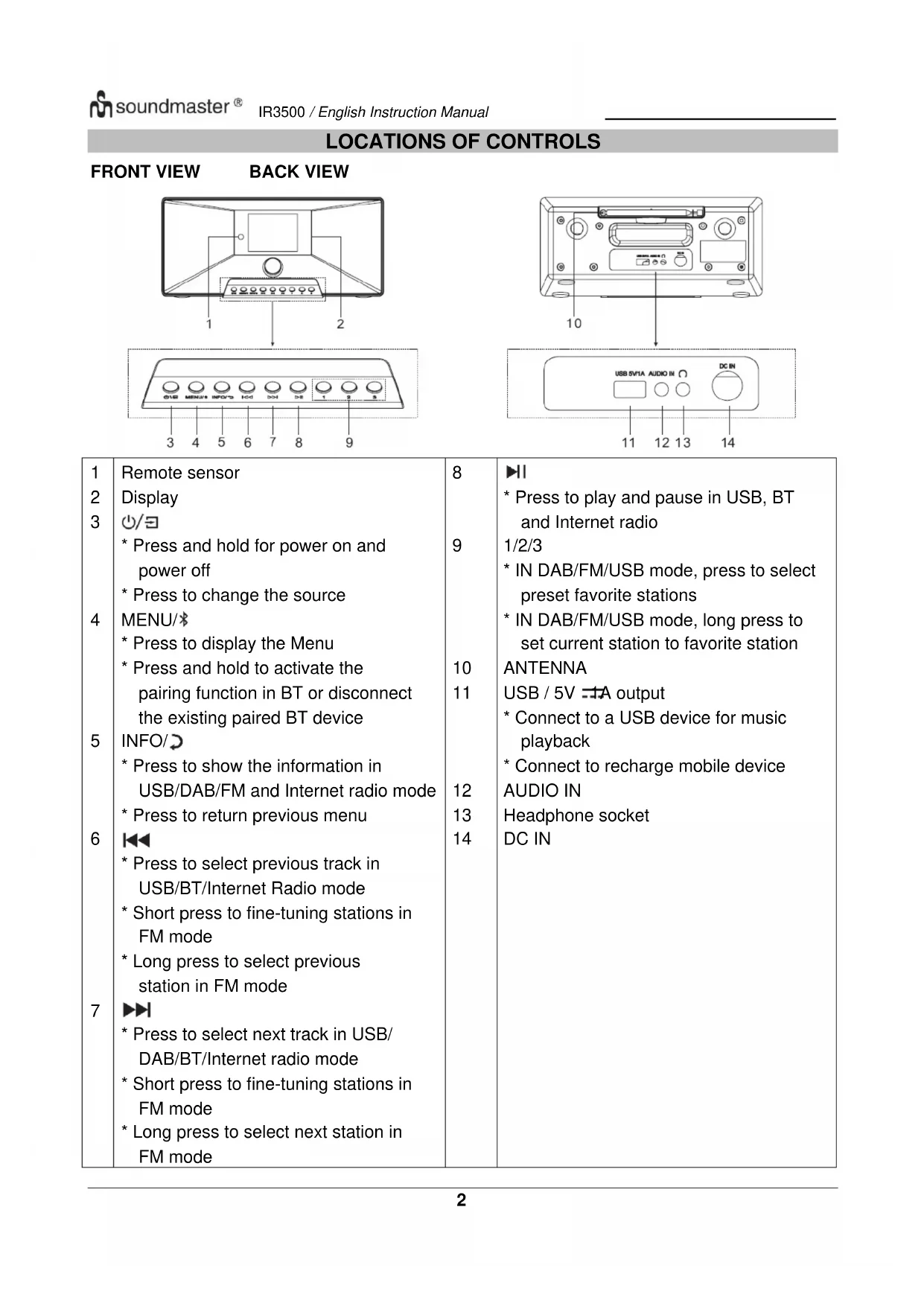

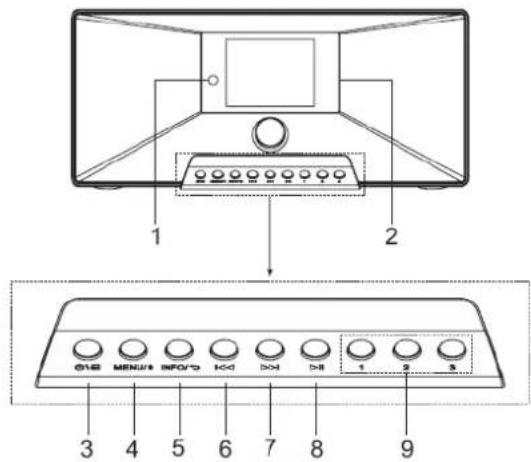

• Press and hold for power on and power off

• Press to change the source MENU/

• Press to display the Menu

• Press and hold to activate the pairing function in BT or disconnect the existing paired BT device INFO/

• Press to show the information in USB/DAB/FM and Internet radio mode

• Press to return previous menu

• Press to select previous track in USB/BT/Internet Radio mode

• Short press to fine-tuning stations in FM mode

• Long press to select previous station in FM mode

• Press to select next track in USB/ DAB/BT/Internet radio mode

• Short press to fine-tuning stations in FM mode

• Long press to select next station in FM mode

• Press to play and pause in USB, BT and Internet radio 1/2/3

• IN DAB/FM/USB mode, press to select preset favorite stations

• IN DAB/FM/USB mode, long press to set current station to favorite station ANTENNA USB / 5V 1A output

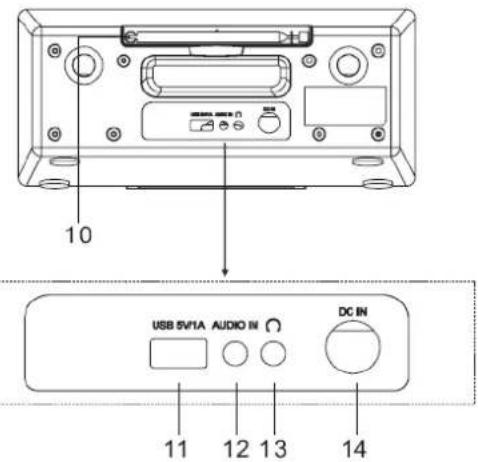

• Connect to a USB device for music playback

• Connect to recharge mobile device AUDIO IN Headphone socket DC INIR3500 / English Instruction Manual

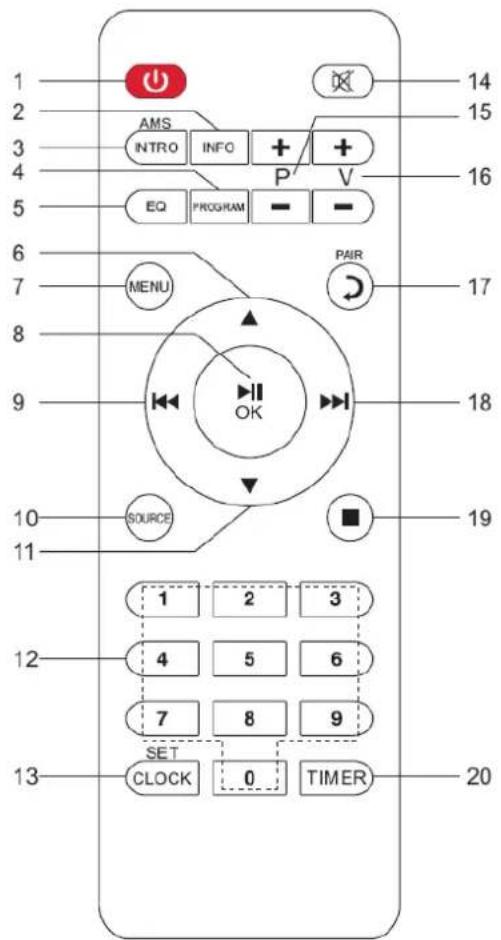

• Press to show the information in USB/ DAB/FM and Internet radio mode 3 INTRO/AMS

• Press to start browsing of all tracks in USB

• Press to automatically search for channel in DAB and FM; when in searching, press again can stop it. 4 PROGRAM

• Press to program in USB and preset channel in DAB, FM and internet radio

*Press to move up on the menu screen

• Press to play/pause in BT/USB and internet radio

• To select or skip to subsequent menu in BT/USB and internet radio

• Press and hold for fast backward in USB

• Press to select previous track in USB

• Press to display the channel list in DAB FM and internet radio

• Press for fine tuning in FM

• Press and hold for manual tuning in FM SOURCE

• Press to select the corresponding AUDIO source. (Internet Radio/Podcasts/Spotify/ DAB/FM/USB/BT/AUDIO)

• Press to move down on the menu screen 0-9 numeric CLOCK

• Press and hold to set clock

• Press to mute or resume the sound P+/-

• Press to skip the beginning of current/ previous/subsequent album in USB

• Press to select previous/next preset channel in FM and DAB V+/-

• Press to increase/ decrease the volume level PAIR

• Press to return to previous menu

• Press and hold to activate the pairing function in BT or disconnect the existing paired BT device

• Press and hold for fast forward in USB

• Press to select the next track in USB

• Press to display channel list in DAB/FM and internet radio

• Press for fine tuning in FM

• Press and hold for manual tuning in FM

• Press to stop playing in USB mode TIMER

• Press to set the TimerIR3500 / English Instruction Manual

1. Press and slide the back cover to open the battery compartment of the remote control.

2. Insert two AAA size batteries. Make sure the (+) and (-) ends of the batteries match

the (+) and (-) ends indicated in the battery compartment.

3. Close the battery compartment cover.

GETTING STARTED / SET UP

Connect the unit to a suitable power source using the power supply provided. After showing a starting screen, it will enter the last used listening mode. When the unit is started for the first time, the setup wizard will be launched automatically.

GET THE NETWORK ENVIRONMENT READY

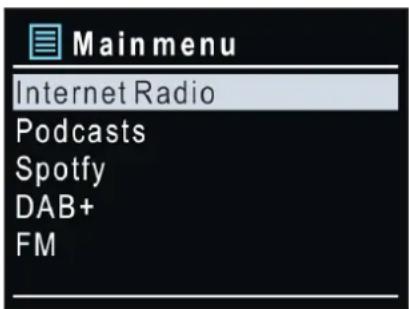

Make sure you have setup the wireless network and you have the WEP, WPA or WPA2 security password to activate the connection. You may also use the WPS (WiFi Protected Setup) function for easy pairing between the network device and IR3500. Check if the light indicators on the network device are in appropriate status. MAIN MENU Under the main menu, you can select the following modes: Internet Radio, Podcasts, Spotify, DAB, FM, USB, Bluetooth®, Audio-In, Sleep and Alarm.

SYSTEM SETTINGS At the first time operation, system asks if you want to start the Setup Wizard. The Setup wizard guides you through the basic setup parameters for Time/Date and Network connection. To change any settings later all setting functions are accessible from the Settings Menu. Note: If the setup wizard is terminated prematurely without a network setup, the device generates its own WiFi access so that the device can be configured using the UNDOK APP. Network connection indicator: = Network connection established. = Network connection not established.

Select the desired menu language.

2. Product privacy policy

So that the installation can continue, please confirm the privacy policy with the "NAVIGATE / OK" button. Further information are available under www.frontiersmart.com/privacyIR3500 / English Instruction Manual

Select the “YES” option to continue with the setup. If you select the “NO” option, the next display asks you whether the setup wizard should be started the next time the device is switched on.

4. Time/Date Display format

Select 12 or 24 as the time format.

The time and date can be updated manually or automatically from DAB, FM or network. Auto update works with data sent over DAB, FM or the Internet. The clock is only updated when it is in a corresponding mode, so it is suggested to select a mode you use regularly. DAB and FM use time signals broadcast with radio transmissions. Network uses a time signal sent from the Internet radio portal when in any network connected mode.

6. Time zone/daylight

Set your time zone. If your country uses daylight saving and it is in effect, turn on the Daylight saving option. (only available when Auto update from Internet is selected) Manual update If you set No update, the wizard prompts you to set the time and date manually. The date and time are displayed as dd-mm-yyyy and hh:mm. The active value appears as flashing. Adjust each value with the “NAVIGATE” knob. Once the value is set, press the knob to continue setting with next value.

Keep Network connected Select this option when the unit should the network connection in standby keep, when the function is confirmed, the unit wills faster connecting the internet and it is possible to switch on the unit with the “UNDOK” app. The standby power consumption is slightly increased with this function. WLAN region Select the WLAN region to obtain the optimal WLAN connectivity: Europe. Scanning for the network IR3500 is compatible with all common network protocols and encryption methods. It searches for the available networks and list them out for you. If the device is connected to the network with a LAN cable, select the item "Cable" in the selection. For the wireless connection, you will be asked for input the encryption in the next step (WiFi only!). To enter the network’s key, use the “NAVIGATE” knob to move the cursor through the characters and press “OK” to confirm. As each character is selected, the key is built up near the top of the display. There are three options accessible by tuning the navigate reel back before the first characters – Backspace, OK and Cancel.

WPS encrypted network WPS encrypted networks are identified by WPS at the start of the network name when theIR3500 / English Instruction Manual

IR3500 searches the available AP. Use one of the following methods of connection: There is the shortcut WPS key on the unit. Push button IR3500 prompts you to press the connect button on the router. It then scans for a ready Push Button Connect network and connects.

Pin IR3500 generates an 8-digit code number which you enter into the wireless router, access point, or an external registrar.

Skip WPS Enter key as for a standard encrypted network. For more information on setting up a WPS encrypted network, see your WPS router’s instructions. Completion IR3500 attempts to connect to the selected network. It will show connected if the setup is successful. If connecting fails, IR3500 returns to a previous screen to try again.

Press “OK” to quit the setup wizard.

EQUALISER Several preset EQ modes are available: Normal, Jazz, Rock, Classic, Pop and My EQ. In the My EQ settings, you can create your own EQ with custom bass and treble settings.

• Network wizard Enter to search AP SSID, then input the WEP / WPA key or choose Push Button/Pin/Skip WPS to connect to the wireless network.

Push Button Configuration, it is to connect the AP that supports WPS (Wi-Fi Protected Setup).

• View settings View the information of current connected network: Active connection, MAC address, WLAN region, DHCP, SSID, IP address, Subnet mask, Gateway address, Primary DNS and Secondary DNS.

• Manual settings Choose wireless network connection and enable or disable DHCP (Dynamic Host Configuration Protocol).

• Network profile IR3500 remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. From here you can see the list of registered networks. You can delete unwanted networks by turning and pressing then choosing YES to confirm delete.

• Keep network connected If you choose to keep network connected, the WiFi will not disconnect even you are in standby mode. Otherwise, the connection will only available in internet radio and music player modes. This option allows IR3500 to be ready for DLNA streaming in any operating modes. When Keep network connected is selected the standby power consumption is raised.

TIME/DATE Set the time manually or automatically update, time format, time zone and daylight. BACKLIGHT You may change the backlight of each environment (Normal or DIM) to High, Medium High, Medium, Medium Low, Low or Off LANGUAGE Change it as your preference. SOFTWARE UPDATE From time to time, software upgrades may be created with bug fixes and/or additional features. You can either check manually or set IR3500 to check periodically automatically (this is the default). If newer available software is detected, you will be asked if you want to go ahead with an update. If you agree, the new software is then downloaded and installed. After a software upgrade, all user settings are maintained. NOTE: Before starting a software upgrade, ensure that IR3500 is plugged into a stable main power connection. Disconnecting power during an upgrade may permanently damage the unit. INFO View the firmware version and the radio ID.IR3500 / English Instruction Manual

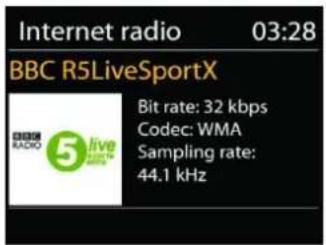

IR3500 can play thousands of radio stations and podcasts from around the world though a broadband Internet connection. When you select Internet radio, IR3500 directly contacts the Frontier Silicon Internet radio portal (which is supported by Airable) to get a list of stations.

The portal also enables multiple lists of favorite stations that you can personalize. If you are already listening to an Internet radio station, you can press “BACK” button to quickly return to the last visited branch of the menu tree, rather than “MENU” to go to the first menu of Internet radio mode.

• Last listened When Internet radio mode restarts, the last-listened station is selected. To select another recently used station, enter here to select the listed station. Most recent stations appear at the top of the list.

• Station list Browse Internet broadcasts that organized into different categories, Location, Genre, Popular and New. You can also find the station with Search by keyword.

• Favorites Favorites are stored with the Internet radio portal, and are available through all Internet radios registered on the same account. Before favorites can be used, the radio has to be registered with the Internet radio portal.

• My added stations Even though the Internet radio portal contains thousands of stations, you may want to listen to stations not listed. You can add your own via the portal. To register your IR3500, choose Station list > Help > Get access code to get your radio’s unique portal access code first. (Do not confuse the portal access code with the Radio ID from System settings. Visit the portal website at http://nouvola.link/sr

If this is your first visit to the portal, register for a new account, entering the following information:

If you already have an account and wish to add an additional radio, log in to your account and select My preferences > Add another Wi-Fi radio. Once your radio is registered with the portal, you can immediately use the Internet radio favourites and added stations features.

• Presets To store an Internet radio preset, press and hold the “PROGRAM” key on Remote Control until the display shows the “Save preset” screen. Select one of the 40 presets to save the current station and press “OK” to confirm. To select a preset, press briefly the “PRESET” button or “PROGRAM” on Remote Control, then select one of the listed preset stations and press “OK” to confirm. Or press 0 to 9 on the Remote Control to directly recall the presets.

• Now playing information While the stream is playing, the screen shows its name and description. To view further information, press “INFO” button on the radio or Remote Control. Each time you press “INFO” button, another set of information is displayed, cycle through name/description, genre/location, reliability, codec/sampling rate, playback buffer and today’s date. SPOTIFY Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-licenses

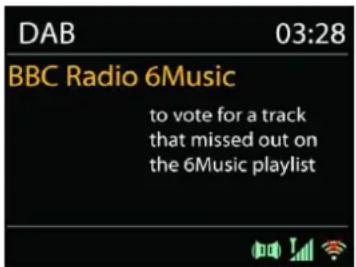

DAB DAB mode receives DAB or DAB plus digital radio signal and displays information about the station, streaming audio and the program details.

● Scanning for stations The first time you select DAB radio mode, or if the station list is empty, IR3500 automatically performs a full scan to see what stations are available. You may also need to start a scan manually to update the list of stations for one of the following reasons:

• Available stations change from time to time.

• If reception was not good for the original scan, this may result in an empty or incomplete list of available stations.

• If you have poor reception of some stations (burbling), you may wish to list only stations with good signal strength.IR3500 / English Instruction Manual

To start a scan manually, choose Full scan. To scan only stations with good signal strength, select Local scan. Once the scan is complete, the radio shows a list of available stations. To remove stations that are listed but not unavailable, choose Prune invalid.

• Presets To store an Internet radio preset, press and hold the “PROGRAM” on Remote Control until the display shows the “Save preset” screen. Select one of the 40 presets to save the current station and press “OK” to confirm. Or press 0 to 9 on the Remote Control to store the current playing station into the preset directly. To select a preset, press briefly the “PRESET” button on the unit or “PROGRAM” on Remote Control , then select one of the listed preset stations and press “OK” to confirm. Or press 0 to 9 on the Remote Control to directly recall the presets.

Now playing information While the stream is playing, the screen shows its name and DLS (Dynamic Label Segment) information broadcast by the station giving real-time information such as program name, track title and contact details. Stereo broadcasts are indicated with an icon at the bottom of the screen. To view further information, press “INFO” button on the radio. Each time you press “INFO” button on the radio, another set of information is displayed, cycling through DLS text, program type, ensemble name/frequency, signal strength/error rate, bite rate/codec/channels and today’s date.

• Settings Dynamic range compression (DRC) If you are listening to music with a high dynamic range in a noisy environment, you may wish to compress the audio dynamic range. This makes quiet sounds louder, and loud sounds quieter. You can change DRC as off, low or high. Station order You can choose the order of the DAB station list to be either Alphanumeric, Ensemble or Valid. Ensemble lists groups of stations that are broadcast together on the same ensemble. Valid lists valid stations first, alphanumerically, then off-air stations.IR3500 / English Instruction Manual

FM radio mode receives analogue radio from the FM band and displays RDS (Radio Data System) information about the station and where broadcast. To full scan, press “INTRO” remote key. The frequency display starts to run and scans the FM full band. To fine tune press the “ “ or “ ” remote key. The unit search in 0.05 MHz steps.

• Preset To store an Internet radio preset, press and hold the “PROGRAM” button on Remote Control until the display shows the “Save preset” screen. Select one of the 40 presets to save the current station and press “OK” to confirm. Or press 0 to 9 on the Remote Control to store the current playing station into the preset directly. To select a preset, press briefly the “PRESET” button or “PROGRAM” button on Remote, then select one of the listed preset stations and press “OK” to confirm. Or press 0 to 9 on the Remote Control to directly recall the presets.

• Now playing information While the stream is playing, the screen shows its frequency, or if RDS signal is available, station name and any further RDS information such as program name, title and other details. Stereo broadcasts are indicated with an icon at the bottom of the screen. To view further information, press Info button on the radio. Each time you press “INFO” button on the radio, another set of information is displayed, cycling through Radio text, program type, frequency and today’s date.

• Settings Scan settings Choose FM at first, it will go to a specific station playing. Then press “MENU” on the radio to get above table. By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations. To change the scan settings to stop only at stations with good signal strength, select “Yes” after choosing Strong station only.

Audio settings All stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss). To play weak stations in mono, select FM weak reception: Listen in mono only and then YES.IR3500 / English Instruction Manual

USB Connect a USB mass storage to this unit to enjoy the device’s stored music through the powerful speakers of this unit. USB playing

1. Insert the USB device into the USB port at the rear side of the unit.

2. Press the “ ” button repeatedly on the unit or press the “SOURCE” button on the remote

control until “ USB ” is displayed to select the USB function.

3. The playback will start automatically.

Resume function You can pause and resume playback from the point where playback stopped (RESUME) by pressing the “ ” button and turning off the power or switching functions. If you press the “ ” button and then the “ ” button again, playback starts again from the beginning (track 1). Skip search and search

• Press the “ ” button once or more to skip backward one or more tracks.

• Press the “ ” button once or more to skip forward one or more tracks.

• Press and hold the “ ” button on the remote control to search backward for the track position that you want to start playing from and press to continue the playback.

• Press and hold the “ ” button on the remote control to search forward for the track position that you want to start playing from. Intro function Press the “INTRO” button on the remote control to start play the beginning of each track consecutively from first song. The playing time of each track is 10 seconds. When you hear the desired track, press the “ ” button twice. Program mode

1. When playing music, press the “ ” button on the remote control.

3. Choose the desired track with the buttons “ ” or “ ” to store as P01, P02 etc.

4. Press the “PROGRAM” button to confirm the selected track and go to the next program

5. After finished setting, press the “ ” button to finalize and start the programmed playback.

6. In program playback, the numbers on the remote control are invalid. You can only press the

“ / ” buttons to change the tracks.

7. Change the source or press the “ ” button twice to clear the program setting.

Note: You can store up to 20 tracks! For devices with a USB cable

1. Insert the plug of the USB cable (not supplied) into the

USB socket at the rear side of the unit.

2. Insert the other plug of the USB cable into the output

terminal of the USB device. USB charging (5V 1A socket only) You can plug an USB cable in the USB socket to charge the mobile device. Note: If the USB device is corrupted, this unit will not be able to detect and play the music stored. Format the USB mass storage device and restore the music on the device with a computer.IR3500 / English Instruction Manual

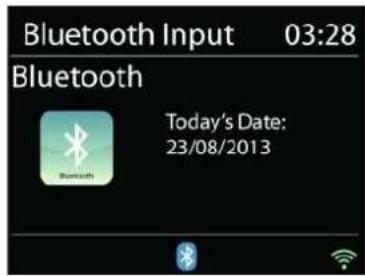

When you select the Bluetooth mode, the device is entering to pairing and the BT icon at the bottom of the screen will flash. Turn on your smartphone, tablet or other Bluetooth devices to search for the device. The Bluetooth pairing name is “IR3500”. When pairing is successful, the Bluetooth indicator will light up and stop flashing. To release BT pairing, turn off or unpair your smartphone, table or other Bluetooth devices.

Press “ ” on the radio or Remote Control to start or pause the playback. You can press “ ” or “ ” on the radio or Remote Control to play the previous or next track. AUDIO IN Connecting DVD player / Set-Top Box / TV outputs to analogue inputs from the sound board. Use a RCA audio cable to connect the DVD player/TV outputs with the AUX (L/R) input socket from the sound board. SLEEP To set the sleep timer, choose “SLEEP” in the main menu. Choose from Sleep OFF, 15mins, 30mins, 45mins or 60mins. Once you select a sleep period, the system returns to the “Now playing” screen. If you go under Main Menu to Sleep press “MENU” on the unit or Remote Control to return to the “Now playing” screen. ALARM There are two versatile wake-up alarms with snooze facility, and a sleep function to turn the system off after a set period. Each alarm can be set to start in a particular mode. Select Alarm under Main menu to set or change an alarm.

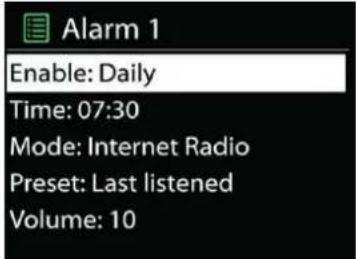

• Enable: on/off, Frequency: Daily, Once, Weekends or Weekdays,

• Mode: Buzzer, Internet Radio, DAB or FM

• Preset: Last listened, 1 - 40,

• Volume: 0 - 32 To activate the new settings, scroll down and select Save. The screen shows active alarms with an icon at the bottom left.IR3500 / English Instruction Manual

UNDOK The IR3500 supports remote control from Apple iPhone, iPad and Android using the UNDOK app. The apps are available in Apple’s app store and Google’s android play. The UNDOK app allows you to:

• Edit a group – add, remove or delete one or more products

• Control a group - choose operating mode and browse for content

• Adjust volume for an entire group or for individual products within a group

• Control products which have not been assigned to any group

• Control all the modes of the IR3500, including Internet Radio, Media Player, USB playback, DAB, FM, Bluetooth and AUX-In

• Setting EQ for various audio presets

HEADPHONE To listen to music privately, use headphones with a 3.5 stereo jack plug and connect it to the headphones socket. The speakers will then be muted. To prevent possible hearing damage, do not listen at high volume levels for long periods.

FACTORY RESET A factory reset resets all user settings to default values, so that time and date, network configuration and presets are lost. However, the IR3500 ‘s current software version is maintained, as is registration with the Internet radio portal. Internet radio favourites therefore remain unless you re-register your IR3500 with another account on the portal website.IR3500 / English Instruction Manual

TROUBLESHOOTING Error Remedy The device does not switch on. Check it the power adaptor is connected properly. Switch automatically off Due to ErP2 requirements and environmental protection, the unit automatically switches to standby mode when no music is played for more than 15 minutes. No sound.

1. Turn on the sound as it may be muted

2. Increase the volume.

3. Pull any connected headphone or speaker from the connector

jack. No network connection can be established.

1. Try to set an IP address at the device.

3. Activate the DHCP function on the router and make the

connection again at the device.

4. A firewall is activated on the network – set the respective

program in such a way that access is possible.

5. Reboot the router

WiFi connection cannot be established.

1. Check the availability of WLAN network on the router.

2. Place the device closer to the router.

3. Make sure the password is correct.

No station is found.

1. Check the network as well as the access point and firewall.

2. The station may not be available currently, try it again later or

select another station.

3. The link of the station is changed or the station no longer

transmits – ask the provider for information.

4. The link of manual added station is not correct, make sure it is

correct and re-enter. Hiss in FM mode Check/move the FM antenna or move the radio No stations available / burbling / intermittent in DAB mode.

2. Rescan local stations only (high-strength).

3. Check the local DAB coverage.

Alarm does not work.

1. Switch on the alarm.

2. Due to the volume setting, refer to the solutions of “No sound”.

3. The source of alarm was set to be station but there is no network

connection. Change the source of alarm or reconfigure the connection. USB driver or MP3 player is not detected.

1. Check if the USB driver or MP3 player is plugged properly.

2. Some USB hard disks need external power supply, make sure it

is connected to the power.IR3500 / English Instruction Manual

3. Not all MP3 players can be read directly on the device – use an

USB drive instead. NetRemote does not show or connect to IR3500

2. If you have several streaming from several devices at the same

time, it may cause crash, reboot IR3500 and/or your device. All other undetermined cases. IR3500 may process large amount of data after a period of operation, no matter in which mode, it will cause the system freeze or malfunction. Reboot IR3500 if necessary. The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location. The device may malfunction when used in areas with strong radio interference. The device will work properly again once there is no more interference. Under the environment with Conducted Immunity disturbance, the sample may malfunction. It will automatically recover to normal when the Conducted Immunity disturbance stopped.
