WS 6448 - Weather Station TECHNOLINE - Free user manual and instructions

Product type	Weather station
Brand	TECHNOLINE
Model	WS 6448
Receiver power supply	Mains adapter HX0180500150D2E or 2 AAA batteries
Outdoor sensor power supply	2 AAA batteries
Display	LCD screen with LED backlight (5 seconds)
Clock	DCF radio-controlled, manual setting, calendar up to 2099
Weather forecast	4 symbols: sunny, slightly cloudy, cloudy, rainy
Indoor temperature	0°C to 50°C (32°F to 122°F)
Outdoor temperature	-19.9°C to 59.9°C (-3.8°F to 139.8°F)
Indoor humidity	20% to 95% RH
Extreme temperature display	Yes, highest and lowest
Temperature unit	°C or °F, switchable
Time format	12 or 24 hours
Day of the week	7 languages: English, German, Italian, French, Spanish, Dutch, Danish
Alarm	Daily with snooze reminder (5 minutes)
Transmission frequency	433.92 MHz, max power 8 dBm
Transmission range	Up to 60 meters
Maintenance and cleaning	Install indoors, avoid shocks, extreme temperatures, dust, humidity. Do not open the housing.
Battery safety	Use alkaline batteries, respect polarities, remove if not used for a long time, do not throw into fire.
Compliance	Directive 2014/53/EU and ROHS 2011/65/EC

Frequently Asked Questions - WS 6448 TECHNOLINE

How to set the time manually?

Press and hold the MODE button for 2 seconds. The year flashes, use ▲ and ▼ to set. Press MODE to confirm and go to month, then day, date format, day language, time zone, 12/24h format, hours and minutes. If no button is pressed for 7 seconds, the clock returns to normal mode.

How to connect the outdoor sensor?

Insert 2 AAA batteries into the outdoor sensor respecting polarities. The receiver automatically searches for the sensor for about 3 minutes, indicated by the flashing antenna symbol in the OUTDOOR area. If connection fails, press and hold the ▼ button for 2 seconds to restart the search.

How to activate or deactivate the alarm?

Press the ALARM button once to activate or deactivate the alarm. The bell icon appears when active. To set the alarm time, press and hold ALARM for 2 seconds, then set hours and minutes with ▲ and ▼.

What to do if the clock does not receive the DCF signal?

Place the station near a window, at least 2.5 meters from televisions or computer screens. Avoid concrete basements. Press the WAVE button to start manual reception. Automatic reception occurs at 1:00, 2:00, and 3:00, with up to 5 attempts per day.

How to change the display language for the days of the week?

During manual time setting, after confirming the date format, the day language flashes. Use ▲ and ▼ to choose from 7 languages: English, German, Italian, French, Spanish, Dutch, and Danish. Press MODE to confirm.

How to use the alarm snooze?

When the alarm sounds, press the SNOOZE/LIGHT button to activate the snooze. The Zz symbol appears on the screen and the alarm goes off again after 5 minutes.

How to switch from 12h to 24h display?

During manual time setting, after confirming the time zone, the 12/24 hour display mode flashes. Use ▲ and ▼ to choose the desired format, then press MODE to confirm.

How to clean the weather station?

Install the device indoors, avoid exposure to extreme temperatures, direct sunlight, dust, and humidity. Do not immerse in water. Clean with a soft, dry cloth. Do not open the housing.

What batteries to use for the outdoor sensor and receiver?

Use alkaline AAA batteries (do not use rechargeable batteries). Respect polarities (+/-). Always replace all batteries at the same time and remove used batteries immediately.

How to perform a manual search of the outdoor sensor?

Press and hold the ▼ button for 2 seconds to restart the search for the outdoor sensor. This clears current data and attempts to reconnect.

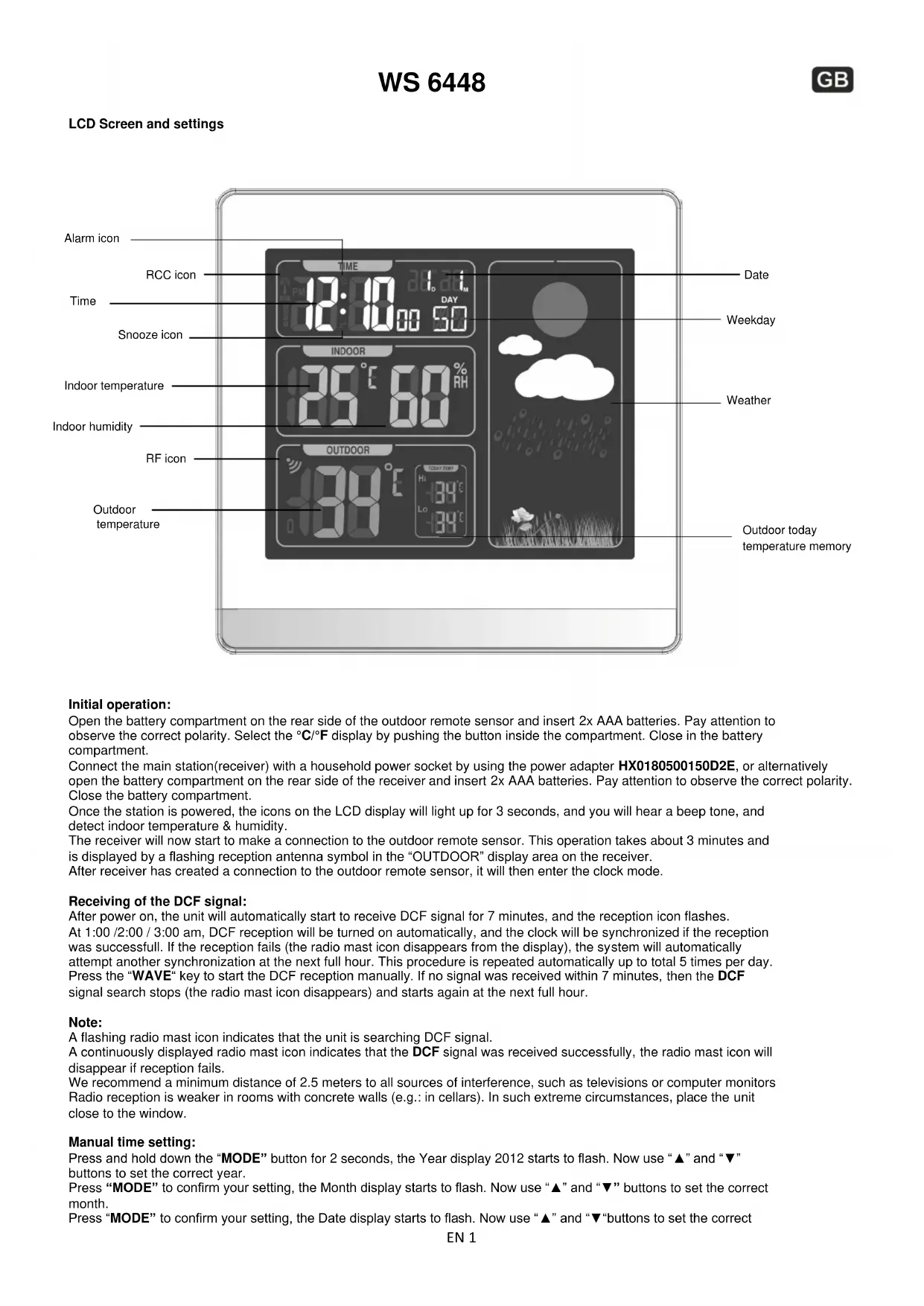

USER MANUAL WS 6448 TECHNOLINE

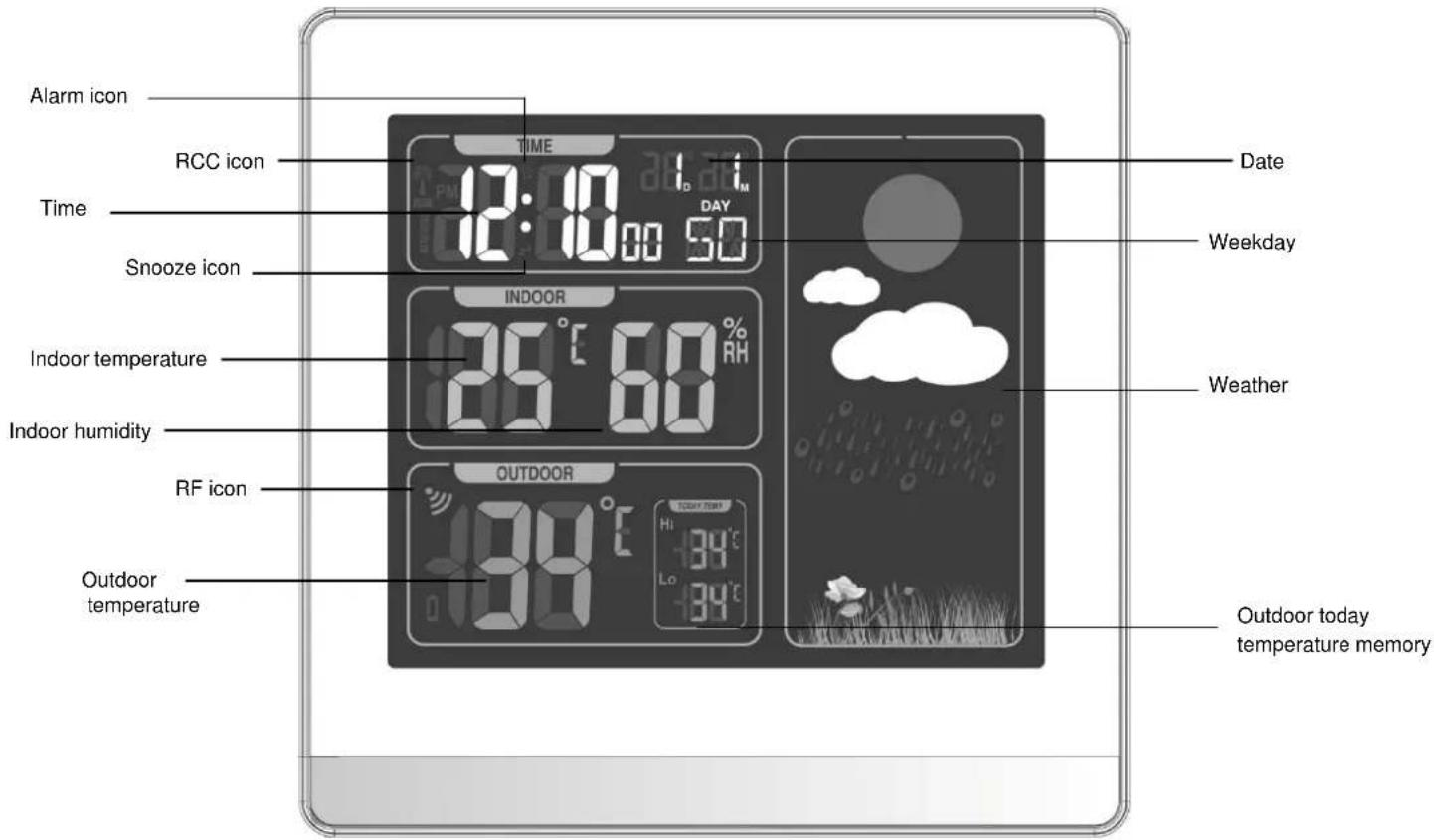

LCD Screen and settings

Initial operation:

Open the battery compartment on the rear side of the outdoor remote sensor and insert 2x AAA batteries. Pay attention to observe the correct polarity. Select the °C/°F display by pushing the button inside the compartment. Close in the battery compartment.

Connect the main station(receiver) with a household power socket by using the power adapter HX0180500150D2E, or alternatively open the battery compartment on the rear side of the receiver and insert 2x AAA batteries. Pay attention to observe the correct polarity. Close the battery compartment.

Once the station is powered, the icons on the LCD display will light up for 3 seconds, and you will hear a beep tone, and detect indoor temperature & humidity.

The receiver will now start to make a connection to the outdoor remote sensor. This operation takes about 3 minutes and is displayed by a flashing reception antenna symbol in the "OUTDOOR" display area on the receiver.

After receiver has created a connection to the outdoor remote sensor, it will then enter the clock mode.

Receiving of the DCF signal:

After power on, the unit will automatically start to receive DCF signal for 7 minutes, and the reception icon flashes. At 1:00 /2:00 / 3:00 am, DCF reception will be turned on automatically, and the clock will be synchronized if the reception was successful. If the reception fails (the radio mast icon disappears from the display), the system will automatically attempt another synchronization at the next full hour. This procedure is repeated automatically up to total 5 times per day. Press the "WAVE" key to start the DCF reception manually. If no signal was received within 7 minutes, then the DCF signal search stops (the radio mast icon disappears) and starts again at the next full hour.

Note:

A flashing radio mast icon indicates that the unit is searching DCF signal.

A continuously displayed radio mast icon indicates that the DCF signal was received successfully, the radio mast icon will disappear if reception fails.

We recommend a minimum distance of 2.5 meters to all sources of interference, such as televisions or computer monitors Radio reception is weaker in rooms with concrete walls (e.g.: in cellars). In such extreme circumstances, place the unit close to the window.

Manual time setting:

Press and hold down the "MODE" button for 2 seconds, the Year display 2012 starts to flash. Now use "▲" and "▼" buttons to set the correct year.

Press “MODE” to confirm your setting, the Month display starts to flash. Now use “▲” and “▼” buttons to set the correct month.

Press "MODE" to confirm your setting, the Date display starts to flash. Now use "▲" and "▼" buttons to set the correct

date.

Press "MODE" to confirm your setting. Now use "▲" and "▼" buttons to set month/day or day/month.

Press “MODE” to confirm your setting, the language selection for the Weekday displays starts to flash. Now use “▲” and “▼” buttons to select a language. There are 7 languages of Weekday: English, German, Italian, French, Spanish, Dutch and Danish

Press “MODE” to confirm your setting, the Time zones start to flash, Now use “▲” and “▼” buttons to set a correct time zone (-12 to +12). (Germany 0 / UK -1)

Press "MODE" to confirm your setting, the 12/24 hour mode display starts to flash. Now use "▲" and "▼" buttons to set The correct 12/24 hour mode.

Press "MODE" to confirm your setting, the Hour display starts to flash. Now use "▲" and "▼" buttons to set the correct hour.

Press "MODE" to confirm your setting, the Minute displays starts to flash. Now use "▲" and "▼" buttons to set the correct minute.

Press "MODE" to confirm your setting and to end the setting procedures, enter the clock mode.

Note:

After 7 seconds without pressing any button, the clock switches automatically from set mode to normal time mode.

Setting the daily alarms:

Press and hold down the ALARM button for 2 seconds until the Hour display of the alarm time starts to flash. Use the “▲” and “▼” buttons to set the required hour. Press ALARM button to confirm your setting

The minute display of the alarm time starts to flash. Use the “▲” and “▼” buttons to set the required minute.

ALARM button to confirm your setting and to end the setting procedure.

To activate or deactivate the daily alarms, press the "ALARM" button once. The alarm is activated when the bell symbol is displayed.

Note:

After 7 seconds without pressing any button the clock switches automatically from setting mode to normal clock mode.

The alarm will sound for 1 minute if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours.

Rising alarm sound (crescendo, duration: 1 minutes) changes the volume 4 times whilst the alarm signal is heard.

Automatic SNOOZE function:

To activate the automatic snooze function: While the alarm is sounding, press the "SNOOZE/LIGHT" button to activate the snooze function. When the snooze function is activated, the "Zz" symbol appears in the display.

The alarm will sound again 5 minutes later.

°C/°F temperature display:

The temperature is displayed either in °C or °F. Press the "▼" button to switch between °C or °F display.

Connection to outdoor sensor:

Press and hold down the “▼” button for 2 seconds to search for outdoor sensors (to erase the current data inside the clock).

Backlight:

Press the SNOOZE/LIGHT button to activate the display lighting for 5 seconds, if the indoor station is battery powered.

Weather forecast

The weather station uses the air pressure data for weather forecast. To forecast the weather, the station has 4 icons:

sunny

light cloudy

cloudy

rainy

Hereby, Technotrade declares that this product WS 6448 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at:

Radio controlled Clock via - DCF frequency

Manual time setting

Continuous calendar up to year 2099

Date and weekday display

Temperature alternatively in °C or °F

Time in optional 12/24 hour format

Weekday display in 7 languages: English, German, Italian, French, Spanish, Dutch and Danish

Automatic snooze function (5 minutes)

Thermometer: Indoor measurement ranges: 0°C (32°F) \~ 50°C (122°F)

outdoor measurement ranges: -19.9°C (-3.8°F) \~ 59.9°C (139.8°F)

Display Hi/Lo Outdoor Temperature

Hygrometer: measurement range: 20% \~ 95% RH. Separate display of indoor use

LED back light display (auto off after 5 seconds)

Power adapter: HX0180500150D2E

Battery: 2 x AAA /LR03 (not included)

Wireless remote sensor (transmitter)

Transmitter frequency: 433.92 MHz.

Maximum transmission power: 8 dBm

Range of transmission is up to 60m (200feet)

Battery: 2 x AAA /LR03 (not included)

Environmental reception effects

The station obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

- long transmitting distance

• nearby mountains and valleys

- near freeway, railway, airports, high voltage cable etc.

- near construction site

• among tall buildings

• inside concrete buildings

• near electrical appliances (computers, TV's, etc) and metallic structures

• inside moving vehicles

Place the station at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

- This main unit is intended to be used only indoors.

- Do not subject the unit to excessive force or shock.

- Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.

- Do not immerse in water.

- Avoid contact with any corrosive materials.

- Do not dispose this unit in a fire as it may explode.

- Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

- Use only alkaline batteries, not rechargeable batteries.

• Install batteries correctly by matching the polarities (+/-).

• Always replace a complete set of batteries.

- Never mix used and new batteries.

- Remove exhausted batteries immediately.

- Remove batteries when not in use.

- Do not recharge and do not dispose of batteries in fire as the batteries may explode.

- Ensure batteries are stored away from metal objects as contact may cause a short circuit.

- Avoid exposing batteries to extreme temperature or humidity or direct sunlight.

- Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.
