USER MANUAL WS 9050 TECHNOLINE

Sunny
Slightly cloudy
Cloudy
Rainy
Heavy rainy
Snowy

Environmental reception effects

The station obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
• nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
  among tall buildings
• inside concrete buildings
• near electrical appliances (computers, TV's, etc) and metallic structures
• inside moving vehicles

Place the station at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
• Install batteries correctly by matching the polarities (+/-) .
  Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.

Features:

Barometric pressure:

DCF Radio controlled clock function
Perpetual Calendar Up to Year 2099
Day of week in 7 languages user selectable: English, German, Italian, French, Spanish, Dutch and Danish
Time format in optional 12/24 hour
2 Daily Alarm Function
Snoopze function
Moon phase display
Comfort level display
Low battery indicator
Temperature alternatively in ^ C or ^ F
Outdoor thermometer ice alert

Barometric pressure measurement ranges: 850 1100mB / hPa (25.10~32.48inHg)

Pressure alternatively in mB/hPa or inHg
The barometric pressure in the past 24 hours recording

Humidity: Indoor & Outdoor measurable range: 20 95% RH
Temperature:
- Indoor temperature measurement ranges: -9.9^ 50^ (14.2° ~122°F)
- Outdoor temperature measurement ranges: -20^ 60^ (-4°F ~140°F)
Maximum / Minimum data display for temperature and humidity
Remote Sensor:

433.92MHz RF transmitting frequency
60 meter transmission range in an open area
3 channels Selectable

The weather forecasting function
Power Supply:

Weather Station: Battery: 2 x LR06 AA

Remote sensor: Battery: 2 x LR06 AA

Weather Station Appearance

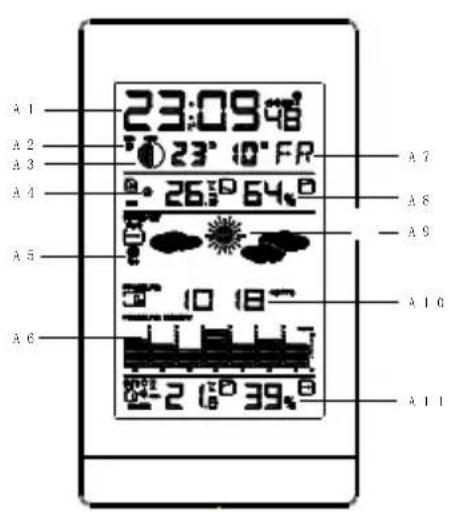

Parts of weather station:

A1: Time

A9: Weather forecast

A10: Barometric pressure

A3: Moon phase

A11: Outdoor temperature & humidity

A4:Comfort level

A5: Ice alert icon

A13: Snooze / light touch key

A6: Pressure history diagram

A14:Operation button

A7: Day of week

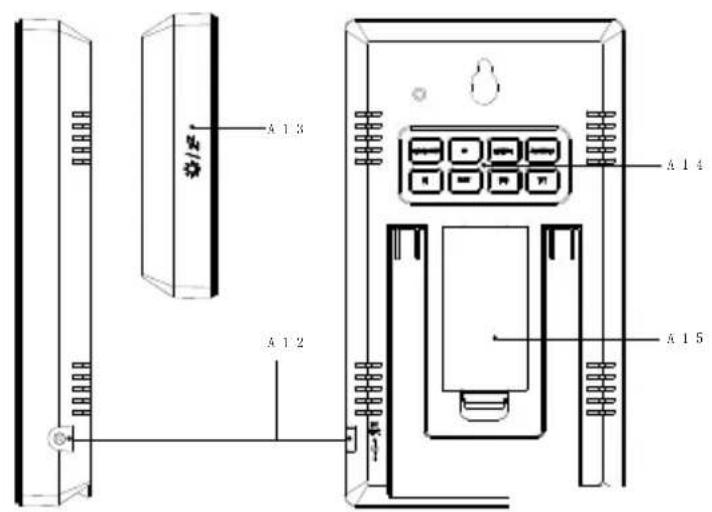

A15: Battery door

A8: Indoor Temperature & humidity

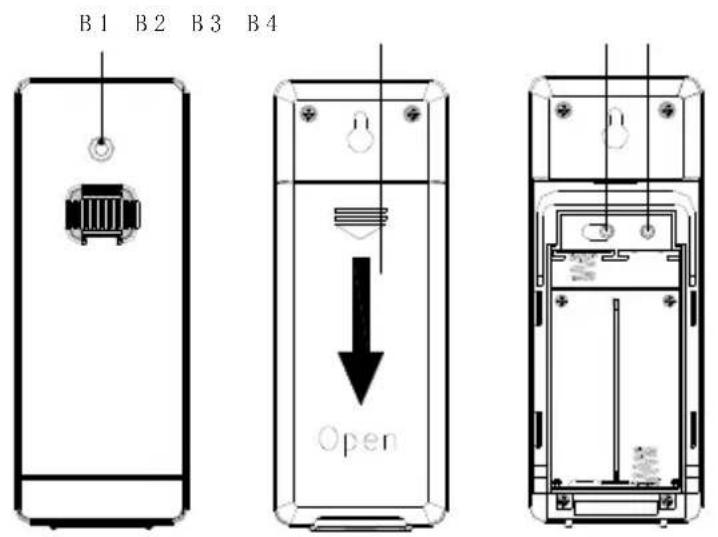

Part of remote sensor (TX205TH)

B1: Transmission indicator LED

B2: Battery door

B3: Channel switch

B4: Reset button

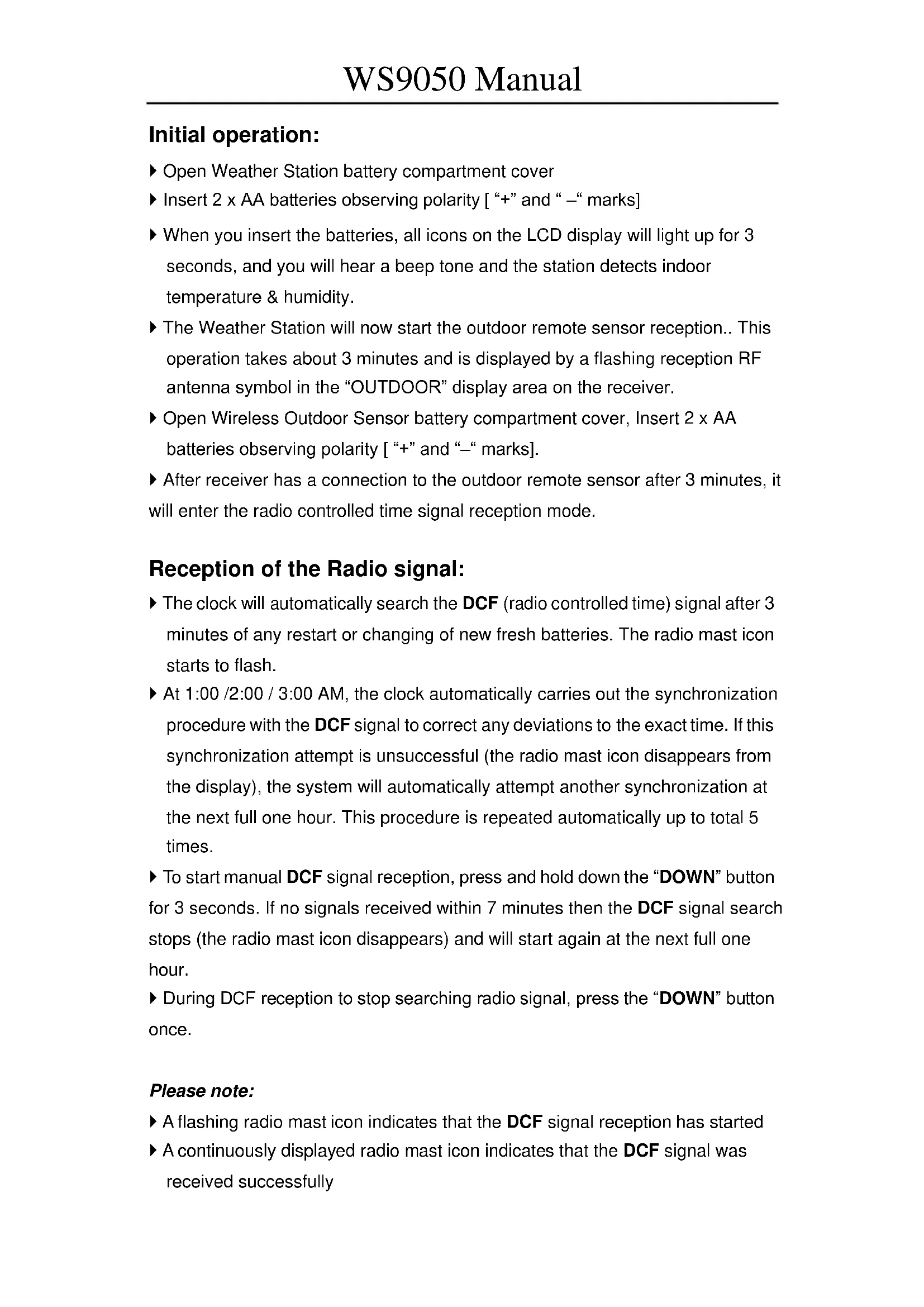

Initial operation:

Open Weather Station battery compartment cover
Insert 2× AA batteries observing polarity [“+” and “-” marks]
- When you insert the batteries, all icons on the LCD display will light up for 3 seconds, and you will hear a beep tone and the station detects indoor temperature & humidity.
The Weather Station will now start the outdoor remote sensor reception.. This operation takes about 3 minutes and is displayed by a flashing reception RF antenna symbol in the "OUTDOOR" display area on the receiver.
Open Wireless Outdoor Sensor battery compartment cover, Insert 2 × AA batteries observing polarity [“+” and “-” marks].
After receiver has a connection to the outdoor remote sensor after 3 minutes, it will enter the radio controlled time signal reception mode.

Reception of the Radio signal:

The clock will automatically search the DCF (radio controlled time) signal after 3 minutes of any restart or changing of new fresh batteries. The radio mast icon starts to flash.
At 1:00 /2:00 / 3:00 AM, the clock automatically carries out the synchronization procedure with the DCF signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful (the radio mast icon disappears from the display), the system will automatically attempt another synchronization at the next full one hour. This procedure is repeated automatically up to total 5 times.
To start manual DCF signal reception, press and hold down the "DOWN" button for 3 seconds. If no signals received within 7 minutes then the DCF signal search stops (the radio mast icon disappears) and will start again at the next full one hour.
During DCF reception to stop searching radio signal, press the "DOWN" button once.

Please note:

A flashing radio mast icon indicates that the DCF signal reception has started
A continuously displayed radio mast icon indicates that the DCF signal was received successfully

We recommend a minimum distance of 2.5 meters to all sources of interference, such as televisions or computer monitors
Radio reception is weaker in rooms with concrete walls (e.g.: in cellars) and in offices. In such extreme circumstances, place the system close to the window.
During the DCF reception mode, only the "SNOOZE/LIGHT" and "WAVE" button function, other buttons have no function. If you want to use other functions, please press the "WAVE" button to exit the DCF reception mode.

Manual settings:

Please go through the manual settings after the first start up and after every restart, to set the weather forecast symbol and if needed relative air pressure.
Press and hold the "SET/HISTORY" button for 2 seconds, "2015Yr" starts to flash. Now use "UP" and "DOWN" buttons to set the year.
Press "SET/HISTORY" button to confirm your setting, the month starts to flash. Now use "UP" and "DOWN" buttons to set the month.
Press "SET/HISTORY" button to confirm your setting, the date starts to flash. Now use "UP" and "DOWN" buttons to set the date.
Press "SET/HISTORY" button to confirm your setting, the Month and Date icon starts to flash. Now use "UP" and "DOWN" buttons to set the date display on Month/Date or Date/Month.
Press "SET/HISTORY" button to confirm your setting, the language for the day of week is display and starts to flash. Now use "UP" and "DOWN" buttons to choose the language. For a list of all languages see below graphic.
Press "SET/HISTORY" button to confirm your setting, the 12/24 hour mode is display and starts to flash. Now use "UP" and "DOWN" buttons to switch between 12/24 hour mode.
Press "SET/HISTORY" button to confirm your setting, the hour starts to flash. Now use "UP" and "DOWN" buttons to set the hour.
Press "SET/HISTORY" button to confirm your setting, the minute starts to flash. Now use "UP" and "DOWN" buttons to set the minute.
Press "SET/HISTORY" button to confirm your setting, the time zone is display

and starts to flash. Now use "UP" and "DOWN" buttons to set the time zone. For example for UK, the time zone is -01, for Germany it is 00.

Press "SET/HISTORY" button to confirm your setting, the weather forecast pattern starts to flash. Now use "UP" and "DOWN" buttons to set the weather forecast symbol that matches the current weather.
Press "SET/HISTORY" button to confirm your setting, the barometric pressure data starts to flash. Now use "UP" and "DOWN" buttons to set the barometric pressure data according to the local relative air pressure.

If not changed, the value corresponds to the absolute air pressure.

Press "SET/HISTORY" button to confirm your setting, the barometric pressure unit starts to flash, Now use "UP" and "DOWN" buttons to set the barometric pressure unit to mB/hPa or inHg.
Press "SET/HISTORY" button to confirm your setting and to end the setting procedures, enter the standard clock mode.

Multi Language Day display language
	EN	GE	FR	ES	IT	NE	DA
	ENGLISH	GERMAN	FRENCH	SPANISH	ITALIAN	NETHERLANDS	DENMARK
SUNDAY	SU(SU)	SO(SO)	DI(DI)	JO(DJ)	DO(DO)	ZO(DO)	SO(SO)
MONDAY	MO(MD)	MO(MD)	LU(LU)	LU(LU)	LU(LU)	MA(MA)	MA(MA)
TUESDAY	TU(TU)	DI(DI)	MA(MA)	MA(MA)	DI(DI)	TI(TI)
WEDNESDAY	WE(WE)	MI(MI)	ME(ME)	MI(MI)	ME(ME)	WO(WO)	ON(ON)
THURSDAY	TH(TH)	DO(DO)	JE(EJ)	JU(JU)	GI(GI)	DO(DO)	TO(TD)
FRIDAY	FR(FR)	FR(FR)	VE(VE)	VI(VI)	VE(VD)	VR(VR)	FR(FR)
SATURDAY	SA(SA)	SA(SA)	SA(SA)	SA(SA)	SA(SA)	ZA(ZA)	LO(LD)

Please note:

If there is no valid operation within 20 seconds, the station will automatically return to normal time mode from the set mode.

Setting the daily alarms:

Press“DOWN”button once, LCD will display“”, press again to display “”, press again to display “”, each symbol represents one alarm, which is active, when the bell symbol is displayed. Press“DOWN” button again to Alarm1 and Alarm2 OFF (no“and"is displayed).

Press and hold "ALARM/SET" button for 2 seconds until Alarm 1 hour display and starts to flash. Use the "UP" and "DOWN" buttons to set the hour.
Press "ALARM/SET" button to confirm your setting, The Alarm 1 minute display and starts to flash. Use the "UP" and "DOWN" buttons to set the minute.
Press "ALARM/SET" button to confirm your setting, The Alarm 2 hour display and starts to flash. Use the "UP" and "DOWN" buttons to set the hour.
Press "ALARM/SET" button to confirm your setting, The Alarm 2 minute display and starts to flash. Use the "UP" and "DOWN" buttons to set the minute.
Press "ALARM/SET" button to confirm your setting and to end the setting procedure.

Please note:

If there is no valid operation within 20 seconds, it will automatically return to normal time mode from the set mode.
The alarm will sound for 2 minutes if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours.
Rising alarm sound (crescendo, duration: 2 minutes) changes the volume 4 times whilst the alarm signal is heard.

Switching off the alarm signal

• When the alarm is ringing, press any button except the “ 12^2 ” button to stop the alarm signal. It is not necessary to reactivate the alarm. It will ring again the next day.

Snoopze function:

• When the alarm is ringing, press the “ 12 ” button the alarm mode will to get to SNOOZE mode. The alarm signal sounds again after approx. 5 minutes.

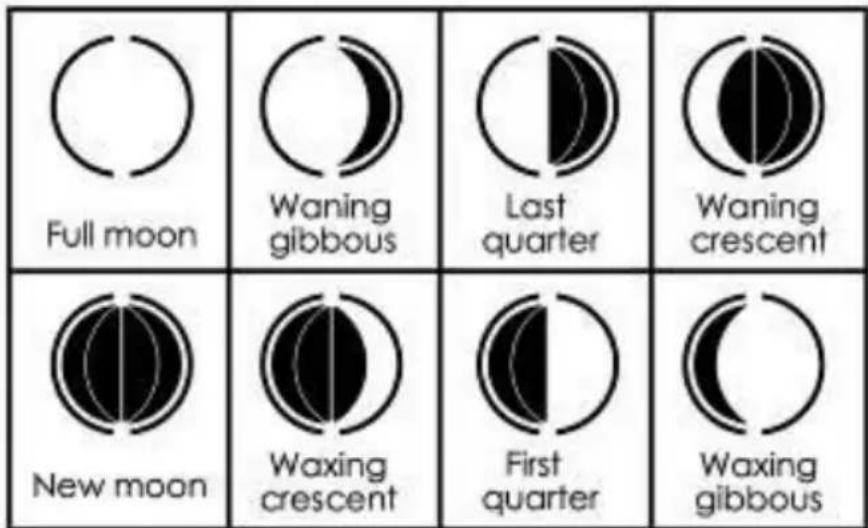

Moon phases:

The weather station has a display which automatically displays the current moon phase

Trend displaying

• The current temperature/humidity/barometric pressure and the temperature/humidity/barometric pressure trend are shown in the LCD display.
  After successfully connecting with the outdoor sensor, the weather station can display the outdoor temperature/humidity and the temperature/humidity trend.
  You may see the following displays:

The temperature/humidity/ barometric pressure is rising.

The temperature/humidity/ barometric pressure is steady.

The temperature/humidity/ barometric pressure is falling.

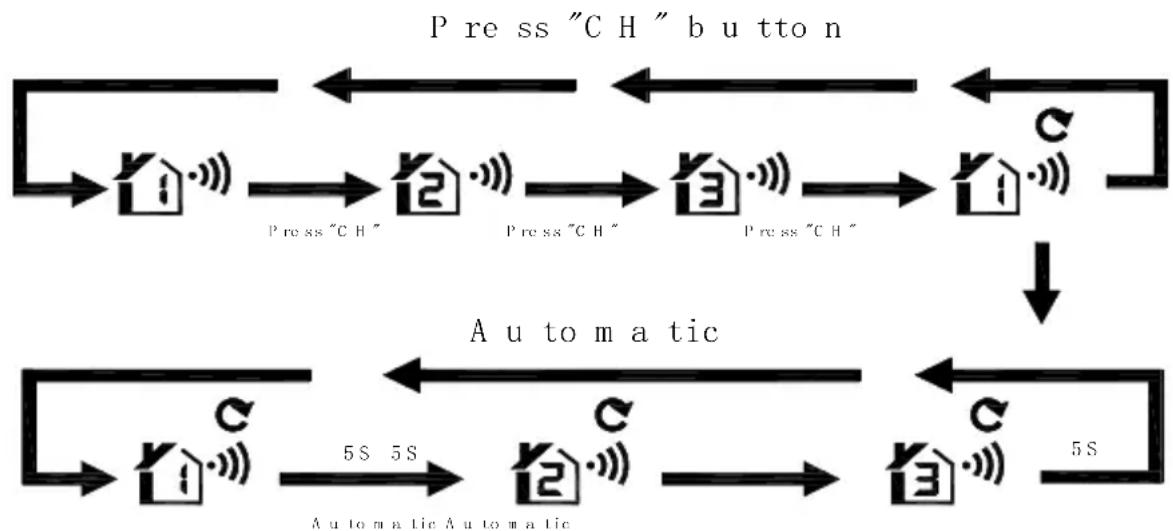

RF Transmission Procedure:

• The weather station will be receiving outdoor temperature & humidity after batteries inserted.
  The outdoor sensor will automatically transmit temperature and humidity signal to the Weather Station after batteries inserted.
  If Weather Station failed to receive transmission from outdoor sensor ("-

-"display on the LCD), check if the right channel number is selected and press and hold "CH" button for 3 seconds to receive a transmission manually. RF icon " flashes on the LCD. The Weather Station tries to receive the outdoor sensor then.

• If the weather station is used with 2 or 3 transmitters, press “+/CH” button shortly to display CH2, CH3 or cyclic display.

Maximum/minimum temperature/humidity

Press "MEM" button once, the LCD will display maximum value of temperature/ humidity. Press "MEM" button again, the LCD will display minimum value of temperature/ humidity. Press "MEM" button again and the LCD will display current value of temperature/ humidity.
While displaying MAX or MIN values, there is "MAX" or "MIN" on the LCD.
Press and hold "MEM" button for 3 seconds. The temperature/humidity maximum/minimum value will reset to the current values

Please note:

• If the temperature reading is below measuring range, LL.L will be displayed. If the temperature reading is above measuring range, HH.H will be displayed.

Ice alert

The ice alert "symbol appears and flashing near to the weather forecast pattern when the outdoor temperature is at -1^ to +2.9^ or +30.2^ to +37.2^ .

Outdoor temperature alert

Press the "ALERT" button once to active the outdoor temperature alert function, the icon is displayed. Press the "ALERT" button once again to set the outdoor temperature alert function off, the icon will disappear.
Press and hold the "ALERT" button for 3 seconds, the icon "▲" and high temperature limit "60.0" starts flashing. Press the "CH" button to select the channel to be set, press "UP" or "DOWN" to set the high limit temperature limit.
Press "ALERT" button to confirm your setting, the icon "▶" and the low temperature limit "-20.0" starts flashing, press "UP" and "DOWN" button to set the low temperature limit.
Press "ALERT" button to confirm your setting and to end the setting procedure.
- When the outdoor temperature exceeds the limit value, the temperature value and corresponding icon will flash, at the same time 5 alarm signals will sound per minute.

Please note:

If there is no valid operation within 20 seconds, the station will automatically return to normal time mode from the alarm time set mode.
- When the alarm is being emit, press any button to stop the alarm. The temperature value and the icon will keep flashing until the temperature does not exceed the set value or alert function is set off.

Barometric pressure history for the last 24 hours

Press the "SET/HISTORY" button repeatedly to display the barometric pressure values for the last 24 hours.

0HR = present barometric pressure
-1HR = barometric pressure an hour earlier
-2HR = barometric pressure two hours earlier, etc.

Please note:

If there is no valid operation within 5 seconds, the station will automatically return to normal time mode from the alarm time set mode.

Weather forecasting function

The weather forecast is calculated from evaluation of fluctuations in the barometric pressure and may deviate from the actual weather conditions.
The weather station displays the following weather symbols:

Sunny
Slightly cloudy
Cloudy
Rainy
Heavy rain
Snowy

The weather symbols indicate the possible weather change over the next eight hours and not the current weather.

Background lighting

Touch the " button, the backlight illuminates for 8 seconds.

Comfort level

The temperature and humidity is dry (When the humidity is below 40% .

The temperature and humidity is comfort (When the temperature in

20~28°C and the humidity in 40~70%)

The temperature and humidity is wet (When the humidity is above 70% )

Low battery indictor

When the icon " display, means the weather station battery is low. When the icon " display, means the corresponding remote sensor battery is low.

Specifications

Perpetual calendar range: 2000-1-1~2099-12-31

Time zone: -12~12Hr

IN Temperature measuring range: -9.9~50°C

OUT Temperature measuring range: -20~60°C

Temperature resolution: 0.1^ / F

Temperature accuracy:

0^ 40^: ± 1^

-20^ -0^, 40^ 60^: ± 2^

Humidity measuring range: 20 - 95%

Humidity resolution: 1%

Humidity accuracy:

±5%

RF receiving distance: 30meter (free field)

Air pressure measuring range: 850-1100hpa

Air pressure change accuracy: ±5hpa

Multi Language Day display language
EN	GE	FR	ES	IT	NE	DA
ENGLISH	GERMAN	FRENCH	SPANISH	ITALIAN	NETHERLANDS	DENMARK
SU (SD)	SO (SD)	DI (DI)	DO (DO)	DO (DO)	ZO (ZO)	SO (SO)
MONDAY	MO (MD)	MO (MD)	LU (LU)	LU (LU)	MA (MA)	MA (MA)
TUESDAY	TU (TU)	DI (DI)	MA (MA)	MA (MA)	DI (DI)	TI (TI)
WEDNESDAY	WE (WE)	MI (MI)	ME (ME)	ME (ME)	WO (WD)	ON (ON)
THURSDAY	TH (TH)	JO (JO)	JE (JE)	JU (JU)	GI (GI)	TO (TO)
FRIDAY	FR (FR)	FR (FR)	VE (VE)	VI (VI)	VE (VE)	VR (VR)	FR (FR)
SATURDAY	SA (SA)	SA (SA)	SA (SA)	SA (SA)	SA (SA)	ZA (ZA)	LO (LO)

Priere de noter:

Procedure de transmission RF :

Sunny
Slightly cloudy
Cloudy
Rainy
Heavy rain
Snowy

EN	FR
Sunny	Ensoleillé
Slightly cloudy	Partiellement nuageux
Cloudy	Nuageux
Rainy	Pluvieux
Heavy rainy	Fortes pluies
Snowy	Neigeux

Note: Instruction manual in 8 languages

In addition to this printed user manual, you can download the user manual in 8 languages from the official website www.technoline.de .
