USER MANUAL WS 9750 TECHNOLINE

Technical line drawing of a vertical mechanical device and a multi-tiered server rack (no text or symbols)

Technical line drawing of a device housing with internal components and mounting holes (no text or symbols)

Simple line drawing of a vertical container with two internal compartments, no text or symbols present.

Line drawing of a woman in a bikini posing with her hair (no text or symbols)

Line drawing of a woman in a black dress and skirt, posing with her hands on hips (no text or symbols)

Illustration of a woman in a black outfit with white shorts, posing in a dynamic pose (no text or symbols)

Silhouette of a woman with long hair wearing a coat and high-heeled boots (no text or symbols)

Black-and-white illustration of a woman in a suit with long hair, standing with one hand raised (no text or symbols)

BEOBACHTUNG DER AUSSENTEMPERATUREN DER VERSCHIEDENEN KANÄLE

Diagram showing a vertical cylindrical object with an arrow pointing to a vertical surface, no text or symbols present.

Two technical diagrams showing vertical cylindrical structures with internal divisions and a base, no text or symbols present.

Pure mechanical diagram showing a vertical component with a rectangular slot and a side view of a textured surface (no text or symbols)

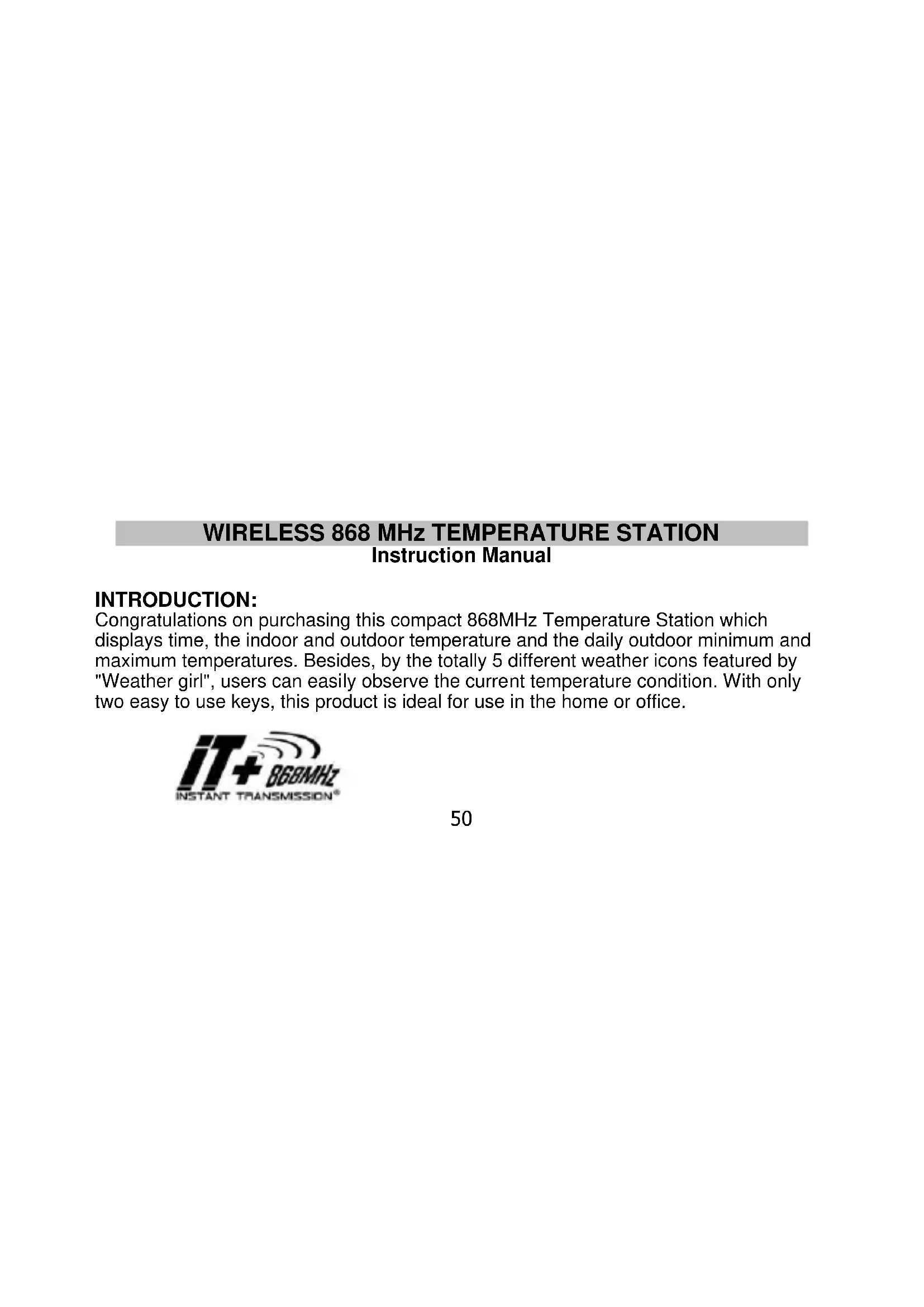

Congratulations on purchasing this compact 868MHz Temperature Station which displays time, the indoor and outdoor temperature and the daily outdoor minimum and maximum temperatures. Besides, by the totally 5 different weather icons featured by "Weather girl", users can easily observe the current temperature condition. With only two easy to use keys, this product is ideal for use in the home or office.

iT+ 868MHz INSTANT TRANSMISSION®

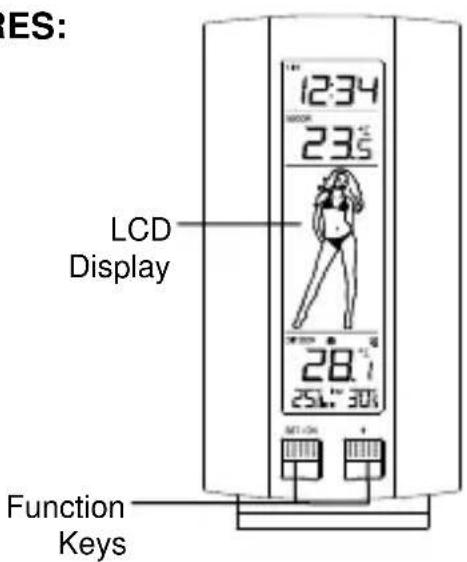

FEATURES:

RES: LCD Display 23.5 12:34 28.1 25L 30A NET ON Function Keys

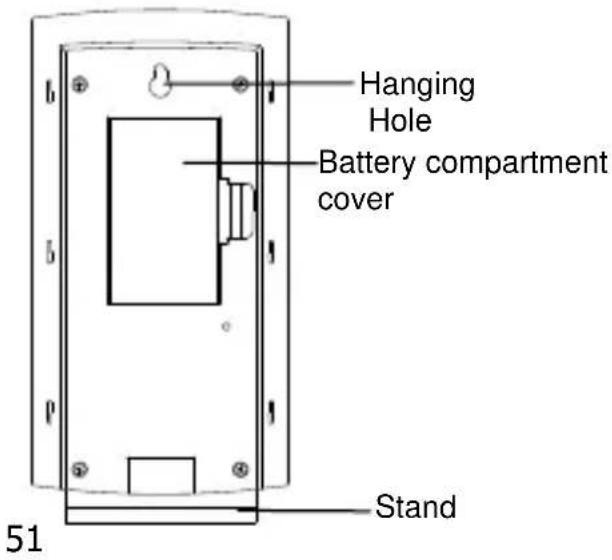

Hanging Hole Battery compartment cover Stand 51

The Temperature Station

• Quartz clock in 12 or 24-hour time display (hour and minute, manually set)
- Indoor and outdoor temperature reading in degree Celsius (°C) or Fahrenheit (°F)
- Can receive up to three outdoor transmitters
• Wireless transmission at 868 MHz
• Display one of the 5 easy-to-read Temperature condition icons featured by Weather girl
• Signal reception intervals at 4 seconds
- Display Minimum and Maximum outdoor temperature in normal display
- Low battery indicator
- Wall mounting or table standing (removable table stand included)

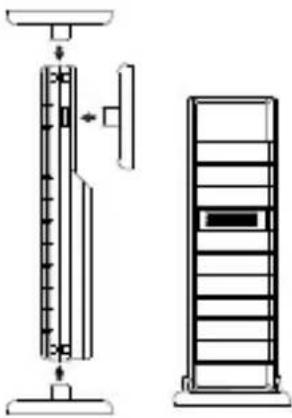

The Outdoor Temperature Transmitter

Technical line drawing of a vertical mechanical device and a server rack (no text or symbols)

• Remote transmission of outdoor temperature to Temperature Station by 868 MHz signals
  • Shower proof casing
  • Wall mounting and table-standing

SETTING UP:

When one transmitter is to be used

1. First, insert the batteries to the transmitter (see "How to install and replace batteries in the Temperature transmitter" below).

2. Within 30 seconds of powering up the transmitter, insert the batteries to the Temperature Station (see "How to install and replace batteries in the Temperature station" below). Once the batteries are in place, all segments of the LCD will light up briefly. Following the indoor temperature, the Weather girl icon and the time as 0:00 will be displayed. If they are not shown in LCD after 60 seconds, remove the batteries and wait for at least 60 seconds before reinserting them. Once the indoor data is displayed user may proceed to the next step.

3. After the batteries are inserted, the Temperature Station will start receiving data signal from the transmitter. The outdoor temperature should then be displayed on the Temperature station. If this does not happen after 2 minutes, the batteries will need to be removed from both units and reset from step 1.

4. In order to ensure sufficient 868 MHz transmission however, this should under good conditions be a distance no more than 100 meters between the final position of the Temperature Station and the transmitter (see notes on "Positioning" and "868 MHz Reception").

When more than one transmitter is to be used

1. User shall remove all the batteries from the temperature station and transmitters and wait 60 seconds if setting has been done with one transmitter before.

2. Insert the batteries to the first transmitter.

3. Within 30 seconds of powering up the first transmitter, insert the batteries to the Temperature Station. Once the batteries are in place, all segments of the LCD will light up briefly. Following the indoor temperature, the Weather girl icon and the time as 0:00 will be displayed. If they are not shown in LCD after 60 seconds, remove the batteries and wait for at least 60 seconds before reinserting them.

4. The outdoor temperature from the first transmitter (channel 1) should then be displayed on the Temperature station. Also, the signal reception icon will be displayed. If this does not happen after 2 minutes, the batteries will need to be removed from both units and reset from step 1.

5. Insert the batteries to the second transmitter as soon as the outdoor temperature readings from the first transmitter are displayed on the temperature station.

Note: User shall insert the batteries into the second transmitter within 10 seconds of reception of the first transmitter.

1. The outdoor temperature from the second transmitter and the "channel 2" icon should then be displayed on the Temperature station. If this does not happen after 2 minute, the batteries will need to be removed from all the units and reset from step 1.

2. Insert the batteries to the third transmitter as soon as the "channel 2" icon and outdoor data are displayed on the temperature station. Then within 2 minutes, the channel 3 outdoor data from the third transmitter will be displayed and the channel icon will shift back to "1" once the third transmitter is successfully received. If this is not happen, user shall restart the setting up from step 1.

Note: User shall insert the batteries into the third transmitter within 10 seconds of reception of the second transmitter.

1. In order to ensure sufficient 868 MHz transmission however, this should under good conditions be a distance no more than 100 meters between the final position of the Temperature Station and the transmitter (see notes on "Positioning" and "868 MHz Reception").

IMPORTANT:

Transmission problems will arise if the setting for additional transmitters is not followed as described above. Should transmission problems occur, it is necessary to remove the batteries from all units and start again the set-up from step 1.

HOW TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE STATION

Technical line drawing of a rectangular electrical enclosure with internal components and a separate side view (no text or symbols)

The Temperature Station uses 2 x AA, IEC LR6, 1.5V batteries. When batteries will need to be replaced, the low battery icon will appear on the LCD. To install and replace the batteries, please follow the steps below:

1. Lift up the battery compartment cover.
2. Insert batteries observing the correct polarity (see marking).
3. Replace compartment cover.

HOW TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE TRANSMITTER

The Temperature transmitter uses 2 x AA, IEC LR6, 1.5V batteries. When batteries will need to be replaced, the low battery icon will appear on the LCD of the Temperature Station. To install and replace the batteries, please follow the steps below:

Simple line drawing of a battery with internal compartments and one external casing (no text or symbols)

1. Remove the battery compartment cover.
2. Insert the batteries, observing the correct polarity (see marking).
3. Replace the battery holder to the unit.

Note:

In the event of changing batteries in any of the units, all units need to be reset by following the setup procedures. This is because a random security code is assigned by the transmitter at start-up and this code must be received and stored by the Temperature Station in the first few minutes of power supplying.

BATTERY CHANGE:

It is recommended to replace the batteries in all units regularly to ensure optimum accuracy of these units. (Battery life –see Specifications)

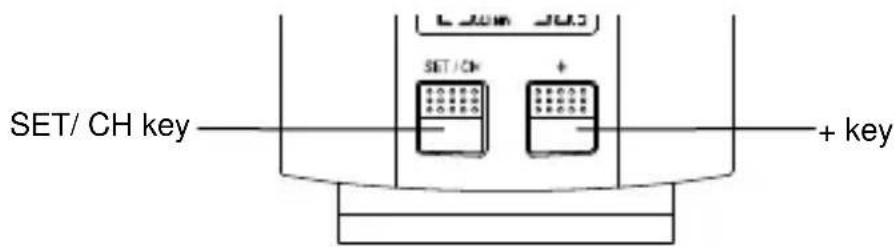

FUNCTION KEYS:

The Temperature Station has only two easy to use function keys.

SET/ CH key SET/CH + + key

SET/CH key (Setting/Channel)

• Press and hold for about 3 seconds to enter the Manual setting mode.
• Press shortly to toggle between different channel readings.

+ key

- Press to make adjustment in the setting mode.

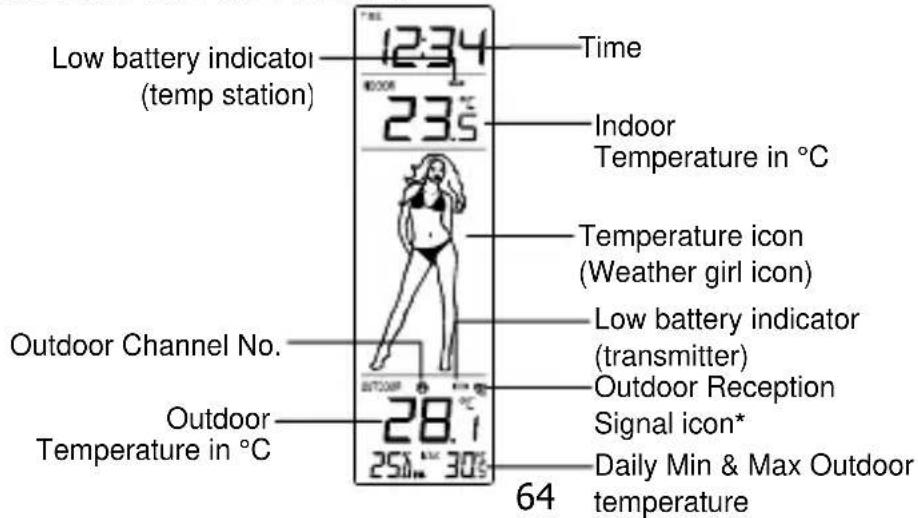

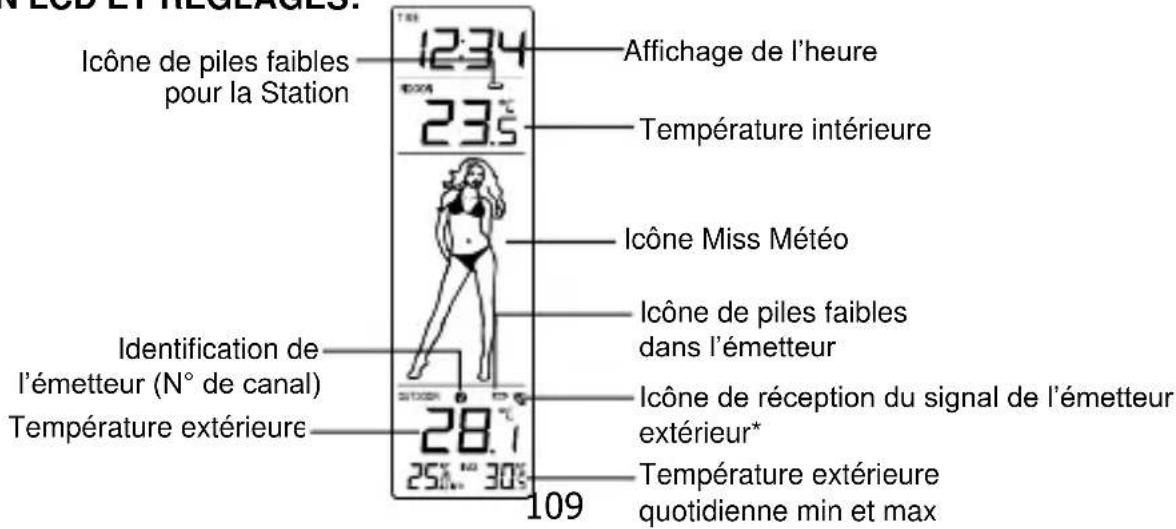

LCD SCREEN AND SETTINGS:

Low battery indicator (temp station) 12:34 23.5 Time Indoor Temperature in °C Temperature icon (Weather girl icon) Low battery indicator (transmitter) Outdoor Reception Signal icon* Outdoor Channel No. 28.1 25.0°C 30°C Outdoor Temperature in °C 64 Daily Min & Max Outdoor temperature

* When the signal from the transmitter is successfully received by the Temperature Station, this icon will be switched on. (If not successful, the icon will not be shown on the LCD). User can therefore easily see whether the last reception was successful (“ON” icon) or not (“OFF” icon). On the other hand, the short blinking of the icon shows that a reception is being done at that time.

For a better display clarity, the LCD screen is split into 4 sections.

Section 1 - TIME

- Display of time (manually set).

Section 2 - INDOOR TEMPERATURE

- Display of indoor temperature.

Transmitter Low battery indicator

Section 3 WEATHER GIRL ICON

- Display of the current temperature condition in form of one of the five weather icons (featured by Weather girl) which change their appearance depending on the current outdoor temperature.

Section 4 - CURRENT OUTDOOR TEMPERATURE AND DAILY MIN AND MAX OUTDOOR TEMPERATURE

- Display the current temperature.

- Display the daily outdoor minimum and maximum temperature of the currently selected channel.

MANUAL SETTING:

In normal display, press and hold the SET/CH key for 3 seconds to enter the manual setting mode.

°C/°F TEMPERATURE UNIT SETTING

User may choose to display the temperature readings in °C (degree Celsius) or °F (degree Fahrenheit):

1. Press and hold the SET/CH key in the normal display for about 3 seconds, the digit "°C" will be flashing.

or —— flashing

1. Press the + key to select the unit as °F or °C.
2. Confirm by pressing the SET/CH key to enter the 12/24 hour time display setting.

12 / 24- HOUR TIME DISPLAY SETTING AND TEMPERATURE UNIT (°C/°F) SETTING

User may choose to display the time in 12-hour or 24-hour mode:

1. The "12h" or "24h" digit will be flashing.

24h—flashing

1. Press the + key to set the desired time display mode.
2. Press shortly the SET/CH key to advance to the MANUAL TIME SETTING.

MANUAL TIME SETTING

User shall manually set the time of the Temperature Station by the following steps:

1. The hour digit of the time display will be flashing.

2. Press the + key to adjust the hour (press and hold to allow fast advance). Press SET/CH key to confirm and go to the minute setting.

3. The minute digit will be flashing. Press the + key to adjust the minute (press and hold to allow fast advance). Press SET/CH key once more to return to normal display.

WEATHER GIRL ICON (Temperature condition icons):

One of the 5 different temperature icons (featured by weather girl with different clothing) is displayed in the centre of LCD, which indicates the different temperature conditions due to the current outdoor temperature (temperature value detected by the outdoor transmitter of Channel 1):

78.8°F

(>26°C)

66.2 - 78.6 °F

(19 - 25.9°C)

50 - 66°F

(10 - 18.9°C)

32 - 49.8^ F

(0 - 9.9°C)

< 32°F

(< 0^)

Line drawing of a woman in a bikini posing with her hands (no text or symbols)

Line drawing of a woman in a black dress and white top, posing with her hands on hips (no text or symbols)

Illustration of a woman in business attire posing with her hands (no text or symbols)

Silhouette of a woman in a coat and boots, standing with long hair (no text or symbols)

Silhouette of a woman in formal attire with long hair, standing in a dynamic pose (no text or symbols)

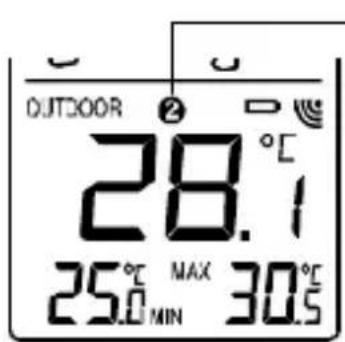

VIEWING THE OUTDOOR TEMPERATURE OF VARIOUS CHANNELS

User may consult the outdoor temperature of various channels by pressing the SET/CH key in normal display. The channel number will also be displayed with the temperature reading if more than one channel is used.

OUTDOOR 28.1 25.0 MAX 30.5 MIN

Outdoor channel No.

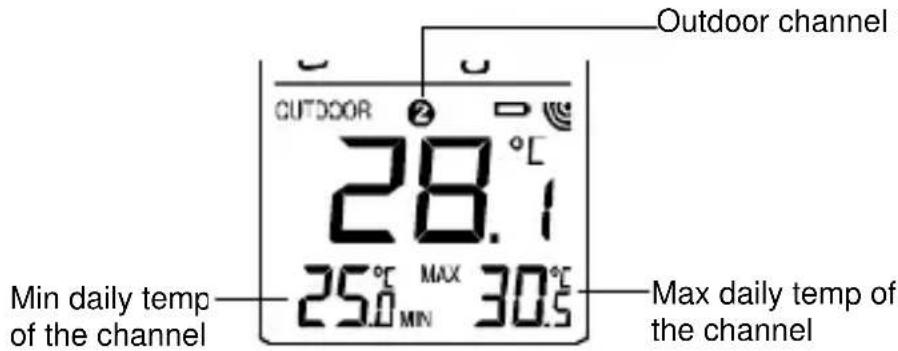

DAILY MIN AND MAX OUTDOOR TEMPERATURE DISPLAY

This Temperature station will display the daily maximum and minimum outdoor temperature for each outdoor channel, at the bottom of the LCD, in normal display.

Outdoor channel I 28.1 25.0 MAX 30.5 Min daily temp of the channel Max daily temp of the channel

To view the daily max and min temperature of another channel, user shall press the SET/CH key in normal display.

Note:

The daily minimum temperature record is reset automatically at 8:00 pm and the daily maximum temperature is reset automatically at 8:00 am every day.

868 MHz RECEPTION CHECK

The Temperature Station should receive the outdoor temperature data within a few minutes after setup. If the temperature data are not received about 2 minutes after setup (the signal reception icon does not appear), please check the following points: 1. The distance of the Temperature Station or transmitter should be at least 1.5 to 2 meters away from any interfering sources such as computer monitors or TV

sets.

1. Avoid positioning the Temperature Station onto or in the immediate proximity of metal window frames.
2. Using other electrical products such as headphones or speakers operating on the same signal frequency (868MHz) may prevent correct signal transmission and reception.
3. Neighbours using electrical devices operating on the 868MHz signal frequency can also cause interference.

Note:

When the 868MHz signal is received correctly, do not re-open the battery cover of either the transmitter or the Temperature Station, as the batteries may spring free from the contacts and force a false reset. If this happens accidentally, all units must be reset (see Setting up above) otherwise transmission problems may occur.

The transmission range is about 100 m from the transmitter to the Temperature Station (in open space). However, this depends on the surrounding environment and interference levels. If no reception is possible despite the observation of these factors, all system units have to be reset (see Setting up above).

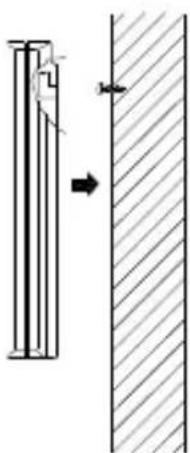

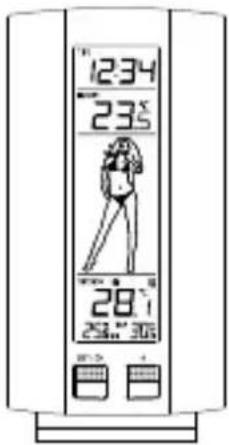

POSITIONING THE TEMPERATURE STATION:

12:34 23:5 28:1 23:30

The Temperature Station comes attached with a table stand, which provides the option of table standing the unit in addition to wall mounting. Before wall mounting, please check that the outdoor temperature values can be received from the desired locations.

Diagram showing a vertical structure with an arrow pointing to a horizontal surface, no text or symbols present.

To wall mount:

1. Fix a screw (not supplied) into the desired wall, leaving the head extended out by about 5mm.
2. Hang the Temperature Station onto the screw. Remember to ensure that it locks into place before releasing.

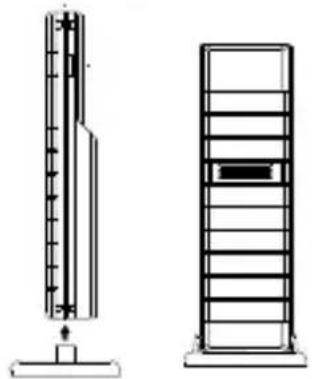

POSITIONING THE REMOTE TEMPERATURE TRANSMITTER:

Two technical diagrams showing vertical temperature measurement setups with no visible text or symbols

The remote temperature transmitter can be placed onto any flat surface or wall mounted using the bracket which doubles as a stand or wall mount base.

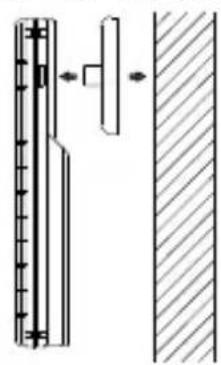

To wall mount:

Pure mechanical diagram showing a vertical component with a rectangular element and a cross-section view (no text or symbols)

1. Secure the bracket onto a desired wall using the screws and plastic anchors.
2. Clip the remote temperature transmitter onto the bracket.

Note:

The mounting surface can affect the transmission range. If, for instance, the unit is attached to a piece of metal, it may then either reduce or increase the transmitting range. For this reason, we recommend not to place the unit on any metal surfaces or in any position where a large metal or highly polished surface is in the immediate vicinity (garage doors,

double glazing, etc.). Before securing in place, please ensure that the Temperature Station can receive the 868MHz signal from the temperature transmitter at the positions that you wish to place them.

CARE AND MAINTENANCE:

• Extreme temperatures, vibrations and shocks should be avoided as these may cause damage to the unit and give inaccurate forecasts and readings.
- When cleaning the display and casings, use a soft damp cloth only. Do not use solvents or scouring agents as they may mark the LCD and casings.
- Do not submerge the units in water. Furthermore, fix all parts in place where the units are adequately protected against moisture and rain.

• Immediately remove all low powered batteries to avoid leakage and damage. Replace only with new batteries of the recommended type.
• Do not make any repair attempts to the unit. Return them to their original point of purchase for repair by a qualified engineer. Opening and tampering with the unit may invalidate their guarantee.
• Do not expose the units to extreme and sudden temperature changes, this may lead to rapid changes in forecasts and readings and thereby reduce their accuracy.

Hereby, Technotrade declares that this product WS 9750 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and

ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665097503

SPECIFICATIONS:

Temperature measuring range

Indoor : -9.9 to +59.9°C with 0.1°C resolution (14.1°F to +139.8°F with 0.2°F resolution, “OF.L” displayed if outside this range)

Outdoor : -39.9 to +59.9°C with 0.1°C resolution (-39.8°F to +139.8°F with 0.2°F resolution, "OF.L" displayed if outside this range)

Indoor Temperature checking interval : every 15 seconds

Outdoor data checking interval : every 4 seconds

Transmission frequency : 868 MHz

Maximum transmission power : 6.25 dBm

Power Supply

Temperature Station : 2 x AA, IEC LR6, 1.5V

Outdoor Temperature Transmitter : 2 x AA, IEC LR6, 1.5V

Battery life cycle (Alkaline batteries recommended):

Temperature Station : approximately 24 months

Outdoor Temperature Transmitter : approximately 24 months

Dimensions (L x W x H)

Temperature Station : 80 x 24 x 151 mm

Outdoor Temperature Transmitter : 38.2 x 128.3 x 21.2 mm

LIABILITY DISCLAIMER:

- The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in wild country and/or in unauthorized grounds strongly damages the environment.

- Please contact your local or/and regional authorities to retrieve the addresses of legal dumping grounds with selective collection.

• All electronic instruments must from now on be recycled. User shall take an active part in the reuse, recycling and recovery of the electrical and electronic waste.
• The unrestricted disposal of electronic waste may do harm on public health and the quality of environment.
• As stated on the gift box and labeled on the product, reading the “User manual” is highly recommended for the benefit of the user. This product must however not be thrown in general rubbish collection points.
• The manufacturer and supplier cannot accept any responsibility for any incorrect readings and any consequences that occur should an inaccurate reading take place.
  • This product is designed for use in the home only as indication of the temperature and other weather data.

• This product is not to be used for medical purposes or for public information. The specifications of this product may change without prior notice.
- This product is not a toy. Keep out of the reach of children. No part of this manual may be reproduced without written authorization of the manufacturer.

Environmental reception effects

The station obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
  • nearby mountains and valleys

• near freeway, railway, airports, high voltage cable etc.

• near construction site
  • among tall buildings
  • inside concrete buildings
  • near electrical appliances (computers, TV's, etc) and metallic structures
  • inside moving vehicles

Place the station at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
  • Do not subject the unit to excessive force or shock.

• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
- Do not immerse in water.
- Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  • Install batteries correctly by matching the polarities (+/-).
  • Always replace a complete set of batteries.

• Never mix used and new batteries.

• Remove exhausted batteries immediately.

• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from

the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.

STATION DE TEMPERATURE 868 MHz Manuel d'Utilisation

INTRODUCTION :

Diagram of a vertical scale measuring a server rack, showing mechanical components and alignment (no text or labels)

Technical line drawing of a mechanical or electrical enclosure with internal components and mounting holes (no text or symbols)

REEMPLACEMENT DES PILES:

Touche SET/CH (Réglage/Canal)

ECRAN LCD ET REGLAGES:

Line drawing of a woman in a bikini posing with her hair (no text or symbols)

Line drawing of a woman in a black dress and skirt, posing with hands on hips (no text or symbols)

Illustration of a woman in a black outfit with white shorts, posing in a dynamic pose (no text or symbols)

Silhouette of a woman in a coat and boots, standing with long hair (no text or symbols)

Silhouette of a woman in a coat and boots, with a thought bubble containing an asterisk (*) (no text or symbols on the figure itself)

AFFICHAGE DES TEMPÉRATURES EXTÉRIEURES DES DIFFÉRENTS CANAUX

Diagram showing a vertical rod with a cross-sectional view of a shaded surface, no text or symbols present.

Two technical line drawings of server racks, one vertical and one horizontal, with no visible text or symbols.

Pure mechanical diagram showing a vertical component with a rectangular slot and a diagonal hatched area, no text or symbols present.

Technical line drawing of a vertical pressure gauge and a multi-tiered storage unit (no text or symbols)

Technical line drawing of a mechanical enclosure with internal components and a separate view (no text or symbols)

Simple line drawing of a battery and its internal structure (no text or symbols)

Line drawing of a woman in a bikini posing with her hands (no text or symbols)

Line drawing of a woman in a black dress and skirt, standing with hands on hips (no text or symbols)

Illustration of a woman in a black outfit with white shorts, posing in a dynamic pose (no text or symbols)

Silhouette of a woman with long hair wearing a coat and high-heeled boots (no text or symbols)

Silhouette of a woman in formal attire with a thought bubble containing an asterisk (*) (no text or symbols on the figure itself)

PARA VER LA TEMPERATURA EXTERIOR DE VARIOS CANALES

-Outdoor channel No.

VISUALIZACION DE LAS MIN Y MAX TEMPERATURAS EN EXTERIORES REGISTRADAS DIARIAMENTE

Diagram showing a vertical structure with an arrow pointing to a horizontal surface, no text or symbols present.

Two technical diagrams showing vertical temperature measurement setups with no visible text or symbols

Pure mechanical diagram showing a vertical component with hatched fill and an arrow indicating direction (no text or symbols)

Technical line drawing of a vertical cylindrical device and a server rack (no text or symbols)

Technical line drawing of a rectangular electrical enclosure with internal components and mounting holes (no text or symbols)

Diagram of a vertical container with internal compartments and a horizontal line above (no text or symbols)

SET/CH-toets SET/CH + + -toets

OK — Knippert

24h — Knippert

Line drawing of a woman in a bikini posing with her hands (no text or symbols)

Line drawing of a woman in a black dress and white top, posing with her hands on hips (no text or symbols)

Illustration of a woman in a black outfit with white shorts, posing in a dynamic pose (no text or symbols)

Silhouette of a woman in a coat and boots, standing with long hair (no text or symbols)

Silhouette of a woman in formal attire with long hair, standing in a dynamic pose (no text or symbols)

AFLEZEN VAN BUITENTEMPERATUUR VAN VERSCHILLENDE ZENDERS

Diagram showing a vertical rod with a left-side arrow pointing to a horizontal surface, no text or symbols present.

Two technical line drawings of server racks, one vertical and one horizontal, with no visible text or symbols.

Pure mechanical diagram showing a vertical component with hatched fill and an arrow indicating direction (no text or symbols)

Technical line drawing of a vertical cylindrical device and a server rack (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components and a separate side view (no text or symbols)

Simple line drawing of a vertical container with internal compartments and a horizontal line above (no text or symbols)

Tasto SET/CH SET/CH + Tasto +

Line drawing of a woman in a bikini posing with her hands (no text or symbols)

Line drawing of a woman in a black dress and skirt, posing with her hands on hips (no text or symbols)

Illustration of a woman in a black and white outfit with curly hair, posing in a dynamic pose (no text or symbols)

Black-and-white line drawing of a woman in a coat and boots, no text or symbols present

Silhouette of a woman in formal attire with long hair, standing in a dynamic pose (no text or symbols)

PER VISUALIZZARE LA TEMPERATURA ESTERNA RILEVATA DAI DIVERSI CANALI

Diagram showing a vertical structure with an arrow pointing to a horizontal surface, no text or symbols present.

Technical line drawing of a vertical pressure vessel with a side-mounted rack, shown from two different angles (no text or symbols present)

Pure mechanical diagram showing a vertical component with a rectangular slot and a side view of a textured surface (no text or symbols)
