USER MANUAL Argus PT Pro REOLINK

Content What's in the Box 2 Camera Introduction 3 Set up the Camera 4 Charge the Camera 6 Install the Camera 7 Safety Instructions of Battery Usage 11 Troubleshooting 12 Specication 12 NoticationofCompliance 13English English3 4 OFF OPEN

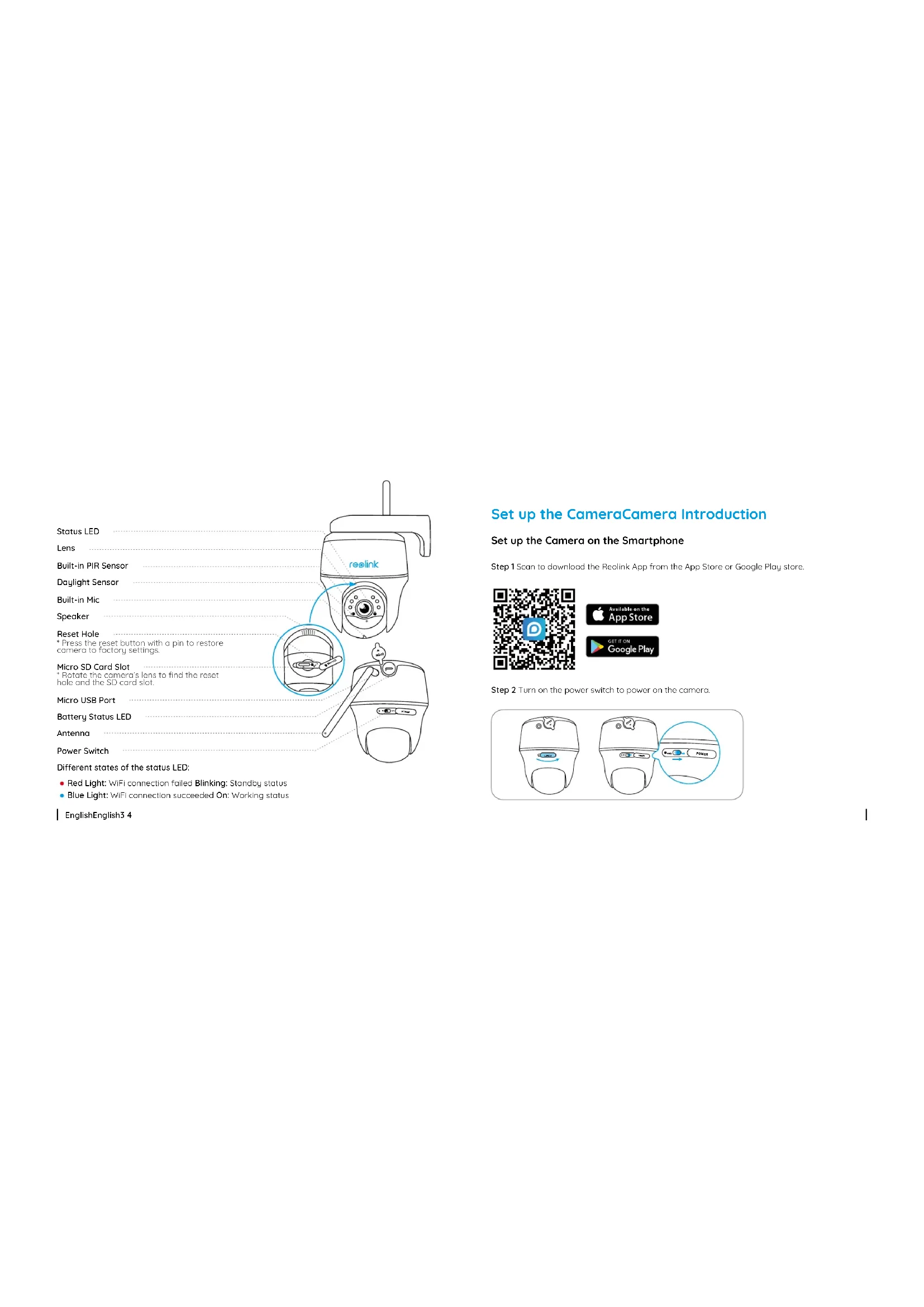

POWER RSTMicroSD OFF OPEN POWER RST MicroSD OFF OPEN POWER RSTMicroSD Set up the CameraCamera Introduction Set up the Camera on the Smartphone Step 1 Scan to download the Reolink App from the App Store or Google Play store. Step 2 Turn on the power switch to power on the camera. Status LED Lens Built-in PIR Sensor Daylight Sensor Built-in Mic Speaker Reset Hole Micro SD Card Slot Micro USB Port Antenna Battery Status LED Power Switch Dierent states of the status LED: Red Light: WiFi connection failed Blinking: Standby status Blue Light: WiFi connection succeeded On: Working status

• Press the reset button with a pin to restore camera to factory settings. *Rotatethecamera’slenstondthereset hole and the SD card slot. OFF

POWEREnglish English5 6 Charge the Camera Step 3 Launch the Reolink App, click the “ ” button in the top right corner to add the camera. ScantheQRcodeonthedeviceandfollowtheonscreeninstructionstonishinitialsetup. Charge the battery with a power adapter. (not included) Charge the battery with the Reolink Solar Panel (not included if you only purchase the camera). For better weatherproof performance, please always cover the USB charging port with the rubber plug after charging the battery. Step 2 Launch the Reolink Client, click the “ ” button, input the UID code of the camera to add it andfollowtheonscreeninstructionstonishinitialsetup. Step 1 Download and install the Reolink Client: Go to https://reolink.com > Support > App&Client. Set up the Camera on PC (Optional) Devices Cloud You haven't added any device. Please click the"+"button in the top right corner to add Orange LED: Charging Green LED: Fully charged Charging Indicator: It’s recommended to fully charge the battery before mounting the camera outdoors. OFFOPENONPOWER OFFOPENONPOWER OFF OPEN ONPOWEREnglish English7 8 Drill holes in accordance with the mounting hole template and screw the security mount to the wall. NOTE: Use the drywall anchors included in the package if needed. NOTE: For better WiFi connection, it is recommended to install the antenna upward or horizontally. Mount the Camera to the Wall Install the antenna to the camera. Screw the camera to the security mount and adjust to the proper direction.

• For outdoor use, the camera MUST be installed upside down for better waterproof performance and better PIR motionsensor’seciency.

• Install the camera 2-3 meters (7-10 ft) above the ground. This height maximizes the detection range of the PIR motion sensor.

• For better motion detection performance, please install the camera angularly. NOTE: If a moving object approaches the PIR sensor vertically, the camera may fail to detect motion. Mounting Height: 2-3 Meters PIR Detection Distance: 2-10 MetersEnglish English9 10 Pull the button of the security mount and unscrew the bracket to separate the two parts. You are allowed to strap the camera to a tree with both the security mount and ceiling bracket. Thread the provided strap to the plate and fasten it to a tree. Next, attach the camera to the plate and you are good to go. Mount the Camera to Ceiling Install the Camera with Loop Strap Install the bracket to the ceiling. Align the camera with the bracket and turn the camera unit clockwise to lock it in position.

3English English11 12 Safety Instructions of Battery Usage The camera is not designed for running 24/7 at full capacity or around-the-clock live streaming. It’s designed to record motion events and to live view remotely only when you need it. Learn useful tips on how to extend the battery life in this post: https://support.reolink.com/hc/en-us/articles/360006991893

1. The battery is built-in, so do not remove it from the camera.

2. Charge the rechargeable battery with a standard and high-quality DC 5V/9V battery charger or

Reolink solar panel. Do not charge the battery with solar panels from any other brands.

3. Charge the battery when temperatures are between 0°C and 45°C and always use the battery

when temperatures are between -20°C and 60°C.

4. Keep the USB charging port dry, clean and free of any debris and cover the USB charging port

with the rubber plug when the battery is fully charged. 5.Donotcharge,useorstorethebatterynearanyignitionsources,suchasreorheaters. 6.Donotusethebatteryifitgivesoanodor,generatesheat,becomesdiscoloredordeformed, orappearsabnormalinanyways.Ifthebatteryisbeingusedorcharged,turnothepower switch or remove the charger immediately, and stop using it.

7. Always follow the local waste and recycle laws when you get rid of the used battery.

Troubleshooting Specication If your camera is not powering on, please try the following solutions:

• Make sure the power switch is turned on.

• Charge the battery with a DC 5V/2A power adapter. When the green light is on, the battery is fully charged. If these won’t work, contact Reolink Support. If the camera fails to connect to WiFi, please try the following solutions:

• Ensure that you have entered the correct WiFi password.

• Put the camera closer to your router to en- sure a strong WiFi signal.

• Change the encryption method of the WiFi network to WPA2-PSK/WPA-PSK (safer encryption) on your router interface.

• Change your WiFi SSID or password and make sure that SSID is within 31 characters and password is within 64 characters. If these won’t work, contact Reolink Support. If the camera cannot scan the QR code on your phone, please try the following solutions:

• Removetheprotectivelmfromthecamera lens.

• Wipe the camera lens with a dry paper/ towel/tissue.

• Vary the distance between your camera and the mobile phone so that the camera can focus better.

• TrytoscantheQRcodeundersucient lighting. If these won’t work, contact Reolink Support. Camera is not Powering on Failed to Connect to WiFi During Initial Setup Process Failed to Scan QR Code on the Phone VideoEnglish English13 14 Reolink declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. This marking indicates that this product should not be disposed with other household wastes.throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling. Correct Disposal of This Product PIR Detection Distance: Adjustable up to 10m (33ft) PIR Detection Angle: 90° horizontal Audio Alert: Customized voice-recordable alerts Other Alerts: Instantemailalertsandpushnotications This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changesormodicationsnot expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Operating Temperature: -10°C to 55°C (14°F to 131°F) Size: 98 x 112 mm Weight (Battery included): 470g (16.5 oz) Formorespecications,visitthe Reolinkocialwebsite. This product comes with a 2-year limited warranty that is valid only if purchased from ReolinkOcialStoreoraReolinkauthorized reseller. Learn more: https://reolink.com/warranty-and-return/. Use of the product is subject to your agreement to the Terms of Service and Privacy Policy at reolink.com. Keep out of reach of children. PIR Detection & Alerts General Limited Warranty Terms and Privacy Simplied EU Declaration of Conformity Notication of Compliance FCC Compliance Statement

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuitdierentfromthattowhichthereceiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help. FCC RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined byturningtheequipmentoandon,the user is encouraged to try to correct the interference by one or more of the following measures: NOTE: We hope that you enjoy the new purchase.Butifyouarenotsatisedwith the product and plan to return, we strongly suggest that you reset the camera to factory default settings and take out the inserted SD card before returning. Field of View: 105° diagonal Night Vision: Up to 10m (33 ft)Deutsch 16English15 By using the Product Software that is embedded on the Reolink product, you agree to the terms of this End User License Agreement (“EULA”) between you and Reolink. Learn more: https://reolink.com/eula/. End User License Agreement This equipment complies with RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 2412MHz—2472MHz (18dBm) 5GHz (For Argus PT Pro Only): 5180-5240MHz(16.09dBm) 5745-5825MHz(14.47dBm) ISED Radiation Exposure Statement OPERATING FREQUENCY (the maximum transmitted power)
