USER MANUAL Argus 3 2K REOLINK

Apply to: Reolink Argus 3,Reolink Argus 3 Pro Operational Instruction @ReolinkTech https://reolink.com EN/DE/FR/IT/ES Aug 2021 QSG1_C

REP UKEnglish English

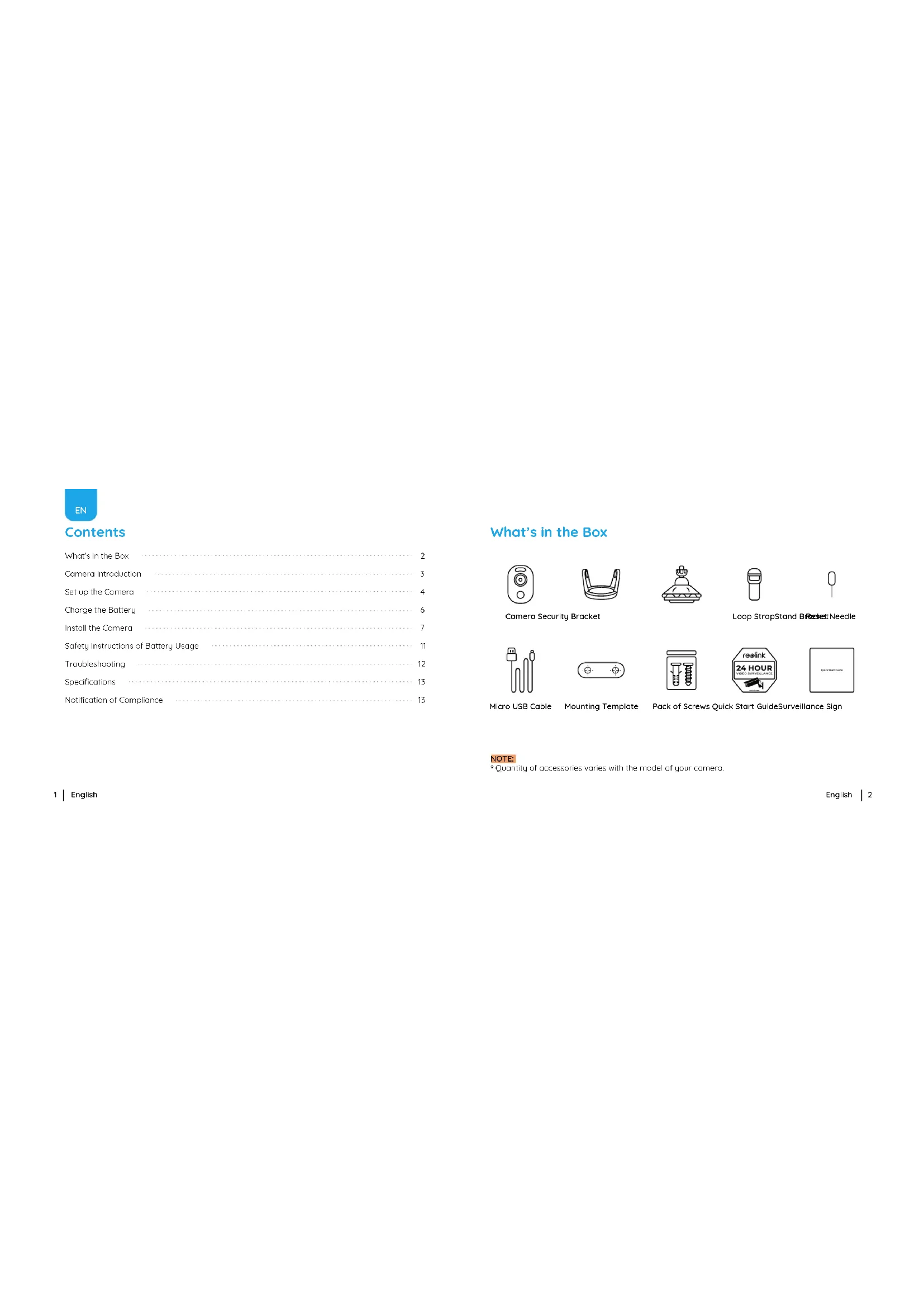

What's in the Box Camera Introduction Set up the Camera Charge the Battery Install the Camera Safety Instructions of Battery Usage Troubleshooting Specifications Notification of Compliance

• Quantity of accessories varies with the model of your camera. Pack of Screws Quick Start GuideSurveillance Sign Camera Security Bracket Mounting Template Reset Needle Micro USB Cable Loop StrapStand Bracket 1 2USB

OFF MicroSD RST Camera Introduction Battery Status LED Set up the Camera on Smartphone Red Light: WiFi connection failed Blue Light: WiFi connection succeeded Blinking: Standby status On: Working status Set up the Camera NOTE: Always keep the rubber plug closed firmly. Speaker Spotlight Lens Daylight Sensor Reset Button Dierent states of the status LED: Status LED Built-in Mic PIR Motion Sensor Power Switch Micro SD Card Slot

• Press for more than five seconds to reset the device to factory settings. Micro USB Power Port Step 1 Scan to download the Reolink App from the App Store or Google Play store. Step 2 Turn on the power switch to power on the camera. EnglishEnglish

MicroSD 3 4Set up the Camera on PC (Optional) For better weatherproof performance, always keep the USB charging port covered with the rubber plug after charging the battery. It's recommended to fully charge the battery before mounting the camera outdoors. Charge the Battery Charge the battery with the Reolink Solar Panel (Not included if you only purchase the camera). Charge the battery with a power adapter. (not included) Charging indicator: Orange LED: Charging Green LED: Fully charged Step 1 Download and install the Reolink Client: Go to https://reolink.com > Support > App & Client. Step 2 Launch the Reolink Client, click the " " button, input the UID code of the camera to add it and follow the onscreen instructions to finish the initial setup. Step 3 Launch the Reolink App, and click the “ ” button in the top right corner to add the camera. Scan the QR code on the device and follow the onscreen instructions to finish the initial setup. Devices Cloud You haven't added any device. Please click the"+"button in the top right corner to add EnglishEnglish 5 6Mount the Camera to Wall Notes on Camera Installation Position Rotate the base to separate it from the bracket. Drill holes in accordance with the mounting template and screw the base of the bracket to the wall. Next, attach the other part of the bracket to the base. NOTE: Use the drywall anchors included in the package if needed.

• Install the camera 2-3 meters (7-10ft) above the ground to maximize the detection range of the PIR motion sensor.

• For eective motion detection, please install the camera angularly. NOTE: If a moving object approaches the PIR sensor vertically, the camera may fail to detect motion. Install the Camera EnglishEnglish

Mounting Height:2-3 MetersPIR Detection Distance:2-10 Meters 7 8Install the Camera with Loop Strap Place the Camera on a Surface Thread the loop strap through the slots and fasten the strap. It is the most recommended installation method if you plan to mount the camera to a tree. Screw the camera to the bracket. Adjust the camera angle to get the best field of view. Secure the camera by turning the part on the bracket identified in the chart clockwise. NOTE: To adjust the camera angle later, please loosen the bracket by turning the upper part anticlockwise. If you plan to use the camera indoors and put it on a flat surface, you may place the camera into the stand bracket and adjust the camera angle by slightly rotating the camera back and forth. English English

9 10Safety Instructions of Battery Usage Troubleshooting Camera is not Powering on Failed to Scan QR Code on the Phone If your camera is not turning on, please apply the following solutions:

• Make sure the power switch is turned on.

• Charge the battery with a DC 5V/2A power adapter. When the green light is on, the battery is fully charged. If these won't work, please contact Reolink Support https://support.reolink.com If the camera cannot scan the QR code on your phone, please try the following solutions:

• Remove the protective film from the camera lens.

• Wipe the camera lens with a dry paper/towel/tissue. Failed to Connect to WiFi During Initial Setup Process If the camera fails to connect to WiFi, please try the following solutions:

• Ensure that you have entered the correct WiFi password.

• Put the camera closer to your router to ensure a strong WiFi signal.

• Change the encryption method of the WiFi network to WPA2-PSK/WPA-PSK (safer encryption) on your router interface.

• Change your WiFi SSID or password and make sure that SSID is within 31 characters and password is within 64 characters.

• Vary the distance between your camera and the mobile phone so that the camera can focus better.

• Try to scan the QR code under sucient lighting. If these won't work, please contact Reolink Support https://support.reolink.com Reolink Argus 3/Argus 3 Pro is not designed for running 24/7 atfull capacity or around-the-clock live streaming. It’s designed to record motion events and to live view remotely only when you need it. Learn useful tips on how to extend the battery life in this post: https://support.reolink.com/hc/en-us/articles/360006991893

1. The battery is built-in, so do not remove it from the camera.

2. Charge the rechargeable battery with a standard and high-quality DC 5V/9V battery charger or

Reolink solar panel. Do not charge the battery with solar panels from any other brands.

3. Charge the battery when temperatures are between 0°C and 45°C and always use the battery

when temperatures are between -20°C and 60°C.

4. Keep the USB charging port dry, clean and free of any debris and cover the USB charging port

with the rubber plug when the battery is fully charged.

5. Do not charge, use or store the battery near any ignition sources, such as fire or heaters.

6. Do not use the battery if it gives o an odor, generates heat, becomes discolored or deformed, or

appears abnormal in any ways. If the battery is being used or charged, turn o the power switch or remove the charger immediately, and stop using it.

7. Always follow the local waste and recycle laws when you get rid of the used battery.

English English11 12Simplified EU Declaration of Conformity Reolink declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Correct Disposal of This Product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it Notification of Compliance FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Specifications Video Field of View: 120° diagonal Night Vision: Up to 10m (33 ft) PIR Detection & Alerts PIR Detection Distance: Adjustable up to 10m (33ft) PIR Detection Angle: 100° horizontal Audio Alert: Customized voice-recordable alerts Other Alerts: Instant email alerts and push notifications

• Consult the dealer or an experienced radio/TV technician for help. FCC RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. General Operating Temperature: -10°C to 55°C (14°F to 131°F) Weather Resistance:IP65 certified weatherproof Size: 121 x 90 x 56 mm Weight (Battery included): 330g (11.6 oz) For more specifications, visit https://reolink.com/.

• Set your password using only the characters available on the keyboard. If these won't work, please contact Reolink Support https://support.reolink.com NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

Überblick responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environment safe recycling. OPERATING FREQUENCY (the maximum transmitted power) 2.4GHz: 2412-2462MH (18dBm) 5GHz (For Argus 3 Pro Only): 5180-5240MHz (16.09dBm) 5745-5825MHz (14.47dBm) Limited Warranty This product comes with a 2-year limited warranty that is valid only if purchased from Reolink ocial stores or a Reolink authorized reseller. Learn more: https://reolink.com/warranty-and-return/. ISED Radiation Exposure Statement This equipment complies with RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Terms and Privacy Use of the product is subject to your agreement to the Terms of Service and Privacy Policy at reolink.com. Keep out of reach of children. End User License Agreement By using the Product Software that is embedded on the Reolink product, you agree to the terms of this End User License Agreement (“EULA”) between you and Reolink. Learn more: https://reolink.com/eula/. NOTE: We hope that you enjoy the new purchase. But if you are not satisfied with the product and plan to return, we strongly suggest that you reset the camera to factory default settings and take out the inserted SD card before returning. Deutsch English15 16USB
