USER MANUAL Blade 5G Hammer

-WODA I INNE PŁ YNY-

-DŻWIĘKI-

Yellow triangular warning sign with sun and eye symbol (no text)

-WZROK-

M-Sensor, P-Sensor, L-Sensor

2G (GSM): 850/900/1800/1900 MHz

3G (UMTS): 850/900/1700/1900/2100 MHz

4G (LTE): 800/850/900/1800/1900/2000/2100/2300/2500/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Akumulator:

HS2402 Li-poli 6000 mAh

HS2402e Li-Ion 6000 mAh

Wymiary: 164.8 x 76.7 x 9.9 mm

Waga netto: 225 g

https://www.myphone.pl/product/myphone-swiftcharge-duo

1. Wyglad telefonu

8. Montaż karty SIM

Hand cursor clicking a green circular button with a purple ring (no text or symbols)

10.2 Przesunięcie

11. Komunikacja

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

https://www.hammerphones.com/support-warranty/

1. Table of contents

1. Table of contents ...... 16
2. Safety 17
3. The use of the manual 19
4. Important information....19

4.1 Trademarks....20

1. Package content 20
2. Technical Specification 20
3. Appearance of the phone....21
4. SIM card installation....22
5. Buttons....22
6. Using the touch screen....23

10.1 Touch 23
10.2 Swipe....23
10.3 Triple click 23
10.4 Hold and swipe....23
10.5 Slide in and out....24

1. Communication 24

11.1 Making calls 24
11.2 SMS - Messages....24

1. Maintenance of the device....24
2. Correct disposal of used equipment 25
3. Correct disposal of used battery 25

Caution!	Statement
The manufacturer is not responsible for the consequences of situations caused by improper use of the phone or failure to follow the instructions in the operating manual.	The software version can be upgraded without earlier notice.The manufacturer's representative reserves the right to decide on the correct interpretation of this manual.

2. Safety

-DO NOT RISK-

All wireless devices may cause interferences, which could affect the quality of other connections. Do not switch the device on in places which are prohibited from using cell phones, or when it may cause interferences or other dangers. Always abide by any kinds of prohibitions, regulations and warnings conveyed by the staff.

-RESTRICTIONS IN USE-

Wi-Fi wireless connectivity uses the 2.4 GHz band and the 5 GHz band. The 5 GHz Wi-Fi band shall not be used outdoors in the European Union. Please observe the national and local regulations at the place of use.

-ROAD SAFETY-

Apart from emergency situations, using the phone while driving should be carried out only with use of a headset or a speakerphone, which ensures safety and does not limit motor abilities of the user. If one does not own a headset and still wants to use the phone, one should pull over and stop the car. Pay attention to the legal regulations concerning the use of mobile phone while driving. Some electronic components of the car without adequate protection can be affected by waves emitted by the phone; it is therefore advisable to use the phone in the car only when the external antenna of the vehicle is secured. Use the services of a professional when installing the phone in the car.

-ALARM CALLS-

Making alarm calls may not be possible in some areas or circumstances. It is recommended to find an alternative way to notify emergency services if you are going to this type of remote areas.

-QUALIFIED SERVICE-

Only qualified personnel or an authorized service center may install or repair this product. Repairing the device by an unqualified or unauthorized service technician may result in damage to the device and void the warranty.

-PETROL STATIONS-

Do not use your mobile phone while refuelling at a petrol station or in the vicinity of chemicals.

CAUTION! In places where there is a risk of explosion (i.e. Petrol stations, chemical factories etc.), it is advisable to turn off the phone. Please refer to regulations governing the use of GSM equipment in these places.

-CHILDREN & PHYSICALLY/MENTALLY DISABLED PEOPLE-

This device should not be operated by people (including children) with limited physical or mental abilities, as well as by people with no earlier experience in operation of electronic equipment. They may use the device only under supervision of people responsible for their safety. This device is not a toy. Memory card and SIM card are small enough to be swallowed by a child and cause choking. Keep the device and its accessories out of reach of children.

-WATER AND OTHER LIQUIDS-

The device has resistance certificate IP69. It means that the device is dust-proof and waterproof when all of the rubber seals are intact and properly put in place.

IP69 - The symbol indicates protection against flooding with a jet of pressurized water (force applied to the surface of the device 0.9-1.2 N, water temperature up to +80°C). The jet of water directed at angles of 0°, 30°, 60° and 90° for 30 seconds.

As far as possible protect the device from water and other liquids. Water and other fluids do not have a positive effect on phone electronic components. If wet, wipe and dry the device as soon as possible.

The device is not resistant to salt water!

Make sure the USB cable is dry before connecting it to the phone's charging socket. Plugging the cable into a wet or damp outlet exposes it to slow corrosion and may cause problems with charging your phone.

-BATTERY AND ACCESSORIES-

Avoid exposing the battery to very high/low temperatures (below 0°C / 32°F and over 40°C / 104°F). Extreme temperatures may influence capacity and battery life. Avoid contact with liquids and metal objects as it may cause partial or complete battery damage. The battery should be used according to its purpose. Do not destroy, impair or throw the battery into flames - it might be dangerous and may cause fire. Worn-out or impaired battery should be placed in a dedicated container. Installing an incorrect battery type can cause an explosion. Never open the battery. Please dispose of battery according to the instructions. Disconnect an unused charger from power grid. In case of the charger wire damage, it should not be repaired but replaced with a new one cable or a new charger. Use the original manufacturer's accessories only.

-HEARING-

To avoid hearing damage, do not use the device at high volume levels for a long period of time, do not put operating device directly to the ear.

Yellow triangular warning sign with sun and eye symbol (no text)

-EYESIGHT-

To avoid eyesight damage do not look closely onto the flash light during its work. A strong bean of light may cause permanent eye damage!

3. The use of the manual

Pictures of the device and screenshots contained in this user manual may differ from the actual product. Accessories attached to the smartphone set may differ from the illustrations included in manual. Options described in the manual are found in Android system. Those descriptions may differ, depending on the version of the operating system and applications installed on the device.

Without prior written consent of the manufacturer, no part of this manual may be photocopied, reproduced, translated or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storing in any systems of storing and sharing information.

4. Important information

The majority of applications which can be installed on the device are mobile apps. Modus operandi of such applications may be different from their counterparts installed on a personal computer. Apps installed on the device may vary depending on country, region, and hardware specifications. The manufacturer is not liable for problems caused by third party software. The manufacturer is not responsible for anomalies that may occur when editing the registry settings and modifying the operating system software. Attempts to modify the operating system can cause malfunctions and problems with applications. It may cause a loss of warranty.

System Android™

This device runs on the Android operating system.

Google Play

Google Play is your entertainment without borders. It brings together all your favorite entertainment and helps you discover it in new ways, anytime, anywhere. We've brought the magic of Google to movies, TV,

books, apps and games, so you can get more from your content every day.

4.1 Trademarks

• Android and Google Play and trademarks of Google LLC.
• Oracle and Java are a registered trademarks of Oracle and / or its affiliates.
• Wi-Fi® Wi-Fi logo are a registered trademarks Wi-Fi Alliance association.
• All other trademarks and copyrights belong to their respective owners.

Manufacturer:

mPTech Ltd.

00-511 Warsaw, Poland

Manufactured in China

5. Package content

• Smartphone
• USB-C cable
• User manual

If any of the above items is missing or damaged, please contact your dealer.

6. Technical Specification

Display: 6.6" HD+, 1612x720 px

Processor: MediaTek Dimensity 720

Main camera (rear): 50 Mpx + 2 Mpx

Front camera: 8 Mpx

RAM memory: 8 GB

Internal memory: 128 GB

Memory card: max. 1TB

Operating system: Android 14

Dual SIM: nanoSIM + microSD / nanoSIM + nanoSIM

Water and dust resistance: IP69

Connector: USB-C

Connectivity: Wi-Fi 2.4/5.0 GHz (802.11 a/b/g/n/ac), Bluetooth 5.0,

GPS, Glonass, Beidou, Galileo

Sensors: Fingerprint reader, Face scanner, Gyroscope, G-Sensor, M-

Sensor, P-Sensor, L-Sensor

2G (GSM): 850/900/1800/1900 MHz

3G (UMTS): 850/900/1700/1900/2100 MHz

4G (LTE): 800/850/900/1800/1900/2000/2100/2300/2500/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Battery:

HS2402 Li-poli 6000 mAh

HS2402e Li-Ion 6000 mAh

Dimensions: 164.8 x 76.7 x 9.9 mm

Weight netto: 225 g

Power parameters: fast charging system Pump Express (5V/7V/9V/12V and max. 18W).

It is recommended to use the charger: Hammer RAPIDCHARGE

Charger input parameters: AC 100-240V, 50/60Hz 1A

Charger output parameters:

USB-C: 3.3-11V/2.0A, 5V/3.0A,9V/2.22A, 12V/1.67A (20W MAX)

USB-A: 5V/3.0A,9V/2.0A, 12V/1.5A [18W MAX]

USB-C+USB-A: 5V/3.0A (15W MAX)

The charger can be purchased on our website:

https://www.myphone.pl/product/myphone-swiftcharge-duo

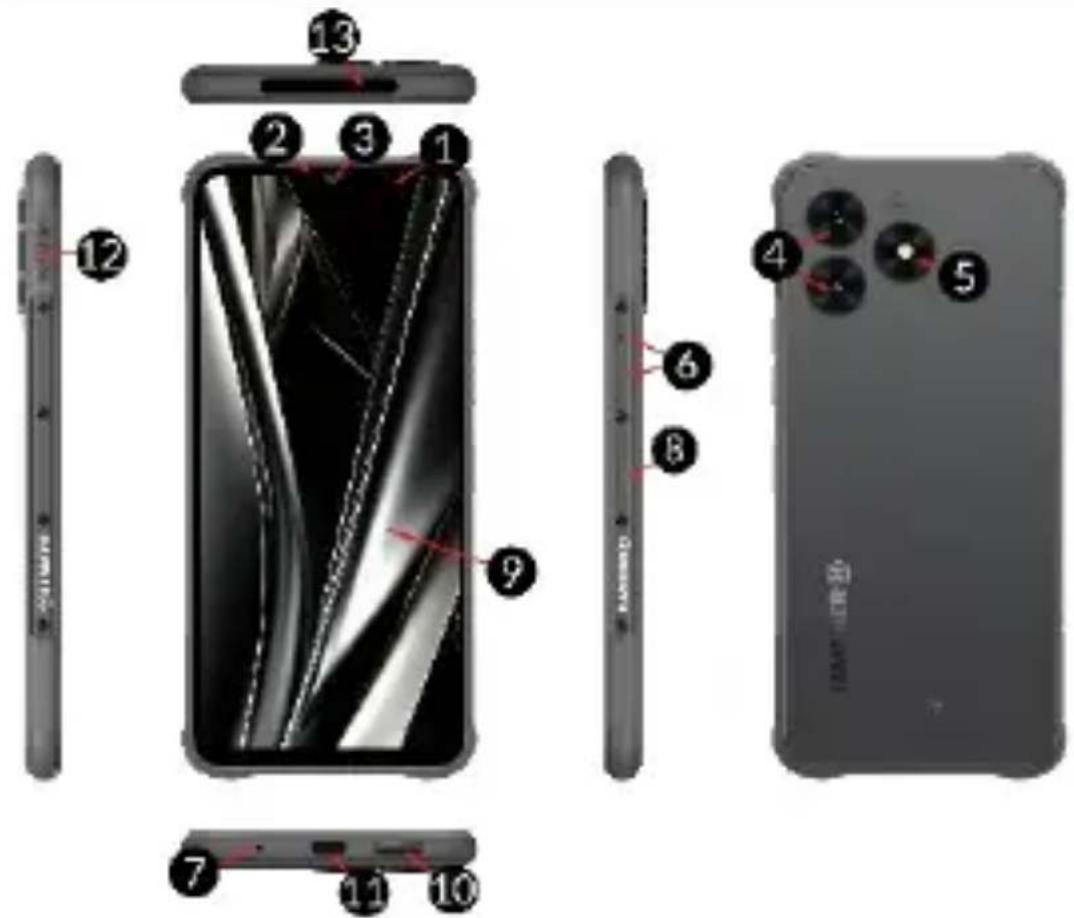

1. Appearance of the phone

	Functions
1	Brightness and proximity sensors
2	Internal speaker
3	Digital camera lens 8 Mpx (selfie)
4	Digital camera lens 50 Mpx (main)
5	Lighting diode / Camera flashlight
6	Volume control buttons
7	Microphone 1
8	Blockade on/off button
9	Touchscreen 6.6"
10	External speaker
11	Multifunctional USB-C port
12	SIM / SD card tray

13 Microphone 2

8. SIM card installation

The Hammer is equipped with a SIM/microSD card tray, allowing the phone to be used in the following configurations:

1. SIM 1 card + SIM 2 card
2. micro SD card + SIM 1 card

9. Buttons

Menu (virtual)

Pressing it will cause the list of open apps to appear, where you can switch in-between or turn them off.

Home (virtual)

One quick press takes you to phone desktop. A longer press launches Google Assistant.

Back (virtual)

Press to exit the application / return to the previous screen.

Blockade on/off button

• One quick press locks/unlocks the screen.

- Pressing the button for about 2 sec. will cause:

o If the smartphone is off - the device would switch on.
- if the smartphone is switched on, call up a menu to shut down the device, reboot the system, emergency call, screenshot.

Volume increase and decrease buttons

Pressing during a voice call will cause an increase or decrease of the audio connection volume.

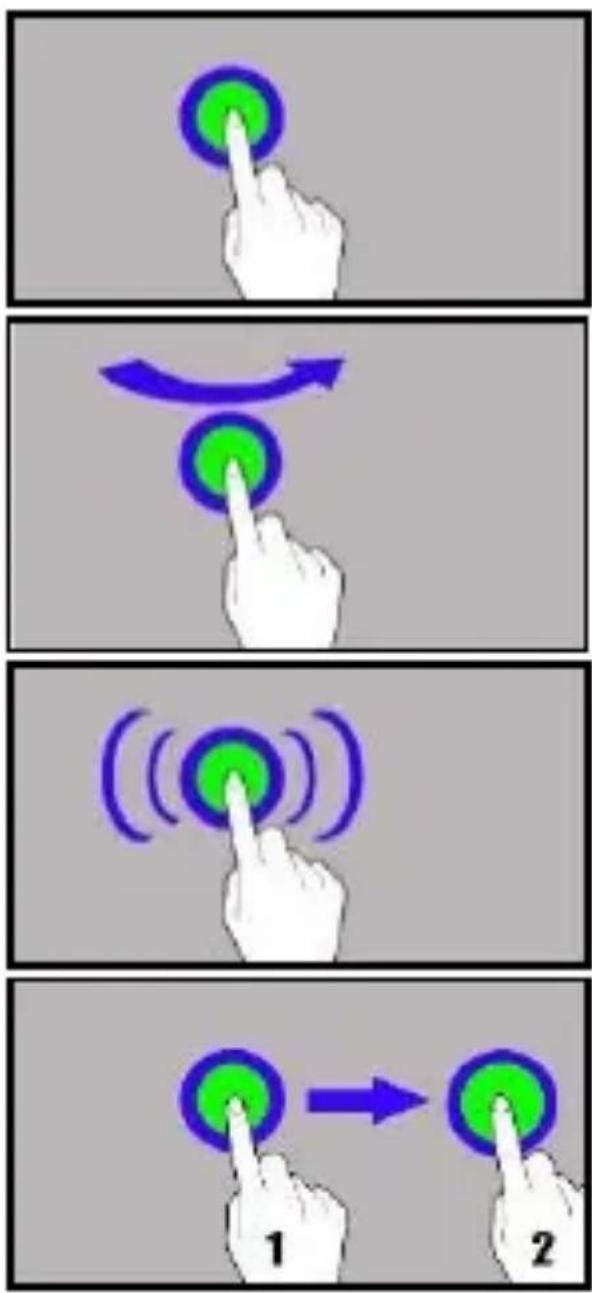

10. Using the touch screen

The smartphone's touchscreen makes it easy to select items, perform operations and gestures. The touchscreen can be controlled by the following actions:

10.1 Touch

Touch one to start options, app, menu.

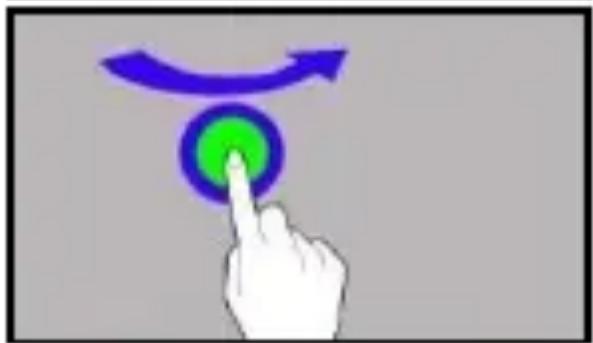

10.2 Swipe

Quickly swipe up, down, to the left or to the right, to scroll the list or the screen.

10.3 Triple click

Quickly tap the screen three times to start zooming - if this option is enabled in your smartphone settings.

10.4 Hold and swipe

Touch an element (an icon perhaps) and hold it for about 1 seconds. Then you can delete/uninstall that element.

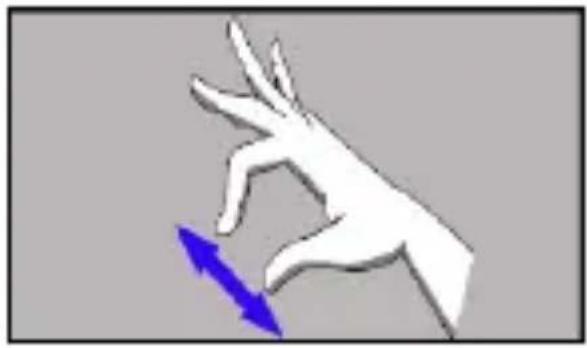

10.5 Slide in and out

Touch the screen with two fingers and slide them together or apart to zoom in or out a photo or a map.

White hand with a blue arrow pointing downward, no text or symbols present

11. Communication

11.1 Making calls

To make a call touch [Phone] icon , placed on the main screen or

in Android applications menu and select the keypad icon . Insert the phone number you wish to call. Press "green handset" placed at the bottom of the screen and choose which SIM card you wish to use.

11.2 SMS - Messages

You can manage your messages using the [Messages] application in the home screen or smartphone menu. Start the application and

touch the icon, type the phone number, name of the contact or select a contact from the list. When you have chosen the contact a screen will appear where you type the message itself. Type the message body. Before you send a text message you can

transform it into a multimedia message by pressing symbol ⊕, situated in the left corner of the textbox and adding a sticker, audio or location. To add a photo from the gallery or directly from your

camera, tap the symbol. To send the message press .

12. Maintenance of the device

Follow the instructions below.

- For cleaning use only a dry cloth. Never use any agent with a high concentration of acids or alkalis.

- Use the original accessories only. Violation of this rule may result in an invalidation of the warranty.

13. Correct disposal of used equipment

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

The device is marked with a crossed-out garbage bin, in accordance with the European Directive 2012/19/EU on used electrical and electronic Equipment (Waste Electrical and Electronic equipment - WEEE). Products marked with this symbol should not be disposed of or dumped with other household waste after a period of use. The user is obliged to get rid of used electrical and electronic equipment by delivering it to designated recycling point in which dangerous waste are being recycled. Collecting this type of waste in designated locations, and the actual process of their recovery contribute to the protection of natural resources. Proper disposal of used electrical and electronic equipment is beneficial to human health and environment.

To obtain information on where and how to dispose of used electrical and electronic equipment in an environmentally friendly manner, user should contact their local government office, the waste collection point, or point of sale, where the equipment was purchased.

14. Correct disposal of used battery

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

According to the EU directive 2006/66/EC with changes contained in EU directive 2013/56/UE on the disposal of batteries, this product is marked with crossed-out garbage bin symbol. The symbol indicates that the batteries used in this product should not be disposed with regular household waste, but treated according to the legal directives and local regulations.

It is not allowed to dispose of batteries and accumulators with unsorted municipal waste. Users of batteries and accumulators must use the available collection points of these items, which allows them to return, recycle and disposal. Within the EU, the collection and recycling of batteries and accumulators is a subject to separate procedures. To learn more about existing procedures of recycling of batteries and accumulators please contact your local office or an institution for waste disposal or landfill.

Uživatelský manuál

HAMMER HS2402\_HS2402e

1. Obsah balení

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

-OMEZENÍ VYUŽITÍ-

-SLUCH-

Yellow triangular warning sign with a stylized eye and sunburst symbol (no text)

-ZRAK-

4G (LTE): 800/850/900/1800/1900/2000/2100/2300/2500/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Baterie:

HS2402 Li-poli 6000 mAh

HS2402e Li-Ion 6000 mAh

https://www.myphone.pl/product/myphone-swiftcharge-duo

1. Vzhled telefonu

8. Instalace karty SIM

1. SIM 1 card + SIM 2 card
2. micro SD card + SIM 1 card

9. Tlačítka

Menu (virtuální)

White hand holding a small object with a blue arrow pointing downward (no text or symbols)

11. Komunikace

11.1 Volání

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Black icon of a document with an exclamation mark (no text or symbols)

-SLUCH-

Yellow triangular warning sign with sun and eye symbol (no text)

-ZRAK-

4G (LTE): 800/850/900/1800/1900/2000/2100/2300/2500/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Batérie:

HS2402 Li-poli 6000 mAh

HS2402e Li-Ion 6000 mAh

Rozmery: 164.8 x 76.7 x 9.9 mm

Váha netto: 225 g

USB-C: 3.3-11V/2.0A, 5V/3.0A, 9V/2.22A, 12V/1.67A (20W MAX)

USB-A: 5V/3.0A,9V/2.0A, 12V/1.5A [18W MAX]

USB-C+USB-A: 5V/3.0A (15W MAX)

https://www.myphone.pl/product/myphone-swiftcharge-duo

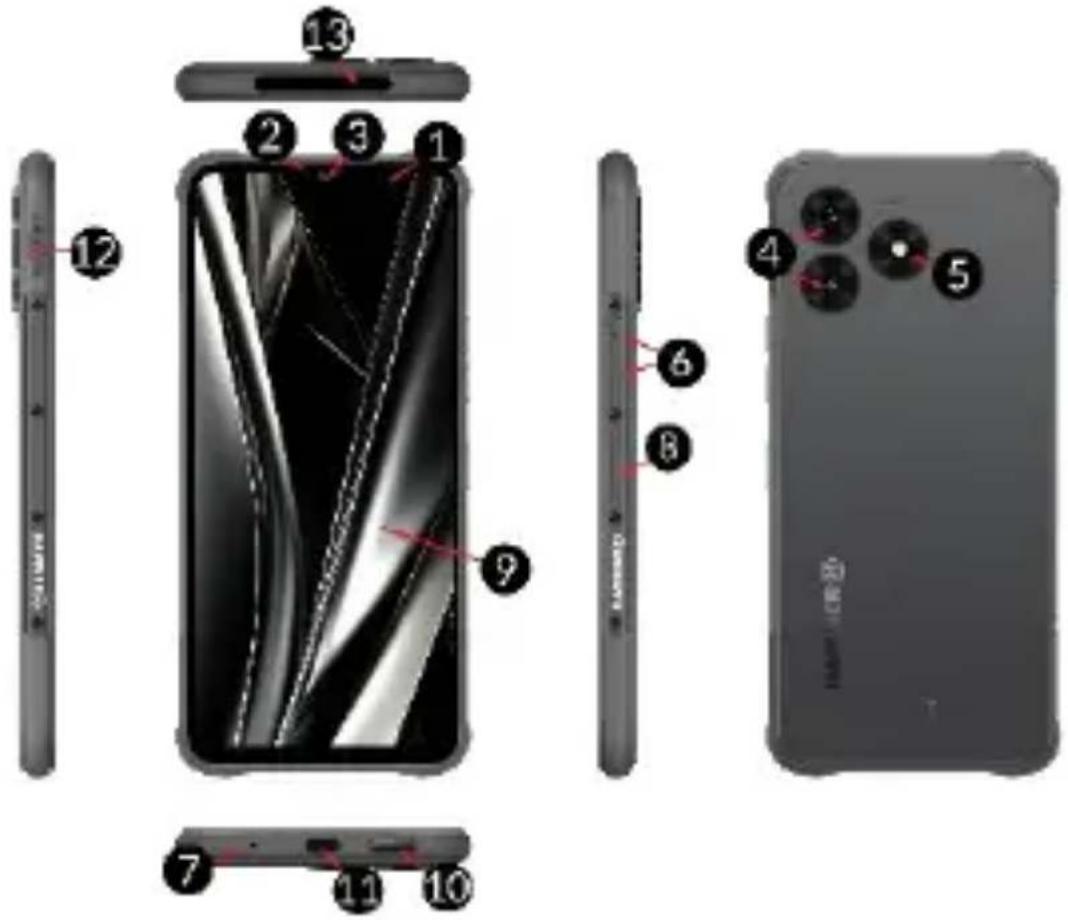

1. Vzhľad telefónu

	Funkcia
1	Senzor jasu a priblíženie
2	Interný reproduktor
3	Objektiv fotoaparátu 8 Mpx (selfie)
4	Objektív digitálneho fotoaparátu 50 Mpx (hlavný)
5	Svietidlo / Blesk fotoaparátu
6	Tlačidlá pre zvýšenie/zníženie hlasitosti
7	Mikrofón 1
8	Tlačidlo Zap/Vyp
9	Dotyková obrazovka 6.6"
10	Externý reproduktor
11	Multifunkčný USB-C port
12	Zásobník na kartu SIM / SD
13	Mikrofón 2

1. SIM 1 card + SIM 2 card
2. micro SD card + SIM 1 card

9. Tlačidlá

Menu (virtuálne)


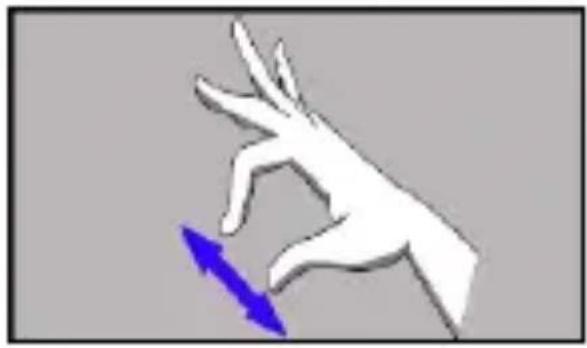

10.5 Posuňte dovnútra a von

Dotknite sa dvoma prstami obrazovky a pohybom smerom od seba nimi priblížite obrazovku a pohybom smerom k sebe nimi oddialite obrazovku.

White hand gesture with a blue arrow pointing downward (no text or symbols)

11. Komunikácia

11.1 Volanie

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no text or symbols (no text or labels)

Black icon of a document with an exclamation mark (no text or symbols)

-HALLÁS-

Yellow triangular warning sign with sun and eye symbol (no text)

-LÁTÁS-

https://www.myphone.pl/product/myphone-swiftcharge-duo

1. Készülék részei

1. SIM 1 card + SIM 2 card
2. micro SD card + SIM 1 card

9. Gombok

Menü (virtuális)

White hand with blue directional arrows indicating movement or force (no text or symbols)

11. Kommunikáció

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with diagonal lines indicating no text or symbols (no text or labels)

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

Yellow triangular warning sign with sun and eye symbol (no text)

-SEHKRAFT-

M-sensor, P-sensor, L-sensor

2G (GSM): 850/900/1800/1900 MHz

3G (UMTS): 850/900/1700/1900/2100 MHz

4G (LTE): 800/850/900/1800/1900/2000/2100/2300/2500/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Batterie:

HS2302: Li-Poli 6000 mAh

HS2302e: Li-Ion 6000 mAh

Abmessungen: 164.8 x 76.7 x 9.9 mm

Gewicht netto: 225g

https://www.myphone.pl/product/myphone-swiftcharge-duo

1. SIM 1 card + SIM 2 card
2. micro SD card + SIM 1 card

9. Tasten

Menü (virtuell)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with diagonal lines indicating no text or symbols (no text or labels)

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

-UDITO-

4G (LTE): 800/850/900/1800/1900/2000/2100/2300/2500/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Batteria:

HS2302: Li-Poli 6000 mAh

HS2302e: Li-Ion 6000 mAh

Dimensioni: 164.8 x 76.7 x 9.9 mm

Peso netto: 225g

USB-C: 3.3-11V/2.0A, 5V/3.0A, 9V/2.22A, 12V/1.67A (20W MAX)

USB-A: 5V/3.0A,9V/2.0A, 12V/1.5A (18W MAX)

USB-C+USB-A: 5V/3.0A (15W MAX)

https://www.myphone.pl/product/myphone-swiftcharge-duo

1. SIM 1 card + SIM 2 card
2. micro SD card + SIM 1 card

9. Pulsanti

Menu (virtuale)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

-AUDICIÓN-

Yellow triangular warning sign with sun and eye symbol (no text)

sensor G, sensor M, sensor P, sensor L.

2G (GSM): 850/900/1800/1900 MHz

3G (UMTS): 850/900/1700/1900/2100 MHz

4G (LTE): 800/850/900/1800/1900/2000/2100/2300/2500/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Batería:

HS2302: Li-Poli 6000 mAh

HS2302e: Li-Ion 6000 mAh

Dimensiones: 164.8 x 76.7 x 9.9 mm

Peso netto: 225g

https://www.myphone.pl/product/myphone-swiftcharge-duo

1. SIM 1 card + SIM 2 card
2. micro SD card + SIM 1 card

9. Botones

Menú (virtual)

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

Hand pressing a button with a green circular icon and curved arrows above it (no text or symbols)

10.3 El click triple

11. Comunicación

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

-AUDICIÓN-

Yellow triangular warning sign with sun and eye symbol (no text)

Mostrador: 6.6" HD+, 1612x720 px Processador: MediaTek Dimensity 720 Câmara principal (atrás): 50 Mpx + 2 Mpx Câmara frontal: 8 Mpx

Memória RAM: 8 GB

4G (LTE): 800/850/900/1800/1900/2000/2100/2300/2500/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Bateria:

HS2302: Li-Poli 6000 mAh

HS2302e: Li-Ion 6000 mAh

https://www.myphone.pl/product/myphone-swiftcharge-duo

1. SIM 1 card + SIM 2 card
2. micro SD card + SIM 1 card

9. Botones

Menú (virtual)

Two-step diagram showing a hand pressing a green circular button with a finger, and a curved arrow indicating rotation (no text or symbols)

10.3 El click triple

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

Yellow triangular warning sign with sun and eye symbol (no text)

4G (LTE): 800/850/900/1800/1900/2000/2100/2300/2500/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Batterie:

HS2302: Li-Poli 6000 mAh

HS2302e: Li-Ion 6000 mAh

Dimensions: 164.8 x 76.7 x 9.9 mm

Poids netto: 225g

https://www.myphone.pl/product/myphone-swiftcharge-duo

1. SIM 1 card + SIM 2 card
2. micro SD card + SIM 1 card

9. Boutons

Menu (virtuel)

Hand cursor clicking a green circular button with a blue ring (no text or symbols)

10.2 Déplacer

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

-KUULMINE-

Yellow triangular warning sign with sun and eye symbol (no text)

-NÄGEMINE-

Veebileht: www.myphone-mobile.com

Toodetud Hiinas

5. Pakendi sisu

4G (LTE): 800/850/900/1800/1900/2000/2100/2300/2500/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Aku:

HS2302: Li-Poli 6000 mAh

HS2302e: Li-Ion 6000 mAh

Möödud: 164.8 x 76.7 x 9.9 mm

Kaal netto: 225 g

https://www.myphone.pl/product/myphone-swiftcharge-duo

1. Telefoni välimus

8. SIM-kaardi paigaldamine

1. SIM 1 card + SIM 2 card
2. micro SD card + SIM 1 card

9. Nupud

Menüü (virtuaalne)

White hand with a blue arrow pointing downward, no text or symbols present

11. Suhtlemine

11.1 Helistamine

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Black and white icon of an exclamation mark on a stylized book (no text or symbols)

-PAGALBOS SKAMBUČIAI-

-KLAUSA-

Yellow triangular warning sign with sun and eye symbol (no text)

-REGÉJIMAS-

4G (LTE): 800/850/900/1800/1900/2000/2100/2300/2500/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Baterijos:

HS2302: Li-Poli 6000 mAh

HS2302e: Li-Ion 6000 mAh

Matmenys: 164.8 x 76.7 x 9.9 mm

Svoris netto: 225 g

Maitinimo parametrai: greitojo jkrovimo sistema "Pump Express" (5 V /7 V /9 V /12 V ir maksimali galia 18 W).

Rekomenduojama naudoti jkroviklj: Hammer RAPIDCHARGE DUO

Jkroviklio jėjimo parametrai: AC 100-240V, 50/60Hz 1A

The charger can be purchased on our website:

https://www.myphone.pl/product/myphone-swiftcharge-duo

1. Telefono išvaizda

1. SIM 1 card + SIM 2 card
2. micro SD card + SIM 1 card

9. Mygtukai

Meniu (virtualus)

White hand with a blue arrow pointing downward, no text or symbols present

11. Bendravimas

11.1 Skambinimas

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Black and white icon of an exclamation mark on a stylized book or document (no text or symbols)

Yellow triangular warning sign with sun and eye symbol (no text)

-DZIRDE-

Processors: MediaTek Dimensity 720

Galvenā kamera (aizmugurē): 50 Mpx + 2 Mpx

4G (LTE): 800/850/900/1800/1900/2000/2100/2300/2500/2600 MHz

5G: 700/1800/2100/2500/2600/3500/3700 MHz

Akumulatoraa:

HS2302: Li-Poli 6000 mAh

HS2302e: Li-Ion 6000 mAh

Izmēri: 164.8 x 76.7 x 9.9 mm

Svars netto: 225 g

https://www.myphone.pl/product/myphone-swiftcharge-duo

1. Tālruṇa izskats

1. SIM 1 card + SIM 2 card
2. micro SD card + SIM 1 card

9. Pogas

Abstract illustration of a hand reaching toward a blue arrow (no text or symbols)

11. Sakari

11.1 Zvanu veikšana

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with diagonal lines indicating no text or symbols (no text or labels)
