USER MANUAL PPG400 Sun Joe

© 2021 by Snow Joe , LLCAll rights reserved. Original instructions.

SAVE THESE INSTRUCTIONS

384 Wh | 13.8V DC MAX* | 30000 mAh A Division of Snow Joe , LLC

Model PPG400 Form No. SJ-PPG400-880E-M IMPORTANT! Safety Instructions All Operators Must Read These Instructions Before Use Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, re and/ or serious injury. Notice the personal safety alert symbol m used in this manual to draw your attention to a WARNING given along with the particular operating instruction. This means that the operation requires special ATTENTION, CAUTION, and AWARENESS. mCHARGE BEFORE USE! CHARGE BEFORE FIRST TIME USE until full. Recharge every 3 months to prevent degrading the battery. mWARNING! Risk of impact, re and explosion! Mishandling and improper use of the product may damage the battery and pose a re hazard for users. Follow all warnings statements in the manual. mWARNING! Shock or Fire Hazard! This product generates the same potentially lethal AC current as a typical electrical wall outlet. Please use with caution. mWARNING! Do not use this device to power life support systems or any other medical equipment or device. When using this product, basic precautions should always be followed, including the following:

1. Keep the device away from children. Do not allow children

to operate the power station.

2. Do not allow persons unfamiliar with the use and function

of this device, as well as to those with physical or mental disabilities to use the power station.

3. Do not expose the device to rain or wet conditions. Water

entering the unit will increase the risk of electric shock.

4. Do not use accessories that are not recommended by the

manufacturer. Using unapproved accessories may result in re, electric shock, or personal injury.

5. Do not operate the device with a damaged power cord

or plug. If damaged, replace the power cord or plug immediately.

6. If the device is subjected to violent impact, drop or

damage, do not continue operation. Contact Snow Joe

7. Do not disassemble this device. Improper reassembly may

lead to electric shock or re.

8. Do not attempt to use or charge a damaged or modied

device. A damaged or modied device may exhibit unpredictable behavior resulting in re, explosion, or risk of injury.

9. Do not use the device in an enclosed space or in an

environment prone to sparks, ames or smoke.

10. Do not use the product in environments with ne metal

particles to prevent the risk of internal short circuits. Remove personal metal items such as rings, bracelets, necklaces and watches when operating this product. The built-in battery may produce a short-circuit current high enough to weld a ring or the like to metal, causing a severe burn.

11. Do not use the device in humid environments.

12. To reduce the risk of electric shock, unplug all connections

before cleaning, servicing, and storage.

13. Do not insert ngers or any other foreign object into any

ports or receptacles.

14. Do not smoke around the product. Do not use this

product in vicinity of spark or ame. Exposure to re or temperature above 212°F (100°C) may cause explosion.

15. Do not expose the product to re or excessive

temperature. Exposure to ames or high temperatures may cause an explosion.

16. Charge in a well-ventilated area. Do not block the charger

vents. Keep them clear to allow for proper ventilation. Do not allow smoking or open ames near the charging unit. Vented gases may explode.

17. Observe all Input/Output connectors ratings. To avoid re

or electrical shock hazard, observe all ratings on unit, and products you intend to use.

18. Keep the unit clean and dry. Inspect the unit for dirt, dust,

or moisture on a regular basis.

19. The power station cannot be used and charged at the

same time.2 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

MANUAL(S) – Read, understand, and follow all instructions in the user manual(s) before attempting to assemble and operate. SAFETY ALERT – Indicates a precaution, a warning, or a danger. WARNING! Do not expose the unit to rain or wet conditions. Keep dry. WARNING! Electrical shock hazard. Symbols SymbolsDescriptions Descriptions3 Know Your Portable Power Station Read the owner’s manual and safety instructions carefully before operating this portable power station. Compare the illustration below to the portable power station in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

• Portable power station

• Manual with registration card

1. Carefully remove the power station and check to see that

all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you nd damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new power station. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations. IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. These items can be swallowed and pose a suocation risk! Operation mWARNING! Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sucient to inict serious injury. mWARNING! Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury. mWARNING! Do not modify or attempt to repair the power station except indicated in the instructions for use and care. mWARNING! The device shall be stored indoors. The unit shall not be charged outdoors. When in use, cautions should be taken to reduce the exposure to rain, sleet, and snow. Intended Uses This power station is used for supplying electrical power for operating compatible small electronics and USB-powered devices. The continuous output wattage of this product is limited to 384 W total when supplying backup power. This limit applies to the total of all items plugged into the power station. LCD Screen (Fig. 1)

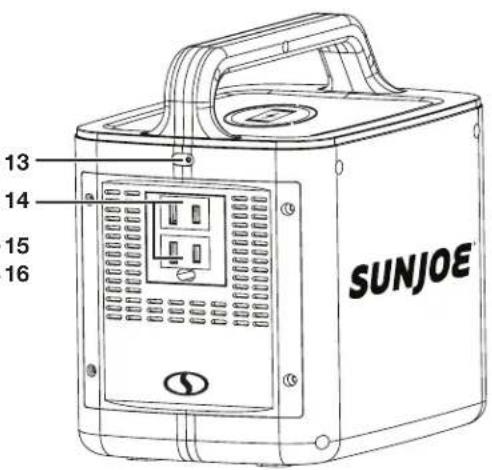

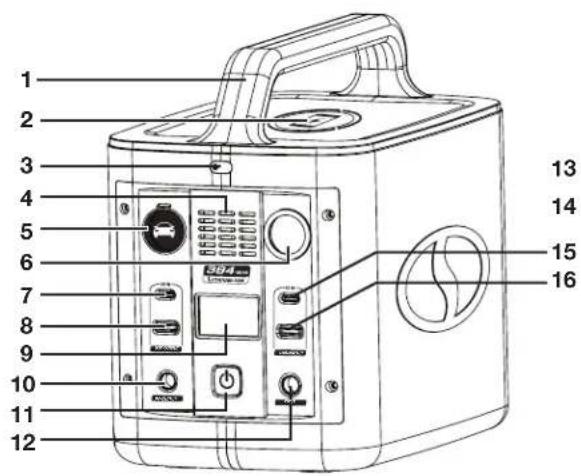

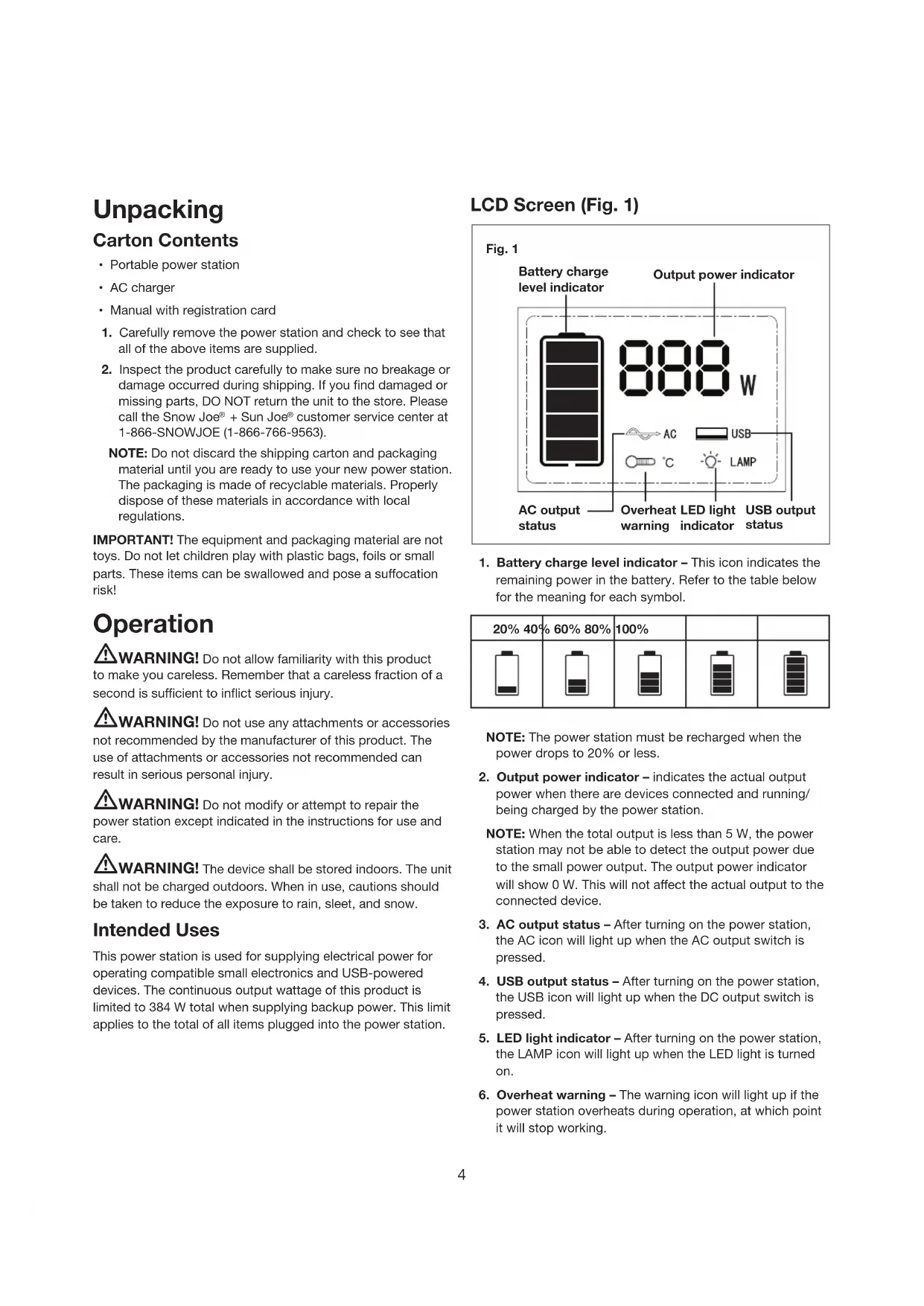

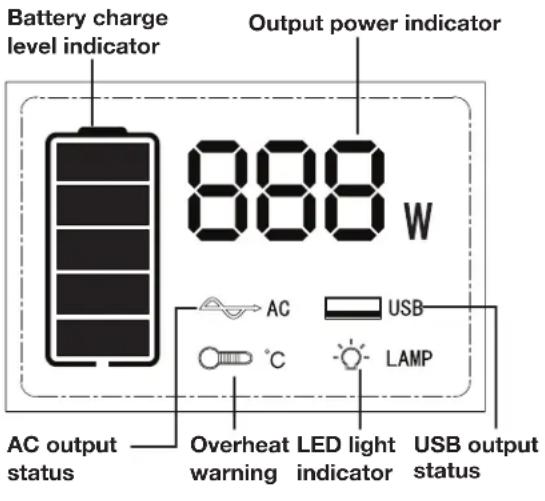

1. Battery charge level indicator – This icon indicates the

remaining power in the battery. Refer to the table below for the meaning for each symbol. NOTE: The power station must be recharged when the power drops to 20% or less.

2. Output power indicator – indicates the actual output

power when there are devices connected and running/ being charged by the power station. NOTE: When the total output is less than 5 W, the power station may not be able to detect the output power due to the small power output. The output power indicator will show 0 W. This will not aect the actual output to the connected device.

3. AC output status – After turning on the power station,

the AC icon will light up when the AC output switch is pressed.

4. USB output status – After turning on the power station,

the USB icon will light up when the DC output switch is pressed.

5. LED light indicator – After turning on the power station,

the LAMP icon will light up when the LED light is turned on.

6. Overheat warning – The warning icon will light up if the

power station overheats during operation, at which point it will stop working. Fig. 1 Battery charge level indicator AC output status Output power indicator Overheat warning LED light indicator USB output status 20% 40% 60% 80% 100%5 If the power station overheats during the charging process, the power station will resume working once the temperature has dropped and the internal battery has cooled down. If the power station overheats during the discharging process, turn o the power station and wait until the power station cools down. Then restart the power station to resume usage. Charging Operations This power station must be fully charged before use or storage. Check the LCD screen for the remaining power in the built- in battery. If the power drops to 20% or less, stop using the power station and charge it as soon as possible. The power station can be charged by:

• The included AC charger

• 12V DC car charging cable (sold separately) NOTE: Do not use the power station to power/charge other devices while the power station is being charged. Follow the instruction below to charge the power station. AC CHARGER

1. Check whether the mains voltage is the same as that

marked on the AC charger. Then, plug the AC charger into an electrical wall outlet.

2. Turn o the power station and remove all loads connected

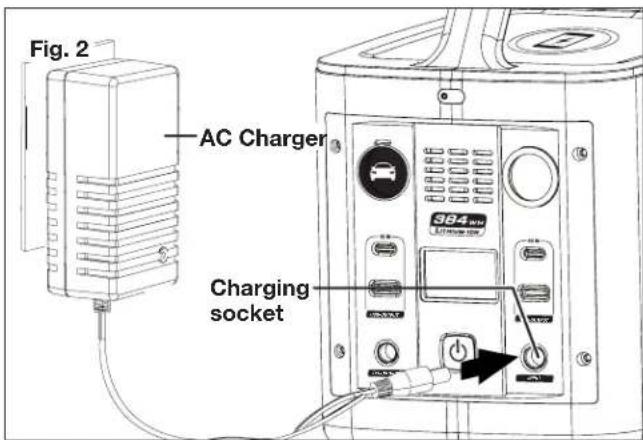

with the power station. Connect the charger plug into the charging socket to start charging (Fig. 2).

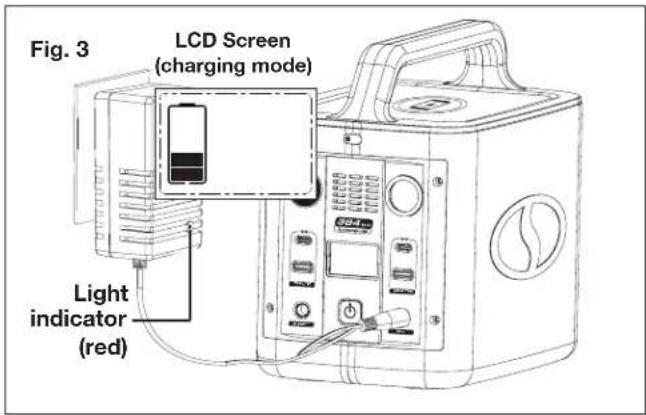

3. During the charging process, the battery charging level

indicator on the LCD screen will light up and ash to indicate the charging process. The indicator light on the AC charger adapter will light up in red (Fig. 3). Fig. 3 USB-OUTPUTUSB-OUTPUTDC-OUTPUTINPUT Light indicator (red) LCD Screen (charging mode)

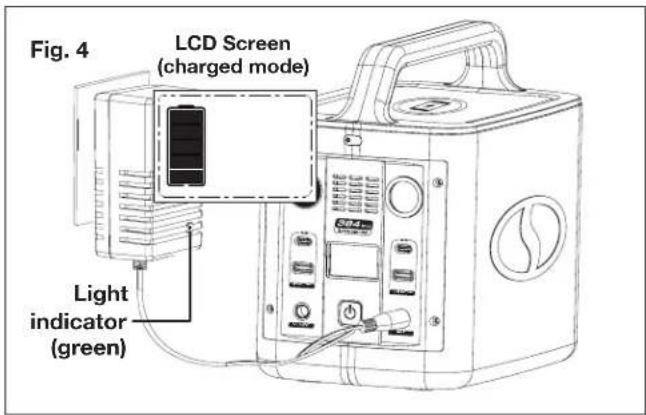

4. It will take approximately 12 hours to fully charge the

power station. When charging is complete, the battery charging level indicator will stop ashing and light up solid. Additionally, the light indicator on the AC charger will turn green. Unplug the charger when the power station is fully charged (Fig. 4). Fig. 4 USB-OUTPUTUSB-OUTPUTDC-OUTPUTINPUT Light indicator (green) LCD Screen (charged mode) CAR CHARGER

1. While the car is running, use the optional 12V DC car

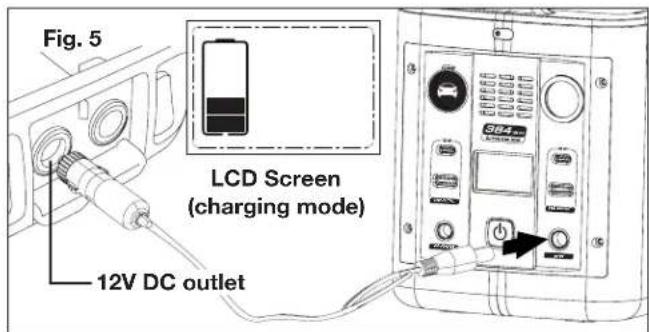

charging cable (PPG-CARCHRG sold separately) to connect the power station to the car's 12V DC outlet (Fig. 5). Charging will start as soon as the power station is connected.

2. It will take approximately 6 hours to fully charge the power

station. Disconnect the charging cable when the power station is fully charged. USB-OUTPUT USB-OUTPUT DC-OUTPUT INPUT Fig. 2 AC Charger Charging socket USB-OUTPUTUSB-OUTPUTDC-OUTPUTINPUT 12V DC outlet LCD Screen (charging mode) Fig. 56 Discharging Operations Only AC devices that are under 300W and DC devices under 120W can be powered or charged using this power station. These include many small electronics and appliances. Check the table below for some common devices and their power requirements. NOTE:

• Average power consumption as measured on loads tested under regular operating conditions. Rated power may be dierent from average power consumption.

• Runtime measured on tested loads.

• If a high powered device is plugged in (e.g. a large refrigerator), the charge level will deplete more rapidly leading to shorter run times. If devices that draw lower power are plugged in, you will get closer to the rated run times. IMPORTANT! The power station is not suitable for use with certain products and loads. The continuous output wattage of this product is limited to 384 W total when supplying backup power from its battery. This limit applies to the total devices plugged into this power station. The power station is not sucient to run devices designed to produce large amount of heat, like a space heater or a pellet stove igniter.

POWERING ON THE POWER STATION

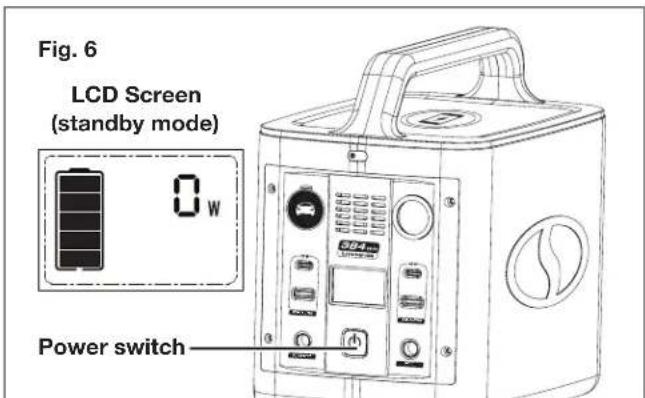

Turn on the power station by pressing and holding the power switch until the LCD screen illuminates to show the standby mode (Fig. 6). mWARNING! Do not insert a nail, wire, etc. into any ports or receptacles. Otherwise a circuit short may cause smoke or re. NOTE: Before plugging in, verify the device is suitable for use with the power station. All of the power station output ports have their own max power capacity. Refer to the Technical Data section to ensure your device is compatible. PRODUCTS PORT RUN TIME (h)/ RECHARGES (X) Smart phone USB port 15X Laptop AC jack 3X Tablet USB port 9X Drone DC barrel jack 5X Light bulb AC jack 19h 32 inch TV AC jack 5h Mini fridge DC barrel jack 30h

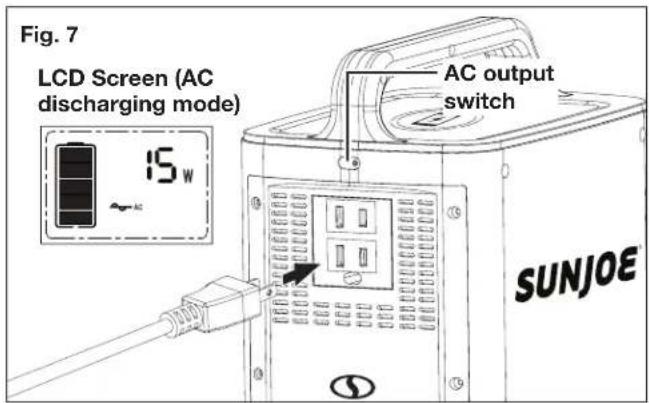

To use the power station to power an AC device, rst turn the station on, then press the AC output switch, and connect the plug of the device's power cord to either of the power station's AC outlets. The LCD screen will light up and show the output (Fig. 7). AC OUTPUT PROTECTION: If the AC output has a short circuit or the output is overloaded, the unit will turn o the AC circuit for protection. If this happens, please troubleshoot and re-activate the AC output according to the table below. Some electrical equipment, such as refrigerators, ice makers, laser printers may require a peak power to start-up. This peak power may exceed the power station's output wattage, which will activate the unit’s overload protection mode. Such devices are not compatible with the unit. USB-OUTPUT USB-OUTPUT DC-OUTPUT INPUT Fig. 6 LCD Screen (standby mode) Power switch

Protection Problem Solution Overload protection No AC output while DC output can work normally. Remove the extra load and press the AC output switch again to recover. Short circuit protection The power station shuts down. No output from any ports. No display on LCD screen. Remove the device causing the short circuit. Press the power switch and the AC output switch again to recover.7 NOTE: If the AC output does not detect a connected device for 6 hours (a device which draws less than 10 W cannot be detected), the AC circuit will switch o automatically. Press the AC output switch again to reactivate the AC circuit.

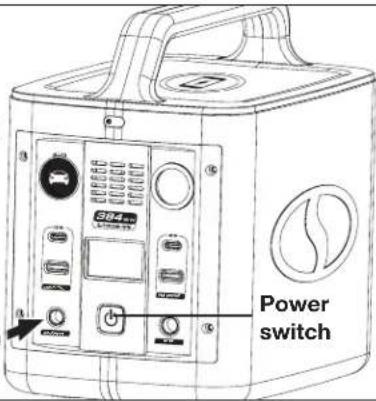

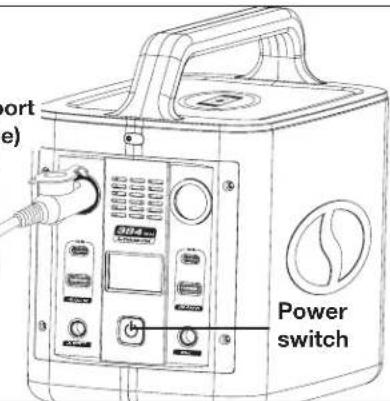

The power station can also power 12V DC devices such as DC fans and LED lights. Turn the station on by pressing the power switch, and connect the appliance to either the DC receptacle or the car port charger of the power station. The LCD screen will light up and show the output (Figs. 8 and 9). DC OUTPUT PROTECTION: If the DC output is shorted or overloaded, the device will shut down for protection

Check the table below for details. USB-OUTPUT USB-OUTPUT DC-OUTPUT INPUT LCD Screen (DC discharging mode) Power switch Fig. 8 NOTE: The DC output voltage will decrease as the battery capacity decreases, which may cause the connected DC device to shut down or to suspend charging. NOTE: If the DC output doesn't detect a connected device for more than 2 hours (an output less than 2 W is considered not detectable), the DC circuit will switch o automatically. Press the power switch again to reactivate the DC circuit.

POWERING USB DEVICES

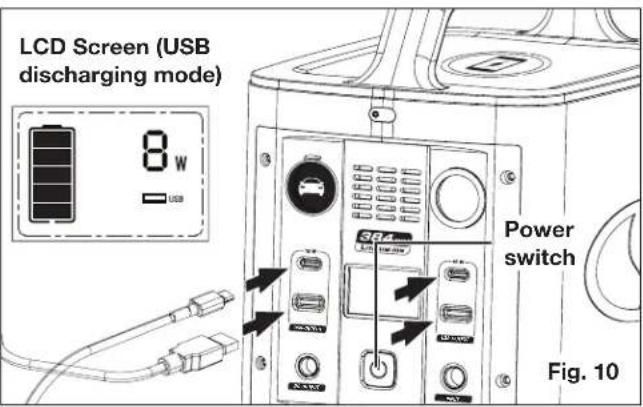

To power USB devices, rst turn the station on, then connect your USB cable into either of the USB-C or USB-A ports on the power station to charge your device (Fig. 10). USB-OUTPUT USB-OUTPUT DC-OUTPUT INPUT Fig. 10 LCD Screen (USB discharging mode) Power switch USB OUTPUT PROTECTION:

USB OUTPUT PROTECTION

Protection Problem Solution Overload protection The overloaded USB port(s) will have no output. Other receptacles can work normally. Remove the extra load from the receptacle(s). Short circuit protection The short-circuited USB receptacle(s) will have no output. Other receptacles can work normally. Remove the device from the receptacle(s). USB-OUTPUT USB-OUTPUT DC-OUTPUT INPUT LCD Screen (car port discharging mode) Power switch Fig. 9

DC OUTPUT PROTECTION

Protection Problem Solution Overload protection No DC or USB output while AC output can work normally. Remove the extra load and press the power switch again to recover. Short circuit protection The device shuts down. No output from any ports. No display on LCD screen. Remove the device that caused the short circuit. Press the power switch again to recover.8 Using the LED light

1. Turn on the power station by pressing and hold the power

switch until the LCD screen shows the standby display (Fig. 6).

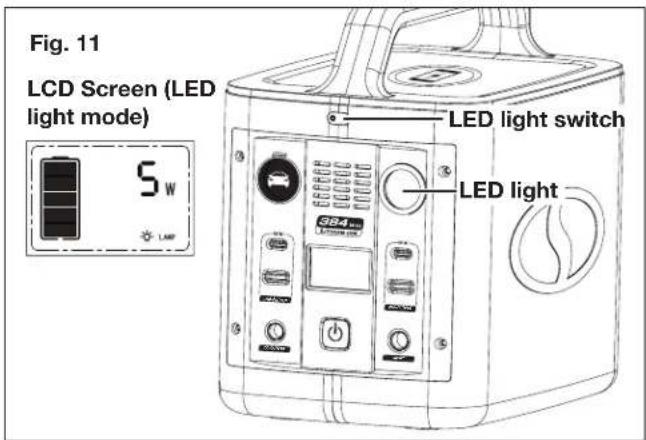

2. Press the LED light switch to turn on the LED light. Press

it again to turn o the light (Fig. 11).

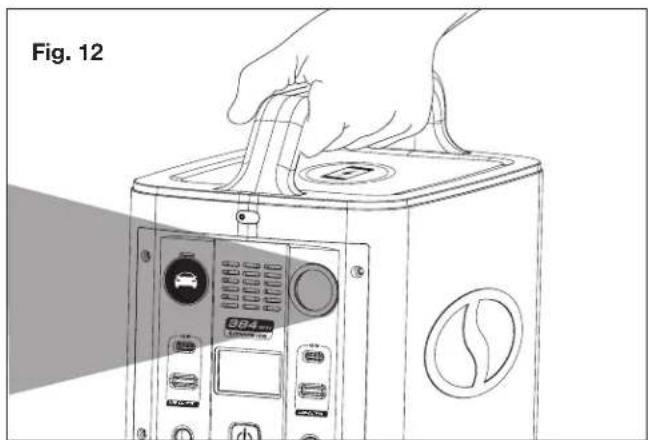

3. Hold the power station by the handle to use it as a

spotlight (Fig. 12). Turning o the Power Station NOTE: To avoid depleting the battery power, make sure to turn o the power station when not in use.

1. If the AC power is turned on, switch o the AC output

switch and disconnect all devices from either side of the station.

2. Press the power switch to turn o the power station.

1. This product may become hot during charging, this is

2. Avoid storing this device near coins, jewelery, keys, and

other metal objects. An accidental electrical discharge may cause damage. USB-OUTPUTUSB-OUTPUTDC-OUTPUTINPUT Fig. 11 LED light switch LED light LCD Screen (LED light mode) USB-OUTPUT USB-OUTPUT DC-OUTPUT INPUT Fig. 12

3. Do not place the unit near or under intense heat or re.

4. The unit is not waterproof, avoid water and other liquids.

5. Do not drop the unit. Do not place heavy objects on the

6. Do not cover this product with towels, clothing during use.

7. Do not charge the power station longer than the time

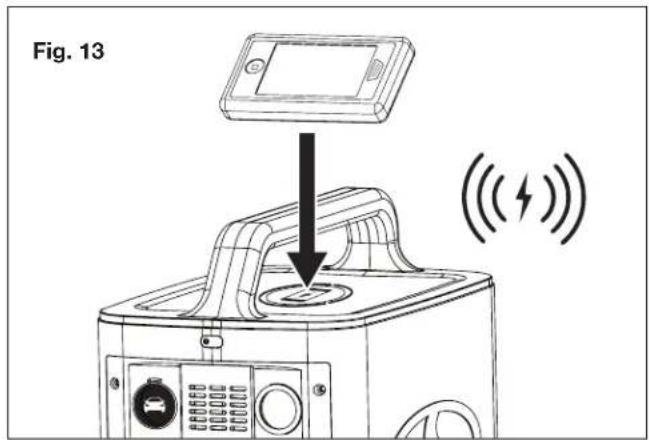

required to fully charge. Using the Wireless Charger The top of the power station can also serve as a wireless charger. With the power station turned on, place your device on the wireless charging pad on the top of the power station. The power station will start to charge the device (Fig. 13). Maintenance

WARNING! Always switch the product o and disconnect any devices plugged in before performing inspection, maintenance, and cleaning work. mWARNING! When servicing, use only identical replacement parts. Use of any other parts could create a hazard or cause product damage. General Maintenance Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. mWARNING! Do not at any time allow brake uids, gasoline, petroleum-based products, penetrating oils, etc to come into contact with plastic parts. Chemicals can damage, weaken or destroy plastic, which could result in serious personal injury. USB-OUTPUT USB-OUTPUT DC-OUTPUT INPUT Fig. 139 Storage

• Switch o the power station, disconnect all appliances. Thoroughly clean the housing with a soft, dry cloth.

• Store the device indoors in a safe location out of the reach of children. Keep away from corrosive agents, such as garden chemicals and de-icing salt. Disposal Recycling the Device

• Do not dispose this power station as unsorted municipal waste. Use appropriate collection facilities.

• Contact your local government agency for information regarding the collection systems available.

• If electrical appliances are disposed of in landlls or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well- being. Recycling + Disposal The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is functioning properly. Recycle the package afterwards or keep it for long-term storage. WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling regulations. Service + Support If your Sun Joe

portable power station needs service or maintenance, please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). Model + Serial Numbers When contacting the company or reordering parts, you will need to provide the model and serial numbers of your product. These are found on the decal axed to the housing of your portable power station. Copy these numbers into the space provided below. Record the following numbers from the housing or handle of your new product: Model #: P P G 4 0 0 Serial #: Federal Communications Commission (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. mCAUTION! Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.10 Optional Accessories WARNING! ALWAYS use only authorized Snow Joe

replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this power station. Contact Snow Joe

if you are unsure whether it is safe to use a particular replacement part or accessory with your power station. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. ModelAccessories Item 12V DC Car Charging Cable (12V DC plug to male barrel plug) PPG-CARCHRG NOTE: Accessories are subject to change without any obligation on the part of Snow Joe

to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe

CUSTOMER PROMISE OUR WARRANTY: Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there’s an issue with a specic part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that! This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs. WHO CAN SEEK LIMITED WARRANTY COVERAGE: This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product. WHAT IS NOT COVERED? This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not aect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe

product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.
