Brand	Husqvarna
Model	BLi200X
Product type	Battery charger
Compatible batteries	Husqvarna BLi100, BLi200, BLi300, BLi200X
Input voltage	100-240 V AC
Input frequency	50-60 Hz
Charging temperature	5 °C to 40 °C
Battery operating temperature	-10 °C to 40 °C
LED indicators	Charge, charger error, battery error, charge status
Main functions	Safe charging of Husqvarna Li-ion batteries, protection against overvoltage and extreme temperatures
Maintenance and cleaning	Clean the terminals with a dry cloth, store in a dry and clean place
Storage	Temperature 5 °C to 25 °C, away from light and frost
Safety	Do not use a damaged battery or charger, do not expose to heat or flames, follow the instructions in the manual
Spare parts and repairability	Repairs only by an authorized dealer, use approved Husqvarna parts
General information	Conforms to EC and UK directives, recycling via appropriate channels

Frequently Asked Questions - BLi200X HUSQVARNA

Which batteries can I charge with the Husqvarna BLi200X?

The BLi200X charger is designed to charge original Husqvarna batteries from the BLi100, BLi200, BLi300 and BLi200X series. Only use approved batteries.

How do I charge the battery correctly?

Place the battery in the charger. The charging LED lights up to confirm connection. Charging is complete when all LEDs on the battery are lit. Then remove the battery.

What are the recommended temperatures for charging?

Use the charger only between 5 °C and 40 °C. The battery will not charge if its temperature exceeds 50 °C or is too low.

What does the flashing error LED on the battery mean?

This indicates a temperature deviation: the battery is too cold or too hot. Let it cool down or warm up to room temperature before use.

What should I do if the battery error LED stays on?

This may indicate a voltage difference between cells (greater than 1 V). Contact your authorized dealer for a check.

How do I store the battery for long periods?

Store it in a dry, clean place, protected from frost, between 5 °C and 25 °C. Charge it to 30-50% before prolonged storage.

Can I leave the battery in the charger after charging?

No, remove the battery from the charger when fully charged. Do not keep it in the charger.

How do I clean the charger or battery?

Use a clean, dry cloth to clean the battery terminals. Keep the charger clean and dry.

How do I dispose of the charger or battery at end of life?

Do not throw them in household waste. Take them to a collection point for electrical and electronic equipment or to a recycling center.

Is the charger compatible with all Husqvarna products?

It is intended for Husqvarna products using BLi100/200/300/200X batteries. Do not use it for other devices.

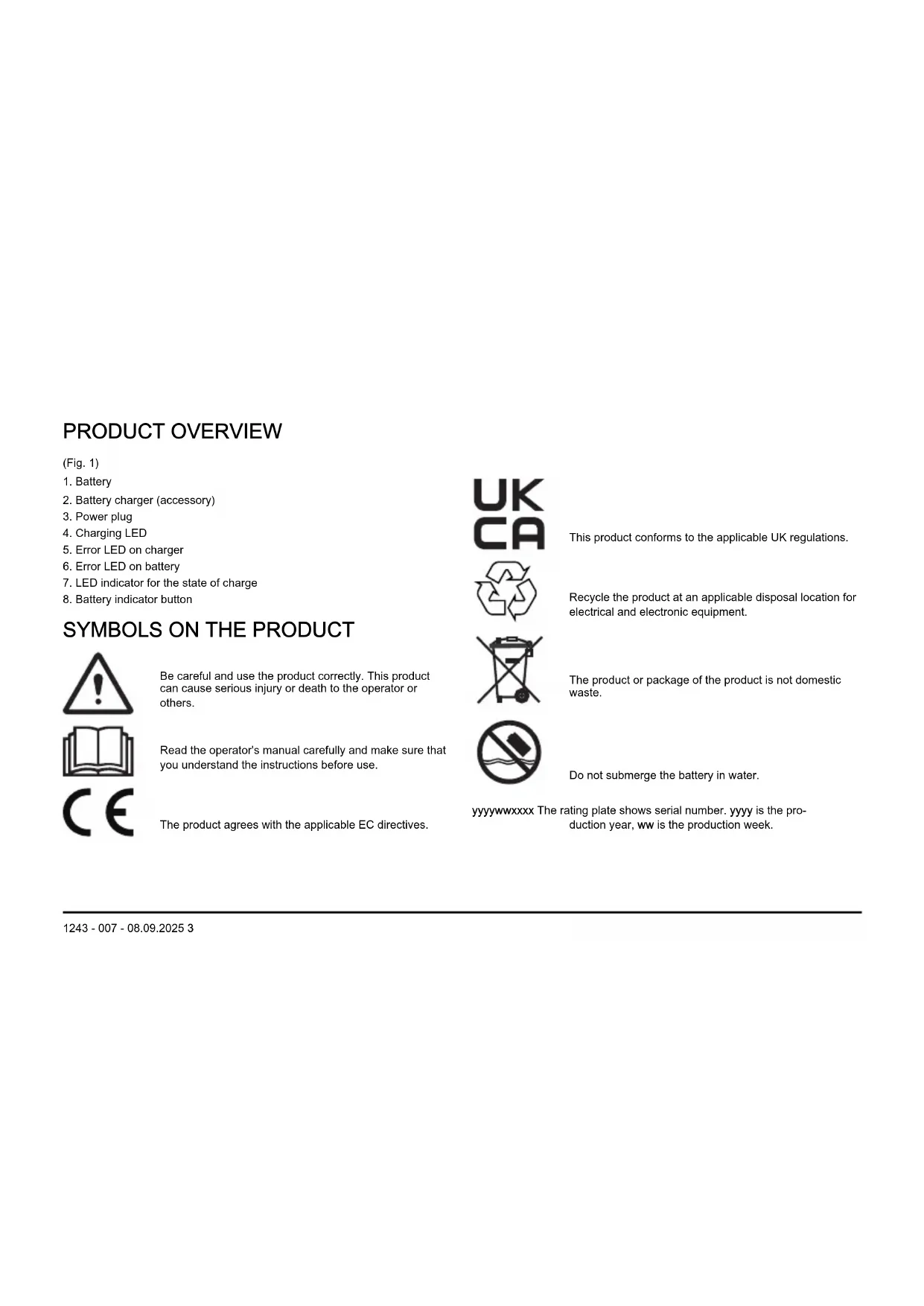

USER MANUAL BLi200X HUSQVARNA

1. Battery
2. Battery charger (accessory)
3. Power plug
4. Charging LED
5. Error LED on charger
6. Error LED on battery
7. LED indicator for the state of charge
8. Battery indicator button

SYMBOLS ON THE PRODUCT

! CE

Be careful and use the product correctly. This product can cause serious injury or death to the operator or others.

Read the operator's manual carefully and make sure that you understand the instructions before use.

The product agrees with the applicable EC directives.

This product conforms to the applicable UK regulations.

Recycle the product at an applicable disposal location for electrical and electronic equipment.

The product or package of the product is not domestic waste.

Do not submerge the battery in water.

yyyywwxxxx The rating plate shows serial number. yyyy is the production year, ww is the production week.

Note: Other symbols/decals on the product refer to certification requirements for some commercial areas.

Product damage

We are not responsible for damages to our product if:

• the product is incorrectly repaired.
- the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.
- the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
- the product is not repaired at an approved service center or by an approved authority.

SAFETY DEFINITIONS

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Read all safety warnings and all instructions. Failure to obey the warnings and instructions may result in electrical shock, fire and/or serious injury.

Note: Save all warnings and instructions.

• Only use Husqvarna approved battery chargers to charge Husqvarna original batteries. The batteries are software encrypted.
• Use the BLi100/200/300/200X batteries that are rechargeable as a power supply for the related Husqvarna products only. To prevent injury, do not use the battery as a power supply for other devices.
• Do not try to disassemble or repair the battery. All repairs is to be done by an approved dealer only.
• Keep the battery away from sunlight, heat or open flame. The battery can cause burns and/or chemical burns.
• Do not use a damaged battery or battery charger.
• Do not cause mechanical shock to the battery.
• Do not remove the battery from its package until you are to use it.

• Do not let battery acid touch your skin. Battery acid causes injuries to the skin, corrosion and burns. If you get battery acid in your eyes, do not rub but flush with water for a minimum of 15 minutes. If battery acid has touched your skin, you must clean the skin with a large quantity of water and soap. Get medical aid.

• Keep the battery away from children.

• Keep the battery clean and dry.
• Clean the battery terminals with a clean dry cloth if they become dirty.
• Do not keep the battery in the battery charger when it is fully charged.
• Remove the battery from the product when you do not use it and during transportation.
• Keep batteries in storage away from metal objects such as nails, screws or jewelry.

Husqvarna Connect

Husqvarna Connect is a free app for your mobile device. The Husqvarna Connect app gives extended functions for your Husqvarna product.

- Extended product information.

• Information about, and help with, product parts and servicing.

To start to use Husqvarna Connect

1. Download the Husqvarna Connect app on your mobile device.
2. Register in the Husqvarna Connect app.
3. Follow the instruction steps in the Husqvarna Connect app to connect and register the product.

Note: Husqvarna Connect app is not available for download in all markets. Speak to your servicing dealer for more information.

OPERATION

• Push the battery indicator button to start the battery before use.

• The battery must be charged before you use it for the first time. Always use a Husqvarna approved battery charger.

• Use the battery only when the ambient temperature is between -10^ (14°F) and 40^ (104°F).

• Decrease the workload and/or speed when the battery temperature indicator is flashing.

Note: Heavy workload when the battery temperature is less than 0^ C ( 32^ F) can cause a temporary battery error.

• Use the battery charger only when the ambient temperature is between 5^ (41°F) and 40^ (104°F).
• The battery will not charge if the battery temperature is more than 50^ (122°F).
• Push the battery indicator button to get information of the state of charge of the battery.

To charge the battery

Charge the battery before the first time of operation. A new battery is charged 30%. Push the battery indicator button to get information of the state of charge of the battery.

CAUTION: Only charge the battery when the ambient temperature is between 5°C (41°F) and 40°C (114°F).

CAUTION: Use the battery only when the ambient temperature is between -10^ ( 14^ ) and 40^ ( 104^ ).

Note: The battery will not charge if the battery temperature is too high or too low.

1. Put the battery in the battery charger. When the charging LED on the battery charger comes on, the battery is connected correctly to the battery charger.

2. The battery is fully charged when all LEDs on the LED indicator on the battery are on.

3. Remove the battery from the battery charger.

Battery LED indicator

The display shows the state of charge and if there are problems with the battery.

LED indicator Battery status (state of charge)
4 LED lights are on The battery is 76% - 100% charged.
3 LED lights are on The battery is 51% - 75% charged.
2 LED lights are on The battery is 26% - 50% charged.
1 LED light is on The battery is 6% - 25% charged.
1 LED light flashes The battery is 0% - 5% charged.

TROUBLESHOOTING

Symptoms Cause Action
The battery error LED flashes. Temperature deviation, the battery is too cold or too hot to use.		Let the battery cool down or move it indoors to warm it up. When the battery has the correct temperature, it can be used again. Use the battery in ambient temperatures between -10°C (14°F) and 40°C (104°F).
The battery error LED comes on. Cell difference too much (1V). Speak to your dealer.

Transport and storage

• The supplied Li-ion batteries obey the Dangerous Goods Legislation requirements.
• Obey the special requirement on package and labels for commercial transportations, also those from third parties and forwarding agents.
• Speak to a person with special training in dangerous material before you send the product. Obey all applicable national regulations.
• Use tape on the contacts when you put the battery in a package. Put the battery in the package tightly to prevent damage and accidents.
• Do not keep the battery in an area where static electricity can occur. Do not keep the battery in a metal box.
• Put the battery in a dry, frost free and clean space with correct temperature.

• Put the battery in storage where the temperature is between 5^ (41 °F) and 25^ (77 °F). Keep the battery away from sunlight.

• Charge the battery 30% to 50% before you put it in storage for long periods.

• Clean the battery before you put it in storage.

Disposal

The symbol means that the product is not domestic waste. Recycle it through your local collection system for electrical and electronic equipment. This contributes to proper end of life waste management. Contact local authorities, domestic waste services, your dealer or retailer for information. Incorrect disposal may have potential negative effects on the environment and human health, due to the potential presence of hazardous substances.

Note: The symbol shows on the product or package of the product.

TECHNICAL DATA

For technical data, refer to the rating plate of the battery.

Table 1: Approved battery chargers

	QC330 QC500	40-C500X 40	C750X
Voltage, V 36	36 36 36
Input volt-age, V	100-240 100-240 100-240
Frequency, Hz	50-60 50-60 50-60 50-60
Power, W 330	500 500 750
