| Product Type | Smartphone |
| Brand and Model | WIKO Robby 2 |
| Power Supply | Built-in rechargeable battery, charger 5.0 V / 1.0 A (model TN-050100E1A) |
| Battery Capacity | Not specified in the manual (battery life varies depending on usage) |
| SIM Card Type | Dual SIM (standard mini SIM) |
| Memory Expansion | microSD card up to 64 GB |
| Wireless Connectivity | Wi-Fi 802.11 b/g/n, Bluetooth 4.0, GPS, 4G LTE (bands B1/B3/B7/B8/B40), 3G HSPA+, 2G GSM |
| SAR Value | Head: 1.59 W/kg, body: 0.82 W/kg (at 0.5 cm) |
| GSM Frequency Bands | 850/900/1800/1900 MHz |
| UMTS Frequency Bands | B1 (2100), B5 (850), B8 (900) |
| LTE Frequency Bands | B1 (2100), B3 (1800), B7 (2600), B8 (900), B40 (2300) |
| Physical Buttons | Power, Home, Overview (recent apps), Back, Volume (+/-) |
| Box Contents | Mobile phone, power adapter, micro USB cable, hands-free kit, quick start guide and safety instructions, battery |
| Care and Cleaning | Use a dry cloth, no solvents (benzene, alcohol) |
| Important Safety Instructions | Do not expose to water, extreme temperatures (<0°C or >45°C), do not disassemble the battery, follow instructions on airplanes/hospitals/gas stations |
| Repairability | Repair only by a WIKO authorized technician |
| Software Version | Robby2-V01 |
| Certification | Compliant with Directive 2014/53/EU, CE marking |
| Recycling | Device, battery, and accessories subject to WEEE and Battery Directives – take to an approved collection point |
Frequently Asked Questions - Robby 2 WIKO
User questions about Robby 2 WIKO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Smartphone in PDF format for free! Find your manual Robby 2 - WIKO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Robby 2 by WIKO.

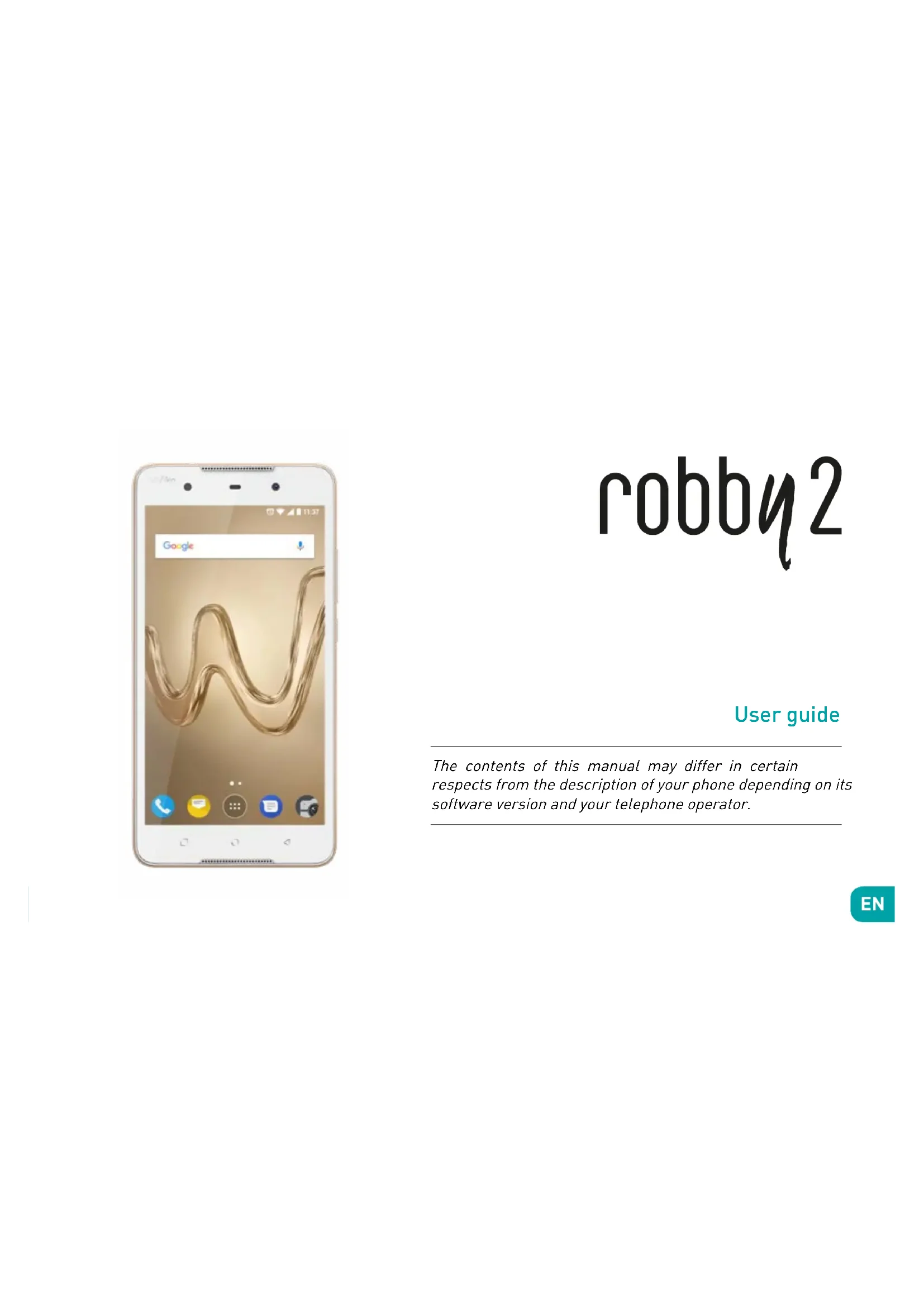

USER MANUAL Robby 2 WIKO
The contents of this manual may differ in certain respects from the description of your phone depending on its software version and your telephone operator.
EN
CONGRATULATIONS!
You have just purchased your WIKO ROBBY2 mobile phone. This guide contains all the information needed to use the phone so that you can quickly familiarise yourself, we hope, with the world of WIKO.
A complete version of the guidelines, safety instructions and your device user guide is available on our website www.wikomobile.com. You can request a printed version via email or printed letter at the address listed at the end of the user guide.
Copyright © 2017 WIKO
The information contained in this manual may not be disclosed to third parties or reproduced in any form whatsoever without the express written consent of WIKO.
Trademarks
WIKO is a registered trademark of WIKO SAS.
Disclaimer
This manual has been prepared with the utmost care and attention and is designed to guide you through the functions and features of your device. However, the information and recommendations contained herein do not constitute a guarantee under the Applicable law. WIKO reserves the right to change or modify the information contained in this manual at any time
Limitation of Liability
All content and services accessible through this device are the exclusive property of third parties and are protected by the relevant laws (copyright, patent, licence and/or other intellectual property laws). These services are for your own personal non-commercial use. It is not permitted to use any content or services without prior written permission of the content owner. You may not copy, publish, transfer, sell, create derivative works or exploit in any manner or medium any content or services displayed through this device.
THIRD PARTY CONTENT AND SERVICES ARE PROVIDED "AS IS." WIKO DOES NOT GUARANTEE THE CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE WHATSOEVER. WIKO EXPRESSLY DISCLAIMS ANY WARRANTYS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. WIKO DOES NOT GUARANTEE THE ACCURACY, VALIDITY, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICES MADE AVAILABLE THROUGH THE DEVICE.
WIKO has no control over the content and services provided by third parties via networks or transmission devices. Moreover, third-party services may be terminated or interrupted any time without notice. Therefore, WIKO makes no representation or warranty whatsoever as to the availability of any third party content or service and expressly declines any responsibility for such termination or interruption.
WIKO cannot in any way be held responsible for the processing and/or monitoring of third party content and services accessible through this device. Any
question or request relating to the content or services should be addressed directly to the respective content or service provider.
An independent third party operator provides the SIM card and the network or system [mobile or other] on which this device operates. WIKO expressly declines any responsibility in respect of the function, availability, coverage, services, or network or system capacity (mobile or other). The responsibility of WIKO and its authorised after-sales service is limited only to the cost of repair and/or replacement of the unit during the warranty period.
WIKO IS NOT LIABLE IN THE CASE OF NEGLIGENCE, WHETHER CONTRACTUAL OR BASED ON TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL OR SPECIAL DAMAGE, LEGAL FEES, EXPENSES, OR ANY OTHER DAMAGES RESULTING FROM THE USE BY YOU OR ANY THIRD PARTY OF THE CONTENT OR SERVICES ACCESSIBLE THROUGH THIS DEVICE. SOME JURISDICTIONS MAY NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTYES OR THE LIMITATION OF THE CONSUMER'S LEGAL RIGHTS, THEREFORE THIS STATEMENT MAY NOT APPLY TO YOU.
What's in the Box :
- WIKO ROBBY2 mobile phone
- AC adaptor
- Micro USB cable
- Hands-free kit
- Quick start guide and Safety book
- Battery

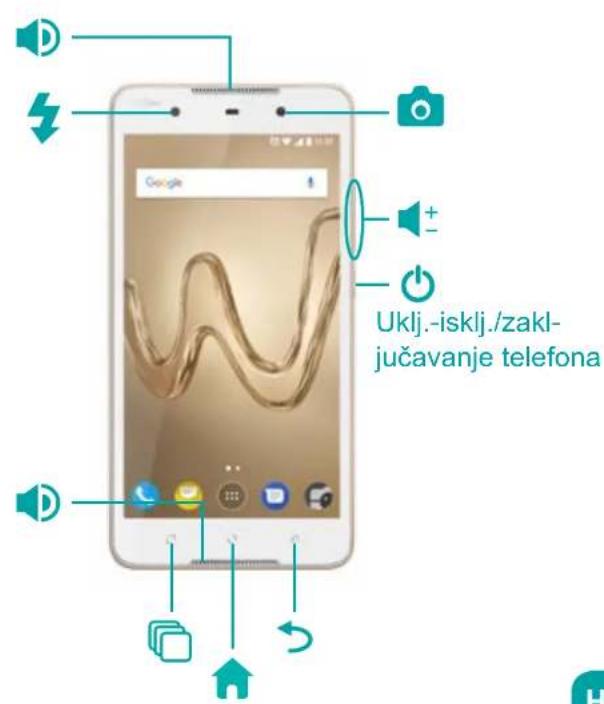

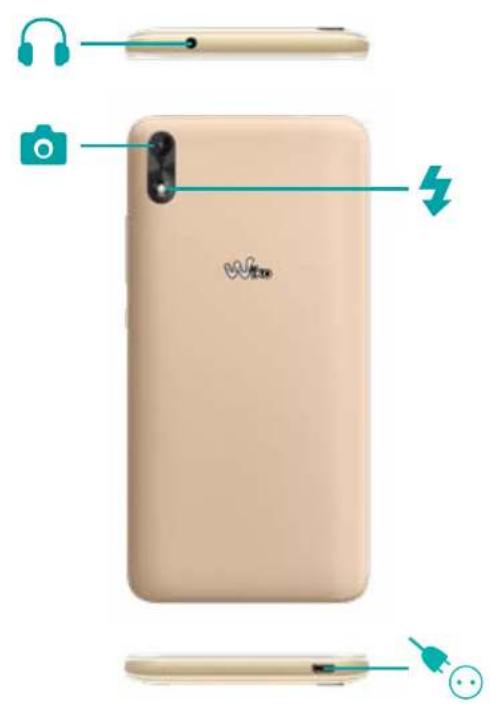

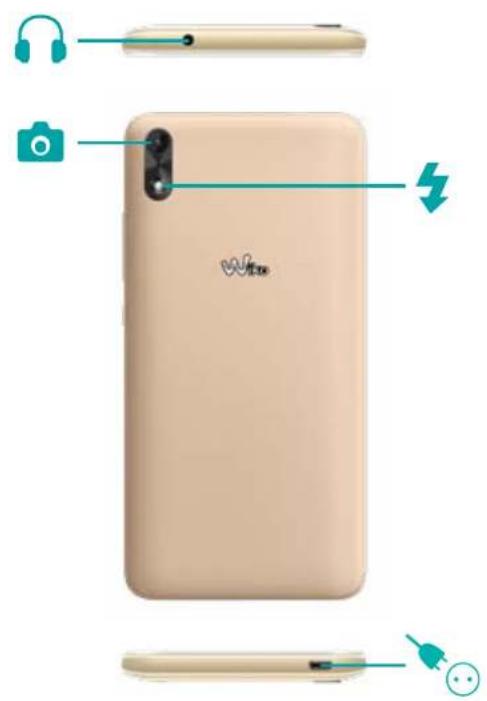

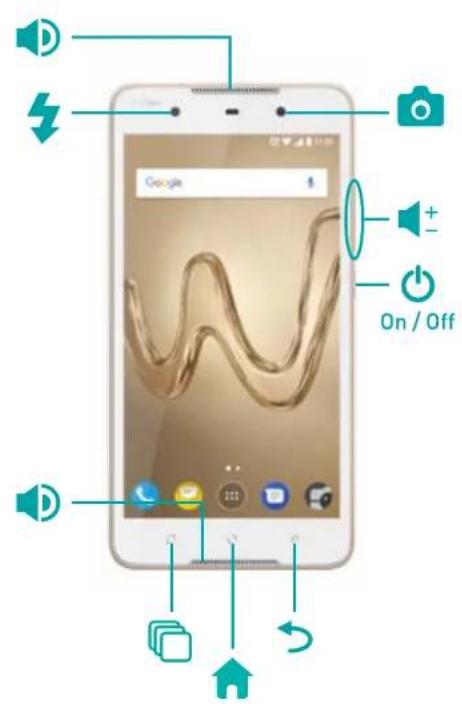

Getting to Know Your Phone
- The buttons on your phone
| Button | Function |
| On/Off | Press and hold the button to turn the phone on or off. Press the button lightly to lock the touch screen. |
| Home | Returns to the home screen. |
| Overview | Opens the list of recent applications. |
| Return | Returns to the previous screen. Closes the onscreen keyboard. |
| Volume | Increases or decreases the call volume, the ringtone, music, games and other audio functions. Switch the ringtone to silent mode when the phone rings. Press and hold on Volume- to enable the meeting profile. |
Getting Started

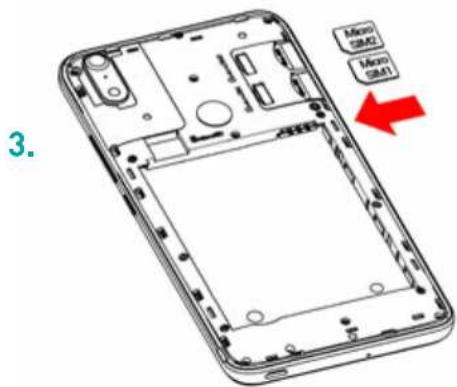

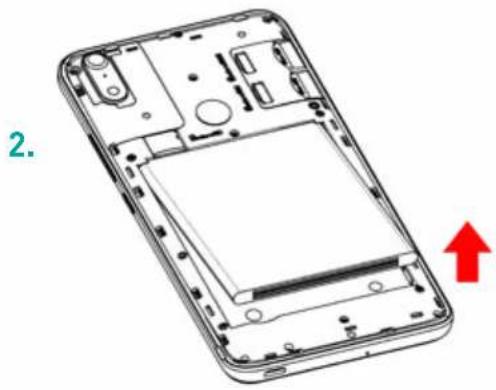

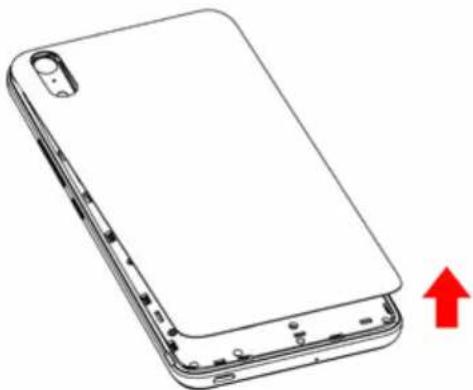

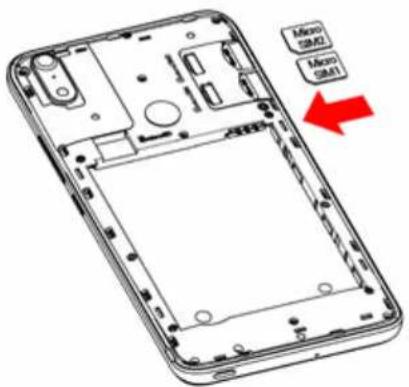

- Inserting the SIM cards
In order to use your telephone, you need to insert your SIM Card. The back cover of the phone is clipped on. Please unclip it using the notch on the cover, following the contour of the phone. Insert the SIM cards following the diagrams below.

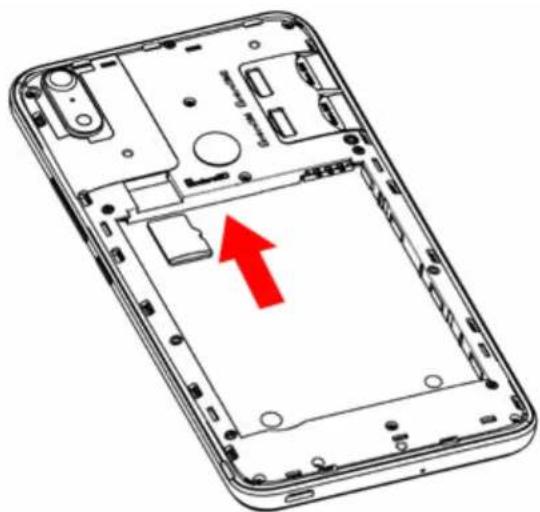

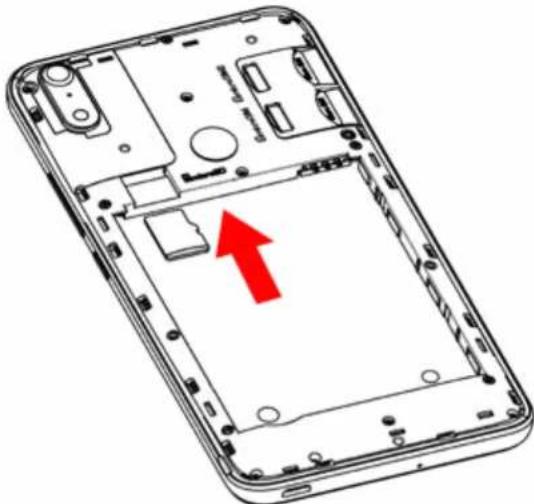

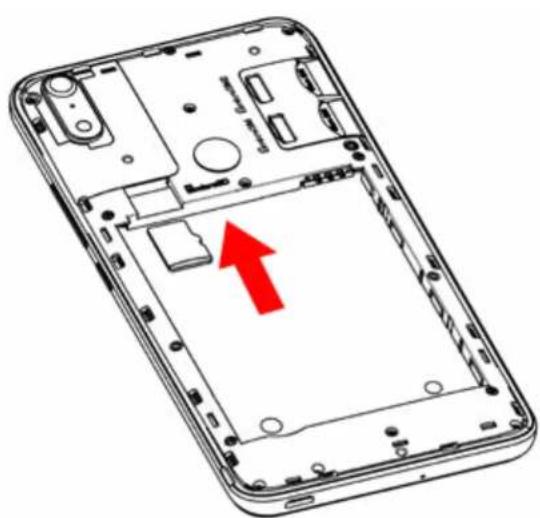

- Installing Memory Card
Your phone takes a MicroSD memory card of up to 64 GB. Insert the microSD memory card following the diagram below.

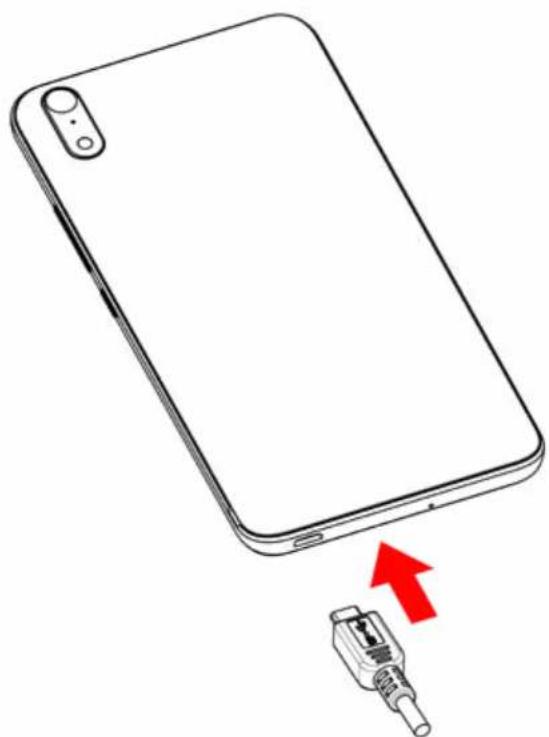

- Charging the Battery
A flashing red light indicates that the battery level is very low: the battery should be recharged because, if the level is too low, it may shorten the life of the battery. Connect the charger to a power outlet and the micro USB connector to the phone's USB port.
The phone's status indicator changes to red, indicating that the device is charging. Once the phone has finished charging, the status indicator changes to green and you should unplug the charger. For more information, refer to the Safety Information section.
~Turning the Phone On and Off
To turn the phone on, press on the ON/OFF button and hold it down until the phone begins to vibrate. If your SIM card is locked, you must enter the correct PIN code to unlock the SIM card when the phone is powered up. Your PIN is supplied by your operator; if you did not receive it or have lost it, please contact them. When the PIN is entered incorrectly three times, the mobile phone is blocked and has to be unblocked using your PUK (this is supplied with the SIM card; if this is not the case, you should contact your phone operator). To turn the phone off, press and hold the ON-OFF button until the menu opens, then press on Power Off. Now press OK to confirm.
The phone vibrates when it is shut down completely.
Basic Operations
SIM Management
When you turn on your phone for the first time, various items of information about the SIM card(s) are displayed. You are asked whether you want to modify the settings for calls, messages and the internet data connection. SIM1 is configured as the default SIM card for data connection.
Now you can:
- Set the default SIM for voice and video calls, SMS/ MMS and internet data connection. The background color serves to differentiate the two SIMs
- You can still choose a different SIM when performing an action, such as before making a call or sending a SMS/MMS by selecting «Ask every time».
\~ Network Connection
APN Not Available
If your operator does not appear in the list or the list is empty, ask your operator how to configure the APN manually. To do this, go to Settings More Cellular networks SIM1 or SIM2 Access Point Names, press on the button and enter the information provided by your operator. Return to the previous menu, then choose the APN that you have just saved.
- Enabling Data Connection
To check your data connection settings:
- Go to Settings More Cellular networks SIM 1 or SIM 2 Access Point Names, then enable the access point according to your operator/package.
- To activate Mobile data, drag the notification panel downward with two fingers and enable data connection by clicking on .
- You can choose with which SIM card you will enable data connection in Settings SIM cards Preferred SIM for Cellular data, then press on the SIM card you want to activate.
When you activate Data Connection for one SIM card, the 4G network can only be activated for this SIM card.
Data Roaming
Note that for roaming SIM cards, you must enable the data roaming in the Settings More Cellular networks Data Roaming. Otherwise, the internet connection will be disabled by default.
\~ Notifications

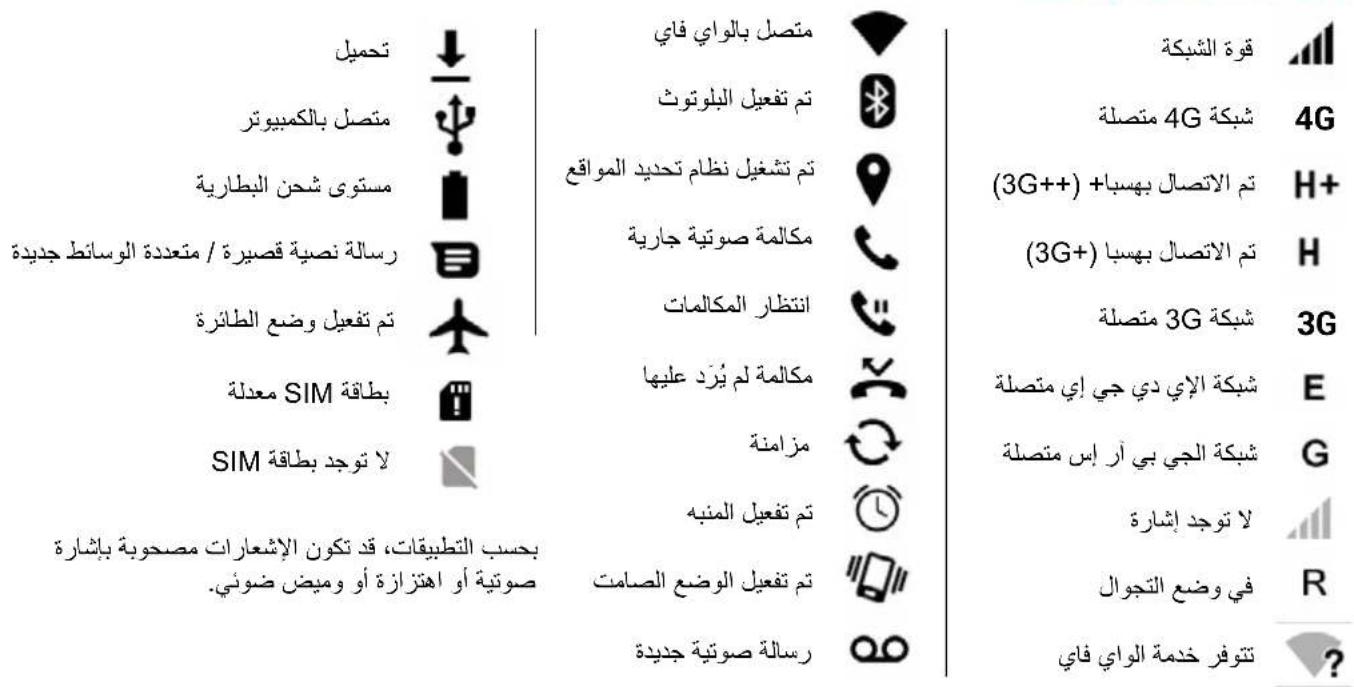

Notification icons on the status bar
Signal strength
Connected to 4G
Connected to HSPA+ [3G++]
Connected to HSPA (3G + )
Connected to 3G
Connected to EDGE
Connected to GPRS
No signal
Roaming
Wi-Fi available
Connected to Wi-Fi
Bluetooth enabled
GPS in use
Voice call in progress
Call waiting
Missed call
Synchronising
New mail
Alarm on
Silent mode on
New voicemail
Downloading
Connected to computer
Battery level
New SMS or MMS
Airplane mode on
SIM card modified
No SIM card
Notifications Panel
Drag the status bar downwards to see details of all your notifications. Information about new messages received, upcoming calendar events, download status, etc. will then be displayed.
Drag a notification to the left or right to clear it. To close the panel, drag it upwards or press on RETURN
To access the settings panel, press on
Depending on the application, notifications may be accompanied by a beep, vibration or a flashing LED.
Shortcut: pull the notification downwards with two fingers.
EN
Safety Information
Please read this safety information carefully so that you can use your phone in complete safety:
Prolonged listening to the music player at any may damage the user's hearing.
To avoid possible hearing damage, do not listen to sounds or music at an excessive volume using the earphones (headsets, headphones) for a long period of time.
Exposure to high volumes while driving may cause distraction and increase the risk of an accident.
2. Emergency call: Sometimes the emergency numbers are not accessible on all mobile networks, check first with your operator.
The option to make emergency phone calls depends on local laws and regulations in place. Never rely on your mobile phone to make important calls, such as in the event of a medical emergency.
3. Do not use your mobile phone in certain locations such as aircraft, hospitals, service stations and professional garages.
4. Children. Be very careful. A portable device is not designed for use by children. The phone contains small
parts that could be swallowed or cause choking.
- Driving safety: Using your mobile phone while driving is prohibited. It is your responsibility to respect the laws and regulations on the use of mobile phones in the country where you drive.
Having a telephone conversation or using the other features of a mobile phone (text messaging, internet, etc.) when driving may be a distraction and a contributing factor in serious accidents. - Flying: Turn your phone off when flying.
Remember to turn your phone off when you are in a plane (GSM + Bluetooth) as it may cause interference. - Hospitals: Turn your phone off near any medical devices. It is extremely dangerous to leave a phone switched on near medical devices as it may cause interference. You must observe any instructions or warnings in hospitals and treatment centres.
- Remember to turn your phone off in service stations. Do not use your device in a petrol station near fuel. It is dangerous to use your phone inside a professional garage.
- A It is recommended to consult your doctor and the device manufacturer to determine if your mobile phone
may interfere with your medical device.
A minimum distance of 15cm between a mobile phone and a pacemaker is advised to avoid potential interference with the pacemaker. Hold the device on the opposite side to the implant as a precaution when making a call. If you notice that your device is causing interference with a pacemaker, switch it off immediately and contact a doctor for advice on what action to take. Respect the rules and regulations of the hospital and medical centers. Do not use mobile phone in areas where this is forbidden. Wireless equipment can affect the performance of hearing aids and pacemakers. For more information, contact your Internet or service provider.
- Fire hazard: Do not leave your device near heat sources. Do not leave your device charging near flammable materials.
- Contact with liquid: Do not expose the device to liquid or touch it with wet hands: any damage caused by water may be irreparable.
- Use only WIKO-approved in box accessories.
The use of unauthorised accessories may damage your phone or cause a safety risk.
- Batteries must be used with caution. Do not attempt to disassemble the battery yourself. Do not destroy
the batteries and chargers. Never use a battery or charger that has been damaged. Keep batteries away from electronic objects. You should not expose the batteries to very low or very high temperatures (below 0^ or above 45^ ). It is recommended to recharge the battery at a room temperature between 5^ and 25^ . To optimise battery life, only use the WIKO battery and charger supplied in the box. Incorrect use of the battery or replacement with an incorrect type of battery may cause fire, explosion or other risks. Dispose of used batteries according to the instructions.
- Shocks and impact: Handle and use your phone with the utmost care. Protect your phone: shocks and impact may damage it. Some parts of your phone are made from glass and might break if the phone is dropped or is subject to severe impact. Avoid dropping your phone. Do not touch the screen with sharp objects.
- Electric shock: Do not try to dismantle your device as there is a very real risk of electric shock.
- Maintenance: If you want to clean your handset, use a dry cloth (do not use a solvent, such as benzene, or alcohol).
-
Recharge your phone in a well ventilated area. Do not recharge your device when it is resting on a soft surface.
-
Damage to magnetic strips: Keep your phone away from credit cards as they may damage the data on the magnetic strips.
- Do not use the mobile phone in an environment at too high or too low temperature, never expose your mobile phone to direct sunlight or too wet an environment. The suitable temperature for the phone is -10^ to +45^ , the maximum charging temperature declared by the manufacturer is +40^ .
- Due to the used enclosure material, the GSM mobile phone should only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited.
- The socket-outlet should be near the equipment and easily accessible.
- This charger is for indoor use only, the charger type is TN-050100E1A, output voltage/current is 5.0V/1.0A.
~ Directions for uses
As a preventive mesure, we recommend you use your mobile telephone under optimal signal conditions. This means when you have a full signal, as indicated by the signal reception bar. A hands-free kit can reduce radiation exposure. Pregnant women should keep the mobile phone away from their abdomen and teenagers should keep the mobile phone away from their lower abdomen.
~ Important operating guidelines
Batteries - SIM - Emergency calls - SAR - Repairs
- To increase the life of your battery, only use WIKO chargers and batteries. Replacing the battery with a non-compliant model may result in the latter exploding.
- Never throw batteries on a fire and follow the guidelines in force for recycling used batteries and phones.
- Be careful not to crush or damage the battery, as this could cause an internal short circuit and overheating.
- Do not take the battery apart.
- The battery can be recharged several hundred times before needing to be replaced. When it shows signs of losing its power, it can be replaced.
- If you do not use your mobile phone for an extended period, remember to recharge the battery to optimise its use time.
- Do not throw batteries away with household waste: recycle them in accordance with the manufacturer's guidelines. If the battery is damaged, contact the after-sales service or the nearest authorised WIKO dealer.
-
Unplug the charger from the wall socket when the battery is fully charged in order to reduce your energy consumption.
-
Do not leave the battery being charged for more than a week as this might result in an overload and reduce the life of the product.
-
Handle the SIM cards with care: wipe them with a soft cloth if they appear dirty.
-
Emergency calls: the emergency numbers may not be accessible on all mobile telephone networks, in isolated areas or areas where there is no coverage; check first with your operator.
12. Radio Frequency Exposure:
Your device has been designed and produced to comply with international norms (ICNIRP) for exposure to radiofrequencies. The safety instructions related to exposure to radio frequencies use a measuring unit called SAR (Specific Absorption Rate). The SAR limit adopted by the European Directive 2014/53/EU is 2.0W / kg .
The highest reported SAR value for your device when tested for use at the ear is 1.59W / kg and 0.82W / kg when it is kept 0.5cm from your body.
Tips for Reducing Exposure Levels
We recommend that you use your phone in good reception conditions in order to reduce the amount of radiation received. It is advisable to limit the amount of
time you use the phone in underground car parks and when travelling by car or train, etc.
Reception conditions are indicated by the bars that are displayed on your phone: the more bars there are, the better the reception quality.
We recommend that you use the hands-free kit to reduce exposure to radiation.
To reduce the adverse effects of prolonged radiation exposure, we advise teenagers to hold the phone away from their lower abdomen, and that pregnant women hold the phone at a distance from their stomach.
-
Only qualified service personnel should repair your device. If you give your device to non-qualified personnel for repair, the phone will not be covered by WIKO's warranty. 14. The IMEI code is the serial number used to identify your device and for After-Sales support. There are several ways of finding your IMEI code:
-
Type * # 06 # on your mobile telephone's keypad.
Refer to the packaging box that your telephone came in. - Remove the battery from your device: on the back, you will see a label with your IMEI code. (For non-removable batteries, refer to the IMEI engraved on the telephone's rear casing).
\~ Radio frequencies Band information
| WWAN | ||
| Frequency Band Maximum output power | ||
| GSM 850/900 35dBm | ||
| GSM 1800/1900 32dBm | ||
| UMTS B1/B5/B8 25dBm | ||
| FDD LTE B1/B3/B7/B8 TDD LTE B40 | 25dBm | |
| WLAN | ||
| Standard Frequency Avg.Power (dBm) | ||
| 802.11b | 2.4~2.4835GHz | 17.57 |
| 802.11g | 2.4~2.4835GHz | 16.96 |
| 802.11n | 2.4~2.4835GHz | 16.43 |
| BLUETOOTH | ||
| Bluetooth Version | Frequency Range | Avg.Power (dBm) |
| BT 2.1+EDR | 2.4~2.48GHz | 5.55 |
| BT 4.0 | 2.4~2.48GHz | -0.62 |
\~ Recycling
This product is subject to European Directive (WEEE Directive 2012/19/EU) and batteries (Directive 2006/66/EC). Electrical, electronic equipment, batteries, storage batteries and their accessories must always undergo
selective waste management. Therefore, these elements must be reported to an authorised collection point for appropriate reprocessing or recycling.
\~ Dangerous substances
This device complies with the requirements resulting from the REACH regulation (Regulation (EC) N°1907/200) and those of the revised RoHS Directive (Directive 2011/65/EU).
\~ Responsibility
Within the limits set by the legislation in force in your country, in case of negligence on your part or on the part of a third party in the use of your device or third party services accessible through it, WIKO will not be responsible for any damages whatsoever, arising from the said negligence. You remain solely responsible for the use of the device in accordance with all regulations applicable to and in effect in your country. These recommendations, safety instructions and use of your device can vary depending on the country in which you reside. To find out more regarding the recommendations, additional safety instructions and usage tips specific to your country, please visit www.wikomobile.com
In case of failure or defect of your product, please contact your seller to be informed of the warranty process to be followed.
NOTE
WIKO's warranty does not cover normal wear and tear (batteries, screens, keyboards, camera lenses, etc.).
Data Use Agreement
Registering your WIKO phone is a free service offered by WIKO that allows our engineers to connect to your phone's physical data so that they can tell what your model and hardware specifications are in real time. In return, the engineers can keep you informed of updates that are available for your system and warn you in case of a recognised technical failure on a model or series. In addition, this service allows us to alert you instantly if there is a malfunction so that we can provide a technical solution as soon as possible. It is necessary to gather this data in order for WIKO to propose appropriate updates for your mobile phone.
By registering your phone, you acknowledge that WIKO and its engineers are able to collect, store, analyse and use diagnostic, technical and usage data (and related data) including, without limitation, data regarding your WIKO device, your software system and your applications. We will collect this information on a regular basis to facilitate the provision of software updates and product support and miscellaneous
services offered to customers [where applicable] relating to the software on your device.
WIKO may use this information without revealing the identity of the customer in order to offer and improve its products or services for the user.
This service will not give us access to your content and personal files.
You need to be connected to the mobile internet network for a short time to register your WIKO phone. This may result in connection costs, at your expense, depending on the nature of your contract with your mobile operator. We recommend that you use a Wi-Fi connection, as with this type of connection there is no data limit (if your phone service limits the exchange of data) and the connection is quicker.
The information obtained is processed electronically in order to access the physical data on your phone. They will be kept by WIKO in a dedicated, secure location for a maximum of three years from the date of collection, depending on the nature of the data.
The data recipient is WIKO SAS.
You have the right to access, modify, rectify or delete your personal data submitted upon registration. You may exercise this right by writing to WIKO SAS, 1 rue Capitaine Dessemond, 13007 MARSEILLE, FRANCE.
STATEMENT OF COMPLIANCE
Wiko
We, WIKO SAS - 1, rue Capitaine Dessemond - 13007 Marseille - FRANCE, hereby declare that the radio equipment type ROBBY2 is in compliance with Directive 2014/53/EU.
Software version: Robby2-V01
The procedure for the Statement of Compliance, set out by Directive 2014/53/EU, was conducted under the supervision of the following organisation:
TELEFICATION B.V.
Edisonstraat 12A 6902 PK Zevenaar-The Netherlands
www.telefication.com
CE
The full text of the device's Statement of Compliance is available on written request to the following address or www.wikomobile.com/certification: WIKO SAS - 1, rue Capitaine Dessemond - 13007 Marseille - FRANCE
14/09/2017
Michel ASSADOURIAN / CEO
EN
robby2
Guide d'utilisateur
Copyright © 2017 WIKO
www.wikomobile.com
www.telefication.com
Michel ASSADOURIAN / CEO
(Date)
Copyright © 2017 WIKO
www.telefication.com
CE
Michel ASSADOURIAN / CEO
(Data]
Copyright © 2017 WIKO
es.wikomobile.com
www.telefication.com
Michel ASSADOURIAN / CEO
(Fecha)
[Nombre yfirmade la persona responsabledebidamenteabilitada]
robby2
Guia de usoação
Copyright © 2017 WIKO
O paine de notifications
www.telefication.com
Michel ASSADOURIAN / CEO
(Data]
Copyright © 2017 WIKO
Softwareversion: Robby2-V01
www.telefication.com
Michel ASSADOURIAN / CEO
(Datum)
Copyright © 2017 WIKO
Nieuw voicemailbericht
NL
Downloads
Aangesloten op de
Batterijniveau
Sms of mms
Vliegtuig-modus Aan
Simkaart gewijzigd
Geensimkaart
www.telefication.com
Michel ASSADOURIAN / CEO
(Datum)
aill Jaaaiy I aill j b aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy aaiy
3.
1.
slll
64 11 J 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50
y
J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
J 1 J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
#
yj 1
g j 1
PIN jRjSIM
SIM
As no (gaiill gjell) PIN jao lgl aikay
y
A.aaa 1
（）PINjJy
（）PUK jaojiauiyuyiill 1
Jl 15
（）
aIgBa jial -jiaill jge biaiall yieilal
le lae baii. cabi! gie lae baiia iailll pi y
中
Lolai aillal ayloic oji jia!
SIM
auiuui 1
iLg 1e iiaia cloglaa jae paa sJy slta Jy aai Laiie
JuslljLl,clllkallldie jiaiie sikSIM-
1
SIM-1aBb
1
y. SIMJIaIb, bia aaiell jbiu (jaiie)
l1l2 = l1l3
Cldg 11111111111111111111111111111
SIM-SIM
.SIM 1
ClllSall, gaiy all ClllSall y *siil siiSIMIJIJIIBJIO.2
(MMS) / (SMS)
suiu
aIcJgSjSIM
(MMS) (SMS)
SIMJI 1
#
jag (APN) jagaii
J 1
4G is a. jai jai. SIM 1ilb iilu Jaiy Jaii dia
bāo 2gj
i 1
1
aaii
Jll <JJl 1<1j<1j
J 1
Jai Jai Jai
aill by jie cui jayi ci jai
L
Jb< SIM JJ baiy daiyie aai yj
bui< SIM JI ai bui< Cuiyaiiai jaiy iuiy
Ji# 11 jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy jiy
1
J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J
glaia! 1al gll
1 1
6.6
y 13.00000000000000000000000000000000000000000000000000000000000000000000
gag yj jldi dla jdi jbi j 7
a 15 cm j 15
j 15
j 15
j 15
j 15
j 15
j 15
j 15
j 15
j 15
j 15
j 15
j 15
a
aaii
y 1
a
aaiydui jll pall g aagall g iiaas y aiSaalld aygobjui (jclawgacai lclaw) ciLauuie 2
Jzjll 3
4
jilbll jiaie 5
A 14
A 15
16
.
17
.
18
.
20
+45 +10
.
USB bll GsM Jgall Lgall
.
20
aalallll gall lss ygalln plaiil
a 12
Ldlll l 1 (ICNIRP)
Jaaa aae aee
ale jaiial gill valaisio1. (SAR) gill valaisio1
2014/53/EU 4
10.2.0 W/Kg
1.59 W/kg, 0.82 W/kg
p00 0.5
aLdU 1111111111111111
| WWAN | ||
| Frequency Band Maximum output power | ||
| GSM 850/900 35dBm | ||
| GSM 1800/1900 32dBm | ||
| UMTS B1/B5/B8 25dBm | ||
| FDD LTE B1/B3/B7/B8 TDD LTE B40 | 25dBm | |
| WLAN | ||
| Standard Frequency Avg.Power (dBm) | ||
| 802.11b 2.4~2.4835GHz | 17.57 | |
| 802.11g 2.4~2.4835GHz | 16.96 | |
| 802.11n 2.4~2.4835GHz | 16.43 | |
| BLUETOOTH | ||
| Bluetooth Version Frequency Range Avg.Power (dBm) | ||
| BT 2.1+EDR 2.4~2.48GHz 5.55 | ||
| BT 4.0 2.4~2.48GHz -0.62 | ||
J 11111111111111111111111111111111111111111111111111111111111
Jiaililililililililililililililililililililililililililililililililililililililililililil
www.telefication.com
aill jiall gie aiey dllal yall bll llae jaii iia jai jolil
www.wikomobile.com/certification :
Michel ASSADOURIAN / CEO
14/09/2017
(jgall jsinall gjg p)
（）
AR
robby2
Instrukcja obslugi
Copyright © 2017 WIKO
www.telefication.com
Michel ASSADOURIAN / CEO
Copyright © 2017 WIKO
Zabranjeno je objelodanjivati informacije sadrzane u ovom korisnickom uputstvu trecim osobama, kao i umnozavanje istih u bilo kojoj formi, bez izričite pismene suglasnosti kompanije WIKO.
Zaštitni znakovi
WIKO je registrarani zašitni znak kompanije WIKO SAS.
Odricanje odgovornosti
Ovo Uputstvo je sastavljeno s najevom marljivošću i
pažnjom, s ciljem da Vam bude vodič kroz funkcjë i karakteristike Vaseg uredaja. Ipak, informacije i preporuke iz ogov uputstva nece se smatrati garancijom u skladu s primjenjućim zakonskim odredbama. WIKO zadržava pravo u bilo kojem trenutku izmijeniti informacije sadrzane u ovom Uputstvu.
Ograničenje odgovornosti
Sav sadrzaj i servisi koji su Vam dostupni kroz ovaj uredaj su ekskluzivno vlasnistvo trecih osoba i zasticeni su relevantnim zakonima (zakonima o autorskim pravima, patentnim provima, licencama i/ili drugim provima interlekutralng vlasnistva). Ovi servisi su namijenjeni isključivo za osobnu nekomercijalnu upotrebu. Zabranjeno je korištenje bilo kojeg sadrzaja ili servisa bez pribavljanja prethodnog pismenog odobrenja vlasnikatog sadrzaja. Zabranjeno je kopirati, objavljivati, prenositi, prodavati sadrzaj ili servise kao i kreirati derivativne radove od sadrzaja ili servisa koji su dostupni preko ovog uredaja teiste koristiti na bilo koji način ili bilo kojim sredstvima.
SADRžAJI SERVISI KOJE PRUŽAJU TREČE OSOBE SU DATI "U VIDENOM STANJU". WIKO NE DAJE GARANCİJE, BILO IZRICITE ILI PRESUTNE, U POGLEDU TAKVOG SADRžAJA ILI SERVISA, U BILO KOJU SVRHU. WIKO SE IZRICITO ODRICE ODGOVORNOSTI U POGLEDU DAVANJA GARANCIJA ZA UTRžIVOST PROIZVODA ILI NJEGOVE PRIKLADNOSTI ZA ODREDENU SVRHU. WIKO NE DAJE GARANCIJE ZA TOČNOST, VRIJEDNOST, ZAKONITOST ILI POTPUNOST BILO KOJEG SADRžAJA ILI SERVISA KOJI SE STAVLJAJU NA RASPOLAGANJE KORISNIKU PREKO UREDAJA. WIKO nema kontrolu nad sadržajem i servisima koje pruzaju treće osobe putem mreza ili urežaja za prijenos podataka. Stovise, servisi trečih osoba mogu biti potpuno ograničeni ili prekinuti u bilo kojem trenutku, bez obavjestavanja o tome. Stoga, WIKO ne daje izjave niti garancije u pogledu raspoloživosti bilo kojeg sadržaja ili servisa trečih osoba i izricito se odriče odgovornosti za takvu ograničenost ili prekid u pruzanju usluga/servisa ili sadržaja.
WIKO nece snositi odgovornost za obradu i/ili praćenje sadržaja i servisa trecih osoba kojima se moze pristupiti ovim urežajem. Svako pitanje ili zahtjev u vezi saadržajem ili servisima treba uputiti izravno davatelju takvog sadržaja ili servisa.
Operator koji je nezavisna treca osoba osigurava SIM karticu i mrezu ili system (mobilnu ili drugu) preko koje uredaj radi.
WIKO se izricito odriče svake odgovornosti za funçionalnost, dostupnost,Pokrivenost, servise ili za kapacitet mreže ili sistema (mobilnih ili drugih). Odgovornost kompanije WIKO i njenog ovlaštenog postprodajnog servisa je ograničena samo na troškove popravke i/ili zamjene uredaja tokom razdoblja trajanja garancije.
WIKO NECE SNOSITI ODGOVORNOST
ZA IZRAVNU, NEIZRAVNU, NAMJERNU ILINENAMJERNU STETU, ZAKONSKE ODREDBE, TROSKOVE ILI DRUGU STETU U SLUCAJUNEMARA, BILO DA JE POSLJEDICA KRSENJA UGOVORA ILI PRETRPLJENE STETE, NITIZA BILO KOJUDRUGU STETU KOJA JE POSLJEDICA KORISTENJA SADRZAJA ILISERVISA PUTEM OVOG UREDAJA OD STRANEVASILIBIOKOJE TRECE OSOBE.
UNEKIM SLUCAJEVIMA, IZUZECE OD PRESUTNIH GARANCIJNA NIJE DOZVOLJENO KAO NI OGRANICAVANJE ZAKONSKIH PRAVA POTROSACA TE SE OVA IZJAVA MOZDA NE PRIMJENJUJE NA VAS.
Sadržaj kutije:
- WIKO ROBBY2 mobilni Telefon
- AC adapter
- Mikro USB kabl
- Slusalice
- Prirucnik za bri poctak i Sigurnosni prisucnik
- Baterija
Upoznajte svoj Telefon
Prevod naziva tipki
| Tipka | Funkcija |
| On/Off | Pritisnite i držite ovo tipku kako biste uključili ili isključili Telefon. Za zaključavanje Telefona, lagano pritisnite ovu tipku. |
| Home (Početna stranicaa) | Vraca vas na početnu stranicu ekrana. |
| Menu | Otvara listu posljednjih otvaranih aplikacija. |
| Povratak unazad | Vraca vas na prethodni prikaz ekrana. Zatvara prikaz tipkovnice na ekranu. |
| Jačinatona | Pojačava ili smanjupe zvuk sugovornika, zvona, melodija, igara i drugih audiofunkcija. Pritiskom na ovu tipku način zvonjave se prebacuje na nečujno. Pritisnite i držite VOLUME - da omogucite način rada na sastanku. |
Kako početi
~Ubacivanje SIM kartice
Kako biste koristili Telefon, potrebno je ubaciti SIM karticu. Poklopac na poledini Telefona je pričvršćen - zatvoiren. Za njegovo otvaranje, koristite zarez naPoklopcu, prateci konture Telefona. SIM kartice ubacite prema uputama s grafikona ispod.
~ Instaliranje memorijski karticu
Vaš Telefon prima mikro SD memorijski karticu do 64 GB.
Mikro SD memorijski karticu ubacite prema instrukcijama s grafikona ispod.
Mijenjanbe baterije
Crvena lampica signalizira da je baterija pri kraju: bateriju treba dopuniti jer korištenje baterije na niskoj razini napunjenosti moze skratiti njeno trajanje.
Povežite punjac's uticnicom, a mikro USB konektor s USB portom na Telefonu.
Lampica indicatora statusa Telefona ce svijetliti crvenom bojom sto znaci da se uredaj puni.
Po zavrsetku punjenja, lampica indicatora ce ponov svijetliti zelenom bojom te je potrebno Telefon ukloniti s punjača.
www.telefication.com
Puni tekst izjave o sukladnosti za ovaj uredaj je na pisani zahtjev dostupan na sljedecoj adresi ili www.wikomobile.com/certification: WIKO SAS - 1, rue Capitaine Dessemond - 13007 Marseille - FRANCE
14/09/2017
Michel ASSADOURIAN / CEO
(Datum)
Copyright © 2017 WIKO
Nevarne substance
Ta naprava je skladna zahevami REACH (Uredba (ES) st. 1907/200) in zahevami revidirane RoHS Direktive (Direktive 2011/65/EU).
Odgovornost
www.telefication.com
Popolna inačica besedila Izjave o skladnosti za to napravo je dostopna na pisno zahtevo, poslano na tale naslov ali www.wikomobile.com/certification: WIKO SAS - 1, rue Capitaine Dessemond - 13007 Marseille - FRANCE
14/09/2017
Michel ASSADOURIAN / CEO
(Datum)
(Ime in podpis pooblašćenega uslužbenco)
SL
robby2
Copyright © 2017 WIKO
Zabranjeno je obelodanjivati informacije sadrzane u ovom korisničkom uputstvu trećim licima, kao i umnožavanje istih u bilo kojoj formi, bez izričite pismene saglasnosti kompanije WIKO.
Zastitni znakovi
WIKO je registrovani zašitni znak kompanije WIKO SAS.
Odricanje odgovornosti
Ovo Uputstvo je sastavljeno sa najvecom marljivošću i pažnjom sa ciljem da Vam bude vodič kroz funkcjë i karakteristike Vaşeg ureðaja. Ipak, informacië i preporuke iz ovog uputstva nece se tumačiti garancijom u skladu sa primenljivim zakonom. WIKO zadržava pravo da u bilo kom trenutku izmeni informaciësadržane u ovom Uputstvu.
Ograničenje odgovornosti
Sav sadrzaj i servisi koji su Vam dostupni kroz ovaj uredaj su ekskluzivno vlasniistvo trecih lica i zastricteni su relevantnim zakonima (zakonima o autorskim pravima, patentnim provima, licencama i/ili drugim provima intelektualne svojine). Ovi servisi su namenjeni isključivo za ličnu nekomercijalnu upotrebu. Zabranjeno je korišcenje bilo kog sadrzaja ili servisa bez pribavljanja prethodnog pismenog odobrenja vlasnika tog sadrzaja. Zabranjeno je kopirati, objavljivati, prenositi, prodavati sadrzaj ili servise kao i kreirati derivativne radove od sadrzaja ili servisa koji su dostupni preko ovog uredaja, i eksploatisati iste na bilo koji način ili bilo kojim sredstvima.
SADRŽAJI SERVISIKOJI PRUŽAJU TRECA LICA SU DATI "UVIDENOM STANJU". WIKO NE DAJE GARANCIJE, BILO IZRICITE ILI PRECUTNE, U POGLEDU TAKVOG SADRžAJA ILI SERVISA, U BILO KOJUSVRHU. WIKO IZRICITO ODRICE ODGOVORNOST U POGLEDU DAVANJA GARANCIJA ZA UTRžIVOST PROIZVODA ILI NJEGOVE PRIKLADNOSTI ZA ODREDENU SVRHU. WIKO NE DAJE GARANCIJE ZA TACNOST, VALIDNOST, ZAKONITOST ILI POTPUNOST BILO KOG SADRžAJA ILI SERVISA KOJI SE STAVLJAJU NA RASPOLAGANJE KORISNIKU PREKO UREDAJA.
www.telefication.com
CE
Puna verzija teksta Izjave o usaglasenosti za ovaj uredj je dostupna na pisan zahtev dostavljen na sledecu adresu ili www.wikomobile.com/certification WIKO SAS - 1, rue Capitaine Dessemond - 13007 Marseille - FRANCE
14/09/2017
Michel ASSADOURIAN / CEO
(Datum)
(Ime i potpis ovlascenog sluzbenika)
SR
robby2
Odbnyoc xpnoans
To autou tou eYxepidiou uTPOe va diapeei Oe opioeves Tnuxes Tou nAeWov oac, avaloya e Tnv EkooTou loyioikou kai tou opea oac.
GR
ΣYΓXAPHTPIA!
Molc exeayopaoi To KIVnto TnAeawvo WIKO ROBBY2.AutoTo EyXeiipio Tnepiexie Baoikecs PAnpoopiec oxetik aE Tn Xpnon Tou TnAeewvou KAI TTWCVa Edoikeiomegaite, Aantizoume ynpyopa, e To Koogu TNS WIKO. NAnpeic Ekoxec twv avw kateuovtnpiwv Ypaumw, odnyiw aospaleia cai twv oyniw yia tn Xpnon Tns oukeunc ocic ivai diathetauec otnv Itooeiaa mac: www.wikomobile.com. MTopeite va Zntnoete Tnv EvTuTn Ekooon Tou Exyeiipidou Meow e-mail n e anootoan e-mail tN dieuohuvon Toun avapepetai OTO TELOC TOIAPovtoc onyou xpnoang.
Copyright © 2017 WIKO
Oi Tnpoopopiec Tou Tpeixovtai e auto To Eyxepidio aTayopeueta va koivotoiouvtai eTpitouc n va avatapayovtai e otioahtote mopn, xwiic tn pntn Eyypaon ouykataeon tnc etaipiaac WIKO.
Eπtopióσnμα
www.telefication.com
CE
PAnpnc Ekoxyn Tou Keiuevou Tns Anawong Smuoppwong yia autn tn ouokun eivai diathetaiun met a n v eyypaan aiTnOn stny akolouon diuuvon www.wikomobile.com/certification:
Michel ASSADOURIAN / CEO
{OvopatETWVUo aρóδiou Uπaλnλou}
GR
robby2
Manual de'utilizaré
www.telefication.com
CE
Textul complet al Declaratiei de Conformitate este disponibil, ca urmare a unei solicitari in scris, la urmatoarea adresa sau site www.wikomobile.com/certification: WIKO SAS - 1, rue Capitaine Dessemond - 13007 Marseille - FRANCE
14/09/2017
Michel ASSADOURIAN / CEO
(Data)
[Numele sismnatapersoaneimandatate]
RO
Wiko SAS - 1, rue Capitaine Dessemond - 13007 Marseille - France
Tel +33 4 88 08 95 15 | Fax +33 4 88 08 95 20
wikomobile.com | SIRET 530 072 206 00028 - APE 4652Z
