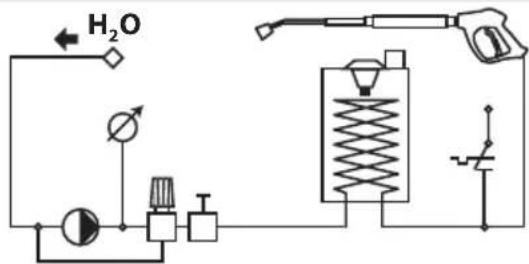

SCHEMA IDRICO • WATER DIAGRAM • SCHEMA HYDRAULIQUE • WASSERUMLAUFSCHEMA • ESQUEMA HÍDRICO • WATERSCHEMA • ΣΧΕΔΙΟ ΥΔΡΕΥΣΗΣ • ESQUEMA HIDRÁULICO • VEDENKYTKENTÄKAAVIO • ГИДРАВЛИЧЕСКАЯ CXEMA • SHEMA VODENOG KRUGA • VODOVODNA SHEMA • ВОДНА ДИАГРАМА

XP_1Ph XP_3Ph 1 2 3 4 5 6 7 8 9 10 11 13 14 230V 0 400V TS EV P L1 IG B M2 TR LEONDA T = TERMOSTATO P = PRESSOSTATO IG = INTERRUTTORE GENERALE H1 = MOTORE MONWASE M3 = MOTORE TRASE TS = TOTAL-STOP EV = ELETTROVALVOLA GASOLIO TR = TRANSFORMATORE ACCENSIONE B = INTERRUTTORE BRUCUSTRIDE H2 = MOTORE BRUCUSTRIDE GG = GALLEGANTE GASOLIO L1= SPIN GASOLID T = THERMOSTAT P = PRESSURE SWITCH IG = MAIN SWITCH H1 = SINGLE-PHASE MOTOR TS = AUTOMATIC STOP SYSTEM EV = FUEL ELECTRO-VALVE TR = IRUPITAN TRANSFORMER B = BURNER SWITCH H2 = VENTILATKIN MOTOR GG = FLOATER L1= LOW FUEL CUT-OUT LAMP SE 6.049-03 LXX4

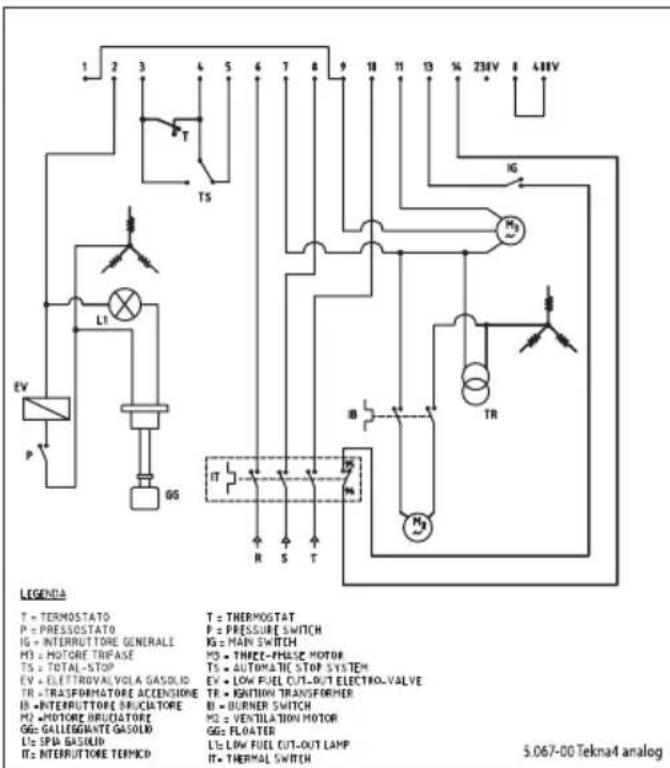

LEGENDIA T = THERMOSTAT P = PRESSOSTATO IG = INTERRUPTORE GENERALE M3 = MOTORRE TRIFASE TS = TOTAL-STOP EV = ELETTROVALVOLA GASOLID TR = TRASFORMATORE ACCENSIONE IB = INTERRUPTORE BRUCIATORE M2 = MOTORRE BRUCIATORE GG = GALLEGRAITE GASOLID L1 = SPB GASOLID IT = INTERRUPTORE TERMID T = THERMOSTAT P = PRESSURE SWITCH IG = MAIN SWITCH M3 = THREEF-PHASE MOTOR TS = AUTOMATIC STOP SYSTEM EV = LOW FUEL CUT-OUT ELECTRO-VALVE TR = IGNITION TRANSFORMER IB = BURNER SWITCH M2 = VENTILATION MOTOR GG = FLOATER L1 = LOW FUEL CUT-OUT LAMP IT = THERMAL SWITCH 5.067-00 Tekn4 analog

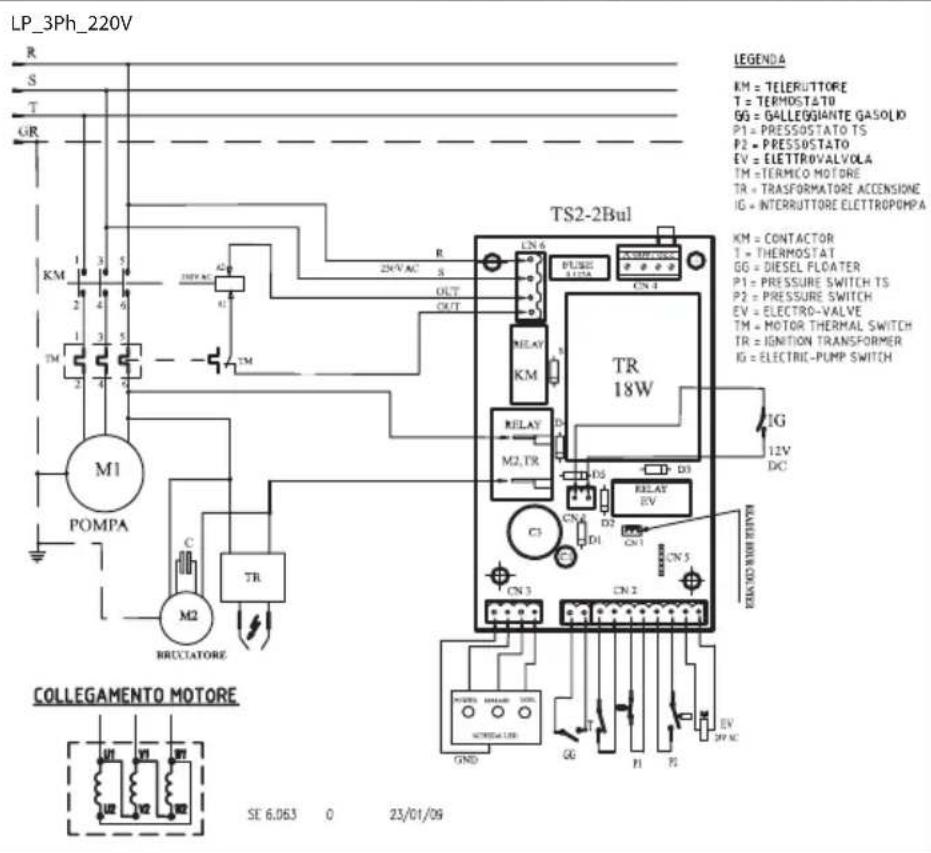

LP_3Ph_220V R S T GR KM = TELERUTTORE T = TERMOSTATO GG = GALLEGGIANTE GASOLID P1 = PRESSOSTATO TS P2 = PRESSOSTATO EV = ELETTROVALVOLA TM = TERMICO MOTORE TR = TRASFORMATORE ACCENSIONE IG = INTERRUTTORE ELETTROPOMPA TS2-2Bul CN 6 PL/SEI CN 4 KL OUT OUT RELAY KM TR M1 POMPA C TR M2 BRUCIATORE COLLEGAMENTO MOTORE SE 6.063 0 23/01/09 LEGENDA KM = TELERUTTORE T = TERMOSTATO GG = GALLEGGIANTE GASOLID P1 = PRESSOSTATO TS P2 = PRESSOSTATO EV = ELETTROVALVOLA TM = TERMICO MOTORE TR = TRASFORMATORE ACCENSIONE IG = INTERRUTTORE ELETTROPOMPA KM = CONTACTOR T = THERMOSTAT GG = DIESEL FLOATER P1 = PRESSURE SWITCH TS P2 = PRESSURE SWITCH EV = ELECTRO-VALVE TM = MOTOR THERMAL SWITCH TR = IGNITION TRANSFORMER IG = ELECTRIC-PUMP SWITCH IG 12V DC TR 18W RELAY M2,TR D5 D3 D1 CN 3 CN 2 CN 5 CN 4 CN 3 CN 2 GND G6 P1 P2 EV SP NC

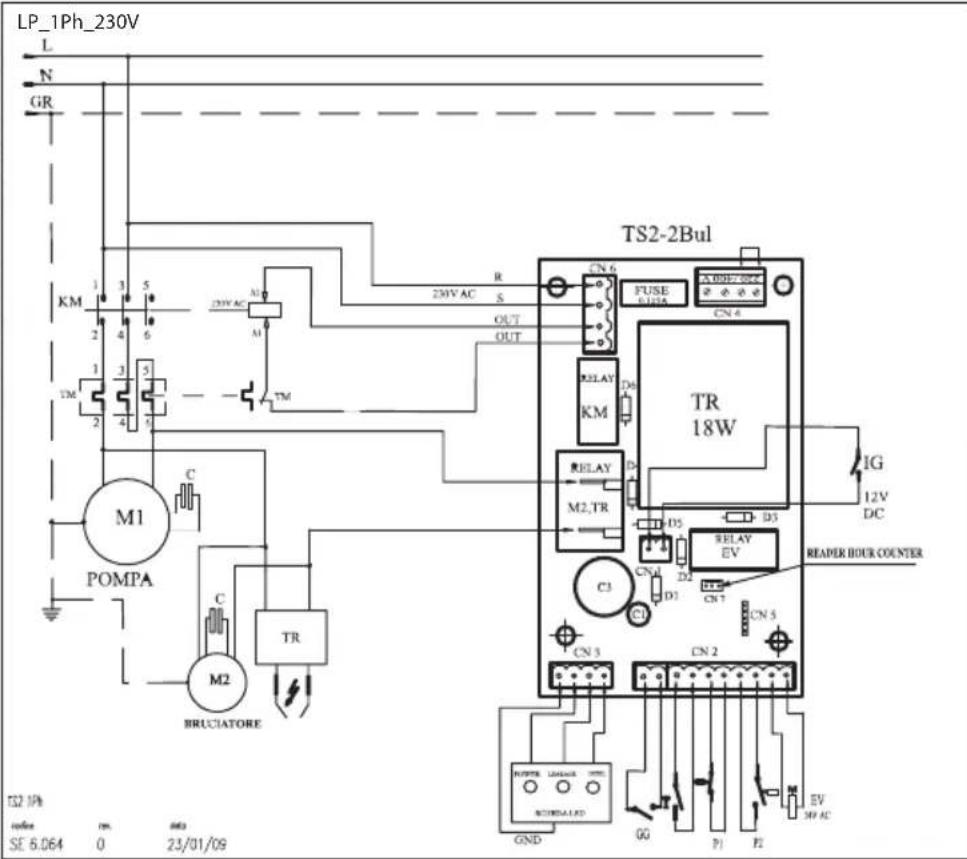

SCHEMA ELETTRICO
• ELECTRIC DIAGRAM
• SCHEMA ELECTRIQUE
• ELEKTROSCHEMA
• ESQUEMA ELÉCTRICO
• ELEKTRICITEITSSCHEMA
• НЛЕКТРИКО ДІАГРАММА
• ESQUEMA ELÉCTRICO
• SÄHKÖKAAVIO
• ЭЛЕКТРОСХЕМА
• ELEKTRIČNA SHEMA
• ELEKTRIČNA SHEMA
• ЕЛЕКТРИЧЕСКА ДИАГРАМА

BG ЕЛЕКТРИЧЕСКА ДИАГРАМА

I- термостат
P - npecocial
IG - гламен ключ
M3 - мотор три-фазен
TS – автоматична стоп система /
тотал стоп/
EV - ниско гориво елекро- клапан
TR - трансформатор за запалване
IB – ключ за горелката
M2 - ветилаторен мотор
GG - поплавък
L1 – ниско ниво гориво лампа
IT - термален ключ

LP_1Ph_230V L N GR KM 1 3 5 230V AC M1 2 4 6 1 3 5 TM 2 4 5 C M1 POMPA C M2 BRUCIATORE TR R 230V AC S OUT OUT R CN 6 FUSE 11125A ADD-200V CN 4 RELAY KM TR 18W D4 D3 D5 D3 RELAY M2,TR C3 CN 1 D2 CN 7 CN 5 CN 3 CN 2 GND G0 P1 P2 EV MP AC IG 12V DC REAPER HOUR COUNTER TS2 1PH user SE 6.064 0 23/01/09

LEGENDA

KM = TELERUTTORE

T = TERMOSTATO

GG = GALLEGGIANTE GASOLIO

P1 = PRESSOSTATO TS

P2 = PRESSOSTATO

EV = ELETTROVALVOLA

TM=TERMICO MOTORE

TR = TRASFORMATORE ACCENSIONE

IG = INTERRUTTORE ELETTROPOMPA

KM = [CONTACTOR

T = THERMOSTAT

GG = DIESEL FLOATER

P1 = PRESSURE SWITCH TS

P2 = PRESSURE SWITCH

EV = ELECTRO-VALVE

TM = MOTOR THERMAL SWITCH

TR = IGNITION TRANSFORMER

IG = ELECTRIC-PUMP SWITCH

LEGENDA

KM = TELERUTTORE

T = TERMOSTATO

GG = GALLEGGIANTE GASOLIO

P1 = PRESSOSTATO TS

P2 = PRESSOSTATO

EV = ELETTROVALVOLA

TM=TERMICO MOTORE

TR = TRASFORMATORE ACCENSIONE

IG = INTERRUTTORE ELETTROPOMPA

T2 = TERMICA ESTERNA MOTORE

KM = CONTACTOR

T = THERMOSTAT

GG = DIESEL FLOATER

P1 = PRESSURE SWITCH TS

P2 = PRESSURE SWITCH

EV = ELECTRO-VALVE

TM = MOTOR THERMAL SWITCH

TR = IGNITION TRANSFORMER

IG = ELECTRIC-PUMP SWITCH

T2 = EXTERNAL MOTOR TERMAL SWITCH

ЕЛЕКТРИЧЕСКА ДИАГРАМА

T- термостат

P - пресостат

IG - гламен ключ

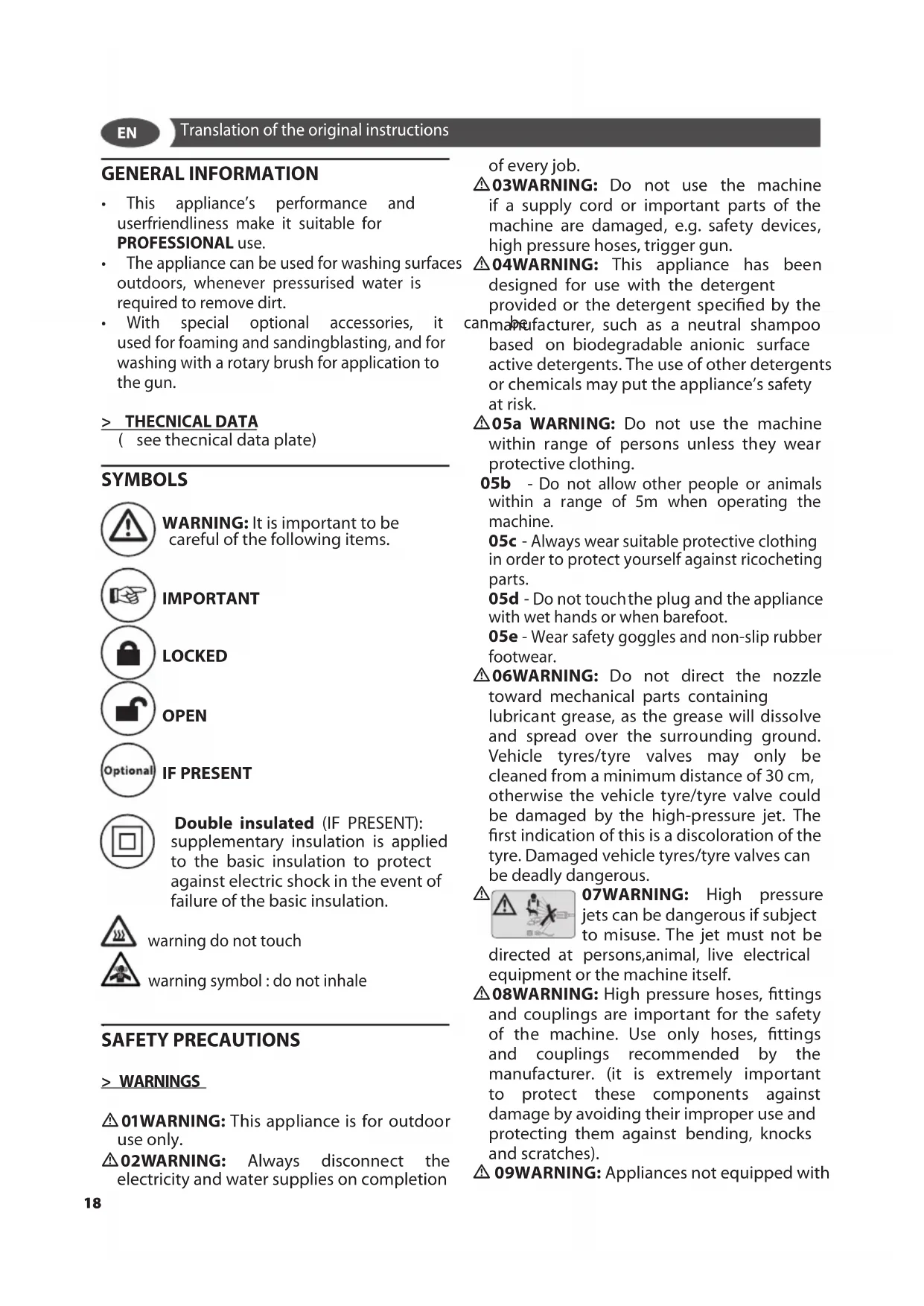

• This appliance's performance and userfriendliness make it suitable for PROFESSIONAL use.
• The appliance can be used for washing surfaces outdoors, whenever pressurised water is required to remove dirt.
• With special optional accessories, it used for foaming and sandingblasting, and for washing with a rotary brush for application to the gun.

> THECNICAL DATA

( see thecnical data plate)

SYMBOLS

WARNING: It is important to be careful of the following items.

IMPORTANT

LOCKED

OPEN

IF PRESENT

Double insulated (IF PRESENT): supplementary insulation is applied to the basic insulation to protect against electric shock in the event of failure of the basic insulation.

warning do not touch

warning symbol : do not inhale

SAFETY PRECAUTIONS

> WARNINGS

⚠️ 01WARNING: This appliance is for outdoor use only.
⚠02WARNING: Always disconnect the electricity and water supplies on completion

of every job.

⚠03WARNING: Do not use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devices, high pressure hoses, trigger gun.

⚠️04WARNING: This appliance has been designed for use with the detergent provided or the detergent specified by the manufacturer, such as a neutral shampoo based on biodegradable anionic surface active detergents. The use of other detergents or chemicals may put the appliance’s safety at risk.

⚠05a WARNING: Do not use the machine within range of persons unless they wear protective clothing.

05b - Do not allow other people or animals within a range of 5m when operating the machine.

05c - Always wear suitable protective clothing in order to protect yourself against ricocheting parts.

05d - Do not touch the plug and the appliance with wet hands or when barefoot.

05e - Wear safety goggles and non-slip rubber footwear.

⚠️06WARNING: Do not direct the nozzle toward mechanical parts containing lubricant grease, as the grease will dissolve and spread over the surrounding ground. Vehicle tyres/tyre valves may only be cleaned from a minimum distance of 30 cm, otherwise the vehicle tyre/tyre valve could be damaged by the high-pressure jet. The first indication of this is a discoloration of the tyre. Damaged vehicle tyres/tyre valves can be deadly dangerous.

07WARNING: High pressure jets can be dangerous if subject to misuse. The jet must not be persons, animal, live electrical or the machine itself.

⚠️08WARNING: High pressure hoses, fittings and couplings are important for the safety of the machine. Use only hoses, fittings and couplings recommended by the manufacturer. (it is extremely important to protect these components against damage by avoiding their improper use and protecting them against bending, knocks and scratches).

⚠️ 09WARNING: Appliances not equipped with

A.S.S. – Automatic Stop System: must not be left in operation for more than 2 minutes with the gun released. The recycled water heats up considerably, seriously damaging the pump.

△

A.S.S. AUTOMA STOP SYSTEM

10 WARNING:

Appliances equipped

with A.S.S – Automatic Stop System: these appliances should not be left in standby for more than 5 minutes.

!

11WARNING: Switch the appliance off completely (master switch on (0)OFF) whenever it is left unattended.

!

12WARNING: Every machine is tested in its operating conditions, so it is normal for a few drops of water to be left inside it.

!

13WARNING: Take care not damage the electric cable. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

△

14WARNING: Appliance with fluid under pressure. Keep a firm hold on the gun and be prepared to take the kickback pressure. Only use the high pressure nozzle provided with the appliance.

△

16WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

△

17WARNING:Children should be supervised to ensure that they do not play with the appliance.

△

18WARNING: Never start the high-pressure cleaner without first completely unwinding the high-pressure hose.

!

19WARNING: When winding and unwinding the pipe take care not to cause the high-pressure cleaner to overturn.

!

20WARNING: Before unwinding or winding the hose, switch the machine off and release the pressure in the hose itself (switching off).

!

21WARNING: Risk of explosion — Do not spray flammable liquids.

!

22WARNING: To ensure machine safety, use only original spare parts from the manufacturer or approved by the

manufacturer.

⚠️23WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear.

⚠️24WARNING: High pressure cleaners shall not be used by children or untrained personnel.

⚠ WARNING: Water that has flown through backflow preventers is considered to be non-potable.

⚠️ XX WARNING: the machine shall be disconnected from its power source, by removing the plug from the socket-outlet, during cleaning or maintenance and when replacing spare parts

⚠️ XJ WARNING: If an extension cord is used, the plug and socket must be of watertight construction.

⚠ XY WARNING: Inadequate extension cords can be dangerous.

⚠ WARNING: It is absolutely forbidden to use the machine in potentially explosive environments or areas.

⚠ WARNING:

• NEVER EVER TOUCH THE MACHINE WITH WET HANDS OR BARE FEET.
• NEVER PULL THE POWER SUPPLY CABLE OR MACHINE IN ORDER TO DISCONNECT THE PLUG FROM THE SOCKET.
• IF DURING FUNCTIONING THE POWER SUPPLY RUNS OUT, FOR SAFETY REASONS, TURN THE MACHINE OFF.

> SAFETY DEVICE

⚠ WARNING: the gun is fitted with a safety catch. Whenever use of the machine is interrupted it is important to operate the safety catch to prevent accidental activation of the jet.

- Safety features: gun equipped with safety locking device, appliance equipped with (Class I) overload cutout, pump equipped with by-pass valve or shutdown device.

- The safety button on the gun is not there to lock the lever during operation, but to prevent its accidental operation.

⚠ WARNING: The appliance is equipped with a motor protection device: in case of device intervention, wait some minutes or, in alternative, disconnect and re-connect the product to the electric system. In case this problem repeats again or if the product

EN

does not start again, take the product to the nearest After Sales Service Point

> STABILITY

⚠ WARNING: The machine must be always kept on horizontal bases, in a safe and stable way.

> WATER SUPPLY

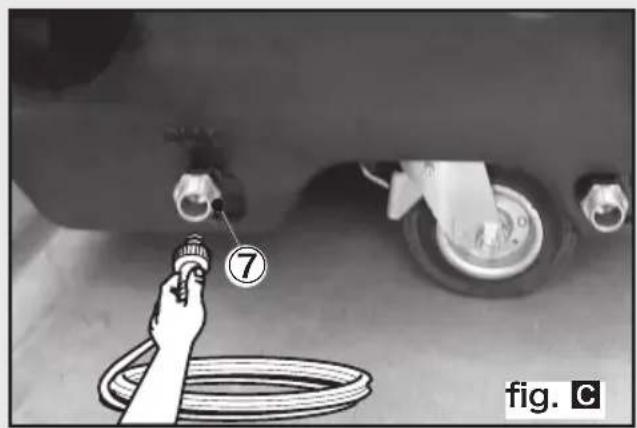

Water supply collection

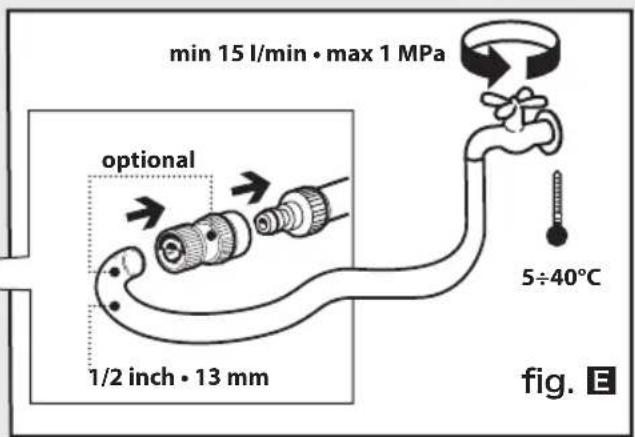

Water supply from the water main

• Connect a supply hose (not included) to the water inlet of the unit and to the water supply.
• Open the water supply.

WARNING: (symbol) machine not suitable connection to the potable water mains.

The cleaner can only be connected to the water mains if the water mains is separated by a backflow preventer. Make sure that the hose is at least ∅ 13mm-1/2 inch and that it is reinforced.

⚠ WARNING: Water that has flown through backflow preventers is considered to be nonpotable.

IMPORTANT: Only clean or filtered water should be used for intake. The delivery of the water intake tap should be equal to the double of the maximum pump range.

• Minimum delivery rate: 30 l/ min.
• Maximum intake water temperature: 40°C
• Max inlet water pressure: 1Mpa
  Place the cleaner as close to the water supply system as possible.

Water supply from an open container

• Unscrew the coupling part for the water inlet.
• Screw the suction hose with filter (not included) onto the water connection of the unit.
• Hang the filter in the container.
• Vent the unit before operation.
• Unscrew the high-pressure line at the high-pressure outlet of the unit.
• Switch on the unit and let it run until water free of bubbles emerges at the high-pressure outlet.
• Switch off the unit and screw on the high-

pressure hose again.

Failure to comply with the above conditions causes serious mechanical damage to the pump and the loss of warranty cover.

> ELECTRICITY SUPPLY

- The appliance's electrical connection must comply with the IEC 60364-1 standard.

IMPORTANT: Before connecting the appliance, make sure that the nameplate data are the same as those of the electrical mains and that the socket is protected by a differential security breaker with tripping sensitivity below 0.03 A - 30 ms.

• If the appliance's plug is not compatible with the socket, have the socket replaced with another of suitable type by professionally qualified staff.
• Never use the appliance in ambient temperatures below 0^ C if it is equipped with a PVC (H VV-F) cable.

⚠ XY WARNING: Inadequate extension cords can be dangerous.
⚠️ XJ WARNING: If an extension cord is used, the plug and socket must be of watertight construction.

Information for supply may also be obtained from the plug manufacturer.

230-240V	400-415V
3G 2,5 mm2	4G 2,5 mm2
max 20 m	max 30 m

USAGE

> UNPACKING

(see fig. B)

Take out the upper and the lower hooks, which fix the cardboard box to the pallet, take the cardboard box off, put two wheels of the machine on ground and take the pallet off.

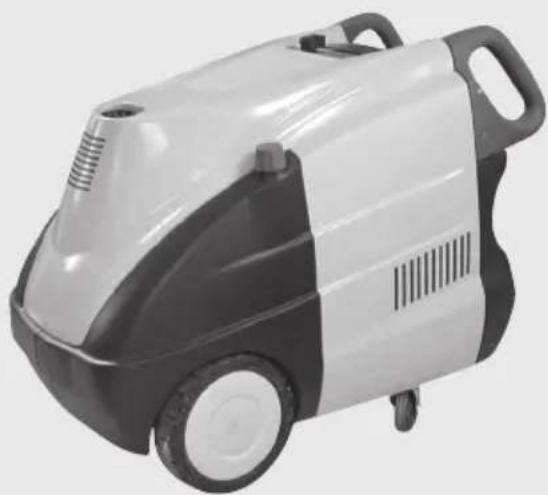

> DESCRIPTION OF THE MACHINE

① Electropump switch
② Regulator burner
③ Detergent regulator
④ Pressure gauge
⑤ Burner switch
⑥ Pilot lights (OPTIONAL)
⑦ High pressure water outlet
⑧ Water inlet + filter

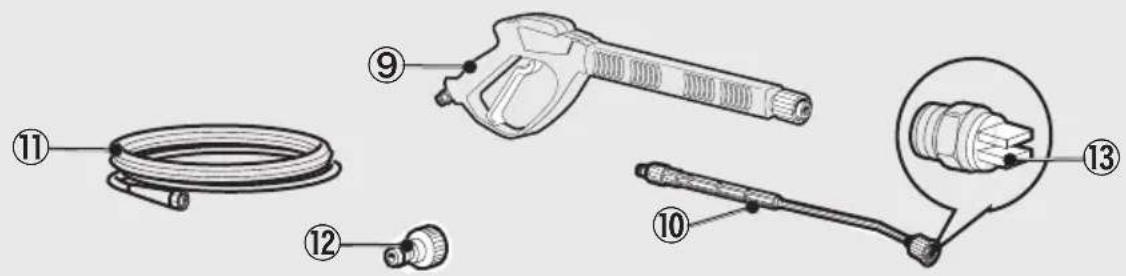

⑨ Gun
⑩ Lance
⑪ High pressure hose
⑫ Rubber hose fitting
⑬ Nozzle
⑭ Diesel tank
⑮ Detergent tank
⑯ Liquid softener tank

> CONTROL COMPONENTS

CONTROL SWITCHES

① Motor pump switch
② Burner switch with regulator
③ Detergent regulator
⑤ Burner switch
⑥ Pilot lights: DIESEL shortage (OPTIONAL)
⑥ A: Motor pump ON green pilot light
⑥ B: Leak pilot light

- flashes when the pistol lever is repeatedly operated in a short time or when a leak occurs in the high pressure circuit. Remove the leak, referring to an authorized service centre.

- remains ON when the machine is left in stand-by for over 20 minutes.

Switch on and off the motor pump switch.

⑥ C: Burner switch

• flashes when the gasoil tank is empty; the burner is stopped. Refuel.
• remains ON when the burner switches on.

A.S.S. AUTOMATIC STOP SYSTEM

(if fitted)

IMPORTANT: This water cleaner is equipped with the A.S.S. (Automatic Stop System), which stops the machine during the bypass phase.

To start the water cleaner, it is therefore necessary to set the switch on position "ON"; after that press the pistol trigger: the Automatic Stop System will start the machine and will stop it

automatically when the trigger is released. It is advisable to put on the safety of the pistol trigger whenever the machine is stopped, in order to avoid unintentional starting.

• Any automatic start of the machine without pressing the gun trigger is attributable to air bubbles in the water or other similar phenomena which do not imply the existence of any defects in the machine.
• Do not leave the appliance unattended during the standby for more than 5 minutes. Contrarily, for the safety of the appliance it is necessary to re-turn the switch into the OFF position.
• Please check that the coupling of the high pressure hose with the appliance and the gun supplied as standard equipments made correctly, that is to say without any water leak.

If the appliance is equipped with a pressure regulator:

• when the pressure is set to minimum the A.S.S. may not trigger. Therefore, do not allow the appliance to function in by-pass for more than 1 minute.
• do not act on the gun lever too frequently (this may cause a malfunction).

> INSTALLATION AND START-UP

(fig. A)

FILLING UP WITH FUEL

Fill the tank with the fuel indicated on the technical data plate (Diesel)

Avoid that the tank is empty when the machine is running in order not to damage the fuel pump.

⚠ WARNING: Incorrect fuel shall not used as they as provide hazard.

FILLING UP WITH DETERGENT

the detergent tank with the suggested products, suitable for the kind of washing to be carried out.

⚠ WARNING : Make use only of liquid detergent, do not absolutely use acid or too much alkaline products. We suggest you to make use of our products, which have been studied for the use with washer machines.

> INSTALLATION

(fig. CDEFG)

- Check that the master switch is turned to

EN

"OFF" and that the water filter is fitted into the pump's inlet pipe.

• Screw the snap connection into place by hand, without the aid of tools.
• Connect the water supply hose to connection. The hose must have an inside diameter of at least 13 mm (1/2").
• Connect the high pressure hose to the pump's outlet pipe. Press the high pressure hose coupling fully down and then screw into place by hand without the aid of tools.

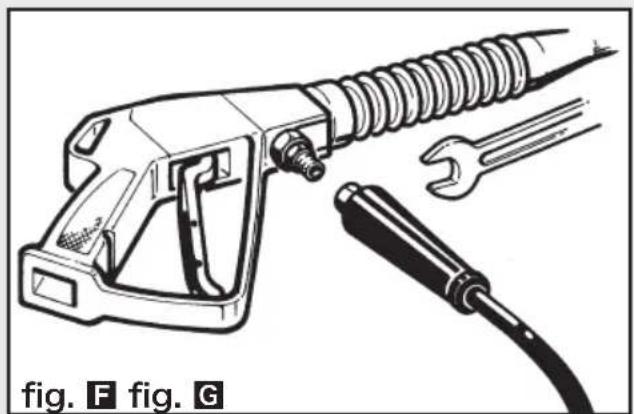

• Connect the high pressure hose to the gun.
• Turn the water tap fully on. The temperature absolutely must be below 40°C.

IMPORTANT: The washer machine has to operate with clean water in order to avoid any damages to the washer machine itself.

• Release the gun safety catch and trigger pressed, allowing the water to flow until all the air has been expelled.

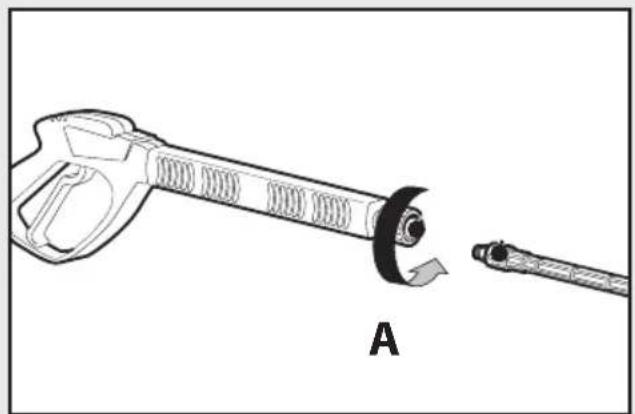

  • Fit the lance into the gun.
  • Fit the nozzle into the lanxce.
• Connect the plug to the power socket.

> 1ST START-UP

When starting up for the first time or after a long period out of use, connect the intake line only for a few minutes so that any dirt is vented from the delivery outlet

> START-UP

(fig. H)

• Whenever using the high-pressure cleaner, urged to hold the gun in the correct position, with one hand on the grip and the other on the spray rod.
• To start the machine, press the gun trigger and at the same time turn the master switch to "ON"

> TO WASH WITH HOT WATER

(fig. A)

turn the burner switch and select the desired temperature setting. To add detergent or disinfectant to the water jet, open the regulator to the setting for the quantity required as described in the "DETERGENT SUCTION" section.

⚠ WARNING: In case of operation indoors, adequate ventilation and gas venting must be

assured.

> THERMOSTAT SET ABOVE 100 °C: USE WARNINGS.

When working with temperatures exceeding 100^ C, the snap follow these steps:

• The working pressure must not exceed the limit of 32 bar.
• Through the knob on the bypass valve of the pump, you can adjust the pressure.
• Assemble steam nozzle 3.749.0183 (optional)

water > DETERGENT SUCTION

at low pressure (if included)

(see fig. Ⅰ)

The adjusting head allow you to select water jet at low and high pressure. The pressure selection is carried out by rotating the adjusting head. To increase the pressure, rotate the adjusting head clockwise, to reduce the pressure rotate it anti-clockwise. The detergent suction is automatic when the adjusting head of the lance is rotate for low pressure operation (anti-clockwise).

> DETERGENT SUCTION

at hght pressure (if included)

(see fig. Ⅰ)

When you start the machine, the mixing of the detergent with the water is automatic at the water passage. The quantity of sucked detergent depends on the quantity set with the detergent adjusting knob.

⚠️ CAUTION: Make use only of liquid detergent, do not absolutely use acid or too much alkaline products.

users Ware suggest you to make use of our products, which have been studied for the use with washer machines.

CARE AND MAINTENANCE

(vedi fig. L)

IMPORTANT: Before doing any work on the cleaner, discharge the pressure and disconnect the electricity and water supplies.

Check the oil level periodically. The oil must be changed for the first time after 50 working hours, with subsequent changes every 500 hours. SAE 20/30, 15W-40, 20W-40 oil is recommended.

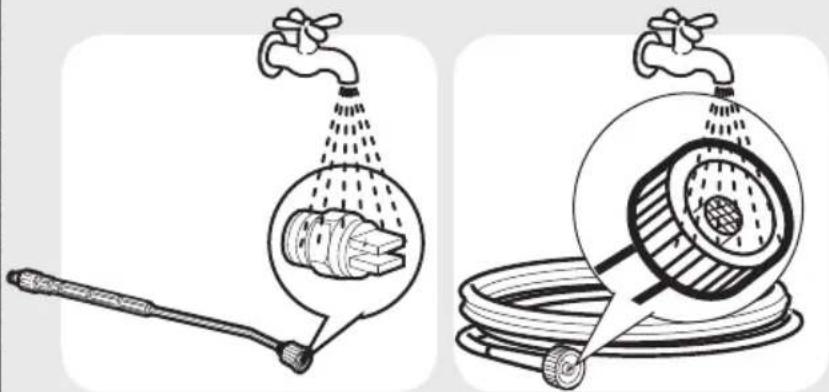

CHECKING THE WATER INTAKE FILTER

Inspect and clean the water intake filter on the intake union periodically. This is important to prevent fouling which may impair operation of the pump.

CLEANING THE FUEL FILTER

Check the fuel filter periodically and replace if it has deteriorated or is excessively dirty.

DESCALING

The descaling procedure must be carried out periodically with specific products. The interval depends on the hardness of the water. Pour one litre of product for every 15 litres of water into a drum containing at least 30 litres of water. Disconnect the gun from the high pressure line and place its free end in the drum, in order to form a closed circuit, and draw the solution into the machine for at least 10 minutes. The delivery end of the line should discharge into a canvas or mesh bag so that the scale removed is not returned to the circuit. Then restore the normal connection and rinse with plenty of cold water. This operation should be carried out by our after-sales service, since the descaling product may cause wear of components. Comply with the regulations in force when disposing of the descaling agent.

Liquid softener tank integrated (Optional - if included)

The descaling procedure must be carried out periodically with specific products. The interval depends on the hardness of the water. This operation should be carried out by our after-sales service, since the descaling product may cause wear of components. Comply with the regulations in force when disposing of the descaling agent.

- Fill the softener tank with our products (in all cases, with non corrosive products). The dispensing rate is set at a medium value; the After Sales Services will be able to adapt the setting to local conditions.

BOILER CLEANING

⚠ WARNING: For all maintenance of the boiler, of the high pressure pump and of the machine, it is necessary to address to qualified personnel or to an authorized assistance center.

The boiler cleaning must be periodically executed every 180 ÷ 200 hours of working proceeding as follows:

- Carefully remove the nozzle holder flange and

the electrodes holder (boiler head).

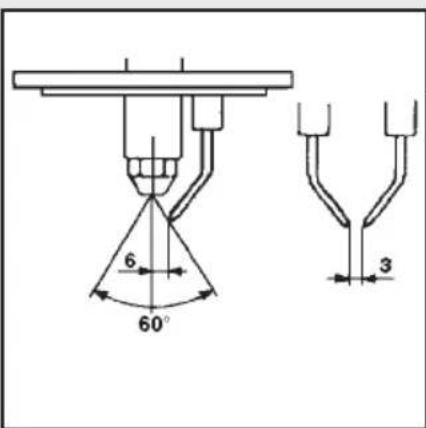

• Clean with compressed air the nozzle filter and check the electrodes position.
• Remove the boiler cap, clean the deflector.
• Manually take away the interior cap.

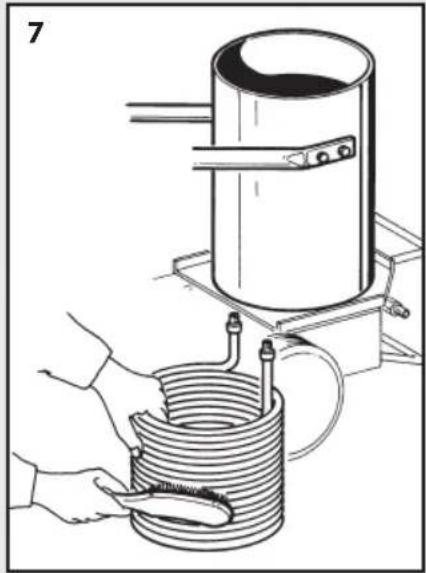

• Unscrewing the locking nuts and take the boiler coil out.
• Clean the coil by an iron brush.
• Suck the residuums from the boiler.
• Replace every parts doing the operations in the inverse way.
  ⚠ WARNING: The general checking and combustion regulation must be periodically executed by specialized personnel as prescribed by the law.

ELECTRIC DIAGRAM

See illustrations, page 7-8.

WATER DIAGRAM

See illustrations, page 7-8.

TROUBLESHOOTING

Before doing any work on the machine, disconnect the electricity and water supplies and discharge the pressure. Proceed systematically to identify Faults following the chart below; if you are still unable to eliminate the problem, call in the Authorized After-Sales Service.

Fault		When the main switch is turned on the machine does not start
Cause		Plug not properly connected.Connection panel fuses are burnt out.
Repair		Carefully check the plug and the electric cable.Check them and replace them.
Fault		The motor hums but does not start
Cause		A phase is missing (in three phase models).Lows voltage.High pressure pump is blocked.
Repair		Contact an authorised service centre.Contact an authorised service centre.Contact an authorised service centre.
Fault	The motor stops suddenly or after a while
Cause	The motor-protecting switch is on beCause of insufficient mains voltage.
Repair	Check the value of the mains voltage.Contact an authorised service centre.

EN

Fault	When the lance is turned on pressure values decrease and increase
Cause	The nozzle is either clogged or deformed.Either boiler coil or lance are clogged with limestone.
Repair	Either clean it or replace it.Descaling.
Fault	To much vibrations at the delivery
Cause	The pressure tank is run down.The valve are worn out or dirty.
Repair	Check the pressure in the tank.Check and/or replace.
Fault	The pump does not reach the fixed pressures
Cause	The pump sucks air.The valves are worn out.The setting valve area is worn out.The nozzle is unsuitable or worn out.The seals are worn out.
Repair	Check the suction pipes.Check and/or replace.Contact an authorised service centre.Contact an authorised service centre.
Fault	Irregular pressure fluctuations
Cause	The suction and/or delivery valves are worn out.Presence of foreign matters in the valves, which generate bad functioning.Air suction.The seals are worn out.
Repair	Check and/or replace.Check and clean the replace.Check the suction pipe.Check and/or replace the seals.
Fault	Pressure leakage
Cause	The nozzle is worn out.The suction and/or delivery valves are broken or down.Presence of foreign matters in the valves, which generate the valves bad functioning.The setting valve area is worn out.The seals are worn out.
Repair	Replace the nozzle.Check and/or replace the valves.Check and clean the valves.Check and/or replace the setting valve areaReplace the seals.
Fault	Noisiness

Cause	Air suction.The suction and/or delivery valve springs are broken or down.Foreign matters in the suction and delivery valves.The bearings are worn out.Extreme liquid temperature.
Repair	Check the suction pipes.Replace the valve springs.Check and clean the suction and delivery valves.Replace the bearings.Reduce the liquid temperature.
Fault	Water is in the oil
Cause	The O-ring casing is worn out.High moisture in the air.The seals are completely worn out.
Repair	Check and/or replace the O-ring.Replace the oil with double frequency in respect of the one suggested.Replace the seals.
Fault	Filtrations of water from the drains between casing and head
Cause	The seals are worn out.The piston is worn out.The O-ring of the piston cap is worn out.
Repair	Replace the seals.Replace the piston.Replace the seal.
Fault	Filtrations of oil from the drains between head and casing
Cause	O-ring seals of casing are worn out.
Repair	Replace the seals.
Fault	Turning on the burner switch the boiler does not start
Cause	No fuel.Fuel filter is clogged.Fuel pump is either blocked or burnt out.Damaged thermostat.Ignition spark insufficient or totally lacking.The space among the electrodes is not correct.Burn out fuse.
Repair	Check the level in the tank and check whether the rigid suction pipe is clean.Replace the line filter.Replace it.Replace it.Contact an authorised service centre.Check the positioning.Replace it.
Fault	Water is not hot enough
Cause	·Poor boiler performance.·Boiler coil clogged with limestone.
Re-pair	·Clean burner nozzle filter.·Clean fuel filter.·Check diesel pump pressure.·Descaling.
Fault	Too much smoke from the chimney
Cause	·Combustion is not correct.·Impurities or water in the fuel.
Re-pair	·Clean fuel filter.·Clean the boiler.·Empty the tank and clean it carefully.·Clean fuel filter as well.
Fault	Insufficient detergent suction
Cause	·No detergent in the tank.·Incrusted injector.·Either coil or tube or lance are clogged.
Re-pair	·Fill the detergent tank.·Clean it.·Either cleaning or descaling.

> REPAIRS - SPARE PARTS

For any problems not mentioned in this manual, or if the machine breaks down, you are urged to contact an Authorized After-Sales Service for the relative repair or for any replacement of components with original spare parts. Use exclusively original replacement parts.

> WARRANTY CONDITIONS

All our machines are subjected to strict tests and are covered against manufacturing defects in accordance with applicable regulations (minimum 12 months). The warranty is effective from the date of purchase. If your high pressure washer or accessories are handed in for repair, a copy of the receipt must be enclosed.

Guarantee repairs are being made on the following conditions: - That defects are attributable to flaws or defects in materials or workmanship. - That the directions of this instruction manual have been thoroughly observed. - That repair has not been carried out or attempted by other than authorized service staff. - That only original accessories have been applied. - That the product has not been exposed to abuse such as knocks, bumps or frost. - That only water without any impurities has been used. - That the high pressure washer has not been used for rental nor used commercially in any other way.

The following are not included in the warranty: Parts subject to normal wear. - The high-pressure tube and optional accessories. - Accidental damage, caused by transport, neglect or inadequate treatment, incorrect or improper use and installation failing to comply with the indications in the instruction manual. - The warranty shall not cover any cleaning operations to which the operative components may be subjected. Repairs under this guarantee include replacement of defective parts, exclusive of packing and postage/carriage. The warranty shall not cover replacement of the machine or extension of the guarantee resulting from a breakdown. The manufacturer declines all responsibility for damage to persons or property caused by bad installation or incorrect use of the machine.

WARNING! Failures, such as clogged nozzles, valves and mechanism blocked due to limestones, damaged pressure cleaner accessories (like kinked high pressure hose) and/or appliances normally working without any defects ARE NOT COVERED BY THE WARRANTY.

> DISPOSAL

As the owner of electrical or electronic equipment, the law (in accordance with the EU Directive 2002/96/EC of 27 January 2003 on waste from electrical and electronic equipment and the na-

tional laws of the EU Member States that have implemented this Directive) prohibits you from disposing of this product or its electrical / electronic accessories as municipal solid waste and obliges you to make use of the appropriate waste collection facilities.

The product can be disposed of by returning it to the distributor when a new product is purchased. The new product must be equivalent to that being disposed of.

Disposing of the product in the environment can cause great harm to the environment itself and human health. The symbol in the figure indicates the urban waste containers and it is strictly prohibited to dispose of the equipment in these containers. Non-compliance with the regulations stipulated in the Directive 2002/96/EC and the decrees implemented in the various EU Member States is administratively punishable.

INDICATIONS GÉNÉRALES

> UTILISATION PRÉVUES

> CONDITIONS DE GARANTIE

LwA 89dB(A) K (uncertainty) 2dB (A)

EN Declares under its responsibility that the machine:

EN complies with directives EC, and subsequent modifications, and the standards EN:

EN 2000/14/EC: The appliance is defined by no. 27 of the enclosure I. Conformity evaluation procedure in accordance with enclosure V.

LwA 89dB(A) K (uncertainty) 2dB (A)

LwA 91dB(A)

FN Acoustic power measured

EN Acoustic power granted

EN Technical booklet at
