IAN 337375 - Light Decoration MELINERA - Free user manual and instructions

Product type	LED light decoration (light sticks)
Brand	Melinera
Model	IAN 337375 (10532A/B/C/D)
Number of sticks	5
Total length	Approx. 1.9 m (including 0.5 m cord)
Stake height	Approx. 35 cm depending on model (34.5 to 37.5 cm)
Power supply	3 AA 1.5 V batteries (supplied)
LED power	5 or 15 LEDs of 0.06 W each (non-replaceable)
Protection type	IP44 (protected against water splashes)
Usage	Indoor and outdoor
Lighting functions	Timer 6h ON / 18h OFF with automatic repeat, continuous on, off
Color temperature	Warm white (models 10532A, B, D) or cool white (10532C)
Delivery contents	5 light sticks, 3 batteries, instruction manual
Maintenance	Clean with a dry cloth, do not use water
Warranty	36 months
After-sales service	Uni-Elektra GmbH, phone [phone], email depending on country
Manufacturer	Uni-Elektra GmbH, Kirchstr. 48, 72145 Hirrlingen, Germany
Spare parts	LEDs non-replaceable, standard AA batteries commercially available
Important safety instructions	Do not short-circuit batteries, do not throw into fire, keep away from children under 8 years, do not use if damaged

Frequently Asked Questions - IAN 337375 MELINERA

How does the timer work?

Press the TIMER/ON/OFF button once: the LEDs turn on and the button lights up green. The product stays on for 6 hours, then automatically turns off for 18 hours. This cycle repeats every day.

Can I use this product outdoors?

Yes, the product is designed for indoor and outdoor use. It is protected against water splashes (IP44). Make sure the battery compartment is not directly exposed to rain or a water jet.

How do I replace the batteries?

Open the battery compartment by releasing the locks. Insert 3 new 1.5 V AA batteries following the indicated polarity. Close the compartment. Always use batteries of the same type.

What if the LEDs do not light up?

First check that the batteries are correctly inserted and not used. If the problem persists, try new batteries. Ensure the TIMER/ON/OFF button is pressed correctly. If nothing works, contact after-sales service.

Can I replace the LEDs?

No, the LEDs are built-in and cannot be replaced. In case of malfunction, the product must be replaced.

How do I clean the light decoration?

Clean the product regularly with a dry, lint-free cloth. Never use water or liquids.

What is the warranty period?

The warranty is 36 months from the date of purchase. Keep the receipt and IAN reference as proof.

Can I use rechargeable batteries?

The manual recommends using batteries of the same type (non-rechargeable 1.5 V AA). Using rechargeable batteries may affect operation and is not recommended.

How to dispose of the product at end of life?

Do not dispose of the product with household waste. Take it to a suitable collection point. Used batteries must be recycled separately.

What to do if a child swallows a battery?

Consult a doctor immediately. Keep batteries out of reach of children. In case of leakage, wear protective gloves.

USER MANUAL IAN 337375 MELINERA

Black-and-white photo of three star-shaped decorative lights with pine trees in the background, surrounded by foliage (no text or symbols)

LED-LEUCHTSTÄBE / CHRISTMAS LED STAKE LIGHTS / DÉCORATIONS LUMINEUSES À LED

DE AT CH

LED-LEUCHTSTÄBE

CHRISTMASLED STAKELIGHTS

Operation and safety notes

NL BE

LED-LAMPEN

GB / IE Operation and safety notes Page 13

Diagram of a star-shaped object with four labeled parts, connected to a device via wires and a switch.

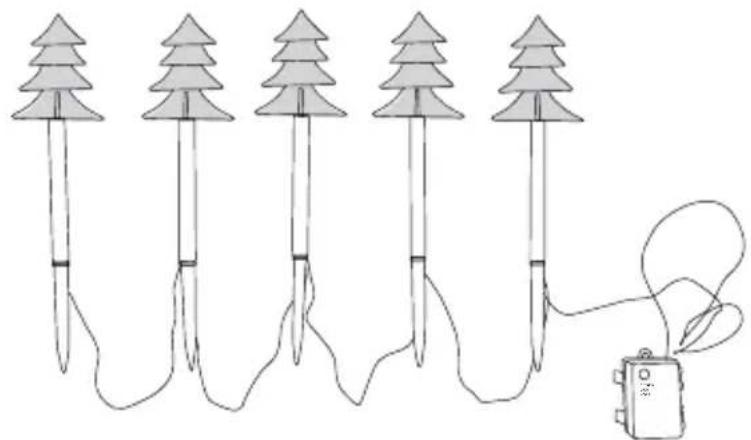

10532B

Diagram of a tree line with six identical conical trees and connected to a small electrical device (no text or symbols)

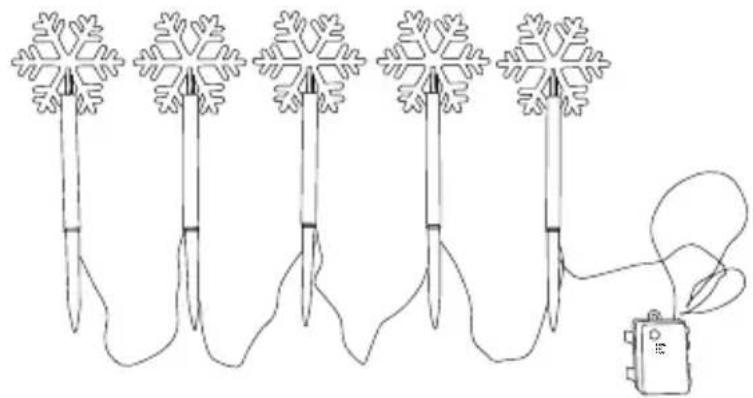

10532C

Diagram of a medical or laboratory setup with five vertical tubes and a connected device (no text or symbols)

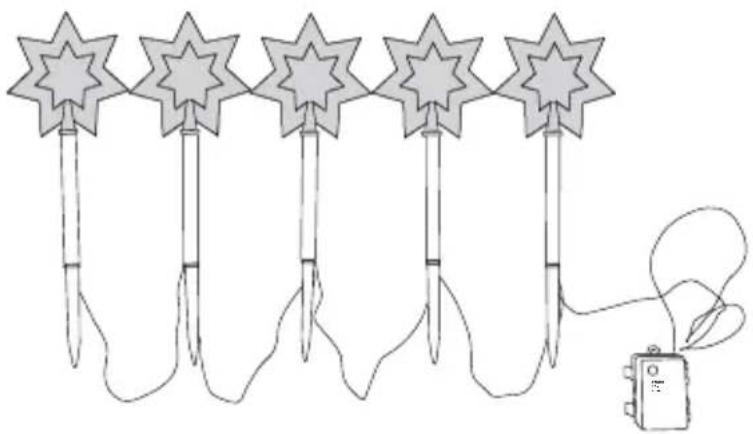

10532D

Illustration of a star-shaped wizard with five identical sticks, connected to a small electronic device (no text or symbols)

B 2

QR code image containing encoded data, no visible human-readable text

CE

List of pictograms used......Page 14

Introduction......Page 15

Intended use......Page 15

Parts description......Page 15

Technical data......Page 15

Delivery contents......Page 16

Safety instructions......Page 16

Set-up......Page 17

Installing LED light sticks in the ground......Page 17

Inserting / replacing batteries...... Page 17

Switching the LED light sticks on/off......Page 17

Cleaning and care......Page 18

Disposal Page 18

Warranty and service......Page 19

Service address......Page 19

Manufacturer......Page 20

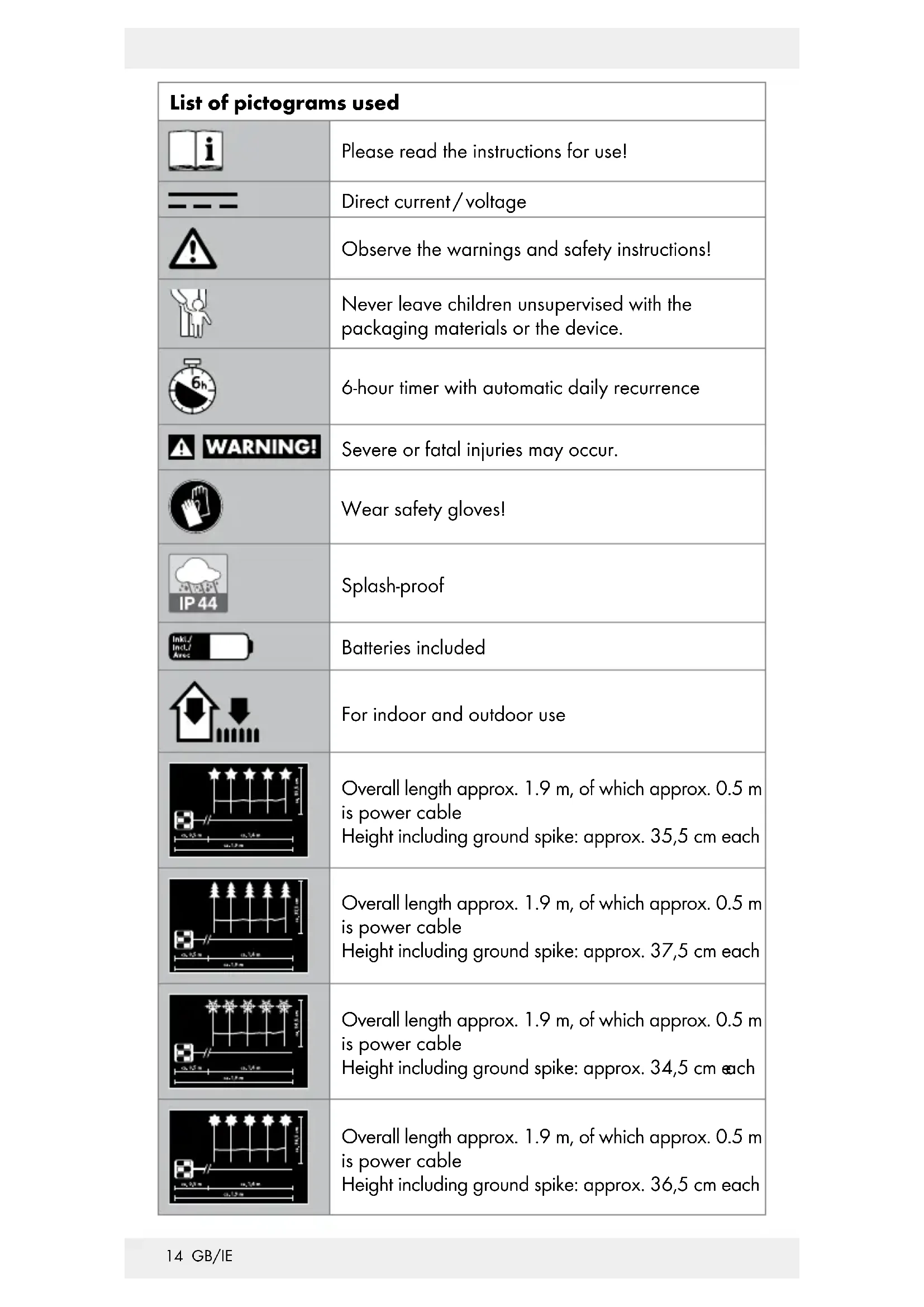

List of pictograms used
	Please read the instructions for use!
	Direct current/voltage
	Observe the warnings and safety instructions!
	Never leave children unsupervised with the packaging materials or the device.
	6-hour timer with automatic daily recurrence
[7636]WARNING!	Severe or fatal injuries may occur.
	Wear safety gloves!
	Splash-proof
	Batteries included
	For indoor and outdoor use
	Overall length approx. 1.9 m, of which approx. 0.5 m is power cableHeight including ground spike: approx. 35,5 cm each
	Overall length approx. 1.9 m, of which approx. 0.5 m is power cableHeight including ground spike: approx. 37,5 cm each
	Overall length approx. 1.9 m, of which approx. 0.5 m is power cableHeight including ground spike: approx. 34,5 cm each
	Overall length approx. 1.9 m, of which approx. 0.5 m is power cableHeight including ground spike: approx. 36,5 cm each
	Environmental damage due to incorrect disposal of the batteries / rechargeable batteries!
	Dispose of the packaging and device in an environmentally friendly manner!

Christmas LED stake lights

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is only intended for private use as decorative lighting, indoors and outdoors, and is not intended for commercial purposes.

Parts description

1 LED light stick

3 TIMER/ON/OFF button

2 Battery compartment

4 Ground stake

- Technical data

LEDs: 10532A: 5 × 3 V/20 mA, 0.06 W

10532B/C/D: 15 × 3V/20mA, 0.06W

Note: The LEDs are not replaceable.

Protection type: IP44 (splash-proof)

Battery type: 3 x 1.5 V === AA battery

Product (model no.: 10532A/B/C/D)

10532A: Stars (LED light: warm white)

10532B: Fir trees (LED light: warm white)

10532C: Snowflakes (LED light: cold white)

10532D: Stars (LED light: warm white)

- Delivery contents

5 Christmas LED stake lights
3 Batteries

1 Instructions for use

Safety instructions

KEEP ALL SAFETY NOTICES AND INSTRUCTIONS FOR FUTURE REFERENCE!

DANGRICH FUND RISK OF

ACCIDENTS FOR INFANTS AND CHILDREN! Never leave children unsupervised with the packaging materials. It poses a danger of suffocation. Keep children away from the product.

WARNING! DANGER TO LIFE! Batteries are not intended for children. Do not leave batteries lying around. There is a danger that these will be swallowed by children or pets. If they are accidentally swallowed seek immediate medical attention.

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

- Do not use the product if you notice any signs of damage.

WARNING! FIRE HAZARD! Do not short-circuit the batteries.

The battery may overheat, ignite or explode.

WARNING! EXPLOSION HAZARD! Never throw batteries into

fire or water. Never recharge non-rechargeable batteries! The batteries may explode.

Leaking or damaged batteries may result in chemical burns

upon contact with the skin; always wear suitable safety gloves.

■ Remove drained batteries from the device. Very old or used batteries may leak. The chemicals inside may damage the product.
■ Remove the batteries from the device if it will not be used for a prolonged period.
■ Always use batteries of the same type (see section "Technical data").
■ Regularly check the batteries for signs of leaking.
- Do not exert mechanical loads on the product!
In the event of damage, repairs or other problems with the light, please contact an electrician.

- Do not use old and new batteries together.

⚠️ CAUTION! RISK OF OVERHEATING! Do not operate the product whilst it is still in the packaging.

■ Store the product in the original packaging after use to prevent accidental damage.
This product does not contain any parts that can be serviced by the user. The LEDs are not replaceable.
■ Never electrically connect the product to other string lights.
■ Never connect the product directly to a 230 V supply.
The battery compartment is protected against foreign matter and spray water according to IP44. Never allow the battery compartment to be exposed to rain or direct jets of water.

Set-up

- Installing LED light sticks in the ground

WEAR SAFETY GLOVES! Wear safety gloves when installing the LED light sticks 1. Do not install the LED light sticks 1 if the ground is frozen.

☐ Push the ground stakes 4 far enough into the ground (lawn, flower bed) so that they are firm in the ground.
■ Make sure they are firmly positioned. Do not use excessive force, e.g. strike with a hammer, when you are pushing the ground stakes 4 into the ground. This will damage the product.

- Inserting / replacing batteries

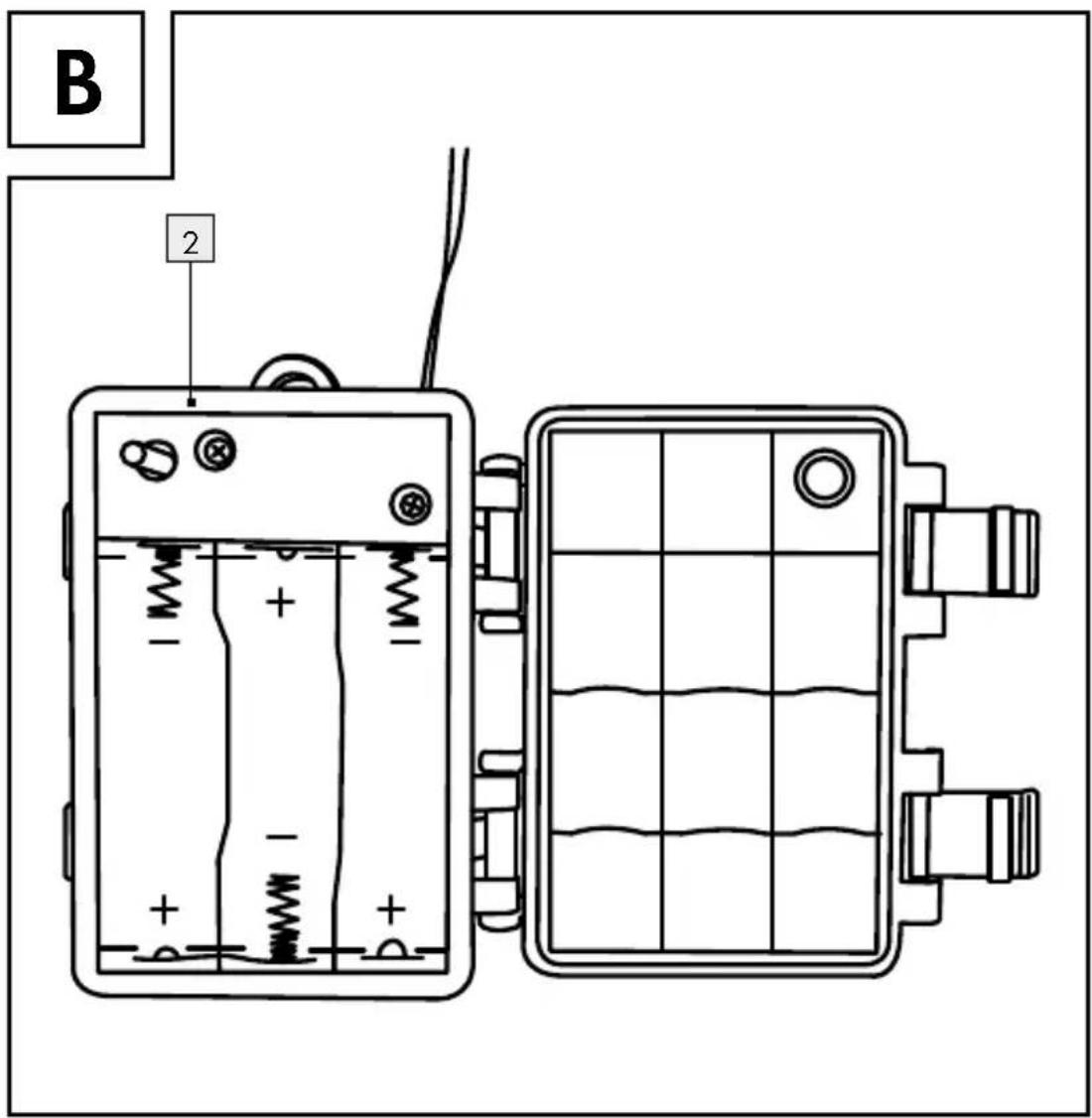

☐ Open the battery compartment 2 by loosening the latches and open it (see Fig. B).
☐ Insert batteries or replace the old batteries with new ones. Please note the polarity when inserting the battery. This is indicated in the battery compartment 2. Only use batteries of the recommended type (see "Technical data").
☐ Close the battery compartment 2 by snapping it shut and snap in the latches again.

- Switching the LED light sticks on / off

☐ Press the TIMER/ON/OFF button 3 to change the lighting modes as follows:

TIMER MODE = press once

☐ Press the TIMER/ON/OFF button 3 once. The LEDs will begin to light up and the TIMER/ON/OFF button 3 lights up green. The

product will stay on for 6 hours and will then automatically switch off for 18 hours in timer mode. This pattern will repeat automatically.

ON = press a second time

☐ Press the TIMER/ON/OFF button 3 a second time. The LEDs will now light up continuously. The TIMER/ON/OFF button 3 stops being lit up.

OFF = press once more

☐ Press the TIMER/ON/OFF button 3 once more to switch off the LED light sticks 1.

- Cleaning and care

• Do not clean the light with water or other liquids.
  □ Clean the light regularly with a dry, fluff-free cloth.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

- Warranty and service

Note: This product includes a 36 month warranty from the date of purchase. The product has been produced to the highest standards and thoroughly checked before dispatch. However, if defects in manufacturing or material arise during the warranty period, please contact your retailer immediately.

The warranty does not cover damages due to improper handling, failure to comply with the operating instructions, or manipulation by unauthorised persons. Most malfunctions are caused by incorrect operation. Therefore please first refer to the operating instructions if a malfunction occurs.

Please contact the Uni-Elektra GmbH service address with any questions. The product can only be returned to us after contacting us. Postage due shipments will not be accepted. Warranty services do not extend or restart the warranty period of 36 months.

• Service address

Uni-Elektra GmbH

Kirchstr. 48

72145 Hirrlingen

GERMANY

Tel.: [phone]

GB [e-mail]

IE [e-mail]

IAN 337375\_2001

Please have your receipt and the item number (e.g. IAN 123456_7890) ready as your proof of purchase when enquiring about your product.

Manufacturer

Uni-Elektra GmbH

Kirchstr. 48

72145 Hirrlingen

GERMANY
