Product Type	3D Rope Light Figure
Model Number	Z31531A
Rated Power	13.5 W
Operating Voltage	230-240 V~, 50 Hz
LED Specifications	3 V = 0.06 W each, 24 LEDs per meter
Protection Class	IP44 (splash water protected)
Ambient Temperature Range	-15 °C to +25 °C
Intended Use	Indoor and outdoor decorative lighting for private households
Scope of Delivery	1 figure, 4 ground spikes, 1 operating manual
Operation	Plug into mains socket; switches on/off via plug
Cleaning	Dry, lint-free cloth after unplugging and cooling
LED Replaceability	Not replaceable
Safety Features	RCD recommended for outdoor use; keep away from children and water
Warranty	3 years from date of purchase
Disposal	Recyclable packaging; dispose of product at local recycling facility

Frequently Asked Questions - Z31531A MELINERA

How do I install the Z31531A 3D rope light figure?

Place the figure on a stable substrate. Use the supplied ground spikes (4 pieces) to fix it into the ground for stability. Ensure the mains plug is disconnected during installation.

What is the power consumption of the Z31531A?

The rated power is 13.5 W at 230-240 V~, 50 Hz.

Can I replace the LEDs if they burn out?

No, the LEDs are not replaceable. The entire product must be disposed of if the LEDs fail.

Is the Z31531A suitable for outdoor use?

Yes, it is IP44 rated (splash water protected) and can be used outdoors, but must be connected via a socket protected by a residual-current device (RCD) with a trip current ≤30 mA.

How do I clean the rope light figure?

First unplug the device and let it cool. Clean only with a dry, lint-free cloth. Do not use solvents or water.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep the original sales receipt as proof.

Can I use the figure indoors?

Yes, it is suitable for both indoor and outdoor use as decorative lighting.

What should I do if the cable is damaged?

The connecting cable cannot be repaired. If damaged, the product must be taken out of use and disposed of properly.

Does the Z31531A come with ground spikes?

Yes, for model Z31531A it includes 4 ground spikes (piquetas) to secure the figure in soft ground.

What is the ambient temperature range for operation?

The product can operate in temperatures from -15 °C to +25 °C.

USER MANUAL Z31531A MELINERA

FIGURA DE TUBO LUMINOSO EN 3D / DECORAZIONE LUMINOSA 3D

ES

FIGURA DE TUBO LUMINOSO EN 3D

Operation and Safety Notes

GB / MT Operation and Safety Notes Page 17

Z31531D Z31531D Z31531D

A

Z31531A

Z31531B

Z31531D

Z31531F

Para Z31531 A/B/C/E/F:

4 Piquetas

Para Z31531D:

4 Abrazaderas

2 Tornillos

2 Tacos

Para Z31531 A/B/C/E/F:

3 Piqueta

Para Z31531D:

4 Abrazadera
5 Tornillo
6 Taco

1 figura in 3D in tubo luminoso

Per i modelli Z31531A/B/C/E/F:

4 picchetti

1 Figura in 3D in tubo luminoso
2 Spina

Per i modelli Z31531A/B/C/E/F:

3 Picchetto

Para Z31531 A/B/C/E/F:

4 Estacas

Para Z31531D:

4 abraçadeiras de serrilha
2 parafusos
2 buchas

Para Z31531 A/B/C/E/F:

3 Estaca

Para Z31531D:

Carganominal: Z31531A:13,5W,

Z31531B: 9W,

Z31531C: 18W,

Z31531D: 9W,

Z31531E: 13,5W,

Z31531F: 13,5W

3D Rope Light Figure

- Introduction

- Intended use

This product is suitable for indoors and outdoor use as decorative lighting. The appliance is only intended for use in private households, and not intended for commercial use.

- Delivery scope

1 3D rope light figure

For Z31531A/B/C/E/F:

4 Ground spikes

For Z31531D:

4 Cable ties

2 Screws

2 Dowels

1 Operating instructions

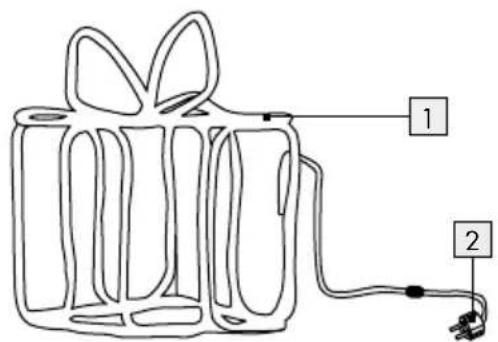

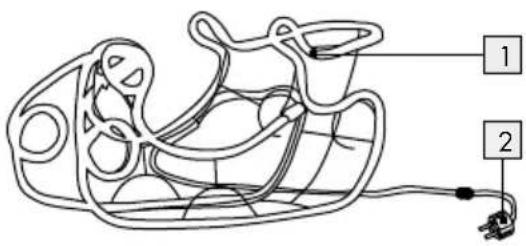

• Description of parts

1 3D rope light figure
2 Mains plug

For Z31531A/B/C/E/F:

3 Ground stake

For Z31531D:

4 Cable ties
5 Screw
6 Dowel

- Technical data

Operating voltage: 230-240 V \~, 50 Hz, Ambient temperature: from -15 °C to +25 °C

Protection class:

IP class: IP44 (spray water protected)

3D rope light figure (Model No. Z31531 A-F) is TÜV/GS tested.

LED:3V = 0.06W

24 LED per meter

Ratedpower:Z31531A:13.5W,

Z31531B: 9W,

Z31531C: 18W,

Z31531D: 9W,

Z31531E: 13.5W,

Z31531F: 13.5W

LED are not replaceable.

Safety information

WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the device at all times.

This device is not a toy and should not be played by children. Children are not able to understand the dangers that can occur when handling this device.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Avoid the danger of death from electric shock!

Before use, ensure that the mains voltage available is the same as the required operating voltage for the device (230-240 V\~).
Before connecting to the mains, always check the product for any damage.
■ Never use the product if you find damage of any kind.
The connecting cable cannot be repaired! If the cable is damaged, the product must be taken out of use and disposed of in the proper way.
This product does not contain any parts which can be serviced by the user. The bulbs cannot be replaced.
■ Never open any of the electrical parts or insert any kind of object into them.
- Protect the product from sharp edges, mechanical loads and hot surfaces.
Do not install with sharp fasteners or nails.
■ Always remove the mains plug from the socket before installing, dismantling or cleaning.
■ Never touch the mains plug or the 3D rope light figure with wet hands.

CAUTION! RISK OF OVERHEATING! Do

not cover the rope light with blankets, cushion or similar heat-insulating material. Do not operate the product whilst it is still in the packaging.

■ Use the lighting only with the parts described in these instructions.

If the product is not to be used for any length of time (e.g. holidays), disconnect it from the power supply.

■ After use store the product in the original packaging to avoid causing unintentional damage.

- Keep the product away from ponds and other bodies of water. Install the product at least 2 m from water containers. Avoid locations where flooding occurs after heavy rain.

Use the product outdoors only when connected to a mains socket protected by a residual-current device (RCD) with a rated trip current of not more than 30 mA.

- Outdoor mains sockets must be suitable for use outdoors and should be at least 2.5 m from the nearest water container or body of water.

The product is protected against splash water (IP44). This protection standard is only possible if the mains socket also fulfills requirements of at least the same protection class.
■ Ensure that the product is not laid out through areas in which lawn mowers, strimmers, shears or similar cutting tools are used.
■ Ensure that the product does not present a trip hazard.
If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.

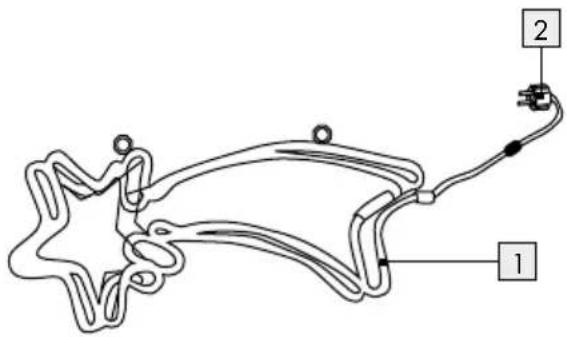

Only for Z31531D (Shooting star):

CAUTION! RISK OF ELECTRIC SHOCK!

Before installation please ensure that there is no concealed wiring where you are intending to drill.

CAUTION! WATER DAMAGE! Before installation please ensure that there are no concealed pipes where you are intending to drill.

●Installation

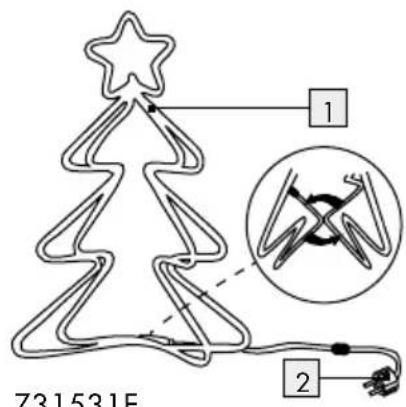

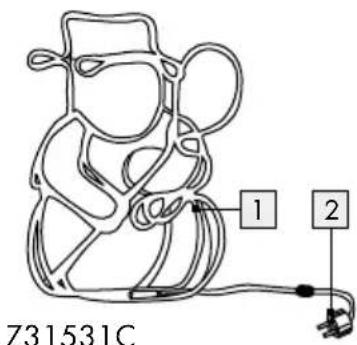

Only for Z31531C (Snowman) and Z31531E (Christmas tree) (Fig. A):

☐ Bend the two wire elements carefully out from one another.

For all models except Z31531D (Shooting star):

☐ Stand the 3D rope light figures ☐ on a stable substrate.
☐ If possible fix the 3D rope light figures 1 in place with the ground spikes 3.
☐ Check the stability of the 3D rope light figures 1.

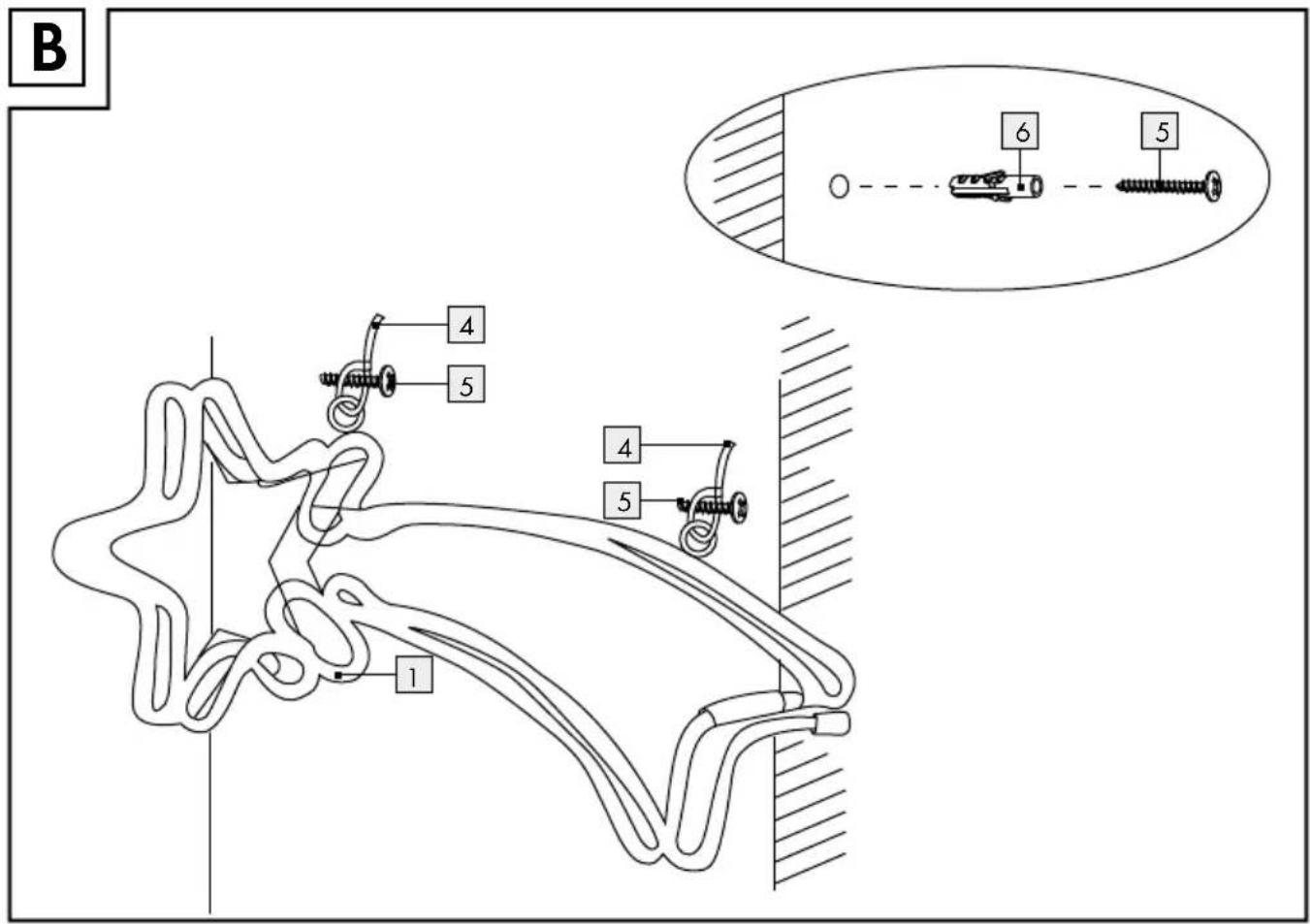

Only for Z31531D (Shooting star) (Fig. B):

Check that the wall is suitable for attaching the 3D rope light figure 1 before you start installation. If necessary ask a suitable specialist about how best to attach the product and whether the supplied screws 5 and dowels 6 are suitable for the wall.

☐ Mark the desired positions of the two holes to be drilled in the wall.

Drill the holes in the desired positions.
☐ Insert a dowel 6 into each of the drilled holes.
□ Screw a screw 5 into each dowel 6.
Draw the cable ties 4 through the eyes in the 3D rope light figure 1.
□ Close the cable ties 4
□ Suspend the 3D rope light figure 1 from the screws 5 using the cable tie loops.

Use

Plug the mains plug into the socket. The lighting is switched on.
To turn the lighting off, remove the mains plug from the socket.

- Cleaning and care

CAUTION! RISK OF ELECTRIC SHOCK!

First remove the mains plug from the socket.

■ Let the product cool before you clean it. Risk of injury!
Do not use any solvents, petrol or similar items. This would damage the device.
Only a dry, lint-free cloth should be used for cleaning.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE IP44

Model-No.: Z31531A, Z31531B, Z31531C,

Z31531D, Z31531E, Z31531F

Version: 06/2014
