Product Type	LED Light Chain
Model	HG05440A
Brand	Melinera
Length	10 m (approx.)
Number of LEDs	100 (approx.)
LED Color	Warm White
Power Supply	Mains powered with plug
Input Voltage	230 V AC, 50 Hz
Power Consumption	4.8 W (approx.)
Protection Rating	IP44 (splashproof)
Light Modes	Static on, flashing, fading
Timer Function	6 hours on / 18 hours off
Indoor/Outdoor Use	Outdoor (with appropriate protection)
Dimensions (Box)	15 x 10 x 5 cm
Weight	0.4 kg
Material	Plastic (LEDs), Copper wire
Cleaning Instructions	Wipe with a dry cloth; do not immerse
Safety Notes	Not for children under 3 years; avoid covering
Replaceable Parts	LEDs not replaceable individually; whole chain replaceable
Warranty	2 years

Frequently Asked Questions - HG05440A MELINERA

Can the HG05440A LED light chain be used outdoors?

Yes, the light chain has an IP44 rating, making it splashproof and suitable for outdoor use. However, ensure the plug is protected from moisture.

How do I change the light mode on the Melinera HG05440A?

Press the mode button on the controller to cycle through static on, flashing, and fading modes. Press and hold for 3 seconds to activate the timer.

What is the maximum number of chains I can connect?

You can connect up to 3 identical chains end-to-end. Do not exceed the total power rating.

The lights are not turning on. What should I check?

First, ensure the plug is securely inserted and the outlet is working. Check if the fuse in the plug needs replacement. If the problem persists, the chain may be defective.

Can I cut the light chain to shorten it?

No, the HG05440A is not designed to be cut. Cutting will damage the circuit and render the chain unusable.

Is the timer function adjustable?

The timer is preset to 6 hours on / 18 hours off and cannot be adjusted. It repeats daily when activated.

What should I do if one LED goes out?

In case of a single LED failure, the remaining LEDs will continue to work. However, individual LEDs are not replaceable. The entire chain may need replacement if multiple fail.

How should I clean the light chain?

Unplug the chain and wipe the LEDs and wires with a dry, soft cloth. Do not use water or cleaning agents, as they may damage the electronics.

Can I use the light chain in a closed glass jar?

While the LEDs do not heat up significantly, it is not recommended to fully enclose them to avoid overheating and potential fire hazard.

Where can I find the user manual for the Melinera HG05440A?

The manual is available for free download on notice-facile.com in PDF format. You can also request a translated version via email.

USER MANUAL HG05440A MELINERA

FIGURA AUTOHINCHABLE NAVIDEÑA CON LEDES / DECORAZIONE LED NATALIZIA AUTOGONFIANTE

ES

FIGURAAUTOHINCHABLE NAVIDEÑA CON LEDES

INFLATABLE LED CHRISTMAS FIGURE

Operation and safety notes

IT MT

GB / MT Operation and safety notes Page 17

- Smaltimento

Delivery scope......Page 18

Description of parts....Page 18

Technical data......Page 18

Safety information......Page 19

Use Page 20

Disassemble the product......Page 20

Timer function......Page 21

Cleaning and care....Page 21

Disposal Page 21

Warranty Page 21

Warranty claim procedure......Page 22

Service Page 22

List of pictograms used
	Read the instructions!		Observe the warning and safety instructions!
	Volt (Alternating voltage)		Short-circuit-proof safety isolating transformer
	Volt (Direct current) Independent lam		trol gear
	Hertz (Frequency)		Polarity of D.C. connector (Light chain)
	Watt (Effective power)		This icon indicates that the product is mains operated.
	Protection class II Splashproof
	Length of power cord		Not suitable for children under the age of 14. Keep away from children.

Inflatable LED Christmas figure

This product is suitable for extreme temperature up to -21 °C.

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Delivery scope

1 inflatable LED

3 spikes

Christmas figure

3 ropes

1 mains adapter

1 instructions for use

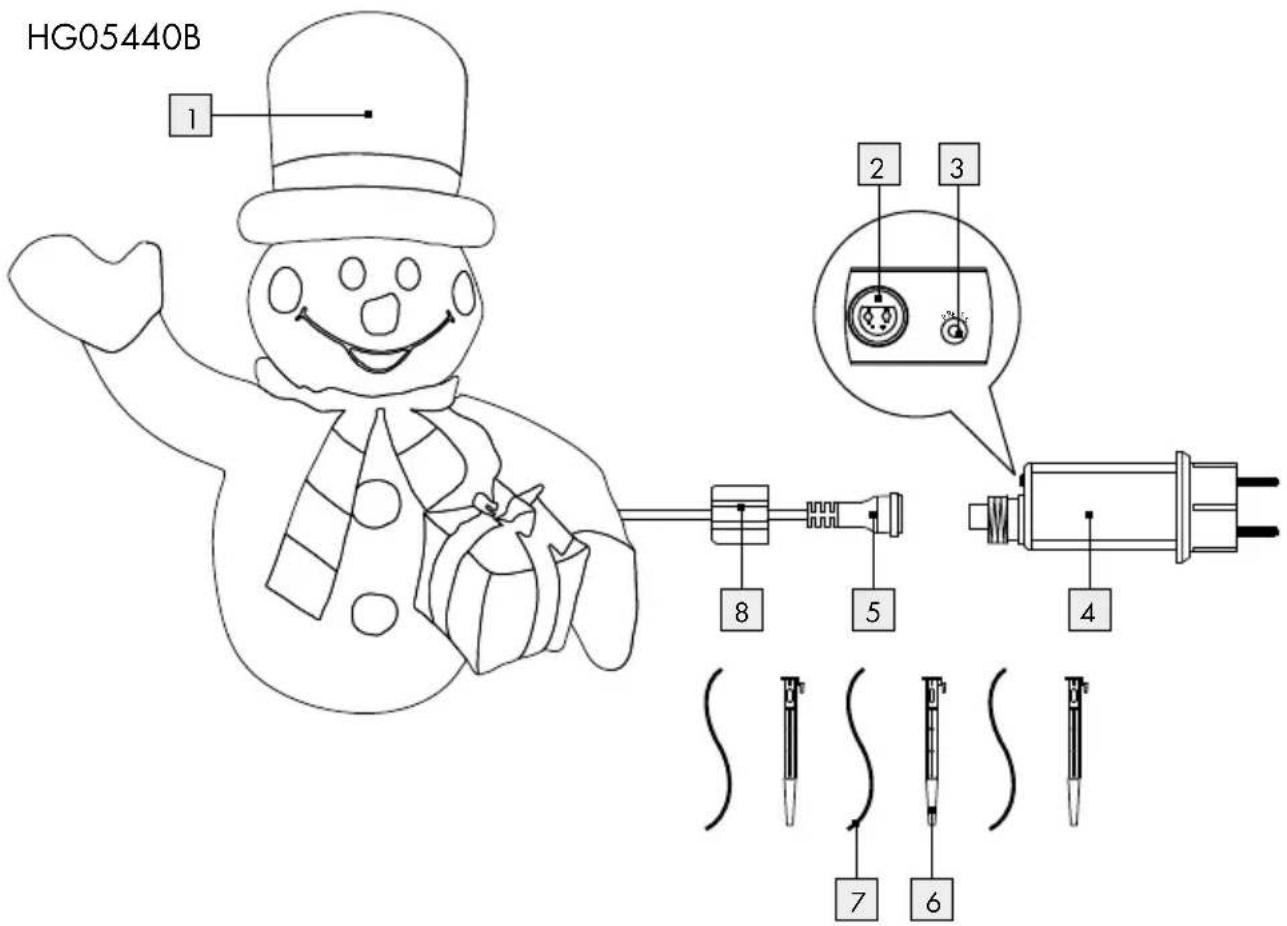

• Description of parts

1

LED figure

5

Supply line plug

2

Socket

6

Spike

3

Timer button

7

Rope

4

Mains adapter

8

Union nut

- Proper use

This product is suitable for indoors and outdoor use. This product is intended for use in private, domestic environment

only and not for commercial purposes.

Not suitable for ordinary lighting in household room illumination.

- Technical data

LED lights, fan + mains adapter:

Total power

consumption: 7.3 W

LED lights 1:

Operating voltage: 12V === (direct current)

LEDs: 3 x max. 0.5 W, 3 V === (direct current) (LEDs are non-replaceable.)

Protection system: IP44 (splashproof)

LED Lights (Model No. HG05440A / HG05440B)

GS certified.

Fan:

Operating voltage: 12V

Mains adapter 4:

Nominal voltage

primary: 220-240 V\~ (alternating current), 50/60 Hz

Nominal voltage

secondary:12V === (direct current), 7.2 W

Protection system: IP44 (splashproof)

Protection class: II / ☐

Mains adapter (Model No. YJ-L12DOT-7.2W)

GS certified.

Safety information

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage!

In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

This product is not a toy and should not be played by children. Children are not able to understand the dangers that can occur when handling this product.

■ Decorative item - no toy! Not suitable for children under 14 years. Keep away from children.

■ Never open the zipper which located at the bottom of product, Children shall never get inside the product.

■ Ensure that the product is installed by suitably experienced or qualified persons only.

CAUTION! RISK OF OVERHEATING!

Do not operate the product inside the packaging.

■ After use, keep the product in the packaging to prevent unwanted damage.

- Do not pull the product cable and make sure it is laid down properly so that no one walks or trips over it.

The product can be used on all surfaces officially classified as being of "normal flammability".

- Do not attach any other objects to the product.

WARNING! DANGER TO LIFE AND ACCIDENT HAZARD FOR TODDLERS AND SMALL CHILDREN!

⚠ WARNING! ONLY FOR DOMESTIC USE.

⚠ WARNING! TO BE USED ON LEVEL

SURFACE ONLY. Place the product at least 2 m away from any objects, such as furniture, wall etc.

⚠ WARNING! The product is under spring tension. Risk of injury by sudden spread out. Carefully unfold! Assembly by adults only.

- KEEP THE PRODUCT AWAY FROM NAKED FLAMES OR OTHER SOURCES OF HEAT!

■ Use the product only under the supervision of an adult.

This product may only be assembled / disassembled by an adult.

- Check for damage regularly. Discard responsibly if material damaged.

■ AVOIDING DAMAGE TO THE MATERIAL!

The product may not be exposed to the sun for long periods. Otherwise this can cause damage to the product.

- Avoid contact with sharp, hot, pointed, or hazardous objects.

Avoid the danger of death from electric shock!

Before use, ensure that the mains voltage available is the same as the required operating voltage for the product (220-240 V\~, 50/60 Hz).

Before connecting the product to the mains you should always check the product for any damage.

■ Never use the product if you discover that it is damaged in any way.

This product's external flexible tube is non-replaceable. Hence if it becomes damaged you must dispose of the entire product.

This product does not contain any parts which can be serviced by the user. The bulbs cannot be replaced.

Only use the product with the supplied mains adapter 4 for the type (Model No. YJ-L12DOT-7.2W); all warranty claims will otherwise expire.

■ Never open any of the electrical parts or insert any kind of object into them.

- Protect the product from sharp edges, mechanical loads and hot surfaces.

- Do not install with sharp fasteners or nails.

■ Always unplug the mains adapter 4 from the socket before installation, dismantling or cleaning.

■ Never touch the product plug or the product itself with wet hands.

- The product must not be electrically connected to another light chain.

If the product is not in use for any length of time (e.g. holidays), disconnect them from the power supply.

If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.

The product is protected against splashes of water (IP44) as long as the socket meets the minimum protection standard.

The product is only suited for use with the included mains adapter (YJ-L12DOT-7.2W).

- Please note that the mains adapter continues to draw a small amount of power even if the

product is turned off as long as the mains adapter is plugged into a power outlet. To switch the product off completely, unplug the mains adapter from the socket.

The LEDs are not replaceable.
If the LEDs fail at the end of their lives, the entire product must be replaced.
The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
- Keep the instructions for future reference!

Use

WARNING! ASSEMBLY MUST BE CARRIED OUT BY AN ADULT!

1. Remove all packaging materials and remove the product carefully from the box. Make sure you have sufficient space.
2. Lay the product down with the underside on the floor.

☐ Insert the plug of the supply lead into the socket 2 of the mains adapter 4.
☐ Tighten the union n8 clockwise.
Plug the mains adapter into a wall socket. The product will start to expand slowly.
☐ Use the spikes 6 and rope 7 to fix the product (rope can bind the eyelets of product).
☐ For indoor installation, place the product on an even surface and fix it with rope if possible. Otherwise, the product may not stand stable.

Noted: Do not open the zipper which near the bottom of product.

• Disassemble the product

☐ Release the spike and rope 7 that fix the product.
☐ Unplug the mains adapter after use. The size of the product will reduce slowly. Under certain circumstances, the air must be completely pushed out by hand to store the product.

- Timer function

☐ To switch on the timer function, press the timer button 3 after the product is connected to the socket of power cable. The timer button 3 will light up green when the timer function is activated.
☐ The product operate permanently for 6 hours and will be followed by a subsequent pause of 18 hours. Afterwards, the product will operate again at its designated turn on time for 6 hours followed by a subsequent pause of 18 hours.
☐ Press the timer button after the product will switch off.
☐ Please note that the mains adapter continues to draw a small amount of power even if the product is turned off as long as the mains adapter is plugged into a power outlet. To switch the product off completely, unplug the mains adapter from the socket.
☐ You can press the timer button to switch on the product again.

- Cleaning and care

WARNING! DANGER OF ELECTRIC

SHOCK! First remove the mains adapter 4 from the socket.

WARNING! DANGER OF ELECTRIC

SHOCK! For reasons of electrical safety the product must never be cleaned with water or other liquids or immersed in water.

• Do not use any solvents, petrol or similar items. This would damage the product.
  ☐ Only a dry, lint-free cloth should be used for cleaning.
  ☐ Only clean the exterior of the product using a soft, dry cloth.
  ☐ F or heavy soiling may use a slightly damp cloth.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

- Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

MT Service Malta

Tel.:[phone]

E-Mail: [e-mail]

CE IP44
