Matera - Barbecue Blumfeldt - Free user manual and instructions

Product type	Outdoor brazier barbecue
Brand	Blumfeldt
Model	Matera
Use	Outdoor only, non-commercial use
Recommended fuel	Dry firewood, charcoal (max 0.5 kg for barbecue)
Dimensions (estimated)	Diameter approx. 70 cm, height approx. 35 cm
Weight (estimated)	Approx. 10 kg
Material	Metal with high-temperature resistant paint
Maximum paint temperature	At least 600 °C
Included items	Body, brazier, cooking grate, fire poker (likely)
Number of cooking grates	1
Ignition type	Manual (paper or kindling)
Safety	Do not use in an enclosed space, risk of suffocation
Safety distance	Keep away from combustible materials and children
Cleaning	Allow to cool completely, remove ashes, clean with a damp cloth
Maintenance	Regularly check for damage, remove rust and repaint if necessary
Storage	Store only after complete cooling and ash removal
Manufacturer	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany
UK importer	Chal-Tec UK Limited
Manual available in	French, German, English, Spanish, Italian and others

Frequently Asked Questions - Matera Blumfeldt

Where to install the Matera brazier?

Install the brazier on a firm, flat, heat-resistant surface, away from any flammable material. For outdoor use only.

What fuel to use?

Use dry firewood or charcoal (maximum 0.5 kg for cooking). Never use gasoline, denatured alcohol, or lighter fluid.

How to light the fire?

Place paper or kindling in the center, light it, then gradually add fuel. Do not overload the fire pit initially to avoid cracks.

Can I use the brazier in rainy weather?

Not recommended. Use it in dry weather and sheltered from wind. Water can cause thermal shock and damage the metal.

How to safely extinguish the fire?

Let the fuel burn out or smother the fire with sand. Never use water, as it could damage the appliance and create dangerous splashes.

How to clean the brazier after use?

Wait for the fire pit to cool completely. Remove the ashes, leaving a thin protective layer. Clean the surfaces with a damp cloth.

What to do in case of rust?

Remove rust with a wire brush and apply paint resistant to over 600 °C. To prevent rust, wipe the product with an oily cloth after each use.

Is the brazier suitable for direct cooking?

Yes, place the cooking grate on the brazier. Wait until the fuel forms a layer of ash before starting to cook. Ensure food is cooked thoroughly.

What safety precautions are essential?

Never leave the fire unattended, keep children and pets away, wear heat-resistant gloves, and do not use the appliance in an enclosed space.

Where to find spare parts?

Contact the manufacturer Chal-Tec GmbH (Germany) or the importer Chal-Tec UK Limited for parts. Regularly check the condition of components before use.

USER MANUAL Matera Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

SICHERHEITSHINWEISE

WARNUNG

Warning sign with hazard symbols and four triangular warning icons, including a person in a yellow triangle.

VORSICHT!

VERWENDEN SIE KEIN ALKOHOL ODER BENZIN ZUM ENTZÜNDEN ODER WIEDERENTZÜNDEN!

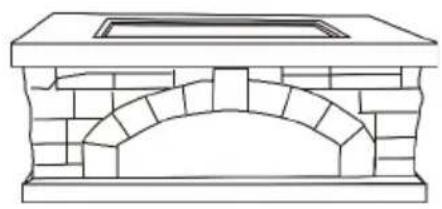

LIEFERUMFANG

Simple line drawing of a rectangular basin or container with no text, numbers, or symbols

1 Stück

Line drawing of a stone arch bridge structure with a central opening (no text or symbols)

1 Stück

1 Stück

ZUSAMMENBAU

1 2 3

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product:

QR code image containing encoded data, no visible human-readable text

SAFETY INSTRUCTIONS

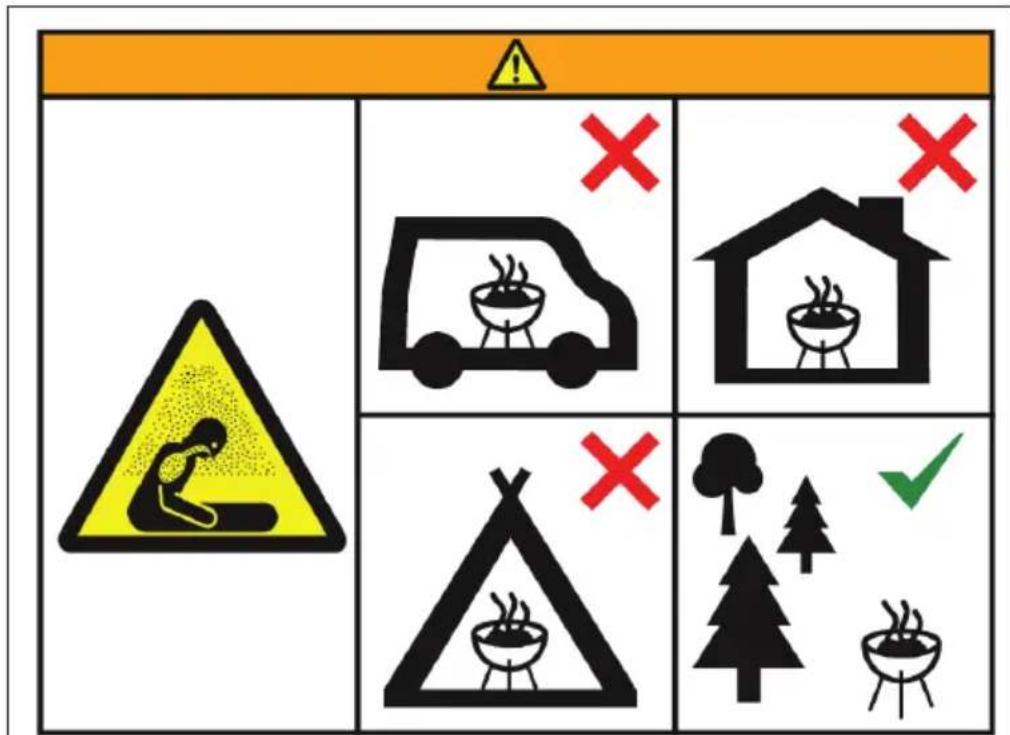

WARNING

Risk of suffocation! This fire pit is for outdoor use only and shall not be used in a building, garage or any other enclosed area. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This fire pit is not for commercial use.
• This fire pit should only be used by adults and all children and pets should be kept at a safe distance.
• Do not use petrol, white spirit, lighter fluid, alcohol or other similar chemicals to light a fire as a rapid increase in temperature could damage the fire pit. This fire pit is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.
• Do not use this fire pit until it is completely assembled and all parts are securely fastened and tightened.
• Do not use the fire pit on decking or any other flammable surfaces such as dry grass, wood chips, leaves.
• Always empty this fire pit after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.
• Do not touch the fire pit until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.

• Do not handle or move the fire pit when in use as it is hot.

• Do not attempt to store the fire pit until all ashes and charcoals are completely extinguished.
  • Always use a safety tool and heat resistant gloves when adding or moving fuel.

• Do not leave a burning fire unattended.
• Fire hazard-Hot embers may emit while in use.
• Do not overload the fire pit with fuel. Do not add additional fuel until the fire burns down. If an portion of the fire bowl is growing red, it is overloaded.
• Do not burn fuel directly on the fire bowl base.
• Do keep the fuel away from the wall of the fire pit as the high temperature may damage it.
• Avoid breathing smoke from the fire and avoid getting it into your eyes.
  • Always thoroughly inspect the fire pit before use.
• A slight discolouration of finish may occur after use.

Warning sign with pictograms and symbols, including a yellow warning triangle, a vehicle, a house, a campfire, trees, and a checkmark.

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

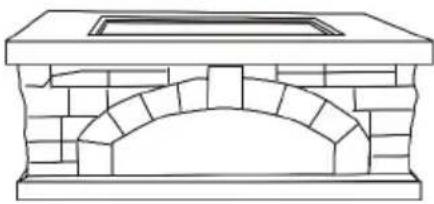

SCOPE OF SUPPLY

Simple line drawing of a rectangular basin or container (no text or symbols)

1 piece

Line drawing of a stone arch bridge structure (no text or symbols)

1 piece

1 piece

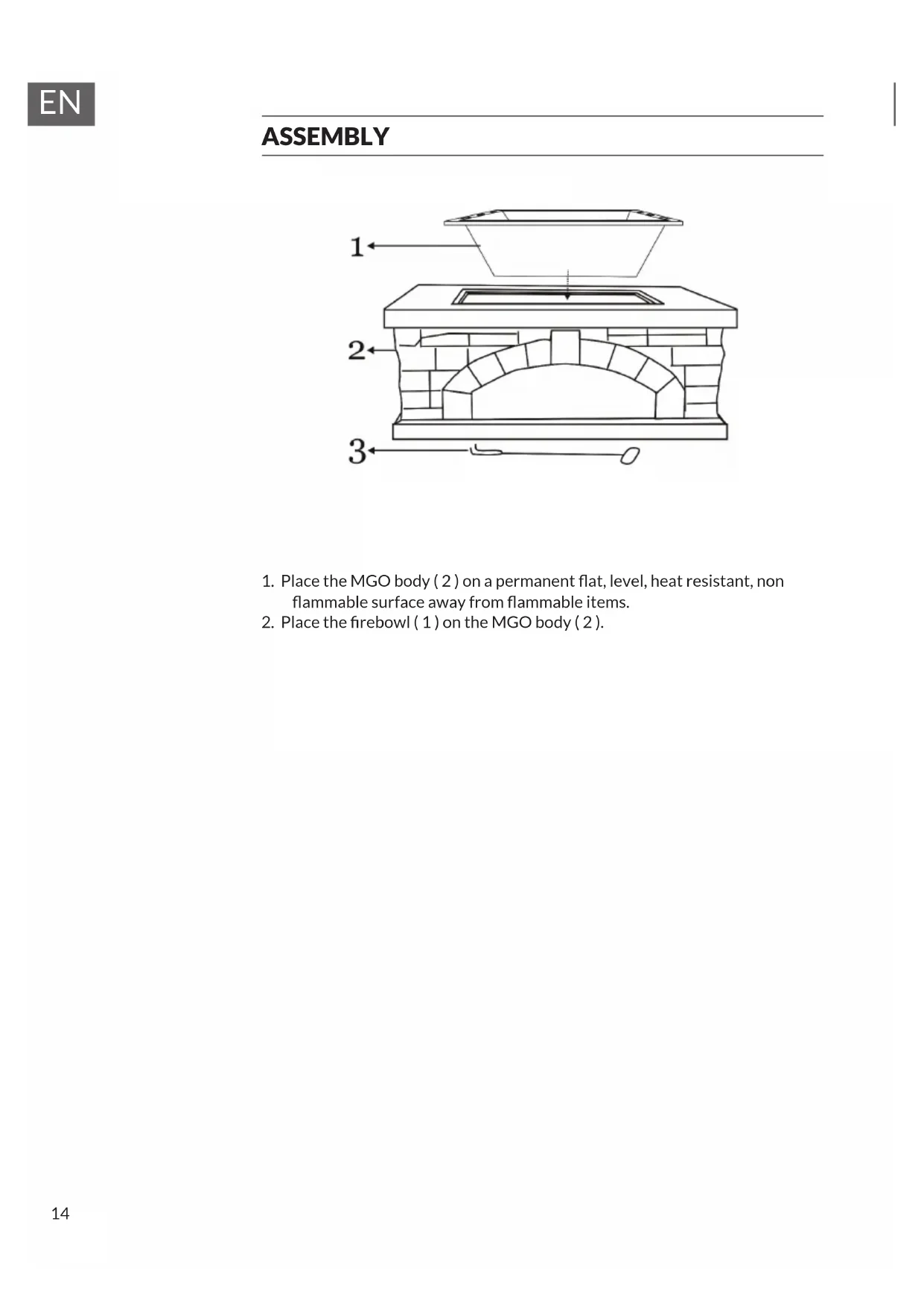

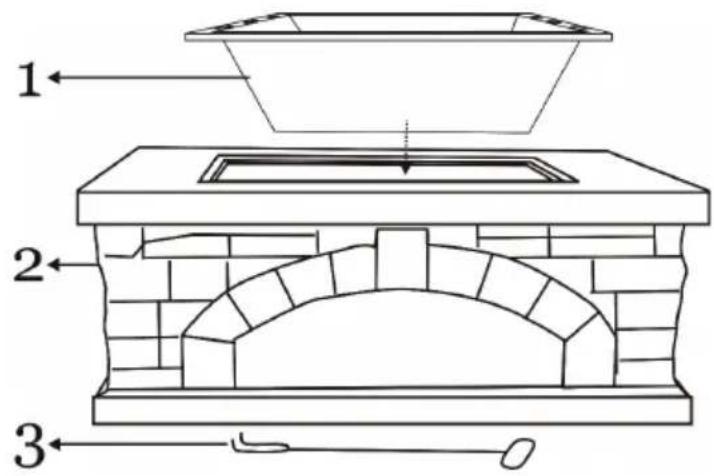

ASSEMBLY

1 2 3

1. Place the MGO body (2) on a permanent flat, level, heat resistant, non flammable surface away from flammable items.

2. Place the firebowl (1) on the MGO body (2).

OPERATION

Ignite Fire

• Make sure that the fireplace is placed on a firm, flat, level and heat-resistant surface away from flammable objects.
• Place paper or dry firewood in the middle of the fire tray base.

Note: Do not place fuel directly in the fire bowl but always on the paper or the firewood.

• Light the paper or firewood.

Note: Light a small fire first and then let it slowly grow. If the heat develops too quickly and too strongly, cracks may occur in the construction.

Stoke the Fire

• Add more fuel to slowly increase the heat. Do not overload the fireplace with fuel. Three small logs are sufficient.
• Use the scraping tool when rearranging the logs.

Extinguish Fire

To extinguish the fireplace, do not add fuel or suffocate the fire with sand. Do not extinguish the fire with water!

CLEANING AND CARE

CAUTION

Danger of burns! Allow the fi replace to cool completely before inspecting or cleaning it for damage.

Inspect the fi replace for damage

Check the fi replace regularly for damage to ensure product safety and a longer service life.

1. Check all parts to make sure they are tight.
2. Check the components for damage.
3. If you find damage to a component, have the fi replace repaired before continuing to use it.
4. Remove loose paint and rust from the metal with a wire brush when needed and re-paint using a high temperature paint, resistant to at least 600 °C. To help reduce surface rust, rub this product with an oily rag after each use.

Cleaning

• Make sure that the fire is completely extinguished when you no longer use the fire replace.
• Make sure the fi re is completely extinguished and the fi replace has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the fi replace regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.
• Clean the outside with water and a mild dishwashing liquid.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

CONSIGNES DE SÉCURITÉ

MISE EN GARDE

Warning sign with pictograms and symbols, including a yellow warning triangle, black house icons, and red/green checkmarks for safety or hazard.

ATTENTION!

NE PAS UTILISER D'ALCOOL OU D'ESSENCE POUR ALLUMER OU RALLUMER !

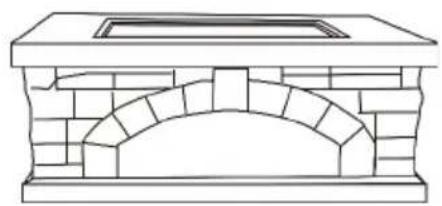

CONTENU DE L'EMBALLAGE

Simple line drawing of a rectangular basin or container with no text, numbers, or symbols

1 Pièce

Line drawing of a stone arch bridge structure with no text or symbols

1 Pièce

1 Pièce

ASSEMBLAGE

1 2 3

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

Warning panel with warning symbols and four quadrants showing different workplace safety scenarios

¡ATENCIÓN!

iNO UTILICE ALCOHOL O GASOLINA PARA ENCENDER EL BRASERO!

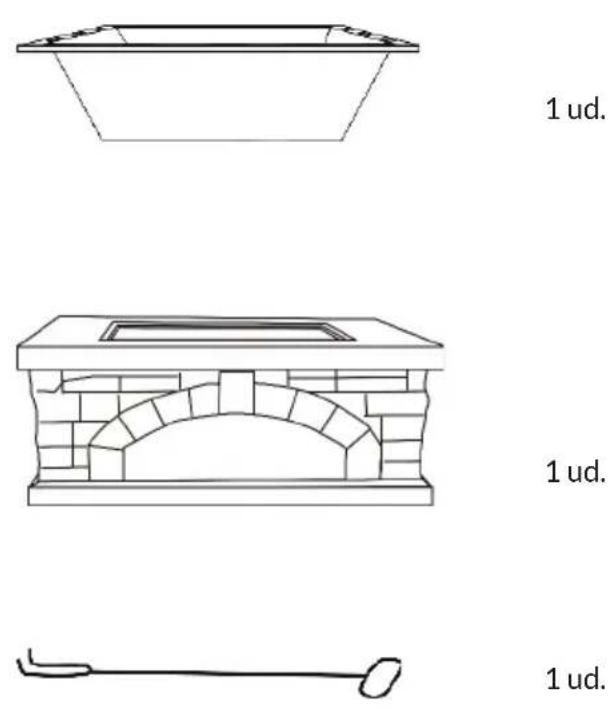

ENVÍO

1 ud.

1 ud.

1 ud.

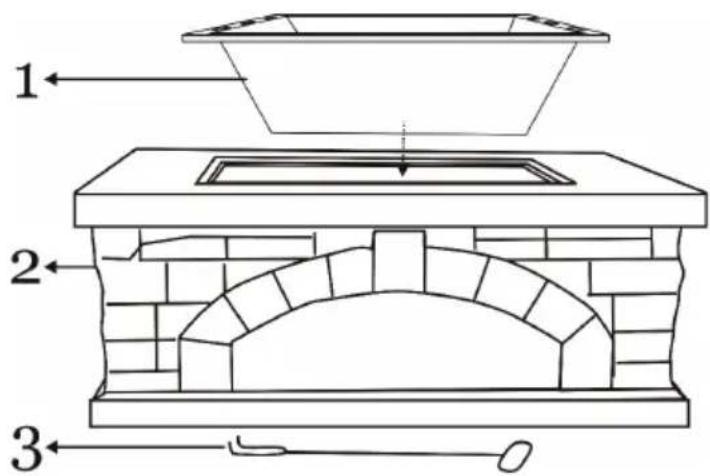

MONTAJE

1 2 3

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Gentile Cliente,

QR code image containing encoded data, no visible human-readable text

AVVERTENZE DI SICUREZZA

AVVERTENZA

Warning sign with hazard symbols and pictograms for cooking, heating, and outdoor activities

ATTENZIONE!

NON UTILIZZARE ALCOOL O BENZINA PER ACCENDERE O RIACCENDERE IL BRACIERE!

VOLUME DI CONSEGNA

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom
