Product type	Brazier barbecue with cooking grid and table top
Brand	Blumfeldt
Model	Orbit
Intended use	Outdoor only, as brazier, barbecue or table
Main materials	Steel, wood (table), metal mesh (spark guard)
Approximate dimensions	Bowl diameter: 50 cm, total height: 70 cm
Approximate weight	12 kg
Fuel	Wood or charcoal (solid fuel)
Recommended charcoal capacity	About 0.5 kg for barbecue
Main functions	Burn wood, grill food, serve as table with integrated storage
Number of grid positions	4 height-adjustable positions
Included parts	Stand/feet, fire bowl, ash pan, charcoal grid, spark guard, wooden table, rain cover, grill support, cooking grid, handle, poker
Repairability	Spare parts available from manufacturer; push-fit assembly without welding
Maintenance and cleaning	Clean with a damp cloth and mild dish soap; avoid abrasive cleaners; regularly check the condition of parts
Safety	Use heat-resistant gloves; do not leave unattended; keep a safe distance from children; do not use indoors; do not extinguish with water
Ignition standards	Use lighting aids compliant with standard EN 1860-3
Maximum temperature	Not specified, but can reach high temperatures (hot metal surface)
Warranty	Manufacturer: Chal-Tec GmbH, Germany
Country of manufacture	Made in China (estimated)

Frequently Asked Questions - Orbit Blumfeldt

Can I use the Blumfeldt Orbit indoors?

No, the brazier is intended for outdoor use only. Using it in an enclosed space can produce toxic fumes and cause suffocation.

What type of fuel should I use?

Use dry wood or charcoal. Never use gasoline, denatured alcohol or other liquid accelerants. Follow standard EN 1860-3 for lighting aids.

How do I assemble the barbecue?

Place the bowl on the stand by aligning the hole of the bowl with the pin. Then insert the parts from bottom to top: ash pan, charcoal grid, spark guard, grill support, cooking grid. For the table, replace the spark guard with the table top.

How do I adjust the height of the cooking grid?

Use the handle to move the grill grid into one of the 4 holes of the grill support. This adjusts the distance from the fire.

How do I extinguish the fire safely?

Do not add more fuel or smother the fire with sand. Never use water, as it could damage the appliance and cause dangerous splashes.

When can I start grilling?

Only put food on the grill when the fuel is covered with a layer of ash (usually after 30-45 minutes). Make sure the coals are glowing.

How do I clean the barbecue after use?

Let it cool completely. Use a damp cloth with mild dish soap for the exterior. Avoid abrasive or oven cleaners. Clean the grid after each use.

Can I use the product in bad weather?

Yes, a rain cover is included. However, do not use it in heavy rain and store it dry after use. The spark guard can be removed for the table function.

How do I store the barbecue after use?

Let it cool completely, empty the ashes, clean the parts. You can store the grid, support and accessories inside the bowl to save space. Remove the rain cover if it is wet.

What if a part is damaged?

Inspect the appliance regularly. If a part is damaged, have it repaired by a professional or contact the manufacturer (Chal-Tec GmbH). Do not use the appliance until the part is replaced.

USER MANUAL Orbit Blumfeldt

Fire bowl with grill

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SICHERHEITSHINWEISE

WARNUNG

Warning sign with pictograms and symbols, including a yellow warning triangle, four black-and-white icons representing heating, cooking, heating room, camping, and gathering.

VORSICHT!

VERWENDEN SIE KEINEN ALKOHOL ODER BENZIN ZUM ANZÜNDEN ODER WIEDERANZÜNDEN!

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

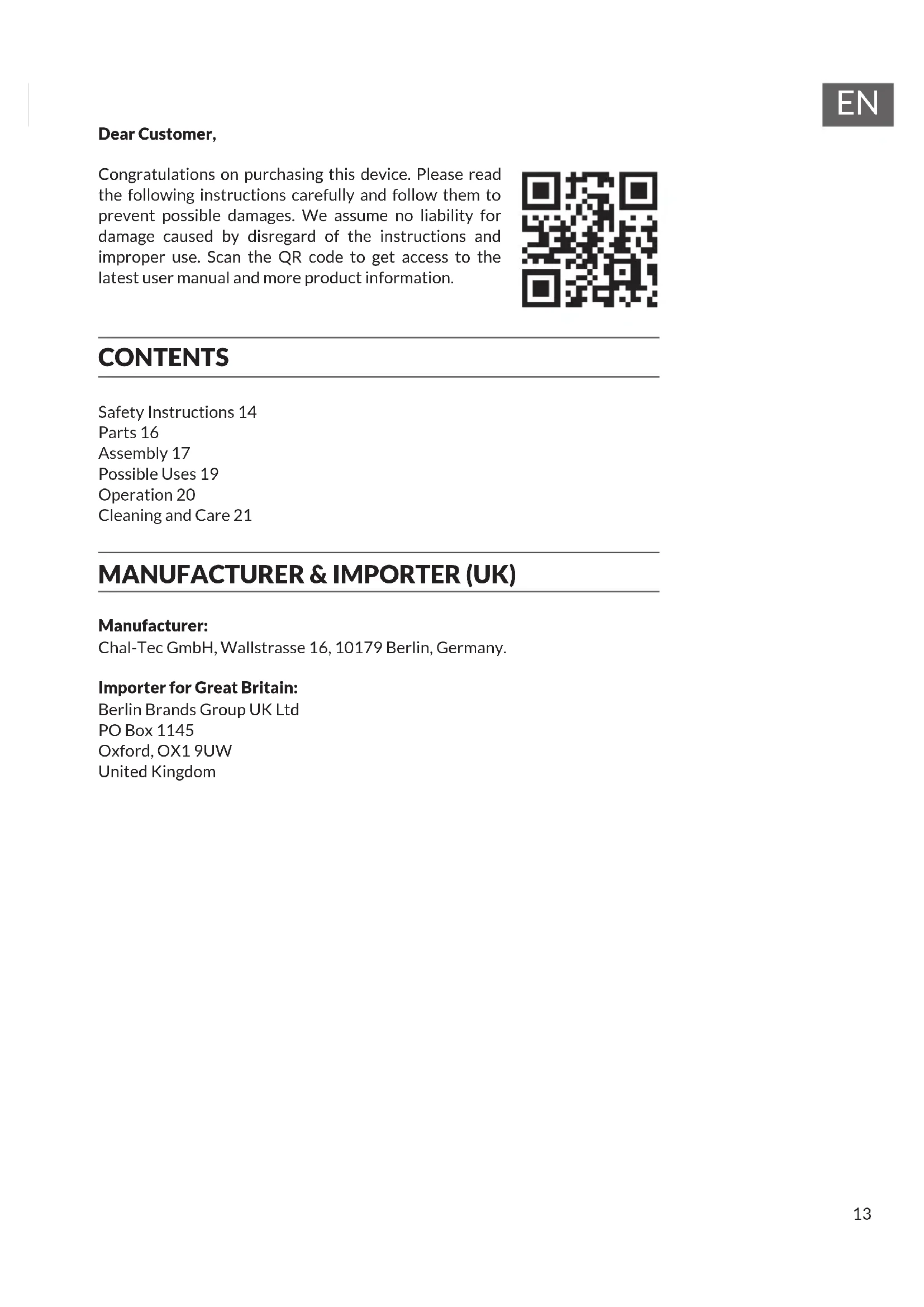

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 14

Parts 16

Assembly 17

Possible Uses 19

Operation 20

Cleaning and Care 21

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SAFETY INSTRUCTIONS

WARNING

Risk of suffocation! This fire bowl is for outdoor use only and shall not be used in a building, garage or any other enclosed area. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This fire bowl is not for commercial use.
• This fire bowl should only be used by adults and all children and pets should be kept at a safe distance.
• Do not use petrol, white spirit, lighter fluid, alcohol or other similar chemicals to light a fire as a rapid increase in temperature could damage the fire bowl. This fire bowl is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.
• Do not use this fire bowl until it is completely assembled and all parts are securely fastened and tightened.
• Do not use the fire bowl on decking or any other flammable surfaces such as dry grass, wood chips, leaves.
• Always empty this fire bowl after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.
• Do not touch the fire bowl until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.
• Do not handle or move the fire bowl when in use as it is hot.
• Do not attempt to store the fire bowl until all ashes and charcoals are completely extinguished.
  • Always use a safety tool and heat resistant gloves when adding or moving fuel.
• Do not leave a burning fire unattended.
• Fire hazard-Hot embers may emit while in use.
• Do not overload the fi re bowl with fuel. Do not add additional fuel until the fi re burns down. If an portion of the fi re bowl is growing red, it is overloaded.
• Do not burn fuel directly on the fire bowl base.
• Do keep the fuel away from the wall of the fire bowl as the high temperature may damage it.
• Avoid breathing smoke from the fire and avoid getting it into your eyes.
  • Always thoroughly inspect the fire bowl before use.
• A slight discolouration of finish may occur after use.

Warning sign with pictograms and symbols, including a yellow warning triangle, four black-and-white icons representing heating, cooking, heating room, camping, and gathering.

Simple black-and-white icon of a van with a grill and a red 'X' symbol (no text or numbers)

Simple black-and-white icon of a house with a steaming pot and a red 'X' symbol (no text or numbers)

Yellow triangular warning sign with black pictogram of a person kneeling on the ground, indicating workplace safety hazard.

Warning symbol of a tent with a steaming bowl and red X mark (no text or numbers)

Simple black-and-white icons showing trees, a picnic board, and a green checkmark (no text or symbols)

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

Special instructions for grills

• Do not place the food on the grill until the fuel is covered with a layer of ash!
• The appliance becomes very hot and must not be moved during operation.
• Do not use the appliance in closed rooms.
• Do not use spirit or petrol for ignition or reignition. Only use ignition aids in accordance with EN 1860-3.
• Keep children and pets away from the appliance.

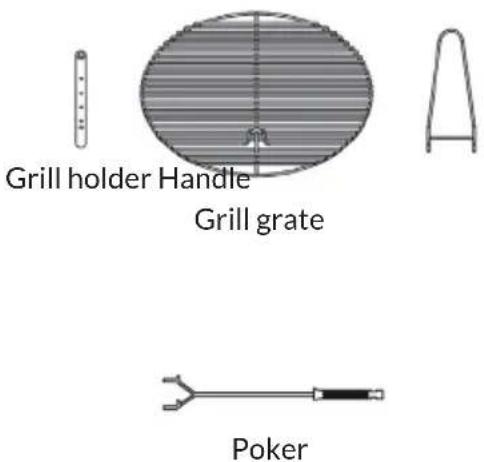

PARTS

Simple line drawing of a circular object mounted on a tripod stand (no text or symbols)

Stand/Legs

Simple line drawing of a circle with two small circles at the center (no text or symbols)

Fire bowl Ash tray Coal grid

Simple line drawing of a sphere with intersecting lines and a vertical centerline (no text or symbols)

Spark protection Wooden table Rain cover

Simple hand-drawn oval shape with a small circle at the top center (no text or symbols)

Simple line drawing of a cylindrical object with a textured base and top edge (no text or symbols)

ASSEMBLY

Use as fire bowl and grill

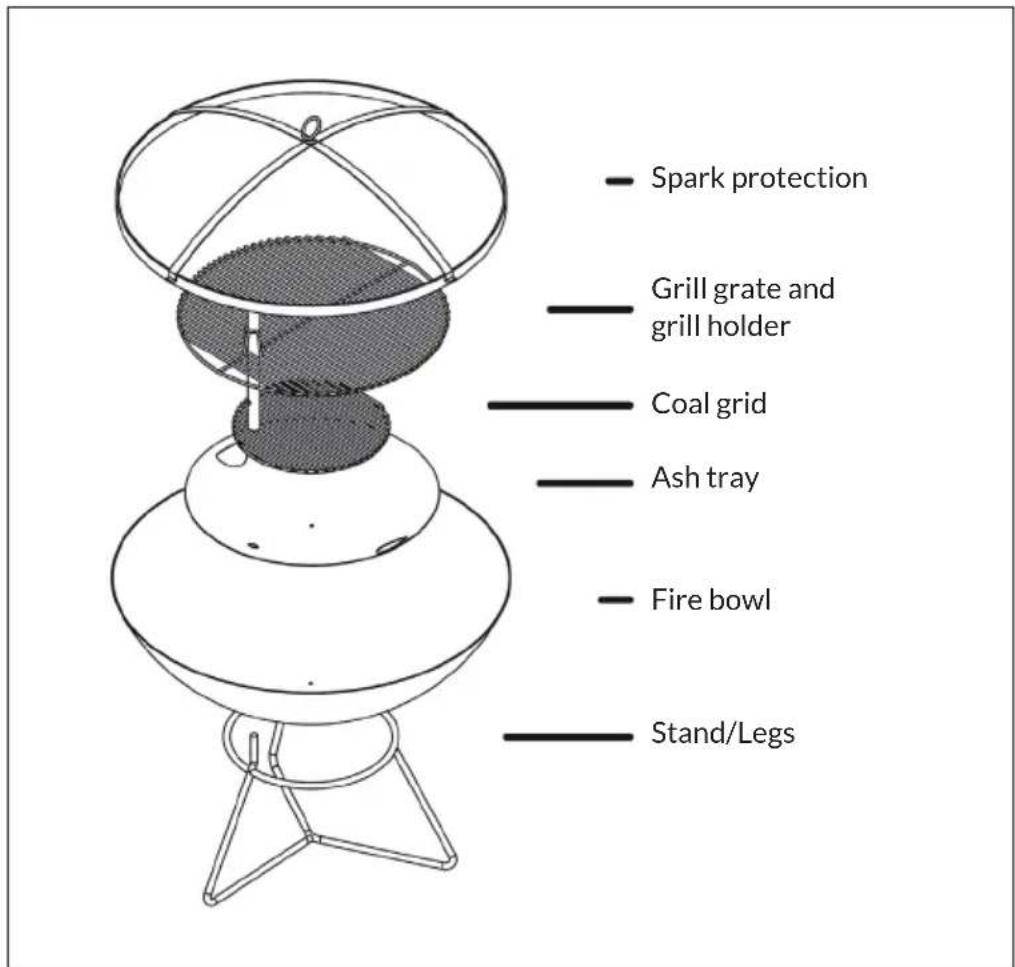

Spark protection Grill grate and grill holder Coal grid Ash tray Fire bowl Stand/Legs

Assembly:

Place the bowl on the stand by aligning the hole in the bowl with the leg pin. Then insert the other parts in order from bottom to top.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

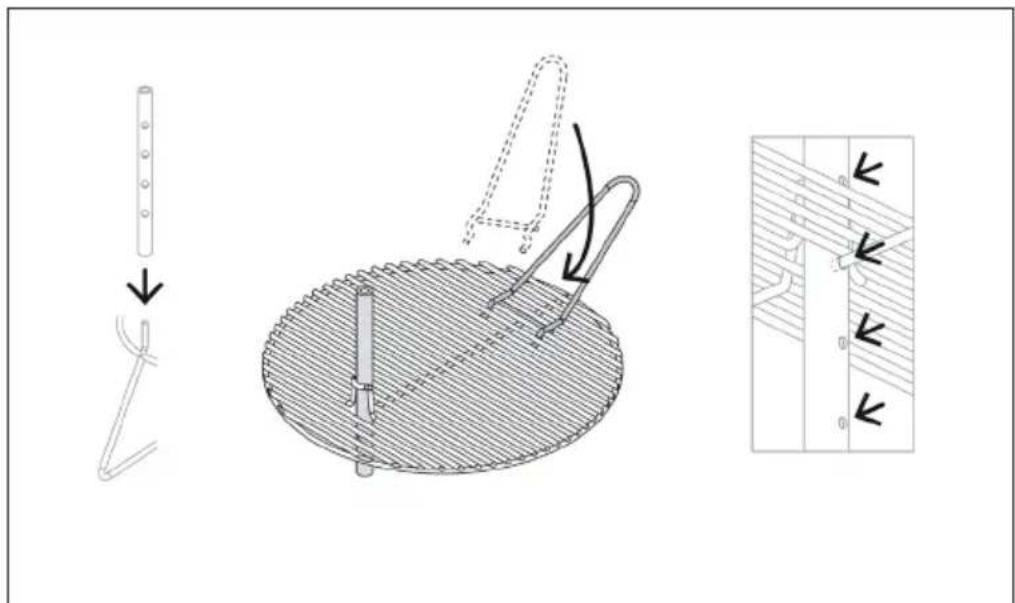

How to attach the grill:

Place the grill holder on the leg pin. Use the handle to fix the grill rack in one of 4 possible positions (holes) on the grill holder.

Use as table

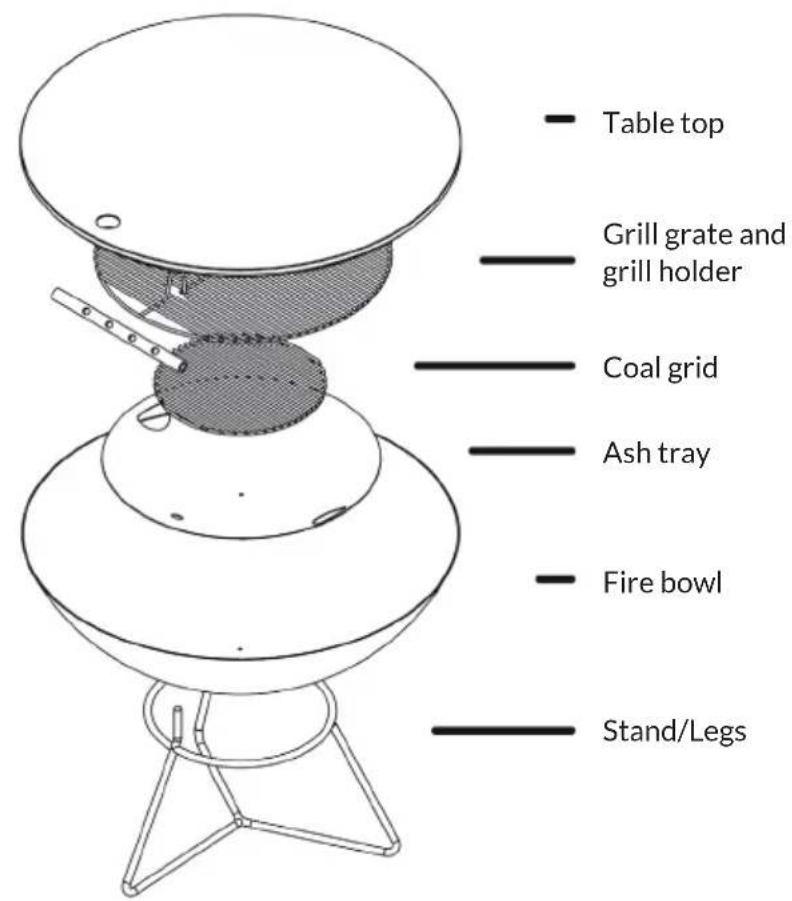

Table top Grill grate and grill holder Coal grid Ash tray Fire bowl Stand/Legs

If you use the grill as a table, all parts except the spark protection can be stored inside.

POSSIBLE USES

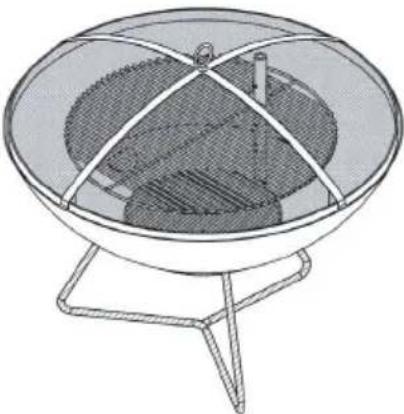

Table BBQ with spark protection

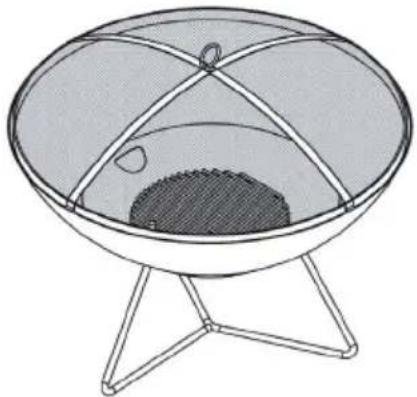

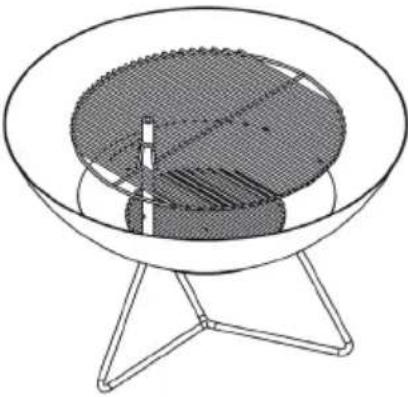

Fire bowl with spark protection Grill
Fire bowl

OPERATION

Ignite Fire

1 Make sure that the fire bowl is placed on a firm, flat, level and heat-resistant surface away from flammable objects.
2 Place paper or dry firewood in the middle of the fire tray base.

Note: Do not place fuel directly in the fire bowl but always on the paper or the firewood.

3 Light the paper or firewood.

Note: Light a small fire first and then let it slowly grow. If the heat develops too quickly and too strongly, cracks may occur in the construction.

Stoke the Fire

• Add more fuel to slowly increase the heat. Do not overload the fire bowl with fuel. Three small logs are sufficient.
• Use the scraping tool when rearranging the logs.

Extinguish Fire

To extinguish the fire bowl, do not add fuel or suffocate the fire with sand. Do not extinguish the fire with water!

Use as a grill

• The grill and the equipment must be clean and free of residues before grilling.
• Put approx. 0.5 kg of coal on the coal grid and ignite the coal according to the instructions above.
• Place the grill on the fire bowl. Make sure that the grille is firmly in place.
• Start grilling when the fuel has an ash layer.
• The food must be completely cooked before consumption.
• Do not remove the grate until the grill has completely cooled down.
  • Always clean the grill rack and cutlery after grilling.

CLEANING AND CARE

CAUTION

Danger of burns! Allow the fire bowl to cool completely before inspecting or cleaning it for damage.

Inspect the fire bowl for damage

Check the fire bowl regularly for damage to ensure product safety and a longer service life.

1 Check all parts to make sure they are tight.
2 Check the components for damage.
3 If you find damage to a component, have the fire bowl repaired before continuing to use it.

Cleaning

• Make sure that the fire is completely extinguished when you no longer use the fire bowl.
• Make sure the fire is completely extinguished and the fire bowl has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the fire bowl regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.
• Clean the outside with water and a mild dishwashing liquid.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.
