Bazman - Barbecue Blumfeldt - Free user manual and instructions

Product type	Brazier / Outdoor barbecue
Brand	Blumfeldt
Model	Bazman
Usage	Outdoor only
Main material	Steel
Approximate dimensions	50 cm x 50 cm x 30 cm
Approximate weight	8 kg
Fuel	Wood or charcoal
Main functions	Wood-fired cooking, decorative brazier
Assembly	Requires assembly with screws and nuts (included)
Number of parts	5 panels + hardware
Safety	Do not use indoors, do not use gasoline or burning alcohol
Maintenance	Clean with a damp cloth and mild dish soap after cooling
Storage	Store after complete cooling and ash removal
Spare parts	M6x10 mm screws and M6 nuts provided
Repairability	Repairable with standard parts
Warranty	See the manual for warranty conditions

Frequently Asked Questions - Bazman Blumfeldt

How to assemble the Bazman brazier?

Assemble the main and side panels using the provided M6 screws and M4 nuts. Place the base plate last. Follow the illustrated steps in the manual.

What fuel to use?

Use dry wood or charcoal. Never use gasoline, burning alcohol, or any other flammable liquid.

Where to install the brazier?

Install it on a flat, stable, heat-resistant surface outdoors, away from any flammable materials.

How to light the fire?

Place paper or kindling in the center of the fire pit, light it, then gradually add fuel. Increase the fire slowly to avoid damaging the structure.

How to maintain the fire?

Add fuel in small amounts (3 logs are enough) to maintain heat. Use a poker to distribute the logs.

How to safely extinguish the fire?

Stop adding fuel or smother the fire with sand. Never use water, as it could damage the brazier or cause burns.

Can I use the brazier under a shelter or in a garage?

No, the brazier is designed for outdoor use only. Using it in an enclosed space can cause carbon monoxide poisoning.

How to clean the brazier?

Wait until the brazier is completely cooled. Remove the ashes, then clean the exterior with a damp cloth and mild dish soap. For stubborn stains, use a citrus-based cleaner and a brush.

How often to inspect the brazier?

Regularly inspect the screws and panels to ensure they are tight and in good condition. If damage is found, have the appliance repaired before using it again.

Can I leave the brazier unattended?

No, the brazier should never be left unattended while in use. Hot embers can fall and cause a fire.

USER MANUAL Bazman Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

Estimado cliente,

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

SICHERHEITSHINWEISE

WARNUNG

Warning sign with pictograms and symbols, including a warning triangle, a vehicle, a house, a tent, trees, and a checkmark.

VORSICHT!

VERWENDEN SIE KEINEN ALKOHOL ODER BENZIN ZUM ANZÜNDEN ODER WIEDERANZÜNDEN!

EINZELTEILE

Risk of suffocation! This fire bowl is for outdoor use only and shall not be used in a building, garage or any other enclosed area. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This fire bowl is not for commercial use.
• This fire bowl should only be used by adults and all children and pets should be kept at a safe distance.
• Do not use petrol, white spirit, lighter fluid, alcohol or other similar chemicals to light a fire as a rapid increase in temperature could damage the fire bowl. This fire bowl is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.
• Do not use this fire bowl until it is completely assembled and all parts are securely fastened and tightened.
• Do not use the fire bowl on decking or any other flammable surfaces such as dry grass, wood chips, leaves.
• Always empty this fi re bowl after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.
• Do not touch the fi re bowl until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.
• Do not handle or move the fire bowl when in use as it is hot.
• Do not attempt to store the fire bowl until all ashes and charcoals are completely extinguished.
  • Always use a safety tool and heat resistant gloves when adding or moving fuel.
• Do not leave a burning fire unattended.
• Fire hazard-Hot embers may emit while in use.
• Do not overload the fire bowl with fuel. Do not add additional fuel until the fire burns down. If an portion of the fire bowl is growing red, it is overloaded.
• Do not burn fuel directly on the fire bowl base.
• Do keep the fuel away from the wall of the fire bowl as the high temperature may damage it.
• Avoid breathing smoke from the fire and avoid getting it into your eyes.
  • Always thoroughly inspect the fire bowl before use.
• A slight discolouration of finish may occur after use.

Warning sign with pictograms and symbols, including a warning triangle, a vehicle, a house, a tent, trees, and a checkmark.

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

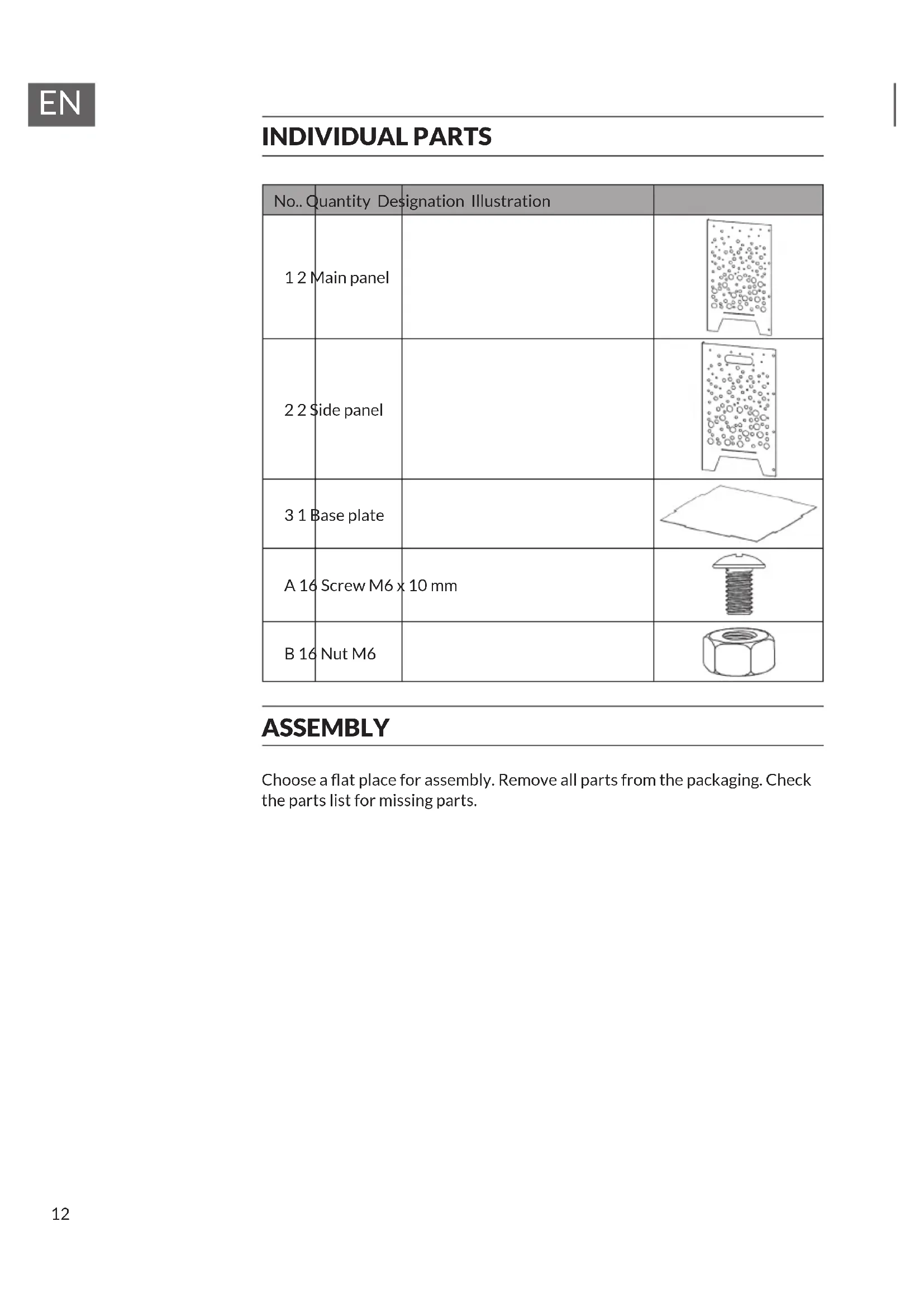

INDIVIDUAL PARTS

No.. Quantity Designation Illustration
1 2 Main panel
2 2 Side panel
3 1 Base plate
A 16 Screw M6 x 10 mm
B 16 Nut M6

ASSEMBLY

Choose a flat place for assembly. Remove all parts from the packaging. Check the parts list for missing parts.

1	2
Connect one main panel (1) and one side panel (2) with screws (A) and nuts (B).	Place the bottom plate (2) on the bottom of the assembled panels.
3	4
Assemble another side panel (2) with screws (A) and the nuts (B).	Finally, mount the last main panel (1) with screws (A) and the nuts (B).

OPERATION

Ignite Fire

1 Make sure that the fire bowl is placed on a firm, flat, level and heat-resistant surface away from flammable objects.
2 Place paper or dry firewood in the middle of the fire tray base.

Note: Do not place fuel directly in the fire bowl but always on the paper or the firewood.

3 Light the paper or firewood.

Note: Light a small fire first and then let it slowly grow. If the heat develops too quickly and too strongly, cracks may occur in the construction.

Stoke the Fire

• Add more fuel to slowly increase the heat. Do not overload the fire bowl with fuel. Three small logs are sufficient.
• Use the scraping tool when rearranging the logs.

Extinguish Fire

To extinguish the fire bowl, do not add fuel or suffocate the fire with sand. Do not extinguish the fire with water!

CLEANING AND CARE

CAUTION

Danger of burns! Allow the fire bowl to cool completely before inspecting or cleaning it for damage.

Inspect the fire bowl for damage

Check the fire bowl regularly for damage to ensure product safety and a longer service life.

1 Check all parts to make sure they are tight.
2 Check the components for damage.
3 If you find damage to a component, have the fire bowl repaired before continuing to use it.

Cleaning

• Make sure that the fire is completely extinguished when you no longer use the fire bowl.
• Make sure the fire is completely extinguished and the fire bowl has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the fire bowl regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.
• Clean the outside with water and a mild dishwashing liquid.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.

Warning sign with warning triangle, vehicle and house icons, campfire, tree, and checkmark symbols

¡Atención!

¡NO UTILICE ALCOHOL O GASOLINA PARA ENCEDER LA CHIMENEA!

PIEZAS INDIVIDUALES

Warning sign with pictograms and symbols, including a yellow warning triangle, black house icons, and green checkmark

ATTENTION!

NE PAS UTILISER D'ALCOOL OU D'ESSENCE POUR ALLUMER OU RALLUMER !

PIÈCES DÉTACHÉES

Warning sign with pictograms and symbols, including a warning triangle, a vehicle, a house, a tent, trees, and a checkmark.

ATTENZIONE!

NON UTILIZZARE ALCOOL O BENZINA PER ACCENDERE O RIACCENDERE IL BRACIERE!

PARTI INDIVIDUALI
