Nantia - Barbecue Blumfeldt - Free user manual and instructions

Product Type	Barbecue / Brazier
Brand	Blumfeldt
Model	Nantia
Fuel	Wood / Charcoal
Usage	Outdoor only
Fuel capacity (barbecue mode)	Approximately 0.8 kg of charcoal
Material	Metal
Assembly	Requires assembly (legs, grills)
Number of legs	2
Cooking grill	Yes, metal grill
Wood grate	Yes
Safety	Do not use indoors; wear heat-resistant gloves; do not use alcohol
Maintenance	Clean with damp cloth and mild detergent; avoid abrasive cleaners
Spare parts	Available (legs, grills, screws, nuts, tool)
Box contents	Base plate, body, brazier, wood grate, cooking grill, 2 legs, screws and nuts, tool
Repairability	Regular inspection of components; repair before reuse if damaged

Frequently Asked Questions - Nantia Blumfeldt

How to light the fire in the Nantia barbecue?

Place paper or dry kindling in the center of the bottom of the brazier. Light it, then gradually add fuel. Never use gasoline or alcohol. Use firelighters compliant with EN 1860-3.

Can I use this barbecue indoors?

No, the Nantia barbecue is designed for outdoor use only. Using it in an enclosed space may cause accumulation of toxic fumes and risk of suffocation.

What type of fuel to use?

The barbecue works with firewood or charcoal. For use as a barbecue, use approximately 0.8 kg of charcoal. Do not use liquid fuels like gasoline or alcohol.

How to extinguish the fire?

To extinguish the fire, stop adding fuel or smother the flames with sand. Never use water, as this could damage the appliance or cause dangerous splashes.

How to clean the barbecue after use?

Let the barbecue cool completely, then remove the ashes. Clean the exterior with a damp cloth and mild detergent. For stubborn stains, use a citrus-based cleaner and a nylon brush. Do not use abrasive cleaners.

What safety precautions are essential?

Use the barbecue only outdoors on a stable, heat-resistant surface. Wear heat-resistant gloves, keep children and pets away, and never leave the appliance unattended. Regularly check the condition of parts.

Can I use this product as a brazier?

Yes, the Nantia is both a barbecue and a brazier. For use as a brazier, use firewood. Be careful not to overload the firebox and use heat-resistant tools.

How much charcoal to use for a barbecue?

It is recommended to use approximately 0.8 kg of charcoal. Only start grilling when the charcoal is covered with a layer of ash.

Can the metal surface of the barbecue discolor?

Yes, slight discoloration of the metal surface is normal after several uses. This does not affect the operation or safety of the appliance.

How to assemble the Nantia barbecue?

Attach the two legs to the base plate with the M8 nuts, then attach the plate to the body of the appliance. Mount the brazier, then place the wood grate inside and finally the cooking grill on top. Use the provided tool to tighten the screws.

USER MANUAL Nantia Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green leaf-like graphic symbol with two curved leaves forming a triangular shape (no text or symbols)

Abstract green leaf-like logo design with three curved leaves forming a Y-shape (no text or symbols)

Nantai Cooking Station

Fire Bowl with Grill

QR code image containing encoded data, no visible human-readable text

Berlin Brands Group UK Ltd

272 Kensington High Street

London

W8 6ND

United Kingdom

English 11

Español 19

Français 27

Italiano 35

SICHERHEITSHINWEISE

WARNUNG

Warning sign with hazard symbols and four quadrants showing vehicle, house, campfire, and tree icons

VORSICHT!

VERWENDEN SIE KEINEN ALKOHOL ODER BENZIN ZUM ANZÜNDEN ODER WIEDERANZÜNDEN!

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London

W8 6ND

United Kingdom

SAFETY INSTRUCTIONS

WARNING

Risk of suffocation! This fire bowl is for outdoor use only and shall not be used in a building, garage or any other enclosed area. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This fire bowl is not for commercial use.
• This fire bowl should only be used by adults and all children and pets should be kept at a safe distance.
• Do not use petrol, white spirit, lighter fluid, alcohol or other similar chemicals to light a fire as a rapid increase in temperature could damage the fire bowl. This fire bowl is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.
• Do not use this fire bowl until it is completely assembled and all parts are securely fastened and tightened.
• Do not use the fire bowl on decking or any other flammable surfaces such as dry grass, wood chips, leaves.
• Always empty this fire bowl after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.
• Do not touch the fire bowl until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.
• Do not handle or move the fire bowl when in use as it is hot.
• Do not attempt to store the fire bowl until all ashes and charcoals are completely extinguished.
  • Always use a safety tool and heat resistant gloves when adding or moving fuel.
• Do not leave a burning fire unattended.
• Fire hazard-Hot embers may emit while in use.
• Do not overload the fire bowl with fuel. Do not add additional fuel until the fire burns down. If an portion of the fire bowl is growing red, it is overloaded.
• Do not burn fuel directly on the fire bowl base.
• Do keep the fuel away from the wall of the fire bowl as the high temperature may damage it.
• Avoid breathing smoke from the fire and avoid getting it into your eyes.
  • Always thoroughly inspect the fire bowl before use.
• A slight discolouration of finish may occur after use.

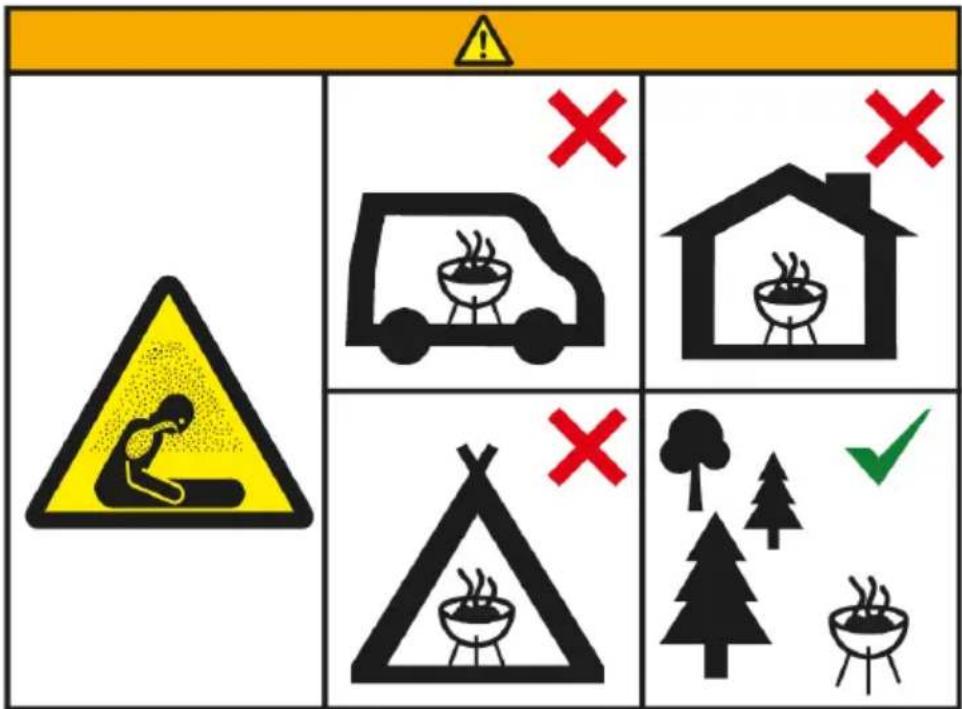

Warning sign with hazard symbols and four quadrants showing vehicle, house, campfire, and tree icons

Simple black-and-white icon of a van with a steaming pot and a red 'X' symbol (no text or numbers)

Simple black-and-white icon of a house with a barbecue and a red X symbol (no text or numbers)

Yellow triangular warning sign with pictogram of a person bending over a block, indicating workplace safety hazard.

Warning symbol of a campfire inside a tent with a cooking pot and red X mark (no text or numbers)

Simple black-and-white icons: trees, a grill, and a green checkmark (no text or symbols)

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

Special instructions for grills

• Do not place the food on the grill until the fuel is covered with a layer of ash!
• The appliance becomes very hot and must not be moved during operation.
• Do not use the appliance in closed rooms.
• Do not use spirit or petrol for ignition or reignition. Only use ignition aids in accordance with EN 1860-3.
• Keep children and pets away from the appliance.

INDIVIDUAL PARTS

123
456
789
		M8x10M6x3
10 11
M8x1M6x1	M6x3

ASSEMBLY

1

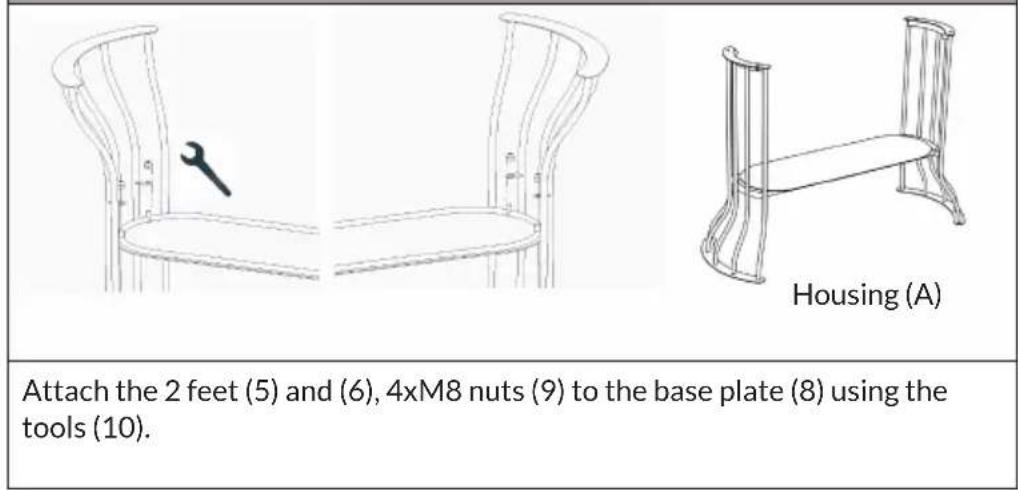

Housing (A) Attach the 2 feet (5) and (6), 4xM8 nuts (9) to the base plate (8) using the tools (10).

2	3
housing (B)
Fasten the plate (4), 6xM8 nuts (9) with the tool (11) on the housing (A).	Fasten the shell (1), 3xM6 nuts (9) and screw (11) with the tool (10) on the housing (B).
4	5
Place the grate (3) in the fire bowl. Finally, place the grill grate (2) on the fire bowl.

OPERATION

Ignite Fire

1 Make sure that the fire bowl is placed on a firm, flat, level and heat-resistant surface away from flammable objects.
2 Place paper or dry firewood in the middle of the fire tray base.

Note: Do not place fuel directly in the fire bowl but always on the paper or the firewood.

3 Light the paper or firewood.

Note: Light a small fire first and then let it slowly grow. If the heat develops too quickly and too strongly, cracks may occur in the construction.

Stoke the Fire

• Add more fuel to slowly increase the heat. Do not overload the fire bowl with fuel. Three small logs are sufficient.
• Use the scraping tool when rearranging the logs.

Extinguish Fire

To extinguish the fire bowl, do not add fuel or suffocate the fire with sand. Do not extinguish the fire with water!

Use as a grill

• The grill and the equipment must be clean and free of residues before grilling.
• Put approx. 0.8 kg of coal on the coal grid and ignite the coal according to the instructions above.
• Place the grill on the fire bowl. Make sure that the grille is firmly in place.
• Start grilling when the fuel has an ash layer.
• The food must be completely cooked before consumption.
• Do not remove the grate until the grill has completely cooled down.
• Always clean the grill rack and cutlery after grilling and 30 minutes prior to first cooking.

CLEANING AND CARE

CAUTION

Danger of burns! Allow the fire bowl to cool completely before inspecting or cleaning it for damage.

Inspect the fire bowl for damage

Check the fire bowl regularly for damage to ensure product safety and a longer service life.

1 Check all parts to make sure they are tight.
2 Check the components for damage.
3 If you find damage to a component, have the fire bowl repaired before continuing to use it.

Cleaning

• Make sure that the fire is completely extinguished when you no longer use the fire bowl.
• Make sure the fire is completely extinguished and the fire bowl has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the fire bowl regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.
• Clean the outside with water and a mild dishwashing liquid.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

Berlin Brands Group UK Ltd

272 Kensington High Street

London

W8 6ND

United Kingdom

Warning sign with warning triangle, vehicle and house icons, campfire, tree, and checkmark symbols

¡ATENCIÓN!

¡NO UTILICE ALCOHOL O GASOLINA PARA ENCENDER O VOLVER A ENCENDER EL BRASERO!

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

Berlin Brands Group UK Ltd

272 Kensington High Street

London

W8 6ND

United Kingdom

CONSIGNES DE SÉCURITÉ

MISE EN GARDE

Warning sign with warning triangle, vehicle and house icons, campfire, tree, and checkmark symbols

ATTENTION!

N'UTILISEZ PAS D'ALCOOL OU D'ESSENCE POUR ALLUMER OU RALLUMER LE FEU !

QR code image containing encoded data, no visible human-readable text

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Ltd

272 Kensington High Street

London

W8 6ND

United Kingdom

AVVERTENZE DI SICUREZZA

AVVERTIMENTO

Warning sign with hazard symbols and four quadrants showing vehicle, house, campfire, and tree icons

ATTENZIONE!

NON UTILIZZARE ALCOOL O BENZINA PER ACCENDERE O RIATTIVARE IL FUOCO!
