HG06168A - Kitchen clock AURIOL - Free user manual and instructions

Product type	Kitchen clock with timer
Model	HG06168A (grey), HG06168B (mint green), HG06168C (pink)
Power supply	1 AA 1.5 V battery (included)
Display	Analog (hour, minute, second hands)
Time setting	Adjustment crown on the back of the clock
Timer	Adjustable from 0 to 60 minutes, audible alarm, removable
Removing the timer	Use the slot on the back of the housing, pull straight
Intended use	For indoor household use only
Packaging materials	Recyclable (plastics, papers, composites)
Package contents	1 clock with timer, 1 AA battery, 1 instruction manual
Cleaning and maintenance	Soft dry cloth, remove battery if unused for long periods
Child safety	Do not let children play with packaging, risk of suffocation
Battery safety	Do not recharge, short-circuit, open, or throw into fire
Warranty	3 years from date of purchase
After-sales service France	Tel. [phone], E-Mail: [e-mail]
After-sales service Belgium	Tel. [phone] (0.15 EUR/min), E-Mail: [e-mail]
Disposal	Do not dispose of with household waste, recycle according to local regulations
Reference number (IAN)	Indicated on the rating plate or at the bottom of the manual's title page

Frequently Asked Questions - HG06168A AURIOL

How to set the time on the Auriol HG06168A clock?

Turn the time adjustment crown on the back of the clock until the hands point to the desired time. Be sure to follow the direction of rotation.

How to set the timer on this kitchen clock?

Turn the timer setting knob clockwise to the 60-minute mark (▼), then counterclockwise to the desired time. A beep sounds at the end.

Can I remove the timer from the clock?

Yes, the timer is removable. Insert a fingernail into the slot on the back of the timer and remove it from its holder. Pull it straight out to use separately.

What type of battery does the Auriol HG06168A clock use?

It uses a 1.5 V AA battery. A new battery is included in the packaging. To replace, open the compartment and insert the battery respecting polarities (+ and -).

What to do if the clock stops working?

First, check that the battery is properly inserted and not depleted. If the problem persists, contact after-sales service at the details provided in the manual.

How to clean the Auriol kitchen clock?

Clean the exterior with a soft dry cloth. Do not use abrasive products or liquids. Remove the battery if not used for an extended period.

What are the battery safety instructions?

Never recharge non-rechargeable batteries, do not short-circuit, open, or throw into fire. Keep batteries out of reach of children. In case of leakage, wear gloves and clean the contacts.

Is the clock suitable for children?

This product can be used by children aged 8 and above under supervision. Children must not play with the device. Packaging materials pose a suffocation risk.

What is the warranty period?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects, excluding wear parts like batteries. Keep the receipt.

How to contact after-sales service?

For France: 0800 919270 or [e-mail]. For Belgium: 070 270 171 (0.15 EUR/min) or [e-mail]. Have your proof of purchase and IAN number handy.

USER MANUAL HG06168A AURIOL

Close-up of two analog wall clocks with dual hands (no visible text or numbers)

KÜCHENUHR MIT TIMER / KITCHEN CLOCK WITH TIMER / HORLOGE DE CUISINE AVEC MINUTEUR

DE AT CH

KÜCHENUHR MIT TIMER

Operation and safety notes

FR BE

HORLOGE DE CUISINE AVEC MINUTEUR

TRAGEN SIE SCHUTZ HANDSCHUHE!

List of pictograms used ...... Page 16

Introduction Page 16

Intended use.... Page 16

Description of parts ...... Page 16

Technical data Page 17

Scope of delivery.... Page 17

General safety information ...... Page 17

Safety instructions for batteries / rechargeable batteries. Page 18

Preparing the product for use .... Page 20

Operation Page 20

Cleaning and care Page 21

Disposal Page 21

Warranty Page 22

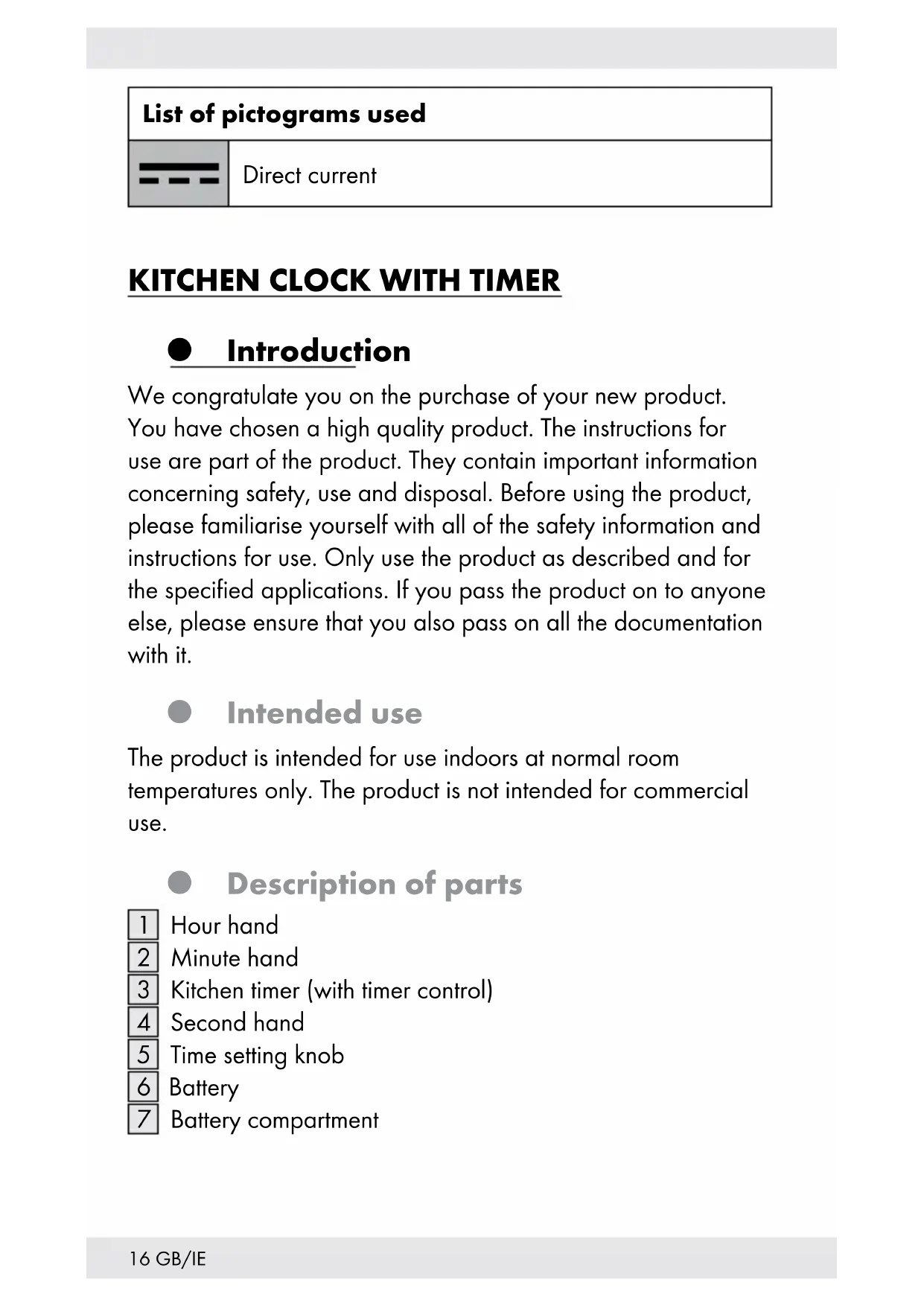

List of pictograms used
	Direct current

KITCHEN CLOCK WITH TIMER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is intended for use indoors at normal room temperatures only. The product is not intended for commercial use.

• Description of parts

1 Hour hand
2 Minute hand
3 Kitchen timer (with timer control)
4 Second hand
5 Time setting knob
6 Battery
7 Battery compartment

- Technical data

Battery type: 1 x 1.5 V = AA

Model number:

HG06168A: Grey

HG06168B: Mint

HG06168C: Pink

- Scope of delivery

Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition.

1 Timer with clock
1 Battery 1 x 1.5 V ——, AA (included)
1 Operating instructions

General safety information

WARNING! Please read all safety information and instructions. Failure to comply with the safety information and instructions may result in, fire and / or severe injuries.

WARNING! DANGER TO LIFE AND ACCIDENT HAZARD FOR TODDLERS AND SMALL CHILDREN! Never allow

children to play unsupervised with the packaging material.

There is a danger of suffocation from the packaging material. Children frequently underestimate the dangers.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

• Do not use the product if it is damaged.
  ■ Repairs should only be carried out by specialist personnel.

Safety instructions for batteries / rechargeable batteries

DANGER TO LIFE! Keep batteries / rechargeable

batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

■ Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.

DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries / rechargeable batteries into fire or water.
- Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
  If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES! Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery / rechargeable battery!
- Insert batteries / rechargeable batteries according to polarity marks (+) and (−) on the battery / rechargeable battery and the product.

Use a dry lint-free cloth or cotton swab to clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries / rechargeable batteries from the product immediately.

● Preparing the product for use

■ Remove the battery from the box and the plastic wrapper.
- Insert the battery into the battery compartment. Insert the battery with the + contact first, and then push down the - contact.
■ Replace the battery: see Fig. B.

Operation

Setting the time

Turn the time setting knob 5 until the hands are in the desired positions (see Fig. B).

Setting the kitchen timer (see Fig. C & D)

■ Turn the timer control clockwise to the 60 minutes mark (▼).
■ Turn the timer control in a counter-clockwise direction to the desired time.
An alarm sounds when the set time has elapsed.

Separating the kitchen timer (see Fig. E & F)

Use a fingernail at the slot located at the bottom side of the kitchen timer 3 and release it from its hold.
- Grab the kitchen timer with 2 fingers and pull it straight forward out of the clock housing. The kitchen timer can be operated independently now.

After use: Re-insert the kitchen timer by placing the top of the timer housing into the upper slot (located at the top of the clock housing).
Press bottom to lock the kitchen timer into the product.

● Cleaning and care

The product should only be cleaned on the outside with a soft dry cloth.
If the product is not going to be used, remove the battery.

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1 - 7: plastics / 20 - 22: paper and fibreboard / 80 - 98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

CE
