USER MANUAL IAN 290927 CRIVIT

Black mesh athletic vest with 'PRO' logo, no visible text or symbols on the body

www.lidl-service.com PDF online

RÜCKENPROTEKTOR-WESTE BACK PROTECTOR GILET PROTÈGE-DOS

DE AT CH

RÜCKENPROTEKTOR-WESTE

Gebrauchsanweisung

FR BE

GILET PROTÈGE-DOS

Mode d'emploi

CZ

VESTA S CHRÁNIČEM PÁTEŘE

Návodu k použití

PT

COLETE PROTETOR DE COSTAS

Instructions for use

NL BE

VEST MET RUGPROTECTOR

Gebruiksaanwijzing

ES

CHALECO PROTECTOR PARA ESPALDA

Degree of protection (protection class) ... 11 - 12

RECCO ^® 12

Size check 12

Protection zone 12

Measurement of the distance between waist and shoulders 12

Putting on the article 12

Care, storage 12 - 13

Disposal 13

Notes on the guarantee and service handling 13

FR BE

92% Polyester, 8% Elasthan

Netzstoff (mesh): 100% Polyester

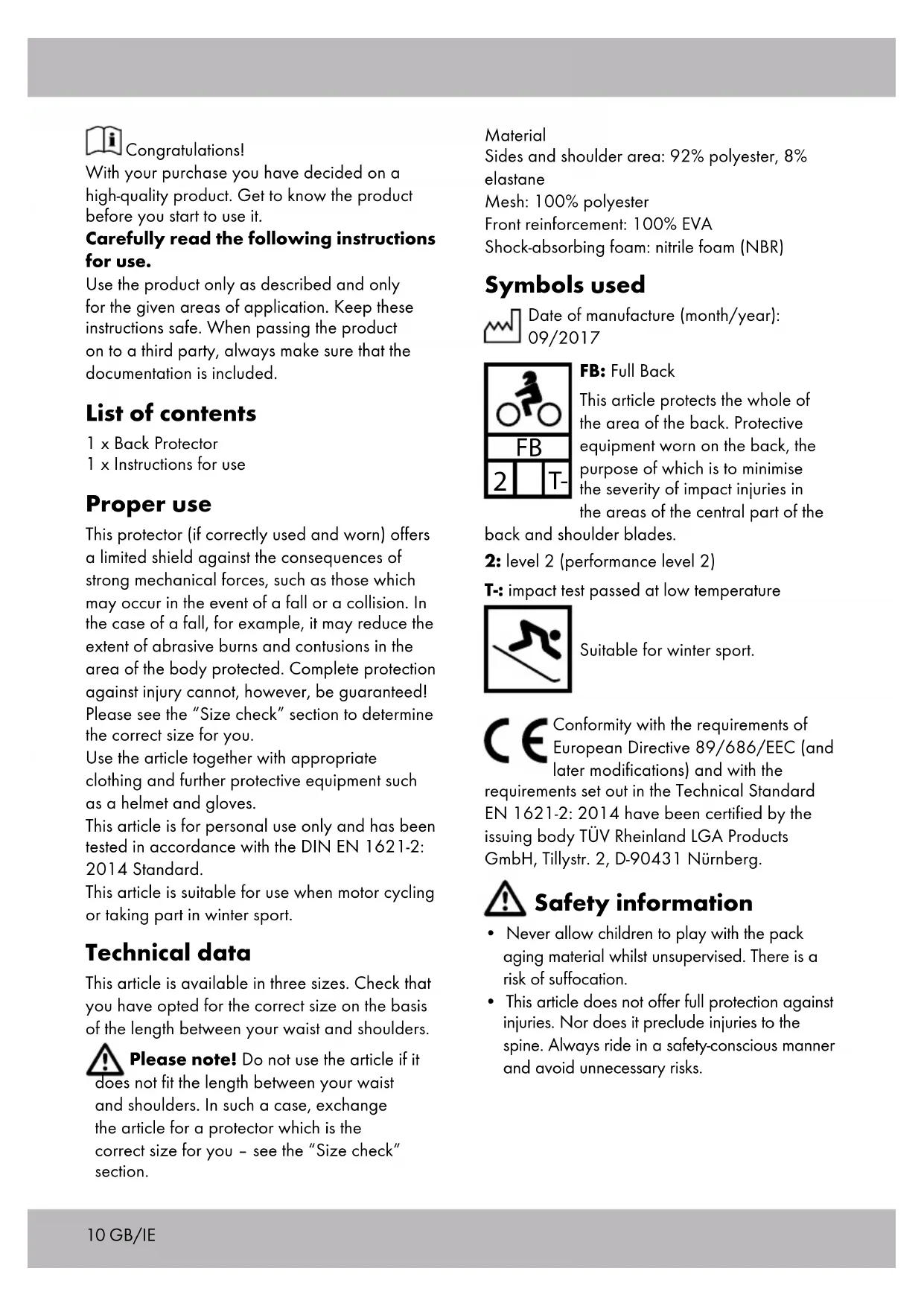

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

List of contents

1 x Back Protector
1 x Instructions for use

Proper use

This protector (if correctly used and worn) offers a limited shield against the consequences of strong mechanical forces, such as those which may occur in the event of a fall or a collision. In the case of a fall, for example, it may reduce the extent of abrasive burns and contusions in the area of the body protected. Complete protection against injury cannot, however, be guaranteed! Please see the "Size check" section to determine the correct size for you.

Use the article together with appropriate clothing and further protective equipment such as a helmet and gloves.

This article is for personal use only and has been tested in accordance with the DIN EN 1621-2:2014 Standard.

This article is suitable for use when motor cycling or taking part in winter sport.

Technical data

This article is available in three sizes. Check that you have opted for the correct size on the basis of the length between your waist and shoulders.

Please note! Do not use the article if it

does not fit the length between your waist and shoulders. In such a case, exchange the article for a protector which is the correct size for you – see the "Size check" section.

Material

Sides and shoulder area: 92% polyester, 8% elastane

Mesh: 100% polyester

Front reinforcement: 100% EVA

Shock-absorbing foam: nitrile foam (NBR)

Symbols used

Date of manufacture (month/year): 09/2017

FB 2 T-

FB: Full Back

This article protects the whole of the area of the back. Protective equipment worn on the back, the purpose of which is to minimise the severity of impact injuries in the areas of the central part of the

back and shoulder blades.

2: level 2 (performance level 2)

T-: impact test passed at low temperature

Suitable for winter sport.

Conformity with the requirements of European Directive 89/686/EEC (and later modifications) and with the requirements set out in the Technical Standard EN 1621-2: 2014 have been certified by the issuing body TÜV Rheinland LGA Products GmbH, Tillystr. 2, D-90431 Nürnberg.

Safety information

• Never allow children to play with the pack aging material whilst unsupervised. There is a risk of suffocation.

• This article does not offer full protection against injuries. Nor does it preclude injuries to the spine. Always ride in a safety-conscious manner and avoid unnecessary risks.

• Make sure that the article is being worn correctly. The protector needs to be centred on the spine and fixed in this position. The article must not impede or distract the wearer. Articles which are not worn in the correct position do not provide protection and may cause additional damage in the event of an accident! This article only offers a certain degree of impact protection to the areas of the body covered.

• This article has been tested pursuant to the DIN EN 1621-2: 2014 Safety Standard and is suitable for use when skiing, snowboarding or riding a motor cycle.
• Do not make any alterations to the article as this will negate the protective effect.
• Ensure that the article is suited to your body's dimensions.
• When in use, the removable protector must always be located in the correct intended position. The protective effect will otherwise be negated.
• Check the article prior to use and following a fall for any damage which may have occur red (e.g. damage to the seams, padding, plastic elements etc.). Articles which are damaged do not afford protection and may cause additional damage in the event of an accident! Do not continue to use an article which is damaged!
• Replace the article with a new article following a fall or if damage to the article has occurred.
• Always wear the article over an item of outer clothing but under a jacket, in order to ensure additional fixing to the body.
• Make sure that the protector is lying in the correct position within the article. The article should be tight to the body and should not shift position whilst being worn.
  • Always ride in a safety-conscious manner and avoid unnecessary risks!
• When riding a motor cycle or when skiing or snowboarding, always wear this article and a helmet.
• This article can never offer full protection against injuries. It can only help to reduce the severity of an injury.

Warning! Dirty articles, changes to an article or incorrect use may constitute a danger to the user.

• This article does not prevent injuries to the spine.
- Do not use an article which is too large.

Such an article could come into contact with and displace the helmet and thus lead to dangerous riding conditions.

• A single size is not suitable for all body dimensions.
• The product life time of the article depends on its use. Notwithstanding this, the article must be replaced no more than three years after date of manufacture (version: 09/2017), because the shock-absorbing effect may diminish and chemical impurities may occur.

Avoidance of material damage!

• Do not expose the article to the sun for long periods of time. Damage to the article may otherwise occur.
• The material used in the article reacts sensitively to extreme temperatures.

Material properties are limited in the case of very high or very low temperatures.

The article is intended for use at temperatures between - 10 degrees and + 23 degrees.

- Avoid contact with sharp, hot, pointed or dangerous objects.

Degree of protection (protection class)

Performance levels

Level 1 Level 2
Mean value: ≤ 18 kN	Mean value: ≤ 9 kN

Shock absorption

Standard M	Mean value measured	Requirement of the mean value
EN 1621-2: 2014	XS/S (40-44): M (45-49): L/XL (50-54): < 18 kN	Level 1: ≤ 18 kNLevel 2: ≤ 9 kN

This protector fulfils the requirements of protection class 2.

- Average residual force transmitted in the case of all sizes is < 9 kN .

If positioned correctly, the article provides limited protection against the consequences of strong mechanical forces, such as those which may occur in the event of falling from a motor cycle or a fall whilst skiing or snowboarding.

Wearing the article may reduce the extent of injury. Complete protection against injury cannot be guaranteed.

The article cannot prevent injuries to the spine.

Motor cyclists, skiers and snowboarders are recommended to wear a protector as long as this is not viewed as an invitation to become careless or assume a greater degree of risk.

The scope of protection afforded by the article will remain intact as long as its original properties remain unchanged.

No modifications or repairs should be undertaken without consulting the manufacturer.

RECCO®

RECCO ^® technology helps the official rescue services with the more rapid localisation of persons who have been buried as the result of an avalanche.

Size check

This article can only fulfil its protective function if you select the appropriate size, if it is worn in the correct position and if it is in undamaged condition.

The manufacturer accepts no responsibility for any damages and consequences which may occur as a result of improper use or as a result of the wearing of clothing which is not suitable or not fully suited to the correct affixing of the protective equipment.

• Size: XS/S (suitable for body heights of approx. 141 - 157cm), length between waist and shoulders (torso): approx. 400 - 440mm.
• Size: M (suitable for body heights of approx. 157 - 173cm), length between waist and shoulders (torso): approx. 450 - 490mm.

- Size: L/XL (suitable for body heights of approx. 173 - 191cm), length between waist and shoulders (torso): approx. 500 - 540 mm.

Protection zone (Fig. A)

The article protects the zone depicted in the figure (1). Sufficient protection is no longer ensured if an article is altered compared to the condition in which it is supplied or if a damaged article is used.

Measurement of the distance between waist and shoulders (Fig. B)

Distance between the waist and shoulders (1) – the length measured between the back of the waist and the highest point at which the shoulder meets the neck.

Putting on the article

Put on the article as if it were a normal waistcoat and close the velcro fasteners.

Important: Environmental influences may reduce or remove the protective effects. Be sure not to submit the article to temperature fluctuations or to levels of humidity which are too high.

This article does not provide any protection in the event of a collision with a vehicle.

High speeds or hard surfaces may reduce the protective effect or mean that a protective effect can no longer be ensured.

Care, storage

Do not use strong detergents. These may reduce the effect of the protective equipment contained within the article. Allow slightly soiled areas to dry before brushing the dirt off the article. The article may be washed using a mild detergent in the event of more severe soiling.

After washing, allow the article to dry completely. Store the article in a dry place in a well ventilated room.

Avoid storing the article in places where there are strong sources of heat. Do not store the article near windows, doors or window and door panes.

Do not expose the article to direct sunlight. Do not expose the article to extreme cold or heat. The article must not be bent or folded and should not be exposed to compressive stress for a long period of time, e.g. in a suitcase, between hard objects or in a cupboard.

Pure electrical circuit symbols without any text or labels

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations.

Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 290927

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

You can also find spare parts for your product at:

www.delta-sport.com, category Service - Lidl Spare Parts
