USER MANUAL HG05024A Livarno Lux

Assembly, operating and safety instructions

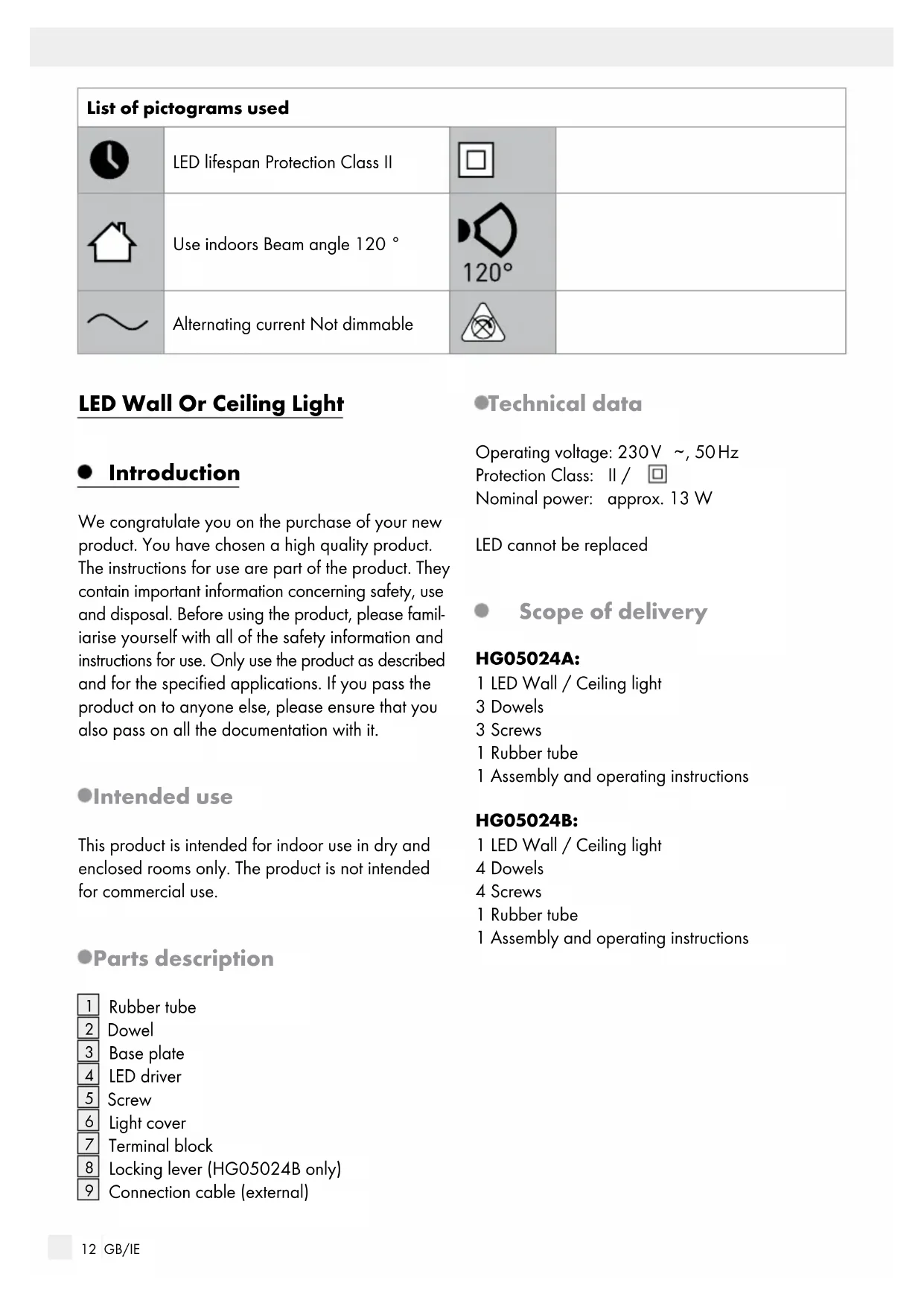

Connection cable (external) Technical data Operating voltage: 230 V

, 50 Hz Protection Class: II / Nominal power: approx. 13 W LED cannot be replaced Scope of delivery HG05024A: 1 LED Wall / Ceiling light 3 Dowels 3 Screws 1 Rubber tube 1 Assembly and operating instructions HG05024B: 1 LED Wall / Ceiling light 4 Dowels 4 Screws 1 Rubber tube 1 Assembly and operating instructions13 GB/IE Safety Safety instructions

READ THESE INSTRUCTIONS BEFORE USING

THE PRODUCT! PLEASE KEEP ALL SAFETY IN-

STRUCTIONS AND INSTRUCTIONS FOR USE

FOR INFANTS AND CHILDREN! Never leave children unsupervised with the pack- aging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep the product out of the reach of children at all times. This product is not a toy. Keep away from children. Children are not able to understand the dangers that can arise when handling this product. This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the as- sociated risks. Do not allow children to play with the product. Cleaning and user maintenance should not be performed by children without supervision. This product is solely suitable for use in dry, closed indoor spaces. Do not allow the product or the packaging materials to lie around unattended. Plastic film or bags, Styrofoam etc. can turn into dangerous toys for children. Avoid the danger of death from electric shock! Verify the existing mains voltage corresponds to the required voltage of the product (see “technical data”) before using it. Always check the product and the mains supply for damage before connecting it to the mains. A damaged product represents the danger of death from electric shock. Do not use the product if you detect any damage. In the event of damage, repairs or other problems with the product, please consult an electrician. Never open any of the components of the elec- trical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock. Never allow the product to come into contact with water or other liquids. For installation, please contact qualified electrician if you have any doubt. Do not use this product for dimmers or electronic switches. It is not suitable for these purposes. Never use the product in immediate vicinity of a bath, shower or swimming pool. Do not look directly into the light or its reflection. If direct or reflected light strikes your eyes, close them and immediately move your head out of the light. We have included assembly material for ceiling mounting suitable for the usual firm masonry. Before installation, check whether the included mounting material is suitable for the wall or ceiling on which you are aiming to mount the product. Fit the product in such a way to ensure it is protected from damp and dirt. The LEDs are not replaceable. If the LEDs fail at the end of their lives, the entire product must be replaced. The product is only suited for use with the built-in LED control gear. Before use Note: Remove all packaging materials from the product. Installation Note: You will need an electric drill for the installation. CAUTION! RISK OF INJURY! Please refer to the operating instructions of your electric drill.14 GB/IE Model HG05024A (Round shape)

1. Unscrew the fuse and / or switch off the circuit

breaker and secure the circuit from accidental starting.

2. Using a metal test instrument, ensure that there

are no cables or pipes in the drilling ranges.

3. If necessary, choose another place to install the

4. Remove the light cover

by rotating the light cover

5. Mark the drilling ranges using the screw holes

6. Using a 6 mm masonry drill, drill an approx.

30 mm deep hole into the marked positions.

into each drilled hole.

through the rubber tube

hole and place the base plate

on the ceiling, so that the screw holes are congruent with the drill holes.

to the ceiling using the screws

10. Release the screw and open the cover cap on

11. Connect the connection cable

with correct polarity to the terminal block

and put the rubber tube

completely over the connection cable

12. Screw the cover cap to the LED driver

again using the screw.

13. Attach the light cover

by rotating the light cover

14. Screw the fuse on and / or switch the circuit

breaker on again. Model HG05024B (Square shape)

1. Unscrew the fuse and / or switch off the circuit

breaker and secure the circuit from accidental starting.

2. Using a metal test instrument ensure the there

are no cables or pipes in the drilling ranges.

4. Remove the light cover

by rotating the locking lever

5. Mark the drilling ranges using the screw holes

6. Using a 6 mm masonry drill, drill an approx.

30 mm deep hole into the marked positions.

into each drill hole.

through the rubber tube

hole and place the base plate

on the ceiling, so that the screw holes are congruent with the drill holes.

to the ceiling using the screws

10. Release the screw and open the cover cap on

11. Connect the connection cable

with correct polarity to the terminal block

and put the rubber tube

completely over the connection cable

12. Screw the cover cap to the LED driver

again using the screw.

13. Attach the light cover

by closing the locking lever

14. Screw the fuse on and / or switch the circuit

breaker on again. Switching the product on / off Use the wall switch to switch the product on and off. Maintenance and cleaning Allow the product to cool down completely. Do not use solvents, benzene or similar sub- stances. They could damage the product.
