USER MANUAL LSLB 30 A1 Livarno Lux

Congratulations! By purchasing the 30W LED emitter with movement sensor LIVARNOLUX LSLB 30 A1, hereinafter referred to as the LED emitter, you have opted for a quality product. The User Manual forms part of this product. It contains important information on safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Only use the product as described and for the applications given. If you pass the product on to someone else, make sure to give them all the relevant documents with it.LIVARNO LUX LSLB 30 A1 English - 19

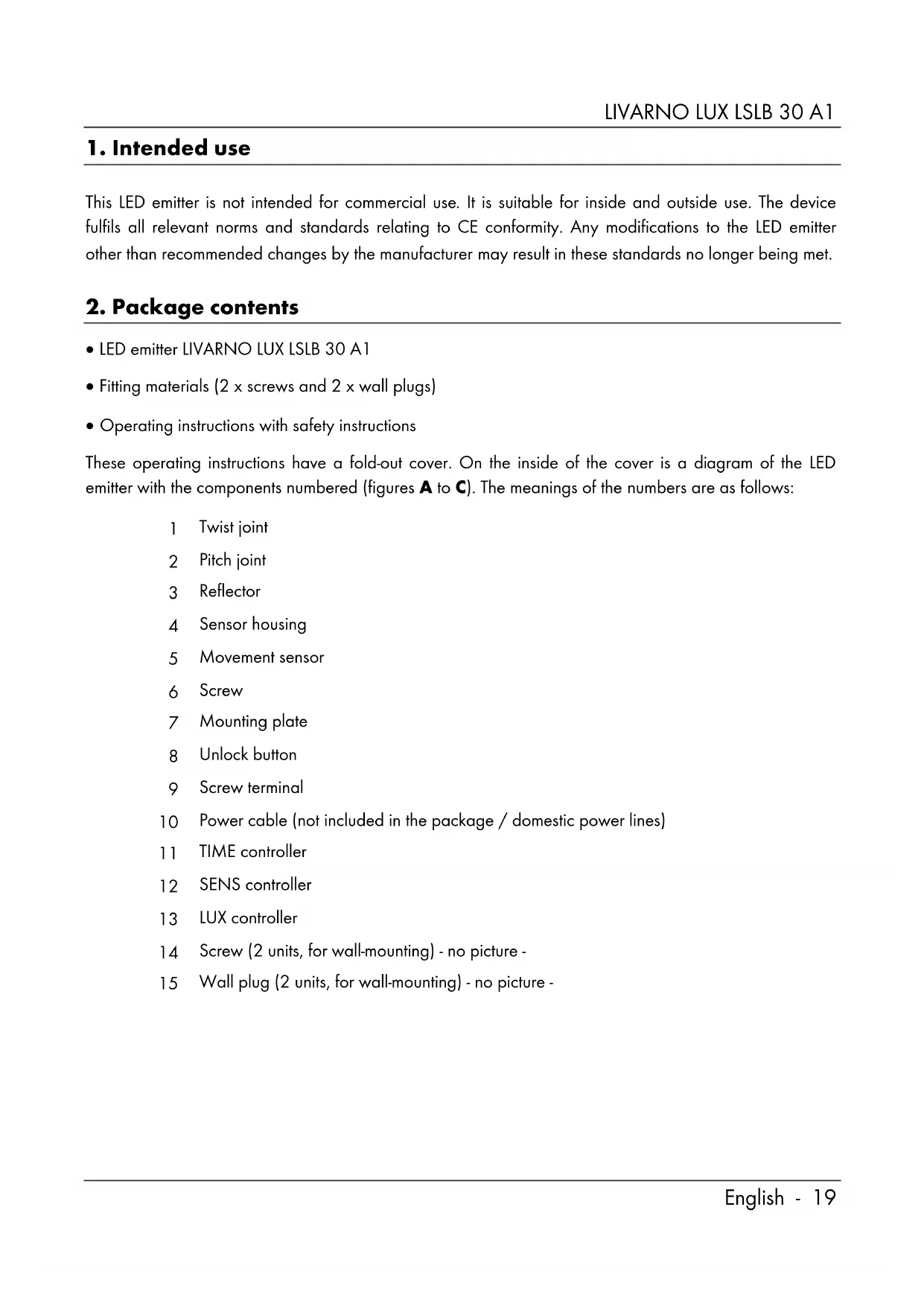

This LED emitter is not intended for commercial use. It is suitable for inside and outside use. The device fulfils all relevant norms and standards relating to CE conformity. Any modifications to the LED emitter other than recommended changes by the manufacturer may result in these standards no longer being met.

LED emitter LIVARNO LUX LSLB 30 A1 Fitting materials (2 x screws and 2 x wall plugs) Operating instructions with safety instructions These operating instructions have a fold-out cover. On the inside of the cover is a diagram of the LED emitter with the components numbered (figures A to C). The meanings of the numbers are as follows:

Power cable (not included in the package / domestic power lines)

Screw (2 units, for wall-mounting) - no picture -

Wall plug (2 units, for wall-mounting) - no picture -LIVARNO LUX LSLB 30 A1

(AC), 50/60 Hz Power consumption for whole LED emitter: approx. 30 W (+/- 8%) Safety class: I (with ground wire connection) Degree of protection: IP44 (splashproof) Lights: 30 x 1 W Osram LED Total luminous flux: approx. 2400 lm +/-5% (with cover) Colour temperature: approx. 5000 K (neutral white) Light beam aperture: approx. 120° CRI (colour rendering index): > 80 LED lifetime: approx. 30000 hours Operating position: vertical – emitter on top, movement sensor underneath Max. area covered: Approx. 30m² if mounted at height of approx. 2m Dimensions (W x H x D): approx. 21.0 x 22.1 x 15.0 cm Weight: approx. 970 g Movement sensor: Sensor detection angle: Max. 180° Sensor range: max. 12 m (sensitivity adjustable via rotary knob) Light sensitivity: adjustable via rotary knob Swivel range (mechanical): approx. +/- 70° horizontal Light time: approx. 10 sec +/- 5 sec up to 4 min +/- 1 min The technical data and design may be changed without prior notice.LIVARNO LUX LSLB 30 A1 English - 21

4. Safety instructions

Before you use this LED emitter for the first time, please read the following instructions and heed all warnings, even if you are familiar with handling electronic devices. Keep these operating instructions in a safe place for future reference. If you sell the device or pass it on, it is essential that you also hand over this manual. Any safety covers which come off must be replaced. Fire hazard: Mount the LED emitter at least 0.5 m away from any materials directly exposed to the light beam. Excessive heat can cause fire. The LED emitter has a ground conductor connection. The ground wire (yellow/green) must be connected to the labelled terminal (9). WARNING! This symbol denotes important information for the safe operation of the LED emitter and user safety. DANGER! This symbol denotes harmful electric voltage. This symbol denotes further information on the topic.

Electrical devices are not suitable for children. Never allow children to use electrical devices unsupervised. Children may not understand that they can be dangerous. Keep the packaging materials out of the reach of children. There is a risk of suffocation.LIVARNO LUX LSLB 30 A1

If you notice any smoke, unusual noises or strange smells, switch the LED emitter off immediately. If this occurs, do not continue to use the device and have it checked out by an expert. Never inhale smoke from a possible device fire. If you do inadvertently inhale smoke, seek medical attention. Smoke inhalation can be damaging to your health. The casing of the LED emitter must not be damaged. If the housing is damaged, there is a risk of electric shock. Never open the casing of the LED emitter as there are no components inside which require maintenance. If the casing is opened, there is a risk of electric shock. Do not hang anything from the LED emitter. The housing is not designed to support weights. This could damage the LED emitter. Never use optical instruments such as a magnifying glass to look directly into the beam. This could damage your eyes. If you suspect you have damaged your eyes, seek medical attention. There can be dangerous electrical voltages in the light and light source which represent an acute danger.

All the contents of this user manual are protected by copyright and provided to the reader for information only. Copying data and information without the prior explicit written consent of the author is strictly forbidden. This also applies to any commercial use of the contents and information. All texts and diagrams are up-to-date as of the date of printing. Subject to change without notice.

Remove the LED emitter and fitting materials from the packaging. Check the LED emitter for damage. If the LED emitter is damaged, do not use it. If the delivery is damaged or incomplete, please contact the manufacturer’s customer services.LIVARNO LUX LSLB 30 A1 English - 23

6.1 The right place for mounting

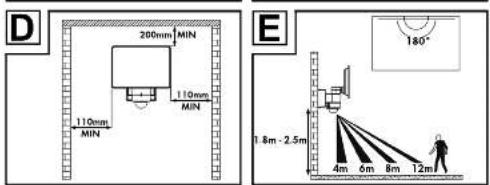

Select a location carefully and prepare well before mounting. Arrange all the individual parts, tools required and fittings tidily so everything is ready to hand. The LED emitter must only be mounted on stable surfaces such as walls. The power supply must be via the building's electrical circuit. Do not mount the LED emitter above a heat source or in the immediate vicinity of other light sources. When choosing the right place for mounting, please also note the illustrations [D and E] on the cover page. Select the location so that the LED emitter is protected against wind, rain and dirt. Find out in advance what fittings are suitable for the location you have chosen. Suitable fittings for mounting on concrete are provided.

The following tools are not supplied. This list is a guide only. The actual tools you will require depend on the individual location. Ladder Voltage tester Spirit level, folding rule, pencil Drill and drill bits Phillips screwdriver, flat screwdriver Open-ended spanner, combination pliers, wire cutters

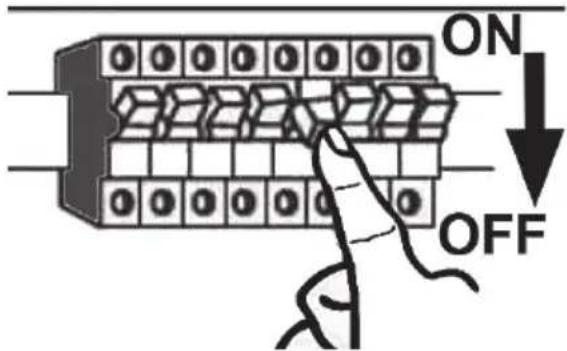

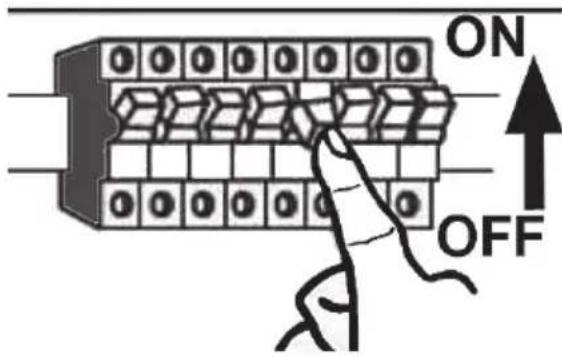

DANGER! The unit must only be mounted by an authorised electrical engineer! The power supply must be via the building's electrical circuit. The power must be switched off during the mounting process! When drilling holes, make sure there are no cables in the walls. Before mounting the LED emitter, make sure you are familiar with all its individual parts and read and observe the instructions and diagrams in these operating instructions. Make sure that the cable to which the LED emitter is to be connected is not live. To do this, remove the fuse for the relevant power circuit or switch the circuit breaker to the “0” position in your fusebox. Make sure that you also test that the cable is not live using a voltage tester!LIVARNO LUX LSLB 30 A1

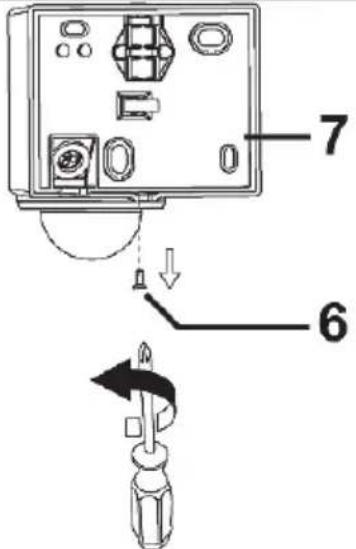

The LED emitter must be wall-mounted. Disconnect the power supply. Undo the mounting plate (7) from the LED emitter by removing the screw (6) using a Phillips screwdriver.

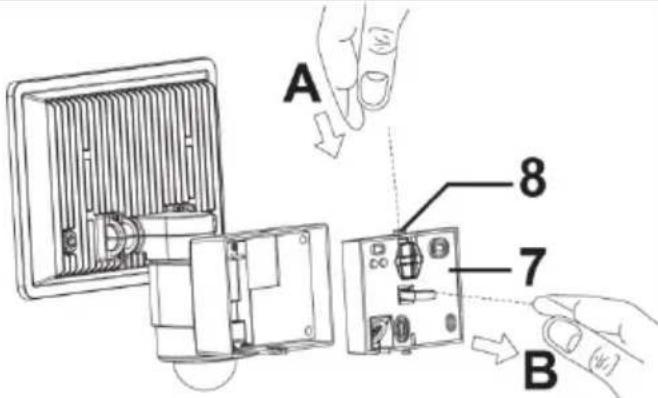

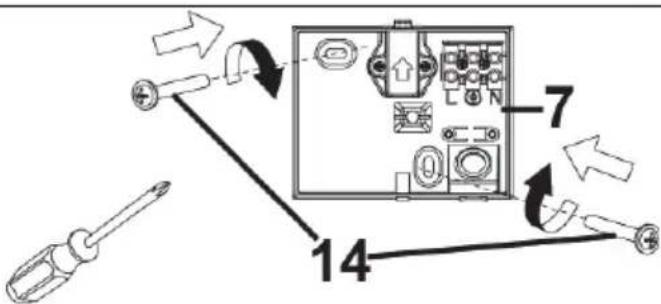

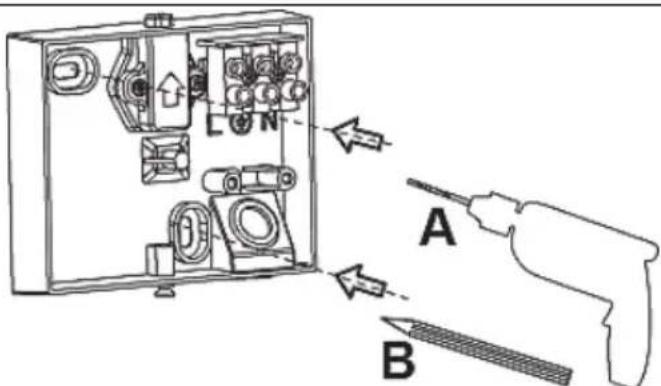

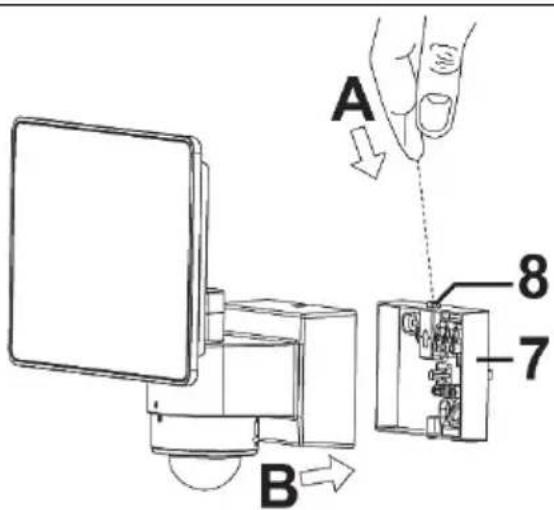

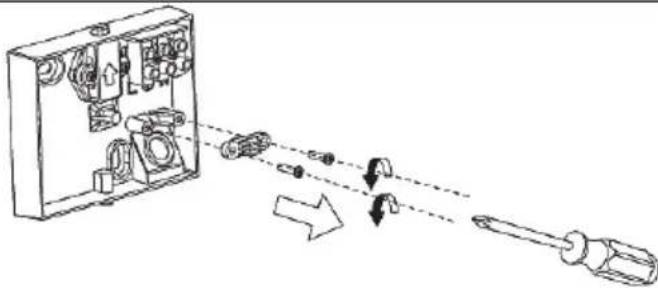

Now press the unlock button (8) on the mounting plate (7) and pull the mounting plate (7) on the strap out of the housing of the LED emitter. Remove the 2 screws and then remove the strain relief.LIVARNO LUX LSLB 30 A1 English - 25 Punch the rubber seal on the cable feed (e.g. with a screwdriver) and then push the prepared power cable through from behind. Drill through the pre-punched mounting holes and then draw the position of the drill holes on the wall in order to drill holes in the wall. Fit the wall plugs (15) into the drilled holes. Now screw in the screws (14) to fix the mounting plate (7) securely to the wall. Now properly wire the power cable to the screw terminal (9) on the mounting plate (7). Note the labelling of the individual terminals. Please also note the illustration [B] on the cover page.

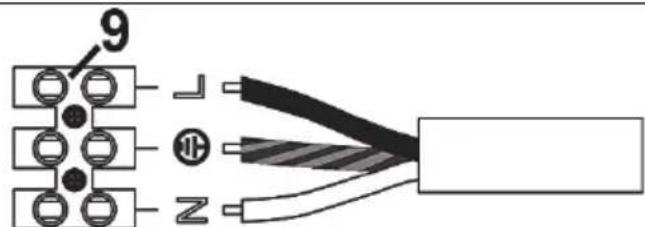

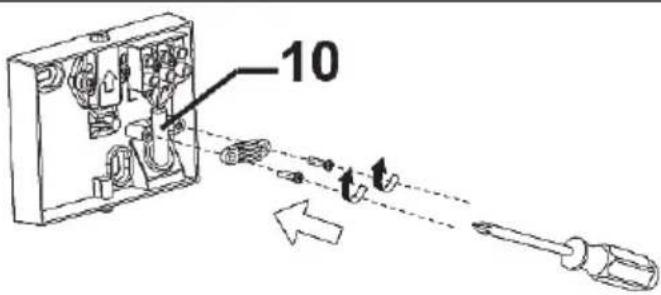

blue Then fix the power cable (10) by fitting the strain relief with the 2 screws.LIVARNO LUX LSLB 30 A1

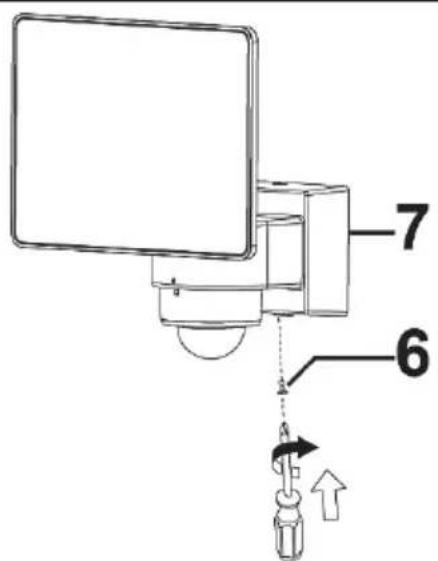

Place the LED emitter straight onto the mounting plate (7). Press the unlock button (8) down and push the LED emitter towards the wall until the unlock button (8) slots into the recess in the LED emitter housing. Finally, use the Phillips screwdriver to turn the screw (6) from underneath through the LED emitter housing into the mounting plate (7). Switch the power supply back on again.LIVARNO LUX LSLB 30 A1 English - 27

Make sure there are no movements which are not to be detected within the detection range of the movement sensor (5) (e.g. pavements, roads). The best time to set the light sensitivity for the movement sensor (5) is when the lighting conditions are the same as they will be when the LED sensor is active. We recommend you twist the sensor housing (4) to easily adjust the "TIME" (11), "SENS" (12) and "LUX" (13) controllers. Please also note the illustration [C] on the cover page. Adjust the movement sensor (5) so it covers the area you want as best possible. It must not be blocked by objects or the like. You can align the movement sensor (5) horizontally by twisting the sensor housing (4).

7.2 Adjusting the light time (TIME)

You can adjust the light time using the TIME controller (11) on the sensor housing (4) (approx. 1 min. to 15 min.). Turn the TIME controller (11) clockwise (towards the +) to increase the light time and anticlockwise (towards the -) to reduce the light time.

7.3 Adjusting the sensor sensitivity (SENS)

You can adjust the sensitivity using the SENS controller (12) on the sensor housing (4). Turn the SENS controller (12) clockwise (towards the +) to increase the sensitivity and anticlockwise (towards the -) to reduce the sensitivity. The higher the sensitivity, the larger the range (12 m maximum).

7.4 Adjusting the light sensitivity (LUX)

You can adjust the light sensitivity using the LUX controller (13) on the sensor housing (4). This allows you to define the light conditions in which the lighting sensor reacts and the LED emitter switches on or off. Turn the LUX controller (13) clockwise (direction ) if you wish the movement sensor to react in relatively bright light conditions. Turn the LUX controller (13) anticlockwise (direction ) if you wish the movement sensor (5) to react in relatively poor light conditions.LIVARNO LUX LSLB 30 A1

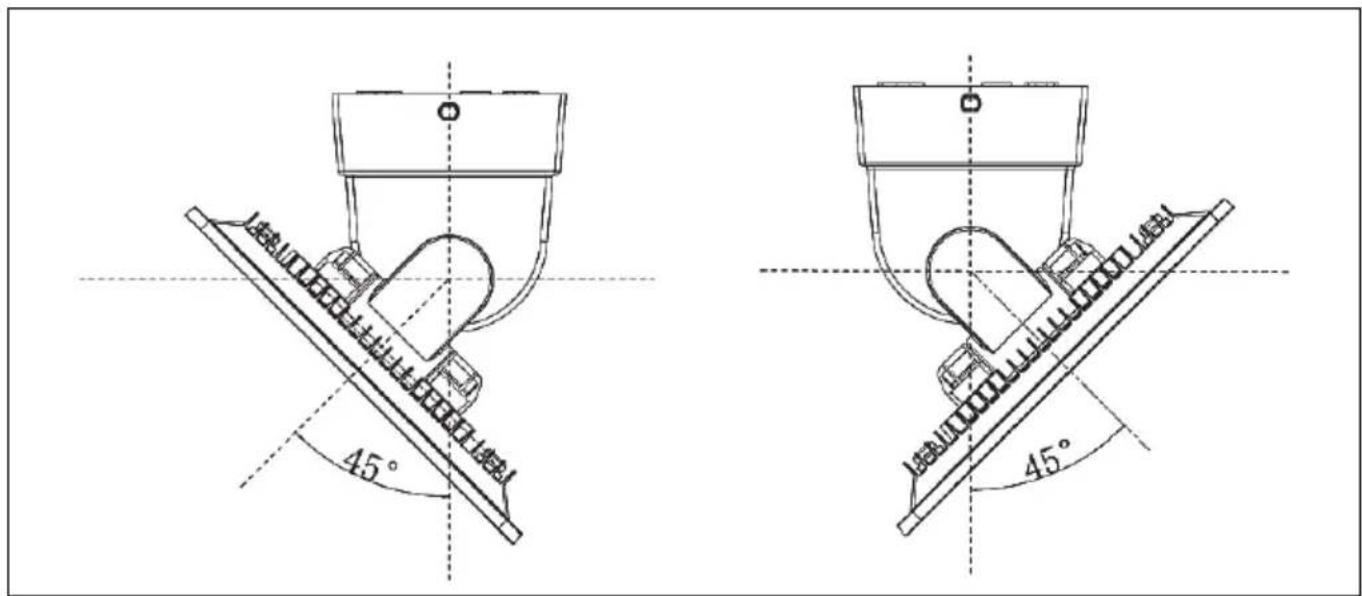

The LED emitter can be twisted in a range of approx. 90° using the twist joint (1).

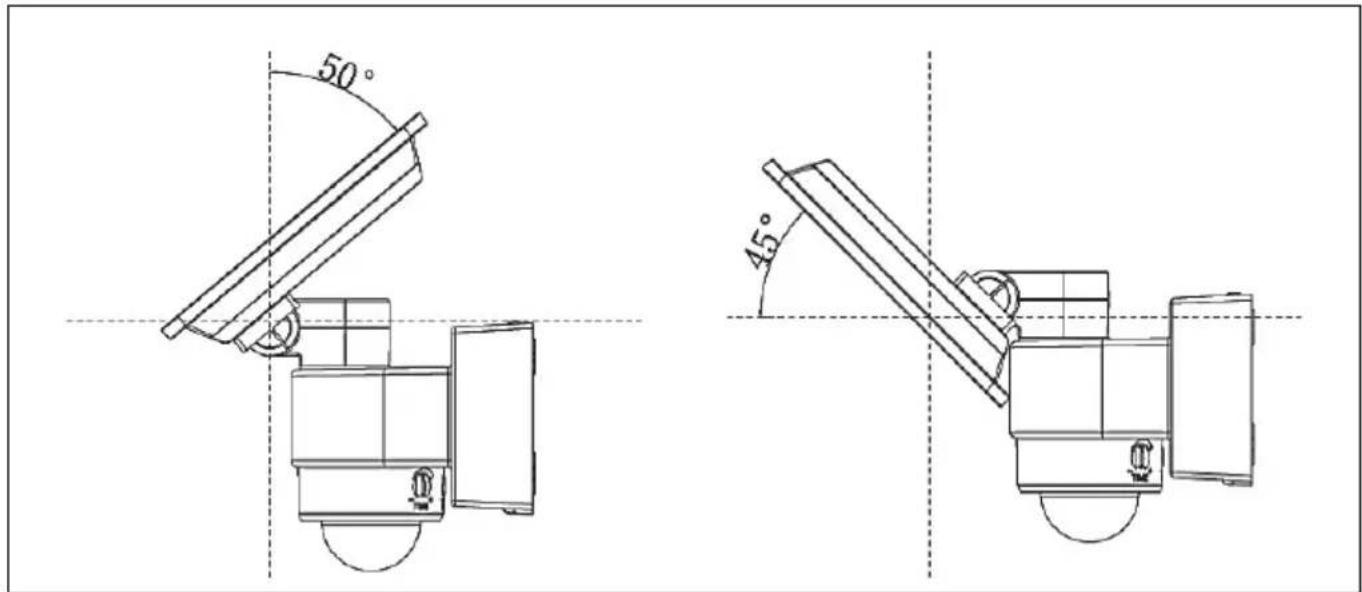

The pitch joint (2) can be used to pitch the LED emitter within a range of approx. 95°.LIVARNO LUX LSLB 30 A1 English - 29

8. Maintenance/cleaning

Maintenance The LED emitter does not contain any parts that require maintenance. The LED lamp cannot be replaced. Cleaning The mains power must be switched off for all work on the LED emitter, even cleaning! Otherwise there is a risk of electric shock! Make sure that no liquid gets into the housing of the LED emitter. Otherwise there is a risk of electric shock. To clean the LED emitter, use a soft, dry cloth. Never use any solvents or cleaners that may damage the plastic housing. For more stubborn dirt, use a slightly damp cloth.

The light does not come on The movement sensor (5) is not aimed correctly. Correct the positioning. The electrical connection is faulty. Get the electrical connection checked by an electrician. The light switches on and off quickly There is interference to the sensor from other light sources or bright reflective surfaces. Remove the external light source or reflective surface. The light does not switch off There are people or moving objects in the detection range of the movement sensor (5). Remove them. The LED emitter is moving in the wind, which is constantly triggering the movement sensor (5). Always secure the LED emitter to a stable mounting point.LIVARNO LUX LSLB 30 A1

10. Environmental regulations and disposal information

Devices marked with one of these symbols are subject to the European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at official disposal centres. Do not dispose of the device in household waste or bulky waste collections. Information on collection points and pick-up times can be obtained from your local council or waste disposal company. Dispose of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal.

The product complies with the requirements of the applicable European and national directives. Evidence of conformity has been provided. The manufacturer has the relevant declarations and documentation. The complete EU Declaration of Conformity is available for download from this link: www.targa.de/downloads/conformity/297148.pdfLIVARNO LUX LSLB 30 A1 English - 31

12. Warranty and service information

Warranty of TARGA GmbH Dear Customer, This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below. Warranty conditions The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate. Warranty period and legal warranty rights The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge. Scope of warranty The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced. Submitting warranty claims To ensure speedy handling of your complaint, please note the following: - Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline. - Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase. - If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.LIVARNO LUX LSLB 30 A1

Manufacturer Please note that the following address is not a service address. First contact the service point stated above. TARGA GmbH Coesterweg 45 DE-59494 Soest
