Product type	Off-road motorcycle (enduro)
Brand	Sherco
Model	250 SER (2019)
Engine	Single-cylinder 2-stroke, liquid cooling
Displacement	249.32 cm³
Bore / Stroke	66.4 x 72 mm
Fuel system	Carburetor Keihin PWK 36
Ignition	DC-CDI with no breaker, digital advance
Spark plug	NGK BR7ES / DENSO W22ESR-U, gap 0.7 mm
Starting	Electric (button)
Battery	12 V / 4 Ah
Transmission	6-speed
Clutch	Multi-plate in oil bath, hydraulic control
Frame	Semi-perimeter CrMo steel frame with aluminum rear loop
Front suspension	SACHS USD fork ∅48 mm (Standard) or WP Xplor (Racing)
Rear suspension	WP with separate reservoir
Front/rear travel	300 / 330 mm
Front brake	Disc ∅270 mm (Standard) or 260 mm (Racing)
Rear brake	Disc ∅220 mm
Tires	Front 90/90-21" or 90/100-21", rear 140/80-18"
Tank capacity	10.4 L (including 1 L reserve)
Fuel	Unleaded premium 98 mixed with 2T oil (2%)
Seat height	950 mm
Wheelbase	1480 mm
Ground clearance	355 mm
Dimensions (L x W)	2260 x 820 mm

Frequently Asked Questions - 250 SER (2019) Sherco

What fuel/oil mixture to use?

Use unleaded premium gasoline with 98 octane rating mixed with 2% 2-stroke engine oil. For example, for 10 liters of gasoline, add 200 ml of oil.

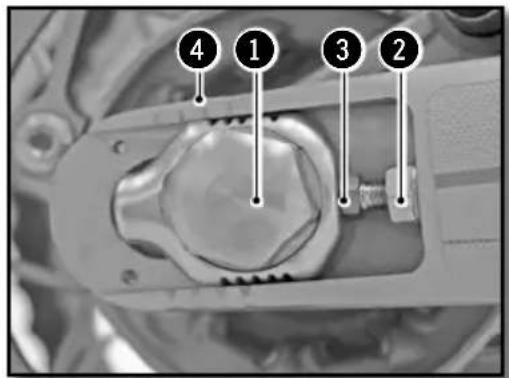

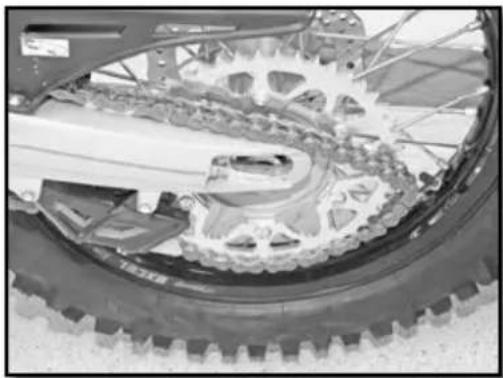

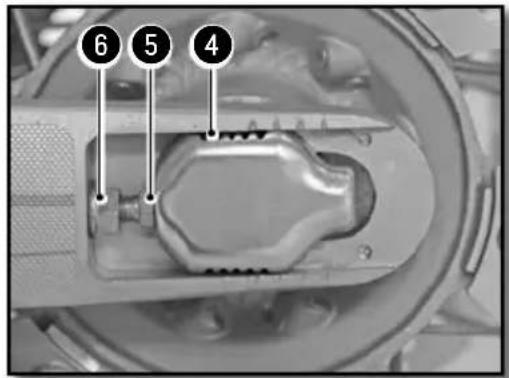

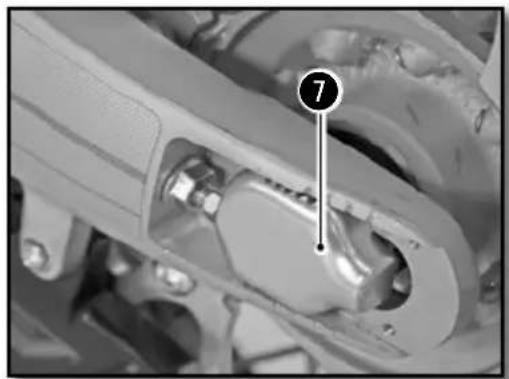

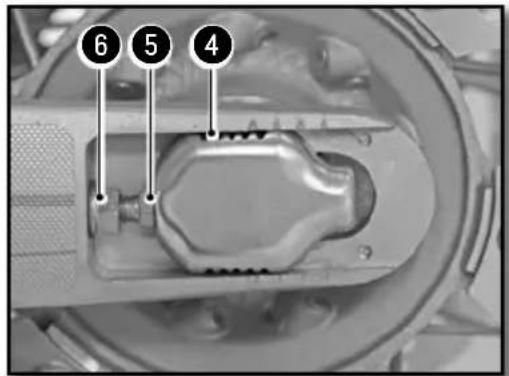

How to adjust the chain tension?

Place the motorcycle on a stand. Measure the slack in the middle of the chain: it should be between 50 and 53 mm. If necessary, loosen the rear axle nut, the lock nuts, then adjust the tension screws on both sides symmetrically. Retighten the lock nuts and tighten the axle nut to 100 Nm.

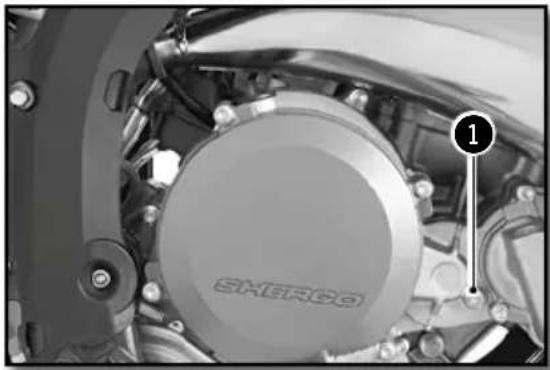

Which engine oil to use and how much?

Use SAE 10W40 oil (e.g., Minerva). The capacity is 750 ml (0.75 L) for the gearbox. Check the level with the control screw on the crankcase.

How to bleed the fork legs?

It is recommended to bleed every 5 to 10 hours of use. Motorcycle cold, fork fully extended. Remove and retighten the bleed screws located on each fork cap. This evacuates the accumulated air under pressure.

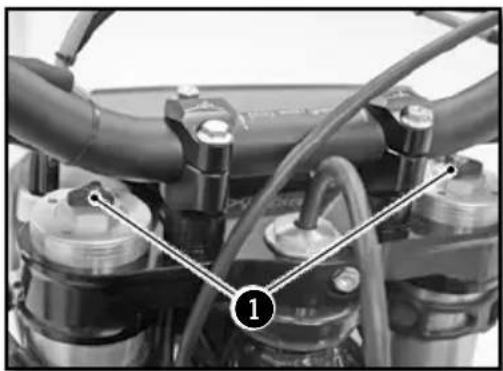

How to adjust the suspension (fork and shock)?

For the fork, adjust compression and rebound via screws at the bottom (WP) or top (Kayaba). Turning clockwise increases hydraulic damping. Base settings are given in clicks (e.g., comfort 18 clicks, standard 15, sport 12). For the shock, adjust low-speed and high-speed compression, as well as rebound, with specific screws. Check static sag (30 mm) and rider sag (95-105 mm).

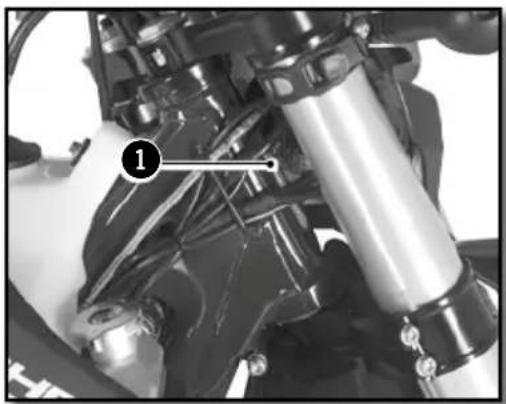

Where are the frame and engine serial numbers?

The frame number is stamped on the right side of the steering head. The engine number is stamped on the rear part of the right central crankcase.

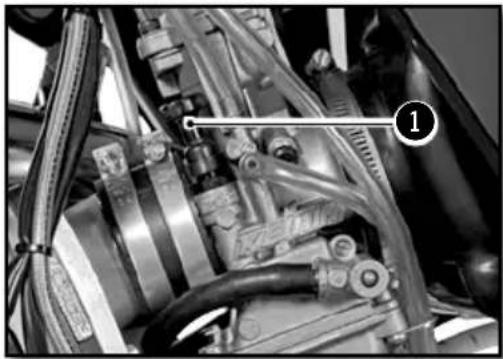

How to start the cold engine?

Put the selector in neutral, activate the choke (pulled up), press the starter button without accelerating. Let it warm up for a few minutes, then deactivate the choke. For a hot engine, follow the same steps without choke.

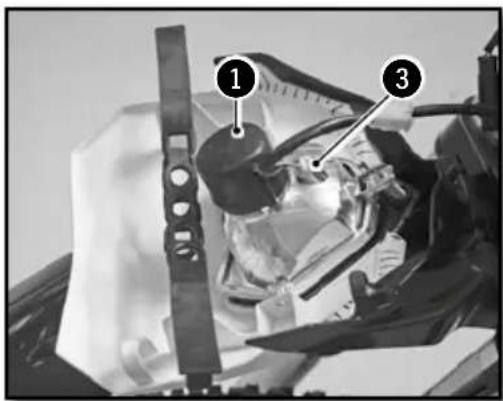

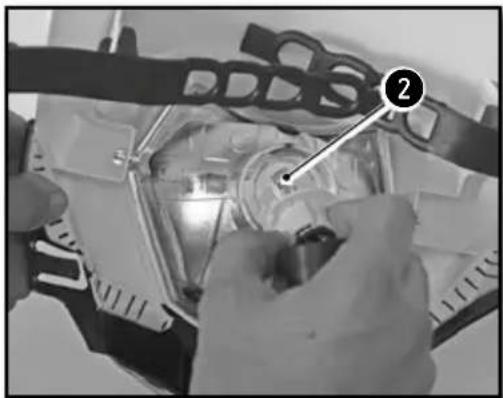

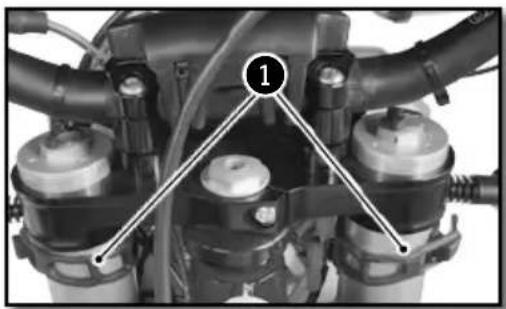

How to replace the headlight bulb?

Remove the headlight plate by unclipping the rubbers and disconnecting the connector. Remove the rubber cover, turn the socket a quarter turn counterclockwise to extract it. Press the bulb while turning it to remove it. Install a new one (S2 12V 35/35W) and reassemble in reverse order.

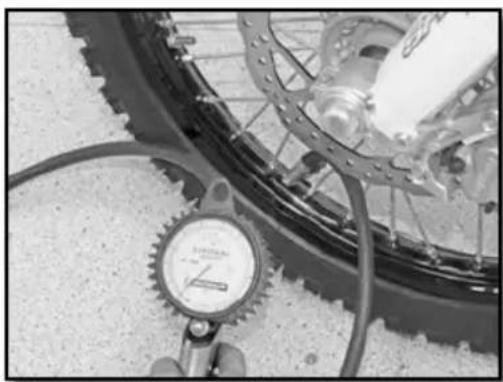

What tire pressure for off-road use?

The recommended pressure for off-road is 0.9 bar (about 13 psi) for both tires, front and rear. Always check when cold.

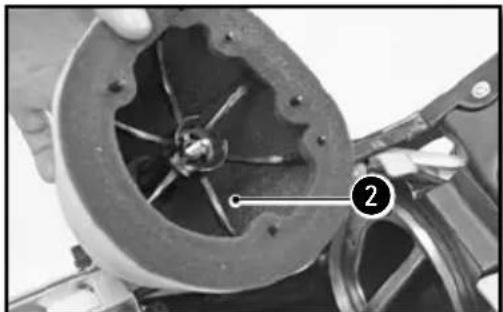

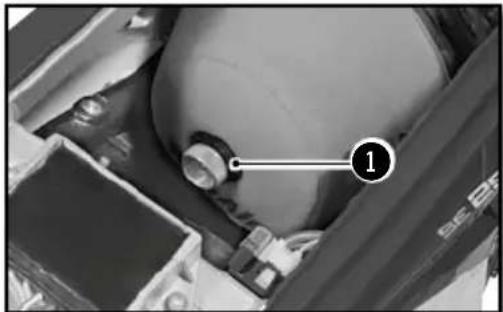

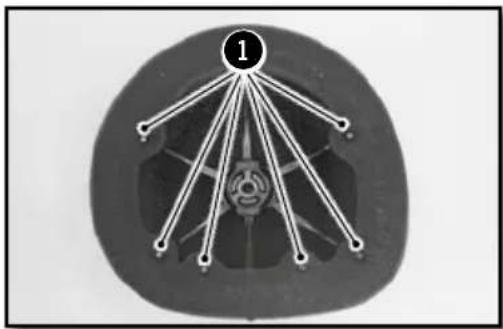

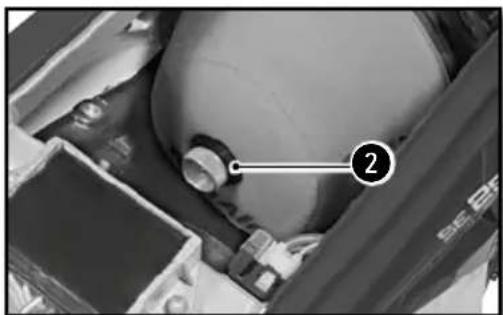

How to maintain the air filter?

Remove the seat, unscrew the knurled screw, and take out the filter with its support. Separate the filter from the support. Clean the foam with a special cleaner (no solvent or gasoline). Let it dry, then soak with air filter oil. Reassemble ensuring proper centering and greasing the front face. Reinstall the knurled screw and the seat.

USER MANUAL 250 SER (2019) Sherco

MANUEL DU PROPRIÉTAIRE I OWNER'S MANUAL I MANUAL DE PROPIETARIO

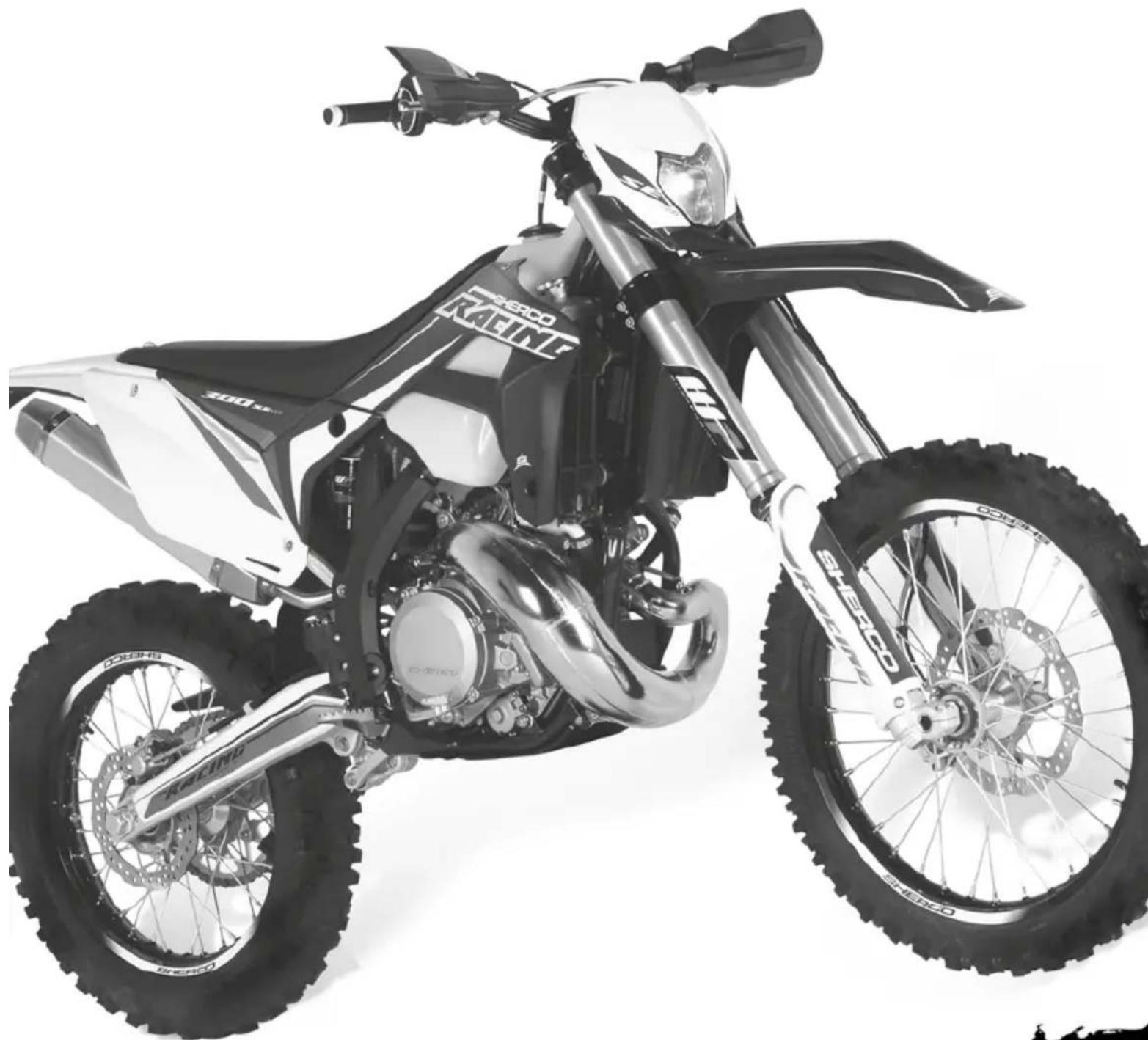

250-300 SE/R

Black-and-white photo of a R800 motorcycle with visible branding and tires, no text or symbols on the body itself.

INDEX

SHERCO

■ FRANÇAIS P.2
■ ENGLISH P.70
■ ESPAGNOL P. 136
DEUTSCH P. 206

Abstract black-and-white illustration of a stylized figure with dynamic motion lines (no text or symbols)

DEFYGRAVITY®

SHERCO

Empty rectangular frame with black border (no text or symbols)

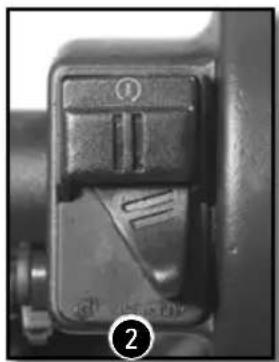

■ Côté gauche

Close-up of a mechanical assembly with a metallic cylindrical component and a numbered label (1) pointing to a specific part, no readable text or symbols present.

Close-up of a mechanical knob or dial with a circular handle, no visible text or symbols

Close-up of a mechanical knob or dial component (no visible text or symbols)

Close-up of a mechanical assembly with labeled component (1), no visible text or symbols beyond the number marker.

Close-up of a mechanical component with a handle and circular symbol, no visible text or labels

Close-up of a mechanical component with no visible text or symbols

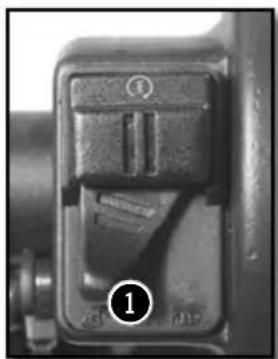

Position ①. Courbe "soft"

Position ②. Courbe "hard"

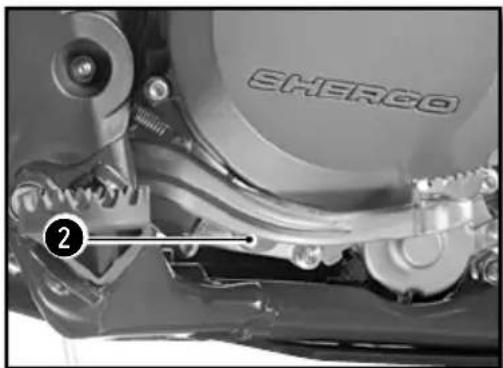

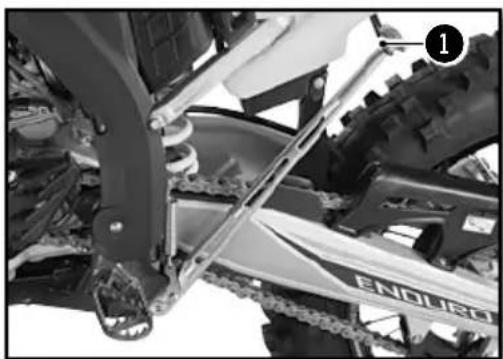

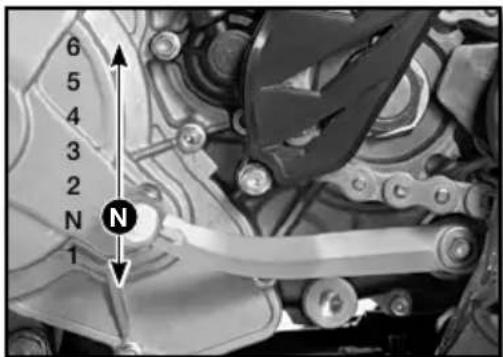

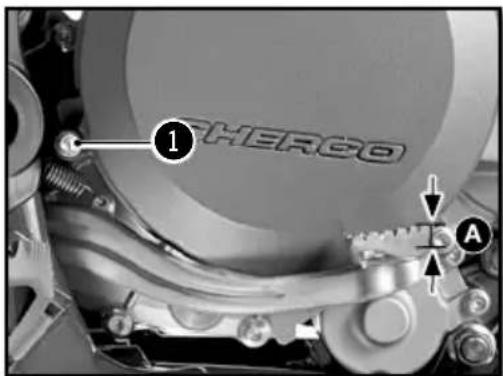

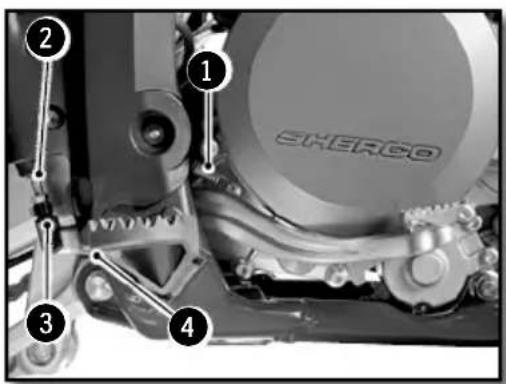

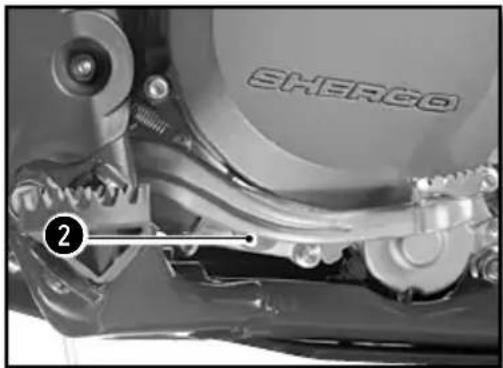

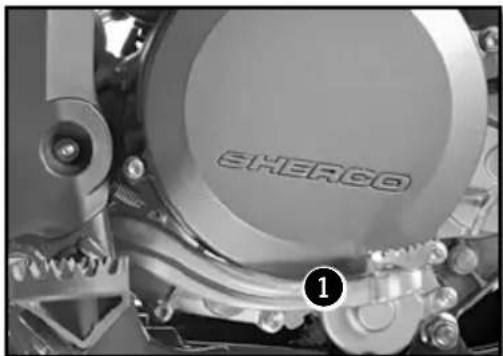

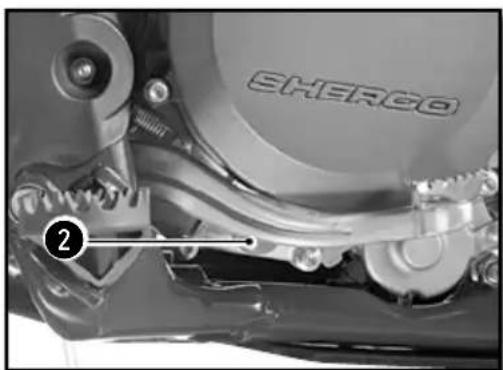

COMMANDE AUX PIEDS : SÉLECTEUR DE VITESSE, BÉQUILLE, FREIN ARRIÈRE

Close-up of a mechanical component with 'SHERGO' branding and numbered callout (1), no readable text beyond branding.

Close-up of a mechanical assembly with chains and gears, no visible text or symbols

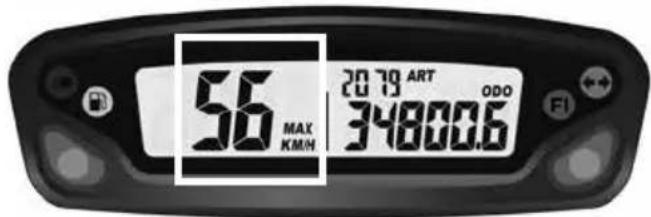

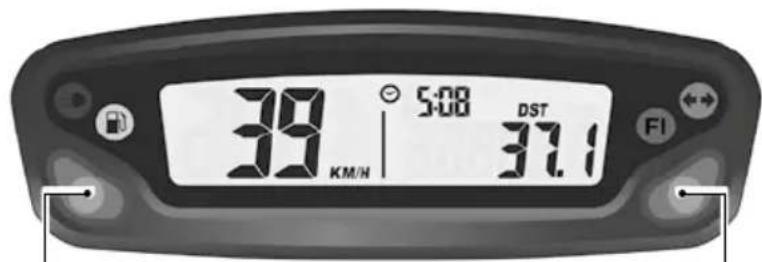

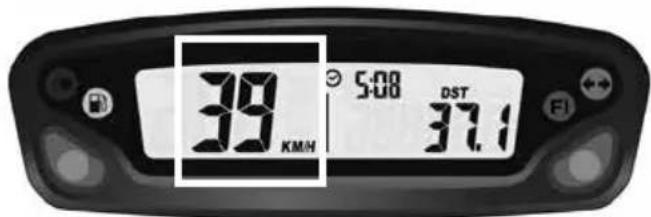

Fig 1 Fonction SPD

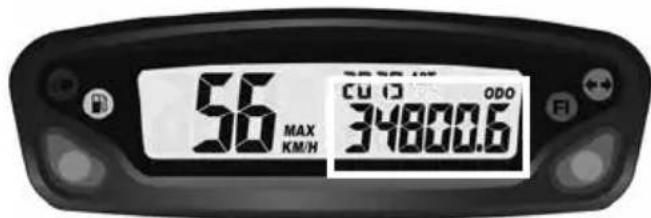

Fig 2 Fonction MAX

Fig 3 Fonction AVG

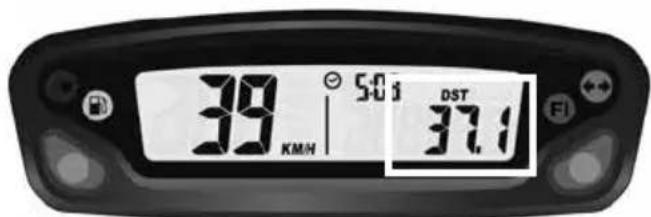

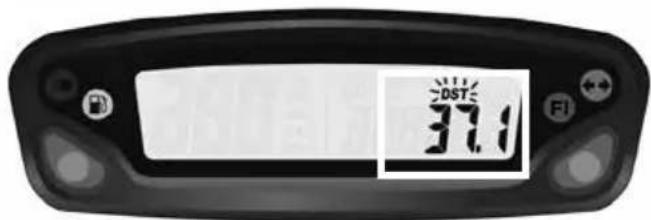

Fig 4 Fonction DST

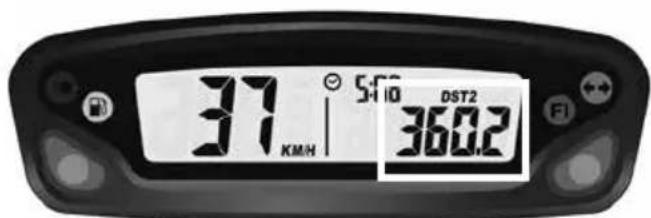

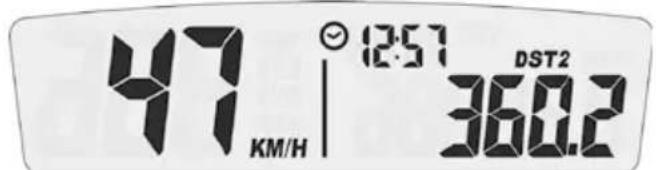

Fig 5 Fonction DST2

Close-up of a motorcycle's front wheel and side-mounted engine compartment (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a small clamp, no visible text or symbols

Close-up of a car engine compartment with a hand holding a tool, no visible text or symbols

Close-up of a mechanical assembly with hoses and connectors (no visible text or symbols)

Close-up of a person adjusting a mechanical component with a numbered callout (no visible text or symbols)

Close-up of hands adjusting a mechanical component with a tool, no visible text or symbols

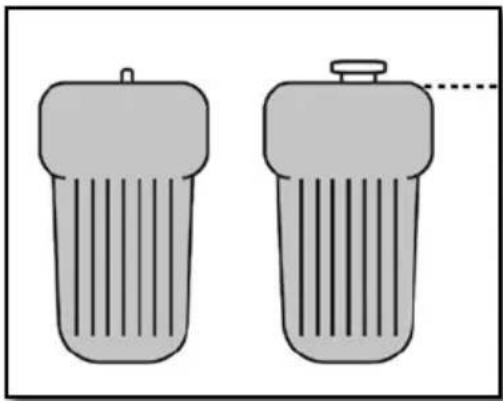

Two identical gray cylindrical objects with vertical stripes, one emitting a dotted line to the other (no text or symbols)

Moto horizontal

ATTENTION

Close-up of a motorcycle's front wheel and side-mounted gear assembly (no visible text or symbols)

Close-up of a mechanical component with a numbered annotation (2) pointing to a circular feature, no readable text or symbols present.

Close-up of a mechanical component with numbered annotation (2) pointing to a specific feature, no readable text or symbols present.

Close-up of a mechanical component with a curved arrow indicating rotational motion (no text or symbols visible)

Close-up of a motorcycle's front brake lever and grip (no text or symbols visible)

Close-up of a mechanical device interior with a numbered annotation pointing to a circular component (no readable text or symbols)

Close-up mechanical assembly showing hoses and components (no visible text or symbols)

Close-up of a mechanical component with a numbered label (1) pointing to a circular feature, no readable text or symbols present.

Close-up of a mechanical assembly with a circular component labeled 'SHERCO' and a numbered marker (1), no readable text or symbols beyond the label.

Close-up of a hand adjusting a mechanical component with a numbered label (2) on the part, no visible text or symbols beyond the number.

Mechanical assembly diagram showing a gear and chain with no visible text or symbols

Close-up of a mechanical assembly with labeled component 'SHERGO' and numbered marker (2), no readable text or symbols beyond the label.

Close-up of a mechanical assembly with labeled component 'SHERGO' and numbered marker (2), no readable text or symbols beyond the label.

Mechanical assembly diagram showing a linkage mechanism with labeled component (1), no readable text or symbols present.

Close-up of mechanical components with no visible text or symbols

Technical drawing of a mechanical component with cross-sectional hatching and dimension line (no text or symbols)

Close-up of a mechanical assembly with numbered components (1 and 2), no visible text or symbols.

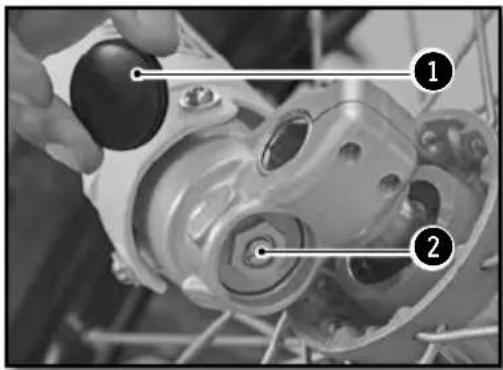

Réglage de compression WP suspension XPLOR ∅48mm (racing)	Confort 18 clics
	Standard 15 clics
	Sport 12 clics
Réglage de compression KAYABA (factory)	Confort 20 clics
	Standard 12 clics
	Sport 8 clics

Close-up of a motorcycle engine bay with hoses and calipers (no visible text or symbols)

Close-up of mechanical components with a numbered label (1) pointing to a circular feature, no readable text or symbols present.

Close-up of a mechanical wrench tool inserted into a bracket (no visible text or symbols)

Précontrainte du ressort WP suspension XPLOR ∅48mm (racing)	Confort 0 tour
	Standard 0 tour
	Sport 2 tours

Réglage partie cycle (suite)

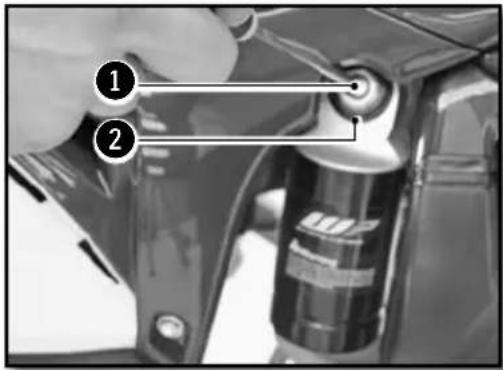

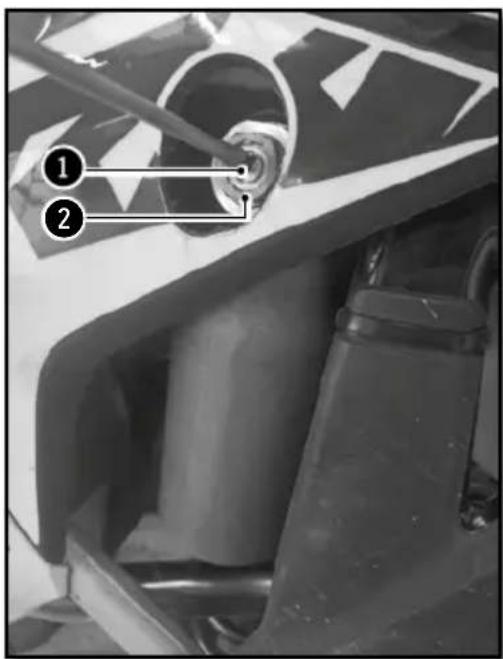

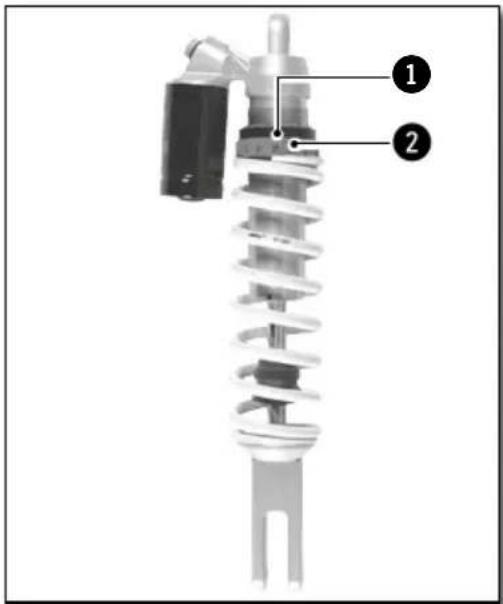

RÉGLAGE DE LA COMPRESSION BASSE VITESSE DE L'AMORTISSEUR

WP

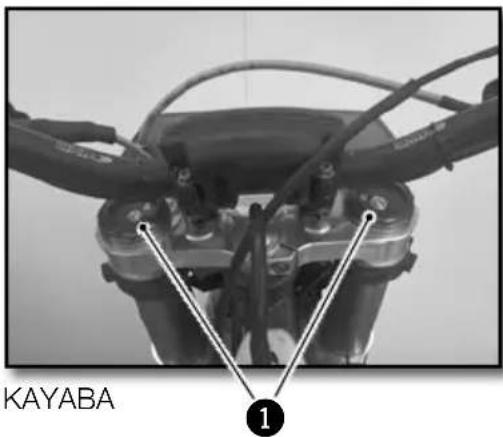

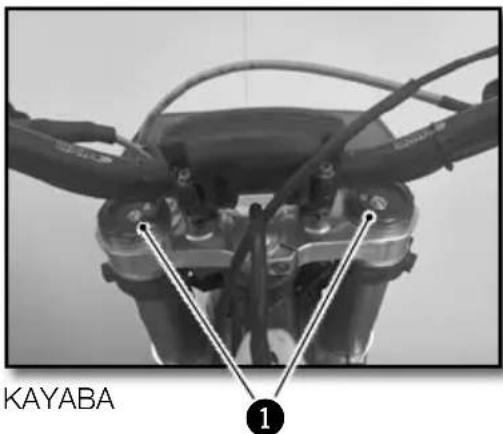

KAYABA

AMORTISSEUR WP (RACING)

Réglage de compression lente	Confort 20 clics
	Standard 15 clics
	Sport 12 clics

AMORTISSEUR KAYABA (FACTORY)

Réglage de compression lente	Confort 20 clics
	Standard 14 clics
	Sport 12 clics

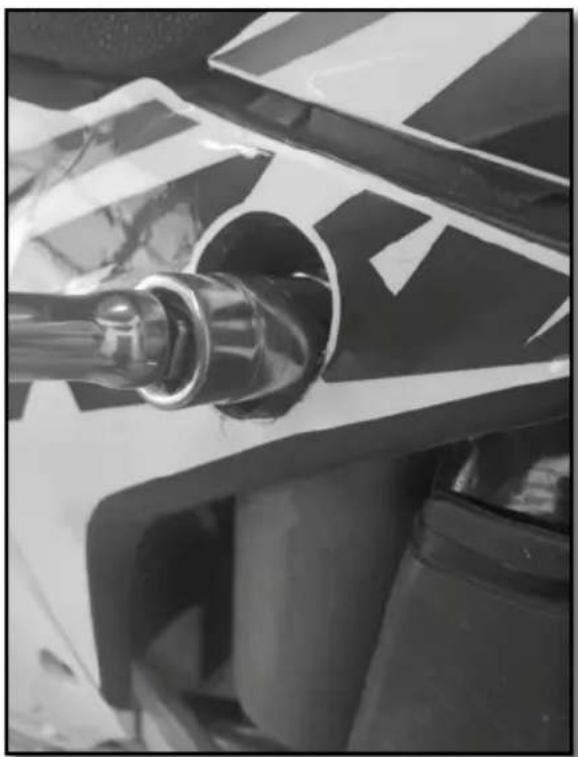

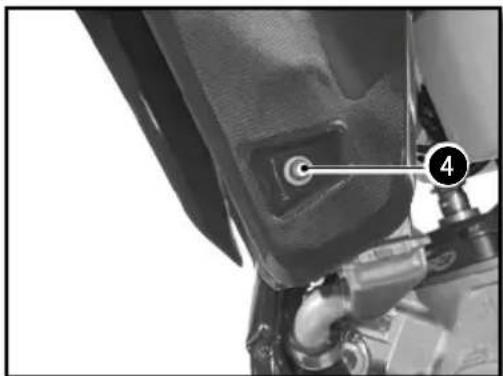

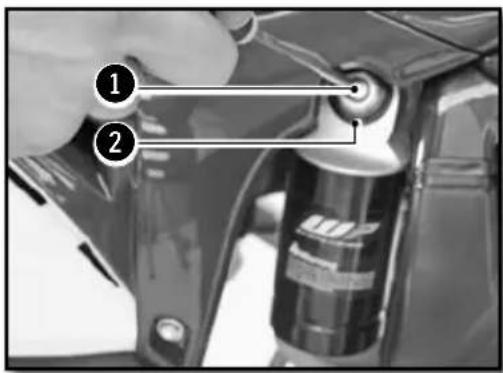

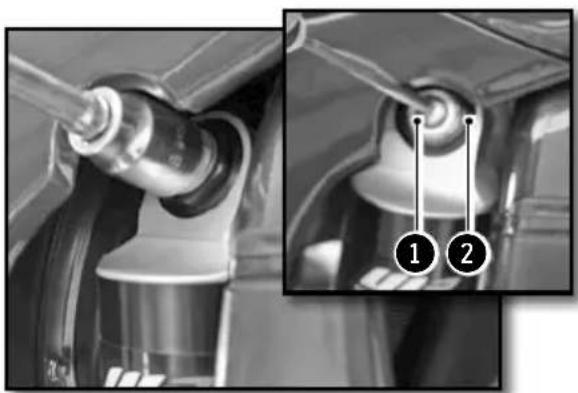

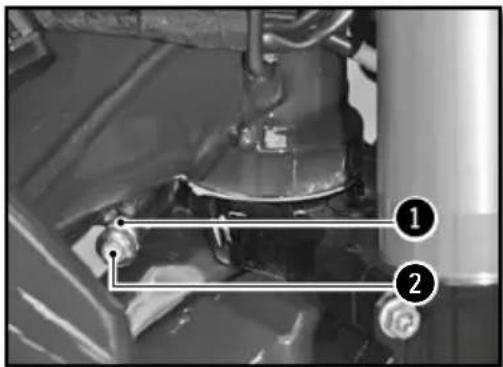

RÉGLAGE DE LA COMPRESSION HAUTE VITESSE DE L'AMORTISSEUR

Close-up of mechanical components with numbered annotations (1 and 2) showing structural details (no readable text or symbols)

WP

Close-up of a jet engine component with a metallic nozzle and attached valve (no visible text or symbols)

KAYABA

AMORTISSEUR WP (RACING)

Close-up of mechanical components with no visible text or symbols

Close-up of a hand pressing down on a fabric with a numbered callout (no text or symbols visible)

Close-up of a mechanical component with a numbered annotation (1) pointing to a cylindrical feature, no readable text or symbols present.

Close-up of a mechanical component with visible gears and shafts, no text or symbols present

Cross-sectional view of a mechanical component with labeled point (1), showing internal structure and radiating lines (no text or symbols beyond label)

Close-up of a mechanical component with a numbered annotation (2) pointing to a cylindrical feature, no readable text or symbols present.

Close-up mechanical assembly showing hoses, springs, and a numbered component (no readable text or symbols)

Close-up of a mechanical component with a numbered annotation (4) pointing to a specific part, no readable text or symbols present.

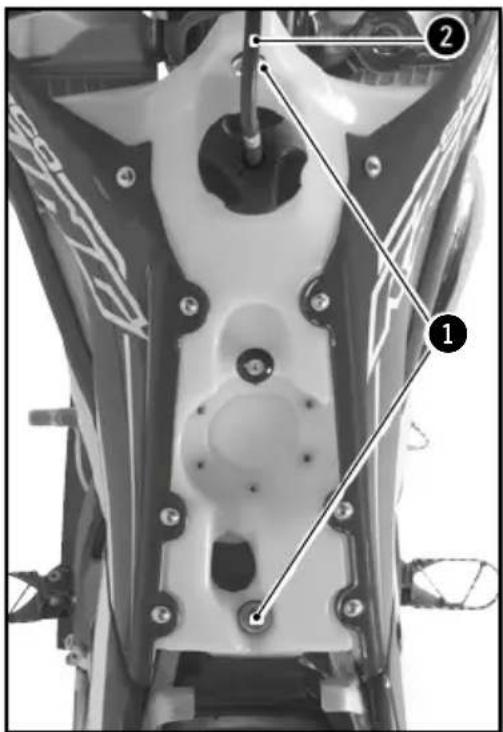

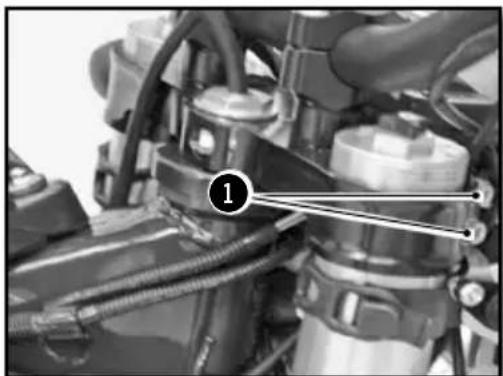

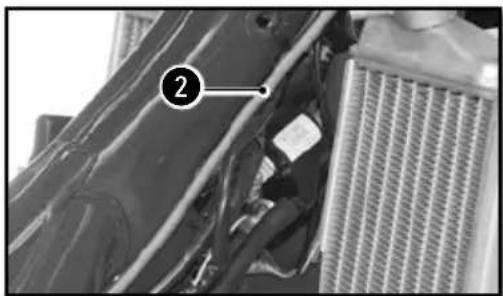

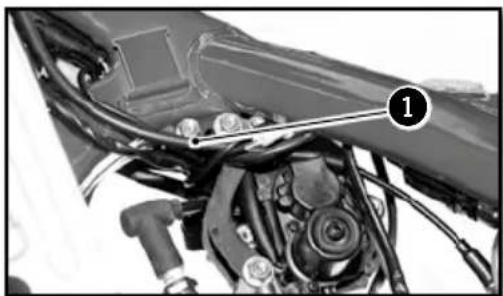

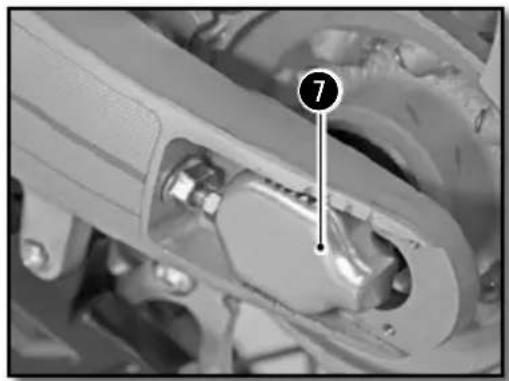

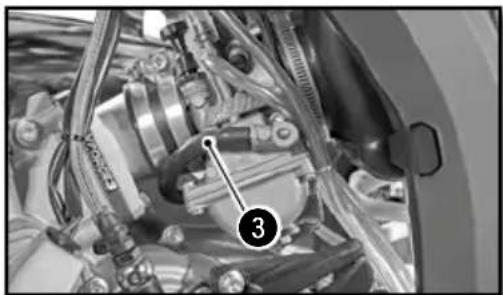

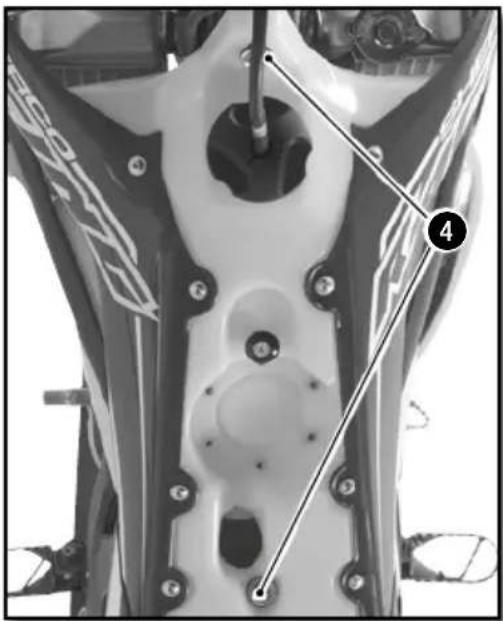

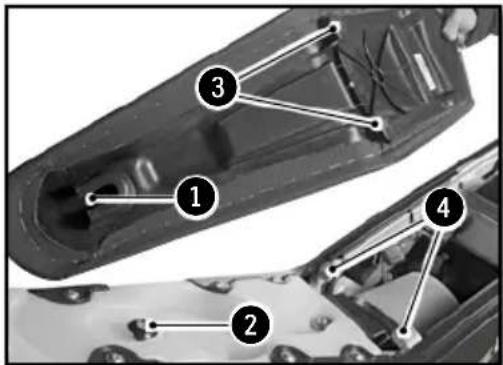

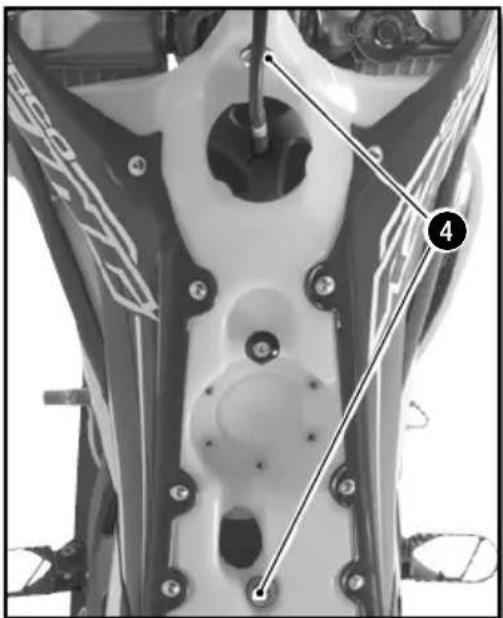

REMONTAGE DU RÉSERVOIR D'ESSENCE

Close-up of a motorcycle engine bay with visible components and wiring (no text or symbols)

Close-up of a car's front panel with visible exhaust grating and a numbered label (2) pointing to the side panel.

Close-up mechanical assembly showing hoses and components (no visible text or symbols)

Medical implant diagram showing anatomical structure with numbered annotation (4), no readable text or symbols present.

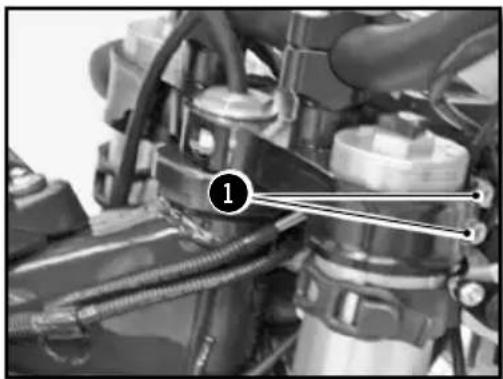

PURGE DES BRAS DE FOURCHE

Close-up of metallic cylindrical components with black connectors, no visible text or symbols

Moto sur trépied.

Side view of a Driton motorcycle with visible tire, gear, and motion arrows indicating rotational motion (no text or symbols)

Moto sur trépied.

Close-up of an automotive engine component with hoses and a numbered label (1), no readable text or symbols present.

Moto sur trépied.

Close-up mechanical assembly showing a gear and housing component (no visible text or symbols)

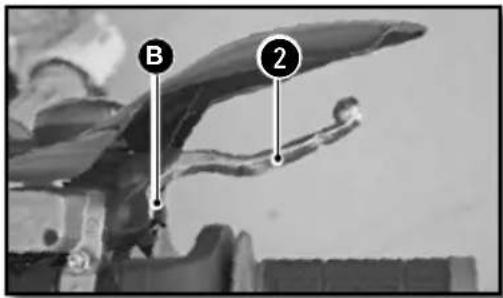

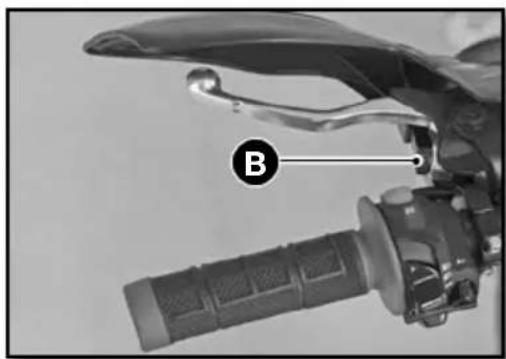

RÉGLAGE EMBRAYAGE

Close-up of a motorcycle's hand gripping a brake lever, labeled with 'B' (no text or symbols on the object itself)

ATTENTION

ATTENTION

Mechanical assembly diagram showing a cylindrical component with attached parts and labeled connection point (no text or symbols present)

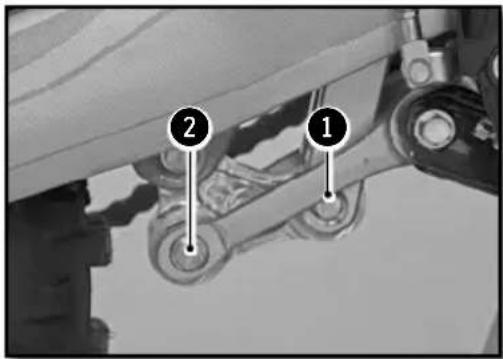

Mechanical assembly diagram showing two labeled components (1 and 2) with no visible text or symbols

Moto sur trépied.

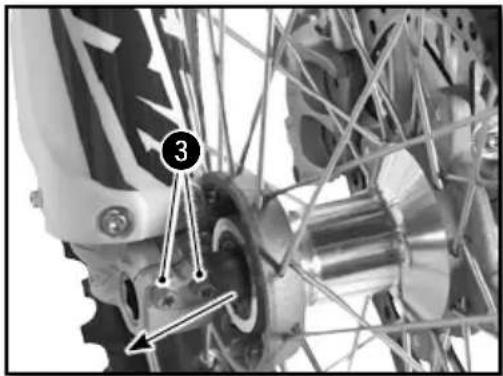

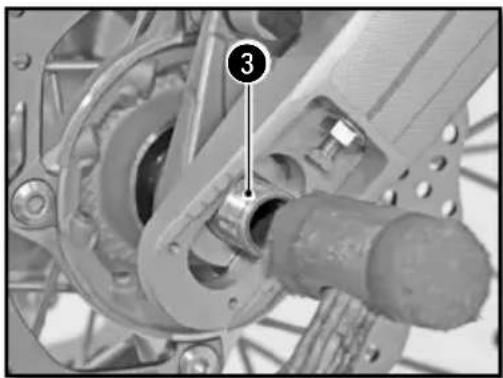

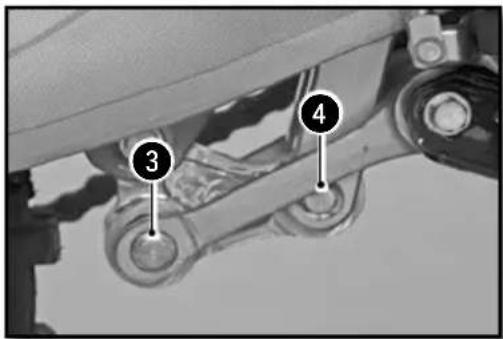

Démonter l'axe ③.

Enlever la vis 4.

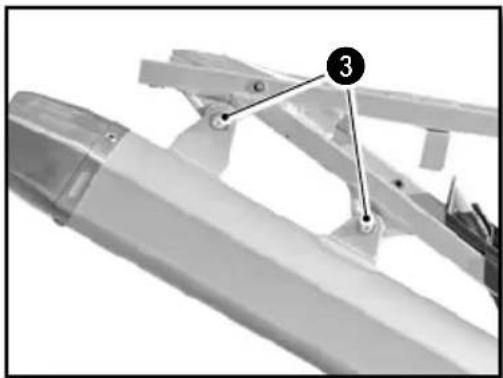

Mechanical assembly diagram showing a bracket with labeled component 3 (no text or symbols beyond label)

Close-up of a motorcycle wheel assembly with visible tracks and hub structure (no text or symbols)

Close-up of a mechanical assembly with labeled component (1), no visible text or symbols beyond the number marker

Moto sur trépied.

Mechanical assembly diagram showing a motor and gear assembly with numbered component (no readable text or symbols)

Close-up of a bicycle wheel with visible gear and hub structure (no text or symbols)

Close-up of a bicycle wheel with visible gears and hub, marked with number 2 (no text or symbols on the gear itself)

Close-up of a bicycle's wheel and gear assembly, showing mechanical components and no visible text or symbols.

Close-up of a bicycle brake system with visible tracks and suspension components (no text or symbols)

Close-up of a bicycle wheel with gear and pressure gauge (no visible text or symbols)

Close-up of a hand using a screwdriver to adjust the wheel rim of an BMW easter (no visible text or symbols)

Close-up of a robotic arm with attached cable and a labeled component (A), no visible text or symbols beyond the label.

Close-up of a bicycle's wheel and suspension system with labeled component (no text or symbols beyond label)

Close-up of a mechanical assembly with hoses and connectors (no visible text or symbols)

Mettre le bocal en position horizontale.

ATTENTION

Close-up of a mechanical assembly with visible springs and bolts (no text or symbols)

Close-up of a hand holding a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Close-up of a mechanical component with a labeled section 'A' and a vertical line, no readable text or symbols beyond the label.

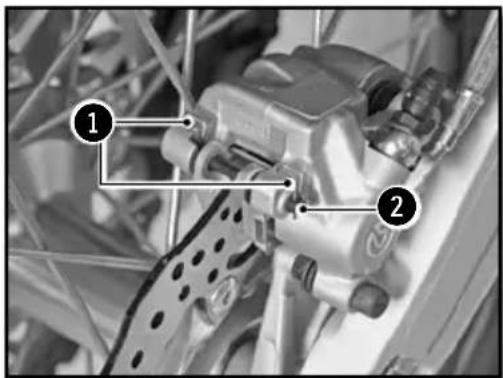

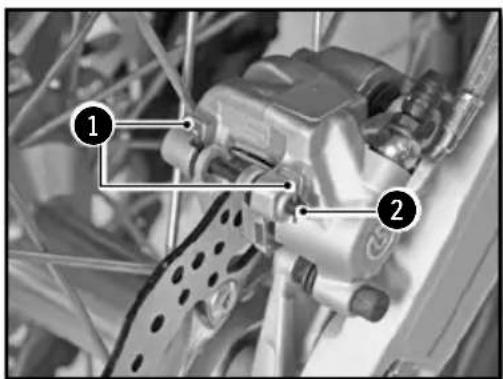

DÉMONTAGE DES PLAQUETTES DE FREIN AVANT ET ARRIÈRE

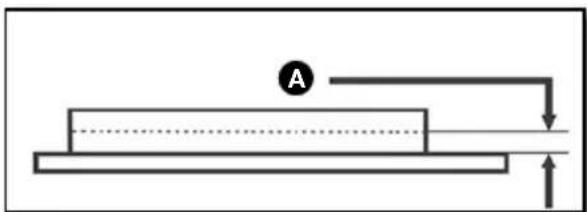

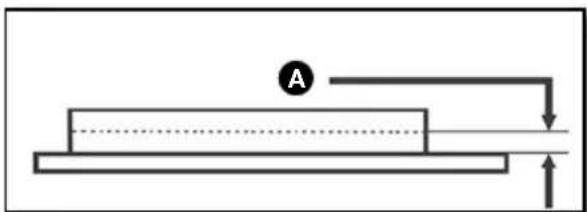

CONTRÔLE DES PLAQUETTES DE FREIN AVANT ET ARRIÈRE

Pure schematic diagram of a mechanical or electrical component with no text, numbers, or symbols

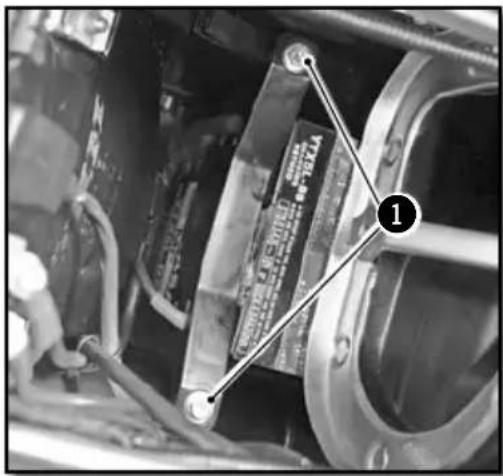

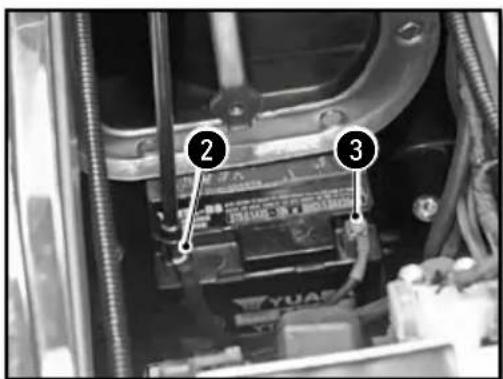

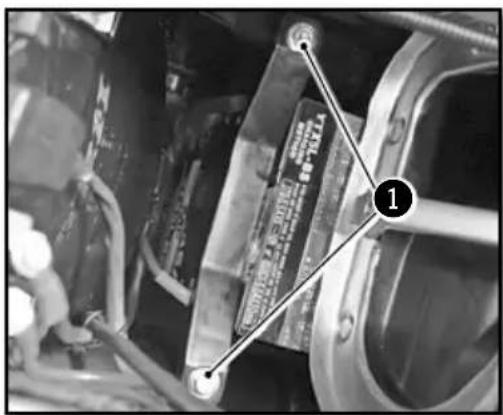

CHARGE DE LA BATTERIE

Close-up of a mechanical component with hands and connectors, no visible text or symbols

Close-up of electrical connectors with visible wiring and a numbered component (1) pointing to a connector detail (no text or symbols beyond the label)

Close-up of a mechanical assembly with hoses and components, no visible text or symbols

Mettre le contact sur off.

Close-up of mechanical components with a numbered label (2) pointing to a central component (no readable text or symbols)

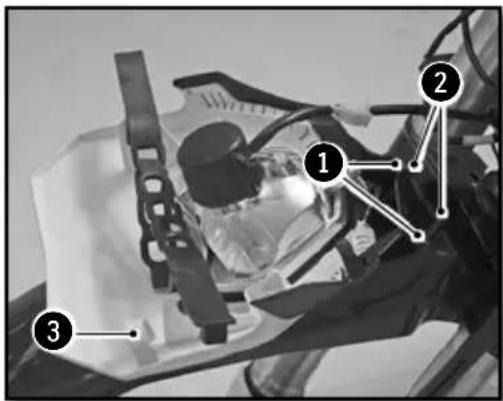

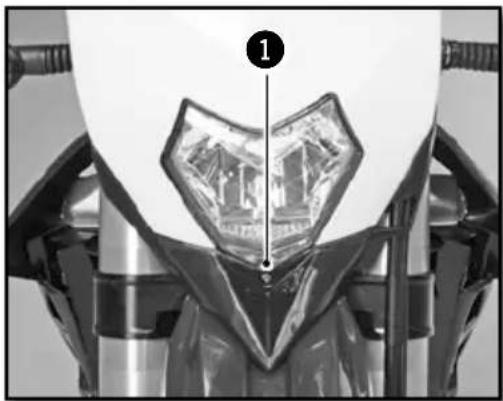

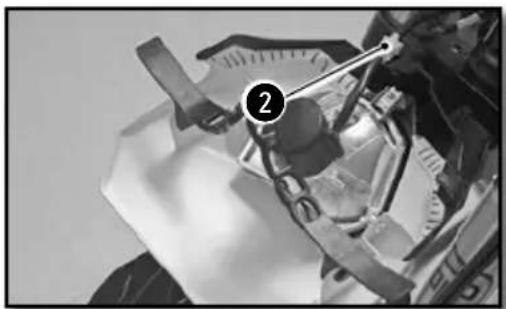

REMONTAGE DE LA PLAQUE PHARE

Close-up of mechanical components with numbered annotations (1, 3), no readable text or symbols present.

Close-up of hands assembling or adjusting a mechanical component with a numbered label (2) and no visible text or symbols.

Close-up of a metallic robotic head with a transparent visor and a numbered marker (1) pointing to the neck area (no text or symbols on the main subject)

Mechanical assembly diagram showing a component with labeled parts (no readable text or symbols)

Close-up mechanical assembly showing a valve and shaft (no visible text or symbols)

Close-up of a hand holding a handheld electronic device with wires and a coin, no visible text or symbols

Lavage et remisage

LAVAGE DE LA MOTO REMISAGE DE LA MOTO

We want to thank you for the trust that you have placed in us by purchasing this product.

• You are now the owner of a SHERCO 250-300 SE/R. All the pleasures of driving are promised to you if you follow the advice and instructions that SHERCO has set in this manual, and ride it in compliance with the applicable traffic laws.
  This manual explains the operation, inspection, basic maintenance and focus of your SHERCO. If you have any questions about this manual or your machine, you should contact your SHERCO dealer: www.sherco.com / under «Dealers».
• Be sure to carefully read this manual in its entirety before using your machine.
  To keep your SHERCO in perfect condition for many years, perform all of the care and maintenance described in the manual.

(The vehicle you purchased may differ slightly from the vehicle presented in this manual.)

■ SHERCO reserves the right to make changes without providing notice.

Serial number registration

Save the serial numbers of the vehicle in a safe location

Dealer stamp

Empty rectangular frame with black border (no text or symbols)

Frame number (p.77)

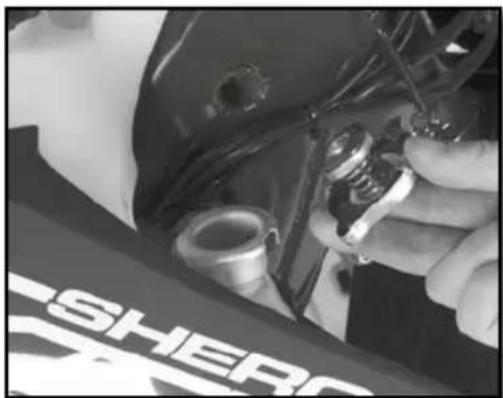

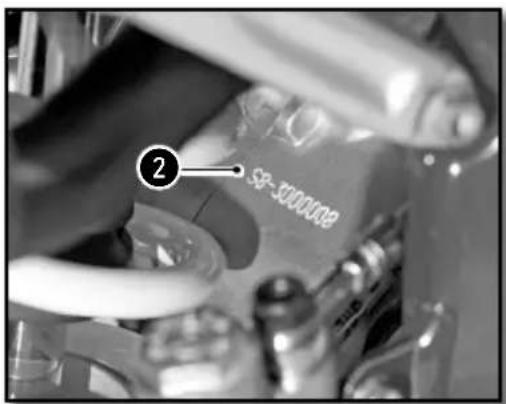

Type and serial number of the motor (p.77)

SUMMARY

Technical Specifications....72

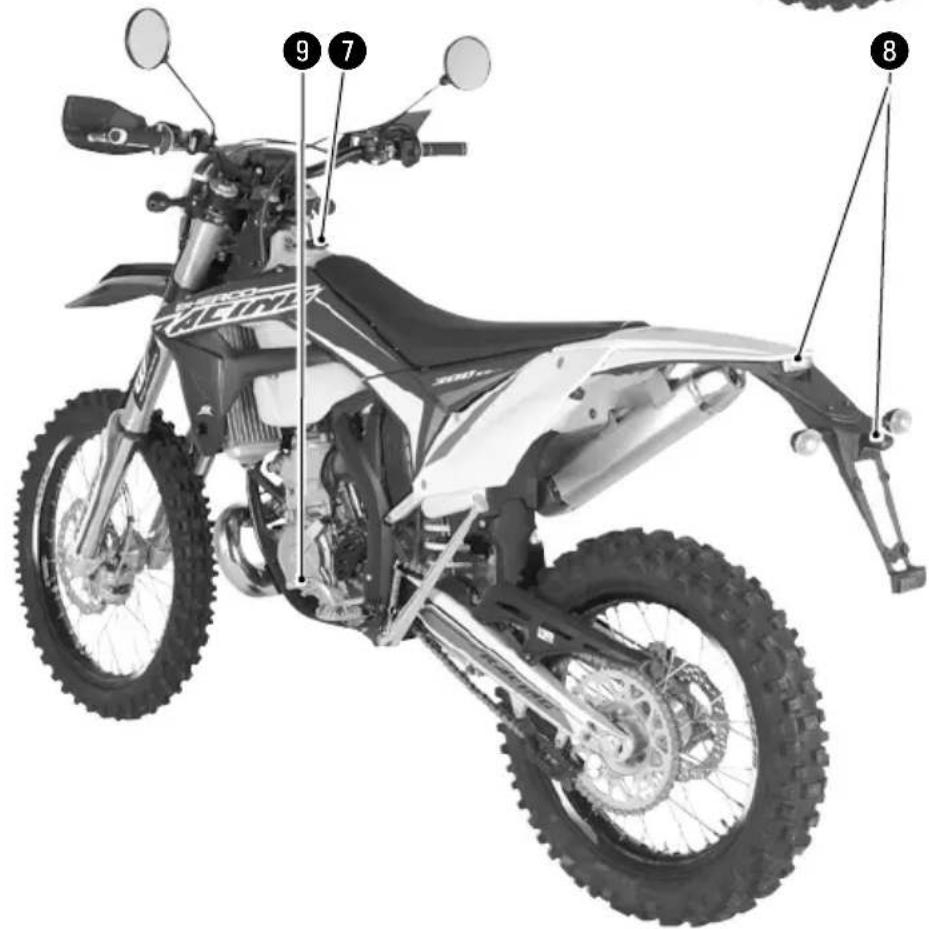

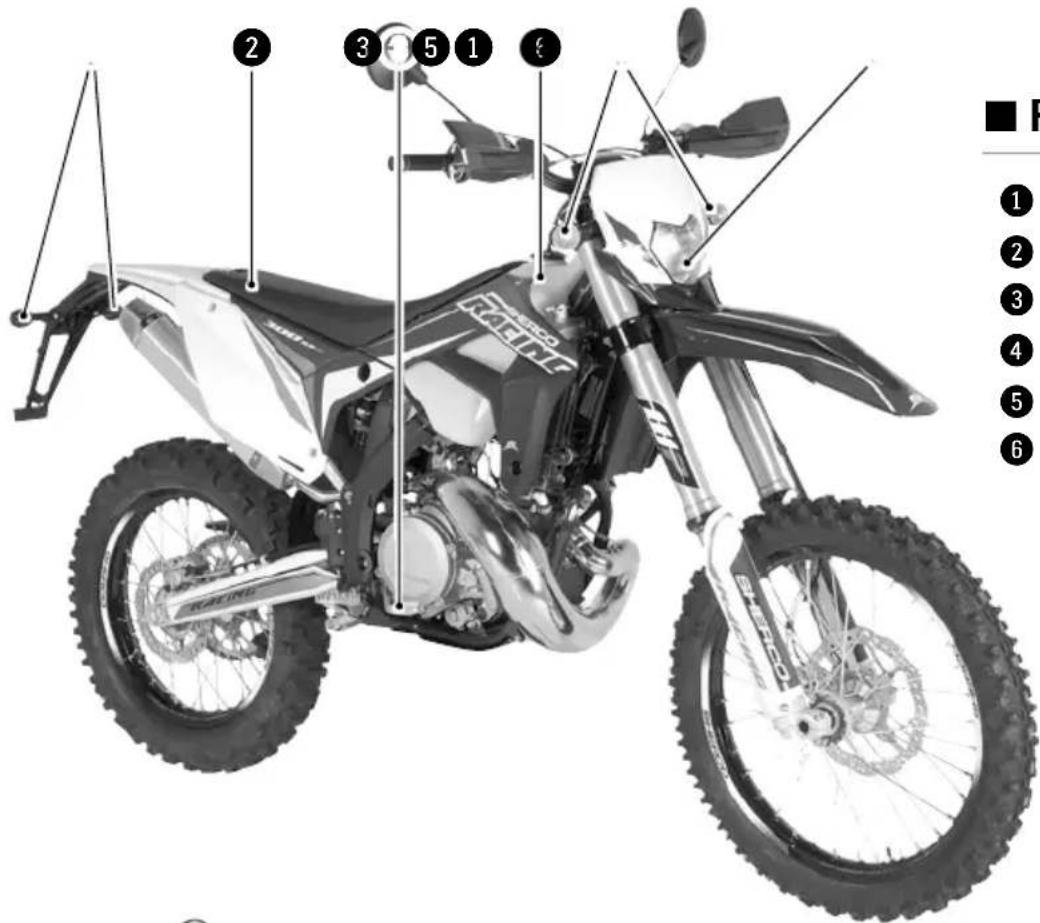

Description of the vehicle....76

Location of the serial numbers ....77

Control devices and controls....78

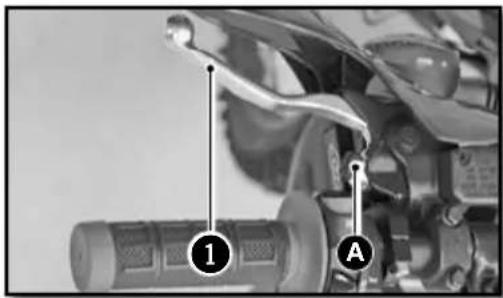

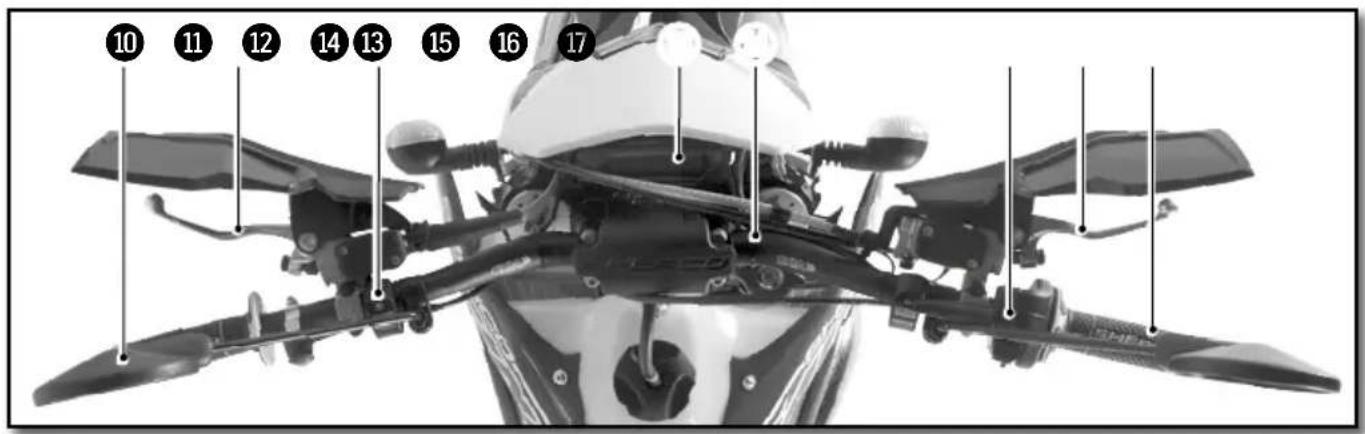

Hand operated controls:

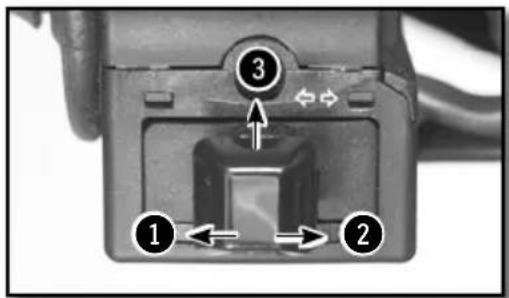

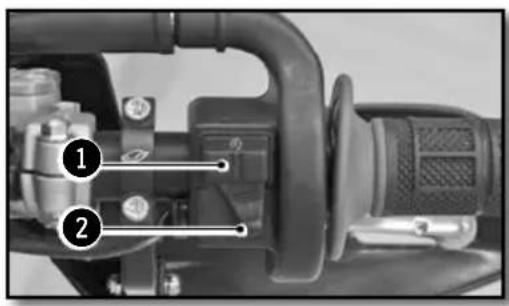

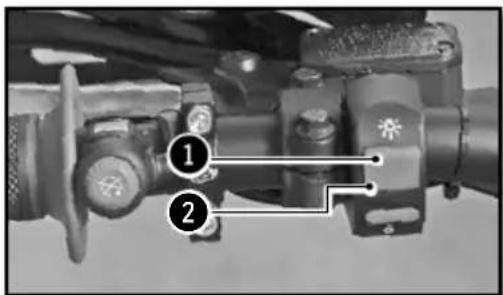

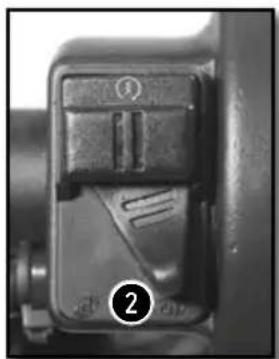

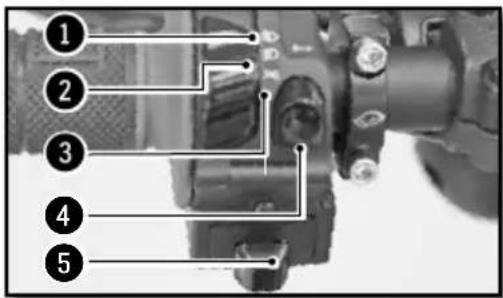

Clutch lever, front brake lever and control switches.....78

Foot controls:

gear selector, side stand, rear brake 81

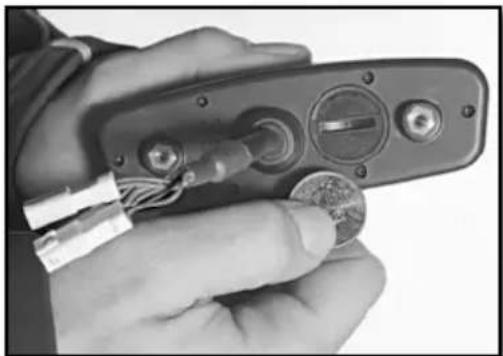

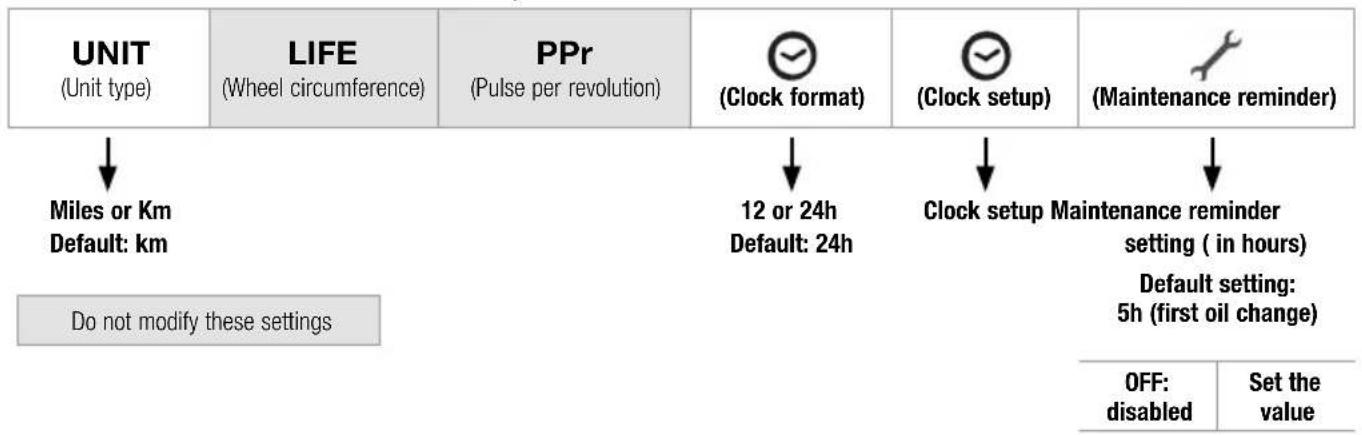

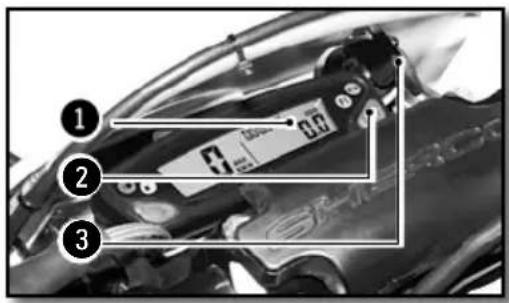

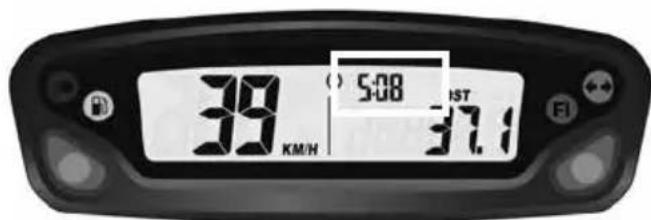

Motorcycle computer instructions 82

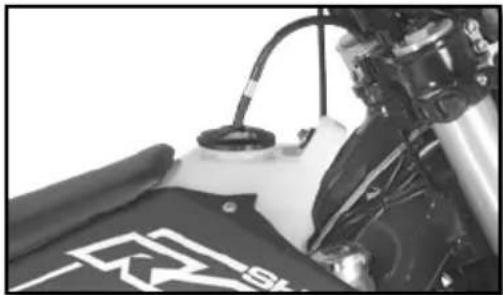

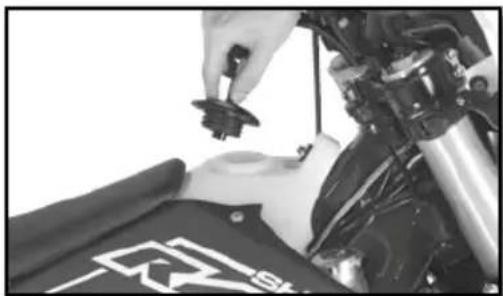

Opening and closing the fuel tank....86

Riding the motorcycle 88

Safety information....89

Cooling System....90

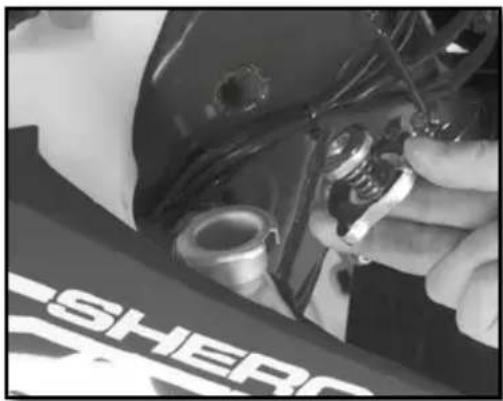

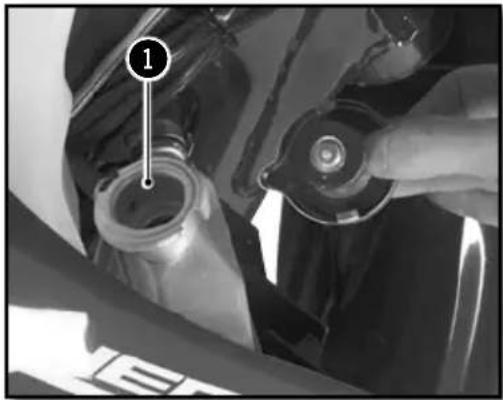

Servicing the cooling system 90

Draining the coolant....91

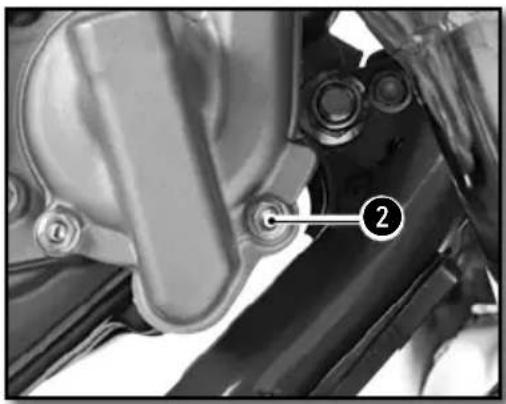

Filling the coolant....92

Motor settings....93

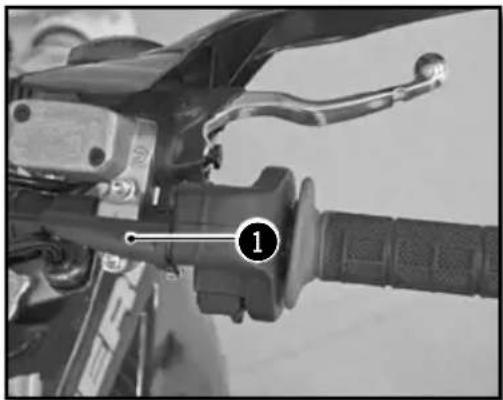

Checking the play in the throttle cable 93

Setting the idle speed 94

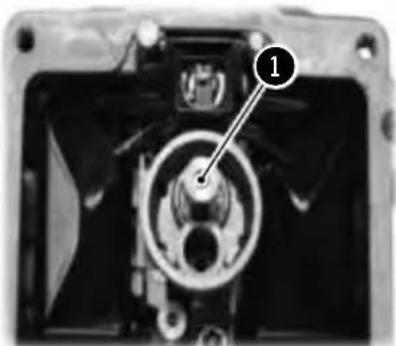

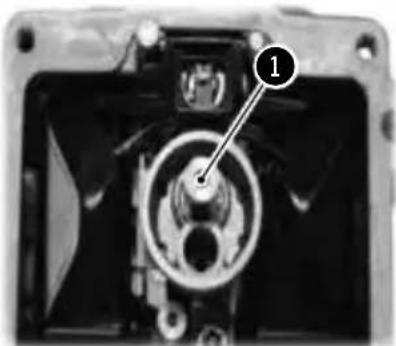

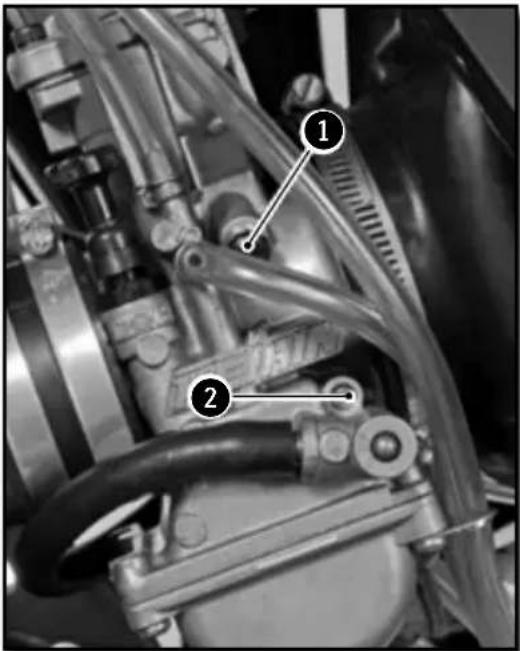

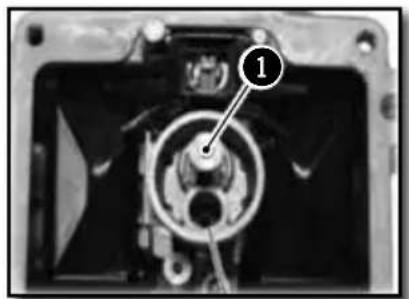

Setting the carburetor 94

Carburetor setting table for the SE-R 250 .....96

Carburetor setting table for the SE-R 300 .....97

Engine maintenance....98

Checking the engine oil level 98

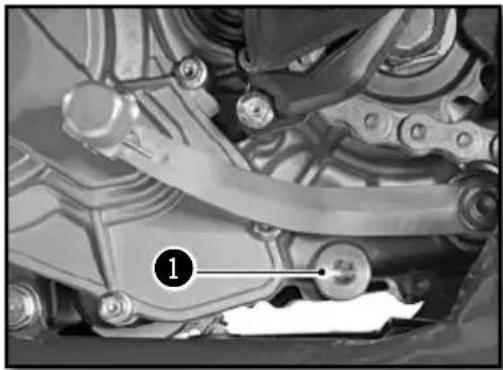

Draining the gear box oil 98

Refilling the gear box with oil 99

Adjusting the chassis....100

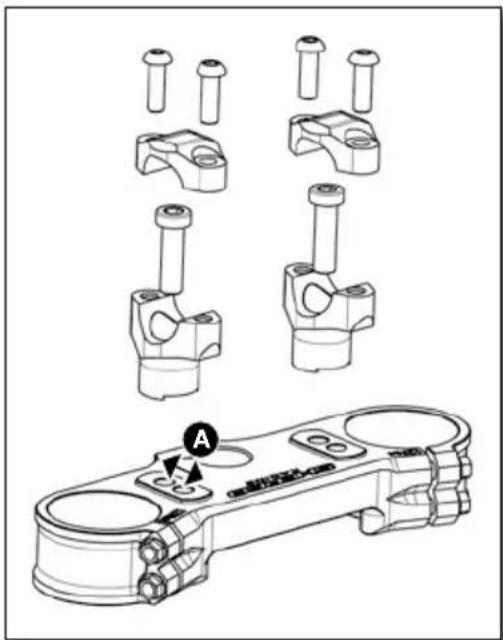

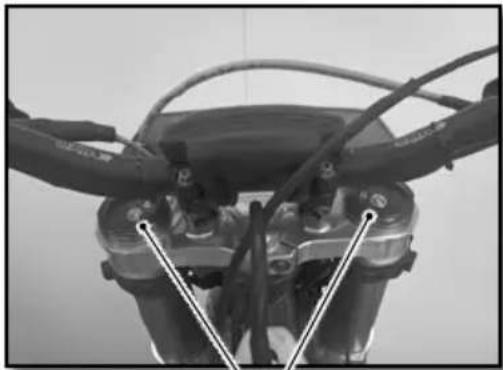

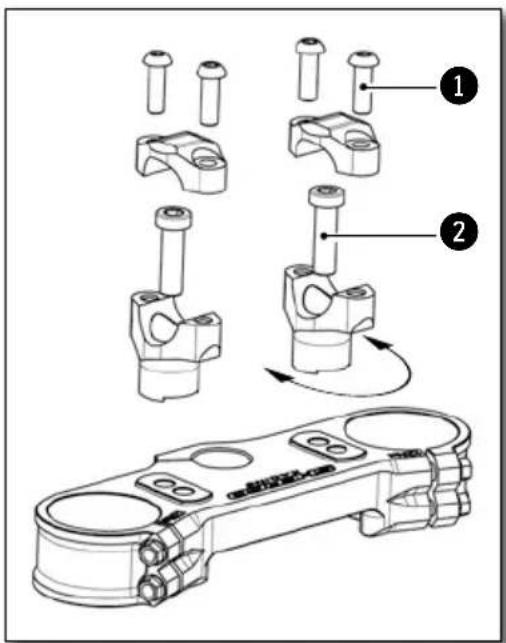

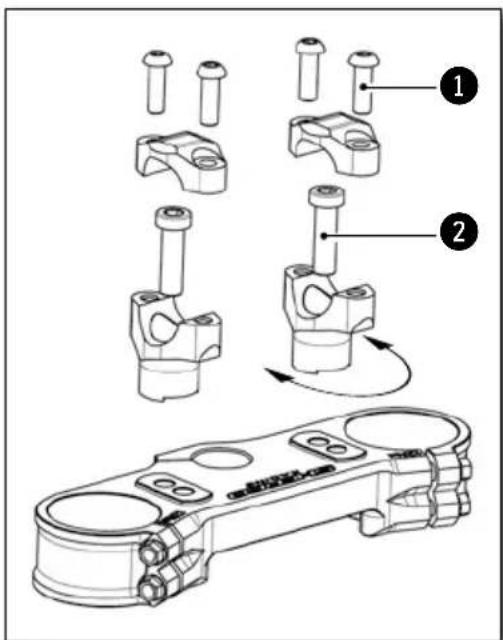

Handlebar position....100

Adjusting the steering angle....101

Basic setting of the chassis according to the rider weight 101

Fourche settings....102

Adjusting the rear shock low-speed compression setting .103

Adjusting the rear shock high-speed compression setting 103

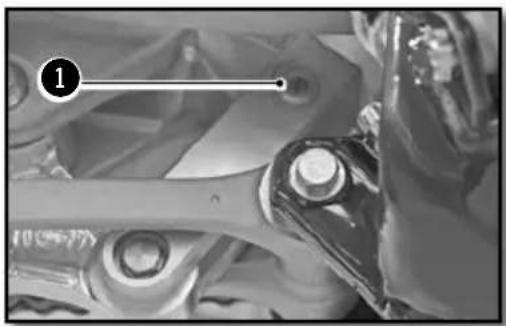

Rebound damper....104

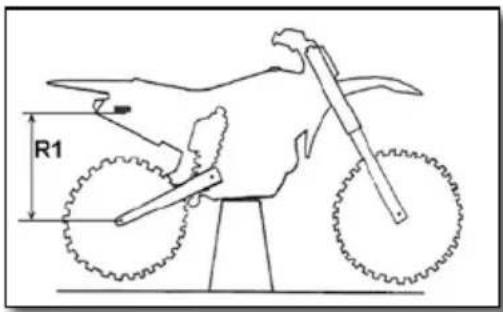

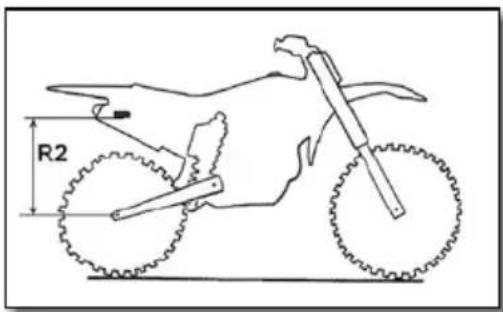

Setting the depression of the rear shock

with no load 104

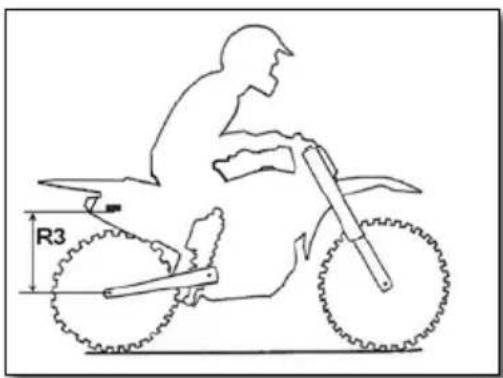

Setting the rear shock sag....104

Changing the preload of the shock 105

Changing the shock spring....105

Chassis maintenance ....108

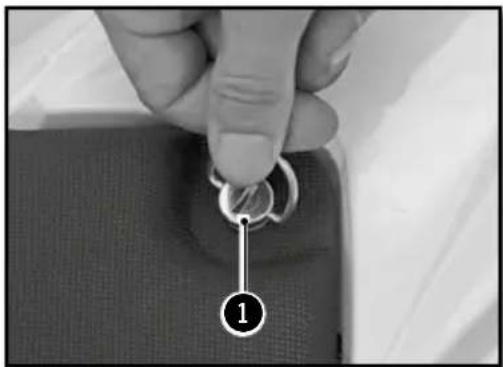

Removing the saddle....108

Reinstalling of the saddle ....108

Removing the Air Filter....108

Cleaning the air filter....109

Reinstalling the air filter....109

Chassis maintenance (continued)....110

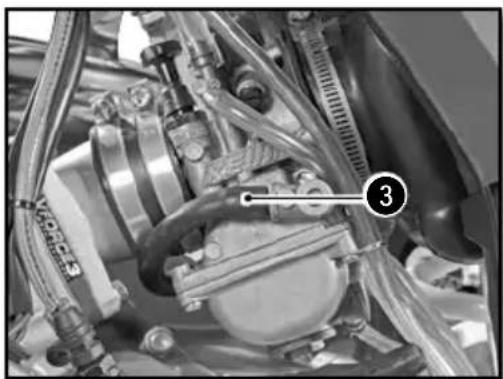

Removing the fuel tank 110

Reinstalling the fuel tank....111

Purging the air from the forks....111

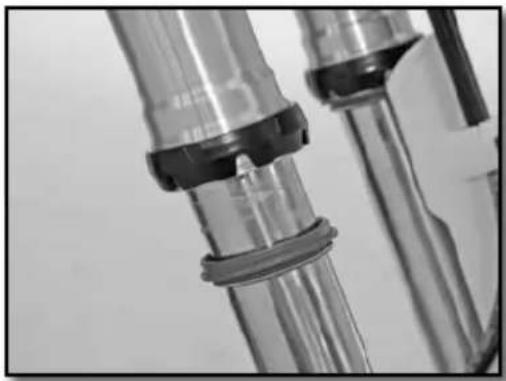

Cleaning the fork dust seals 112

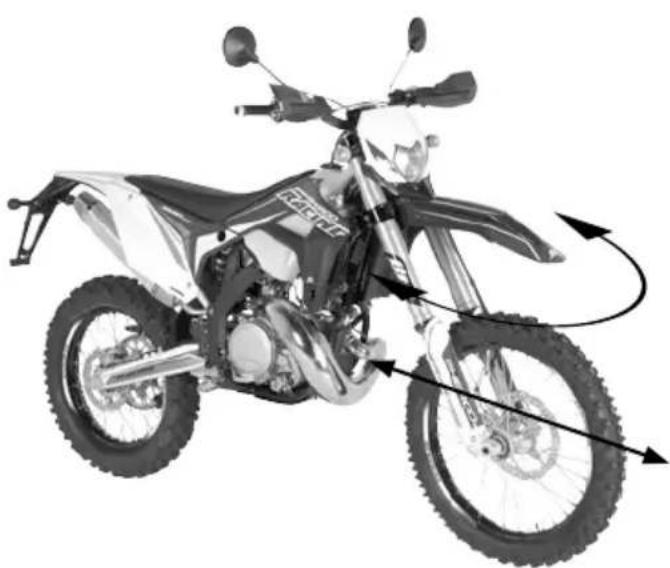

Checking the play of the steering head bearings....112

Adjusting the steering head bearing play....113

Cleaning the chain....113

Checking the chain tension 113

Adjusting the chain tension 114

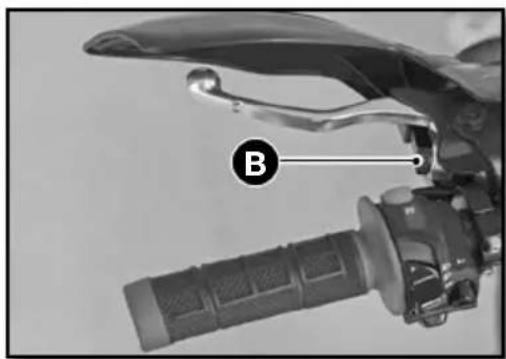

Adjusting the lever....114

Checking the clutch fluid level....115

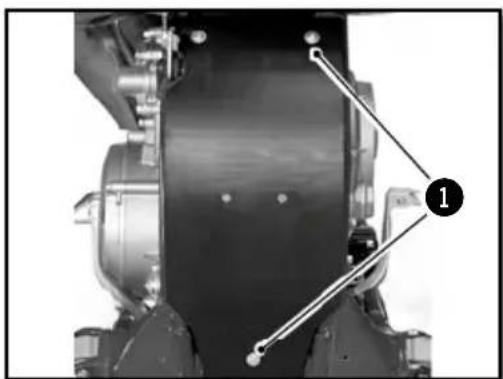

Removing the engine protector....115

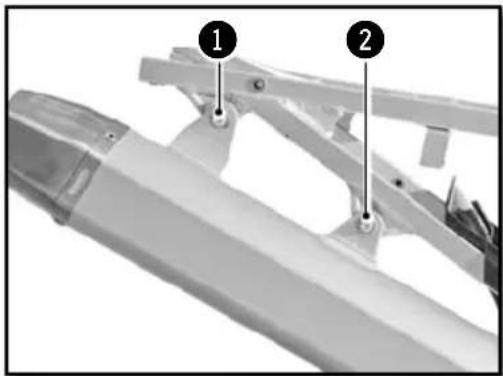

Removing the rear shock....116

Reinstalling the rear shock....117

Wheels, tires....118

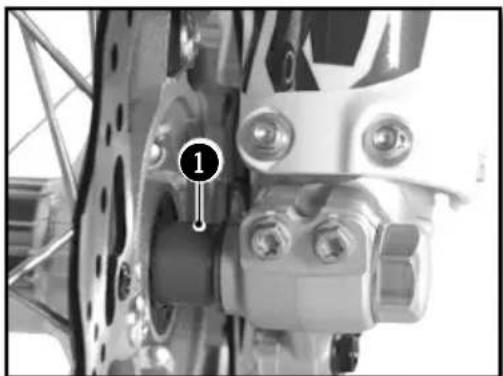

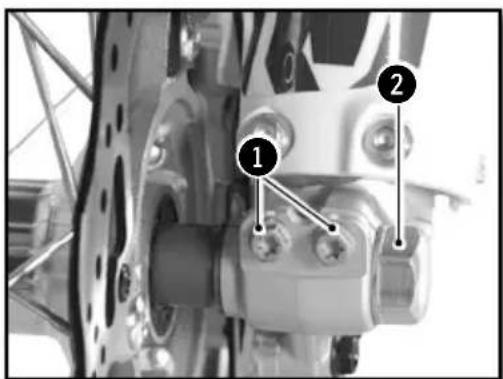

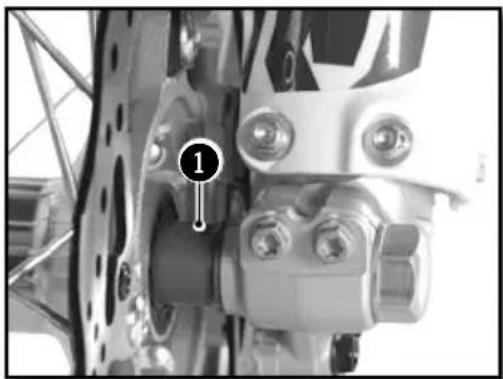

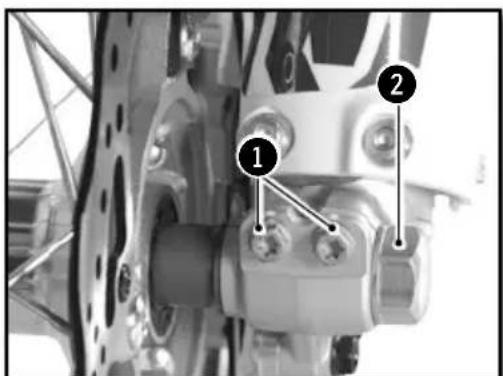

Removing the front wheel....118

Reinstalling the front wheel 118

Removing the rear wheel....119

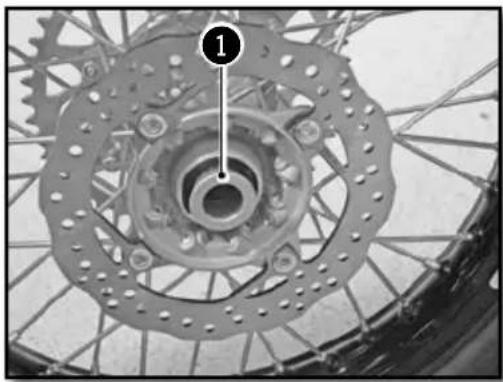

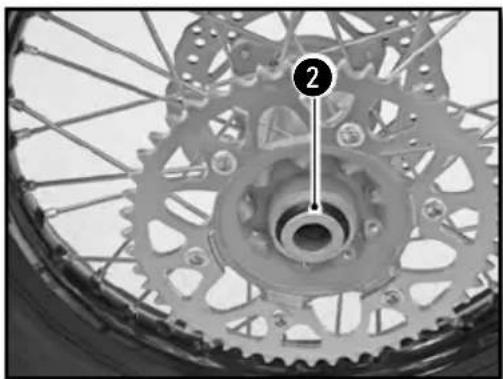

Reinstalling the rear wheel 119

Wheels, tires (continued)....120

Checking the tire pressure 120

Checking for wear and damage....121

Checking spoke tension 121

Brakes 122

Checking the front brake lever adjustment .....122

Adjusting the front brake lever....122

Checking the front brake fluid level....122

Filling the front brake reservoir with brake fluid .....123

Adjusting the position of the rear brake pedal....123

Checking the travel of the rear brake pedal....123

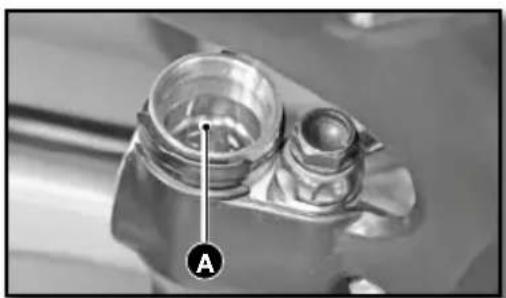

Adjusting the travel of the rear brake pedal....124

Checking the rear brake fluid level....124

Filling the rear brake reservoir with brake fluid .....124

Removing the front and rear brake pads ....125

Checking the condition of the brake pads....125

Reinstalling the front and rear brake pads....125

Electrical system maintenance ....126

Removing the battery....126

Reinstalling the battery 127

Charging the battery 127

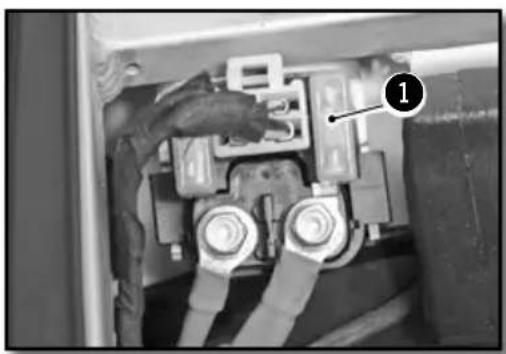

Replacing the main fuse....128

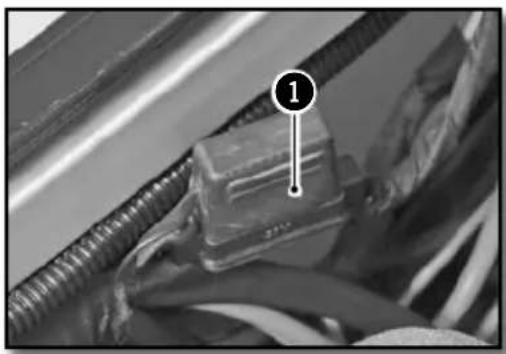

Replacing the fuse for the lights (250-300 SE/R)......128

Removing the headlight housing 128

Reinstalling the headlight housing....129

Replacing the headlight bulb or the pilot lamp....129

Adjusting the headlight beam 130

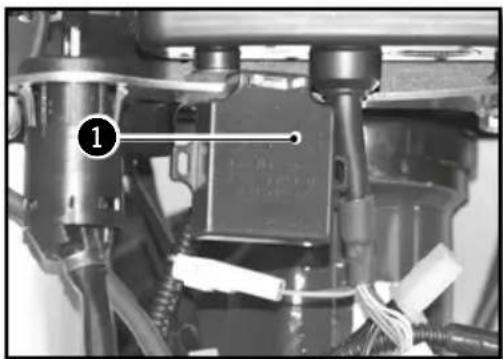

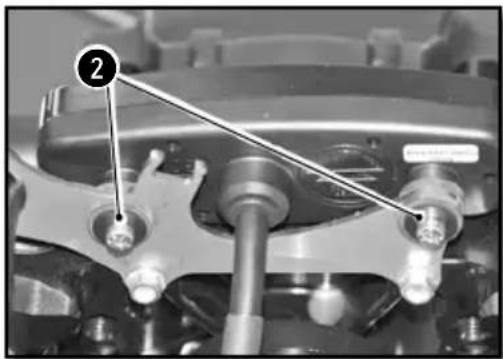

Replacing the motorcycle computer battery

(250-300 SE/R) 130

Washing and storage....131

Washing the bike....131

Storing the bike 131

Recommissioning after storage 131

Maintenance schedule....132

Maintenance....132

Annual maintenance....132

Torques....135

Technical Specifications

DIMENSIONS

Overall length 2260 mm
Overall width 820 mm
Seat height 950 mm
Wheelbase 1480 mm
Ground clearance 355 mm

MOTOR

Type : Single cylinder 2 stroke liquid cooled
Displacement : 249.32 cc / 293.14 cc
Bore / Stroke 66,4 x 72 mm / 72 x 72 mm
Fuel system Carburator KEIHIN PWK 36
Cooling Liquid system with forced circulation
Starting System Electric starter
Battery 12 V / 4 Ah
Ignition system DC-CDI no switch with digital advance
Spark plug NGK BR7ES / DENSO W22ESR-U
Spark plug gap	0.7 mm
Alternator	220W
Engine oil	750 ml 10 W 40

TRANSMISSION

Type	6 speed
Clutch	Multi disc clutch in oil bath, hydraulically operated
Primary drive	27 x 75
Gearbox	6 speed
Secondary drive	14 x 49

CARBURETOR 250 SE-R 2018

Type of carburetor	KEIHIN PWK 36S AG
Needle position	3th position from the top
Needle jet	N1EG (N84K)
Main jet	KEA 165 (KEA 115)
Pilot jet	KEP 42 (KEA 38)
Starter jet	85 (50)
Air screw adjustment	1 1/4 turns
Slide cut	N°5.5

CARBURETOR 300 SE-R 2018

Type of carburetor KEIHIN PWK 36S AG
Needle position 3rd position from the top

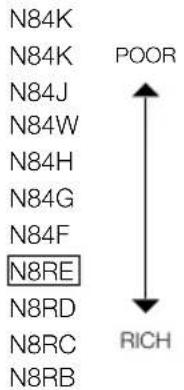

Needle jet N8RE (N84K)
Main jet KEA 172 (KEA 115)
Pilot jet KEP 42 (KEA 38)
Starter jet	85 (50)
Air screw adjustment	1 1/2 turns
Slide cut	N°7

CHASSIS

Frame	Semi-perimeter CrMo steel with aluminum subframe
Fork	SACHS USD Gold Series 48mm dia. (standard)WP Suspension Xplor (Racing)
Rear suspension WP Suspension XPLOR (RACING)
Travel front/rear 300/330mm
Front brake disc 270mm (standard), 260mm (Racing)
Rear brake disc isque ∅ 220mm
Disc brakes wear limit : 2.7mm front and 3.6mm rear
Front tire 90/90-21” or 90/100-21”
Rear tire 140/80-18”
Pressure off-road front / rear 0,9 bar
Fuel tank capacity with reserve 10.4l with 1l of reserve
Fuel requirement	Unleaded gasoline with an octane index of at least 98 mixed with 2 stroke oil (2%)

Technical Specifications (continued)

ELECTRICAL EQUIPMENT

Battery	Yuasa YTX5 LBS (Racing) / SHIDO LTZS LION (Factory)	12V 4Ah
Headlight S2 12V 35/35W
Pilot W5W 12V 5W
Rear tail / stop LED
Flasher R10W 12V 10W
Speedometer battery CR 2032 Battery voltage: 3V
Plate light W5W 12V 5W

ADJUSTMENT - FOURCHE KAYABA (FACTORY)

Compression 12 clicks back
Rebound 12 clicks back
Spring stiffness 4.2N/mm
Type of oil	KAYABA O1M
Quantity of oil per fork leg 345cm3

ADJUSTMENT - FOURCHE WP SUSPENSION XPLOR (RACING)

Compression	Comfort	18 clicks back
	Standard	15 clicks back
	Sport	12 clicks back
Rebound	Comfort	18 clicks back
	Standard	15 clicks back
	Sport	12 clicks back
Preload	Comfort	+ 0
	Standard	+ 0
	Sport	+ 6
Spring stiffness	Rider weight : 65-75 kg	4.2N/mm
	Rider weight : 75-85kg	4.4N/mm (original)
	Rider weight : 85-95kg	4.6N/mm
Type of oil	SAE 4
Oil level		606 ml
Oil level mesurement from the top of the fork tube	Standard	100 mm
	Min-max	90-120 mm
Spring lenght	474 mm

ADJUSTMENT - WP REAR SUSPENSION UNIT

Low-speed compression	Comfort 20 clicks back
	Standard 20 clicks back
	Sport 12 clicks back
High-speed compression	Comfort 2,5 turns back
	Standard 2 turns back
	Sport 1,5 turns back
Rebound	Comfort 15 clicks back
	Standard 13 clicks back
	Sport 11 clicks back
Spring stiffness	Rider weight: : 65-75 kg 48N/mm
	Rider weight: : 75-85 kg 51N/mm (original)
	Rider weight: : 85-95kg 54N/mm

ADJUSTMENT - REAR KAYABA

Low-speed compression	Comfort 20 clicks back
	Standard 14 clicks back
	Sport 12 clicks back
High-speed compression	Comfort 2,5 clicks back
	Standard 1,5 clicks back
	Sport 1 click back
Rebound	Comfort 15 clicks back
	Standard 13 clicks back
	Sport 11 clicks back
Spring stiffness	Rider weight: : 65-75 kg 46N/mm
	Rider weight: : 75-85 kg 48N/mm (original)
	Rider weight: : 85-95kg 50N/mm
Type of oil	K2C

CLEANING PRODUCTS AND CONSUMABLES

Engine oil	SAE J 30010 W 40	Minerva SAE 10W40
Coolant Minerva Perma Universal D 4 seasons -25°C
Brake Fluid DOT 4 Minerva brake fluid DOT 4
Fork oil SAE 4
Shock oil SAE2.5
Aerosol chain lube Minerva aerosol chain lub
Air filter cleaner Minerva air filter cleaner
Air filter lubricant Minerva Protect Air
Plastic cleaner Minerva Renovator cleaner
Wheel Cleaner Minerva Multi clean Pro
Disc brake Cleaner Minerva brake cleaner
Universal lubricant Minerva F4

Description of the vehicle

■ Right side

① Rear turn signals
② Saddle
③ Rear brake pedal
④ Fuel tank
5 Front turn signals
6 Headlight

■ Left side

⑦ Fuel tank cap
⑧ Rear light (tail / brake light / plate light)
9 Gear selector pedal

Description of the vehicle (continued)

Controls

10 Left mirror
11 Clutch lever
12 Left switch

13 Dashboard
14 Key switch
15 Right switch

16 Front brake lever
17 Throttle grip

Location of the serial numbers

■ Vehicle serial number location

Close-up of a mechanical assembly with visible components and a numbered label (1) pointing to a specific part.

① The serial number of the vehicle is stamped on the right side of the steering tube. Engine serial number location

■ Engine serial number location

2 The engine serial number is stamped on the right side crankcase.

Control devices and controls

HAND OPERATED CONTROLS:

CLUTCH LEVER, FRONT BRAKE LEVER AND CONTROL SWITCHES

■ Clutch lever

The clutch lever ① is on the left handlebar and has an adjustment screw A

■ Front brake lever

The front brake lever ② is on the right side of the handlebar and has an adjustment screw B

■ Left switch (250-300 SE)

① High beam (Headlight)
② Low beam (Headlight)
③ Side light (Night))
4 Horn
⑤ Flashers

■ Light switch on / off (250-300 SE/R)

Two possible positions:

Position ON ① : All lights are on.

Position OFF ② : All lights are off.

■ Rigth switch

Close-up of a mechanical component with numbered parts, no visible text or symbols

1 Starter button
② Injection system mapping selection button

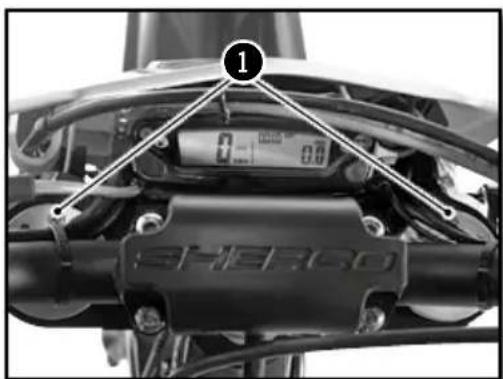

■ Dashboard (250-300 SE/R)

① Dashboard
② Mode selection button
③ Key switch (250-300 SE)

■ Key switch (250-300 SE)

Close-up of a mechanical knob or dial with a circular handle, no visible text or symbols

Close-up of a mechanical knob or dial component (no visible text or symbols)

The main switch has two positions

Position ① The engine is off and can not be started.

Position ② The motor can be started.

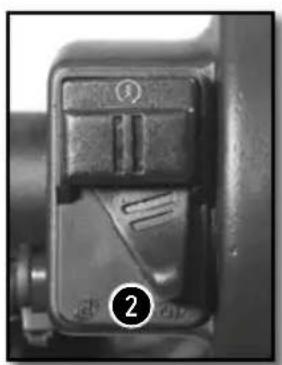

■ Flasher switch (250-300 SE)

① Left turn position
② Right turn position
③ Off position G and D

Control devices and controls (continued)

■ KEYLESS System

The bike has a "Keyless" system.

It allows the bike to start without any key or ON/OFF switch.

It automatically turns on and it turns off after 30 secondes of no use of the bike.

When the motorcycle is not used for a long time or during a strong cold (<10°C) the lithium battery can go into sleep.

To wake her up, press few short blows on the starter button.

■ Motor emergency stop button (250-300 SE/R)

Close-up of a mechanical assembly with labeled component (1), no visible text or symbols beyond the number and symbol.

Two possible positions:

The button is released: in this position, the bike can be ridden. The button is held down: in this position the motor is Off when released the motor can be restarted.

■ Injection system mapping switch

Close-up of a mechanical switch or lever component with no visible text or symbols

Close-up of a mechanical switch component with no visible text or symbols

Position ① "Soft"

Position ② "Hard"

FOOT CONTROLS:

GEAR SELECTOR, SIDE STAND, REAR BRAKE

Gear selector

The drawing shows the path of the gear selector for each of the 6 speeds.

Footbrake

Close-up of a mechanical assembly with a circular component labeled 'SHERGO' and a numbered marker (1) in the corner.

① Rear brake control

■ Side stand

Close-up of a mechanical assembly with chains and gears, no visible text or symbols

Remove the rubber safety latch ①, using your foot on the shaft unfold it until it supports the weight of the bike.

ATTENTION

• The stand has a security system which automatically folds the stand when the bike is moved into an upright position.
• The stand has been designed to withstand the sheer weight of the bike.

Control devices and controls (continued)

MOTORCYCLE COMPUTER INSTRUCTIONS

In order to avoid any water ingress, keep a minimal washing distance of 20cm.

Button 1:

Change screens 1,2,3

Hold button 1:

Screen 1: DST Adjust

Screen 2: DST2 Adjust

Button 2:

Change screens 1,2,3

Hold button 2:

Screen 1: Reset DST

Screen 2: Reset DST2

Screen 3: Reset MAX/AVG

Screen 1: Speed, Clock, Distance 1 Screen 2: Speed, Clock, Distance 2

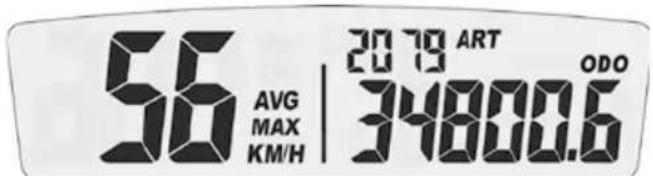

Screen 3: Alternating AVG/MAX speed, Accumulated run time, ODO

Turn indicator

High beam

Fuel injection (MIL): EFI problem

Low fuel

■ Mode buttons

The vehicle doesn't need to be switched on

Left button:

Switch between the three display screens Enter adjustable trip distance mode ( DST and DST2)

Decrement distance while in adjustable distance mode

Right button:

Switch between the three display screens Resets Trip distance 1, Trip distance 2, maximum and average speed (when pressed and held for three seconds)

Increments distance while in adjustable distance mode

Fig 1 SPD function

Fig 2 MAX speed function

Fig 3 AVG function

Fig 4 DST function

Fig 5 DST2 function

SPD function Current speed (screens 1 and 2):

displays the current speed of the vehicle.

The speed can be displayed in km/h (default) or mph. (p.85)

MAX speed (screen 3): displays the maximum speed since the last reset was performed. The maximum speed can be displayed in km/h (default) or mph. (p.85)

Reset to 0 → MAX Function → Hold the right Button down for 3 seconds → 0 → Reset to 0 done

AVG function Average speed (screen 3): displays the average speed of the vehicle since the last reset was performed.

The average speed is displayed in the chosen units, km/h (default) or mph (p.85)

Reset to 0 → AVG Function → Hold the right Button down for 3 seconds → 0 → Reset to 0 done

DST function (screen 1): displays the mileage traveled by the vehicle since the last reset was performed.

The distance is displayed in the selected units, km/h (default) or mph (p.85)

Reset to 0 → DST Function → Hold the right Button down for 3 seconds → 0.0 → Reset to 0 done

DST2 function (screen 1): displays the mileage traveled by the vehicle since the last reset was performed.

The distance is displayed in the selected units, km/h (default) or mph (p.85)

Reset to 0 → DST2 Function → Hold the right Button down for 3 seconds → 0.0 → Reset to 0 done

Control devices and controls (continued)

Fig 6 Adjustable trip distance function

DST and DST2 can be incremented or decremented by the user

DST set up (screen 1) → Hold the left Button down for 3 seconds → «DST» icon will flash → Hold left Button to decrement/ Hold the right Button to increment → back to screen 1

DST2 set up (screen 2) → Hold the left Button down for 3 seconds → «DST2» icon will flash → Hold left Button to decrement/ Hold the right Button to increment → back to screen 2

Fig 7 ODO function

ODO function Odometer (screen 3): displays the total mileage traveled by the vehicle.

The total distance is displayed in the selected units, km/h (default) or mph (p.85)

This information can not be reset to 0.

Beyond 399 999 km (or miles), the counter goes back to 0.

Fig 8 ART function

ART function Accumulated Ride Time (screen 3):

displays the hours of operation of the vehicle. This information can not be reset to 0.

Until 99h59min → displayed in one minute increments

After 99h59min up to 9999h → displayed in one hour increments

If the unit should reach 9999 hours of accumulated ride time, the display will stop incrementing, and will remain at that number.

Fig 9 Clock function

Clock function (screens 1 et 2): displays clock information

Fig 11 Low battery/ Low battery error function

Low battery/ Low battery error function:

-> When the battery voltage drops to less than 2.40V, the LO battery warning will turn on.
-> When the internal battery is critically low, the unit will only display a blinking «LO» icon.

■ Set up menu

Left and right buttons pressed simultaneously for 3s activates the Set up mode
Left button Right button
Toggle between M/H and KM/H settingsToggle between 24 Hour et 12 Hour
Decrement time of day value	Increment time of day value
Decrement maintenance reminder value	Increment maintenance reminder value

The meter will automatically advance from one setting option to the next, after 5s of no button activation

Maintenance reminder: maintenance reminder function is a countdown from a user defined number. When the maintenance countdown gets to zero, the maintenance icon will appear on the LCD. Follow these steps to reset or display the remaining accumulated ride time until next service reminder:

Displaying the remaining accumulated ride time (screen 3) → Hold the left Button down for 3 seconds → the remaining value is displayed → no button activation → back to screen 3

Resetting the remaining accumulated ride time (screen 3) → Hold the left Button down for 3 seconds → the remaining value is displayed → Hold the right Button down for 3 seconds → The maintenance reminder is reset to zero (will begin the countdown again according to the maintenance interval already chosen in the set up menu)

Note:

If the maintenance icon is already on, the distance displayed will be zero If the maintenance reminder is turned off, the information displayed on the screen will be OFF

Control devices and controls (continued)

OPENING AND CLOSING THE FUEL TANK

Fuel

Close-up of a motorcycle's front wheel and side-mounted engine compartment (no visible text or symbols)

Use only unleaded fuel with an octane index of at least 95 mixed with 2 stroke oil (2%)

Filler cap

Close-up of a hand adjusting a mechanical component with a small clamp (no visible text or symbols)

Open : Turn the cap counter clockwise. The opposite direction to the hands of a watch Close : Turn the cap clockwise. The same direction as the hands of a watch

■ Fuel tap

Close-up of a car engine compartment with a numbered component (1) pointing to a valve or handle, no visible text or symbols.

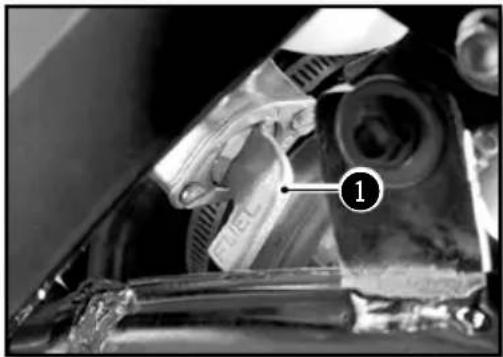

The fuel tap is on the right side of fuel tank. Tap handle ① on the fuel tap is used to open or close the supply of fuel to the carburetor.

OFF → Fuel cannot flow from the fuel tank to the carburetor.

ON → Fuel can flow from the fuel tank to the carburetor. The fuel tank empties to the point of reserve capacity.

RES → Fuel can flow from the fuel tank to the carburetor. The fuel tank empties fully.

■ Choke

Close-up of a mechanical assembly with hoses and connectors (no visible text or symbols)

The choke lever ① is fitted on the left side of the carburetor.

Choke function activated → The choke lever is pulled out all the way.

Choke function deactivated → The choke lever is pushed in all the way.

ATTENTION

If the engine is warm, the choke function must be deactivated.

Riding the motorcycle

■ Cold engine starting

1. Make sure the gear selector is in neutral
2. Activate the choke
3. Start the engine by pressing the starter button, with the throttle closed
4. Allow the engine to warm up for few minutes
5. Deactivate the choke

■ Hot engine starting

Follow the instructions above without step 2-4 and 5.

■ Shifting gears

• The positions of the gear selector are shown on (● p.81)
• To find the neutral position, press the selector down into first gear (a resistance will be felt), then move the selector up slightly.
• Close the throttle before changing gears.
• Engage the lowest gear.
• Partially open the throttle while engaging the clutch.

Parking

- Stop the bike with the stop button. The Keyless system will automatically switch off the ignition after 30 secondes of no use of the bike.

Become familiar with all of the controls and their functions before using the vehicle.

Safety information

• Do not drive after consuming alcohol.
• Wear a helmet when using the vehicle.
• Keep the machine in good working order and maintain it properly so that it is reliable and safe for use.
• Gasoline is flammable, refuel the motorcycle when the engine is stopped.
• Exhaust fumes are toxic, you should never start the engine in a closed building.
• Always park the vehicle on a flat hard surface, do not park the vehicle on a slope or on soft ground. Always control the balance of the vehicle.
• Check the following every day before riding the motorcycle:

Tires : Wear and pressure

Engine oil : Level (

p.98 to p.99)

Gasoline : Check the level and make sure there are no leaks

Transmission chain Properly lubed and adjusted (

p.113)

Direction of travel : Make sure that your path is clear

Brakes : Operation, fluid leakage, brake pad wear (

p.122 to p.126)

Throttle: Proper operation (

p.93)

Clutch : Proper operation (

p.114 to p.115)

Electrical Equipment : Operation of the horn and lights (

p.78 and p.80)

Components (nut, bolts ...): Verify that all components of the vehicle are properly tightened (p.135)

If you experience a problem with any of the components of the motorcycle, consult the Service and Adjustments section of this manual or contact a Sherco dealer.

SERVICING THE COOLING SYSTEM

Close-up of a person adjusting a mechanical component with a numbered label (1) pointing to the part, no visible text or symbols beyond the label.

Close-up of hands adjusting a mechanical component with a tool, no visible text or symbols

Two identical cylindrical objects with vertical stripes, one emitting a droplet (no text or symbols)

Motorcycle horizontal

ATTENTION

• The hot liquid can cause severe injuries.
• The coolant is harmful
• After contact with skin or eyes, or ingestion, or injuries caused by hot liquids: Consult a physician
• Use protective gloves.
• Do not replace the coolant with water or other not approved fluids: it could damage your engine.
• Follow these procedures carefully and always fill the engine with coolant when the engine is cold.

- Place the bike upright on a horizontal surface.

- Remove the cap ①.

Fill the radiator full so that there is no air in the system.

Approved Coolant

Minerva Perma Universal D 4 seasons -25°C

Replace the screw 2.

Radiator Bleed screw

M6X8 8Nm

Fill the coolant to the top of the radiator.

Replace the cap ① and check to make sure it is tight.

ATTENTION

It is important to follow this procedure.

The lack of fluid, or the presence of a pocket of air left in the radiator can cause serious damage to the engine.

Close-up of a motorcycle's front wheel and side-mounted gear assembly (no visible text or symbols)

Close-up of a mechanical component with a numbered annotation (2) pointing to a circular feature, no readable text or symbols present.

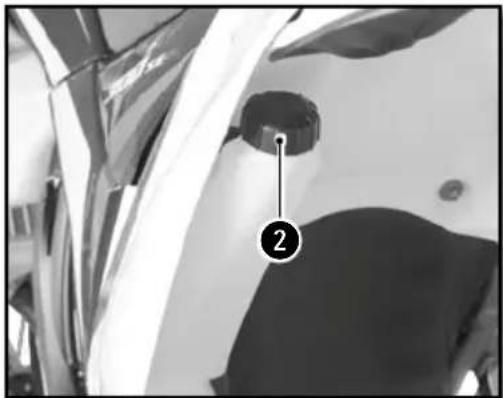

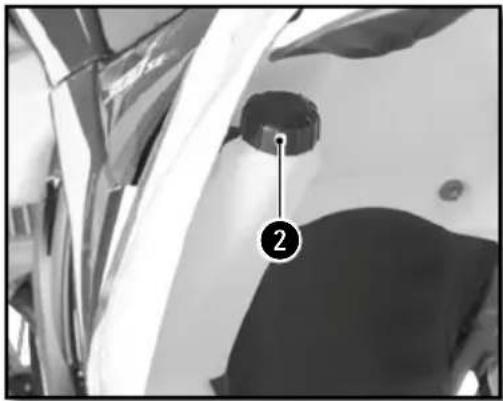

Check the fluid level in the expansion container.

The liquid should reach the level on the container where it indicates "LEVEL"

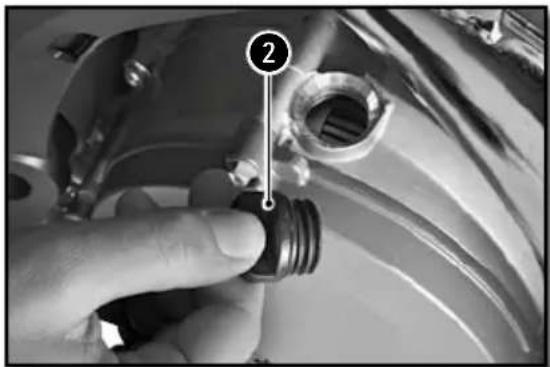

If the level is not correct, unscrew the cap 2

Fill with fluid until it reaches the LEVEL mark.

Coolantde refroidissement

Minerva Perma UniversalD 4 -25°C

Replace the cap 2.

Make sure the bike is vertical and on a horizontal surface.

-Place a container under the bike

-Remove the cap ① and screw ②

-Allow the coolant to drain.

NOTE

To protect the environment deposit the drained coolant at an approved collection center.

Cooling System (continued)

FILLING THE COOLANT

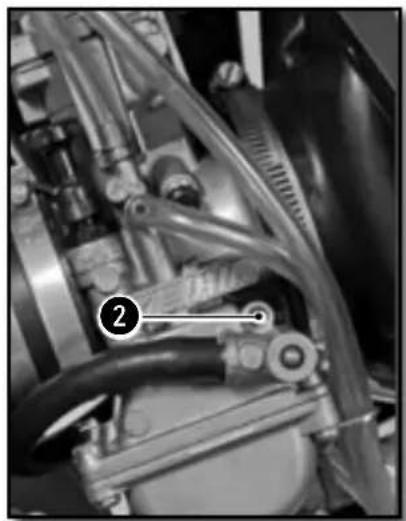

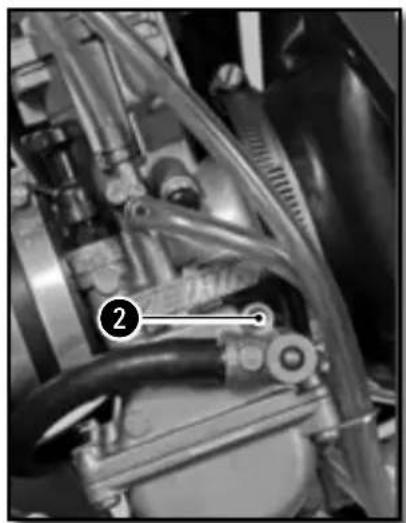

Close-up of mechanical components with numbered annotation (2) pointing to a specific part, no readable text or symbols present.

• Remove the bleed screw ^2 using a new gasket
• Pour the coolant into the radiator through the cap 1.

Coolant Minerva Perma Universal D 4 -25°C

Radiator bleed screw M6X70 8Nm

• Continue filling.
• Fill until the coolant reaches the level (approximately 1.1 liters)
• Put the bike on the side stand and follow the rest of the filling procedure (p.90)

Motor settings

CHECKING THE PLAY IN THE THROTTLE CABLE

■ Checking the throttle cable play

Close-up of a mechanical component with a curved arrow indicating rotation or adjustment (no text or symbols visible)

With the handlebars facing straight ahead, check that the throttle twist grip functions properly.

Throttle cable play 2....4mm

If the cable play is not correct, adjust the accelerator throttle cable play. (below)

Start the bike and let it run at idle. Turn the handlebars and check that the idle speed is constant. If the speed changes, readjust the play in the throttle cable. (below)

■ Adjusting the play in the throttle cable

Close-up of a motorcycle's front brake lever and grip (no text or symbols visible)

Adjust the throttle cable play at the location shown ① with the adjuster.

Motor setting (continued)

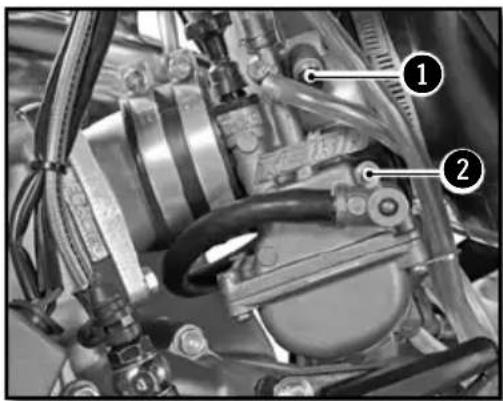

SETTING THE IDLE SPEED

• The idle speed is adjust with adjusting screw ^1
• The idle mixture is adjusted with the idle air adjusting screw ②.

Start the bike and allow it to reach operating temperature.

Adjust the idle speed by turning the air screw 1 2200 +/- 100 rpm

Turn the adjust screw idle mixture all the way and turn it to 1 turn 1/2.

Idle speed 2200 +/- 100 rpm

Idle air adjusting open 1T 1/2

SETTING THE CARBURETOR

How the opening of the throttle slide influences performance:

The composition of the mixture (Air-Gas) is a function of the opening of the slide:

A: Idle range

From 0 to 18 opening of the throttle slide, this range is regulated by the idle screw ① and the air screw ②.

• B: Transition range

From 18 to 14 opening of the throttle slide, this range is regulated by the idle jet and the shape of the slide.

C: Mid-range :

From 14 to 34 opening of the throttle slide, this range is regulated by the needle valve (shape and position). In the lower range, the idle circuit, and in the higher range, the main jet take into account the control of the motor.

D: Full load

From 34 to full throttle slide opening, this range is controlled by the main jet and the needle jet.

Close-up of a mechanical device interior with a numbered annotation pointing to a component (no readable text or symbols)

Close-up mechanical assembly showing hoses and components (no visible text or symbols)

Close-up of a mechanical device with a circular component and labeled point (1), no readable text or symbols present.

Pilot jet and pilot (air) screw:

In order to adjust the idle range A to B transition you can change the pilot jet ① (its size is stamped on it) and adjust the air screw ②, turning the screw in richens the mixture.

Proceed by turning the screw 1/8 of a turn at a time, if you move out of the rage of 1T-2.5T, change the size of the pilot jet.

Needle :

The needle has 5 notches for adjustment, 1 to 5, from rich to lean.

The reference number of the needle is engraved on it. In the tables the adjusting position of the clip on the needle is defined from the upper position.

Main jet :

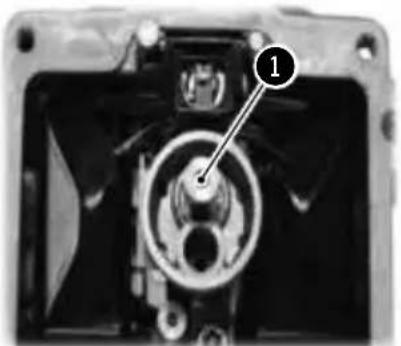

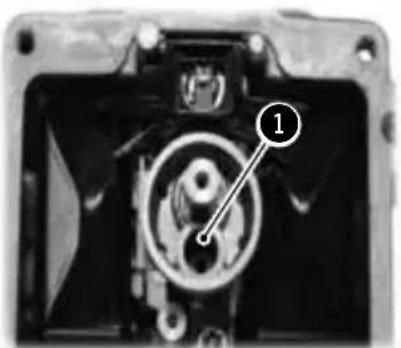

The main jet is shown in the photo as ①. The size of the jet is engraved on it.

▶I CARBURETOR SETTING TABLE FOR THE SE-R 250 :

SEA LEVEL TEMPERATURE -20°C ...		-7°C	-6°C ...5°C	6°C ...15°C	16°C ...24°C	25°C ...36°C	37°C ...49°C
3 000 m à2 301 m	Air ScrewPilot jetNeedleNeedle positionMain jet	1T1/240N8RE3172	1T1/240N8RE2172	2T40N8RF2170	2T40N8RF1168	2T1/240N8RG1165	3T40N8RH1165
2 300 m à1 501 m	Air ScrewPilot jetNeedleNeedle positionMain jet	1T40N8RD3175	1T1/240N8RE3172	1T1/240N8RE2172	2T40N8RF2170	2T40N8RF1168	2T1/240N8RG1165
1 500 m à751 m	Air ScrewPilot jetNeedleNeedle positionMain jet	1T42N8RC3178	1T40N8RD3175	1T1/240N8RE3172	1T1/240N8RE2172	2T40N8RF2170	2T40N8RF1168
750 m à301 m	Air ScrewPilot jetNeedleNeedle positionMain jet	1T45N8RC4180	1T42N8RC3178	1T40N8RD3175	1T1/240N8RE3172	1T1/240N8RE2172	2T40N8RF2170
300 m à0 m	Air ScrewPilot jetNeedleNeedle positionMain jet	1/2T45N8RB4182	1T45N8RC4180	1T42N8RC3178	1T40N8RD3175	1T1/240N8RE3172	1T1/240N8RE2172

CARBURETOR SETTING TABLE FOR THE SE-R 300 :

SEA LEVEL TEMPERATURE -20°C ...		-7°C	-6°C ...5°C	6°C ...15°C	16°C ...24°C	25°C ...36°C	37°C ...49°C
3 000 m à2 301 m	Air ScrewPilot jetNeedleNeedle positionMain jet	1T1/242N8RE3172	1T1/242N8RE2172	2T42N8RF2170	2T1/242N8RF1168	3T42N8RG1165	3T42N8RH1165
2 300 m à1 501 m	Air ScrewPilot jetNeedleNeedle positionMain jet	1T42N8RD3175	1T1/242N8RE3172	1T1/242N8RE2172	2T42N8RF2170	2T1/242N8RF1168	3T42N8RG1165
1 500 m à751 m	Air ScrewPilot jetNeedleNeedle positionMain jet	1T45N8RC3178	1T42N8RD3175	1T1/242N8RE3172	1T1/242N8RE2172	2T42N8RF2170	2T1/242N8RF1168
750 m à301 m	Air ScrewPilot jetNeedleNeedle positionMain jet	1T48N8RC4180	1T45N8RC3178	1T42N8RD3175	1T1/242N8RE3172	1T1/242N8RE2172	2T42N8RF2170
300 m à0 m	Air ScrewPilot jetNeedleNeedle positionMain jet	1T48N8RB4182	1T48N8RC4180	1T45N8RC3178	1T42N8RD3175	1T1/242N8RE3172	1T1/242N8RE2172

Engine maintenance

CHECKING THE ENGINE OIL LEVEL

Close-up of a mechanical component with no visible text or symbols, featuring the brand name 'SHERCO' and a numbered marker (1) in the corner.

Close-up of a hand adjusting a mechanical component with a numbered label (2) on the part, no visible text or symbols beyond the number.

• Make sure that the bike is on its two wheels, vertical and on a horizontal surface.
• Check the gear oil level, the oil should flow out of the screw opening ①

If necessary add oil to achieve the correct oil level.

- unscrew the engine oil filer cap 2 located on the clutch housing ②.

Topping up the engine oil

Engine oil SAE 10W40

ATTENTION

• Improved oil level can damage your engine.
• Do not use bike if the level is below the minimum.

Mechanical assembly diagram showing a linkage mechanism with labeled component (1), no readable text or symbols present.

Close-up of a mechanical assembly with labeled component 'SHERGO' and numbered marker (2), no readable text or symbols beyond the label.

• Remove the engine guard (p.115)
• When draining the oil the engine should be warm.

ATTENTION

Use protective gloves.

• Position the motorcycle upright on a level surface.
• Place a container under the bike to catch the old oil.
• Remove the drain plug 1
• Remove the drain plug ②
• Allow the oil to drain
• Clean the drain plugs① and ② with a degreaser.

Engine maintenance (continued)

REFILLING THE GEAR BOX WITH OIL

Close-up of a mechanical assembly with SHERGO branding and numbered component (no readable text or symbols beyond branding)

Mechanical assembly diagram showing a linkage mechanism with labeled component (1), no readable text or symbols present.

- Install the drain plug① and ② with a new gasket.

Drain plug 1 2

M16 15Nm

• Remove the engine oil filler cap ^2 .
• Fill the engine with oil

Motor oil 0,8l SAE 10W40

- Install the engine guard.

ATTENTION

To protect the environment, oil, oil filters and used material must be deposited in a collection center and not down drain or in the wild.

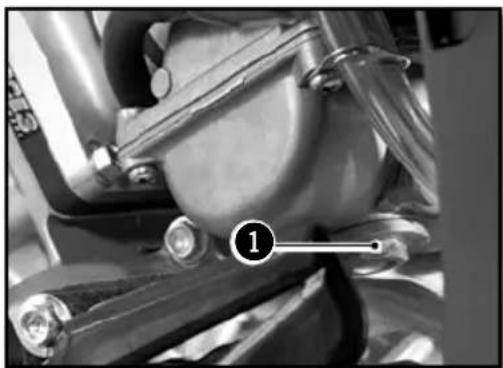

■ Emptying the carburetor float chamber

Close-up of a mechanical component with no visible text or symbols

• Turn handle of fuel tap to the OFF position
• Place a cloth beneath the carburetor to soak up emerging fuel.
• Remove plug 1
• Completely drain the fuel.
• Mount and tighten the plug.

Adjusting the chassis

HANDLEBAR POSITION

Technical line drawing of a mechanical component with multiple cylindrical features and mounting holes, plus a close-up view of a bracket (no text or symbols)

Technical drawing of a mechanical component with cross-sectional hatching and dimension line (no text or symbols)

The triple clamps have two holes separated by a distance A.

Distance between holes A 13mm
The handlebar clamps are offset by a distance B
Handlebar offset B 4mm

The bike comes standard with the handlebars in the rear most position.

Remove the four screws ①. Remove the handlebar top clamps and remove the handlebar.

Remove the two screws ②. Remove the lower clamps and place them in the desired position.

Handlebarlower clamp

M10x35

40Nm

Loctite ^ 243 ^TM

Replace the handlebars and top clamps. Replace the four screws ① and tighten evenly.

Handlebar clamps fixing screws

M8x25 24Nm

The handlebars can be rotated forward and rearward in the clamps.

ADJUSTING THE STEERING ANGLE

The steering angle can be changed using the set screws located on the bottom of the steering column.

Loosen the nut ① and tighten the screw ② until you have the steering angle desired.

Tighten the nut and do the same operation on the other side.

Steering angle lock nut

M8 20Nm

BASIC SETTING OF THE CHASSIS ACCORDING TO THE RIDER WEIGHT

Standard weight of the-rider (with equipment)

75 à 85kg

If the weight of the rider is above or below the standard, compensate by changing the stiffness of the springs (forks and shock).

Adjusting the chassis (continued)

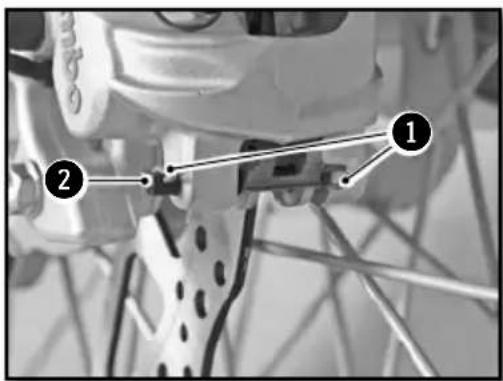

SETTING THE FORK COMPRESSION

Close-up of a mechanical assembly with numbered components (1 and 2), no visible text or symbols.

Screws ② determine the behavior of the fork when it is compressed. Turning in the screw-clockwise increases the hydraulic force (and vice versa).

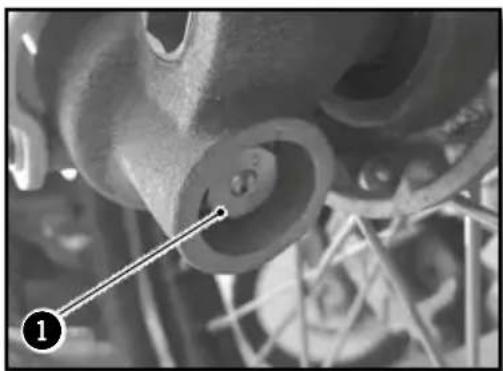

Remove the caps 1 located at the lower end the fork.

Turn screw 2 clockwise to the stop and go back the number of clicks required.

Setting compressionWP suspensionXPLOR ∅48mm(racing)	Comfort 18 clicks
	Standard 15 clicks
	Sport 12 clicks
Setting compressionKAYABA (factory)	Comfort 20 clicks
	Standard 12 clicks
	Sport 8 clicks

Replace the cap 1.

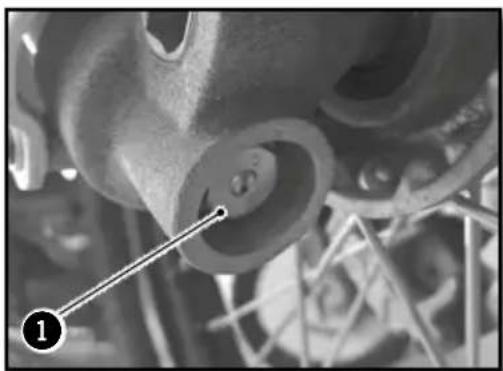

FORK REBOUND ADJUSTMENT

Close-up of a motorcycle engine bay with hoses and calipers (no visible text or symbols)

Close-up of mechanical components with a numbered annotation (1) pointing to a specific part, no readable text or symbols present.

The adjusting screws ① determine the behavior of the fork when it rebounds. Turning the screws clockwise increases the hydraulic force (and vice versa).

The adjustment screws ① are located at the end of the upper fork legs.

Turn the screw 1 clockwise to the stop then go back the number of clicks required.

Setting rebound WP suspension XPLOR ∅48mm (racing)	Comfort 18 clicks
	Standard 15 clicks
	Sport 12 clicks
Setting rebound KAYABA (factory)	Comfort 18 clicks
	Standard 12 clicks
	Sport 10 clicks

SETTING THE FORK SPRING PRELOAD

Close-up of a mechanical wrench tool interacting with a mechanical component (no visible text or symbols)

The adjusting nut allows the preload of the Spring to be adjusted. Turning the nut clockwise increases the preload (and vice versa).

Turn the nut with a wrench counterclockwise until it stops and then turn it the number of turns required.

Suspension spring preload WP XPLOR ∅48mm (racing)	Comfort 0 turn
	Standard 0 turn
	Sport 2 turns

Adjusting the chassis (continued)

ADJUSTING THE REAR SHOCK LOW-SPEED COMPRESSION SETTING

WP

The adjusting screw 1 determines the slow speed behavior of the rear shock (sensitivity Turning the screw clockwise increases the hydraulic force (and vice versa).

Turn the screw 1 clockwise with a screwdriver until it stops and then turn it back the number of clicks required.

Do not loosen the nut ②.

KAYABA

REAR SHOCK WP (RACING)

Low-speed compression setting	Comfort 20 clicks
	Standard 15 clicks
	Sport 12 clicks

REAR SHOCK KAYABA (FACTORY)

Low-speed compression setting	Comfort 20 clicks
	Standard 14 clicks
	Sport 12 clicks

ADJUSTING THE REAR SHOCK HIGH-SPEED COMPRESSION SETTING

Close-up of mechanical components with numbered annotations (1 and 2) showing structural details (no readable text or symbols)

WP

The adjusting screw 1 determines the high speed behaviour of the rear shock (big hits). Turning the screw clockwise increases the hydraulic force (and vice versa).

Turn the screw 1 clockwise with a socket wrench until it stops and then back the number of clicks required.

Do not loosen the nut 2

Close-up of a jet engine component with visible exhaust pipe and warning sign (no text or symbols)

KAYABA

REAR SHOCK WP (RACING)

High-speed compression setting	Comfort 2,5 turns
	Standard 2 turns
	Sport 1,5 turns

REAR SHOCK KAYABA (FACTORY)

High-speed compression setting	Comfort 2,5 turns
	Standard 1,5 turns
	Sport 1 turn

Adjusting the chassis (continued)

REBOUND DAMPER

Close-up of mechanical components with a numbered label (1) pointing to a cylindrical feature, no readable text or symbols present.

The adjusting screw ① determines the Shock rebound behavior. Turning the screw clockwise increases the hydraulic force (and vice versa).

Turn the screw ① clockwise to the stop then go back the number of clicks required.

REAR SHOCK WP (RACING) REAR SHOCK KAYABA (FACTORY)

Rebound damping	Comfort 15 clicks		Rebound damping	Comfort 15 clicks
	Standard 13 clicks			Standard 13 clicks
	Sport 11 clicks			Sport 11 clicks

SETTING THE DEPRESSION OF THE REAR SHOCK WITH NO LOAD

With the bike on an appropriate stand

Measure the dimension R1 between a fixed point on the chassis and the rear axle.

With the bike setting on its wheels

Measure the dimension R2 from the same fixed point on the chassis and the rear axle. The static deflection is the difference between R1-R2.

Static deflection 30mm

If the static deflection is not correct, adjust the preload of the shock ( p.105)

SETTING THE REAR SHOCK SAG

With the rider on the motorcycle

Measure the dimension R3 between the same fixed point on the chassis and the rear axle.

The sag is the difference between R1-R3.

Sag 95mm à 105mm

If the sag is not correct, change the spring.

(p.105)

CHANGING THE PRELOAD OF THE SHOCK

Remove and clean the rear shock unit (p.116). Loosen the collar ①.

Loosen / tighten the red plastic ring ② depending on the length required..

Indications	Loosening one turn	Decreases the overall length by 3mm.
	Tightening one turn	Increases the overall length by 3mm.

Tighten the collar ① (tightening torque: 5 Nm).

Reinstall the shock (p.117)

Recheck the settings (p.104)

REAR SHOCK KAYABA (FACTORY)

Remove and clean the rear shock unit (p.114).

Loosen the collar 1.

Loosen / tighten the red plastic ring ② depending on the length required..

Indications	Loosening one turn	Decreases the overall length by 4mm.
	Tightening one turn	Increases the overall length by 4mm.

Tighten the collar ① (tightening torque: 5 Nm).

Reinstall the shock (p.117)

Recheck the settings (p.104)

CHANGING THE SHOCK SPRING

Remove and clean the rear shock unit (p.116)

Select and install a spring based on your weight.

Spring Rate

Rider Weight (with equipment) : 65-75kg 48N/mm
Rider Weight (with equipment) : 75-85kg 51N/mm
Rider Weight (with equipment) : 85-95kg 54N/mm

Reinstall the shock.

Adjust the sag (p.104)

Adjust the static deflection (p.104)

Chassis maintenance

REMOVING THE SADDLE

Close-up of a hand pressing down on a fabric with a numbered callout (no text or symbols visible)

Turn the Dzeus fastner ① a quarter turn counterclockwise to release the saddle.

Remove the seat by pulling it towards the back of the bike.

REINSTALLING OF THE SADDLE

Install the saddle by sliding it forward, making sure that the slot ① in the seat pan engages the post ② in the reservoir. The three notches in the saddle must pass through the tabs on the subframe ④ that are provided for this purpose.

Lock the Dzeus fastner by turning it a quarter turn clockwise.

REMOVING THE AIR FILTER

Close-up of a mechanical component with a numbered annotation (1) pointing to a cylindrical feature, no readable text or symbols present.

The air filter is vital for the smooth operation of your engine. Maintenance is therefore essential.

A dirty air filter reduces the performance of your bike, increases fuel consumption and, at worst, impurities can pass into the engine and cause premature wear.

Close-up of a mechanical component with a numbered annotation (2) pointing to a specific part, no visible text or symbols.

Remove the seat (p.108)

Unscrew the thumb screw ①.

Remove the filter with the plastic carrier ②.

Separate the filter from its plastic holder.

CLEANING THE AIR FILTER

Clean the foam air filter with a special liquid cleaner and let dry.

INFO

Do not clean the air filter with a solvent or gasoline.

Air filter cleaner Minerva air filter cleaner

INFO

Do not wring out the filter by twisting. Press only. Soak the air filter in an air filter oil.

Air Filter oil Minerva protect Air

If necessary clean the inside of the air box with a cloth.

REINSTALLING THE AIR FILTER

Cross-sectional medical scan showing internal anatomical structures with numbered marker (1), no visible text or symbols beyond the number.

Reposition the filter on its support.

Be sure to engage on all six tabs.

Apply a film of grease on the face of the filter element.

Close-up of a mechanical component with a numbered annotation (2) pointing to a cylindrical part, no visible text or symbols on the main subject.

Reinstall the filter and its support by taking special care to make sure it is centered.

Refit the knurled screws ②.

Check to make sure the air filter is properly seated. Install the saddle (p.108)

Chassis maintenance (continued)

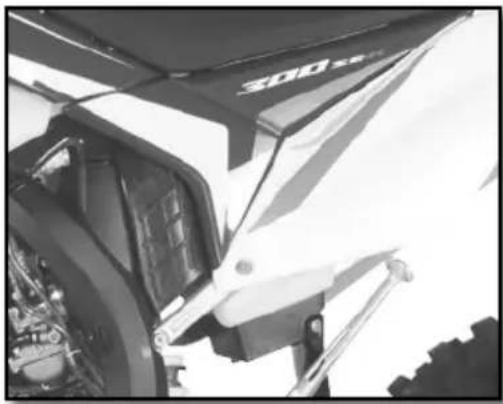

REMOVING THE FUEL TANK

Close-up mechanical assembly showing hoses, springs, and a numbered component (no readable text or symbols)

Close-up of mechanical components with numbered annotation (4) and no visible text or symbols

Remove the seat (p.108)

Unscrew the fuel tank fixing screws 1.

Remove the hose that attaches to the fork crown 2

Disconnect the fuel pump electrical connector 3.

Remove the fuel hose by pressing the connector ④ and pulling on the hose ⑤.

Prevent ingress of dirt in the gasoline fuel line. This can lead to a seizure.

Unscrew the screws ⑥ don the right and left radiator grill.

Remove the fuel tank by pulling upwards, provide lateral clearance by slightly moving the radiator grills. Use caution when removing the fuel tank and do not damage any of the fuel hoses or electrical connections.

REINSTALLING THE FUEL TANK

Close-up of a motorcycle engine bay with visible components and wiring (no text or symbols)

Close-up of a damaged car body with visible heat exchanger and numbered annotation (2), no readable text or symbols beyond the label.

Close-up of an automotive engine bay with visible hoses, springs, and a numbered component (3), no readable text or symbols present.

Reassembly of the fuel tank. Be sure to correctly position the throttle ① and clutch cable ②.

Locate all of the fuel hoses / electrical connections under the fuel tank well.

Install the tank by moving the radiator guards away from the radiator to provide clearance for the fuel tank and makesure that all of the cables, wires and hoses are free, clear and not pinched. Check the adjustment of the radiator guards in relationship to the fuel tank.

Connect the fuel line ③.

Install the fuel tank mounting screws ④ along with their rubber inserts.

Install the radiator grill mounting screws.

Chassis screws M6 10Nm

Install the fuel vent hose.

Reinstall the saddle (p.108)

Medical implant diagram showing anatomical structure with numbered annotation (4), no readable text or symbols present.

PURGING THE AIR FROM THE FORKS

After some time of operation, the air accumulates under pressure in the fork.

Every 5 to 10 hours (depending on the riding intensity), it should be purged. With the fork cold and fully extended, loosen and then retighten both fork caps.

Chassis maintenance (continued)

CLEANING THE FORK DUST SEALS

Close-up of metallic cylindrical components with black connectors, no visible text or symbols

Place the motorcycle on a suitable stand.

Remove the front wheel (p.118)

Remove the fork protectors. Slide the dust cover down. Clean and lubricate the dust cover and the fork tube.

Lubrifiant universel Minerva F4

Reinstall the dust cover and clean off any left over oil.

Reinstall the fork protection.

Reinstall the front wheel (p.118)

Take the bike off of the stand.

CHECKING THE PLAY OF THE STEERING HEAD BEARINGS

Side view of a Driton motorcycle with visible dynamics arrows indicating motion (no text or symbols)

Place the motorcycle on a suitable stand.

Exert a back and forth force on the fork legs.

There should not be any play in the bearings in any direction in the steering bearings.

If there is play and / or resistance, adjust and / or change the bearings.

Adjust the bearing free play (p.113)

Take the bike off of the stand.

ADJUSTING THE STEERING HEAD BEARING PLAY

Close-up of an automotive engine component with hoses and calipers (no visible text or symbols)

Place the motorcycle on a suitable stand.

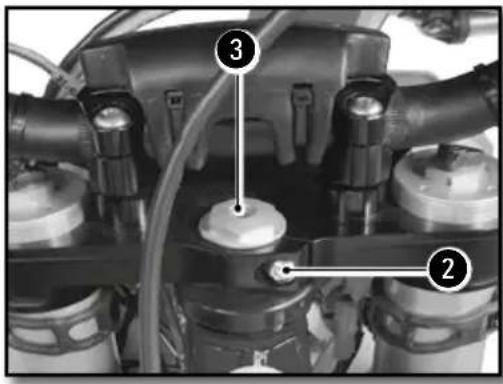

Loosen screws ① and ②

Loosen or tighten the nut ③ to adjust the steering bearing play.

Steering nut M20 30Nm

Tighten the screws 1

SACHS top fork screws	M8x35 12Nm
WP top fork screws	M8x35 17Nm

Tighten screw 2

Top clamping screw

M8x30

17Nm

Loctite®243TM

Check the play of the steering head bearings. (▶ p.113)

Remove the bike from the stand.

The bearings should be greased at least once a year with a good quality grease.

CLEANING THE CHAIN

Regularly cleaning the chain considerably increases its service life.

Clean the chain and apply chain lubricant.

Minerva Chain Cleaner

CHECKING THE CHAIN TENSION

Place the motorcycle on a suitable stand

Push the chain up and measure the chain movement as shown in the diagram.

Chain tension 50mm...53mm

If the chain tension is not correct, see how to adjust the chain. (p.114)

Otherwise, remove the bike from the stand.

Chassis maintenance (continued)

ADJUSTING THE CHAIN TENSION

Close-up mechanical component with numbered annotation (7) and no visible text or symbols

ADJUSTING THE LEVER

Close-up of a motorcycle's hand gripping a brake lever, labeled with 'B' (no text or symbols on the object itself)

ATTENTION

Improper chain tension can cause mechanical damage.

Place the motorcycle on a suitable stand.

Loosen nut 1

Loosen the nuts ②

Loosen or tighten the screws ③ until you have the correct chain tension.

Chain tension 50mm...53mm

Monitor the symmetry of the two sides by observing the position of the marks 4

Tighten the screws 5

Tighten the nut 6

Rear axle nut M24 100Nm

Remove the bike from the stand.

NOTE

The sliding piece ⑦ is designed to accommodate longer chains by turning it 180 degrees.

The position of the lever can be adjusted to meet the needs of the rider.

- Turn the knob B clockwise to move the lever closer to the handlebar.

- Turn the knob B in the opposite direction to move the lever away from the handlebar.

Clutch lever free play A ≥3mm

CHECKING THE CLUTCH FLUID LEVEL

ATTENTION

• The hydraulic fluid is highly corrosive it can be dangerous to the skin.
• Read the recommendations on the container.

Position the master cylinder horizontally.

• Remove the two screws ^1 , the cover ^2 and the membrane ^3
• Check the fluid level and fill if necessary.

Level of brake fluid below the top of the reservoir.

4mm

Minerva brake fluid DOT 4

- Reinstall the lid with the membrane and the screws.

REMOVING THE ENGINE PROTECTOR

Mechanical assembly diagram showing a cylindrical component with attached pipes and a numbered label (1), no readable text or symbols present.

Remove the screws ① and remove the engine protector.

Chassis maintenance (continued)

REMOVING THE REAR SHOCK

Mechanical assembly diagram showing two labeled components (1 and 2) with no visible text or symbols

Place the motorcycle on a suitable stand.

Remove the right side plate.

Remove the escape.

Remove the screws ① and ② and the muffler along with the intermediate exhaust pipe.

ATTENTION

Do not remove the muffler after operating the motor-cycle. It can behot and there is a risk of being burned.

Remove the shaft ③.

Remove the screw 4.

Remove the top screw of the shock.

Remove the shock from the top.

REINSTALLING THE REAR SHOCK

Mechanical assembly diagram showing a bracket with labeled component '3' (no text or symbols beyond label)

Install the shock from the top.

Install the top screw and tighten.

Upper shock screw

M10 40Nm Loctite ^ 2701

Position the rods and "H" link.

Install the lower shock screw ① and tighten.

Lower shock screw

M10 40Nm Loctite ^ 2701

Install the lower shock shaft ② and tighten.

Lower shock shaft M12 40Nm

Reassemble the exhaust, the 2 springs and the 2 "silent bloc".

Reassemble the rear silencer and loosely tighten screws ③ using the nylock self-locking nuts.

Chassis screws M6 10Nm

Install right side plate.

Remove the bike from the stand.

REMOVING THE FRONT WHEEL

Close-up of a motorcycle wheel assembly with visible tracks and hub structure (no text or symbols)

Close-up of a mechanical assembly with no visible text or symbols

Place the motorcycle on a suitable stand.

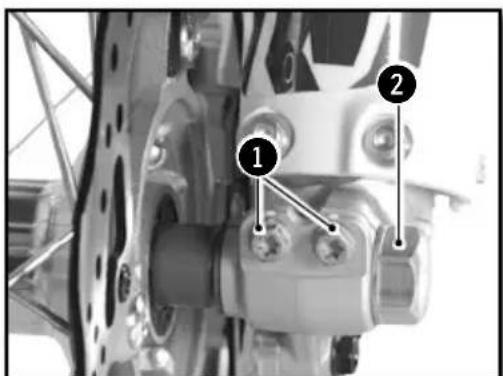

Remove the two screws ① and the nut ②

Loosen the two screws ③

Pull the axle through the right side.

Remove the wheel from the fork.

ATTENTION

Do not operate the front brake lever when the front wheel is removed.

REINSTALLING THE FRONT WHEEL

Check that the brake disc is not dirty or contaminated with oil or grease. If it is, clean the disc with brake cleaner.

Brake cleaner

Minerva brake cleaner and degreaser

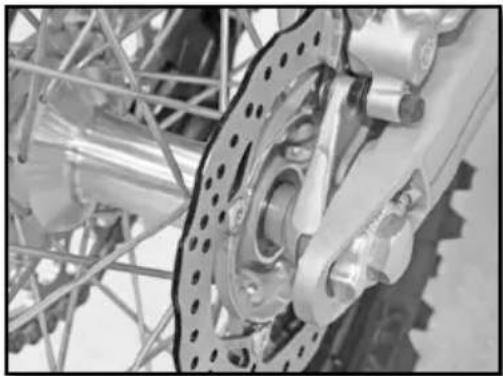

Install the spacer ① on the left side of the wheel hub.

Install the front wheel in the fork and install the axle (grease the axle prior to installation).

Tighten the screws ②.

Fork screws M8 12Nm

Install and tighten the axle nut 3.

Front axle nut M20 25Nm

Tighten the screws on the right side of the bike.

Fork screws M8 12Nm

Operate the front brake lever several times until the pads touch the disc.Remove the bike from the stand and push down on the fork several times.

REMOVING THE REAR WHEEL

Mechanical assembly diagram showing a motor and gear components (no text or symbols visible)

Place the motorcycle on a suitable stand.

• Unscrew the nut ① and remove the adjuster. ②
• Tap the axle ③ out using a nylon hammer.
• Remove the axle.
• Move the wheel as far forward as possible.
• Remove the chain and wheel.

ATTENTION

Do not operate the rear brake pedal when the rear wheel is removed.

REINSTALLING THE REAR WHEEL

Close-up of a bicycle wheel with visible gear and hub, showing internal mechanical components (no text or symbols)

Check that the brake disc is not dirty or contaminated with oil or grease. If it is, clean the disc with brake cleaner.

Brake cleaner

Minerva brake cleaner and degreaser

Install the two spacers ① and ② and make sure they are positioned correctly.

Close-up of a bicycle wheel with visible gears and hub, no text or symbols present

Wheels, tires (continued)

Close-up of a bicycle's wheel and chain gear assembly (no visible text or symbols)

Install the rear wheel in the swing arm and install the axle (grease the axle prior to installation) Mount the chain.

Close-up of a bicycle wheel and brake system with visible components (no text or symbols)

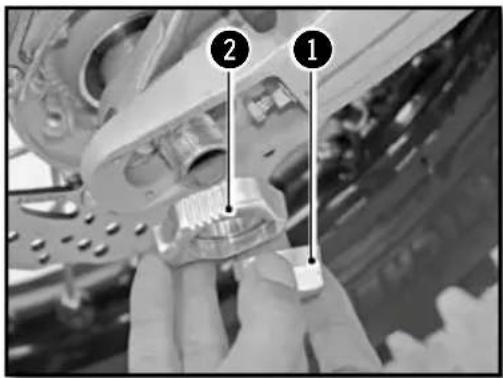

Install the chain tensioner ① and install the nut ② but do not tighten.

Check the chain tension (p.114)

Tighten the nut ②.

Rear Axle nut M24 100Nm

Operate the rear brake pedal several times until the pads touch the disk.

Remove the bike from the stand.

CHECKING THE TIRE PRESSURE

Close-up of a bicycle wheel with gear gauge and attached cable, no visible text or symbols

Regularly check the tire pressure with a precision pressure gauge.

- Remove the valve cap.

- Check air pressure when the tire is cold.

Tire air pressure when used in rough terrain.

Front 0,9bar (13 psi)
Rear 0,9bar (13 psi)

If the pressure does not comply with the above table :

- Correct the pressure.

- Replace the valve cap.

CHECKING FOR WEAR AND DAMAGE

- Regularly check the depth of the tread.

Tread depth ≥3mm

If the depth is less than the value shown :

- Change the tire

Check for cuts, cracks, nails, sharp objects and bulges on the tire.

If the tire is damaged :

• Change the tire
• Changer le pneumatique

CHECKING SPOKE TENSION

Close-up of a hand using a tool to adjust the wheel rim and tire (no visible text or symbols)

Do not neglect the tension of the spokes.

ATTENTION

Proper tension ensures stability and secure riding.

• Check the spoke tension before and after each use of the bike, especially if the spokes are new or have been recently adjusted.
• Use a screwdriver to tap on each spoke. The sound must be sharp.
• If it is dull, take the bike to a SHERCO dealer to get the spokes properly adjusted.

Brakes

Pull the lever toward the handlebar and check the free play A

Free play of the front brake lever ≥3mm

If the free play does not meet the specification, do the following.

Close-up of a bicycle brake lever with a numbered component (1) pointing to the handle (no text or symbols visible)

Set the free play using the adjustment screw 1

• Turn clockwise to decrease the free play.
• Turn it counterclockwise to increase the free play.

Close-up of a mechanical assembly with hoses and connectors (no visible text or symbols)

Make sure that the reservoir is in a horizontal position.

Check the fluid level through the sight glass. Ensure that the level is (between the arrows) it should be closest to the up arrow.

If the level is below the MIN mark, top up the brake fluid according to the instructions below.

ATTENTION

• The hydraulic fluid is highly corrosive.
• It can be dangerous to the skin.
• Read the recommendations on the container.

- Remove the two screws ①.

Remove the cover ② and the membrane ③.

Fill the reservoir with brake fluid to the correct level A.

Level of brake fluid below the top of the reservoir.	5mm
Minerva brake fluid

- Reinstall the membrane, the cover and the screws.

The position of the brake pedal can be adjusted as follows: loosen the lock nut ① loosen or tighten the screw ② to obtain the desired position.

Tighten the lock nut when the pedal is properly located.

Brake pedal lock nut M6 10Nm

Check the pedal travel (below)

CHECKING THE TRAVEL OF THE REAR BRAKE PEDAL

• Remove the spring ①
• Operate the pedal several times

Rear brake pedal travel

3mm ≥ A ≥5mm

- Replace the spring 1

If the travel does not meet the specification, refer to the rear brake travel adjustment. (p.124)

Brakes (continued)

ADJUSTING THE TRAVEL OF THE REAR BRAKE PEDAL

• Remove the spring 1
• Loosen the nut ^2 and turn the shaft ^3

Rear brake pedal travel

3mm ≥ A ≥5mm

Hold the shaft ③ and tighten the nut ②.

Nut 2

M6 10Nm

- Reinstall the spring ①

Close-up of a mechanical assembly with visible springs and bolts (no text or symbols)

Position the motorcycle on a flat surface.

Check the fluid level through the sight glass.

Ensure that the level (between the arrows) is closest to the up arrow.

If the level is below the MIN mark, top up the brake fluid according to the instructions below.

Close-up of a hand holding a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Remove the cap ① with its membrane ②.

Fill with fluid to the mark as shown A

Minerva brake fluid DOT 4

Close-up of a mechanical component with a labeled section 'A' (no readable text or symbols beyond label)

- Reinstall the membrane and the cover using a new O-ring.

REMOVING THE FRONT AND REAR BRAKE PADS

• Remove the clip ① and retaining pin ②.
• Remove the brake pads.

Do not operate the front brake lever or rear brake pedal when the brake pads are removed.

CHECKING THE CONDITION OF THE BRAKE PADS

Pure schematic diagram of a mechanical or electrical component with no text, numbers, or symbols

Check the pads for wear

Minimum pad thickness

A ≥1mm

If replacement is necessary, always change the pads in pairs.

REINSTALLING THE FRONT AND REAR BRAKE PADS

Check that the brake discs are not contaminated with oil or grease. In they are, clean the discs with brake cleaner.

Brake cleaner

Minerva brake cleaner and degreaser

Brakes (continued)

Install the new pads.

Reinstall the retaining pins ② and clips ①

Check the brake fluid level and fill if necessary.

( p.124 and p.126)

CAUTION

Do not use the bike until the brake lever and the pedal are operational. «Pump» the brake lever / brake pedal up and down until the brake pads are in contact with the discs.

Electrical system maintenance

REMOVING THE BATTERY

Turn off all electric devices and stop the engine.

CAUTION

WAIT AT LEAST 30 SECONDES BIKE TURNED OFF AND STOPPED SO THAT THE KEYLESS SYSTEM TURNS OFF.

IF THIS IS NOT DONE THERE IS A SIGNIFICANT RISK OF DAMAGE TO THE COMPUTER (ECU)

• Remove the seat (p.108)
• Remove the air filter (p.108).
• The battery is located at the bottom of the filter housing.
• Remove the two screws ^① that retain the battery retaining bracket.
• Disconnect the negative cable from the battery ^2 .
• Disconnect the battery positive cable ③.
• Remove the battery from the top.

Electrical system maintenance (continued)

REINSTALLING THE BATTERY

CHARGING THE BATTERY

• Insert the battery into place.
• Connect the positive cable to the battery.
• Connect the negative cable to the battery.
• Install the battery retaining bracket and tighten the two screws 1.

Chassis screws M6 10Nm

• Check the positioning of the battery cables to make sure that they do not interfere with the installation of the air filter.
• Replace the air filter (p.109).
• Replace the saddle (p.108).

The battery is a maintenance-free type. If the vehicle is not used for an extended period, it is recommended that the battery be disconnected and stored in a dry place. See removing the battery (p.130)

Check the voltage of the battery with a voltmeter :

Battery voltage >12.5V

If the voltage is below the specification, remove the battery and recharge it using a battery charger.

Battery charging (12V) 0.5 A for 10 hours or 5A for 30 minutes

Disconnect the charger after charging. Install the battery (▶ above).

Electrical system maintenance (continued)

REPLACING THE MAIN FUSE

Close-up of a mechanical component with visible wiring and connectors (no text or symbols)

Remove the seat (p.108)

The main fuse 1 is on a relay by the starter.

Remove the defective fuse and replace with a new fuse of the same value.

Main fuse 30A

Put a new spare fuse in the reserve location in the fuse box.

- Replace the saddle (p.108).

REPLACING THE FUSE FOR THE LIGHTS (250-300 SE/R)

Close-up of electrical connectors with visible wiring and a numbered marker (1) pointing to a component, no text or symbols present.

Remove the seat (p.108)

The light fuse 1 is located in a high location on the wiring harness on the right side of the bike.

Remove the defective fuse and replace with a new fuse of the same value.

Light fuse 15A

- Replace the saddle (p.108).

REMOVING THE HEADLIGHT HOUSING

Close-up of a mechanical engine assembly with hoses and components (no visible text or symbols)

Turn the ignition to the off position.

Unclip the left and right rubber fastners ① on each side of the fork.

Separate all of the brake hoses / cables from the meter bracket at the top and bottom.

Move the top plate up to clear the housing.

Disconnect the connector ② and remove theheadlight housing.

Close-up of a mechanical assembly with labeled component (2), no visible text or symbols

REINSTALLING THE HEADLIGHT HOUSING

Connect the electrical connector.

Engage the light plate, ensuring that the holes in the plate ① are in place ②.

Place all of the brake hoses / cables in the interior of meter upper guide ③.

Attach the rubber fastners.

Check the setting of headlight beam. (p.130)

REPLACING THE HEADLIGHT BULB OR THE PILOT LAMP

Close-up of mechanical components with numbered annotations (1, 3), no readable text or symbols present.

Remove the headlight housing assembly (p.128)

Remove the protective rubber 1

Turn the socket a quarter turn counterclockwise to remove it from the headlight assembly.

Gently press the bulb in while turning it counterclockwise and remove it from the socket.

Install a new bulb 2.

Headlight bulb S2 12V 35/35W S2

Close-up of hands installing or adjusting a mechanical component with a numbered label (2), no visible text or symbols on the main subject.

Reinstall the socket with the bulb in the headlight assembly by turning it in a clockwise direction.

Reinstall the protective rubber.

To replace the pilot light ③ simply remove the socket from the reflector ②.

Pilot light W5W 12V 5W

Reinstall the headlight housing assembly (above)

Electrical system maintenance (continued)

ADJUSTING THE HEADLIGHT BEAM

Close-up of a metallic robotic head with a transparent visor and a numbered marker (1) pointing to the neck area (no text or symbols on the main subject)

The headlight beam is adjusted with the motorcycle in a state of operation with its driver seated on the saddle.

To set the headlight beam, tighten or loosen the screw at the base of the headlight housing.

Tightening the screw ① raises the headlight beam.

Loosening the screw ① lowers the headlight beam.

REPLACING THE MOTORCYCLE COMPUTER BATTERY (250-300 SE/R)

Mechanical assembly diagram showing a component with labeled parts (no readable text or symbols)

1. Remove the headlight housing (p.128).
2. Remove the turn ^① signal flasher in order to access the motorcycle computer screws.
3. Remove the screws ^2 and remove the computer to get it out of the way.
4. Disconnect the main connector from the computer.
5. Open the dashbord with a coin.
6. Install a new battery (with the marking up).

Computer battery CR 2032 3V

Close-up mechanical assembly showing a valve and shaft (no visible text or symbols)

1. Replace the cover, taking care not to damage the O-ring.
2. Plug the main connector into the computer.
3. Install it on the bike and check to make sure the meter works.
4. Reinstall the computer support.
5. Install screws ^2 and replace the turn signal flasher.
6. Replace the headlight housing (p.129)
7. Set the computer (p.85)

Close-up of a hand holding a handheld electronic device with wires and a coin, no visible text or symbols

Washing and storage

WASHING THE BIKE STORING THE BIKE

SHERCO advises you to wash your 250-300 SE/R as often as possible in order to maintain it in good working order and prolong its life.

1. Cover the end of the exhaust silencer and the air filter (plastic bag, special cover or a special cap).
2. To degrease the engine, apply a degreaser, clean with a brush then rinse the engine with a water hose.
3. Wash the rest of the vehicle with hot soapy water.
4. Rinse with clear water.
5. Dry with a chamois or a clean, soft cloth.
6. Clean the chain and lubricate it with a special chain lube.
7. When the cleaning is finished, remove the air filter and exhaust protection, Start the engine and let it run atidle for a few minutes.

Avoid using high pressure equipment which may cause water to leak into the bearings and fork seals and cause serious damage. Use an average strength detergent rather than a strong detergent.

CAUTION

In order to avoid any water ingress, keep a minimal washing distance of 20cm.

Before storing the vehicle Long-Term (more than 2 months), follow these instructions :

1. Wash the whole bike.
2. Empty the fuel tank.
3. Remove the spark plug and inject a protective spray inside the engine through the hole in the cylinder. Install the spark plug. Cycle the engine a few revolutions to apply a protective film on the cylinder walls.
4. Remove the battery (p.126)
5. Charge the battery (p.127)
6. Lubricate all cables with a spray lubricant.
7. Jack the motorcycle up so that the wheels are off the ground.
8. Cover the exhaust outlet with a plastic bag to prevent moisture from entering.
9. Spray a protective oil film on all unpainted metal surfaces of the motor and also on the electrical wiring.
10. Cover the motorcycle with a cover.

RECOMMISSIONING AFTER STORAGE

Reinstall the battery (p.127)

Fill the fuel tank.

Perform lubrication and maintenance (p.132)

Perform a road test.

Maintenance schedule

Maintenance	After 5 hours	Every 20 hours
ENGINE
Change gear box oil	●	●
Check the valves and booster system		●
Replace spark plug (after 50 hours)
CARBURATOR
Clean the carburator and emptying float chamber		●
ACCESSORIES
Check cooling system for leaks	●	●
Check sealing and attachment of the exhaust	●	●
Check status, flexibility and position of the cables, adjust and lubricate	●	●
Check oil level in clutch master cylinder	●	●
Clean air filter and housing	●	●
Check status and position of the electrical wiring	●	●
Check function of electric components (headlight/tail/stop turn signals, computer control unit, etc.)	●	●
BRAKES
Check brake fluid level, brake pad thickness and the brake discs	●	●
Check status and sealing of the brake lines	●
Check status, of the foot brake pedal and hand brake lever	●	●
Check tightness of brake system fastners and discs	●	●
CHASSIS
Check for leaks and function of fork and shock	●	●
Clean the dust covers		●
Purge air from the fork legs		●
Check general tightness of bolts and screws		●
Check / adjust steering head bearings	●	●
WHEELS
Check rims and spoke tension		●
Check condition of the tires and tire pressure	●	●
Check chain, sprockets, guides, chain tension	●	●
Lubricate the chain	●	●
Check wheel bearing clearance	●	●

ANNUAL MAINTENANCE

Major maintenance items that should be performed by the dealer	Au moins 1X par an
Fork	●
Shock	●
Clean and grease steering head bearings and seals	●
Replace fiberglass in the muffler	●
Treat electric contacts and switches with an aerosol protector	●
Replace the clutch hydraulic fluid	●
Replace the brake fluid	●
Checks and major maintenance to be performed by the rider	Before each use	After each use
Check the engine oil level	●
Check brake fluid level	●
Check status of the brake pads	●
Verify operation of the lights	●
Verify operation of the horn	●
Lubricate throttle cable		●
Regularly purge the air from the fork legs		●
Regularly clean the fork dust seals		●
Clean and lubricate chain, check tension and adjust if necessary		●
Clean air filter and box		●
Check tires and tire pressure	●
Check the coolant level	●
Check fuel lines for leaks	●
Check status of all the controls	●
Check the brakes	●	●
Spray anti-corrosion protector on all non painted parts (except for the brake parts and the exhaust system)		●
Spray protector on electrical switches		●
Check tightness of nuts, screws and clamps		●

ATTENTION

Check the tightening of the screws of your bike after the first ride / the first hours of use.

In competition you have to perform the 20 hour maintenance schedule after each race!

This should not be exceeded by more than 2 hours.

The services performed by the Sherco dealer do not replace routine service and maintenance by the rider!

Maintenance schedule (continued)

IMPORTANT CHECKS AND MAJOR MAINTENANCE ITEMS THAT SHOULD BE PERFORMED BY THE SHERCO DEALER

Competition use	At 10H	At 20H	At 40H	At 80H
Recreational user	At 20H	At 40H	At 80Hh
Check the clutch disc wear		●	●	●
Check the length of the clutch springs		●	●	●
Check that the clutch nut is not loose				●	●
Check that the clutch housing is not loose				●	●
Check the wear of the cylinder and piston				●	●
Replace the piston 300				●
Check the good working of valves and boosters	●	●	●
Check the run-out at the end of the crankshaft				●	●
Check the condition of the connecting rod				●	●
Replace the big end bearing				●	●
Replace the crankshaft bearings				●	●
Check all of the gearbox components for wear				●	●
Check the reed valve petals				●	●
Replace fiberglass packing in the muffler	●	●	●

Torques

ENGINE TIGHTENING TORQUES
Drain Plug M16 15Nm
Sparkplug (apply grease to the copper washer) 15Nm
Water pump housing screws M6 10Nm
Clutch cover screws M6 10Nm

CHASSIS TIGHTENING TORQUES
Shock screw lock nut M5 5Nm
Other chassis screws M6 10Nm
Other chassis screws M8 24Nm
Disc brake screws front / rear M8 24Nm Loctite			^ 243 ^TM
Crown screw M8 23Nm
Handlebar clamp fastening screws M8 25Nm
fork upper screw	M8 17Nm
fork lower screw	M8 12Nm
Upper screw	M8 17Nm
Fork pinch bolt screw M8 12Nm
Side support screw	M8 25Nm Loctite		^ 243 ^TM
Other chassis screws	M10	40Nm
Handlebar fixing screws	M10	40Nm Loctite	^ 243 ^TM
Top shock screw	M10	40Nm	Loctite ^ 2701
Lower shock screws	M10	40Nm	Loctite ^ 2701
Motor mounting bolts M10 40Nm
Suspension delta / H link bolts	M12	40Nm
Swing arm pivot bolt	M16	100Nm
Front wheel nut M20 25Nm
Steering shaft nut	M20	30Nm
Rear wheel nut	M24	100Nm

INDEX

FRANCÉS P.2
■ INGLÉS P.70
■ ESPAÑOL P. 138
DEUTSCH P. 206

SHERCO

Close-up of a motorcycle's front wheel and suspension system (no visible text or symbols)

Close-up of a mechanical component with numbered parts, no visible text or symbols

Close-up of a mechanical knob or dial with a circular handle, no visible text or symbols

Close-up of a metallic circular knob or dial with a central slot, mounted on a mechanical component (no visible text or symbols)

Close-up of a mechanical assembly with labeled component (1), no visible text or symbols beyond the number marker.

Close-up of a mechanical switch component with no visible text or symbols

Close-up of a mechanical switch component with no visible text or symbols

Close-up of a mechanical component with 'CHERGO' branding and numbered marker (1), no readable text or symbols beyond the label.

① Mando de Freno trasero

Caballete lateral

Close-up of a mechanical assembly with chains and gears, no visible text or symbols

Fig 1 Función SPD

Fig 2 Función MAX

Fig 3 Función AVG

Fig 4 Función DST

Fig 5 Función DST2

Close-up of a motorcycle's front wheel and side-mounted engine compartment (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a small clamp, no visible text or symbols

Close-up of a car engine compartment with a numbered component (1) pointing to a valve or handle, no visible text or symbols.

Close-up of a mechanical assembly with hoses and connectors (no visible text or symbols)

Close-up of a person adjusting a mechanical component with a numbered callout (no visible text or symbols)

Close-up of a hand adjusting mechanical components with a visible 'SHERO' logo on the side (no other text or symbols)

Two identical cylindrical objects with vertical stripes, one emitting a droplet (no text or symbols)

Moto horizontal

ATENCIÓN

Close-up of a motorcycle's front wheel and side-mounted gear assembly (no visible text or symbols)

Close-up of a mechanical component with a numbered annotation (2) pointing to a circular feature, no readable text or symbols present.

Close-up of mechanical components with numbered annotation (2) pointing to a detail on a dark surface (no readable text or symbols)

Close-up of a mechanical component with a curved arrow indicating rotation or adjustment (no text or symbols visible)

Close-up of a motorcycle's front brake lever and grip (no text or symbols visible)

Close-up of a mechanical device interior with labeled component (1), no visible text or symbols beyond the number marker.

Close-up mechanical assembly showing hoses and components (no visible text or symbols)

Close-up of a mechanical component with a numbered annotation pointing to a circular feature (no readable text or symbols)

Close-up of a mechanical component with no visible text or symbols, featuring a circular emblem labeled 'SHERCO' and a numbered marker (1) pointing to a specific area.

Close-up of a hand adjusting a mechanical component with a numbered label (2) on the part, no visible text or symbols beyond the number.

Mechanical assembly diagram showing a chain with labeled component (1), no readable text or symbols present.

Close-up of a mechanical assembly with labeled component 'SHERGO' and numbered marker (2), no readable text or symbols beyond the label.

Close-up of a mechanical assembly with SHERGO branding and numbered component (no readable text or symbols beyond branding)

Mechanical assembly diagram showing a linkage mechanism with labeled component (1), no readable text or symbols present.

Close-up of mechanical components with no visible text or symbols

Technical line drawing of a mechanical bracket assembly with multiple cylindrical components and mounting holes (no text or symbols)

Technical drawing of a mechanical component with cross-sectional hatching and dimension line (no text or symbols)

Close-up of a mechanical assembly with numbered components (1 and 2), no visible text or symbols.

Close-up of a motorcycle engine bay with hoses and calipers (no visible text or symbols)

Close-up of mechanical components with no visible text or symbols

Close-up of a mechanical wrench tool interacting with a mechanical component (no visible text or symbols)

WP

KAYABA

AMORTIGUADOR WP (RACING)

Close-up of mechanical components with numbered annotations (1 and 2) showing structural details (no readable text or symbols)

WP

Close-up of a jet engine component with visible exhaust pipe and warning sign (no text or symbols)

KAYABA

AMORTIGUADOR WP (RACING)

Close-up of mechanical components with no visible text or symbols

Close-up of a hand pressing down on a fabric with a numbered callout (no text or symbols visible)

Close-up of a mechanical component with a numbered annotation (1) pointing to a cylindrical part, no visible text or symbols beyond the label.

Close-up of a mechanical component with visible gears and shafts, no text or symbols present

Cross-sectional view of a medical device with labeled component (1), showing internal structure and radiating lines (no text or symbols beyond label)

Close-up of a mechanical component with a numbered annotation (2) pointing to a cylindrical feature, no readable text or symbols present.

Close-up mechanical assembly showing hoses, springs, and a numbered component (no readable text or symbols)

Close-up of mechanical components with numbered annotation (4) and no visible text or symbols

MONTAJE DEL DEPÓSITO DE GASOLINA

Close-up of a motorcycle engine bay with visible components and wiring (no text or symbols)

Close-up of a car's front panel with visible exhaust grating and a numbered label (2) pointing to the side panel.

Close-up of an automotive engine bay with visible hoses and components (no text or symbols)

Medical implant diagram showing anatomical structure with labeled point (4), no readable text or symbols present

Close-up of metallic cylindrical components with black connectors, no visible text or symbols

Moto sobre trípode.

Side view of a Driton motorcycle with visible engine and tire components (no text or symbols)

Moto sobre trípode.

Close-up of an automotive engine component with hoses and calipers (no visible text or symbols)

Moto sobre trípode.

Close-up mechanical assembly showing a component with numbered annotation (7) and no visible text or symbols

REGLAJE EMBRAGUE

Close-up of a motorcycle's hand gripping a grip and lever, labeled with letter B (no text or symbols on the object itself)

ATENCIÓN

ATENCIÓN

Mechanical assembly diagram showing a cylindrical component with attached pipes and a numbered label (1), no readable text or symbols present.

Mechanical assembly diagram showing two labeled components (1 and 2) with no visible text or symbols

Moto sobre trípode.

Mechanical assembly diagram showing a bracket with labeled component 3 (no text or symbols beyond label)

Close-up of a motorcycle wheel assembly with visible tracks and hub structure (no text or symbols)

Close-up of a mechanical assembly with labeled component (1), no visible text or symbols beyond the number marker

Moto sobre trípode.

Mechanical assembly diagram showing a motor and gear assembly with numbered component (no readable text or symbols)

Instalar la moto sobre un trípode.

Close-up of a bicycle wheel with visible gear and hub structure (no text or symbols)

Close-up of a bicycle wheel with visible teeth and gear structure (no text or symbols)

Close-up of a bicycle's wheel and gear assembly, showing mechanical components and no visible text or symbols.

Close-up of a bicycle brake system with visible tracks and gear (no text or symbols)

Close-up of a bicycle wheel with gear and pressure gauge (no visible text or symbols)

Close-up of a hand using a screwdriver to adjust the wheel rim of an BMW e-X (no text or symbols visible)

Close-up of a mechanical component with wires and a labeled section (A), no readable text or symbols present.

Close-up of a bicycle brake lever with a numbered component (1) and no visible text or symbols

Close-up of a mechanical assembly with hoses and connectors (no visible text or symbols)

ATENCIÓN

Close-up of a mechanical assembly with visible springs and bolts (no text or symbols)

Close-up of a hand holding a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Close-up of a mechanical component with a labeled section 'A' and a vertical line marker (no readable text or symbols beyond label)

Pure schematic diagram of a mechanical or electrical component with no text, numbers, or symbols

CARGA DE LA BATERÍA

Close-up of hands connecting electrical connectors to a device (no visible text or symbols)

Close-up of electrical connectors with visible wiring and a numbered component (1) pointing to a connector detail (no text or symbols beyond the label)

Close-up of a mechanical assembly with hoses and components, no visible text or symbols

Close-up of mechanical components with a numbered label (2) pointing to a central component (no readable text or symbols)

MONTAJE DEL FARO

Close-up of mechanical components with numbered annotations (1, 3), no readable text or symbols present.

Close-up of hands installing or adjusting a mechanical component with tools (no visible text or symbols)

Close-up of a metallic robotic head with a transparent visor and a numbered marker (1) pointing to the neck area (no text or symbols on the main subject)

Mechanical assembly diagram showing a component with labeled parts (no readable text or symbols)

Close-up mechanical assembly showing a shaft and housing with no visible text or symbols

Close-up of a hand holding a handheld electronic device with wires and a coin, no visible text or symbols

Empty rectangular frame with black border (no text or symbols)

Empty rectangular frame with rounded corners (no text or symbols)

Reinstalling the fuel tank....248

Removing the front and rear brake pads 261

Close-up of a mechanical assembly with metallic components and a numbered label (1) pointing to a specific part, no readable text or symbols present.

■ Engine serial number location

Close-up of a mechanical knob or dial with a circular handle, no visible text or symbols

Close-up of a mechanical knob or dial component (no visible text or symbols)

Close-up of a mechanical assembly with labeled component (1), no visible text or symbols beyond the number marker.

Close-up of a mechanical switch component with no visible text or symbols

Close-up of a mechanical switch or lever component with no visible text or symbols

Position ① Kennlinie "soft" Position ② Kennlinie "hard"

Close-up of a mechanical component with 'CHERGO' branding and numbered marker (1), no readable text or symbols beyond the label.

Close-up of a mechanical assembly with chains and gears, no visible text or symbols

Close-up of a motorcycle's front wheel and side-mounted engine compartment (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a small clamp, no visible text or symbols

Close-up of a car engine compartment with a numbered component (1) pointing to a valve or handle, no visible text or symbols.

Close-up of a mechanical assembly with hoses and connectors (no visible text or symbols)

Close-up of a person adjusting a mechanical component with a numbered callout (no visible text or symbols)

Close-up of hands adjusting a mechanical component with a visible 'SHERO' logo on the shirt (no other text or symbols)

Two identical cylindrical objects with vertical stripes, one emitting a droplet (no text or symbols)

Motorrad horizontal

ACHTUNG

Close-up of a motorcycle's front wheel and side-mounted gear assembly (no visible text or symbols)

Close-up of a car interior with a black tag and numbered label (2), no readable text or symbols present.

Close-up of mechanical components with numbered annotation (2) pointing to a specific part, no readable text or symbols present.

Close-up of a mechanical component with a curved arrow indicating rotation or adjustment (no text or symbols visible)

Close-up of a motorcycle's front brake lever and grip (no visible text or symbols)

VERGASEREINSTELLUNG

Close-up of a mechanical device interior with a numbered annotation pointing to a component (no readable text or symbols)

Close-up mechanical assembly showing hoses and components (no visible text or symbols)

Close-up of a mechanical device interior with a numbered annotation pointing to a component (no readable text or symbols)

Close-up of a mechanical assembly with a circular component labeled 'SHERGO' and an arrow pointing to a numbered point (1), no readable text or symbols beyond the label.

Close-up of a hand adjusting a mechanical component with a numbered label (2) on the part, no visible text or symbols beyond the number.

GETRIEBEÖL ABLASSEN

Mechanical assembly diagram showing a chain with labeled component (1), no readable text or symbols present.

Close-up of a mechanical assembly with labeled component 'SHERGO' and numbered marker (2), no readable text or symbols beyond the label.

Close-up of a mechanical assembly with SHERGO branding and numbered component (no readable text or symbols beyond branding)

Mechanical assembly diagram showing a linkage mechanism with labeled component (1), no readable text or symbols present.

Close-up of a mechanical component with no visible text or symbols

Technical drawing of a mechanical component with cross-sectional hatching and dimension line (no text or symbols)

Close-up of a mechanical assembly with numbered parts (1 and 2) indicating specific components, no visible text or symbols.

Close-up of a mechanical device with hoses and connectors (no visible text or symbols)

KAYABA
1

Close-up of a motorcycle engine bay with hoses and calipers (no visible text or symbols)

Close-up of mechanical components with a numbered annotation (1) pointing to a circular feature, no readable text or symbols present.

Close-up of a mechanical tool with a wrench inserted, showing no visible text or symbols.

WP

KAYABA

Close-up of a mechanical component with two numbered callouts highlighting features (no readable text or symbols)

WP

Close-up of a jet engine component with visible exhaust pipe and valve (no text or symbols)

KAYABA

STOSSDÄMPFER WP (RACING)

Close-up of mechanical components with no visible text or symbols

Close-up of a hand pressing down on a fabric with a numbered callout (no text or symbols visible)

Close-up of a mechanical component with a numbered annotation (1) pointing to a cylindrical feature, no readable text or symbols present.

Close-up of a mechanical component with a numbered annotation (2) pointing to a specific part, no visible text or symbols.

Cross-sectional view of a mechanical component with numbered point (1) and multiple internal lines radiating from a central hub (no text or symbols)

Close-up of a mechanical component with a numbered annotation (2) pointing to a cylindrical feature, no readable text or symbols present.

Close-up of a motorcycle's front view showing internal components and structural details (no visible text or symbols)

Close-up mechanical assembly showing hoses, gears, and a numbered component (no readable text or symbols)

Close-up of a mechanical component with a numbered annotation (4) pointing to a circular feature, no readable text or symbols present.

REINSTALLING THE FUEL TANK

Close-up of a motorcycle engine bay with visible components and wiring (no text or symbols)

Close-up of a damaged car body with visible exhaust grating and a numbered annotation (2) pointing to a component.

Close-up of an automotive engine bay with hoses and a numbered component (3), no visible text or symbols beyond the number.

Close-up of metallic cylindrical components with black connectors, no visible text or symbols

Side view of a D450 motorcycle with visible tire, gear, and motion arrows indicating rotational motion (no text or symbols)

Close-up of an automotive engine component with hoses and a numbered label (1), no visible text or symbols beyond the number.

Close-up mechanical assembly showing a gear and housing component (no visible text or symbols)

! ACHTUNG

Close-up of a bicycle hand gripping a brake lever, labeled with 'B' (no text or symbols on the diagram itself)

ACHTUNG

Mechanical assembly diagram showing a cylindrical component with attached parts and labeled connection point (no text or symbols present)

Mechanical assembly diagram showing two labeled components (1 and 2) with no visible text or symbols

Mechanical assembly diagram showing a bracket with labeled connection point (3), no readable text or symbols present

Close-up of a motorcycle wheel assembly with visible tracks and hub structure (no text or symbols)

Close-up of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a motor and gear assembly with no visible text or symbols

Close-up of a bicycle wheel assembly with visible gears and hub (no text or symbols)

Close-up of a bicycle wheel with visible teeth and gear structure (no text or symbols)

Close-up of a bicycle's wheel and gear assembly, showing mechanical components and no visible text or symbols.

Close-up of a bicycle brake system with visible tracks and gear (no text or symbols)

Close-up of a bicycle wheel with gear and pressure gauge, no visible text or symbols

Close-up of hands using a tool to adjust the wheel rim of a bicycle (no visible text or symbols)

Close-up of a mechanical device with labeled parts (A and I) and no visible text or symbols beyond labels

Close-up of a bicycle's wheel and suspension system, showing mechanical components and a numbered annotation (1) — no readable text or symbols beyond the label.

Close-up of a mechanical assembly with hoses and connectors (no visible text or symbols)

ACHTUNG

Close-up of a mechanical assembly with visible springs and bolts (no text or symbols)

Close-up of a hand holding a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Close-up of a mechanical component with a labeled section 'A' (no readable text or symbols beyond label)

KONTROLLE DER BREMSBELÄGE VORN UND HINTEN

Pure schematic diagram of a mechanical or electrical component with no text, numbers, or symbols

LADEN DES AKKUS

Close-up of a mechanical component with hands and connectors, no visible text or symbols

Close-up of electrical connectors with visible wiring and a numbered component (no text or symbols)

Close-up of a mechanical assembly with hoses and components, no visible text or symbols

Close-up of mechanical components with a numbered label (2) pointing to a central component (no readable text or symbols)

Close-up of a mechanical component with numbered annotations (1, 3), no readable text or symbols present.

Close-up of hands performing a medical procedure on an aircraft body, no visible text or symbols

Close-up of a metallic robotic head with a transparent visor and a numbered marker (1) pointing to the neck area (no text or symbols on the main subject)

Mechanical assembly diagram showing a component with labeled parts (no readable text or symbols)

Close-up mechanical assembly showing a shaft and housing with no visible text or symbols

Close-up of a hand holding a handheld electronic device with wires and a coin, no visible text or symbols

Waschen und
