USER MANUAL CR 3092 CAMRY

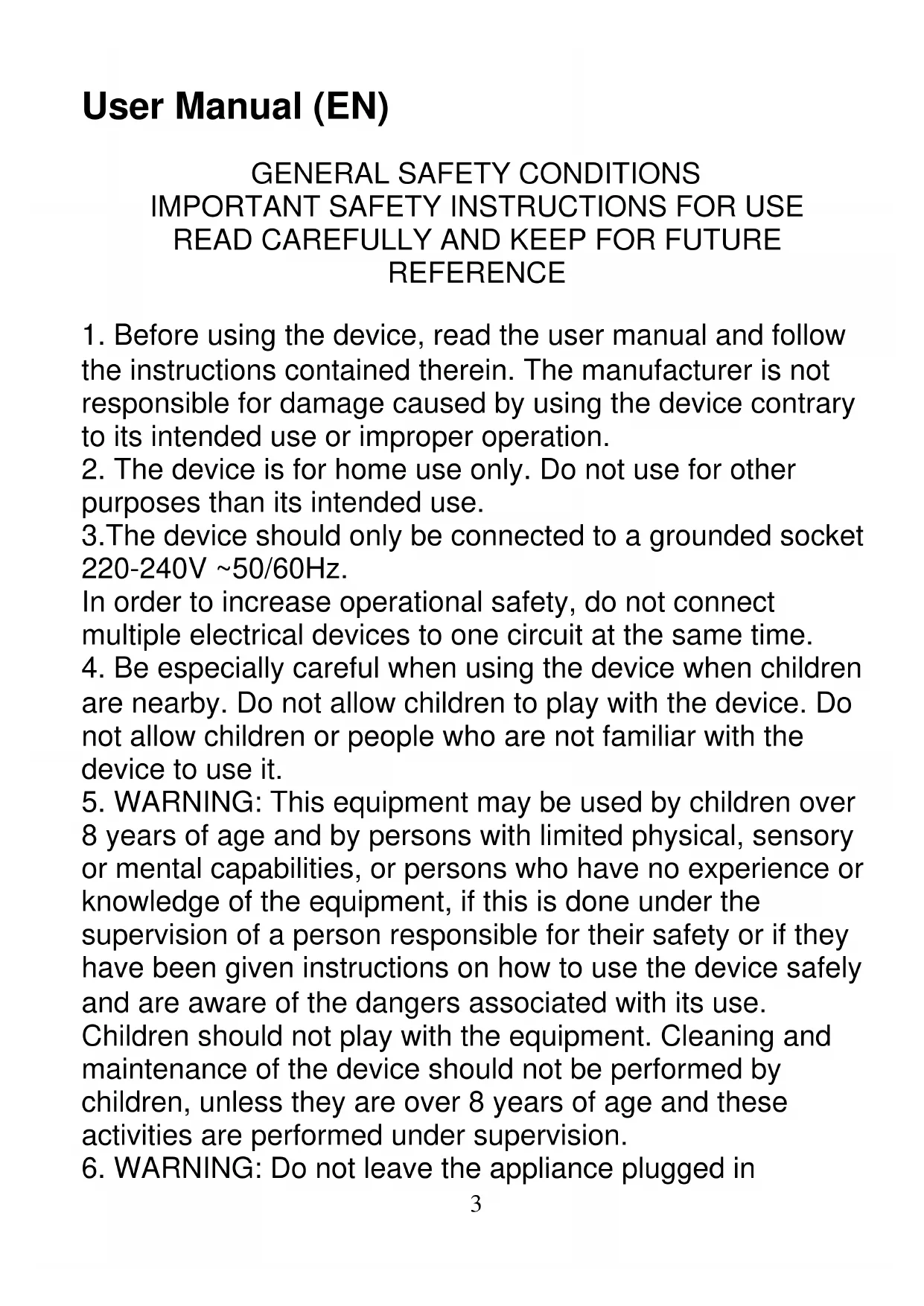

GENERAL SAFETY CONDITIONS

IMPORTANT SAFETY INSTRUCTIONS FOR USE

READ CAREFULLY AND KEEP FOR FUTURE

1. Before using the device, read the user manual and follow

the instructions contained therein. The manufacturer is not responsible for damage caused by using the device contrary to its intended use or improper operation.

2. The device is for home use only. Do not use for other

purposes than its intended use. 3.The device should only be connected to a grounded socket 220-240V ~50/60Hz. In order to increase operational safety, do not connect multiple electrical devices to one circuit at the same time.

4. Be especially careful when using the device when children

are nearby. Do not allow children to play with the device. Do not allow children or people who are not familiar with the device to use it.

5. WARNING: This equipment may be used by children over

8 years of age and by persons with limited physical, sensory or mental capabilities, or persons who have no experience or knowledge of the equipment, if this is done under the supervision of a person responsible for their safety or if they have been given instructions on how to use the device safely and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the device should not be performed by children, unless they are over 8 years of age and these activities are performed under supervision.

6. WARNING: Do not leave the appliance plugged in4

7. WARNING: Never move the appliance while it is switched

on or when it is hot.

8. WARNING: The temperature of accessible surfaces of the

operating device may be high when the equipment is operating.

9. WARNING: Keep the device and its cable out of the reach

10. WARNING: Always remove the plug from the power

socket after use by holding the socket with your hand. DO NOT pull on the power cord.

11. WARNING: Improper use of the device may result in

injuries such as cuts, abrasions or electric shock.

12. WARNING: Do not use the device near flammable

13. WARNING: Do not place cardboard, paper, plastic or

other flammable or fusible items in the appliance.

14. WARNING : If the device housing is cracked, switch off

the device to avoid the possibility of electric shock.

15. WARNING: Improper use of the device may result in

injuries such as cuts, abrasions or electric shock.

16. Do not immerse the cable, plug or the entire device in

water or any other liquid. Do not expose the device to weather conditions (rain, sun, etc.) or use in conditions of increased humidity (bathrooms, damp camping houses).

17. Periodically check the condition of the power cord. If the

power cord is damaged, it should be replaced by a specialist repair shop in order to avoid a hazard.

18. Do not use the device with a damaged power cord or if it

has been dropped or damaged in any other way or does not work properly. Do not repair the device yourself, as this may cause electric shock. Return the damaged device to an appropriate service center for examination or repair. All5 repairs may only be performed by authorized service centers. Improperly performed repairs may cause serious danger to the user.

19. Place the device on a cool, stable, even surface, away

from hot kitchen appliances such as: electric stove, gas burner, etc....

20. Do not use the device near flammable materials.

22. Do not leave the device or the power supply plugged in

while it is switched on unattended.

23. To provide additional protection, it is advisable to install a

residual current device (RCD) in the electrical circuit with a rated residual current not exceeding 30 mA. In this regard, contact a specialist electrician.

24. Place the device on surfaces resistant to high

25. Do not place any items on a closed grill.

26. For proper air circulation, a minimum distance of 30 cm is

required on all sides of the grill.

27. Do not place the device on surfaces that heat up quickly.

28. Do not place the appliance on a gas or electric hob, next

to a wall, or in the immediate vicinity of heat sources.

29. Do not use charcoal or similar fuels in this equipment.

30. Before cleaning, moving, disassembling, assembling and

storing the grill, you should: turn off the device, disconnect it from the mains and wait for the grill to cool down

31. The appliance should not be placed under kitchen

cabinets due to rising heat and steam.

32. The power cord must not be placed above the device and

must not touch or lie near hot surfaces. Do not place the device under an electrical socket.

33. The device should be cleaned after each use.6

34. Do not use the device with wet hands.

35. Do not touch the surface of the device with any sharp

objects (e.g. a knife)

36. Do not cover the heating plate with aluminium foil etc. as

this may cause heat build-up and damage the plastic parts and coating.

37. Do not place kitchen utensils on the hotplates during use.

The appliance should be opened using the handle or grip, depending on the model

38. Do not use plastic kitchen utensils when operating the

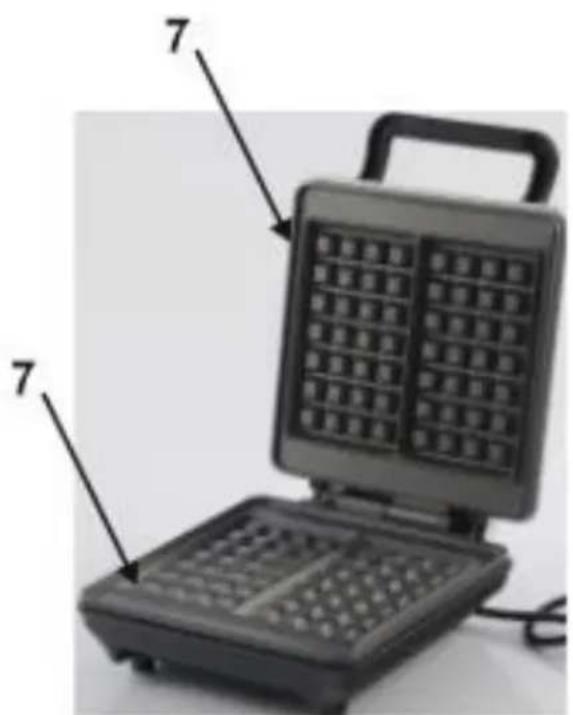

appliance, they may melt. DEVICE DESCRIPTION:

2. Power indicator light (red)

3. Ready light (green)

1. Remove the packaging and any stickers and accessories that are on the outside and inside of the

appliance (between the heating plates).

2. Wipe the heating plates with a damp cloth, then a dry one.

3. Lightly grease the heating plates with vegetable oil or other fat, close the appliance and plug it into a

grounded socket, the power indicator (2) and ready indicator (3) will light up.

4. Leave the device on for a few minutes to remove the factory smell. During this time, the device may emit

a small amount of smoke. This is normal.

5. Then clean the device according to the “Cleaning” section.

Prepare the dough according to your favorite recipe.

1. Plug the enclosed device into a grounded outlet. The power (2) and standby (3) indicators will light up.

2. Wait about 5 minutes. After this time, the device should reach the required temperature - the ready light

3. Fully open the appliance. Pour the previously prepared dough onto the lower heating plate.

4. Close the device. Do not close the upper housing (5) by force.

5. The ready light (3) will turn on and off during operation, indicating that the thermostat is maintaining the

correct temperature of the heating plates.

6. Baking time is approximately 5-7 minutes depending on taste preferences and prepared dough.

NOTE: During operation, hot steam may escape from the upper housing (5) of the device, this is normal.

7. Fully open the top housing (5) and remove the baked waffle using only a wooden or plastic spatula.

CAUTION! Do not use metal utensils or sharp kitchen tools as they may damage the special non-stick heating plates.

8. Before baking the next batch, close the top cover to allow the heating plates to heat up to the appropriate

9. Once baking is finished, unplug the appliance and allow it to cool down.

TIPS7 *Do not open the top cover during baking before the recommended time has elapsed, this may cause the formation of a so-called 'stache' *Baked waffles should be placed on a wire rack to allow the water to evaporate from the waffle, this will cause the waffles to will be crispier. CLEANING DEVICE

1. After use, unplug the appliance and wait for it to cool down before cleaning.

2. Wipe the heating plates first with a wet cloth, then with a dry one (you can also use a paper towel).

3. The hardest to clean dough should be greased with oil and left. After a few minutes, gently remove the

residue with a wooden spatula.

4. Do not use any metal or hard abrasive tools to wipe the interior/exterior of the device to avoid scratching

the surface of the device.

5. Do not immerse in water.

The temperature of accessible surfaces of the device may be high when it is in operation. Do not touch hot surfaces of the device.

In the interest of the environment. Information on used electrical and electronic equipment In accordance with art. 13 sec. 1 and sec. 2 of the Act of 11 September 2015 on used electrical and electronic equipment, we inform you about the correct handling of waste electrical and electronic equipment: 1. It is prohibited to place used electrical and electronic equipment together with other waste – this is confirmed by the marking in the form of a "crossed-out bin", which requires selective collection of this type of waste. 2. Electrical and electronic devices may contain hazardous substances, mixtures and components which, when released into the environment, may pose a serious threat to the health and life of humans and living organisms. They may lead to numerous health ailments, such as: vision, hearing and speech disorders, and may also damage the kidneys, liver and heart, and cause skin diseases. Harmful substances may also have an adverse effect on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing in contaminated soils, and products made from them, may pose a risk of the above health effects. 3. Used electrical and electronic equipment should only be delivered to authorised collection points, a list of which should be available on the website of each Municipal Office. 4. The household plays an important role in contributing to the reuse and recovery, including recycling, of used equipment. It also plays a key role in the waste management system for used electrical and electronic equipment due to the possibility of direct transfer to authorized collection points and the elimination of undesirable social habits resulting in leaving waste equipment in places not intended for this purpose. In addition, Return used electrical and electronic equipment to the place of delivery. The distributor, when delivering equipment intended for households to the purchaser, is obliged to collect used equipment from households free of charge at the place of delivery of such equipment, provided that the used equipment is of the same type and performed the same functions as the equipment delivered. Cardboard packaging and polyethylene (PE) bags should be disposed of in appropriate containers for selective collection of municipal waste according to their description. If there are batteries in the device, they should be removed and taken to a separate collection and storage point. Do not throw the device into municipal waste!! Service If you wish to purchase spare parts or make any complaints, please contact the seller who issued the receipt directly. Bedienungsanleitung (DE) ALLGEMEINE SICHERHEITSBEDINGUNGEN
