USER MANUAL Jolie Plus Lavazza

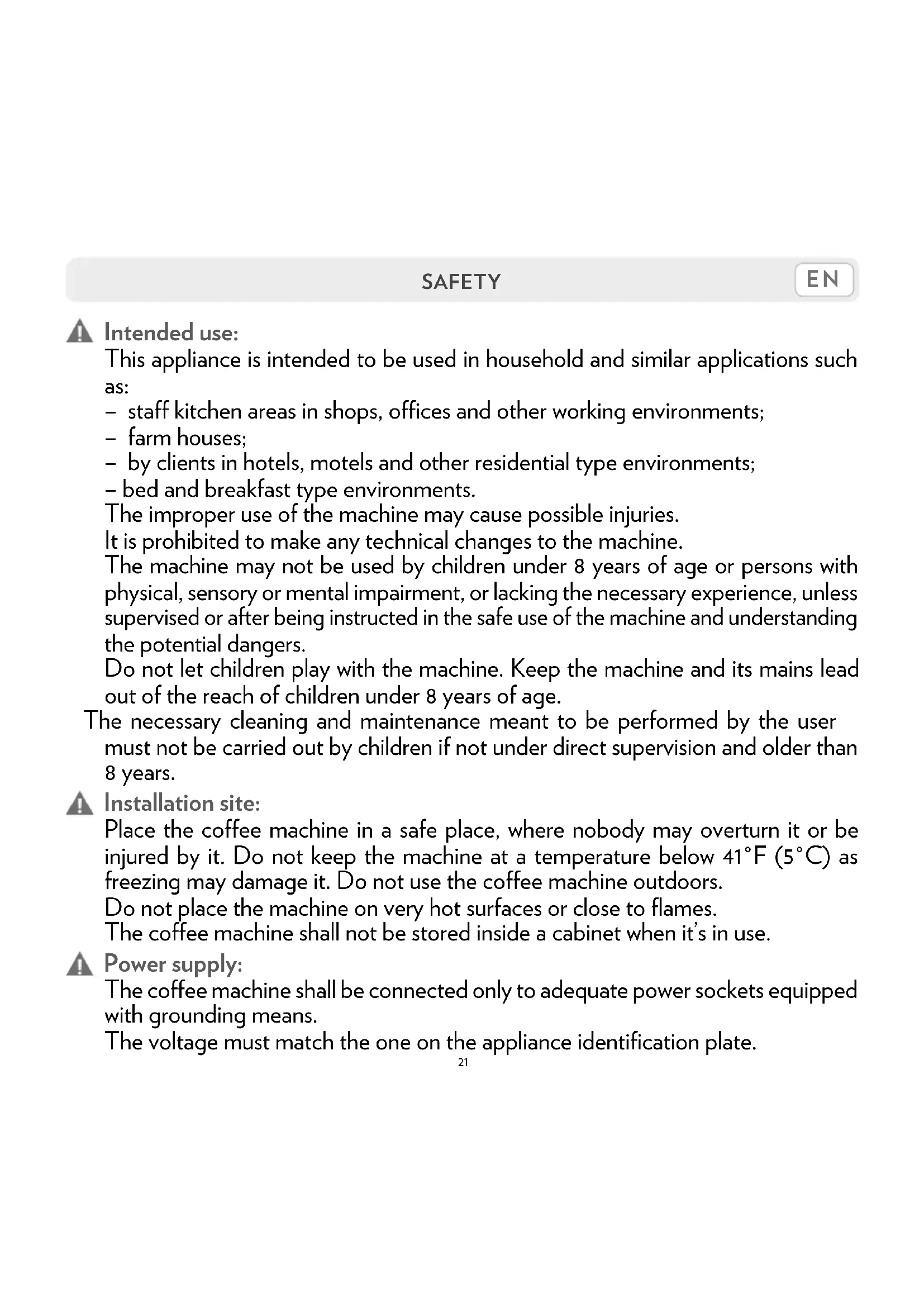

SAFETY Intended use: This appliance is intended to be used in household and similar applications such as: – staff kitchen areas in shops, offices and other working environments; – farm houses; – by clients in hotels, motels and other residential type environments; – bed and breakfast type environments. The improper use of the machine may cause possible injuries. It is prohibited to make any technical changes to the machine. The machine may not be used by children under 8 years of age or persons with physical, sensory or mental impairment, or lacking the necessary experience, unless supervised or after being instructed in the safe use of the machine and understanding the potential dangers. Do not let children play with the machine. Keep the machine and its mains lead out of the reach of children under 8 years of age. The necessary cleaning and maintenance meant to be performed by the user must not be carried out by children if not under direct supervision and older than 8 years. Installation site: Place the coffee machine in a safe place, where nobody may overturn it or be injured by it. Do not keep the machine at a temperature below 41°F (5°C) as freezing may damage it. Do not use the coffee machine outdoors. Do not place the machine on very hot surfaces or close to flames. The coffee machine shall not be stored inside a cabinet when it’s in use. Power supply: The coffee machine shall be connected only to adequate power sockets equipped with grounding means. The voltage must match the one on the appliance identification plate.22 ITEN SAFETY Power supply cable

Do not operate the coffee machine if the power cord is damaged. If the power cord is damaged, it must be replaced by the manufacturer (or the latter’s technical service staff), in order to prevent any risk. Do not pass the power cable for angles and sharp edges, over very hot objects, and protect it from oil. Do not carry or pull the coffee machine holding it by the power cord. Do not remove the plug by pulling the power cord, do not touch it with wet hands. Power cord should not hang loose from tables or shelves. Danger of electrocution: Live parts should never come into touch with water. This unit shall not be dipped into any liquid

Protect children under 8 years of age: Prevent children from playing with the machine. Children are not aware of the risks related to electric household appliances. Do not leave the machine packaging materials within the reach of children. Danger of burns: Do not touch the hot parts (cartridge holder group) of the machine immediately after use. While dispensing the drink, pay attention to any possible splashes of hot liquid. Cleaning: Before cleaning, unplug the machine and let it cool down. Do not immerse the machine in water! It is strictly forbidden to tamper with the internal parts of the machine. Change the water in the tank if not used for 3 days. To prevent damage to the appliance do not use alkaline cleaning agents when cleaning, use a soft cloth and a mild detergent.23

SAFETY Storing the machine: If the machine remains inactive for a long time, unplug it and store it in a dry place out of reach of children. Keep it protected from dust and dirt. Servicing / Maintenance:

n case of failure, problems or a suspected fault resulting from falling of the machine, immediately unplug the machine. Do not attempt to operate a faulty machine. Servicing and repairs can only be performed by Lavazza Authorized Service Centres. All liability for damages re- sulting from work not carried out by professionals is declined. Water tank: Fill the tank only with fresh, non-sparkling, drinking water. Do not operate the machine if the water is not at least above the minimum level indicated on the tank. Capsule compartment: Only Lavazza or compatible capsules must be introduced in the cap- sule-holder; do not put in your fingers or any other object. The capsules shall be used only once. Machine disposal at the end of its operational life: INFORMATION FOR THE USER: the symbol of the crossed-out wheeled bin on the appliance or its packaging indicates that the product must be disposed of separately from other waste at the end of its operational life. The user must therefore take the appliance to be disposed of to an appropriate separate collection centre for electrical and electronic equipment. Appropriate separate waste collection, in view of the decommissioned equipment’s recycling, processing and environment-friendly disposal, helps avoiding possible adverse effects both on the environment and the public health and, also, promotes the reuse and/or recycling of the materials the machine is made up of . Specific administrative sanctions provided for by current regulations will be applied for illicit disposal of the product by the user.24 ITEN PACKAGE CONTENT *

• Welcome kit consisting of 9 assorted Lavazza A MODO MIO capsules and a Lavazza A MODO MIO leaflet (included only in some countries) MACHINE COMPONENTS

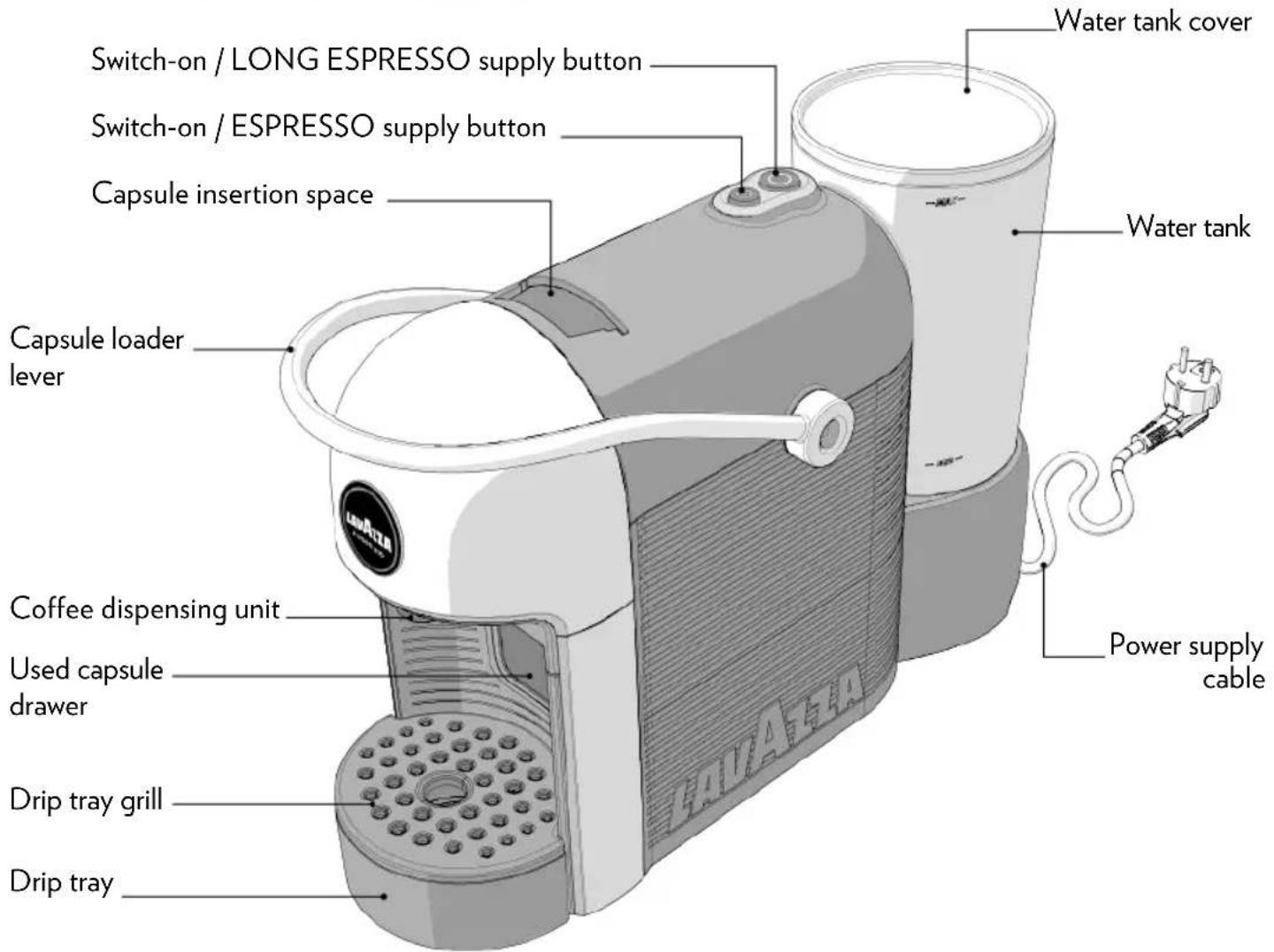

• warranty sheet Used capsule drawer Coee dispensing unit Drip tray grill Water tank cover Water tank Power supply cable Capsule insertion space Drip tray Capsule loader lever * The characteristics and the package content can vary according to the target market. Switch-on / LONG ESPRESSO supply button Switch-on / ESPRESSO supply button25

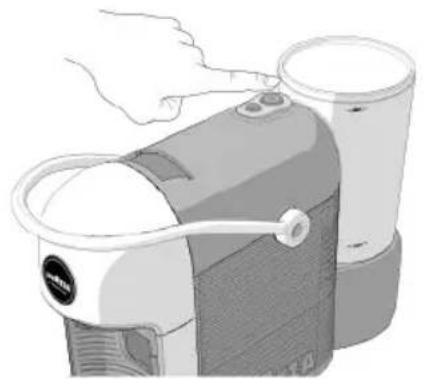

Power on Press one of the switch-on/supply buttons to switch the macchine on. Heating cycle The switch-on/supply buttons will start blinking to a light white. Machine ready (in temperature) The machine will be ready for use when the switch-on/supply buttons light up to a steady white light white light. ESPRESSO supply phase (1 fl.oz/30 cc)

1. Press the ESPRESSO button;

2. The button will blink to a white light

during the supplying phase. LONG ESPRESSO supply phase (2 fl.oz/60 cc)

1. Press the LONG ESPRESSO button;

2. The button will blink to a white light

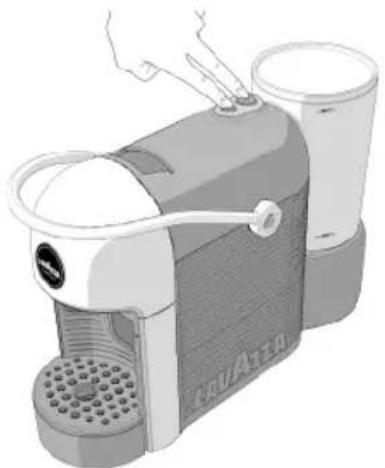

during the supplying phase. Stand-by Stand-by mode after 9 minutes.

• The machine can be set to the stand-by mode manually, first of the 9 minutes’ time, by keeping both buttons pressed down for at least 3 seconds. INDICATOR LIGHTS 3 sec. (1 fl.oz/30 cc) (2 fl.oz/60 cc)26 ITEN No water in tank during ESPRESSO supply phase

1. Fill the water tank up to the indicated MAX level;

2. Press the selected button again to keep on supplying.

No water in tank during LONG ESPRESSO supply phase

1. Fill the water tank up to the indicated MAX level;

2. Press the selected button again to keep on supplying.

Coee dose programming

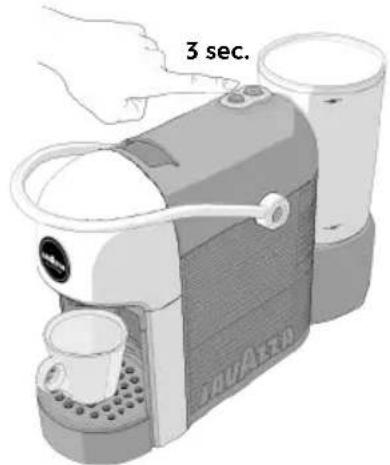

1. Press and hold one of the two coffee delivery buttons

for at least 3 seconds.

2. The selected button will flash.

3. Once the desired amount of coffee has been obtained,

stop supply by releasing the button. Used capsule drawer filled

1. Switch-on/supply buttons lights on with white light

2.   Empty the spent capsule drawer and press one of the

power on/supply buttons to reset the machine. Machine broken

1. Red flashing lights.

MACHINE SETTING No liability is held for damage caused by:

• incorrect use not in accordance with the intended purposes;

• repairs not carried out by Lavazza authorized service centres;

• tampering with the power supply cable;

• tampering with any parts of the machine;

• the use of non-original spare parts and accessories;

• use in places with relative humidity above 95%;

• use of capsules others than indicated. In these cases, the warranty is not valid.

STARTING THE MACHINE

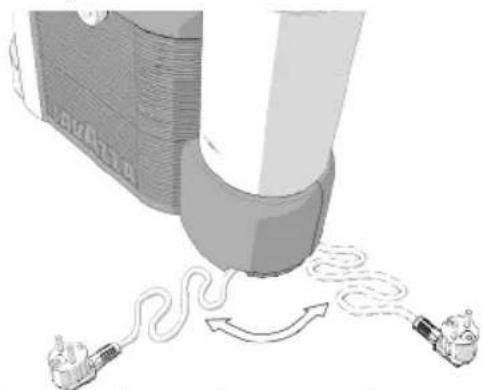

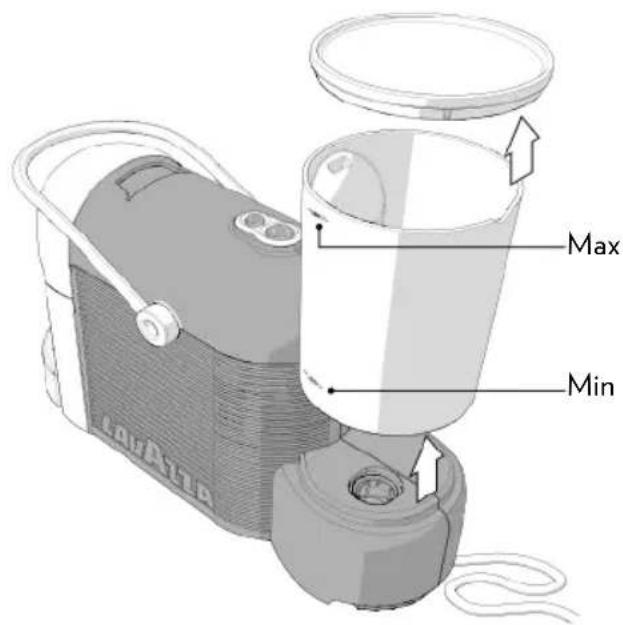

Place the coffee machine on a flat and stable surface, far from water and heat sources. Do not connect the machine to the mains supply. Machine damages due to non-observance of these indications are not covered by warranty. Lift and remove the cover, then the water tank itself. Rinse off the tank. Fill the water tank up to the MAX level indicated, using only fresh drinking water. Fit the tank back into place, then close by using the cover. Hot water and other liquids can damage the tank and the machine. Do not operate the machine without water: make sure that there is enough water in the tank. Max Min28 ITEN MACHINE SETTING The machine rear features two outlets that can be used for the power cord. You should use the most suitable outlet for your needs. Fit the supply plug into the power outlet. Press one of the switch-on/supply buttons to switch the macchine on. The coffee machine starts the heating cycle. The switch- on/supply buttons will start blinking to a light white. During the heating cycle, you can book the drink, press- ing one of the switch-on /supply buttons. The drink will be released after the end of the heating cycle. The machine will be ready for use when the switch-on/ supply buttons light up to a steady white light white light. At first power-on, supply at least 17.5 fl.oz (0.5 litre) of water without capsule placing a container under the coffee spout. STAND-BY FUNCTION To ensure the energy conservation the machine auto- matically passes to the stand-by mode after 9 minutes of not being used. The machine can be set to the stand-by mode manually, first of the 9 minutes’ time, by keeping both buttons pressed down for at least 3 seconds. This mode is indicat- ed by the switching off of the buttons. The machine can be reactivated by pressing the buttons again.29

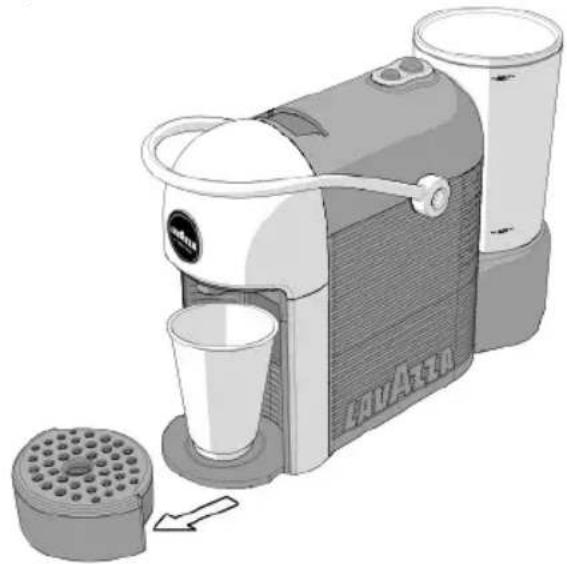

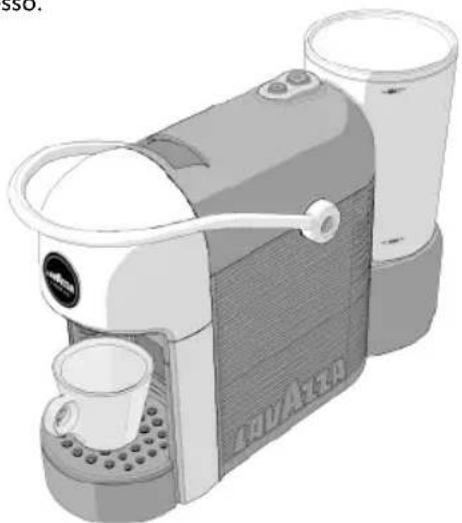

COFFEE DISPENSING Make sure that the switch-on/supply buttons lights up to a steady white light. Never put fingers or objects in the capsule-holder. Only compatible capsules must be introduced in the capsule-holder. Single-dose capsules are prepared to dispense one coffee/product. DO NOT use the capsules more than once. Inserting two or more capsules can cause the machine to mal- function. To always have a coffee at the perfect temperature, it is recommended to preheat the cup with hot water. Position the cup under the dispensing spout without in- serting the capsule. Press one of the switch-on/supply buttons to supply hot water enough to pre-heat the cup. Place the cup under the coffee dispenser for a classic espresso. Remove the drip tray to use cups of different sizes for a long coffee. If power supply is interrupted during the coffee supply cycle, restore power supply and restart the coffee supply procedure. If during the supply cycle, water lacks in the tank, water lack will be indicated by white steady LED on the selected button, while the LED on the other button will start flash- ing, then proceed as follows - Fill the water tank up to the MAX level indicated. - Press the power-on/supply button previously selected. The button will start flashing and the coffee supply proce- dure will restart. After 5 supplies the switch-on/supply buttons start blinking fast with white light to indicate that the cap- sules drawer is filled. Empty the capsules drawer and press one of the buttons to reset the machine. Now the machine is ready for a new supply

PREPARING THE COFFEE30

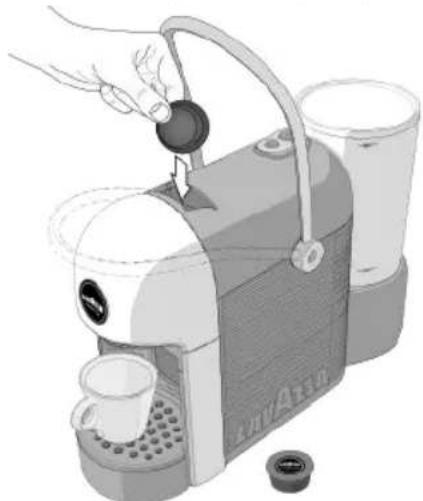

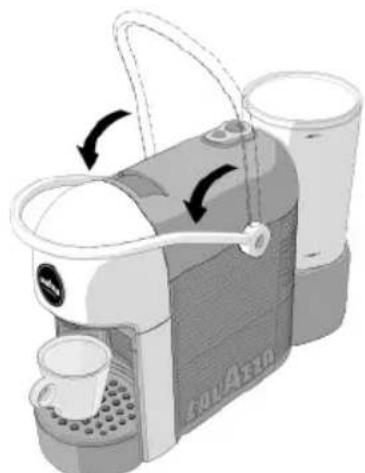

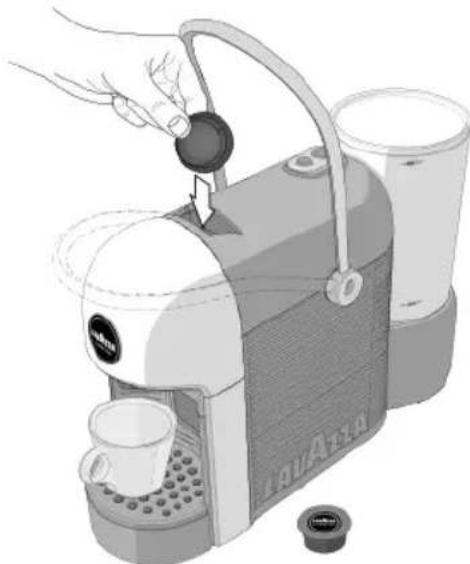

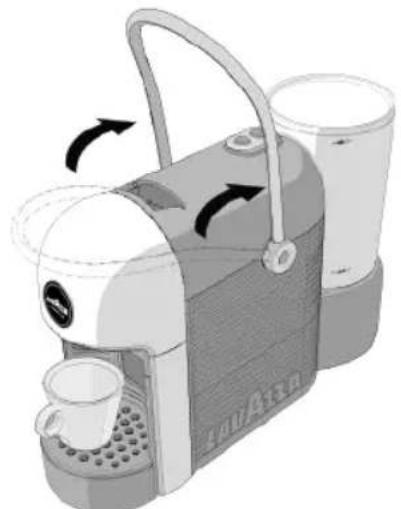

ITEN Lift the capsule loading lever until it locks into position to open the capsule fitting compartment. Put a capsule into the capsule fitting compartment. Lower the capsule loading lever to close the capsule fitting compartment.

PREPARING THE COFFEE

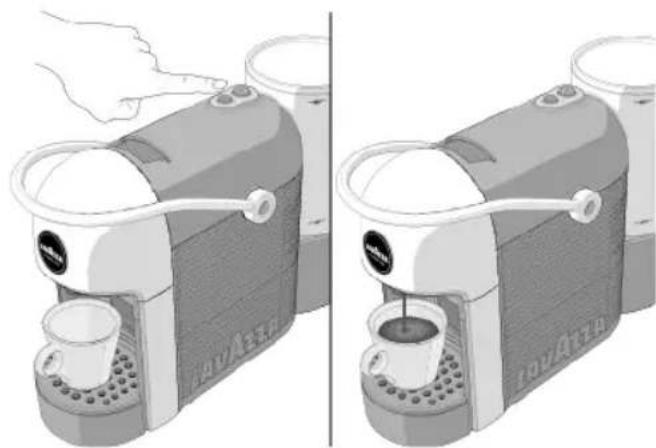

Press the ESPRESSO button (1 fl.oz/30 cc) or press the LONG ESPRESSO button (2 fl.oz/60 cc) to start delivery. The machine will stop delivery automatically when the programmed measure is reached. The switch-on/supply button will light up to a blinking white light when the product is being supplied. To supply the product again, wait for the switch-on/ supply button to light up to a steady white light.31

PROGRAMMING THE MACCHINE

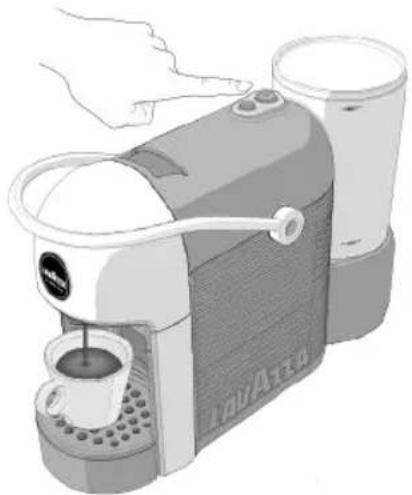

COFFEE DOSE PROGRAMMING

Measures are always programmed using the same button; any other buttons are ignored. The programmed amount of brewed coffee can be changed by repeating the pro- gramming. If the programmed measure exceeds the maximum al- lowed 8,7 fl.oz (250 cc) the machine will automatically stop delivery, the delivery button will blink and the last programmed measure will be saved in the memory. If there is a power failure during programming, the last programmed value remains in the memory. If during a dose programming, water lack is indicated, the machine stops the supply and the dose being programmed won’t be saved. Once filled the water tank, repeat the dose programming procedure. Lift the capsule loading lever until it locks into position to open the capsule fitting compartment. Put a capsule into the capsule fitting compartment. Lower the capsule loading lever to close the capsule fit- ting compartment. Press and hold one of the two coffee delivery buttons for at least 3 seconds. The selected key will flash and the coffee machine will enter the programming mode. Once the desired amount of coffee has been obtained, stop supply by releasing the button. 3 sec.32 ITEN

MAINTENANCE AND CLEANING

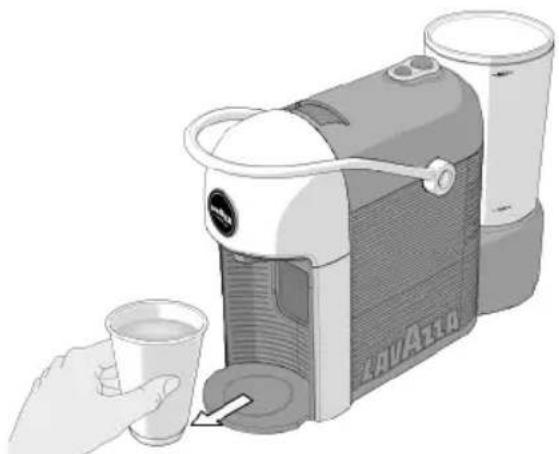

Never use solvents, alcohol or other aggressive sub- stances or ovens for drying the coffee machine com- ponents. Wash machine components (electric components ex- cluded) with cold/lukewarm water and non-abrasive clothes/sponges. All removable components can be cleaned by using a dishwasher. Do not leave water in the tank and water circuit for more than 3 days. If this is the case, drain the tank and circuit, rinse it and refill it with fresh water, then carry out a delivery without capsule before making any coffee or other beverage.

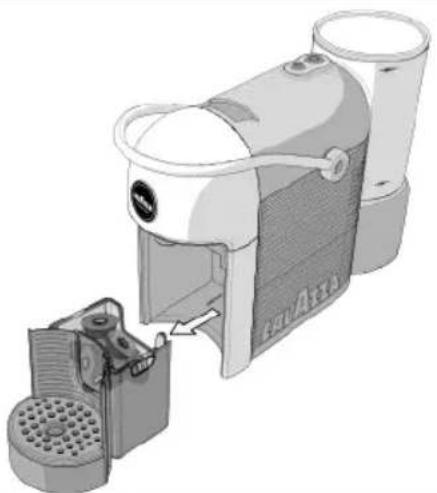

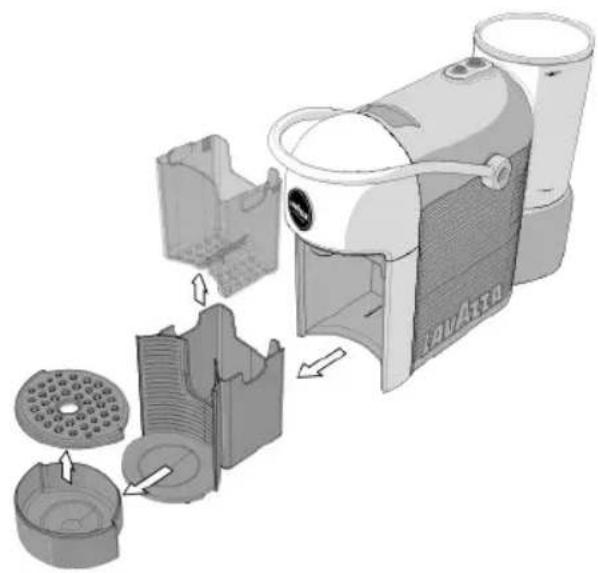

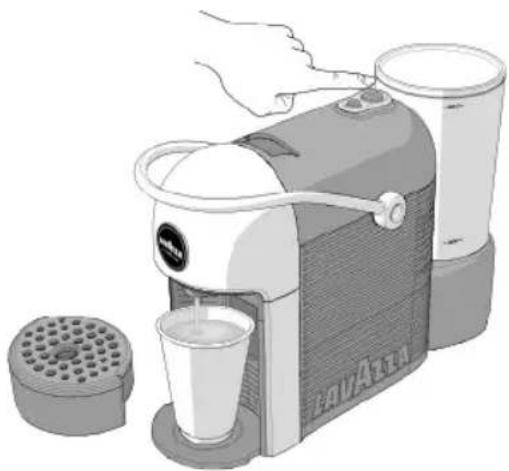

After 5 supplies the switch-on/supply buttons start blink- ing fast with white light to indicate that the capsules draw- er is filled. Empty the capsules drawer and press one of the buttons to reset the machine. Regularly verify that the used capsule collecting drawer and the drop collecting drawer will not be full, to avoid machine malfunctions and damage. The used capsule collecting drawer and the drop col- lecting drawer should be emptied and cleaned after making coffee 4/5 times or every two/three days. Take off the drip tray and remove the drip tray grill. Remove and empty the used capsule collecting draw- er. Clean and dry all parts before putting them back.

COFFEE DISPENSER CLEANING

To clean the dispenser, perform a weekly COFFEE BREWING procedure without inserting the capsule.33

MAINTENANCE AND CLEANING

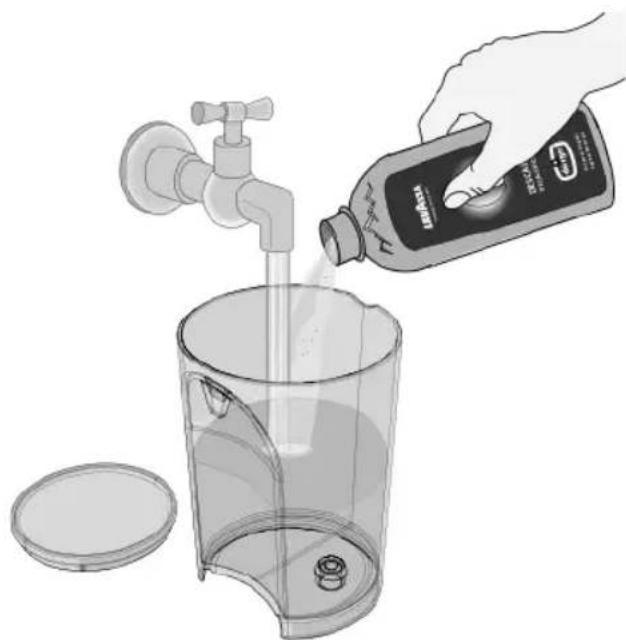

DESCALING Carefully read the descaling instructions. Limescale normally builds up with extended use of the appliance; the machine needs descaling every 2-3 months and/ or whenever a reduction in water flow is noticed. To decalcify the machine, It Is recommended that the LAVAZZA DESCALING agent should be used. Never use vinegar as a descaling solution. The cycle will have, once it has been started, to be performed completely. Do not switch the machine off when the descaling cycle is under way. Do not move away from the machine when the des- caling cycle Is under way. Do not drink the descaling solution and products dispensed. DESCALINGDECALCIFICANTEdurgol The Swiss Orig inalagainst Limescale Check there is no capsule inside the capsule contai- ning compartment. Remove and empty the water tank Fill the tank with the Lavazza DESCALING agent 8,4 fl.oz (250 ml) and water 8.4 fl.oz (250 ml). Use a moist cloth to wipe off the squirts or drops, if any. Fit the tank back into place on the machine. Power the machine ON and place a suitable container under the spout34 ITEN Press one of the supply buttons then supply one cup (approximately 2 fl.oz/60 ml) of descaling solution. Allow the descaling solution to work for about 15-20 seconds. During breaks, empty the container used to collect the solution. Repeat the steps described in points and until the water tank is completely empty. Proceed with the rinsing cycle. Rinsing cycle Remove the water tank, rinse and wash it accurately. Fill it with drinking fresh non-carbonated water up to the MAX level. Fit the tank with the fresh water back into the machine

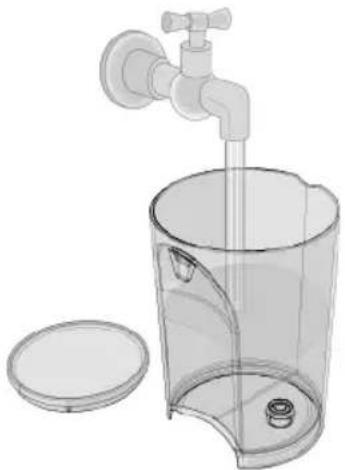

Place a suitable container under the spout. Press one of the supply buttons then supply the full content of the tank. Empty the container and place it again under the dis- penser. Upon completion of the rinsing cycle, perform one more rinsing cycle. Remove the water tank, rinse and wash it accurately. Fill it with drinking fresh non-carbonated water up to the MAX level. Put the tank back in place on the machine. Clean the machine by means of a moist, soft cloth. After cleaning the machine, the descaling process will be over. The machine will be ready for use.

TROUBLESHOOTING Problem encountered Possible causes Solution Machine does not turn on. Power lights are off after having pressed the switch-on/ supply buttons. »   Machine is not connected to the power source. »   The machine is connect to power strip not working. »   Power supply not present. »   Connected the machine to the power source. »   Connected the machine directly to the power source. »   Connect another device to check the power supply. »   If the problem remain please contact L.C.S. The machine requires a lot of time to heat up. »   Machine storage at low temperatures (e.g.: cellar/garage). »   The machine has limescale build-up. »   Store the coffee machine in a proper environment and run 2 supplies without capsules. »   Descale the machine. »   If the problem remain please contact L.C.S. The machine is very noisy. »   Machine not is on a flat and stable surface. »   Power supply cable incorrectly positioned. »   Movable parts not fitted properly. »  No water in the tank. »  Capsule not present. »   Check the surface. »   Check the correct position of the cable into the base of the machine. »   Fit the movable parts properly. »  Top up the tank with fresh drinking water. »  Insert Lavazza capsule or compatible. »   If the problem remain please contact L.C.S. No supply. »   Electrical failure: buttons not working. »  No water in the tank. »   Tank not inserted correctly. »   Power-on failed. »   Press one of the buttons and check the operation of the pilot light (ON with white blinking light) and the machine power-on. »  Top up the tank with fresh drinking water. »   Insert the tank correctly. »  Repeat the coffee machine power-on procedure. »   If the problem remain please contact L.C.S.36 ITEN TROUBLESHOOTING Problem encountered Possible causes Solution Water leaks at the rear side of the coffee machine. »   Tank not inserted correctly. »   Tank damaged. »   Insert the tank correctly. »   Check for leaks in the tank keeping it separate from the machine . »   If the problem remain please contact L.C.S. Water leaks at the front side of the coffee machine. »   Spent capsule drawer not inserted correctly. »   Spent capsule drawer filled. »   Capsule stuck. »   Capsule not compatible. »   Insert the spent capsule drawer correctly. »   Empty the spent capsule drawer and the drip tray. »   Lift and lower the capsule loading lever. If this is not enough, disconnect the machine from power mains and operate manually to remove the capsule from the duct. »   Use Lavazza capsules or compatibles. »   If the problem remain please contact L.C.S. The loading lever does not reach the supply position or requires an excessive closing effort. »  Spent capsule drawer filled. »   Capsule fitted incorrectly. »  Empty the spent capsule drawer. »   Repeat the sequence, lever in the off position, lever in the brewing position; if this is not enough, operate manually to remove the capsule from the duct with the machine disconnected from power mains. Red flashing lights  . »   Machine broken. »  Contact Lavazza Customer Service. Pilot lights ON with white light and blinking fast. »  Spent capsule drawer filled. »   Empty the spent capsule drawer and press one of the power on/supply buttons to reset the machine. The coffee flows out too fast and no creamy froth forms on the surface. »  Capsule not compatible. »  Capsule already used. »   Use Lavazza capsules or compatibles. »   Bring the lever back to rest position and load a new capsule. »   If the problem remain please contact L.C.S.37

TROUBLESHOOTING Problem encountered Possible causes Solution The coffee is cold. »   Coffee pours out in drops, water circuit clogged. »   The machine has limescale build-up. »   Run the machine washing cycle. »   Descale the machine. »   If the problem remain please contact L.C.S. Dispensed coffee is insufficient or excessive. »   Incorrect dose programming. »   Program the coffee dose properly. »   If the problem remain please contact L.C.S. Coffee not supplied and steam coming out of the capsule compartment. »   The loading lever was not set to the brewing position. »   Set the loading lever to the brewing position. »   If the problem remain please contact L.C.S. Coffee pours out in drops. »   Faulty capsule. »   Pump working improperly. »   Spout/water circuit clogged. »   The machine has limescale build-up. »   Replace the capsule. »   Check for abnormal noise of the machine. »   Clean the coffee dispensing spout (see MAINTENANCE AND CLEANING). »   Descale the machine. »   If the problem remain please contact L.C.S. One of the two buttons is not working and the relevant LED is off »   Mechanical blocking »   Try to power the machine off by disconnecting the power plug for 10 seconds then reconnect it. Power the machine on and check the correct operation of both buttons. »   If the problem persists, the machine can continue to be used with the other button; in this case, the button working regularly will no longer have the automatic dosing but will be free dosing, and the user will decide when stopping the dose. »   If the problem remain please contact L.C.S. Contact Lavazza Customer Service (L.C.S.) for any problem or failure not included in the above list.38 ITEN TECHNICAL SPECIFICATIONS

• Nominal Voltage: .........See label on the appliance

• Power Rating: ................. See label on the appliance

• Power Supply: ................See label on the appliance

• Measurements: ............. Height Width Depth 214 mm 124 mm 330 mm

8.26 in 4.72 in 12.99 in

• Housing materials: ........Thermoplastic

• Instantaneous aluminum boiler with temperature probe39
