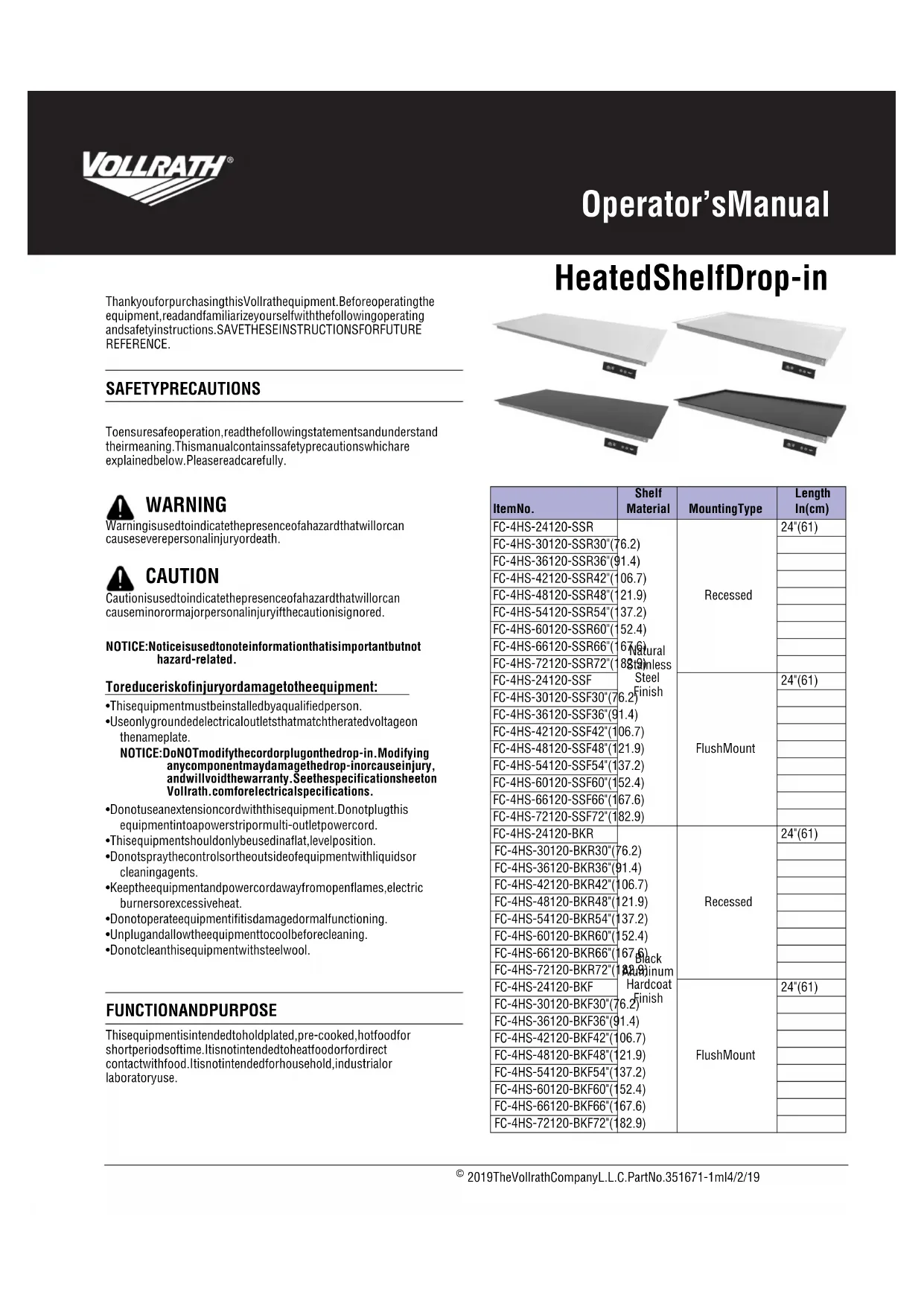

USER MANUAL FC4HS30120BKF Vollrath

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.

SAFETYPRECAUTIONS

Toensuresafeoperation,readthefollowingstatementsandunderstand theirmeaning.Thismanualcontainssafetyprecautionswhichare explainedbelow.Pleasereadcarefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcan causeseverepersonalinjuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcan causeminorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

Toreduceriskofinjuryordamagetotheequipment:

• This equipment must be installed by a qualified person.
- Useonlygroundedelectricaloutletsthatmatchtheratedvoltageon thenameplate.
- Donotuseanextensioncordwiththisequipment.Donotplugthis equipmentintoapowerstripormulti-outletpowercord.
- This equipment should only be used in a flat, level position.
- Donotspraythecontrolsortheoutsideofequipmentwithliquidsorcleaningagents.
- Keep the equipment and power cord away from open flames, electric burners over excessive heat.
- Donotoperateequipmentifitisdamagedormalfunctioning.
- Unplugandallowtheequipmenttocoolbeforecleaning.
- Donotcleanthisequipmentwithsteelwool.

NOTICE: Do NOT modify the chordor plug on the drop-in. Modifying any component may damage the drop-in or cause injury, and will void the warranty. Seethespecificationsheet on Vollrath.com forelectrical specifications.

FUNCTIONANDPURPOSE

This equipment is intended to hold plated, pre-cooked, hot food for short period so time. It is not intended to heat food or for direct contact with food. It is not intended for household, industrial or laboratory use.

HeatedShelfDrop-in

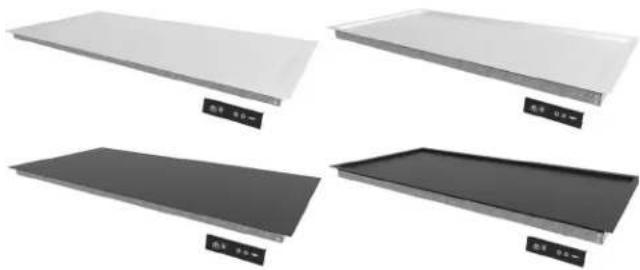

Four different rectangular panels with black and white surfaces, each labeled with Chinese text (no other symbols or text visible)

ItemNo.	Shelf Material	MountingType	Length In(cm)
FC-4HS-24120-SSR		Recessed	24"(61)
FC-4HS-30120-SSR30"(76.2)
FC-4HS-36120-SSR36"(91.4)
FC-4HS-42120-SSR42"(106.7)
FC-4HS-48120-SSR48"(121.9)
FC-4HS-54120-SSR54"(137.2)
FC-4HS-60120-SSR60"(152.4)
FC-4HS-66120-SSR66"(167.6)
FC-4HS-72120-SSR72"(182.9)
FC-4HS-24120-SSF	Steel Finish	FlushMount	24"(61)
FC-4HS-30120-SSF30"(76.2)
FC-4HS-36120-SSF36"(91.4)
FC-4HS-42120-SSF42"(106.7)
FC-4HS-48120-SSF48"(121.9)
FC-4HS-54120-SSF54"(137.2)
FC-4HS-60120-SSF60"(152.4)
FC-4HS-66120-SSF66"(167.6)
FC-4HS-72120-SSF72"(182.9)
FC-4HS-24120-BKR		Recessed	24"(61)
FC-4HS-30120-BKR30"(76.2)
FC-4HS-36120-BKR36"(91.4)
FC-4HS-42120-BKR42"(106.7)
FC-4HS-48120-BKR48"(121.9)
FC-4HS-54120-BKR54"(137.2)
FC-4HS-60120-BKR60"(152.4)
FC-4HS-66120-BKR66"(167.6)
FC-4HS-72120-BKR72"(182.9)
FC-4HS-24120-BKF	Hardcoat Finish	FlushMount	24"(61)
FC-4HS-30120-BKF30"(76.2)
FC-4HS-36120-BKF36"(91.4)
FC-4HS-42120-BKF42"(106.7)
FC-4HS-48120-BKF48"(121.9)
FC-4HS-54120-BKF54"(137.2)
FC-4HS-60120-BKF60"(152.4)
FC-4HS-66120-BKF66"(167.6)
FC-4HS-72120-BKF72"(182.9)

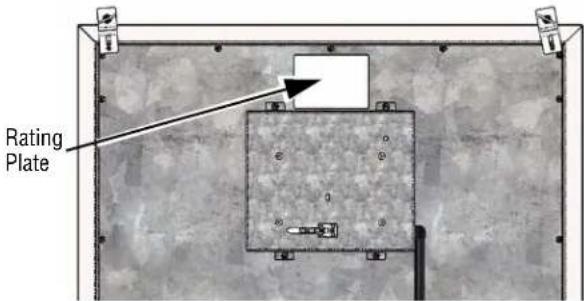

RECORD YOUR SERIAL NUMBER

The serial number for your Heated Shelf Drop-incan be found on the rating plate located on the underside of the heated shelf. To aid in future communication about your product, pleaserecord the serial number in the space below.

Rating Plate

SerialNumber

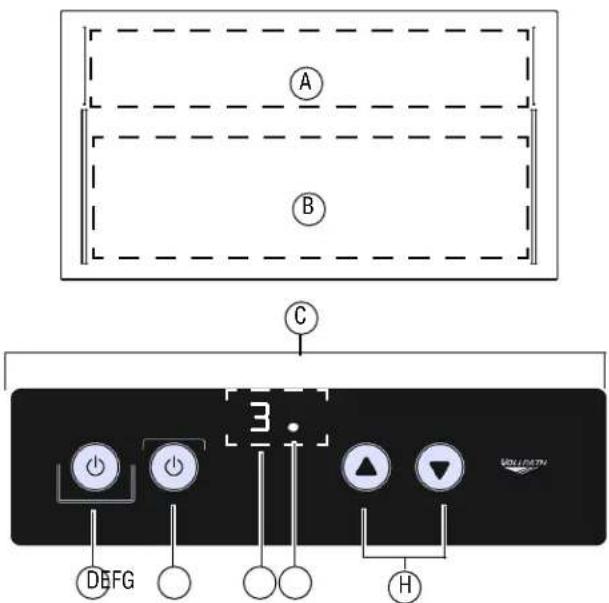

FEATURESANDCONTROLS

A B C 3 DEFG H

A Heatzone2
B Heatzone1
C Controlpanel
D Heatzone2powerbutton
E Heatzone1powerbutton
F Currentheatsetting
G Heatingindicatorlight. This is not a power indicator light.
H Heatcontrolbuttons.Settings1to9.

Low:1-3

Medium:4-6

High:7-9

OPERATION

CAUTION

BurnHazard

Donottouchhotfood, liquidorheatingsurfaceswhile equipmentisheatingoroperating.

NOTICE: Foodmustbeplated. Donotplacefooddirectlyontothe heatedshelf.

NOTICE: The heated shelf can reach temperatures up to 200°F (93.3°C). Donot placematerials on the shelf that can be comedamaged at that temperature.

NOTICE: Donotslideplates, pans, cookware, etc. across the hardcoat finish. This could created a gametothefinish that is not covered under warranty.

Tip: To extend the duration at which food shield at optimal holding temperatures, use a Vollrath heat strip in conjunction with the heated shelf.

1. Presstheheatzone(s) powerbuttonstoturnontheheated-shelf. Thebutton(s) willilluminate. Theheatzonesetting(s) willdefaultto thesettingsfromtheprevioususe.
2. Presstheheatcontrolbutton(s)toselectaheatsetting. Note: Theheatsettingwillapplytobothzones.
3. The control panel will display these selected heat setting and the heating indicator light will illuminate

1. Thelightwillcycleonandoffastheshelfperiodicallyheatsto maintaintheheatsetting.

1. Platepre-cookedfood, heatedtoproperservingtemperature. Place theplatedfoodontothepre-heatedshelf.

NOTICE:Monitorfoodtemperaturecloselyforfoodsafety. The UnitedStatesPublicHealthServicerecommendsthathot foodbeheldataminimumof140°F(60°C)tohelp preventbacteriagrowth.

1. Monitor food and adjustment the heat settings as needed.
2. When finished using the shelf, remove the food and turn off the shelf.

CLEANING

WARNING

ElectricalShockHazard

Donotspraywaterorcleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoran electricalshock.

CAUTION

BurnHazard

Hotsurfacesandfoodcanburnskin.Allowthehotsurfacesto coolbeforehandling.

Tomaintaintheappearanceandincreasetheservicelife,cleanyour equipmentdaily.

NOTICE: Donotusecausticcleaningchemicals, steelwoolor commerciallimeremovalproductstocleantheequipment. Thoroughlyrinseequipmentwithwateraftercleaning.

1. Presstheheatzonebutton(s) to turn off the equipment.
2. Unplugtheequipment.
3. Use gloves, mittsorpotholderstoprotechands when removing containers of hot food.
4. Allow the equipment to cool completely before cleaning.
5. Useadampclothorspongedippedinsoapywatertocleanthe equipment.
6. Useadampclothorspongedippedincleanwatertorinsethe equipment.
7. Use as soft cloth to thoroughly dry the equipment.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Shelftemperaturesistoohigh,too loworisheatingunevenly.	Problemwithaninternalcomponent.	ContactVollrathTechnicalServices.Problemwiththeheatingelement
	Problemwiththethermistor.
Shelfdoesnotheat,butcontrolpanel isilluminated.	Electricalfailure	ContactVollrathTechnicalServices.
	Heatingelementfailure
Shelfsuddenlyturnsoff.	Problemwithaninternalcomponent.ContactVollrathTechnicalServices.
	PowercordisdisconnectedPluginthepowercord
	USBcontrolcableisdisconnected	ChecktheUSBcableconnectionstothecontrolpanelandthe powerboxmountedtothebottomoftheshelf.
Controlpaneldoesnotilluminate.	Controlpanelisnotcommunicatingwith shelfbecauseUSBcableisdisconnectedor damaged	ChecktheUSBcableconnectionstothecontrolpanelandthe powerboxmountedtothebottomoftheshelf.
	Issuewiththeelectricalpowertothedrop-in	Verifytheequipmentispluggedintoanelectricaloutletwith thecorrectvoltage,andonitsownseparatecircuit
	Problemwithinternalcomponents	ContactVollrathTechnicalServices.
	Damagetocontrolpanel
Controlpanelisbeeping.Aproblemwithasensororheatingelement.ContactVollrathTechnicalServices.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty top purchasers for such uses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcomplete warranty information, product registration and new product announcement, visit www.vollrath.com.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC.PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

www.vollrath.com

The VollrathCompany, L.L.C.

1236North18thStreet

Sheboygan, WI53081-3201U.S.A.

MainTel:800.624.2051or920.457.4851

MainFax:800.752.5620or920.459.6573

CustomerService:800.628.0830

CanadaCustomerService:800.695.8560

TechnicalServices

[e-mail]

InductionProducts:800.825.6036

CountertopWarmingProducts:800.354.1970

Toasters:800-309-2250

AllOtherProducts:800.628.0832
