Brand	Vollrath
Model	FC-4HS-72120-SSR
Product Type	Built-in plate warmer
Usage	Keeping pre-cooked or plated food warm
Number of heated areas	2 independent zones
Temperature setting	9 positions (1-3 low, 4-6 medium, 7-9 high)
Display	Set temperature and heating indicator
Power supply	Grounded plug, rated voltage per nameplate
Maximum temperature	200 °F (93.3 °C)
Material	Stainless steel (heating surface)
Installation	By qualified personnel, on a flat and level surface
Maintenance and cleaning	Damp cloth with soapy water, rinse and wipe; do not use steel wool
Safety	Heating indicator (not an on/off indication); risk of burns; do not spray liquid
Spare parts	Available at Vollrath.com
Repairability	Do not repair yourself; contact Vollrath technical support
Warranty	Vollrath manufacturer's warranty, excluding domestic use
General information	Contact Vollrath: www.vollrath.com; phone numbers per product

Frequently Asked Questions - FC-4HS-72120-SSR Vollrath

How to set the temperature on the Vollrath FC-4HS-72120-SSR plate warmer?

Use the temperature setting buttons (H and I) to select a level from 1 to 9. Levels 1 to 3 are low, 4 to 6 medium, and 7 to 9 high. The temperature applies to both heated zones.

What to do if the shelf does not heat but the control panel is on?

This may be due to an internal component or heating element issue. Check that the appliance is plugged into a proper grounded outlet. If the problem persists, contact Vollrath technical support.

Can I use an extension cord with this plate warmer?

No, it is not recommended to use an extension cord or power strip. Plug the appliance directly into a grounded outlet suitable for the rated voltage.

How to clean the Vollrath plate warmer?

After unplugging and cooling the appliance, clean with a damp cloth or sponge soaked in soapy water. Rinse with clean water and wipe with a soft cloth. Do not use steel wool or caustic products.

What is the maximum temperature reached by the heating shelf?

The shelf can reach up to 200 °F (93.3 °C). Do not place anything that could be damaged at this temperature.

Does the heating indicator show that the appliance is on?

No, the heating indicator (G) indicates that the element is heating to maintain the set temperature. It turns on and off periodically. It is not an on/off indicator.

Can I place food directly on the heating shelf?

No, food must first be plated. Do not place food directly on the shelf. Use plates or dishes suitable for heat.

What to do if the control panel does not light up?

Check that the power cord is plugged in and the outlet is energized. Also check the USB cable connections between the panel and the power unit. If the problem persists, contact Vollrath technical support.

Is the appliance warranted for domestic use?

No, the Vollrath warranty does not apply to products purchased for personal, family or household use. It is valid for professional use, as stated in the full warranty statement.

Where to find spare parts for this plate warmer?

Spare parts are available on the Vollrath.com website. Do not attempt to repair the appliance yourself; contact technical support for instructions.

USER MANUAL FC-4HS-72120-SSR Vollrath

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.

SAFETYPRECAUTIONS

Toensuresafeoperation,readthefollowingstatementsandunderstand theirmeaning.Thismanualcontainssafetyprecautionswhichare explainedbelow.Pleasereadcarefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcan causeseverepersonalinjuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcan causeminorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

Toreduceriskofinjuryordamagetotheequipment:

• This equipment must be installed by a qualified person.
- Useonlygroundedelectricaloutletsthatmatchtheratedvoltageon thenameplate.
- Donotuseanextensioncordwiththisequipment.Donotplugthis equipmentintoapowerstripormulti-outletpowercord.
- This equipment should only be used in a flat, level position.
- Donotspraythecontrolsortheoutsideofequipmentwithliquidsorcleaningagents.
- Keep the equipment and power cord away from open flames, electric burners over excessive heat.
- Donotoperateequipmentifitisdamagedormalfunctioning.
- Unplugandallowtheequipmenttocoolbeforecleaning.
- Donotcleanthisequipmentwithsteelwool.

NOTICE: Do NOT modify the chordor plug on the drop-in. Modifying any component may damage the drop-in or cause injury, and will void the warranty. Seethespecificationsheet on Vollrath.com forelectrical specifications.

FUNCTIONANDPURPOSE

This equipment is intended to hold plated, pre-cooked, hot food for short period so time. It is not intended to heat food or for direct contact with food. It is not intended for household, industrial or laboratory use.

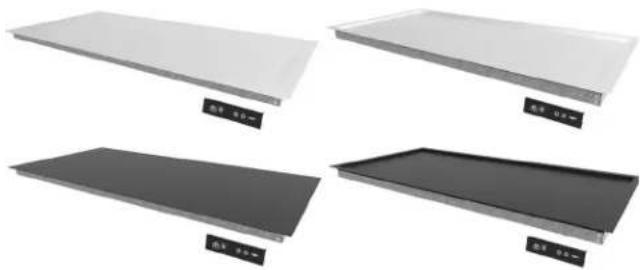

HeatedShelfDrop-in

Four different rectangular panels with black and white surfaces, each labeled with Chinese text (no other symbols or text visible)

ItemNo.	Shelf Material	MountingType	Length In(cm)
FC-4HS-24120-SSR	Steel Finish	Recessed	24"(61)
FC-4HS-30120-SSR30"(76.2)
FC-4HS-36120-SSR36"(91.4)
FC-4HS-42120-SSR42"(106.7)
FC-4HS-48120-SSR48"(121.9)
FC-4HS-54120-SSR54"(137.2)
FC-4HS-60120-SSR60"(152.4)
FC-4HS-66120-SSR66"(167.6)
FC-4HS-72120-SSR72"(182.9)
FC-4HS-24120-SSF		FlushMount	24"(61)
FC-4HS-30120-SSF30"(76.2)
FC-4HS-36120-SSF36"(91.4)
FC-4HS-42120-SSF42"(106.7)
FC-4HS-48120-SSF48"(121.9)
FC-4HS-54120-SSF54"(137.2)
FC-4HS-60120-SSF60"(152.4)
FC-4HS-66120-SSF66"(167.6)
FC-4HS-72120-SSF72"(182.9)
FC-4HS-24120-BKR	Hardcoat Finish	Recessed	24"(61)
FC-4HS-30120-BKR30"(76.2)
FC-4HS-36120-BKR36"(91.4)
FC-4HS-42120-BKR42"(106.7)
FC-4HS-48120-BKR48"(121.9)
FC-4HS-54120-BKR54"(137.2)
FC-4HS-60120-BKR60"(152.4)
FC-4HS-66120-BKR66"(167.6)
FC-4HS-72120-BKR72"(182.9)
FC-4HS-24120-BKF		FlushMount	24"(61)
FC-4HS-30120-BKF30"(76.2)
FC-4HS-36120-BKF36"(91.4)
FC-4HS-42120-BKF42"(106.7)
FC-4HS-48120-BKF48"(121.9)
FC-4HS-54120-BKF54"(137.2)
FC-4HS-60120-BKF60"(152.4)
FC-4HS-66120-BKF66"(167.6)
FC-4HS-72120-BKF72"(182.9)

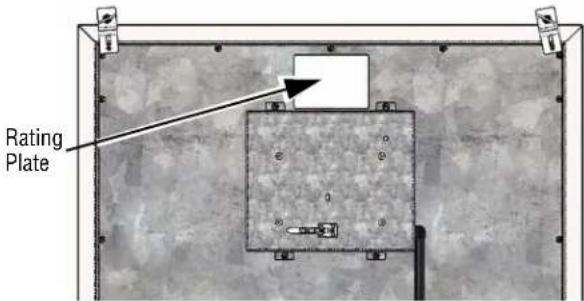

RECORD YOUR SERIAL NUMBER

The serial number for your Heated Shelf Drop-incan be found on the rating plate located on the underside of the heated shelf. To aid in future communication about your product, pleaserecord the serial number in the space below.

SerialNumber

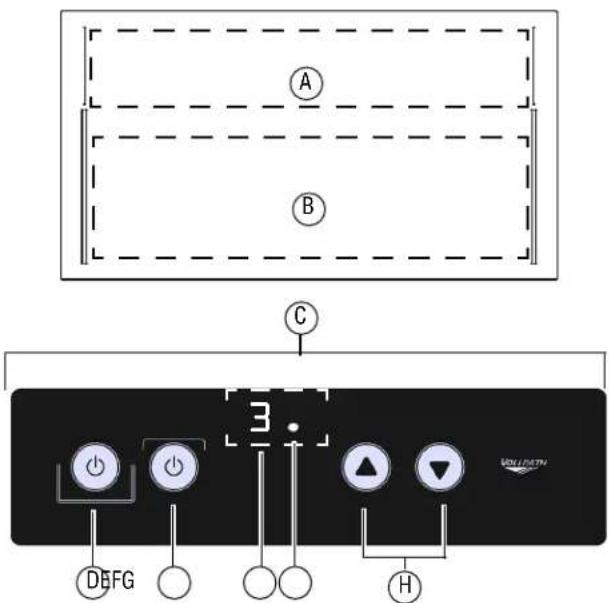

FEATURESANDCONTROLS

A Heatzone2
B Heatzone1
C Controlpanel
D Heatzone2powerbutton
E Heatzone1powerbutton
F Currentheatsetting
G Heatingindicatorlight. This is not a power indicator light.
H Heatcontrolbuttons.Settings1to9.

Low:1-3

Medium:4-6

High:7-9

OPERATION

CAUTION

BurnHazard

Donottouchhotfood, liquidorheatingsurfaceswhile equipmentisheatingoroperating.

NOTICE: Foodmustbeplated. Donotplacefooddirectlyontothe heatedshelf.

NOTICE: The heated shelf can reach temperatures up to 200°F (93.3°C). Donot placematerials on the shelf that can be comedamaged at that temperature.

NOTICE: Donotslideplates, pans, cookware, etc. across the hardcoat finish. This could created a gametothefinish that is not covered under warranty.

Tip: To extend the duration at which food shield at optimal holding temperatures, use a Vollrath heat strip in conjunction with the heated shelf.

1. Presstheheatzone(s) powerbuttonstoturnontheheated-shelf. Thebutton(s) willilluminate. Theheatzonesetting(s) willdefaultto thesettingsfromtheprevioususe.
2. Presstheheatcontrolbutton(s)toselectaheatsetting. Note: Theheatsettingwillapplytobothzones.
3. The control panel will display these selected heat setting and the heating indicator light will illuminate

1. Thelightwillcycleonandoffastheshelfperiodicallyheatsto maintaintheheatsetting.

1. Platepre-cookedfood, heatedtoproperservingtemperature. Place theplatedfoodontothepre-heatedshelf.

NOTICE:Monitorfoodtemperaturecloselyforfoodsafety. The UnitedStatesPublicHealthServicerecommendsthathot foodbeheldataminimumof140°F(60°C)tohelp preventbacteriagrowth.

1. Monitor food and adjustment the heat settings as needed.
2. When finished using the shelf, remove the food and turn off the shelf.

CLEANING

WARNING

ElectricalShockHazard

Donotspraywaterorcleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoran electricalshock.

CAUTION

BurnHazard

Hotsurfacesandfoodcanburnskin.Allowthehotsurfacesto coolbeforehandling.

Tomaintaintheappearanceandincreasetheservicelife,cleanyour equipmentdaily.

NOTICE: Donotusecausticcleaningchemicals, steelwoolor commerciallimeremovalproductstocleantheequipment. Thoroughlyrinseequipmentwithwateraftercleaning.

1. Presstheheatzonebutton(s) to turn off the equipment.
2. Unplugtheequipment.
3. Use gloves, mittsorpotholderstoprotechands when removing containers of hot food.
4. Allow the equipment to cool completely before cleaning.
5. Useadampclothorspongedippedinsoapywatertocleanthe equipment.
6. Useadampclothorspongedippedincleanwatertorinsethe equipment.
7. Use as soft cloth to thoroughly dry the equipment.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Shelftemperaturesistoohigh,too loworisheatingunevenly.	Problemwithaninternalcomponent.	ContactVollrathTechnicalServices.Problemwiththeheatingelement
	Problemwiththethermistor.
Shelfdoesnotheat,butcontrolpanel isilluminated.	Electricalfailure	ContactVollrathTechnicalServices.
	Heatingelementfailure
Shelfsuddenlyturnsoff.	Problemwithaninternalcomponent.ContactVollrathTechnicalServices.
	PowercordisdisconnectedPluginthepowercord
	USBcontrolcableisdisconnected	ChecktheUSBcableconnectionstothecontrolpanelandthe powerboxmountedtothebottomoftheshelf.
Controlpaneldoesnotilluminate.	Controlpanelisnotcommunicatingwith shelfbecauseUSBcableisdisconnectedor damaged	ChecktheUSBcableconnectionstothecontrolpanelandthe powerboxmountedtothebottomoftheshelf.
	Issuewiththeelectricalpowertothedrop-in	Verifytheequipmentispluggedintoanelectricaloutletwith thecorrectvoltage,andonitsownseparatecircuit
	Problemwithinternalcomponents	ContactVollrathTechnicalServices.
	Damagetocontrolpanel
Controlpanelisbeeping.Aproblemwithasensororheatingelement.ContactVollrathTechnicalServices.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty top purchasers for such uses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC.PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

www.vollrath.com

The VollrathCompany, L.L.C.

1236North18thStreet

Sheboygan, WI53081-3201U.S.A.

MainTel:800.624.2051or920.457.4851

MainFax:800.752.5620or920.459.6573

CustomerService:800.628.0830

CanadaCustomerService:800.695.8560

TechnicalServices

[e-mail]

InductionProducts:800.825.6036

CountertopWarmingProducts:800.354.1970

Toasters:800-309-2250

AllOtherProducts:800.628.0832

Étagèrechauffanteencastrable

Four different rectangular panels with black and white surfaces, each labeled with Chinese text (no other symbols or text visible)

Numéro d'article	Étagère material	Typede montage	Longeur po(cm)
FC-4HS-24120-SSR		Encastré	24"(61)
FC-4HS-30120-SSR30"(76,2)
FC-4HS-36120-SSR36"(91,4)
FC-4HS-42120-SSR42"(106,7)
FC-4HS-48120-SSR48"(121,9)
FC-4HS-54120-SSR54"(137,2)
FC-4HS-60120-SSR60"(152,4)
FC-4HS-66120-SSR66"(167,6)
FC-4HS-72120-SSR72"(182,9)
FC-4HS-24120-SSF	Naturel Inox Fini	Affleurant	24"(61)
FC-4HS-30120-SSF30"(76,2)
FC-4HS-36120-SSF36"(91,4)
FC-4HS-42120-SSF42"(106,7)
FC-4HS-48120-SSF48"(121,9)
FC-4HS-54120-SSF54"(137,2)
FC-4HS-60120-SSF60"(152,4)
FC-4HS-66120-SSF66"(167,6)
FC-4HS-72120-SSF72"(182,9)
FC-4HS-24120-BKR		Encastré	24"(61)
FC-4HS-30120-BKR30"(76,2)
FC-4HS-36120-BKR36"(91,4)
FC-4HS-42120-BKR42"(106,7)
FC-4HS-48120-BKR48"(121,9)
FC-4HS-54120-BKR54"(137,2)
FC-4HS-60120-BKR60"(152,4)
FC-4HS-66120-BKR66"(167,6)
FC-4HS-72120-BKR72"(182,9)
FC-4HS-24120-BKF	Revêtement duren aluminium	Affleurant	24"(61)
FC-4HS-30120-BKF30"(76,2) Fini
FC-4HS-36120-BKF36"(91,4)
FC-4HS-42120-BKF42"(106,7)
FC-4HS-48120-BKF48"(121,9)
FC-4HS-54120-BKF54"(137,2)
FC-4HS-60120-BKF60"(152,4)
FC-4HS-66120-BKF66"(167,6)
FC-4HS-72120-BKF72"(182,9)

NOTEZVOTRENUMÉRODESÉRIE

Numérodesérie

FONCTIONSETCOMMANDES

Standard:800.624.2051ou920.457.4851

Télécopieur:800.752.5620ou920.459.6573

Serviceclientèle:800.628.0830

ServiceclientèleCanada:800.695.8560

Servicestechniques:

[e-mail]

Grille-pains:800.309.2250

Four different rectangular panels with black and white surfaces, each labeled with Chinese text (no other symbols or text visible)

Número de artículo	Material delarepisa	Tipode montaje	Longitud (cm)
FC-4HS-24120-SSR		Empotrado	24"(61)
FC-4HS-30120-SSR30"(76,2)
FC-4HS-36120-SSR36"(91,4)
FC-4HS-42120-SSR42"(106,7)
FC-4HS-48120-SSR48"(121,9)
FC-4HS-54120-SSR54"(137,2)
FC-4HS-60120-SSR60"(152,4)
FC-4HS-66120-SSR66"(167,6)
FC-4HS-72120-SSR72"(182,9)
FC-4HS-24120-SSF	Acabado	Montajearas	24"(61)
FC-4HS-30120-SSF30"(76,2)
FC-4HS-36120-SSF36"(91,4)
FC-4HS-42120-SSF42"(106,7)
FC-4HS-48120-SSF48"(121,9)
FC-4HS-54120-SSF54"(137,2)
FC-4HS-60120-SSF60"(152,4)
FC-4HS-66120-SSF66"(167,6)
FC-4HS-72120-SSF72"(182,9)
FC-4HS-24120-BKR		Empotrado	24"(61)
FC-4HS-30120-BKR30"(76,2)
FC-4HS-36120-BKR36"(91,4)
FC-4HS-42120-BKR42"(106,7)
FC-4HS-48120-BKR48"(121,9)
FC-4HS-54120-BKR54"(137,2)
FC-4HS-60120-BKR60"(152,4)
FC-4HS-66120-BKR66"(167,6)
FC-4HS-72120-BKR72"(182,9)
FC-4HS-24120-BKF	dedurode aluminio	Montajearas	24"(61)
FC-4HS-30120-BKF30"(76,2)
FC-4HS-36120-BKF36"(91,4)
FC-4HS-42120-BKF42"(106,7)
FC-4HS-48120-BKF48"(121,9)
FC-4HS-54120-BKF54"(137,2)
FC-4HS-60120-BKF60"(152,4)
FC-4HS-66120-BKF66"(167,6)
FC-4HS-72120-BKF72"(182,9)

REGISTRESUNÚMERODESERIE

Númerodeserie

CARACTERÍSTICASYCONTROLES

A Zonadecalor2
B Zonadecalor1
C Paneldecontrol
D Botóndeencendidodelazonadecalor2
E Botóndeencendidodelazonadecalor1
F Ajustedecaloractual
G Luzindicadoradecalor. Éstanoesunaluzindicadorade suministro.
H Botonescontroladoresdecalor.Ajustesdel1al9.

Bajo:1-3

Medio:4-6

Alto:7-9

FUNCIONAMIENTO

PRECAUCIÓN

Peligrodequemaduras
