Product Type	Built-in Food Warmer
Brand	Vollrath
Model	FC-4HS-54120-BKF
Use	Keeps pre-cooked or plated foods warm
Number of Heated Zones	2 (Zone 1 and Zone 2)
Temperature Range	Settings 1-9 (Low: 1-3, Medium: 4-6, High: 7-9)
Maximum Temperature	93.3 °C (200 °F)
Power Supply	Grounding plug, rated voltage on nameplate
Control Panel	Digital temperature display and adjustment buttons
Heating Indicator	Heating light (turns on and off periodically)
Main Functions	Keep warm, zone temperature adjustment
Installation Type	Built-in, on a flat horizontal surface
Safety Instructions	Installation by qualified personnel, do not use extension cord, do not spray liquids
Daily Maintenance	Clean with damp cloth and soapy water
Cleaning	Do not use steel wool or caustic products
Spare Parts	Available at Vollrath.com
Repairability	Do not repair yourself, contact technical service
Warranty	Vollrath, valid from the initial purchase date
Customer Service	Contact Vollrath Technical Services with serial number
Recommended Accessories	Vollrath Heat Lamp for better heat retention
Warning	Burn hazard - hot surfaces
Not Intended For	Household, industrial, or laboratory use
Food Holding Temperature	Minimum 60 °C (140 °F) for food safety

Frequently Asked Questions - FC-4HS-54120-BKF Vollrath

How to adjust the temperature on the Vollrath FC-4HS-54120-BKF food warmer?

Use the temperature adjustment buttons (H and I) to select a level from 1 to 9. Low (1-3), medium (4-6), and high (7-9) settings are indicated on the panel. The setting applies to both heated zones.

What is the maximum temperature reached by the warming shelf?

The warming shelf can reach 200°F (93.3°C). Do not place any objects that could be damaged at this temperature.

Can I use an extension cord with this appliance?

No, do not use any extension cord or power strip. Plug the appliance directly into a grounded outlet matching the rated voltage.

How to clean the Vollrath food warmer?

Unplug and let it cool. Clean with a damp cloth and soapy water, rinse with clear water, then wipe with a soft cloth. Do not use steel wool or caustic products. Do not spray liquids directly.

What to do if the appliance does not heat but the control panel is on?

First check the power connection. If that does not resolve the issue, it may be a defective heating element or a communication problem. Contact Vollrath technical support.

Is this appliance suitable for home use?

No, this food warmer is intended for professional (food service) use, not for household, industrial, or laboratory use.

How to install the warming shelf correctly?

The appliance must be installed by qualified personnel. Use it only in a horizontal position on a flat surface. Plug into a grounded outlet matching the rated voltage.

Where can I find spare parts for my Vollrath food warmer?

Spare parts are available on the Vollrath.com website. For any repairs, contact technical service, do not repair yourself.

What to do if the control panel does not light up?

Check the USB cable connection between the panel and the power box. Make sure the appliance is plugged into a working outlet. If the problem persists, contact Vollrath.

What is the warranty on this Vollrath product?

The Vollrath warranty covers material and manufacturing defects from the initial purchase date. It does not apply to household use. See Vollrath.com for full details.

USER MANUAL FC-4HS-54120-BKF Vollrath

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.

SAFETYPRECAUTIONS

Toensuresafeoperation,readthefollowingstatementsandunderstand theirmeaning.Thismanualcontainssafetyprecautionswhichare explainedbelow.Pleasereadcarefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcan causeseverepersonalinjuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcan causeminorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

Toreduceriskofinjuryordamagetotheequipment:

• This equipment must be installed by a qualified person.
- Useonlygroundedelectricaloutletsthatmatchtheratedvoltageon thenameplate.
- Donotuseanextensioncordwiththisequipment.Donotplugthis equipmentintoapowerstripormulti-outletpowercord.
- This equipment should only be used in a flat, level position.
- Donotspraythecontrolsortheoutsideofequipmentwithliquidsorcleaningagents.
- Keep the equipment and power cord away from open flames, electric burners over excessive heat.
- Donotoperateequipmentifitisdamagedormalfunctioning.
- Unplugandallowtheequipmenttocoolbeforecleaning.
- Donotcleanthisequipmentwithsteelwool.

NOTICE: Do NOT modify the chordor plug on the drop-in. Modifying any component may damage the drop-in or cause injury, and will void the warranty. Seethespecificationsheet on Vollrath.com forelectrical specifications.

FUNCTIONANDPURPOSE

This equipment is intended to hold plated, pre-cooked, hot food for short period so time. It is not intended to heat food or for direct contact with food. It is not intended for household, industrial or laboratory use.

HeatedShelfDrop-in

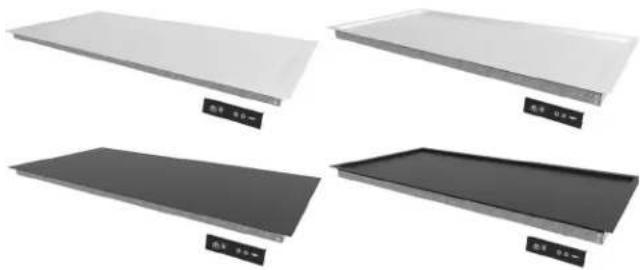

Four different rectangular panels with black and white surfaces, each labeled with Chinese text (no other symbols or text visible)

ItemNo.	Shelf Material	MountingType	Length In(cm)
FC-4HS-24120-SSR		Recessed	24"(61)
FC-4HS-30120-SSR30"(76.2)
FC-4HS-36120-SSR36"(91.4)
FC-4HS-42120-SSR42"(106.7)
FC-4HS-48120-SSR48"(121.9)
FC-4HS-54120-SSR54"(137.2)
FC-4HS-60120-SSR60"(152.4)
FC-4HS-66120-SSR66"(167.6)
FC-4HS-72120-SSR72"(182.9)
FC-4HS-24120-SSF	Steel Finish	FlushMount	24"(61)
FC-4HS-30120-SSF30"(76.2)
FC-4HS-36120-SSF36"(91.4)
FC-4HS-42120-SSF42"(106.7)
FC-4HS-48120-SSF48"(121.9)
FC-4HS-54120-SSF54"(137.2)
FC-4HS-60120-SSF60"(152.4)
FC-4HS-66120-SSF66"(167.6)
FC-4HS-72120-SSF72"(182.9)
FC-4HS-24120-BKR		Recessed	24"(61)
FC-4HS-30120-BKR30"(76.2)
FC-4HS-36120-BKR36"(91.4)
FC-4HS-42120-BKR42"(106.7)
FC-4HS-48120-BKR48"(121.9)
FC-4HS-54120-BKR54"(137.2)
FC-4HS-60120-BKR60"(152.4)
FC-4HS-66120-BKR66"(167.6)
FC-4HS-72120-BKR72"(182.9)
FC-4HS-24120-BKF	Hardcoat Finish	FlushMount	24"(61)
FC-4HS-30120-BKF30"(76.2)
FC-4HS-36120-BKF36"(91.4)
FC-4HS-42120-BKF42"(106.7)
FC-4HS-48120-BKF48"(121.9)
FC-4HS-54120-BKF54"(137.2)
FC-4HS-60120-BKF60"(152.4)
FC-4HS-66120-BKF66"(167.6)
FC-4HS-72120-BKF72"(182.9)

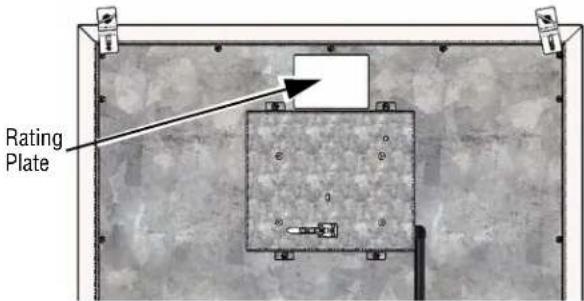

RECORD YOUR SERIAL NUMBER

The serial number for your Heated Shelf Drop-incan be found on the rating plate located on the underside of the heated shelf. To aid in future communication about your product, pleaserecord the serial number in the space below.

SerialNumber

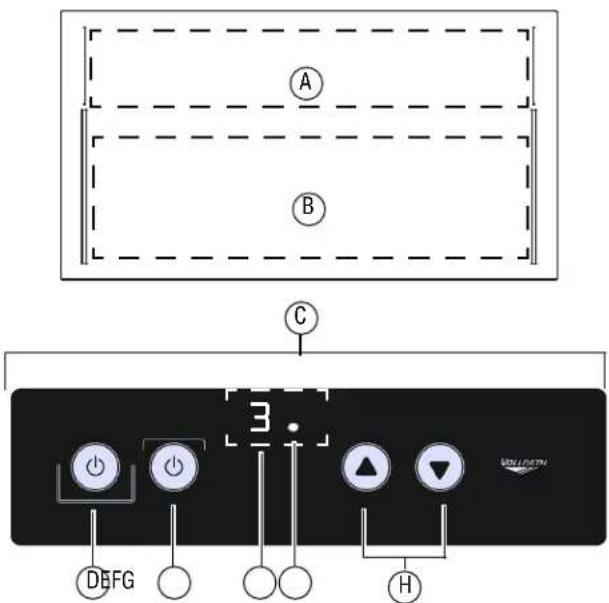

FEATURESANDCONTROLS

A Heatzone2
B Heatzone1
C Controlpanel
D Heatzone2powerbutton
E Heatzone1powerbutton
F Currentheatsetting
G Heatingindicatorlight. This is not a power indicator light.
H Heatcontrolbuttons.Settings1to9.

Low:1-3

Medium:4-6

High:7-9

OPERATION

CAUTION

BurnHazard

Donottouchhotfood, liquidorheatingsurfaceswhile equipmentisheatingoroperating.

NOTICE: Foodmustbeplated. Donotplacefooddirectlyontothe heatedshelf.

NOTICE: The heated shelf can reach temperatures up to 200°F (93.3°C). Donot placematerials on the shelf that can be comedamaged at that temperature.

NOTICE: Donotslideplates, pans, cookware, etc. across the hardcoat finish. This could created a gametothefinish that is not covered under warranty.

Tip: To extend the duration at which food shield at optimal holding temperatures, use a Vollrath heat strip in conjunction with the heated shelf.

1. Presstheheatzone(s) powerbuttonstoturnontheheated-shelf. Thebutton(s) willilluminate. Theheatzonesetting(s) willdefault to thesettingsfromtheprevioususe.
2. Presstheheatcontrolbutton(s)toselectaheatsetting. Note: Theheatsettingwillapplytobothzones.
3. The control panel will display these selected heat setting and the heating indicator light will illuminate

1. Thelightwillcycleonandoffastheshelfperiodicallyheatsto maintaintheheatsetting.

1. Platepre-cookedfood, heatedtoproperservingtemperature. Place theplatedfoodontothepre-heatedshelf.

NOTICE:Monitorfoodtemperaturecloselyforfoodsafety. The UnitedStatesPublicHealthServicerecommendsthathot foodbeheldataminimumof140°F(60°C)tohelp preventbacteriagrowth.

1. Monitor food and adjustment the heat settings as needed.
2. When finished using the shelf, remove the food and turn off the shelf.

CLEANING

WARNING

ElectricalShockHazard

Donotspraywaterorcleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoran electricalshock.

CAUTION

BurnHazard

Hotsurfacesandfoodcanburnskin.Allowthehotsurfacesto coolbeforehandling.

Tomaintaintheappearanceandincreasetheservicelife,cleanyour equipmentdaily.

NOTICE: Donotusecausticcleaningchemicals, steelwoolor commerciallimeremovalproductstocleantheequipment. Thoroughlyrinseequipmentwithwateraftercleaning.

1. Presstheheatzonebutton(s) to turn off the equipment.
2. Unplugtheequipment.
3. Use gloves, mittsorpotholderstoprotechands when removing containers of hot food.
4. Allow the equipment to cool completely before cleaning.
5. Useadampclothorspongedippedinsoapywatertocleanthe equipment.
6. Useadampclothorspongedippedincleanwatertorinsethe equipment.
7. Use as soft cloth to thoroughly dry the equipment.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Shelftemperaturesistoohigh,too loworisheatingunevenly.	Problemwithaninternalcomponent.	ContactVollrathTechnicalServices.Problemwiththeheatingelement
	Problemwiththethermistor.
Shelfdoesnotheat,butcontrolpanel isilluminated.	Electricalfailure	ContactVollrathTechnicalServices.
	Heatingelementfailure
Shelfsuddenlyturnsoff.	Problemwithaninternalcomponent.ContactVollrathTechnicalServices.
	PowercordisdisconnectedPluginthepowercord
	USBcontrolcableisdisconnected	ChecktheUSBcableconnectionstothecontrolpanelandthe powerboxmountedtothebottomoftheshelf.
Controlpaneldoesnotilluminate.	Controlpanelisnotcommunicatingwith shelfbecauseUSBcableisdisconnectedor damaged	ChecktheUSBcableconnectionstothecontrolpanelandthe powerboxmountedtothebottomoftheshelf.
	Issuewiththeelectricalpowertothedrop-in	Verifytheequipmentispluggedintoanelectricaloutletwith thecorrectvoltage,andonitsownseparatecircuit
	Problemwithinternalcomponents	ContactVollrathTechnicalServices.
	Damagetocontrolpanel
Controlpanelisbeeping.Aproblemwithasensororheatingelement.ContactVollrathTechnicalServices.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty top purchasers for such uses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcomplete warranty information, product registration and new product announcement, visit www.vollrath.com.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC.PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

www.vollrath.com

The VollrathCompany, L.L.C.

1236North18thStreet

Sheboygan, WI53081-3201U.S.A.

MainTel:800.624.2051or920.457.4851

MainFax:800.752.5620or920.459.6573

CustomerService:800.628.0830

CanadaCustomerService:800.695.8560

TechnicalServices

[e-mail]

InductionProducts:800.825.6036

CountertopWarmingProducts:800.354.1970

Toasters:800-309-2250

AllOtherProducts:800.628.0832
