Brand	Vollrath
Model	FC-4HS-30120-BKR
Category	Plate Warmer
Mounting Type	Flush mount
Length	30 in (76.2 cm)
Shelf Material	Hardened aluminum
Power Supply	120 V (standard estimate)
Heating Zones	2 zones
Temperature Range	Up to 200 °F (93.3 °C)
Main Function	Keeping plated food warm
Temperature Adjustment	Digital, applies to both zones
Display	Control panel with heat indicator light
Safety	Grounding required, do not use an extension cord
Cleaning	Damp cloth with soapy water, rinse and wipe dry
Maintenance	Daily, do not use steel wool
Warranty	Manufacturer's warranty according to full statement on Vollrath.com
Spare Parts	Available on Vollrath.com
Repairability	Contact Vollrath technical service, do not repair yourself
Customer Service	800.624.2051 (United States)

Frequently Asked Questions - FC-4HS-30120-BKR Vollrath

How to clean the warming shelf?

After turning off and unplugging the appliance, let it cool completely. Clean with a damp cloth or sponge soaked in soapy water. Rinse with clean water and wipe dry with a soft cloth. Do not use steel wool or caustic products.

What is the maximum temperature of the shelf?

The shelf can reach a temperature of 200 °F (93.3 °C). Do not place any objects that could be damaged at this temperature.

Can I use an extension cord?

No, do not use an extension cord with this appliance. Plug it directly into a grounded outlet.

How to adjust the temperature?

Press the temperature adjustment buttons on the control panel to select the desired level. The setting applies to both heating zones. The heat indicator light turns on and off to maintain the temperature.

What to do if the shelf does not heat?

Check that the appliance is plugged into a working outlet and that the USB cable (if applicable) is properly connected to the control panel. If the problem persists, contact Vollrath technical service.

The device beeps, what does it mean?

A beep usually indicates a problem with a sensor or heating element. Consult the troubleshooting manual and contact Vollrath technical support if necessary.

Can I heat food directly on the shelf?

No, this appliance is designed only to keep warm already cooked and plated food. Do not place food directly on the shelf.

What is the warranty for this product?

The Vollrath warranty covers defects in materials and workmanship under the conditions described on Vollrath.com. The warranty starts from the date of purchase by the original user.

The shelf turns off suddenly, why?

This may be due to an internal component or power supply issue. Check that the power cord is properly plugged in. If the problem persists, contact technical service.

Where to find spare parts?

Spare parts are available on the Vollrath.com website. Do not attempt to repair the appliance yourself; contact technical service for any repairs.

USER MANUAL FC-4HS-30120-BKR Vollrath

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorca causeseverepersonaljuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcauseminorormajorpersonalinjuryifthecautionisignored.

NOTICE:Noticeisusedtonoteinformationthatisimportantbutnot hazard-related.

Toreduceriskofinjuryordamageotheequipment:

• Thisequipmentmustbeinstalledbyaqualifiedperson.
• Useonlygroundedelectricaloutletsthatmatchtheratedvoltageon thenameplate.

NOTICE: Do NOT modify the recordor plugonthedrop-in. Modifying any component may damage the drop-inor cause injury, and will voidthewararranty. Seethespecificationsheeton Vollrath.comforelectricalspecifications.

• Donotuseanextensioncordwiththisequipment.Donotplugthis equipmentintoapowerstripormulti-outletpowercord.
• This equipment should only be used in a flat, level position.
• Donotspraythecontrolsortheoutsideofequipmentwithliquidsor cleaningagents.
• Keep the equipment and powercord away from open flames, electric burners, excessive heat.
• Donotoperateequipmentitiftisdamagedormalfunctioning.
• Unplugandallowthequipmenttocoolebeforecleaning.
• Donotcleanthisequipmentwithsteelwool.

FUNCTIONANDPURPOSE

This equipment is intended to hold plated, pre-cooked, hot food for short period soft time. It is not intended to heat food or direct contact with food. It is not intended for household, industrial or laboratory use.

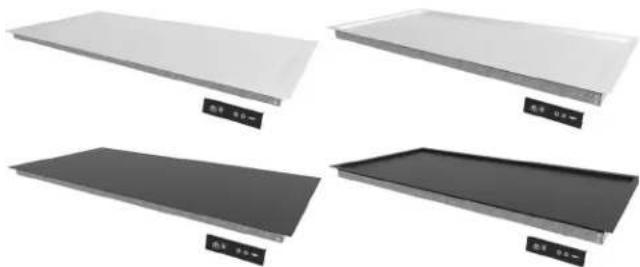

HeatedShelfDrop-in

ItemNo.	Shelf Material	MountingType	Length In(cm)
FC-4HS-24120-SSR	76.2)	Recessed	24"(61)
FC-4HS-30120-SSR30"(91.4)
FC-4HS-36120-SSR36"(91.4)
FC-4HS-42120-SSR42"(106.7)
FC-4HS-48120-SSR48"(121.9)
FC-4HS-54120-SSR54"(137.2)
FC-4HS-60120-SSR60"(152.4)
FC-4HS-66120-SSR66"(167.6)
FC-4HS-72120-SSR72"(182.9)
FC-4HS-24120-SSF SteelFinish		FlushMount	24"(61)
FC-4HS-30120-SSF30"(76.2)
FC-4HS-36120-SSF36"(91.4)
FC-4HS-42120-SSF42"(106.7)
FC-4HS-48120-SSF48"(121.9)
FC-4HS-54120-SSF54"(137.2)
FC-4HS-60120-SSF60"(152.4)
FC-4HS-66120-SSF66"(167.6)
FC-4HS-72120-SSF72"(182.9)
FC-4HS-24120-BKR	76.2)	Recessed	24"(61)
FC-4HS-30120-BKR30"(91.4)
FC-4HS-36120-BKR36"(91.4)
FC-4HS-42120-BKR42"(106.7)
FC-4HS-48120-BKR48"(121.9)
FC-4HS-54120-BKR54"(137.2)
FC-4HS-60120-BKR60"(152.4)
FC-4HS-66120-BKR66"(167.6)
FC-4HS-72120-BKR72"(182.9)
FC-4HS-24120-BKF HardcoatFinish	76.2)	FlushMount	24"(61)
FC-4HS-30120-BKF30"(91.4)
FC-4HS-36120-BKF36"(91.4)
FC-4HS-42120-BKF42"(106.7)
FC-4HS-48120-BKF48"(121.9)
FC-4HS-54120-BKF54"(137.2)
FC-4HS-60120-BKF60"(152.4)
FC-4HS-66120-BKF66"(167.6)
FC-4HS-72120-BKF72"(182.9)

RECORDYOURSERIALNUMBER

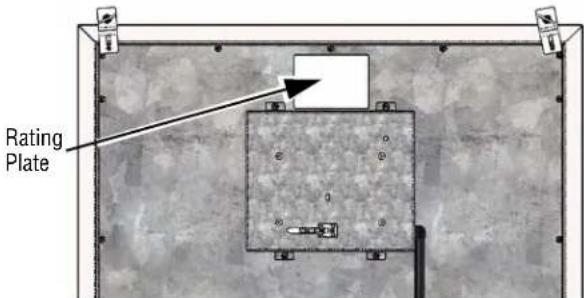

TheserialnumberforyourHeatedShelfDrop-incanbefoundontheregatingplatelocatedontheundersideoftheheatedshelf.Toaidinfuturecommunicationaboutyourproduct,pleaserecordtheserialnumberinthespacebelow.

SerialNumber

FEATURESANDCONTROLS

A Heatzone2
B Heatzone1
C Controlpanel
D Heatzone2powerbutton
E Heatzone1powerbutton
F Currenttheatsetting
6 Heatingindicatorlight. This is not power-indicatorlight.
H Heatcontrolbuttons.Settings1to9.

Low:1-3

Medium:4-6

High:7-9

OPERATION

CAUTION

Buri

Hazard

Don't touch hot food, liquidor heating surfaces while equipment is heating or operating.

NOTICE: Food must be plated. Donot place food directly onto the heated shelf.

NOTICE:Theheatedshelfcanreachtemperaturesupto200°F (93.3°C). Donotplacematerialsontheselfthatcan become damagedaththattemperature.

NOTICE: Donotslideplates, pans, cookware, etc. across the hardcoatfinish. This could create damagetothefinishthat isnotcoveredunderwarranty.

Tip: To extend the duration at which foodisheldatoptimal holding temperatures, useaVollrathheatsstripinconjunctionwiththe heated shelf.

1.Presstheheatzone(s)powerbuttonstoturnnontheated-shelf. Thebutton(s)willilluminate.Theheatzonesetting(s)willdefaultto thesettingsfromtheprevioususe.
2.Presstheheatcontrolbutton(s)toselectaheatsetting. Note:Theheatsettingwillapplytobothzones.
3.Thecontrolpanelwilldisplaytheselectedheatsettingandthe heatingindicatorlightwillilluminate

4.Theightwillcycleonandoffashesthelfperiodicallyheatstopaintaintheheatsetting.

1. Platepre-cookedfood,heatedtoperservingtemperature. Place theplatedfoodontothepre-heatedshelf.

NOTICE: Monitor food temperature closely for food safety. The United States Public Health Servicerecommendssthat food beheldat minimum of 140^(60^) to help prevent bacteriaagrowth.

6.Monitorfoodandadjusttheheatsettingsasneeded.
7.Whenfinishedusingthesheelf,removethefoodandturnoffthe shelf.

CLEANING

WARNING

ElectricalShockHazard

Donotspraywaterorcleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoran electricalshock.

CAUTION

BurnHazard

Hotsurfacedandfoodcanburnskin.Allowthehotsurfacedto coolbeforehandling.

Tomaintaintheappearanceand increasetheservice life,cleanour equipmentdaily.

NOTICE: Donotusecausticcleaningchemicals,steelwoolor commerciallimeremovalproductstocleanthequipment. Thoroughlyrinseequipmentwithwateraftercleaning.

1.Presstheheatzonebutton(s)toturnofftheequipment.
2.Unplugtheequipment.
3. Use gloves, mittsorpotholderstoprotechandswhenremoving containersofhotfood.
4.Allowthequipmenttocooolcompletelybeforecleaning.
5.Useadampclothorspongedippedinsoapywatertocleanthe equipment.
6. Useadampclothorspongedippedcleanwatertorinsethe equipment.
7.Useasoftclothtothoroughlydrytheequipment.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Shelftemperaturesistoohigh,too loworisheatingunevenly.	Problemwithaninternalcomponent.	ContactVollrathTechnicalServices.Problemwiththeheatingelem
	Problemwiththethermistor.
Shelfdoesnotheat,butcontrolpanel isilluminated.	Electricalfailure	ContactVollrathTechnicalServices.
	Heatingelementfailure
Shelfsuddenlyturnoff.	Problemwithaninternalcomponent.ContactVol	IrrathTechnicalServices.
	PowercordisconnectedPluginhepowercord
	USBcontrolcableisdisconnected	ChecktheUSBcableconnectionstothecontrolpanelandthe powerboxmountedtothebottomoftheself.
Controlpaneldoesnotilluminate.	Controlpanelisnotcommunicating with shelfbecauseUSBcableisdisconnectededor damaged	ChecktheUSBcableconnectionstothecontrolpanelandthe powerboxmountedtothebottomoftheself.
	Issuewiththeelectricalpowertothedrop-in	Verifytheequipmentispluggedintoanelectricaloutletwith thecorrectvoltage,andonitsownseparatecircuit
	Problemwithinternalcomponents	ContactVollrathTechnicalServices.
	Damagetocontrolpanel
Controlpanelisbeeping.Aproblemwithasensororheatingelement.ContactVollrathTechnicalServices.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchaseersforsuchuses.

The Volrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC. Please contact Vollrath Technical Services for instructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

Étagèrechauffanteencastrable

FONCTIONSETCOMMANDES

A Zonechauffee2
B Zonechauffee1
C Panneaudecommande
Boutond'alimentationdelazonechauffee2
E Boutond'alimentationdelazonechauffee1
F Températuredeconsigneeactuelle
6 Voyantdechauffage.Cen'estpasunvoyantdemarche/arret.
H Boutonsderéglagedelatempérature.Réglages 1 à 9.

Bas:1-3

Moyen:4-6

Haut:7-9

MODED'EMPLOI

ATTENTION

Risquedebulure
