USER MANUAL Titan Mini H2600 SILKN

White remote control device with four buttons labeled 1 to 4 (no text or symbols on body)

1. Warnings....2
2. Contraindications ....4
3. Safety features ....6
4. Get to know your device....7
   4.1 Device description 7
   4.2 Intended use 7
   4.3 Package contents....7
   4.4 Device parts....8
   4.5 Device controls & settings....8
   4.6 Charging the battery 9
5. Treatments ...... 10
   5.1 Treatment areas....10
   5.2 Treatment plan 10
   5.3 What to expect 11
   5.4 Possible side effects....11
6. Get started!......12
7. Cleaning, maintenance & storage......14
8. Troubleshooting 15
9. Customer service....16
10. Consumables....16
11. Warranty 16
12. Disposal 17
    13.Labeling 18
13. Signs & symbols ...... 18
14. Specifications....20

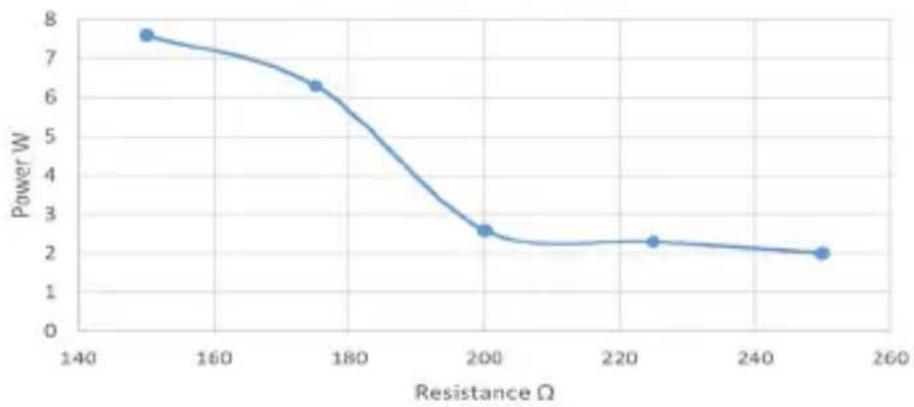

15. Output power curve....22
16. EMC Technical results ......23
17. Legal notice ......24

E

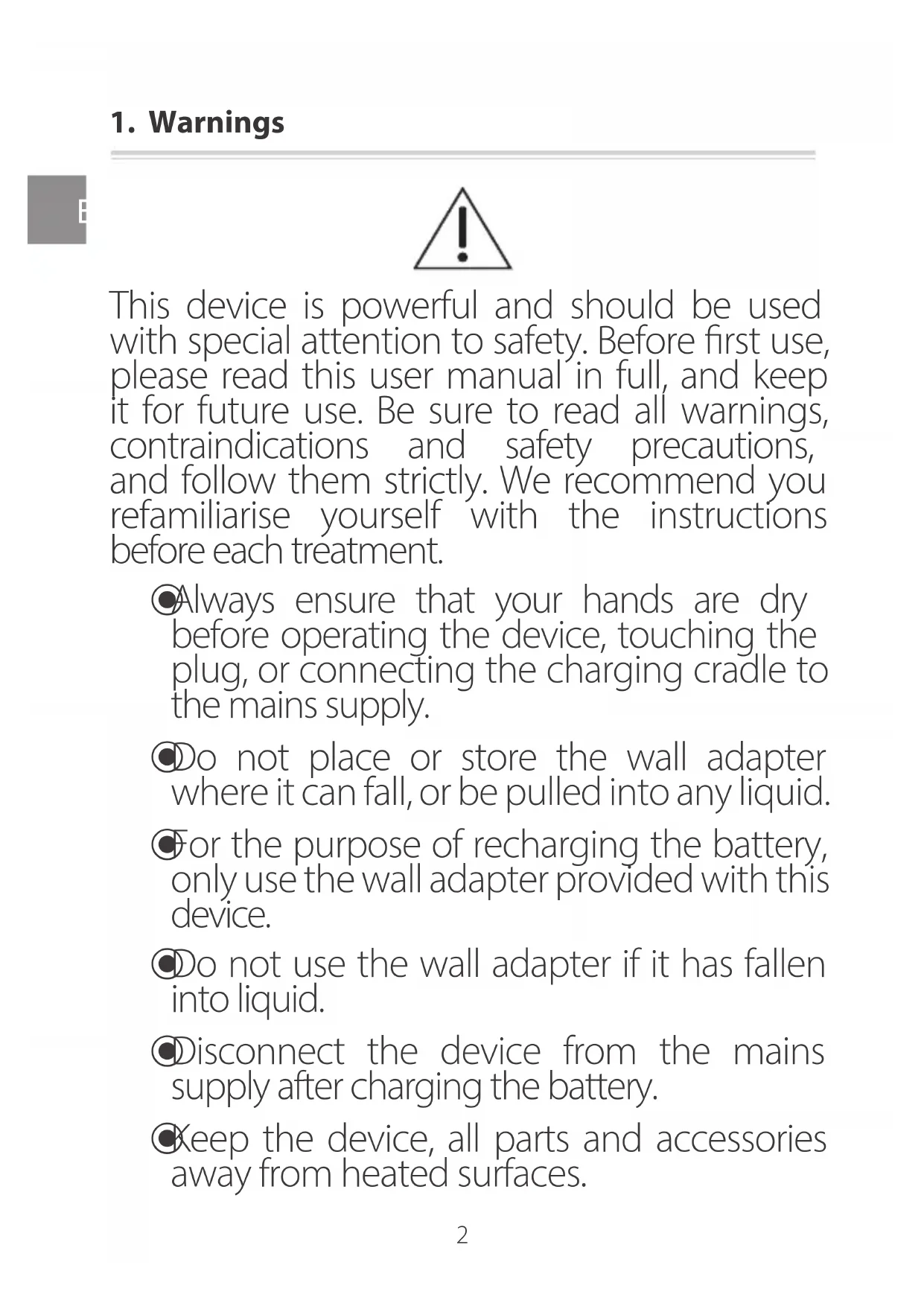

This device is powerful and should be used with special attention to safety. Before first use, please read this user manual in full, and keep it for future use. Be sure to read all warnings, contraindications and safety precautions, and follow them strictly. We recommend you refamiliarise yourself with the instructions before each treatment.

●Always ensure that your hands are dry before operating the device, touching the plug, or connecting the charging cradle to the mains supply.

Do not place or store the wall adapter where it can fall, or be pulled into any liquid.

For the purpose of recharging the battery, only use the wall adapter provided with this device.

Do not use the wall adapter if it has fallen into liquid.

●Disconnect the device from the mains supply after charging the battery.

- Keep the device, all parts and accessories away from heated surfaces.

●Never leave the device unattended when plugged into the mains supply.
Do not attempt to modify, open or repair the device. You may expose yourself to dangerous electrical components and may cause serious harm to yourself. It will also void your warranty.
Do not use if the parts or accessories are not supplied by the manufacturer as defined in this manual, or if they are damaged in any way, do not appear to be working properly, or if you see or smell smoke. In such cases, stop using the device, and contact customer service.
Do not clean any of the parts in the dishwasher.
●Children shall not play with the device. Cleaning and user maintenance shall not be made by children.
●Children must not play with the packaging. They may injure themselves with the packaging material, or swallow small parts and choke.
●This device contains batteries that are non-replaceable.

This unit has been designed and tested to meet the requirements of electromagnetic, electrostatic, and radio frequency interference standards. However, the possibility of electromagnetic or other interference may still exist. Relocating the device may help to eliminate interference.

Do not dispose of the device or the battery with household waste! The law requires that you dispose of this electrical device (including all accessories and parts) at a designated recycling collection point for electrical devices.

©Dispose of the battery safely.

● of the product reaches its end of life, the battery must be removed before disposal (see section 12 Disposal).

2. Contraindications

The device must not be used by the following people: children, adults with limited physical, sensory or psychological capacities, or those lacking experience or knowledge in how to use the device in a safe way, or those who do not understand the hazards involved.

!Do not use if you:

●have a pacemaker or internal defibrillator, or any other active electrical implant anywhere in the body.

• suffer from poorly controlled endocrine disorders, such as diabetes and thyroid conditions.
  ●have a history of skin cancer, or current condition of any other type of cancer, or pre-malignant moles.
  ●have received radiation therapy or chemotherapy treatments within the past 3 months, or have areas of potential skin malignancies.
  ●have an impaired immune system due to immunosuppressive diseases such as AIDS and HIV, or use immunosuppressive medications.
  ●have used Isotretinoin (Accutane®) within 6 months prior to treatment.
  ●have a disease related to photosensitivity, such as porphyria, polymorphic light eruption, solar urticaria, lupus, etc.
  ●suffer from epilepsy.
  ●are pregnant or nursing.

⚠️Do not use on areas that have:

• a permanent implant such as metal plates and screws, silicone implants, or areas with injected fills or toxins.
  ●any active condition in the treatment area, such as sores, psoriasis, eczema, rashes, open lacerations, abrasions, or lesions.
  ●traumatized or injured skin.
  ●had recent exposure to the sun without protection (wait 1 day); for tanned or sunburnt skin, wait 3 days.
  ●had any surgery within 3 months prior to treatment.
  ©tattoos.
  ●long or thick hair. Use of the device may result in light bruising.

⚠️Consult your physician if you have:

• used steroids within 3 months prior to treatment.
• couperose or rosacea.
• a history of diseases stimulated by heat, such as recurrent herpes simplex in the treatment area. If so, you may treat only following a prophylactic regime.
• used physician-prescribed drugs on your skin within the past 6 months.
• a history of skin disorders, keloids, abnormal wound healing, as well as very dry and fragile skin.
  ●any other condition which, in the opinion of your physician or dermatologist, would make it unsafe for you to be treated.

3. Safety features

The device has these features to protect your skin from overheating.

- Thermal sensor and heat stabilizer: These measure the skin temperature, stabilize the heat energy and prevent overheating. When the skin temperature reaches 43°C, the stabilizer will automatically stop emitting heat, until the skin temperature lowers enough for the stabilizer to resume heating.

- Movement sensor: Enables the device to generate RF only when you are moving the device across your skin.

4.1 Device description

The device is a face treatment device which utilizes Home Technology™. The device combines several kinds of energy: Low Level Laser Therapy (LLLT), Infrared, and Bi-Polar Radio Frequency energy (Bi-Polar RF) that treat the upper layer, dermis and deep sub-dermal fat to improve the skin's appearance and reduce wrinkles.

The device has a treatment surface with 3 electrodes and a control button with 5 surrounding indicator lights. The device has a rechargeable battery and is for cordless use only. A wall adapter is supplied to charge the device.

4.2 Intended use

The device is an over-the-counter home use device intended for the non-invasive treatment of mild to moderate facial wrinkles for adult women who have Fitzpatrick skin types I-IV (see the color chart at the front of the user manual).

The device is for self-treatment at home and is not suitable for commercial purposes. Do not use for any purpose other than as described in this user manual.

4.3 Package contents

• Your Silk'n device
• Silk'n Slider Gel
• AC/DC wall adapter
• User manual

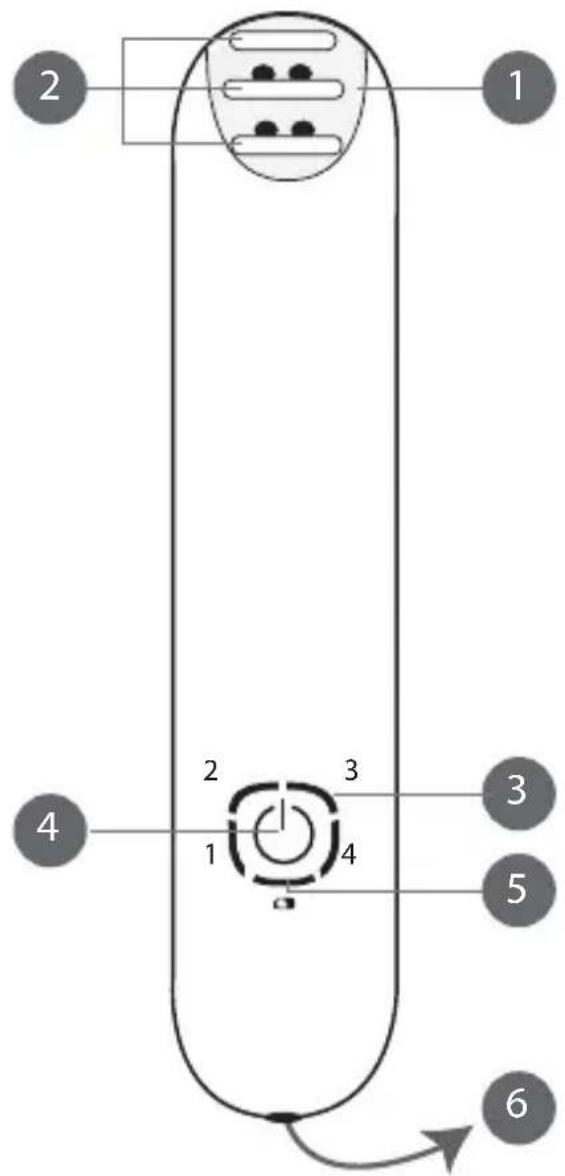

4.4 Device parts

Refer to the diagram on page (i) at the front of this manual to see the location of each feature.

• Treatment surface (#1)
- Control button (#4)
- Electrodes (#2)
- Battery indicator light (#5)
- 4 energy level indicator lights (#3) • Wall adapter socket (#6)

4.5 Device controls & settings

Button Action Function / Mode
Control button (#4)	Long press x 1 Starts the device. Energy level 1 - 1 light on
	Short press x 1 Energy level 2 - 2 lights on
	Short press x 2 Energy level 3 - 3 lights on
	Short press x 3 Energy level 4 - 4 lights on
	Short press x 4 Goes back to level 1
	Long press Goes back to standby mode
Energy level indicator lights (#3)	Shows the energy level selected.	There is one light for each energy level. Level 1 is the lowest energy level, and level 4 is the highest.
Battery indicator light (#5)	White - blinks White - constant Orange - blinks	Device charging Device charged Low charge in battery

4.6 Charging the battery

1. Charge the device before first use.

2. Place the wall adapter cable into the device, then connect the wall adapter to the mains supply. The battery indicator light will blink white.

3. Position the wall adapter so that the mains plug is disconnected easily.

iThe battery icon does not change color.

Simple line drawing of a balloon connected to a cylindrical device labeled 'Silky' (no text or symbols on the diagram itself)

Initial charge Regular charge Cordless use

Hours Hours Minutes

i You cannot use the device when it is charging.

5. Treatments

E

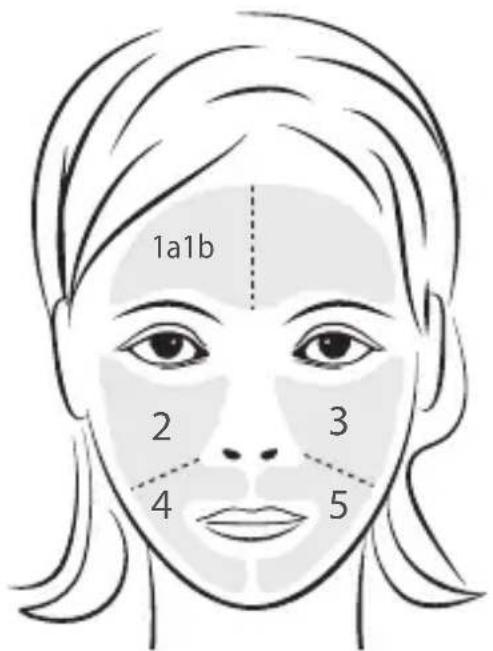

5.1 Treatmentareas

Use the device on these areas of your face.

1a1b 2 3 4 5

Forehead (1)

Cheeks (2,3)

Nasolabial fold, chin (4,5)

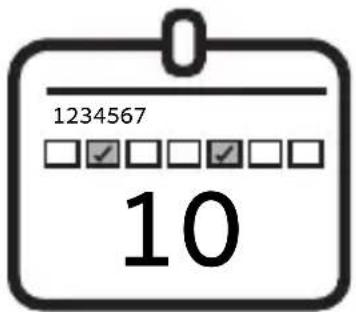

5.2 Treatment plan

● Treat each area separately for 15 minutes. You can treat as many areas as you like in one session.

● Treat each area for at least 10 minutes at energy level 4.

- Use the device for 2 sessions a week for 10 weeks. You will begin to see visible results after 5 weeks / 10 treatments.

1234567 10

●Treat once every 2 weeks after that, to maintain results.

For maximum effectiveness:

• Make sure you have enough gel on the treatment surface (#1) at all times during the treatment.
• Do not leave the device on one spot of skin. Keep moving the device covering the entire treatment area. This will prevent overheating of the treatment area, and reduce the possibility of any adverse effect.

- Make sure the 3 electrodes (#2) are always in full contact with the skin.

- If the energy level feels uncomfortable, reduce it to a level that is comfortable for you.

- Only change energy levels when the treatment surface (#1) is not in contact with the skin.

5.3 What to expect

During a treatment session it is normal to experience or feel:

●A sensation of warmth.
Some redness or slight swelling: this should subside within a few hours, or up to one day.

5.4 Possible side effects

If you follow the instructions fully and pay attention to all warnings and contraindications, complications and side effects are uncommon. However, every cosmetic treatment, including those designed for home use, involves some degree of risk. Therefore it is important that you understand and accept the risks and complications that may occur.

Excessive edema (swelling) and erythema (redness) are rare reactions to the treatment that, in most cases, subside within a few days. In case these signs appear, immediately use a damp cool cloth to cool the area for at least 10 minutes and apply an anti-burn cream.
●In rare cases the user may experience dilation of the superficial blood capillaries. This may result in a temporary redness for a few days. Also, some of the capillaries may present red spots that will also reduce with time. If these signs appear, we recommend that you cool the area with chilled water immediately.

iConsult your physician if you experience any persistent symptoms including pain, skin redness, swelling or a burning sensation.

6. Get started!

1. Make sure that your skin is clean and dry, and that you have removed all jewelry.
2. Remove the device and the other components from the box.
3. Check that the battery is not low before you start a treatment and remember that you cannot use the device when it is charging.
4. Start the device: Long press the control button (#4). The device starts at energy level 1 automatically, and 1 energy level indicator light (#3) will turn on.

i Check that the expiry date of the gel has not passed.

1. Apply a thin layer of Silk'n Slider Gel over the treatment surface (#1).

iSlider Gel (or any other water-based clear gel) facilitates smooth movement of the treatment surface over the skin and enables conductivity. To ensure safe and efficient treatment, always start by applying Slider Gel and apply more gel if needed.

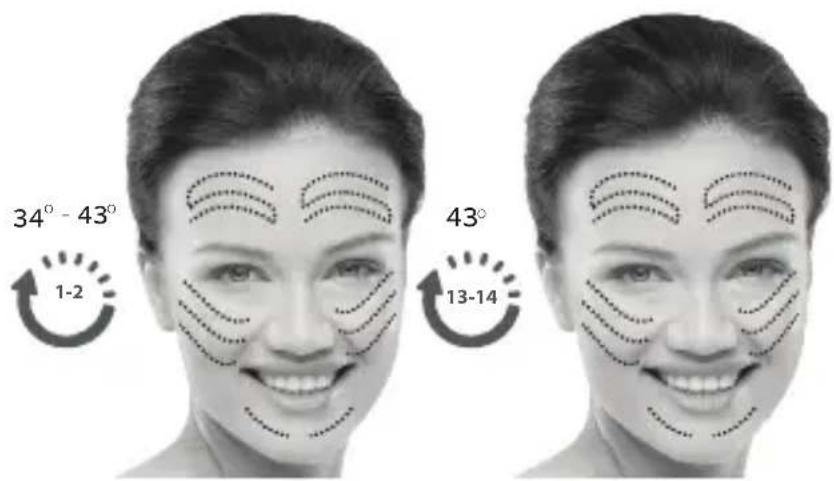

1. Using energy level 1, place the device on the area you want to treat. Make sure that it is in full contact with the skin. You will feel a mild sensation of warmth.

1. Move the device in gentle massage-like motions on the area you wish to treat. Progress slowly and carefully. Keep moving the device ensuring that the 3 electrodes stay in contact with the skin as you treat the area.

2. With the device constantly in motion, treat each area for 15 minutes.

3. Increase the energy level gradually. Using the highest energy level will get the best results, but it's important that you set the energy level that is comfortable for the area you are treating.

34° - 43° 1-2 43° 13-14

i You will feel the skin temperature rise as you increase the energy level. It usually takes about 1-2 minutes for the device to reach the required temperature. During the treatment your skin will get a little red. Don't worry; this is normal.

⚠️Stop immediately if you feel any discomfort.

1. Experiment by moving the device slowly across the area you are treating. If the treated area is hot and you feel uncomfortable, try moving the device a little faster.

2. Clean the treated area: Remove any residual gel from the skin, then rinse the skin with lukewarm water. Dry the skin with a towel, and apply a facial cream to sooth and moisturize the skin.

7. Cleaning, maintenance & storage

Clean the device after each treatment.

⚠️Never immerse your device or any of its parts in water!

- Put the device in standby mode, then unplug it.

- Use absorbent paper (such as toilet paper or wipes) to remove the gel residue off the treatment surface (#1). Make sure you remove all gel residue to prevent the gel from solidifying or damaging the device.

- Use a clean damp cloth to clean the device and the treatment surface (#1).

i You may use cleaning fluids with up to 70% alcohol, but never use acetone or other abrasive liquids, because they will damage your device.

70%

- Finally, wipe the device and the treatment surface (#1) dry with a clean dry cloth.

- After cleaning, we recommend you store the device in its original box. Store the device and the gel in a cool dry place.

Simple line drawing of a hand gesture inside a rounded square (no text or symbols)

8. Troubleshooting

Do not attempt to open or repair your device. You may exposure yourself to dangerous electrical components and may cause serious harm to yourself. It will also void the warranty.

Problem Checks
The device does not start.	Check that the battery is not low. If the battery is low, connect the device to the mains supply to charge it.
I don't feel any heat from the device even though I pressed the control button (#4).	Heat will only be emitted when the treatment surface (#1) is in full contact with the skin, and you have applied gel before and/or during your treatment.
One or more lights blink continuously.	The device has malfunctioned. Restart the device.
The device has stopped working and is in standby mode.	Check that the battery is not low.

For problems or queries, please contact Customer Service.

9. Customer service

E

For more information about Silk'n products, visit your regional Silk'n website: www.silkn.com or www.silkn.ca. If the device is damaged, defective, in need of repair or if you need our assistance, please contact your nearest Silk'n service center. This manual is also available as a PDF download from the websites.

Service number: 1-800-250-5053 (toll-free)

Email: [e-mail]

10. Consumables

You can purchase Silk'n Slider Gel at www.silkn.com and www.silkn.ca.

11. Warranty

This product is covered by a 1-year warranty. The extent of the warranty on this product is limited to technical defects caused by faulty production processes. In the event you want to claim warranty please be sure to contact our customer service for instructions. They may be able to solve your problem without needing to return the product to the store or our service centre. Our customer service is always pleased to help you!

i The manufacturer accepts no liability for damage or injuries caused by improper or incorrect use.

12. Disposal

If your device reaches its End of Life stage, be sure to follow local regulations for the disposal of electrical items. Contact your local council for more information.

Old appliances should not be disposed of with household waste!

Should the product no longer be capable of being used at some point in time, dispose of it in accordance with the regulations in force in your locality. This ensures that old appliances and packaging are recycled in a professional manner and also rules out negative consequences for the environment.

Dispose of the packaging separated into single type materials. Dispose of cardboard and carton as waste paper and film via the recyclable material collection service.

For not dispose with household waste! The WEEE directive requires that you dispose of this electrical device (including all accessories and parts) at a designated recycling collection point for electrical devices. This prevents the release of harmful substances* into the environment. Make sure that the device is in an uncharged state before disposal.

* Products labelled with Cd = cadmium, Hg = mercury, Pb lead.

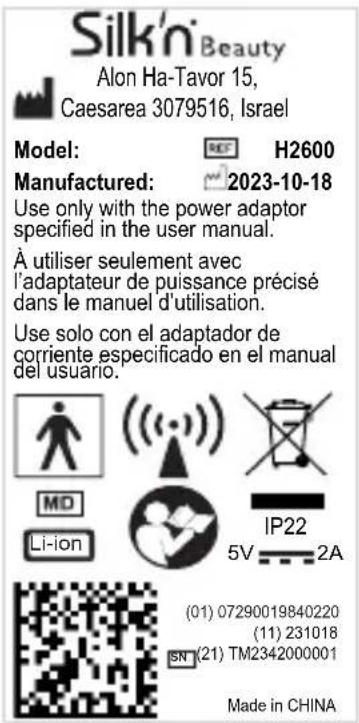

13. Labeling

E

Silk'n Beauty Alon Ha-Tavor 15, Caesarea 3079516, Israel Model: H2600 Manufactured: 2023-10-18 Use only with the power adaptor specified in the user manual. À utiliser seulement avec l'adaptateur de puissance précisé dans le manuel d'utilisation. Use solo con el adaptador de corriente especificado en el manual del usuario. MD Li-ion IP22 5V 2A (01) 07290019840220 (11) 231018 SN (21) TM2342000001 Made in CHINA

The image is for illustration purposes only.

14. Signs & symbols

	A statement or event that indicates a possible or impending danger, problem when using the device.
	Important information about using or maintaining the device.
IP22	Protected against solid objects over 12mm, e.g. fingers and gainst direct sprays of water up to 15 degrees from the vertical.
	Do not dispose with household waste. Dispose in accordance with your country's laws and help protect the environment. In accordance with the WEEE Directive.
	Lithium-ion inside.
	The built-in rechargeable battery contains substances that may pollute the environment. Discard in accordance with local regulations.
	Interference may occur in the vicinity of the equipment.
	Degree of protection against electric shock: type BF applied part.
	Date of manufacture.
	Manufacturer.
	Product serial number.
	Product reference number.
	Medical device.
	Read the user manual.

iThis device is not suitable for use in the presence of flammable anesthetic mixture with air or with oxygen or nitrous oxide.

15. Specifications

Model no. H2600
Treatment area 300±5[mm ^2 ]
Technology Home TechnologyTM
Red LED light (wavelength; optical output power)	625nm±5nm;13W/cm ^2 ±20%
Infrared (wavelength; optical output power)	830nm±20nm;6mW/cm ^2 ±20%
Radiofrequency (RF) (frequency; maximum output power)	1 MHz ±30%; 10 W max
Operation & safety Heat stabilizer preventing skin overheating
System weight 60 gm
Time from minimum storage temperature between uses to minimum operating temperature with ambient temperature of 20°C	30 minutes
Time from maximum storage temperature between uses to maximum operating temperature with ambient temperature of 20°C	30 minutes
Transport & storage between uses and storage condition	Temperature: minus 40 to 70°CRelative humidity: 10% - 90%Atmospheric pressure: 500 - 1060 hPa
Operating conditions Temperature: 10 to 35°CRelative humidity: 30% - 75%Atmospheric pressure: 700 - 1060 hPa
Wall adapterInput:Output:	DZ010DLU050200U100-240VAC, 50-60 Hz0.5A 5V, 2A
The device was tested and complies	IEC 60601-1 (Safety)IEC 60601-2-2 (High Frequency)IEC 60601-1-2 (EMC)IEC 60601-1-11 (Environment)IEC 60601-2-83 (Safety of home light therapy equipment)
Expected service life of the equipment	5 years
Rechargeable Li-on battery	Model: CLY801360
	Nominal voltage: 3.7Vdc
	Rated capacity: 600mAh

16. Output power curve

E

The graph shows the device RF power (for all modes of operation) versus the treated skin impedance.

Power vs Load 100%

EMC requirements

IEC 60601-1-2 Edition 4.0 (2014)

Environment of intended uses:

Home Healthcare Facility Environment

Summary of Test Results

Test	Standard	Class/ Severity level	Test result
Emission (IEC 60601-1-2 section 7)
Radiated emissionFreq. range: 30 - 1000 MHz	CISPR 11 Group	1 Class B Complies
Immunity (IEC 60601-1-2 section 8)
Immunity from Electrostatic discharge (ESD)	IEC 61000-4-2	8 kV contact discharges & 15 kV air discharges	Complies
Immunity from radiated electromagnetic fields	IEC 61000-4-3	3.0; 10.0 V/m; 80 MHz ÷ 2.7 GHz,80% AM, 1 kHz	Complies
Immunity from Proximity field from wireless communications equipment	IEC 61000-4-3	List of frequencies, from 9 V/m up to 28 V/m, PM (18 Hz or 217 Hz), FM 1 kHz	Complies
Immunity from power frequency magnetic field	IEC 61000-4-8	30 A/m @ 50 Hz Complies

Copyright 2025 © Silkn Beauty Ltd. All rights reserved.

Silkn Beauty Ltd. reserves the right to make changes to its products or specifications to improve performance, reliability, or manufacturability. Information furnished by Silkn Beauty Ltd. is believed to be accurate and reliable at the time of publication. However, Silkn Beauty Ltd. assumes no responsibility for its use. No license is granted by its implication or otherwise under any patent or patent rights of Silkn Beauty Ltd. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Silkn Beauty Ltd. Data is subject to change without notification. Silkn Beauty Ltd. has patents and pending patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. The furnishing of this document does not give you any license to these patents, trademarks, copyrights, or other intellectual property rights except as expressly provided in any written agreement from Silkn Beauty Ltd. Specifications are subject to change without notice.

Silk'n and the Silk'n logo are registered trademarks of Silkn Beauty Ltd., Alon Ha-Tavor 15, Caesarea, 3079516, Israel, www.silkn.com, www.silkn.ca, [e-mail].

Table des matières

Simple line drawing of a balloon connected to a cylindrical container labeled 'Silkri' (no text or symbols on the diagram itself)

Simple line drawing of a hand gesture inside a rounded square (no text or symbols)

Simple line drawing of a device connected to a cylindrical container labeled 'Skin' (no text or symbols on the device itself)

Simple line drawing of a hand gesture inside a wavy rectangular frame (no text or symbols)
