USER MANUAL GR 3810 Orbegozo

7. termostato regulable

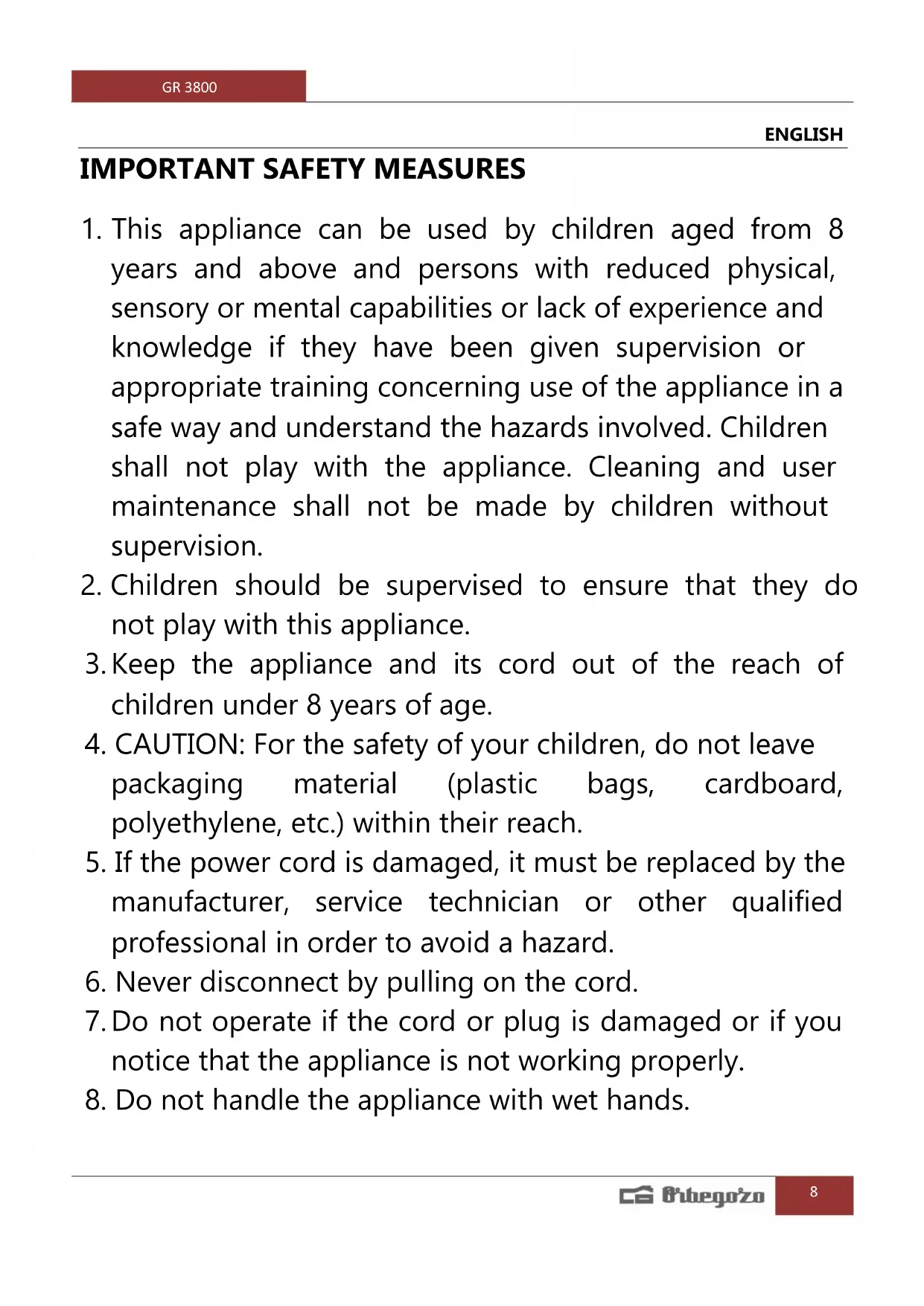

IMPORTANT SAFETY MEASURES

1. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or appropriate training concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Children should be supervised to ensure that they do

not play with this appliance.

3. Keep the appliance and its cord out of the reach of

children under 8 years of age.

4. CAUTION: For the safety of your children, do not leave

packaging material (plastic bags, cardboard, polyethylene, etc.) within their reach.

5. If the power cord is damaged, it must be replaced by the

manufacturer, service technician or other qualified professional in order to avoid a hazard.

6. Never disconnect by pulling on the cord.

7. Do not operate if the cord or plug is damaged or if you

notice that the appliance is not working properly.

8. Do not handle the appliance with wet hands.GR 3800

9. Do not immerse the appliance in water or any other

10. Before cleaning, make sure the appliance is unplugged.

11. The appliance must be installed in accordance with

national regulations for electrical installations.

12. This appliance is for domestic use only.

13. If you need a copy of the instruction manual, you can

find it on our website: www.orbegozo.com

14. WARNING: There is a risk of possible injury if used

incorrectly. The appliance is not intended to be operated by means of an external timer or separate remote control system. To reduce the risk of electric shock, do not immerse or expose the appliance or cord to rain, steam or any liquid other than that necessary for the proper operation of the product. This product should not be used near water such as bathtubs, wash basins, swimming pools, etc. where there is a risk of immersion or splashing. Make sure the power cord does not come into contact with the grill grates when in use. Do not leave the appliance unattended when it is switched on. Turn off and unplug the appliance when not in use, before putting on or taking off parts and before cleaning.GR 3800

Do not use the appliance for any purpose other than that for which it was designed. Do not let the cord hang over the edge of a table or bench or touch a hot surface. Do not operate this appliance or place it on or near hot surfaces (such as gas or electric stoves, grills, or ovens). Avoid touching hot surfaces, use handles and controls. When using the grill, make sure there is enough space above the grill and on all sides to allow air circulation. The use of accessories or other attachments not recommended or supplied by the dealer may cause serious personal injury and property damage. CAUTION: Surface may remain hot during or after use.

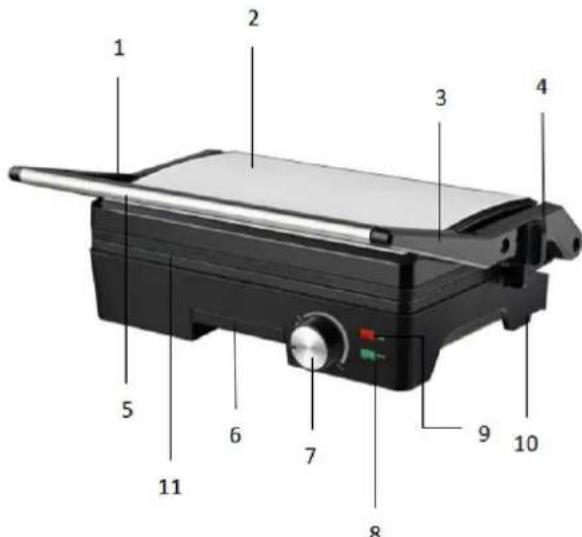

4. Locking and angle adjustment button

8. Optimal temperature indicator light (green)

9. Power indicator light (red)

With just a little imagination, you can prepare a wide variety of appetizers, snacks, meals, all kinds of toasts and melted goods quickly and easily. A great opportunity to change and forget the traditional sandwich.GR 3800

BEFORE USING THE GRILL FOR THE FIRST TIME NOTE: When you use the grill for the first time you will notice that the appliance gives off a slight smoke. This is due to the heating of the new parts and components and does not pose a risk to your health. Remove all packaging from the grill before using it for the first time. Check that the grates are free of dust. Clean the surface of the grates with a damp cloth and dry them with a dry cloth, kitchen paper, etc. Place the grill on a level surface. Remove the storage pin to make the upper and lower grills open and close. Grills must be closed to allow preheating. NOTE : ONLY for the first time use add a thin layer of oil, butter or margarine to the grates and rub with kitchen paper. Be careful as the grates will be hot.

HOW TO USE THE GRILL

Select the desired level on the thermostat button. Close the grill and plug it into the power supply, the red light (power) will come on, indicating that the grill is heating up. It will take about 5 minutes to reach the desired temperature, when this happens the green light (ready) will turn on. Open the grill, place the sandwich, snack, meat or other type of food on the bottom plate. Close the grill, the green light will turn off. You can adjust the height of the top plate using the angle adjustment button. Once the grill is open, select the height between “LOW and HIGH” in this way you can prevent the top plate from touching the food or putting pressure on it. Cook for 3 to 8 minutes, until the green light comes back on, until the bread is golden brown, or adjust the time to your personal taste. When the food is ready, open the grill by the handle to avoid touching the hot surface. Remove the food with a plastic or wooden spatula. Never use metal utensils or knives, as these could damage the non- stick coating of the grill plates. When you are done cooking, unplug the grill and leave it open to cool.

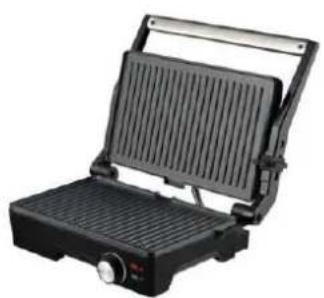

USING THE OPEN GRILL

Place the grill on a clean, flat surface. The grill can be opened 180º, slide the tab on the side of the handle to the “OPEN 180º” position when you have opened the grill about 90º, this way you can open it to 180º and you will have a larger surface for cooking.GR 3800

Use the grill in this position to cook burgers, steaks, chicken fillets (bone-in chicken pieces are not recommended as they will not cook thoroughly), fish and vegetables. This allows you to cook two types of food without mixing their flavours, by putting each one on the same plate. It also allows you to prepare different cuts of meat with different thicknesses, allowing you to cook each one for the necessary time. To make food healthier, the grill allows the fat to fall by tilting into the grease collector located at the back of the grill. In order for the grease collectors to perform their function better, it is recommended to place your feet on the base as shown in the following image, to create a better slope.

CLEANING AND MAINTENANCE

Always unplug the grill and allow it to cool before cleaning. The appliance is easier to clean when it is slightly warm (not burning). It is not necessary to disassemble the grill for cleaning. Never immerse the grill in water or put it in the dishwasher. Wipe the grill plates with a soft cloth to remove food residue. When residue is stuck, pour some hot water over it and remove it with a plastic spatula. Do not use abrasive products or utensils that may scratch and damage the non-stick coating of the plates. Clean the outside of the grill with a damp cloth only. Do not immerse in water or other liquid. Remove and empty the grease collection bucket after each use and clean it in hot water with detergent. Rinse and dry it before using again. STORAGE Always unplug the grill before storing it. Always make sure the grill is cool and dry before storing. “ Lock ” position to prevent the grill from opening during transport and subsequent storage.GR 3800

ELIMINATION OF THE HOUSEHOLD APPLIANCE OLD

In base to the Rule European 2012/19/EU of Waste of devices Electrical and Electronics (WEEE), the household appliances old No they can be thrown in the regular municipal containers; they have to be collected selectively for optimize the recovery and recycling of the components and materials that the constitute, and reduce he impact in the health human and he environment. He symbol of the cube of trash crossed out HE brand about all the products for remember to the consumer the obligation of separate them for collection selective. The consumer should contact the local authority or the seller for information regarding the correct elimination of his appliance old. STATEMENT OF ACCORDANCE: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the directive Compatibility Electromagnetic 2014/30/EU. WARRANTY This appliance is covered and has the right to a legal guarantee in accordance with current legislation from the date of purchase. Keep the purchase receipt in order to claim your right to the guarantee. To find the service closest to your location, contact us through the following web link: https://orbegozo.com/asistencia-tecnica/ For any type of query, doubt or incident you can contact us through our email reflected on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/ Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable components or those that have deteriorated due to improper use. Nor will it be responsible if the owner has technically modified the appliance. Please consult the legal conditions on our website.GR 3800
