GR 3250 - Grill plate Orbegozo - Free user manual and instructions

Product type	Electric grill plate
Brand	Orbegozo
Model	GR 3250
Power supply	Mains
Power	1500 W (estimate)
Plate material	Non-stick coating
Number of plates	2 (upper and lower)
Lid opening	Up to 180° for flat use
Handle	Yes, with adaptive hinge according to thickness
Sauce drip tray	Yes, removable
Indicator lights	Red light (power) and green light (ready)
Use	Indoor, for sandwiches, meats, vegetables
Care and cleaning	Clean with a damp cloth; do not immerse; use plastic or wooden utensils
Safety	Do not immerse; hot surface; do not leave unattended; keep away from cable of plates
Compliance	Low Voltage Directive 2014/35/EU and EMC 2014/30/EU
Warranty	Legal warranty according to applicable legislation
Included accessories	Drip tray; plastic spatula recommended
Power cord	Wraps around the base for storage
Usage	Domestic only
Locking	180° lock for transport

Frequently Asked Questions - GR 3250 Orbegozo

How to clean the cooking plates?

Unplug the appliance and let it cool down. Clean the plates with a soft cloth and some warm soapy water. For stubborn residues, pour some warm water, then use a non-abrasive plastic scouring pad. Never immerse the appliance and do not use metal utensils.

Can I use metal utensils on the plates?

No, never use metal utensils or knives. They could damage the non-stick coating. Use a plastic or wooden spatula.

How to open the grill flat?

Place one hand on the handle, with the other hand press the release button and push the handle back until the lid is horizontal. This allows a 180° opening for a large cooking surface.

What to do if smoke comes out during first use?

It is normal for some light smoke or odor to occur during first heating. This does not affect the safety of the appliance. Make sure the room is ventilated. If smoke persists, stop using and contact technical support.

What are the important safety instructions?

Never immerse the appliance, do not leave it unattended, do not use near water, do not touch hot surfaces, use the handles, and keep out of reach of children under 8 years old. Respect the electrical installation standards.

Can I cook chicken with bones?

It is not recommended to cook bone-in chicken on the open grill as cooking will not be even. Prefer foods of uniform thickness for even cooking.

How to store the appliance after use?

Always unplug the appliance, let it cool and dry completely. Wrap the power cord around the base and store it in a dry and clean place.

What is the warranty for this appliance?

The appliance is covered by the legal warranty from the date of purchase, in accordance with applicable legislation. Keep the purchase receipt to enforce your rights.

How to contact technical support?

You can contact technical support via the website https://orbegozo.com/asistencia-tecnica/ or by email indicated on the main page of the manual.

Can I immerse the appliance in water to clean it?

No, never immerse the appliance or put it in the dishwasher. Clean it only with a damp cloth.

USER MANUAL GR 3250 Orbegozo

GRILL VIANDE - MANUEL D'INSTRUCTIONS

GRILL - MANUAL DE INSTRUÇÕES

GRILL - MANUAL D'INSTRUCCIONS

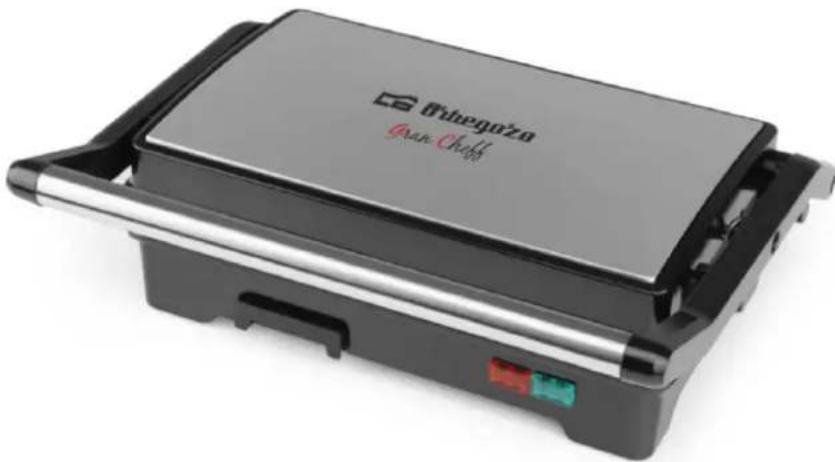

Exterior view of a black and silver grating with 'C6 Obtegoza' branding and 'Grave Chaff' text, no other signage or symbols visible.

GR 3250

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Line drawing of a mechanical device with a flat top and internal compartments (no text or symbols)

PARA USAR LA PARRILLA COMO PRENSA

Line drawing of a mechanical component with a labeled section 'EMPUJA' (no other text or symbols)

Line drawing of a two-tiered electric motor or generator unit (no text or symbols)

Posición abierta

LIMPIEZA Y CUIDADO

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in our website www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible injury.

- To reduce the risk of electric shock, do not immerse or expose the product or flexible cord to rain, moisture or any liquid other than those necessary for correct operation of the product.

- This product should not be used in the immediate vicinity of water, such as bathtub, washbowls, swimming pool etc. where the likelihood of immersion or splashing could occur.

- Ensure the power cord is kept away from the cooking plates of the Grill when in use.

- Do not leave the appliance unattended when switched on.

- Switch off and unplug from outlet when not in use, before assembling or disassembling parts and before cleaning.

- Do not use the appliance for other than its intended use.

• Do not let the cord hang over the edge of a table or bench or touch any hot surfaces.
• Do not operate or place any part of this product on or near any hot surface (such as gas or electric burner or hot plate or in a heated oven).
• Avoid touching hot surfaces, use handles and knobs.
• When using the grill, ensure that there is sufficient air space above and all sides for air circulation.
• The use of attachments or accessories not recommended or sold by the product distributor may cause personal or property hazards or injuries.
• Do not operate the device connected to an external timer or a separate remote control system.
• ATTENTION. Hot surface. The surface can become hot during operation.

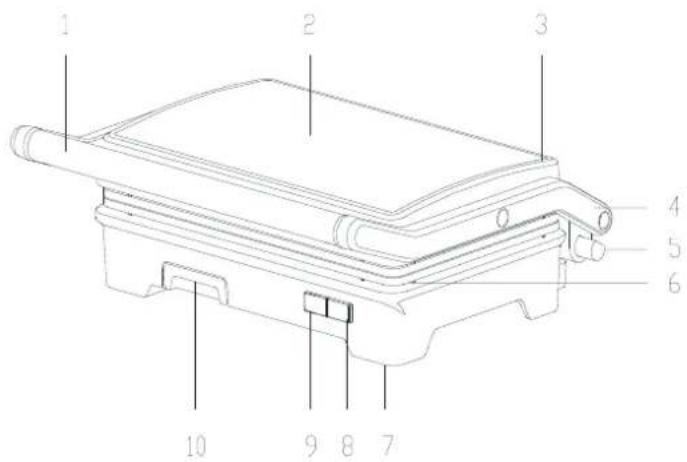

GRILL PARTS

1. Handle
2. Top cover
3. Upper case
4. Arm
5. 180 degree lock
6. Non-stick plate
7. Bottom case
8. Ready light
9. Power light
10. Tray collects sauces

BEFORE FIRST USE

• Please read all instructions carefully and keep them for future reference.
• Remove all packaging
• Clean the cooking plates by wiping them with a sponge or cloth moistened with lukewarm water. CAUTION: DO NOT IMMERSE UNIT OR RUN WATER DIRECTLY OVER COOKING SURFACES.
  • Dry with a cloth or kitchen paper.
• For best results, lightly coat the cooking plates with a little oil.

Notice: When your grill heats up for the first time, it may emit a slight smoke or odour. This is normal with many heating appliances and does not affect the safety of your appliance.

HOW TO USE

• Close the grill and plug it in, the red light (power) will turn on, indicating that the grill is heating up.
• It will take a few minutes to reach the maximum temperature, when this happens the green light (ready) will turn on.
• Open the grill, place the sandwich, sandwich, meat or other type of food on the bottom.

- Close the grill, the green light will turn off.

- Cook 3 to 8 minutes, until green light comes back on, until bread is golden brown, or adjust time to personal taste.

- When the food is ready, open the grill by the handle to avoid touching the hot surface. Remove food with a plastic or wooden spatula. Never use metal utensils or knives, these could damage the non-stick coating of the grill plates.

- When you have finished cooking, unplug the grill and leave it open to cool down.

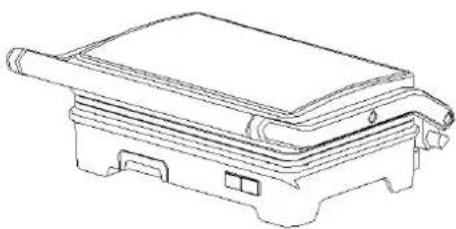

Line drawing of a mechanical component or housing with no visible text or symbols

TO USE THE GRILL AS A PRESS

• Prepare the sandwiches and place them on the lower cooking plate. Always place food towards the rear of the lower cooking plate.

- Close the upper cooking plate to evenly press the food.

• Cook for approximately 3 to 6 minutes or until golden brown, adjusting the time to suit your individual taste.

- When the food is cooked, use the handle to open the lid. Remove the food with the help of a plastic spatula. Never use metal tongs or a knife as they can damage the non-stick coating on the cooking plates.

- The device was designed with a unique handle and hinge that allow the cover to adjust to the thickness of the food.

- When cooking more than one food, it is important that the thickness of the food is uniform so that the lid closes evenly on the food.

Line drawing of a flat-screen grating machine with a cylindrical top panel (no text or symbols)

TO USE AS AN OPEN GRILL

• Place the appliance on a clean, flat surface where you are going to cook
• The top is level with the bottom. The top and bottom plates line up to create a large cooking surface.
• With your left hand on the handle, use your right hand to press the button. Push the handle back until the cover is horizontal.

- Use the Toaster Grill as an open grill for grilling food (we do not recommend cooking chicken on the bone, as it does not cook evenly on an open grill).

- Open grilling is the most versatile method of using the appliance. In the open position, you have twice the surface area for the grill.

- You have the option of cooking different types of food separately without combining their flavors, or cooking large amounts of the same type of food.

Mechanical assembly diagram showing a hand gripping a lever with a labeled 'PUSH' (no other text or symbols)

Line drawing of a two-tiered rectangular device with slats and a handle, no text or symbols present

Open position

CLEANING AND CARE

• Always unplug the appliance and let it cool down before cleaning. It is easier to clean when it is slightly warm. It is not necessary to disassemble it to clean it. Never immerse it in water or place it in the dishwasher.
- Clean the cooking plates with a soft cloth to remove food residues. For baked-on food residue, pour a little warm water mixed with detergent over the food residue, then wipe with a non-abrasive plastic scouring pad or place damp kitchen paper on the rack to moisten the food residue.
- Do not use anything abrasive that could scratch or damage the non-stick coating.
- Do not use metal utensils to remove food, they can damage the non-stick surface.
- Clean the outside of the device only with a damp cloth. Do not clean the exterior with any abrasive pads or steel wool as this will damage the finish. Remove and empty the drip tray after each use and wash with warm soapy water. Avoid using scouring pads or strong detergents as they can damage the surface.

STORAGE

• Always unplug the appliance before storing it.
• Always make sure it is cool and dry before storing.
- The power cord can be wrapped around the bottom of the base for storage.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

FRANÇAIS

CONSIGNES IMPORTANTES

Line drawing of a mechanical component or housing with no visible text or symbols

POUR UTILISER LE GRIL COMME PRESSE

Line drawing of a flat-screen grating machine (no text or symbols)

A UTILISER COMME GRIL OUVERT

Mechanical assembly diagram showing a lever mechanism with labeled component 'POUSSER' (no other text or symbols)

Line drawing of a dual-panel electric motor or generator unit (no text or symbols)

Poste libre

NETTOYAGE ET ENTRETIEN

Line drawing of a mechanical component or housing with no visible text or symbols

PARA USAR A GRELHA COMO PRENSA

Line drawing of a two-tiered flat-panel electric heater with cooling fins and heat exchangers (no text or symbols)

Posição aberta

LIMPEZA E CUIDADOS

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Technical line drawing of a mechanical component with internal channels and housing (no text or symbols)

Close-up of a mechanical component with curved arrows indicating rotation or movement (no text or symbols visible)

NETEJA I MANTENIMENT
