GR 2500 - Grill plate Orbegozo - Free user manual and instructions

Product type	Electric grill plate
Brand	Orbegozo
Model	GR 2500
Power supply	220-240 V ~ 50/60 Hz
Power	1200 W (estimated)
Dimensions (L × W × H)	30 × 20 × 10 cm (estimated)
Weight	2 kg (estimated)
Plate material	Non-stick coating
Removable plates	Yes, dishwasher safe
Indicator lights	Red (heating) and green (ready)
Thermostat	Yes, temperature control
Cooking surface	Non-stick
Safety	Hot surface, do not immerse, short cord
Usage	Indoor, domestic use
Maintenance	Clean after each use, soft sponge, no abrasives
Warranty period	2 years (estimated)
Included accessories	User manual

Frequently Asked Questions - GR 2500 Orbegozo

How to use the grill for the first time?

Clean the surface with a damp cloth, dry it, then pour a little oil or butter on the plate. Preheat the appliance for 5 to 10 minutes before first use.

Why is the green indicator blinking during cooking?

The blinking of the green indicator indicates that the thermostat is working correctly and maintaining the set temperature.

Can I use metal utensils on the plates?

No, always use wooden or plastic spatulas to avoid damaging the non-stick coating.

How to clean the removable plates?

Remove the plates from the appliance, clean them with warm soapy water and a soft sponge, or place them in the dishwasher. Never use abrasive products.

Can I immerse the appliance in water?

No, never immerse the appliance in water or rinse it under the tap. Clean the exterior with a damp cloth.

What to do if the power cord is damaged?

If the cord is damaged, contact an authorized technical service to have it replaced. Do not use the appliance.

Can children use this appliance?

This appliance can be used by children aged 8 and above under supervision. Children should not play with the appliance.

How to store the grill after use?

Allow the appliance to cool completely, clean the plates, then store it in a dry and dust-free place.

Does the grill have an automatic shut-off?

No, the appliance does not have an automatic shut-off. Make sure to unplug the appliance after use and do not leave it running unattended.

How to know when the grill is ready to cook?

Plug in the appliance, the red indicator lights up. Close the lid and wait until the green indicator lights up, which indicates that the cooking temperature has been reached.

USER MANUAL GR 2500 Orbegozo

GRILL VIANDE - MANUEL D'INSTRUCTIONS

GRILL - MANUAL DE INSTRUÇÖES

GR 2500

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

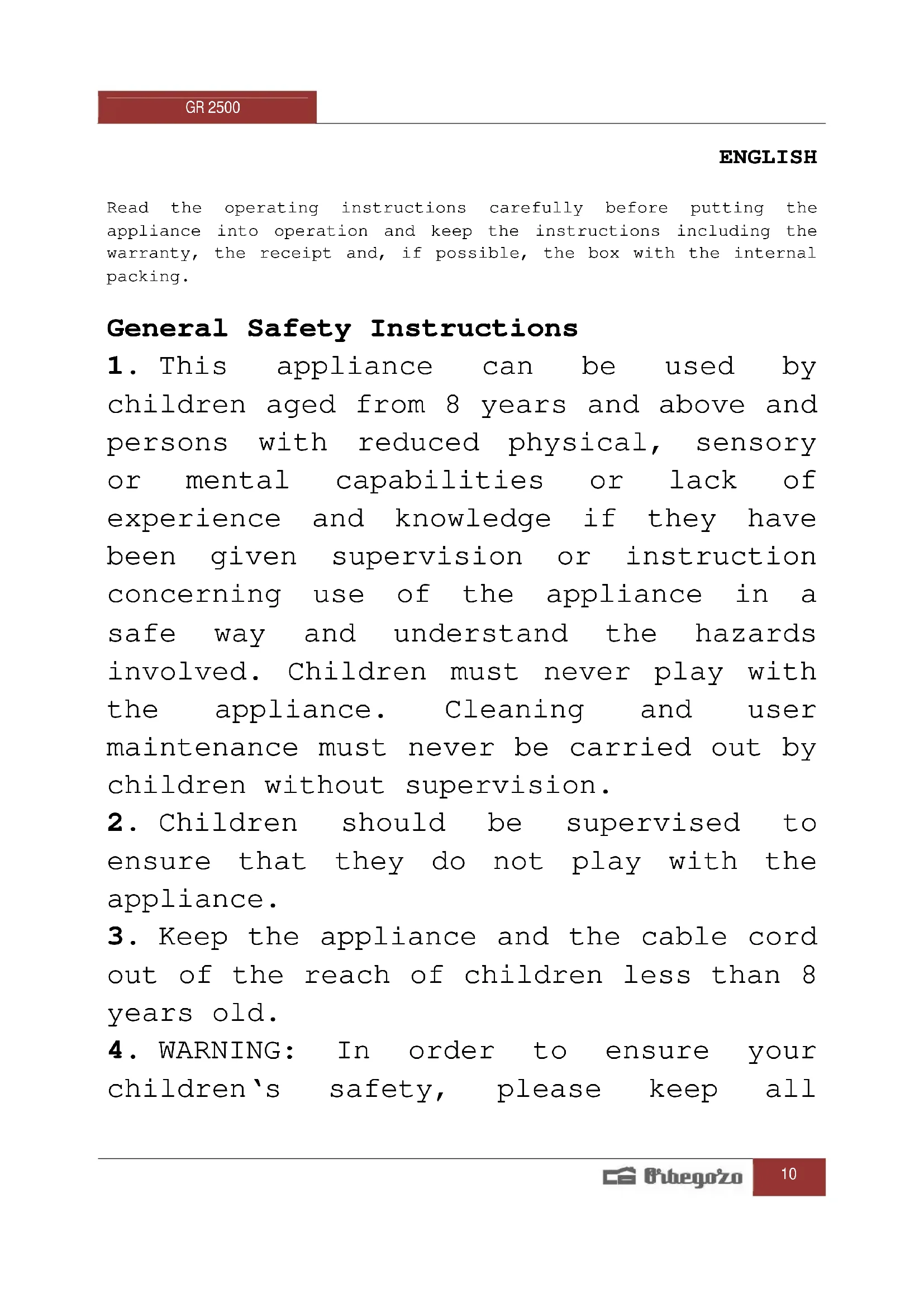

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all

packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

1. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
2. Never pull on the cord when unplugging.
3. Do not use the unit with a damaged cord or plug, or if it is not working properly.
4. Do not handle the appliance with wet hands.
5. Never immerse the appliance in water or any other liquid.
6. Make sure the appliance has been unplugged before cleaning.
7. This appliance must be installed following the national regulations for electrical installations.
8. This appliance is for household use only.

9. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

10. WARNING: In case of misuse, there is a risk of possible injury.

Special Safety Instructions

• CAUTION: The surface can remain hot during or after use.

• Do not use the device connected to an external timer or a separate remote control system.

• The electrical safety of the appliance is only guaranteed if it is connected to an efficient earth installation as specified in current electric safety regulations. The manufacturer does not accept responsibility for any damage resulting from a lack of earth installation.

• We strongly advise against the use of adapters, extension plugs and/or leads. In the case of these being necessary, use only simple or multiple adapters and extension leads which conform to current safety regulations, taking care not to exceed the voltage limit indicated on the adapter and/or extension lead.

• The baking surfaces get very hot. Touch the handles only.

• Warning: When the grill is switched on, the inside surfaces can reach extremely high temperatures and can cause serious burns. It should be taken the necessary measures to avoid the risk of burns, fire and other damage to persons or property by contact with the sides or top of the device during use or its cooling.
• Do not let the mains cord hang over the edge of the table or worktop on which the appliance stands.
• Keep the mains cord away from hot surfaces.
• Do not let the appliance operate unattended.
• Put the appliance on a flat, stable surface with sufficient free space around it.

• Let the appliance cool down completely before you remove the cooking plates, clean the appliance or put it away.

• Never touch the cooking plates with sharp or abrasive items, as they damage the non-stick surface.

• Always unplug the appliance after use.
• Always clean the appliance after use.
• Put the unit down onto a heat-resistant surface or mat.
• In order to prevent heat from building up, do not put the unit directly underneath a cupboard. Ensure that there is enough space all around.
• Beware of steam coming out when you open the baking section.

USING THE GRILL FOR THE FIRST TIME

When using for the first time, wipe the surface of the plate with damp cloth and dry with clothe, tissue etc. Then drop some cooking oil or butter on the plate. Then preheat for 5-10 minutes.

This operation is only necessary when using for the first time.

HOW TO USE IT

1. Plug the connector, and then red light will light.
2. Close the lid and prepare the food while the grill is heating.
3. The device is ready once the green light turns on.
4. Place the sandwiches in the grill and close the top.
5. While cooking, the upper lid would be a little bulging.
6. During use, the green light will turn on and off. This indicates that the thermostat is working correctly.
7. Leave the food to cook for several minutes. Cooking time depends on individual preference.
8. Open the lid and remove sandwich using plastic or wooden spatula. Never use metal knife as this may damage the non-sticking coating.
9. After using, pull out the plug and open the upper lid let it get cool.

WARNING: The plates may become very hot during use. Be very careful when using the sandwich toaster.

CLEANING

• Never immerse the appliance in water nor rinse it under the tap.
• Unplug the grill.
• Let the sandwich maker cool down completely in open position.
• Remove any sticky food residues (e.g. solidified cheese) from the cooking plates with a wooden or plastic spatula.
• Remove excess oil from the cooking plates with a piece of kitchen paper before you remove them.
• Remove the cooking plates from the appliance.
• Clean the cooking plates with a soft cloth or sponge in hot water with some washing-up liquid or put them in the dishwasher.
• Never use aggressive or abrasive cleaning agents and materials, as they damage the non-stick coating of the cooking plates.
• Clean the outside of the appliance with a damp cloth.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
