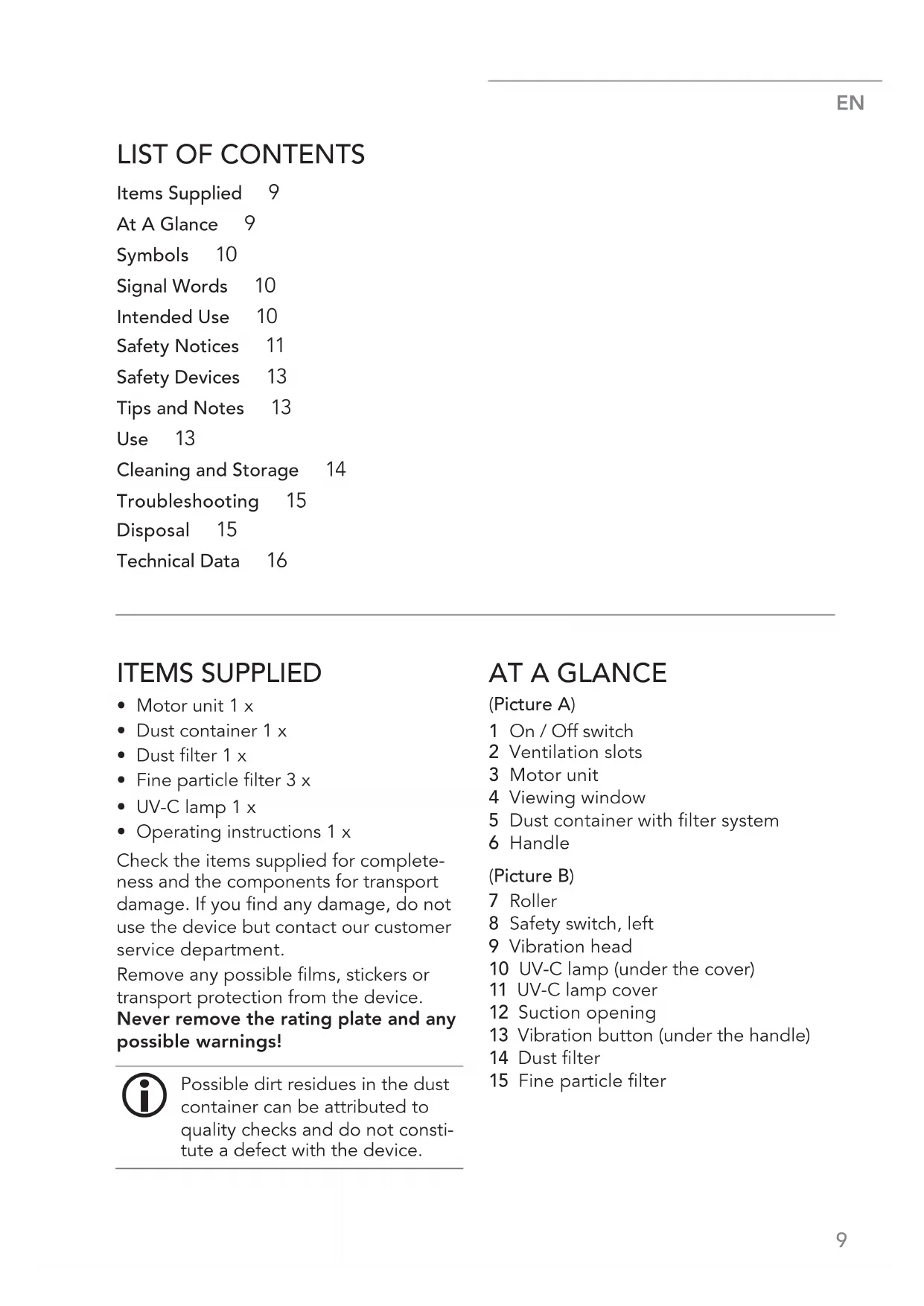

USER MANUAL 12399 Cleanmaxx
Cleaning and Storage 14
Troubleshooting 15
Disposal 15
Technical Data 16
ITEMS SUPPLIED
- Motor unit 1 x
- Dust container 1 x
- Dust filter 1 x
- Fine particle filter 3 x
- UV-C lamp 1 x
- Operating instructions 1 x
Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.
Remove any possible films, stickers or transport protection from the device.
Never remove the rating plate and any possible warnings!
Possible dirt residues in the dust container can be attributed to quality checks and do not constitute a defect with the device.
AT A GLANCE
(Picture A)
1 On / Off switch
2 Ventilation slots
3 Motor unit
4 Viewing window
5 Dust container with filter system
6 Handle
(Picture B)
7 Roller
8 Safety switch, left
9 Vibration head
10 UV-C lamp (under the cover)
11 UV-C lamp cover
12 Suction opening
13 Vibration button (under the handle)
14 Dust filter
15 Fine particle filter
EN
Dear Customer,
We are delighted that you have chosen the dust mite vacuum cleaner. If you have any questions about the device and about spare parts / accessories, contact the customer service department via our website: www.ds-group.de/kundenservice
Information About the Operating Instructions
Before using the device for the first time, please read through these operating instructions carefully and keep them for future reference and other users. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.
SYMBOLS
Danger symbols: These symbols indicate possible hazards. Read the associated safety notices carefully and follow them.
Supplementary information
Read operating instructions before use.
Warning: UV-C rays
Protection class II
Alternating current
SIGNAL WORDS
Signal words indicate hazards if the associated notices are not followed.
DANGER – high risk, results in serious injury or death
WARNING – medium risk, may result in serious injury or death
NOTICE – may result in risk of damage to material
INTENDED USE
This device is intended to be used to kill off bacteria and remove dust, germs and domestic dust mites. It is suitable for use on mattresses, bed sheets, bed covers, upholstered furniture and similar items.
On no account should the device be used to suck up the following:
- liquids or wet substances (e.g. wet carpet shampoo)
- glowing ash, cigarette ends, matches, etc.
- inflammable or explosive substances
- very fine dust (e.g. concrete dust), ash or toner
- pointed, hard objects such as large pieces of broken glass
■ The device is for personal use only and is not intended for commercial applications.
■ The device should only be used as described in the operating instructions. Any other use is deemed to be improper.
■ The warranty does not cover faults caused by incorrect handling, damage, assembly or attempted repairs. The same applies to normal wear and tear.
SAFETY NOTICES
WARNING: Note all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and / or injuries.
■ This device must not be used by children. The device and the connection are to be kept away from children.
■ This device may be used by people with reduced physical, sensory or mental abilities or a lack of experience and / or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from this. Children must not play with the device.
■ The device must always be disconnected from the mains power when it is left unattended and before assembling, disassembling or cleaning the device.
■ Never immerse the device or the connection in water or other liquids and ensure that they cannot fall into water or become wet.
In the interest of your own safety, you should inspect the device for damage each time before you use it. The device may only be used if it has no visible signs of damage! If the device or the connection of the device is damaged, it must be replaced by the manufacturer, customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.
DANGER – Danger of Electric Shock
■ Use and store the device only in closed rooms.
■ Do not use or store in rooms with high humidity.
If the device falls into water while it is connected to the mains power, pull the plug out of the plug socket im-
mediately! Only after this should you pull the device out of the water.
■ Never touch the device and the connecting cable with wet hands when the device is connected to the mains power.
WARNING – Danger of damage to the eyes and skin!
■ Germicidal ultraviolet rays are harmful to the eyes and skin. Never expose yourself or other people and animals to direct or reflected rays! If you come into contact with the rays, consult a doctor immediately.
■ Make sure that the safety switches of the UV-C lamp are not blocked!
WARNING – Danger of Injury
- Keep the packaging material away from children and animals. There is a danger of suffocation.
■ Make sure that the connecting cable is always kept out of the reach of small children and animals. There is a danger of strangulation.
■ Lay the connecting cable in such a way that it does not present a trip hazard.
- Keep animals, hair, jewellery, wide clothing, fingers and all other body parts away from the suction opening of the device. They could become stuck to the device.
WARNING – Danger of Fire!
- Do not cover the device during operation in order to prevent it from catching fire. Do not insert anything into the openings of the device and make sure that these do not become clogged.
NOTICE – Risk of Damage to Material and Property
■ Only connect the device to a plug socket that is properly installed and matches the technical data of the device. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
■ Only use suitable extension cables whose technical data is the same as that of the device.
■ Make sure that the connecting cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces.
■ The device must be switched off when inserting or removing the mains plug.
■ Pull the mains plug out of the plug socket if an error occurs during operation or before a thunderstorm.
■ Always pull the mains plug and never the mains cable to disconnect the device from the mains power. Never pull or carry the device by the mains cable.
■ Protect the device from heat, naked flames, sub-zero temperatures, persistent moisture, wet conditions and impacts.
- Do not try to lubricate the rollers with lubricant or oil. This would cause dust and dirt to increasingly adhere to the rollers.
■ Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.
■ Do not lay heavy objects on the device or the connecting cable.
SAFETY DEVICES
The device has two safety switches (8, 12). The UV-C lamp (10) only switches on if both safety switches are pressed into the motor unit (3) (automatic switch-off function of the UV-C lamp deactivated). This happens automatically when the device is placed on a flat surface. If the safety switches lose contact with the surface below, the automatic switch-off function is activated and the UV-C lamp stops being lit (automatic switch-off function of the UV-C lamp activated).
TIPS AND NOTES
• Always clean mattresses on both sides.
• We recommend cleaning new mattresses once a month. Older mattresses should initially be cleaned every day for a week. We then recommend cleaning them once a month.
- The filter should be replaced every 12 – 18 months; the UV-C lamp (10) should be replaced every 12 – 24 months. If you have any questions about spare parts, please contact the customer service department via our website:
■ The device should only be used if it has been fully and correctly assembled! The dust container and the filter must be inserted and must not be damaged! If the dirt were to get inside the motor unit, this could damage the motor.
■ Make sure that the safety switches of the UV-C lamp are not blocked!
■ Always test the device first on a small, inconspicuous spot.
- Insert the mains plug into a properly installed plug socket that is easily accessible.
- Place the device down flat on the surface which is to be cleaned.
- Press the On / Off switch (1) to switch on the device. The device starts to vacuum and the UV-C lamp (10) switches on.
You can look through the viewing window (4) to check whether the UV-C lamp is switched on.
- Press the vibration button (14) to activate the vibration head (9).
The vibration shakes up the surface which is to be cleaned and the dust which is agitated is sucked in through the suction opening (13).
- Guide the device very slowly and evenly over the surface to be cleaned.
- After vacuuming, press the On / Off switch to switch off the device.
- Remove the mains plug from the plug socket.
CLEANING AND STORAGE
Please Note!
■ Empty the dust container each time after you use the device. The filter must also be regularly cleaned in order to prevent overloading of the motor.
- Do not use any sharp or abrasive cleaning agents to clean the device and accessories. They may damage the surfaces.
- Make sure that the mains plug has been pulled out and the device is disconnected from the power.
- As required, wipe down the motor unit (3) with a damp soft cloth. Then dry it with a soft cloth.
- Wipe out the recess for the dust container(5) with a duster.
Emptying the Dust Container
- Reach into the recess in the dust container (5) and pull it up and out of the motor unit (3).
- Reach into the opening and pull the filters out of the dust container.
- Empty the dust container.
- Wipe out the dust container with a dry duster if necessary.
Cleaning the Dust and Fine particle filters
- Unscrew the dust filter (15) anticlockwise until the arrow on the dust filter points to the open padlock symbol (see picture).
- Detach the dust filter from the fine particle filter (16).
- Tap out both filters and clean them with a soft brush if necessary.
For thorough cleaning the filters can be rinsed under cold (!) running water.
NOTE: Allow both filters to dry completely before the device is reassembled. Place the dust filter on the fine particle filter.
- Screw on the dust filter clockwise until the arrow on the dust filter points to the closed padlock symbol.
- Insert the filters into the dust container(5).
- Insert the dust container with the filters into the motor unit (3).
Cleaning the UV-C Lamp
Please Note!
■ The UV-C lamp will become hot during use. Allow the UV-C lamp to cool sufficiently after using the device. There is a danger of burns!
- Undo the two screws on the cover (11) of the UV-C lamp (10) and take off the cover.
- Wipe down the UV-C lamp with a dry duster.
NOTE: Make sure that you do not touch the UV-C lamp with your fingers!
- Place the cover back on and fix it in place with the two screws.
Storage
- Store the device in a cool, dry place which is protected from direct sunlight and is out of the reach of children and animals.
TROUBLESHOOTING
If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps below, contact the customer service department.
Do not attempt to repair an electrical device yourself!
The device generates no suction.
The mains plug is not inserted correctly in the plug socket.
▶ Correct the fit.
The device is not switched on.
▶ Press the On / Off switch.
Low suction force.
The dust container is too full.
▶ Empty the dust container.
The filters are dirty.
▶ Clean the filters.
The suction opening is blocked.
▶ Switch off the device, pull the mains plug out of the plug socket and remove the blockage.
The UV-C lamp does not light up.
The automatic switch-off function of the UV-C lamp has been activated.
▶ Check the safety switches (see the "Safety Devices" chapter).
The vibration head does not vibrate.
The vibrating function has not been switched on.
▶ Press the vibration button.
Unusual odour
The device is being used for the first time.
▶ A new odour is normal when the device is used for the first time; it disappears after a while.
DISPOSAL
Please Note!
- The UV-C lamp should be removed prior to disposal of the device and disposed of separately from the device. Notes on how to remove the UV-C lamp can be found in the "Cleaning and Storage" chapter – "Cleaning the UV-C Lamp".
Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.
The adjacent symbol (crossed-out bin underlined) means that used devices should not be disposed of in the domestic waste, but should instead be taken to special collection and return systems.
Owners of used devices from private households can take them free of charge to the collection points of the public waste disposal authorities or the disposal points which are set up by manufacturers and distributors under the Electrical Equipment Act so that they can be disposed of in an environmentally friendly way and valuable raw materials can be recovered. If they are not disposed of properly, toxic ingredients may escape into the environment and cause harm to the health of humans, animals and plants. Businesses which market electrical and electronic devices are also obliged to take back used devices.
Waste prevention makes an even more valuable contribution to protecting the environment. This means if possible, as well as continuing to use or repair a device yourself, passing it on to another user also represents an ecologically beneficial alternative to disposal.
TECHNICAL DATA
Article number: 02243 (white/lime green)
12399 (white/red)
14969 (white/purple)
Model number: SC04
Voltage supply: 220 – 240 V \~ 50 / 60 Hz
Power: 300W
Protection class: II
ID of operating instructions: Z 12399_02243_14969 M DS V2 0624 as
All rights reserved.
