Samson Distribution LLC 278-B Duffy Ave Hicksville, New York 11801 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Private household in the 27 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one). For Countries not mentioned above, please contact your local authorities for a correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. ©2025 Samson. All product descriptions and specs subject to change.EN FR DE ES IT Introduction Ideal for any musician that needs to record amplified instruments, the Samson ReTrack is a compact reamplification DI box featuring an XLR-1/4” combo input and a 1/4” instrument-level output for amps. ReTrack makes it easy to take recorded audio from a guitar, audio interface, or mixer and send it back out to an amp for reamping and tone shaping. Designed with versatility in mind, the ReTrack includes a rotary output volume control, ground-lift switch, and a switch between standard line-level inputs and stereo headphone outputs—perfect for use with modern USB interfaces, laptops, and portable gear. Built into a rugged 14-gauge steel S-Max chassis, ReTrack is ideal for both studio and live applications. IMPORTANT NOTICE! The Samson ReTrack is a passive reamplification device specifically designed for use with amplifiers that have proper electrical safety grounds approved by nationally recognized electrical authorities such as UL (USA), CSA (Canada), and similar regulatory bodies worldwide. Due to the unpredictable nature of connecting different amplifiers and pedals together, using the ReTrack may pose a potential electric shock risk. The user assumes full responsibility for all consequences resulting from use, as these are beyond the manufacturer’s control. By using this device, you confirm that you understand and accept full responsibility for its safe operation. If you are not 100% certain about how to connect and use this product safely, please consult a qualified technician before proceeding.The ReTrack’s main input is an XLR-1/4” TRS combo jack, which accepts both balanced and unbalanced signals from line-level sources like audio interfaces or mixers. The input toggle switch allows shifting between standard line outputs and stereo headphone signals—ideal for portable audio interfaces where dedicated line outs may not be available. This flexibility allows you to reamp signals from a wide range of sources without the need to unplug your monitoring setup. The ReTrack’s 1/4” instrument-level output connects directly to amplifiers, pedals, or other gear. The onboard volume knob gives you precise control over the reamp level, while the ground-lift switch helps eliminate hum and buzz from ground loops or interference. This ensures a clean signal path from your DAW to your amp. Part of Samson’s S-Max series, the ReTrack features a heavy-duty 14-gauge steel enclosure designed to withstand the rigors of daily studio use and live performance. All internal components and switches are protected in a roadworthy form factor, ensuring long-lasting performance wherever your sessions take you. Versatile by Design Ready for the Studio S-Max DurabilityEN FR DE ES IT Callouts

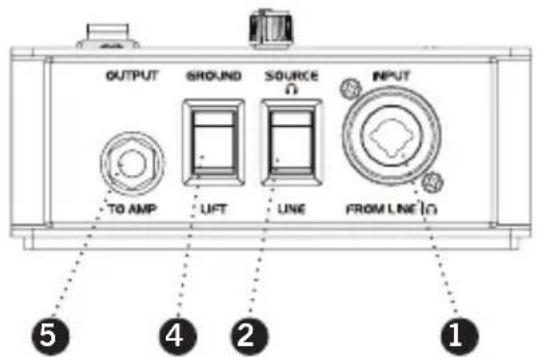

1. COMBO INPUT – XLR / 1/4" TRS input for connecting line-level or stereo headphone sources.

2. INPUT SELECT SWITCH – Switches between Line (balanced/unbalanced line-level input) and Phones

(stereo headphone input).

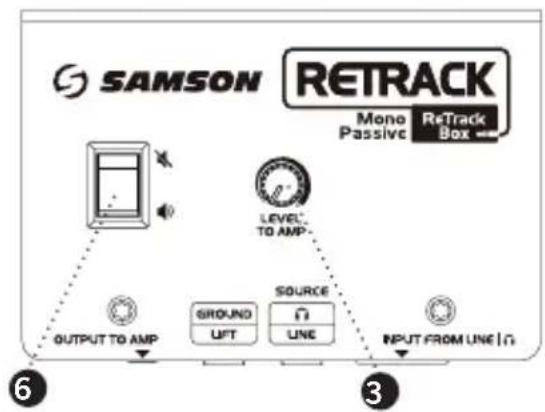

3. LEVEL TO AMP – Volume rotary knob to control the instrument to line signal level sent to the amp

4. GROUND LIFT – Switch for disconnecting pin-1 ground on the XLR input to eliminate hum or buzz

caused by ground loops (GROUND is the default setting).

5. AMP OUTPUT – 1/4" TS unbalanced instrument-level output for connecting to a guitar amplifier,

pedalboard, or effects unit.

6. MUTE SWITCH – Switch on and off to Mute amp output.

45• Set all volume controls to minimum before making connections.

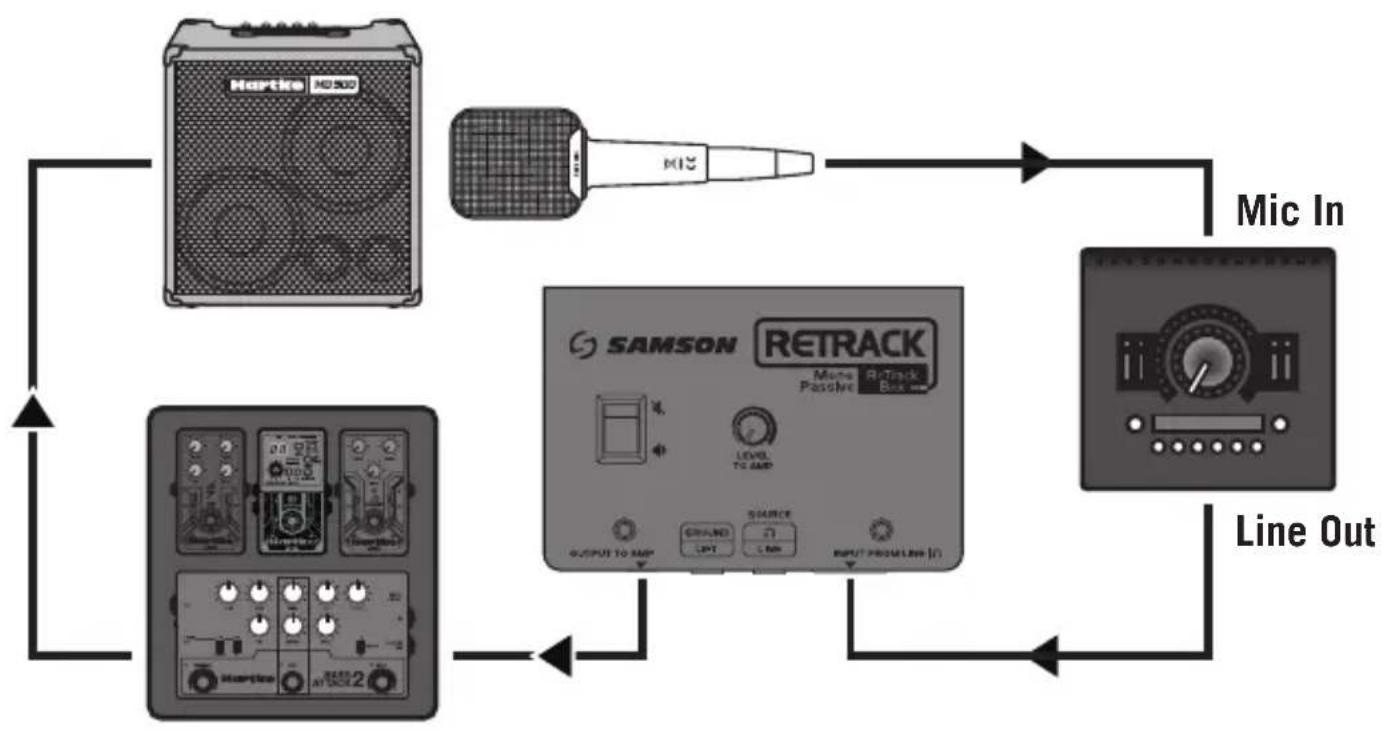

• Connect the output of your audio interface, mixer, or USB DAC to the COMBO INPUT. Use the INPUT SELECT switch to choose the correct signal type (Line or Phones).

• Connect the AMP OUTPUT to your amplifier or effect chain, and set the MUTE switch to NOT MUTED.

• Use the LEVEL TO AMP, volume rotary knob to adjust the output level to match your amp’s input sensitivity.

• If you hear a hum or ground noise, try flipping the GROUND LIFT switch.

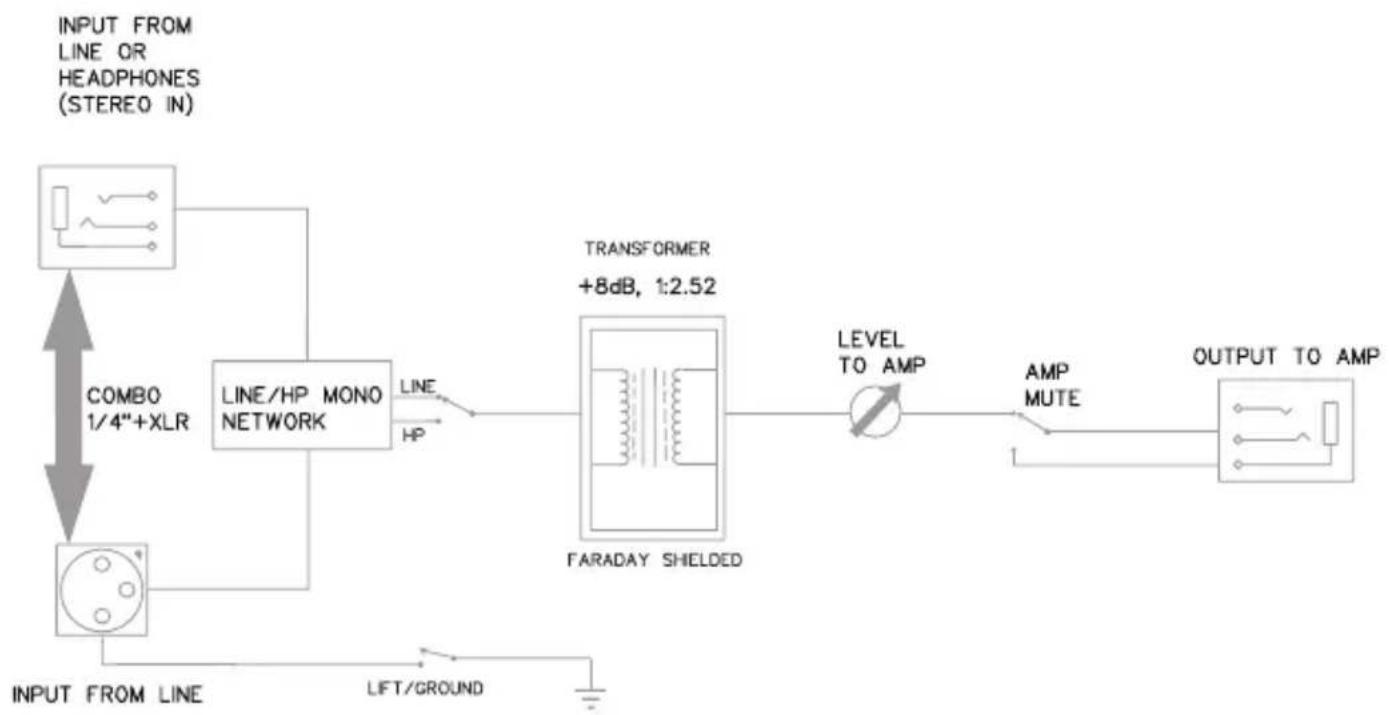

• Adjust your amplifier and monitor settings as needed for your desired tone. Setup The Samson ReTrack is an ideal tool for reamping pre-recorded tracks in the studio. Here’s how to set up a typical reamp configuration using the ReTrack:EN FR DE ES IT Mic In Line OutBlock DiagramEN FR DE ES IT Type Passive Reamplification Box Frequency Response 20Hz–20kHz ±0.5dB Input Impedance Line 7.5kΩ, Headphones (Stereo Input) 1.9kΩ Output Impedance 10kΩ to 22.5kΩ, Varies with LEVEL TO AMP Position Load Impedance Typical Guitar Amp 1MΩ & 10’ Cable Gain +8dB, 0dB With LEVEL TO AMP at Mid Position Max Input Level +18dBu @ 20 Hz 1% THD+N Max, +20dBu 24Hz–20kHz Transformer Samson Custom Designed Passive Isolation Controls “LEVEL TO AMP” Rotary Volume Control, Mute Switch, Ground/Lift Switch, Headphone/Line Input Switch Connectors XLR-1/4” TRS Combo Input, 1/4” TS Output Construction 14-gauge steel chassis Dimensions 5” × 3.75” × 1.75” 127mm x 92mm x 44mm Weight 1.47lb 667g SpecificationsCopyright 2025, Samson Distribution LLC
