STVIR2242FIX - Flat screen mount Irradio - Free user manual and instructions

Product Type	Fixed wall mount for flat screen
Brand	Irradio
Model	STVIR2242FIX
Compatible screen size	22" to 42" (55.88 cm to 106.68 cm)
Maximum supported weight	25 kg
Compatible VESA standard	Not specified, adjustable plates
Materials	Steel (main plate and arms), plastic (anchors)
Color	Black (typical)
Main plate dimensions	Approximately 50 x 30 cm (estimate)
Package contents	1 main plate, 2 carrier arms, 4 plastic anchors, 4 triphone screws, 4 M6*12 screws
Installation	Wall fixation, height adjustable, leveling required
Necessary tools	Drill, screwdriver, pencil (not included)
Automatic locking	Yes, carrier arm locked in final position
Maintenance	Periodically check screw tightness and support integrity
Safety	Do not exceed 25 kg, suitable wall, out of reach of children
Warranty	2 years (Melchioni Spa)
Intended use	Domestic only
Country of origin	Not specified

Frequently Asked Questions - STVIR2242FIX Irradio

What is the maximum screen size supported?

The mount supports screens from 22 to 42 inches (55.88 to 106.68 cm).

What is the maximum weight this mount can support?

The maximum screen weight must not exceed 25 kg.

Is this mount compatible with my VESA standard?

The carrier arms are adjustable to fit different VESA patterns. Measure the distance between the holes on the back of your TV and adjust the arms accordingly.

What tools are needed for installation?

You will need a drill, a screwdriver, and a pencil to mark the holes. Tools are not included.

Is the mount fixed or tilting?

This model is a fixed mount. It allows neither tilting nor rotation.

How to install the wall mount?

1. Mark the holes using the plate. 2. Drill and insert the anchors. 3. Fix the plate with the triphone screws. 4. Adjust the arms on the TV. 5. Hang the TV on the plate. Refer to the provided assembly guide.

Can I easily remove the TV from the mount?

Yes, simply disconnect all cables and then lift the TV to detach it. The carrier arm disengages automatically.

What type of wall is required for installation?

The wall must be solid and able to support the combined weight of the TV and mount. Avoid lightweight partitions without reinforcement.

Is the mount guaranteed?

Yes, the product comes with a 2-year warranty by the manufacturer Melchioni Spa, valid in the European Union.

What to do if a part is missing?

Check the contents list. If a part is missing, contact the retailer or Melchioni customer service. Do not use non-compliant replacement parts.

USER MANUAL STVIR2242FIX Irradio

Black metal bracket with cutouts and a white arrow indicating direction (no text or symbols)

Art. 149302130

Technical line drawings of two mechanical components labeled (a) and (b), showing internal features without any text or symbols.

Pure mechanical diagram showing a screwdriver inserted into a bracket (no text or symbols)

(figura 5)

muro TV (figura 6) plastra principale

Technical line drawing of a mechanical bracket with mounting holes and a cross symbol (no text or labels)

ATTENZIONE!

Please, read the instructions carefully and keep them for future reference. Do not use this appliance for purposes other than those described.

Safety information and specifications

CAUTION: Do not use this product for any purpose not explicitly specified.

Using for other cases may cause properly damage or personal injury. On the other side if you cannot understand of instruction or doubts about safety of this, contact to your customer service or call a qualified contractor. Melchioni is not responsible for any damage or injury due to incorrect installation or use. The weight of your TV should not be more than 25 kg. The wall must be capable of supporting weight of your TV and wall mount together. Keep these times away from young children.

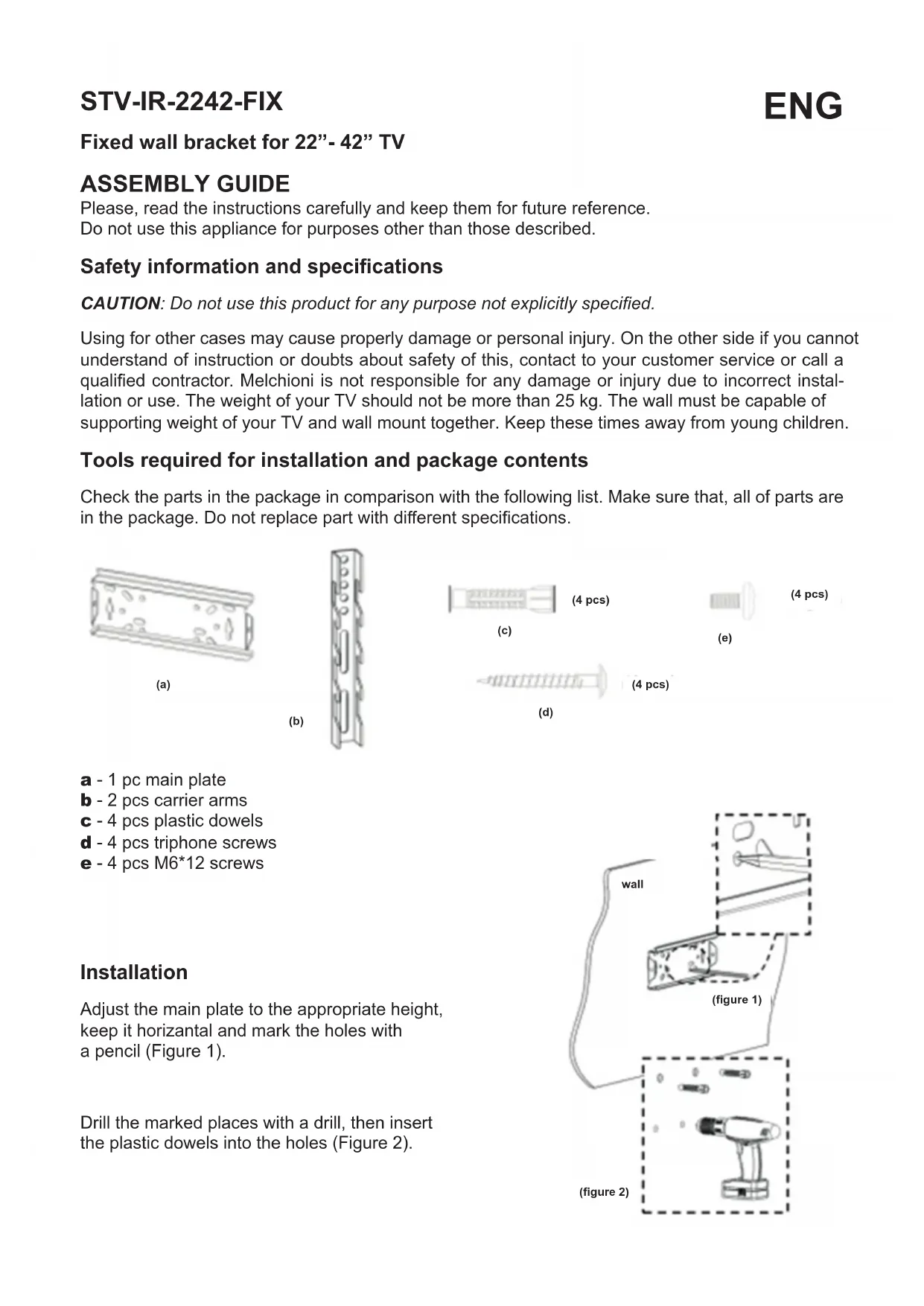

Tools required for installation and package contents

Check the parts in the package in comparison with the following list. Make sure that, all of parts are in the package. Do not replace part with different specifications.

Technical line drawings of two mechanical components labeled (a) and (b), showing internal features without any text or symbols.

a - 1 pc main plate
b - 2 pcs carrier arms
c - 4 pcs plastic dowels
d - 4 pcs triphone screws
e - 4 pcs M6*12 screws

Installation

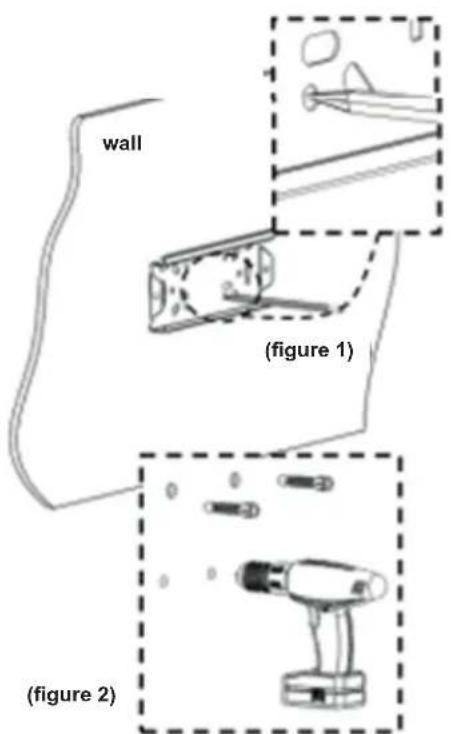

Adjust the main plate to the appropriate height, keep it horizontal and mark the holes with a pencil (Figure 1).

Drill the marked places with a drill, then insert the plastic dowels into the holes (Figure 2).

wall (figure 1) (figure 2)

wall (figure 3)

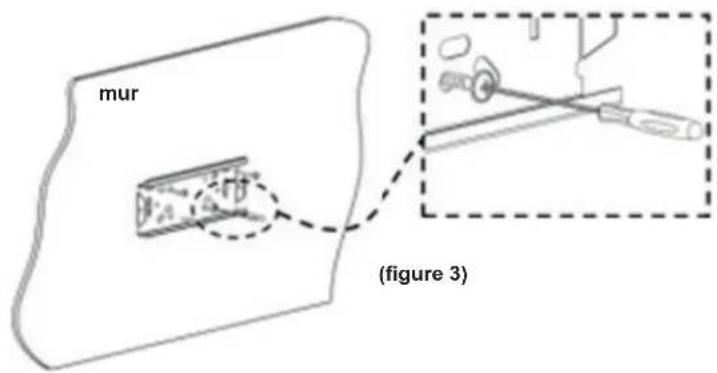

Fix the main plate to the wall with triphone screws, use a screwdriver during the process (Figure 3).

Pure mechanical diagram showing a screwdriver inserted into a bracket (no text or symbols)

(figure 5)

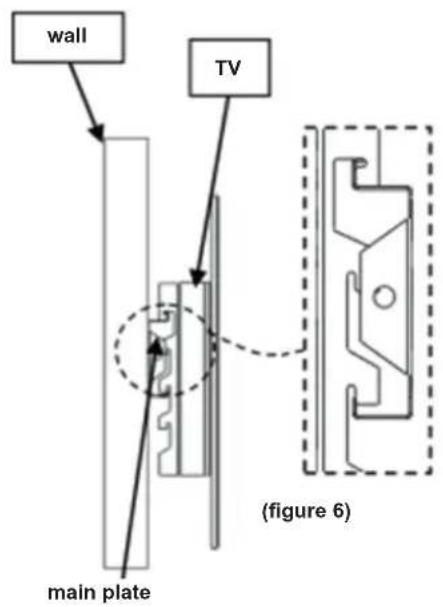

wall TV main plate (figure 6)

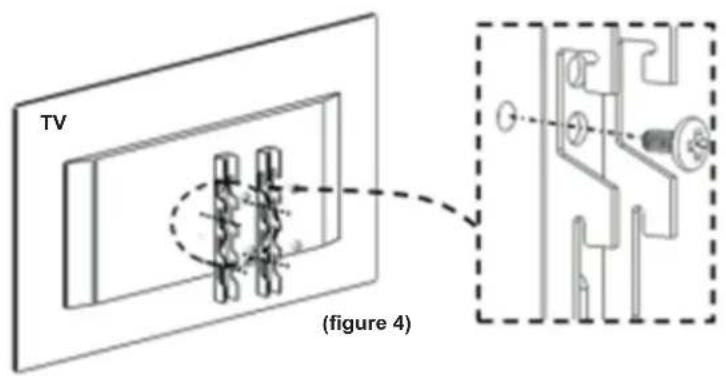

Adjust the carrier arms and the screws to the match the holes on the back of your TV (Figure 4) and fix the screws with the screwdriver (Figure 5).

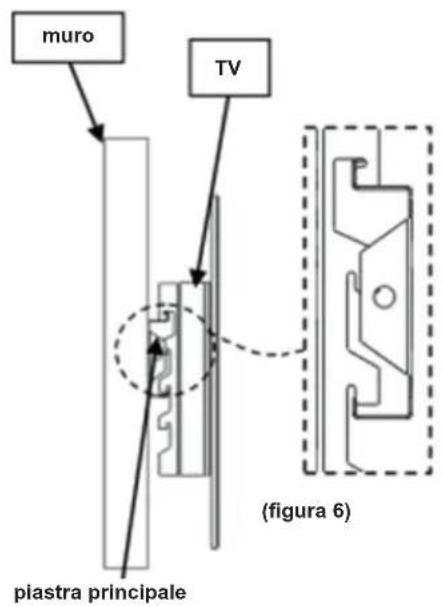

Hang your TV on the wall in figure 6 and complete the installation (Figure 6).

Technical line drawing of a mechanical bracket with an arrow indicating direction (no text or symbols)

ATTENTION!

Screwdriver and drill aren't included.

The product is automatically locked, the carrier arm cannot move when it comes to the end.

Removing the TV from the wall mount

To remove your TV from the wall plate assembly, disconnect all cables and then reserve the procedures.

Care and maintenance

As a good practice of care and maintenance, carry out periodic checks on the tightening of the anchors and check the integrity of the product.

Warranty

Melchioni Spa, based in Milan (Italy), via Colletta 37, recognizes a conventional guarantee on the product for a period of two years from the date of the first purchase by the consumer. This guarantee does not affect the validity of the legislation in force concerning consumer goods (Legislative Decree 6 September 2005 n. 206 art. 128 and following), of which the consumer remains the owner. This guarantee applies to the entire territory of the European Union.

The components or parts that are found to be defective for ascertained manufacturing causes will be repaired or replaced free of charge through the dealer, during the above warranty period. Melchioni Spa reserves the right to make a complete replacement of the device, if repairability is impossible or excessively expensive, with another device of similar characteristics (Legislative Decree 6 September 2005 no. 206 art. 130) during the warranty period. In this case, the validity of the warranty remains that of the original purchase: the service provided under warranty does not extend the warranty period.

In any case, this appliance will not be considered defective in terms of materials or manufacture should it be adapted, changed or adjusted, in order to comply with national or local safety and / or technical standards, in force in a country other than that for which it is was originally designed and manufactured. This appliance has been designed and built for domestic use only: any other use will invalidate the benefits of the guarantee.

The warranty does not cover:

• parts subject to wear or tear, nor those parts that require periodic replacement and / or maintenance
  • professional use of the product
• malfunctions or any defects due to incorrect installation, configuration, software / BIOS / firmware update not performed by authorized Melchioni Spa
  • repairs or interventions carried out by persons not authorized by Melchioni Spa
  • manipulation of assembly components or, where applicable, of the software
• defects caused by fall or transport, lightning, voltage fluctuations, liquid infiltration, opening of the appliance, bad weather, fire, public disturbances, inadequate ventilation or incorrect power supply
  • any accessories, for example: boxes, bags, batteries, etc. used with this product
  • home interventions for convenience checks or presumed defects

The recognition of the guarantee by Melchioni Spa is subject to the presentation of a tax document that proves the actual date of purchase. The same must not show any tampering or deletions, in the presence of which Melchioni Spa reserves the right to refuse the provision of treatment under warranty.

The warranty will not be recognized if the serial number or model of the appliance is non-existent, abraded or modified.

This warranty does not include any right to compensation for direct or indirect damage, of any nature, to people or things, caused by any inefficiency of the appliance. Any extensions, promises or services in this regard, insured by the retailer, will be borne by the latter.

Two technical line drawings of a mechanical component, labeled (a) and (b), showing internal features without any text or symbols.

pared (figura 3)

Pure mechanical diagram showing a screwdriver inserted into a bracket (no text or symbols)

(figura 5)

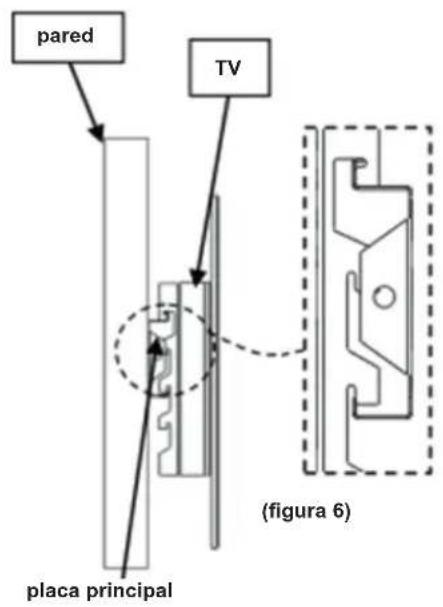

pared TV (placa principal (figura 6)

Technical line drawing of a mechanical bracket with an arrow indicating direction (no text or symbols)

¡ATENCIÓN!

Technical line drawings of two mechanical components labeled (a) and (b), showing internal features without any text or symbols.

(4 pcs) (c) (e) (4 pcs) (d) (4 pcs)

mur (figure 1) (figure 2)

mur (figure 3)

Pure mechanical diagram showing a screwdriver inserted into a bracket (no text or symbols)

(figure 5)

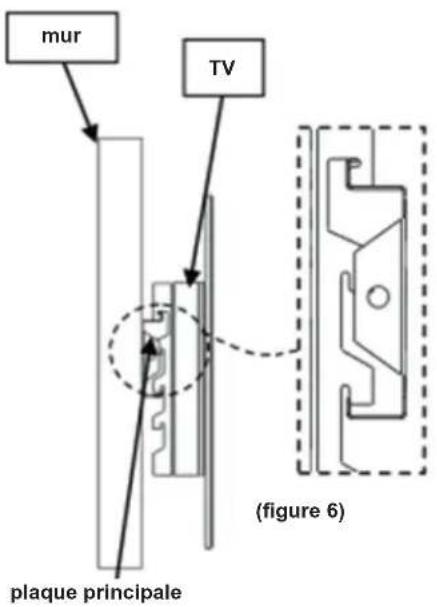

mur TV (figure 6) plaque principale

Technical line drawing of a mechanical assembly with a bracket and mounting holes (no text or symbols)

ATTENTION!

Technical line drawings of two mechanical components labeled (a) and (b), showing internal features without any text or symbols.

Diagram of a screwdriver inserted into a mechanical component, labeled (Abbildung 5), with no readable text or symbols beyond the label.

Technical line drawing of a mechanical assembly with a bracket and mounting holes (no text or symbols)

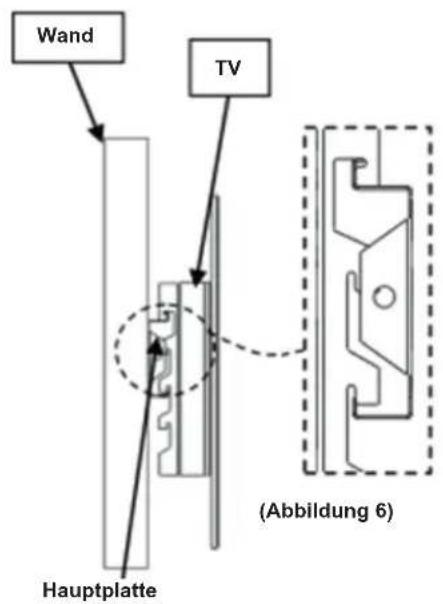

ACHTUNG!
