Product Type	Voice Recorder
Brand	Irradio
Model	VR 602M
Display	128 x 64 Dot Matrix Screen
Battery Type	Lithium-ion, 380mAh
Recording Capacity (Battery)	HP: 9 hrs, SP: 21 hrs, LP: 20 hrs
Recording Capacity (4GB Memory)	HP: 68 hrs, SP: 280 hrs, LP: 1080 hrs
Internal Memory	4GB Flash
USB Interface	Mini 5-pin USB
Earphone Jack	3.5mm
USB Standard	USB 2.0
Music Formats	MP3, WAV, REC
FM Radio Range	87.5 – 108 MHz
Signal-to-Noise Ratio	≥60 dB
Recording Formats	PCM, HP, SP, LP
Noise Reduction	Yes (One Key)
Voice Operated Recording (VOR)	Yes, enable/disable
Timer Recording	Yes, set date and duration
Dimensions	104 x 32.9 x 11.6 mm
Weight	41 g
Microphone	Built-in
Output	Double track headset
Accessories	User manual, USB cable, earphone, line-in cable, telephone cable, telephone adapter
Cleaning	Use a soft, dry cloth. Do not use solvents or water.
Safety	Keep away from moisture and extreme temperatures. Do not disassemble.
Spare Parts and Repairability	No user-replaceable parts. Contact authorized service center.
General Information	Features built-in rechargeable battery, FM radio, and voice activation.

Frequently Asked Questions - VR 602M Irradio

How do I turn the device on and off?

Press and hold the Play/Pause button for 2 seconds to turn on or off when in standby mode.

How do I start recording?

Press and hold REC/PAUSE for 2 seconds to start recording. The REC indicator light will flash. Press again to pause, and press STOP to save and stop.

How do I use the noise reduction feature?

Set the NOISE CUT switch to the top position to enable one-key noise reduction. It will automatically filter background noise. Recordings are saved as RNC***.***.

How do I set a timer recording?

In Voice mode, go to Menu > Record time. Use ◀◀ ▶▶ to select Recording Timer, then adjust the start time (year-month-date hour:minute) with +/- and confirm with M. Set the recording length similarly.

How do I delete files?

In Music or Voice mode, when playback is stopped, press Menu to access Delete file or Delete all. Use ◀◀ ▶▶ to select a file and confirm with M.

Can I record telephone calls?

Yes. Connect the telephone cable to the telephone adapter, then link the audio line to the adapter and the LINE IN jack. Press REC to start recording.

How do I listen to FM radio?

Press M to enter Radio mode. Use ◀◀ ▶▶ to manually adjust frequency. Press M again for submenu options like Auto search, Save, and Record.

What is VOR and how do I enable it?

VOR (Voice Operated Recording) starts recording only when sound is detected. In Voice mode, go to Menu > VOR control and select Enable to activate.

How do I charge the device?

Connect the USB cable to the device and a computer or USB charger. The battery icon will show charging status. Full charge takes about 3-5 hours.

What are the different recording modes?

The recorder offers four recording qualities: HP (High Quality), SP (Standard Play), LP (Long Play), and PCM (uncompressed). They trade off recording time and quality.

USER MANUAL VR 602M Irradio

Assocoltondiperna' campus radio

◀◀ ▶◀ = Previous/Next or REW/FF

▶II = Play/Pause

+ - = Vol+/Vol-

Power On/Off

ON ---Power On

OFF----Power Off

press and hold "Play/Pause" for 2 seconds to turn on/off when standby.

Charging

Please charge when display □ through USB port till ■.

Generally, the charging will last 3-5 hours.

Rec

Press and hold “REC/PAUSE” for 2 seconds to start recording, REC indicator light will flash, press again for pausing; Press “STOP” will stop and save recording.

One key for noise reduction

Set the “NOISE CUT” to the top will turn on this function, it will filter out the noise automatically, recording files will be saved as “RNC***.***”. Recommend this function under noise environment, but unnecessary if quiet.

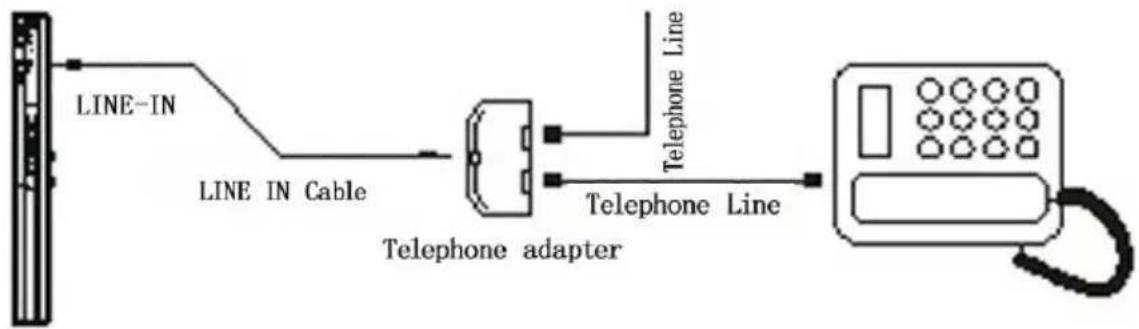

Connect the external telephone line and telephone cable to the telephone adaptor; link the audio line to the adaptor and LINE IN jack, presses "REC" to start recording.

Connect way as follow:

Under the main menu, press ◀◀ ▶▶ to select mode.

Music mode

Press "M" to enter into Music Mode, ▶II to play or pause playback, music, + / - for adjusting volume, ◀◀ ▶▶ to select music file. Press and hold "M" to exit.

WHILE PLAYING

Press and hold ◀◀ ▶▶ to REW/ FF, + / - for adjusting volume

1) Press "MENU" to enter into submenu, ◀◀ ▶▶ for selecting, "M" to confirm.

2) Press "MENU" you can adjust

"Repeat /Equalizer/Replay/Replay times/Replay/Gap/Exit"

Repeat: -Repeat One/Play All/Repeat All/Random

Equalizer:-Natural/Rock/Pop/Classic/Soft/Jazz/DBB

Replay:-Press "M" to enter,"A" will flash, press ▶▶ to choose starting point, "B" will flash, press ▶▶ to set end replay point.

Replay times/Gap:-◀◀ ▶▶ to adjust and "M" to confirm.

WHILE PLAYING STOPPED/PAUSED

Press "MENU" to enter into "Delete file, Delete all" submenu.

Delete file: Press "M" when playing stopped, you can delete specific file through K◀ ▶H and YES NO . Or you can select "delete all" to delete all files.

Voice mode

Press "M" to enter into Voice Mode :

▶▶ to play or pause playback, music, “+/-” for adjusting volume, ◀◀ ▶▶ to select Voice file, Press and hold “M” to exit;

Voice mode

WHILE PLAYING

Press and hold ◀◀ ▶▶ to REW/ FF while playing, “ +/- ” for adjusting volume

Press "M" to enter into "Repeat one, Folder, Repeat Folder, Random" re-press "M" to select.

WHILE PLAYING STOPPED/PAUSED

Press "M" to enter submenu, you can choose:

Record type/Voice File/VOR control/Listen in set/Record Time/Delete file/Delete all/Free RECTime/Exit, press "MENU" and ◀◀ ▶▶ to select.

Press and hold "M" to return main menu.

Record type: please select which mode you want before recording; Then it will autosaved in the specific folder. (Stereo REC/Standard REC/Long REC/). Press "M" to confirm.

Voice File: you can choose which type voice will playback. (Stereo/Standard /Long). Press "M" to confirm and exit.

VOR control: Press "M"/◀◀ ▶▶ to choose Enable /Disable VOR, means it will recording only under voice environment if enable VOR.

Listen in set: Monitor record Function, Press "M"/ ◀◀ ▶▶ to choose Enable /Disable, if Enable, you will hear the voice while recording after insert earphone.

Record time: You can set the recording time and recording length in advance, press "M" and << >> to choose Recording Timer, Press << >> till year-month-date hour minute, the number will flash, you can adjust through "+/-" then press "M" confirm and exit. Default recording length is 1min, Set Recording length is the same as timer.

Delete file/Delete all: you can delete specific file through ◀◀ ▶ and YES NO Or you can select "delete all" to delete all files.

Radio mode

Press "M", you will manual adjust frequency through ◀◀ ▶▶, Press "M" again to enter submenu, Auto search/Save/Record/Delete/Delete all/Exit are available for operation. Press "M" to enter and exit, Press and hold "M" to exit main menu.

Auto search: sequence will follow frequency. First choose which FM you will record, press "M" and choose "Record" to start, Press "STOP" to save, exit to Radio Mode, the recording file will save in "DVR/ Code Folder ", the format is "MP3", Default name is "RFM***. mp3". you can playback the file in "Code Folder".

It will be available as long as campus radio signal exist, the operation is the same as the Radio Mode.

Settings

Press "M" to enter submenu.

Backlight: Press "M" to enter, and adjust it through "+/-".

Languages: Press "M" to enter, and adjust it through

Power off/Contrast: Press "M" and adjust it through "+/-". (Power off: default: 3mins)

Memory Info: Press "M", you will see the memory information

Accessories

User's manual, USB cable, Earphone, Line-in cable, telephone cable and telephone adaptor

Specification

Display 128*64 Dot Matrix Screen
Li-Battery Capacity	380mAh
Recording Capacity (Battery) 9hrs-HP,21hrs-SP,20hrs-LP
USB Interface mini 5pin USB
Earphone Interface	3.5mm
USB Type	USB2.0
Music format: MP3/WAV/REC
FM radio 87,5MHz – 108MHz
LRC	yes
SNR ≥60dB
Recording Type	PCM/HP/SP/LP
Recording Capacity (4GB) 68hrs-HP,280hrs-SP,1080hrs-LP
Flash Memory 4GB
Dimension 104*32.9*11.6mm
Weight 41g
Input	Built-in Microphone
Output	Double track headset
